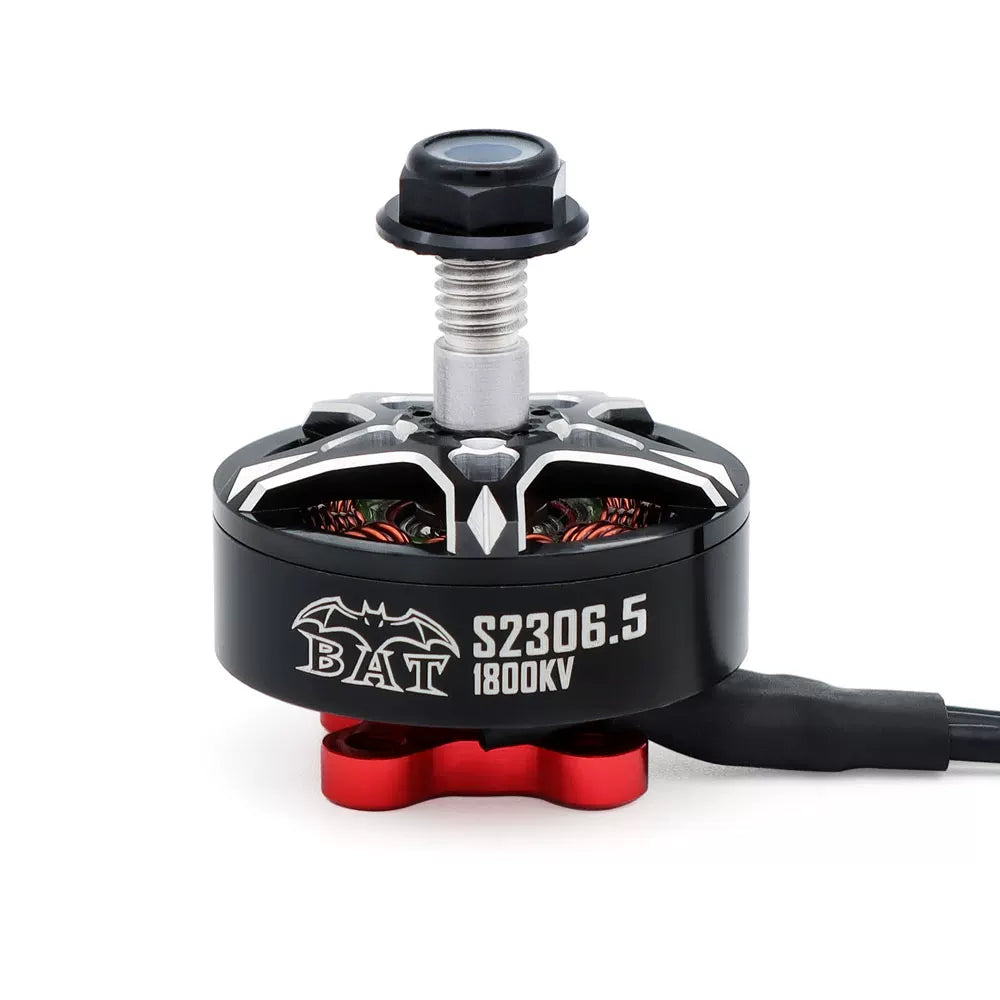

Surpass Hobby BAT S2306.5 1800KV 2500KV FPV Brushless Motor for 5-Inch FPV Multirotors Drone

Surpass Hobby

$35.00 USD

In offerta Esaurito

Imposte incluse. Spese di spedizione calcolate al check-out.

KV 1800KV 2500KV

Quantity 1PCS 4PCS

Quantità

Visualizza dettagli completi

Overview

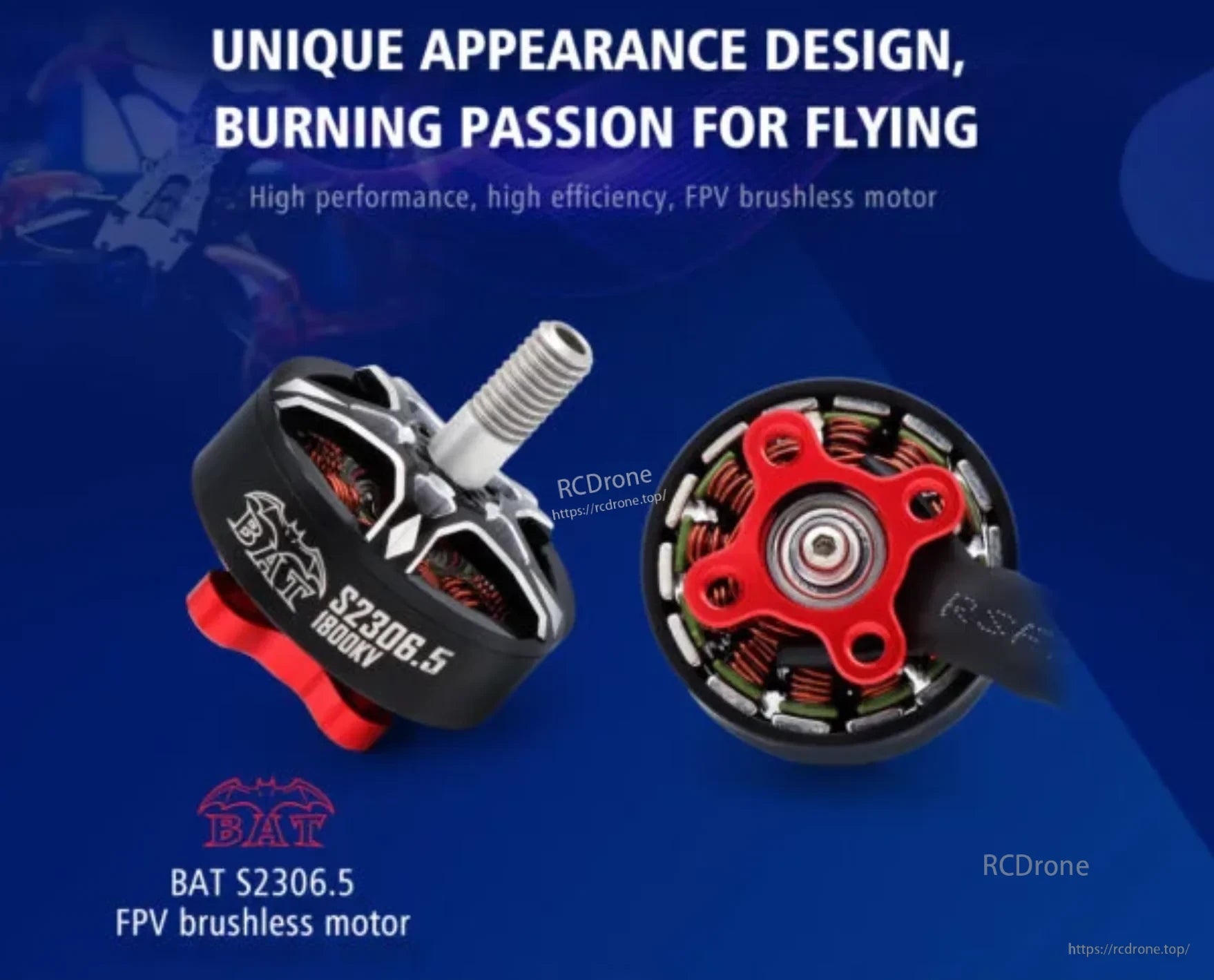

The Surpass Hobby BAT S2306.5 FPV brushless motor is available in 1800KV and 2500KV versions for FPV multirotor builds. It uses a 2306.5 stator, a detachable motor design, and an M5 threaded shaft for propeller installation.

Key Features

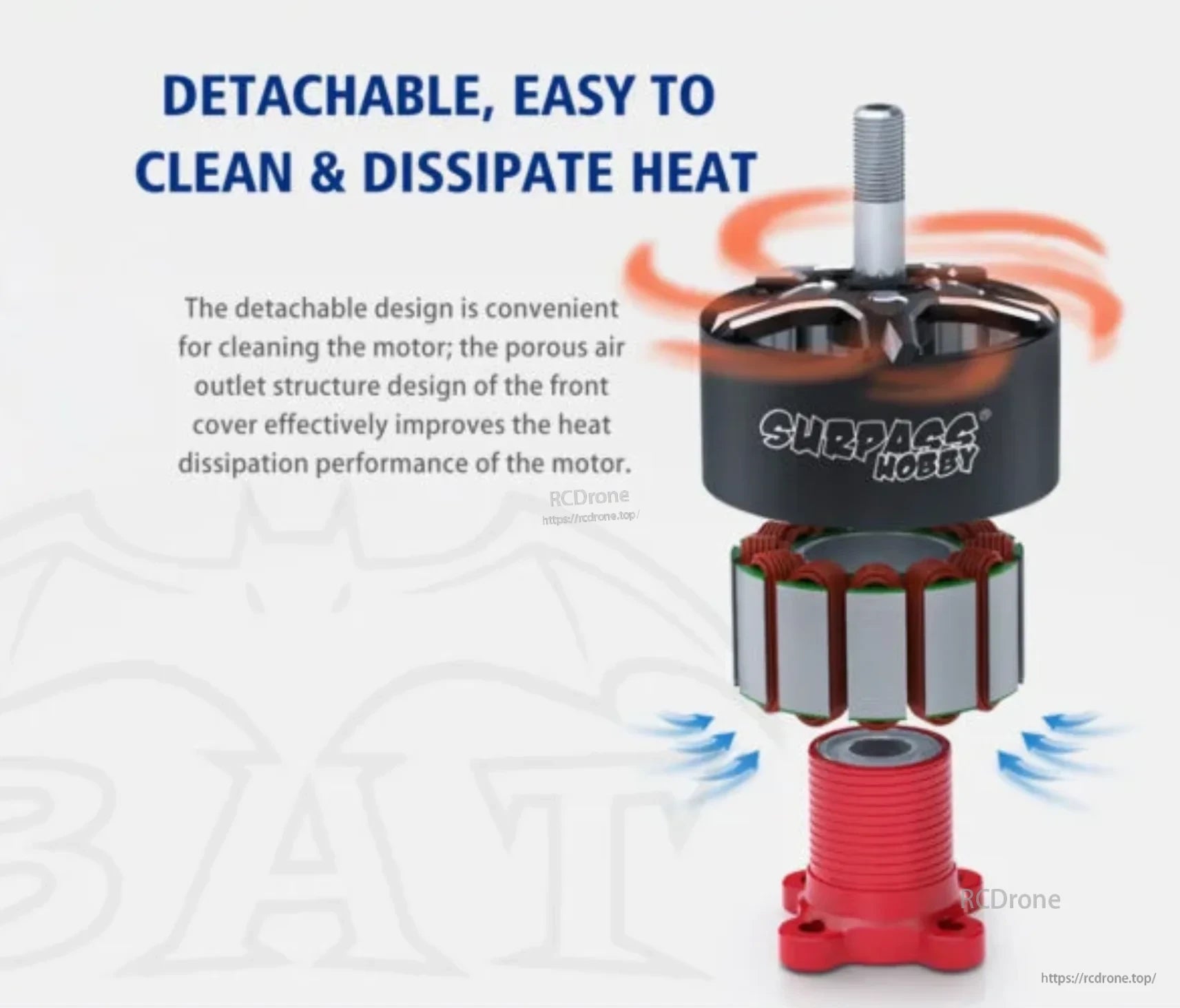

Detachable construction for motor cleaning and maintenance.

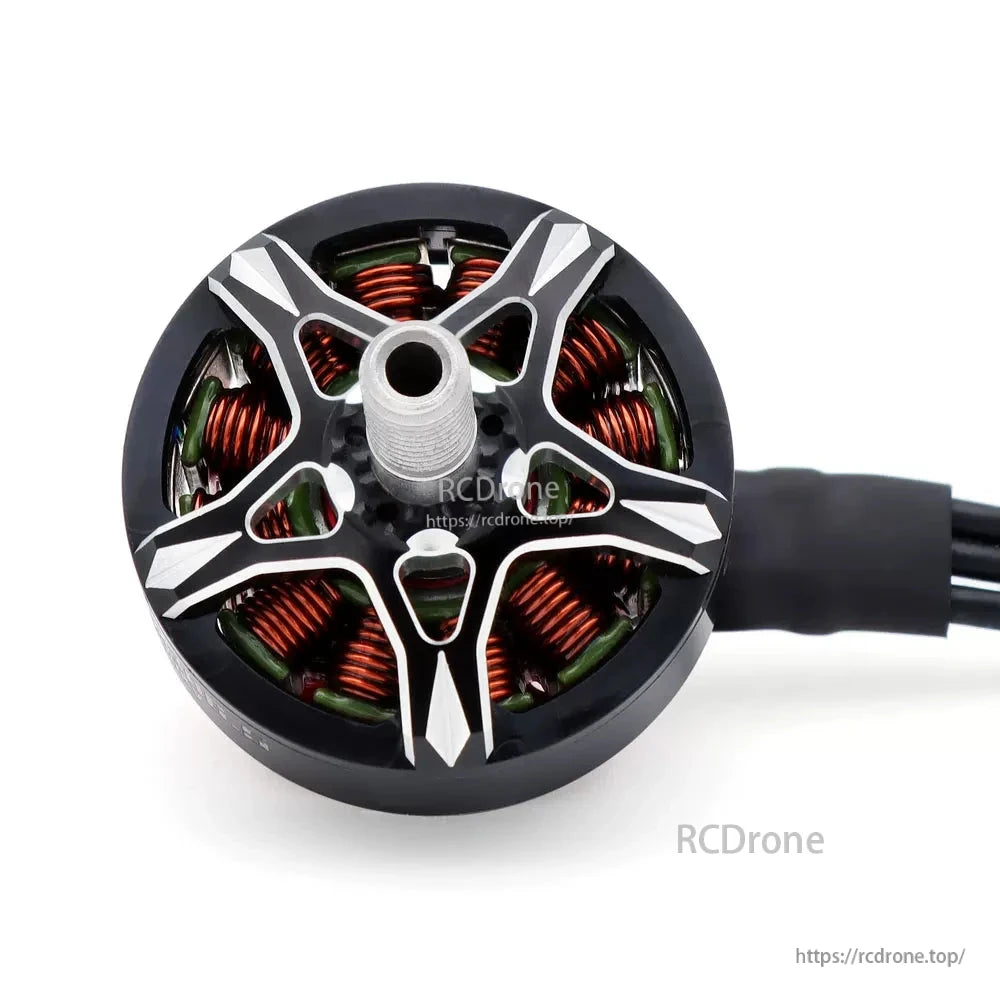

Ventilated bell design intended to support heat dissipation.

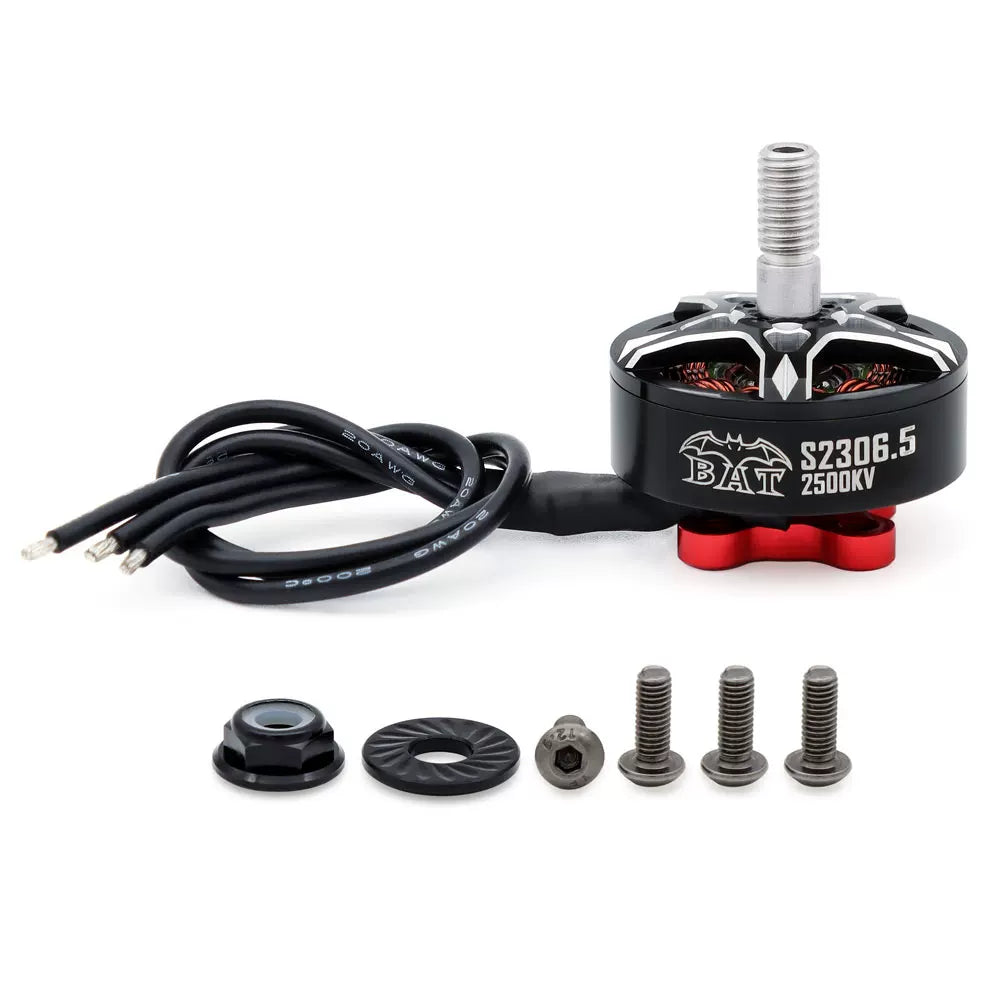

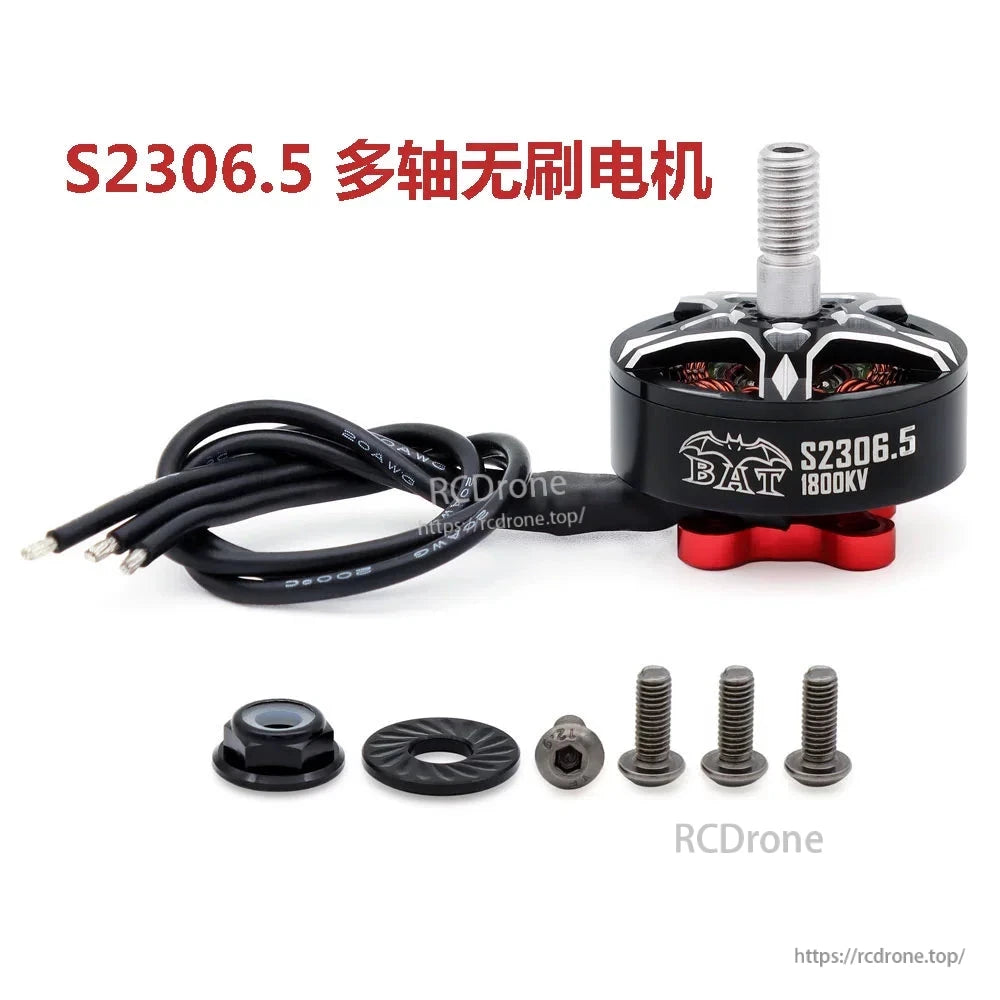

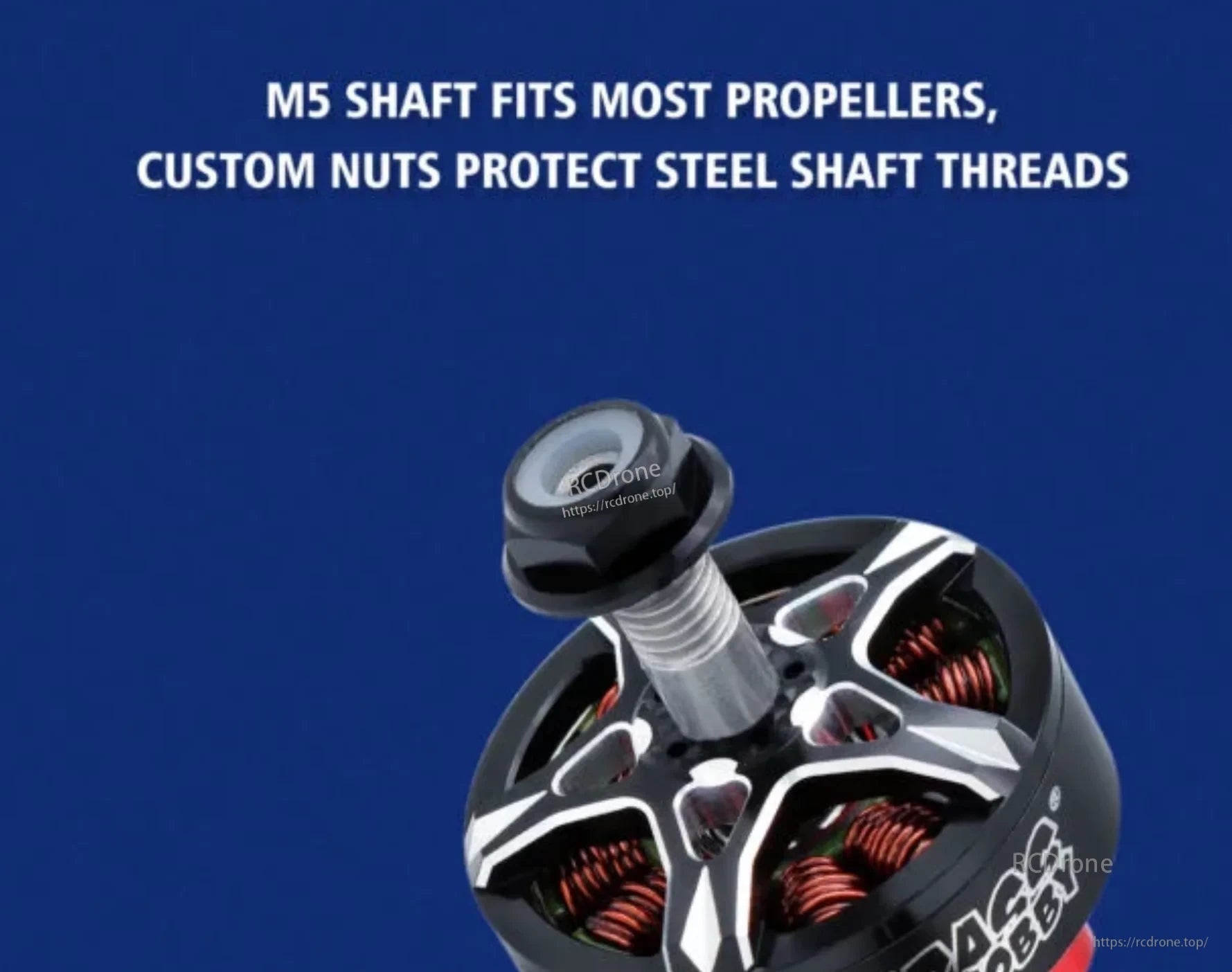

M5 threaded shaft with an included M5 nut.

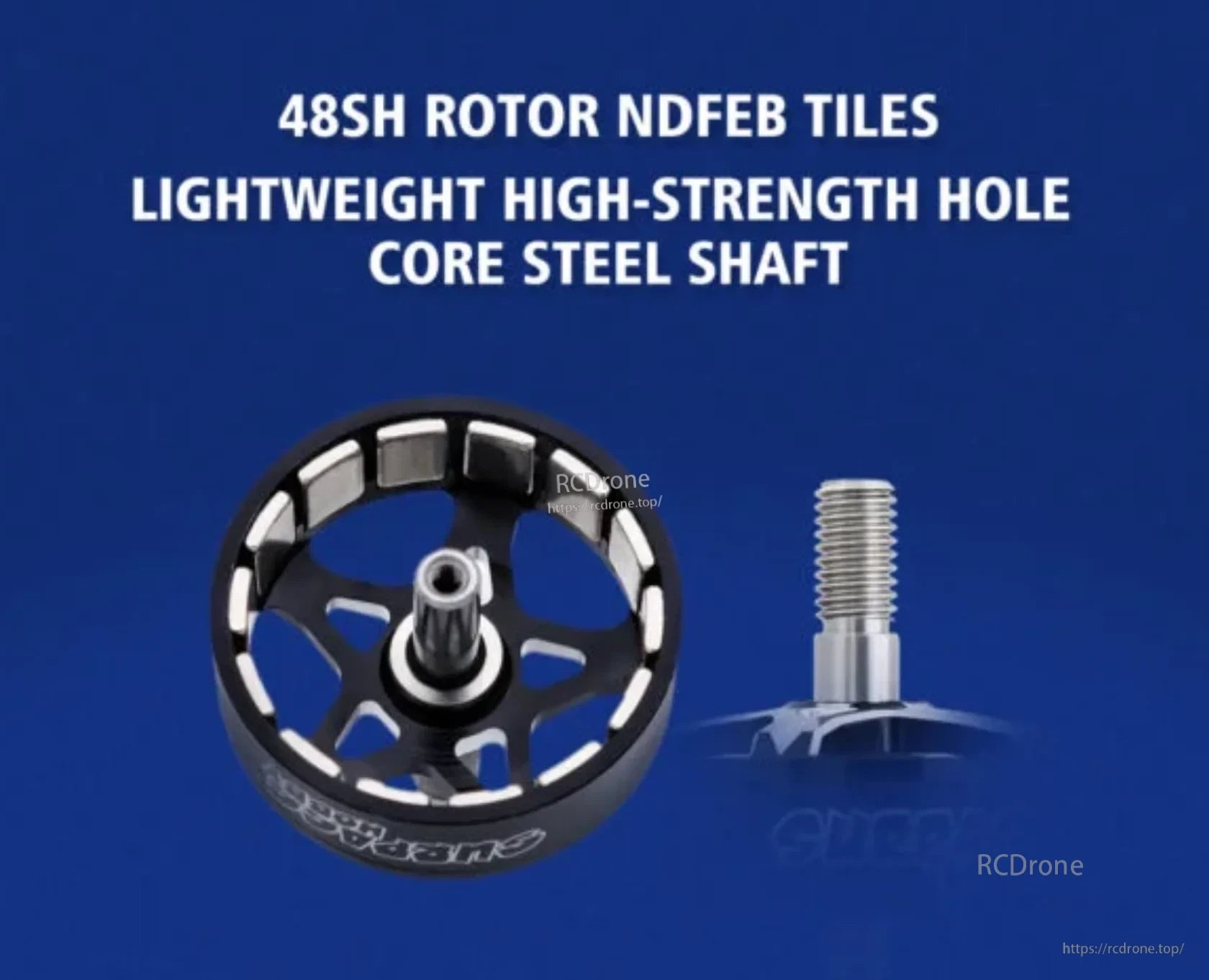

48SH rotor with NdFeB magnet tiles.

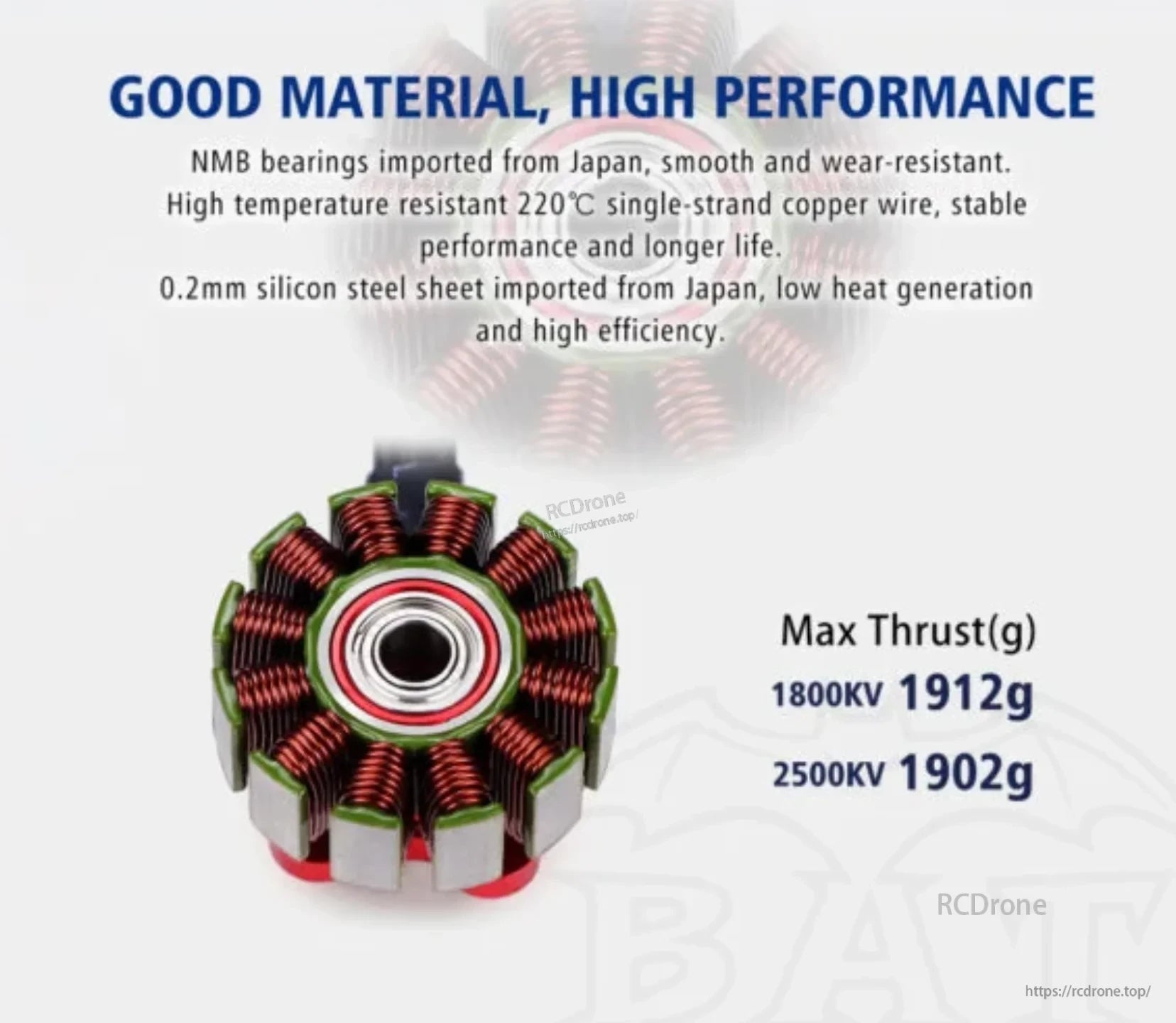

NMB bearings, 220 C-rated single-strand copper wire, and 0.2 mm silicon steel laminations.

Specifications

Model	BAT S2306.5
Motor type	FPV brushless motor
KV options	1800KV, 2500KV
Stator size	23 x 6.5 mm
Rotor poles	14
Weight	34 g
Shaft thread	M5
Mounting pattern	4 x M3, 16 x 16 mm
Recommended propeller	5.1 x 4.1 x 3 in

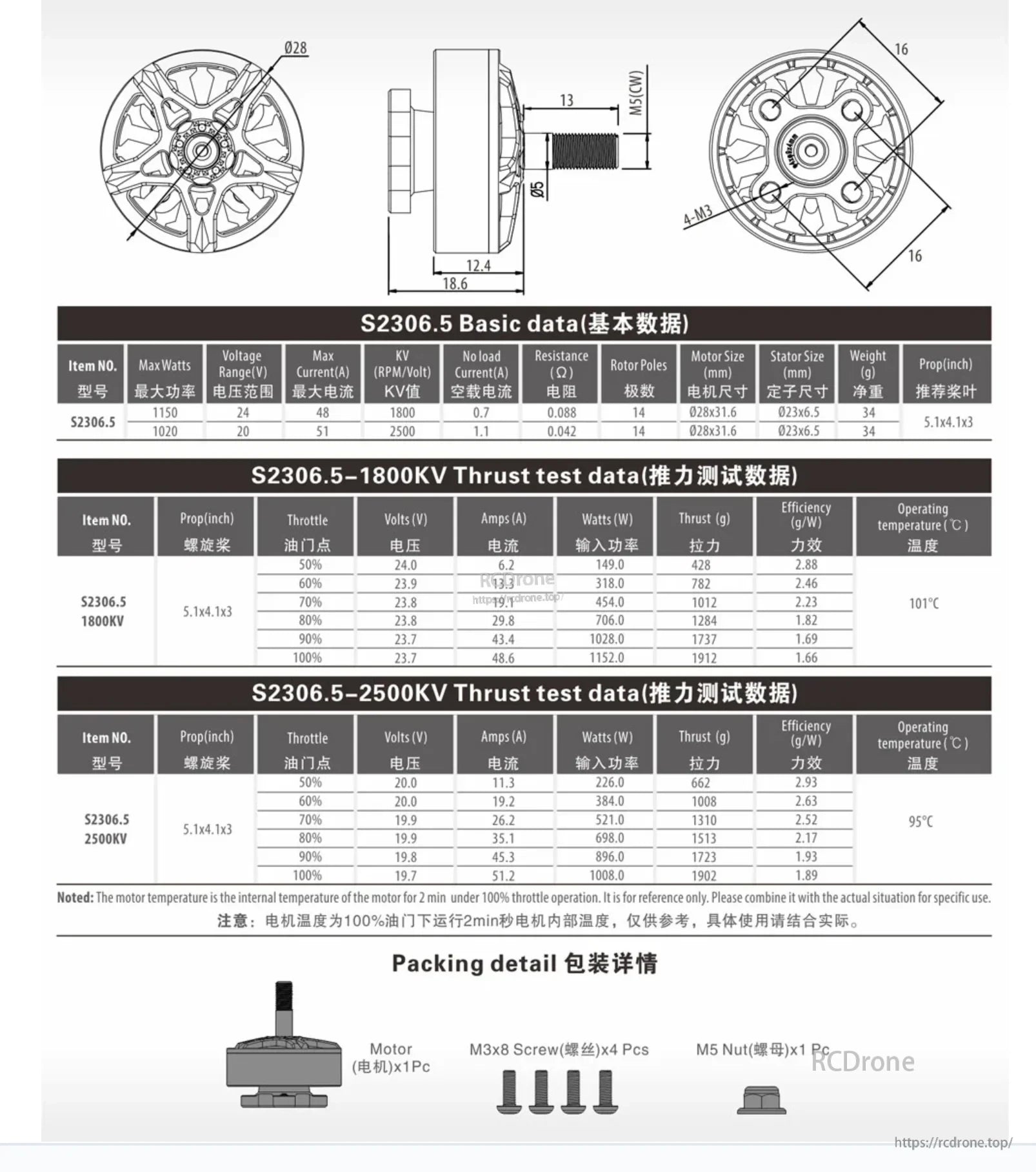

Electrical Data

KV	Voltage Range	Max Current	No-Load Current	Resistance
1800KV	24 V	48 A	0.7 A	0.088 ohm
2500KV	20 V	51 A	1.1 A	0.042 ohm

Maximum Thrust Test Data

KV	Test Voltage	Input Power	Thrust	Efficiency
1800KV	23.7 V	1152.0 W	1912 g	1.66 g/W
2500KV	19.7 V	1008.0 W	1902 g	1.89 g/W

Maximum-thrust figures were measured with a 5.1 x 4.1 x 3 in propeller. Select the required KV option before ordering. For product assistance, contact rcdrone.top.
