Overview

Product type: Servo kit. This Yahboom SG90 servo with platform for smart car combines a 9g micro servo and a mounting platform for building pan/tilt-style ultrasonic scanning on a smart car. It is designed for distance measurement and ultrasonic obstacle avoidance experiments with 180° angle range rotation.

Key Features

  • 180° angle range rotation
  • PWM control reference (cycle: 20ms): 0.5ms = 0°, 1ms = 45°, 1.5ms = 90°, 2ms = 135°, 2.5ms = 180°
  • 180° ultrasonic scanning avoiding: the ultrasonic sensor combined with a steering gear pan tilt that can rotate 180° can realize dynamic scanning and ranging in a large area ahead, judge the open position of the relative obstacle, and realize intelligent obstacle avoidance.

For product selection and technical support, contact https://rcdrone.top/ or email support@rcdrone.top.

Specifications

Servo platform parameters

Fixing plate size 32*32mm
Fixed hole spacing of copper column 10mm
Height (excluding ultrasonic module and copper column) 35mm
Weight (excluding ultrasonic module and copper column) 21g
Copper stud thread M3
Copper column model M3*40mm double-pass
Screw model M3*8mm steering gear package screw

Size of 9G servo

Dimensions shown (units not specified in the drawing): 12.00, 32.50, 27.80, 8.56, 23.0, 16.30, 23.20, 27.30; hole diameter: Φ2.20.

Parameters of 9G servo

Working voltage 4.8-6.0V DC
No-load current 90mA (4.8V)
No-load speed 0.13sec/60° (4.8V)
Locked rotor torque 1.3kgf.cm (4.8V)
Locked rotor current 750mA (4.8V)
Pulse width range 500-2500us corresponding 0~180°
Angle accuracy 180°±3°
Dead band width 8us
Rocker arm type 20T/Φ4.9mm
Line length 250mm+5mm
Gear material Plastic tooth
Output shaft material Plastic shaft
Shell material ABS
Control mode PWM pulse width control
Working life 200,000 Cycles (Min)
Weight 9±0.5g

Ultrasonic parameters (HC-SR04)

Module size shown (dimensions units not specified in the diagram): 45, 19, 20, 1.5.

Model HC-SR04
Working voltage 5V
Operating current 15mA
Working frequency 40KHz
Static operating current <2mA
Sensing angle ≤15°
Range 2CM-4CM (Peak value)
Detection range 2-400cm
High-precision Up to 0.3cm
Blind area 2cm
Pin sequence VCC, Trig (control terminal), Echo (receiving terminal), GND
Input trigger signal 10us TTL pulse
Input echo signal Output TTL level signal, proportional to range
Level output TTL level

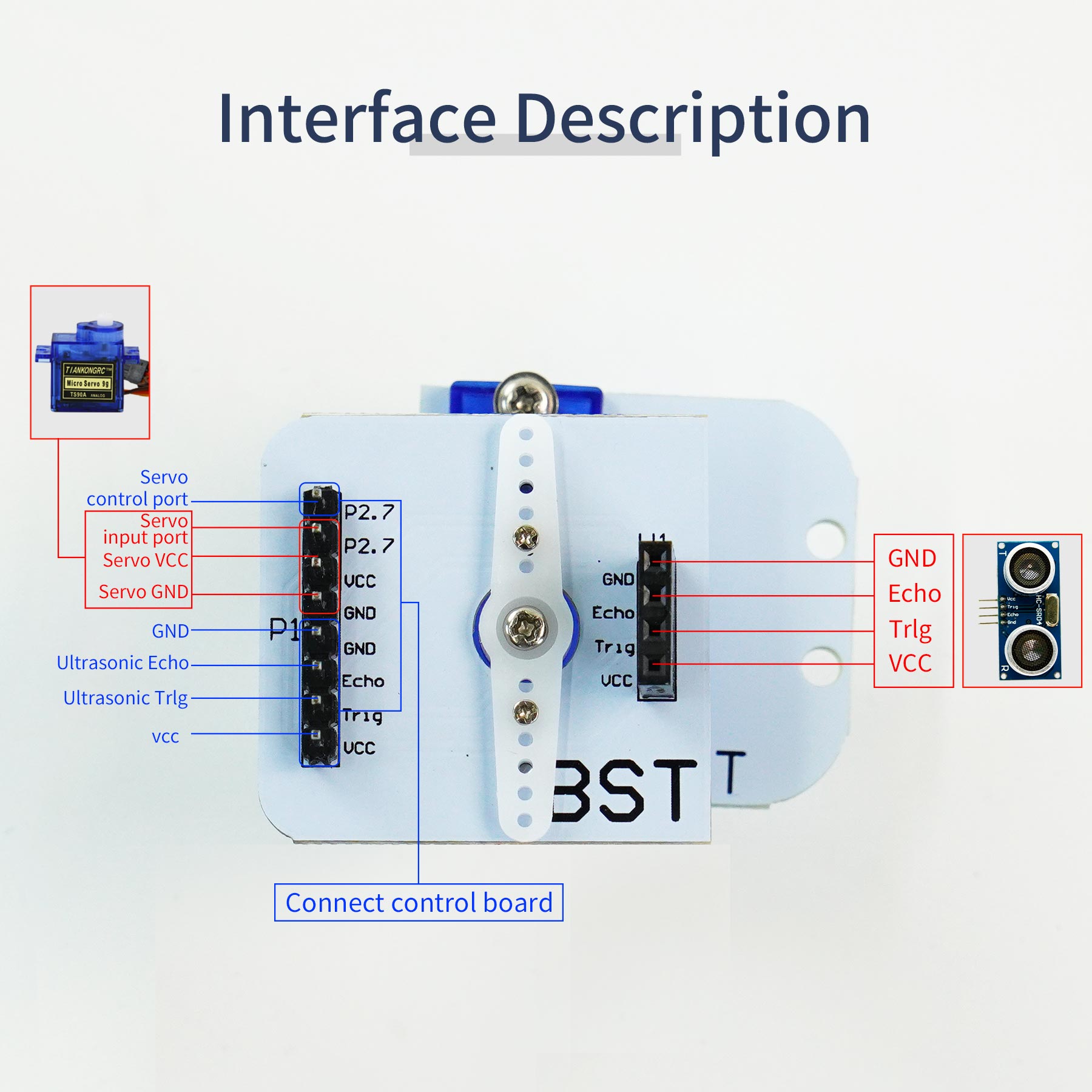

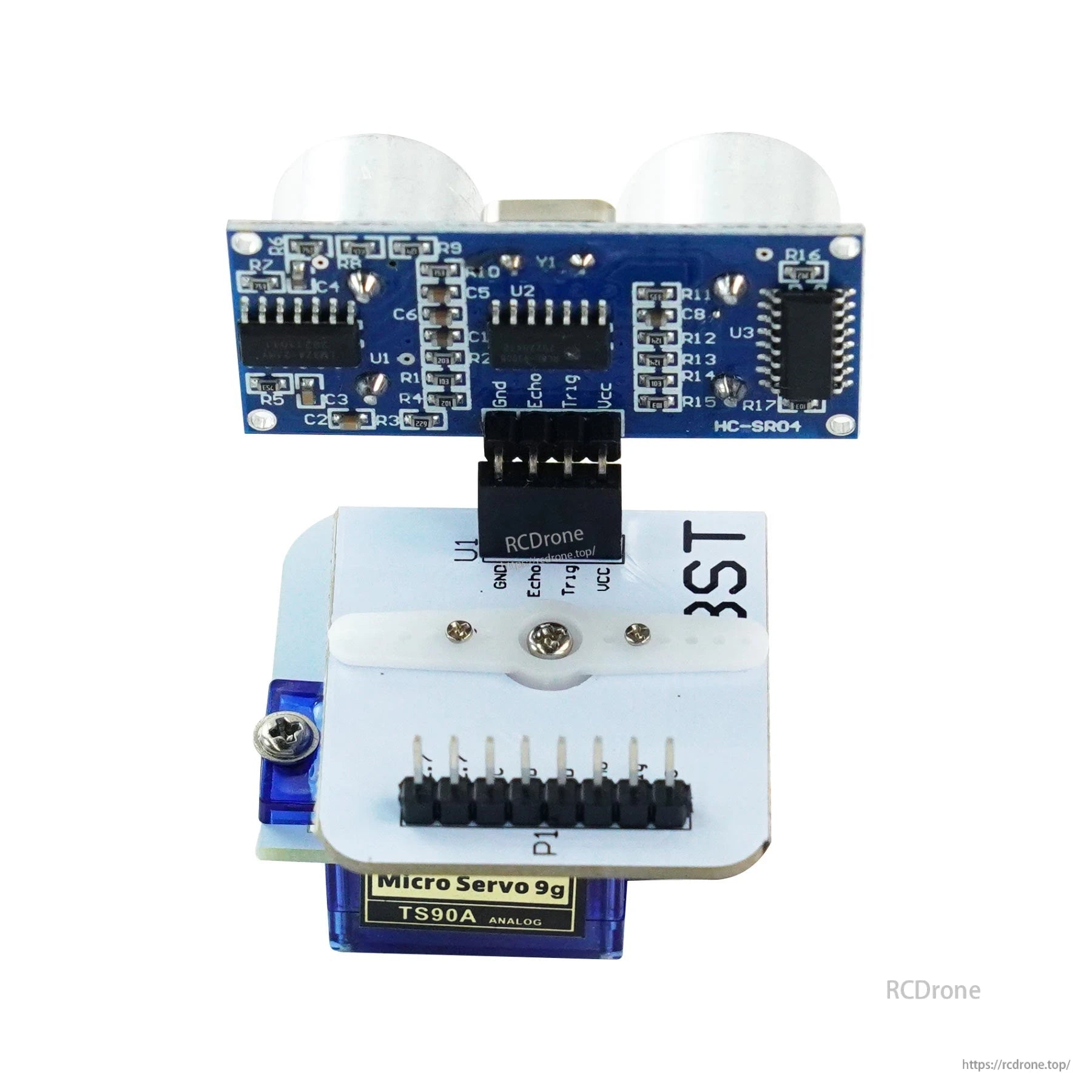

Interface Description

  • Servo control port: insert servo line
  • Servo input port: Servo VCC, Servo GND
  • Controller connections (labels shown): GND, Ultrasonic Echo, Ultrasonic Trlg, VCC
  • Ultrasonic interface: GND, Echo, Trlg, VCC
  • Note shown: The red line is the connection between ultrasonic wave and servo platform. The blue line is the connection between the servo platform and the development board/controller.

What's Included

  • Servo platform bracket *2
  • M3*40mm double pass copper column *2
  • 9G servo
  • Screw
  • Rudder arm + fixed wing
  • Ultrasonic module (optional)

Applications

  • Smart car distance measurement experiments
  • Ultrasonic scanning obstacle avoidance (180° rotation)

Manuals

Tutorial link: http://www.yahboom.net/study/SG90-Servo

Details

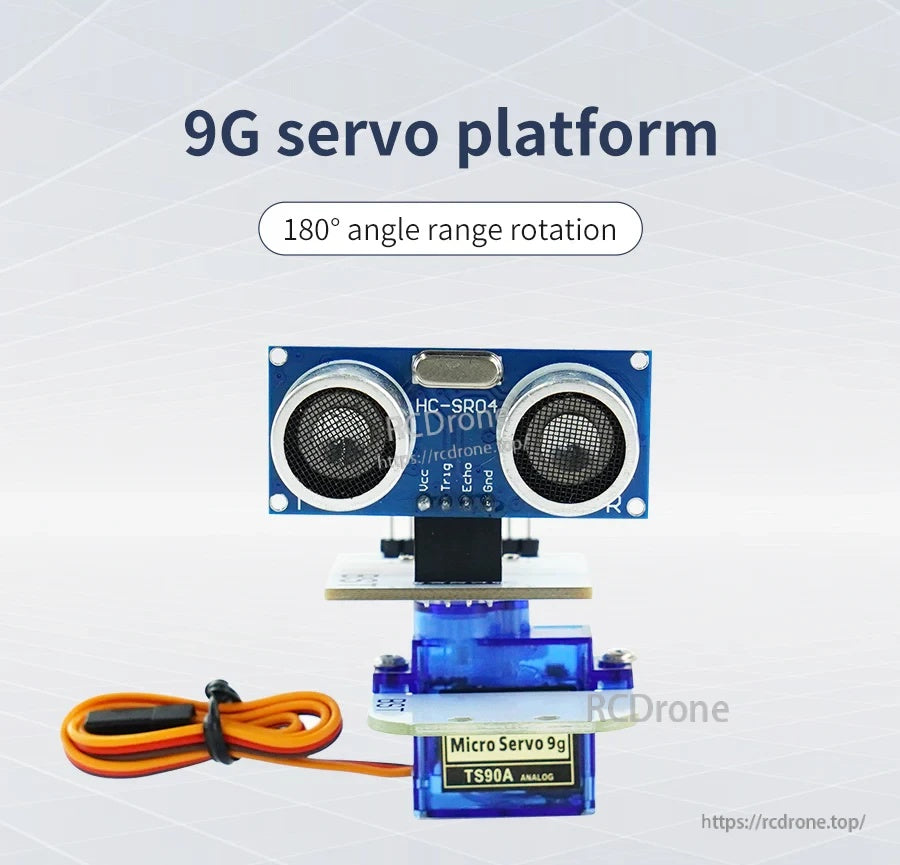

Yahboom SG90 9g servo platform with HC‑SR04 ultrasonic sensor mount for 180° scanning

Combine a 9g micro servo with an ultrasonic sensor mount to build a compact 180° scanning head for smart cars.

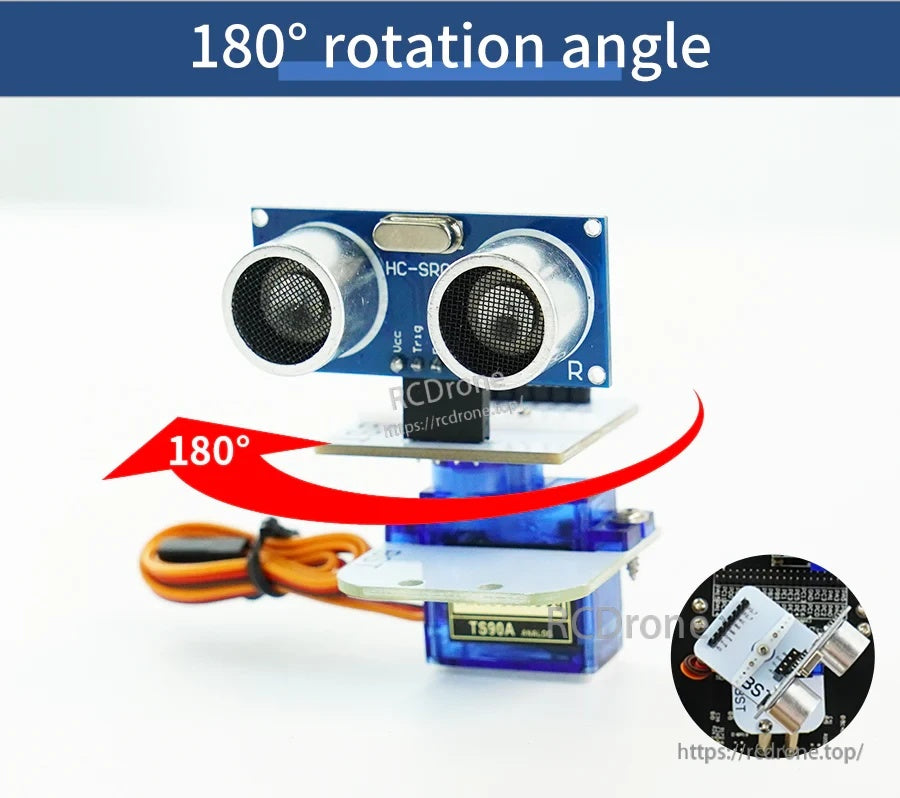

Micro servo platform illustrating 180° rotation range for ultrasonic obstacle avoidance scanning

The pan/tilt bracket lets the sensor sweep left to right for wider distance measurement coverage.

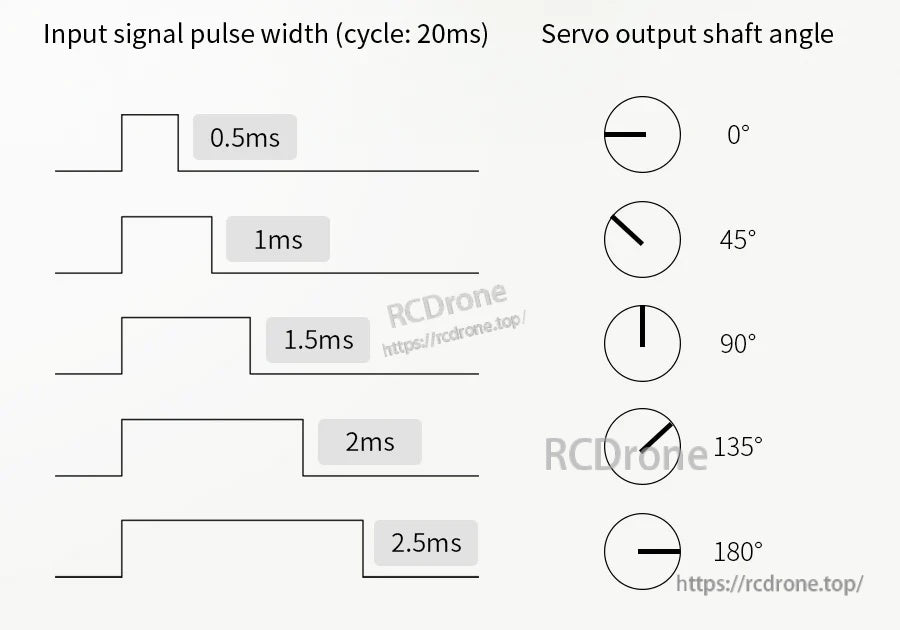

PWM pulse width chart mapping 0.5–2.5 ms signals to servo angles from 0° to 180°

PWM timing reference makes it easy to command repeatable angles across the full 0–180° range.

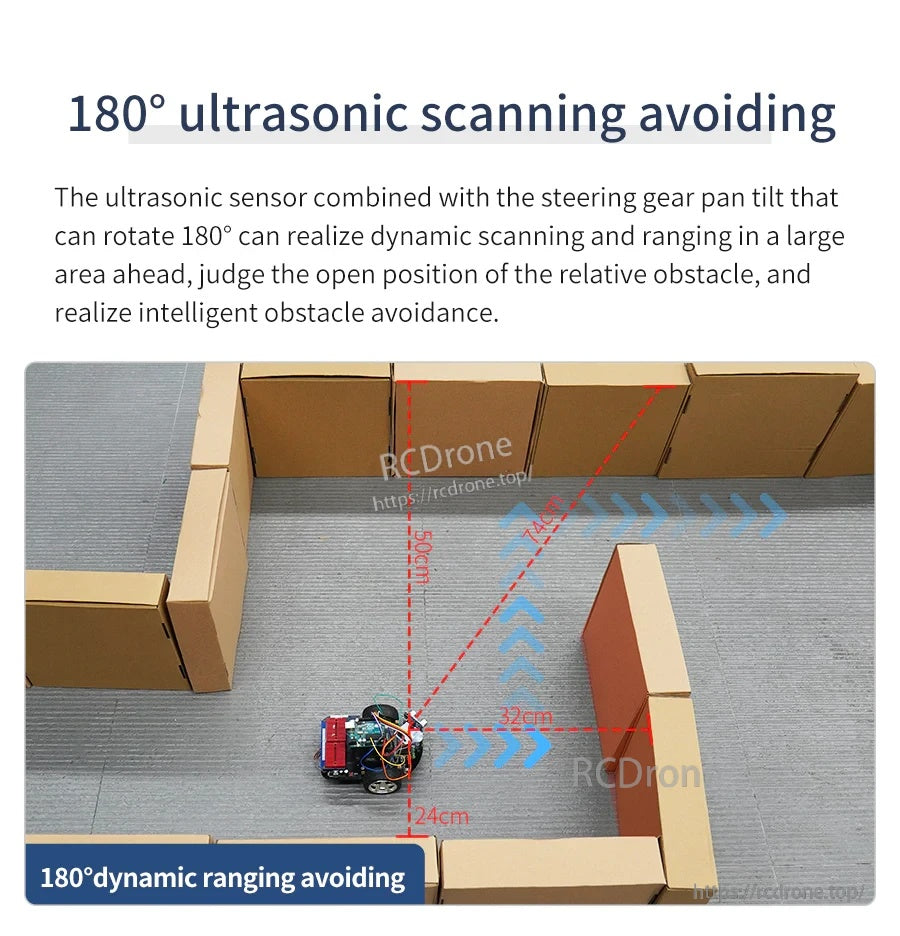

Smart car obstacle avoidance example using 180° ultrasonic scanning and dynamic ranging

Dynamic ultrasonic scanning helps a robot car identify open paths and steer around obstacles.

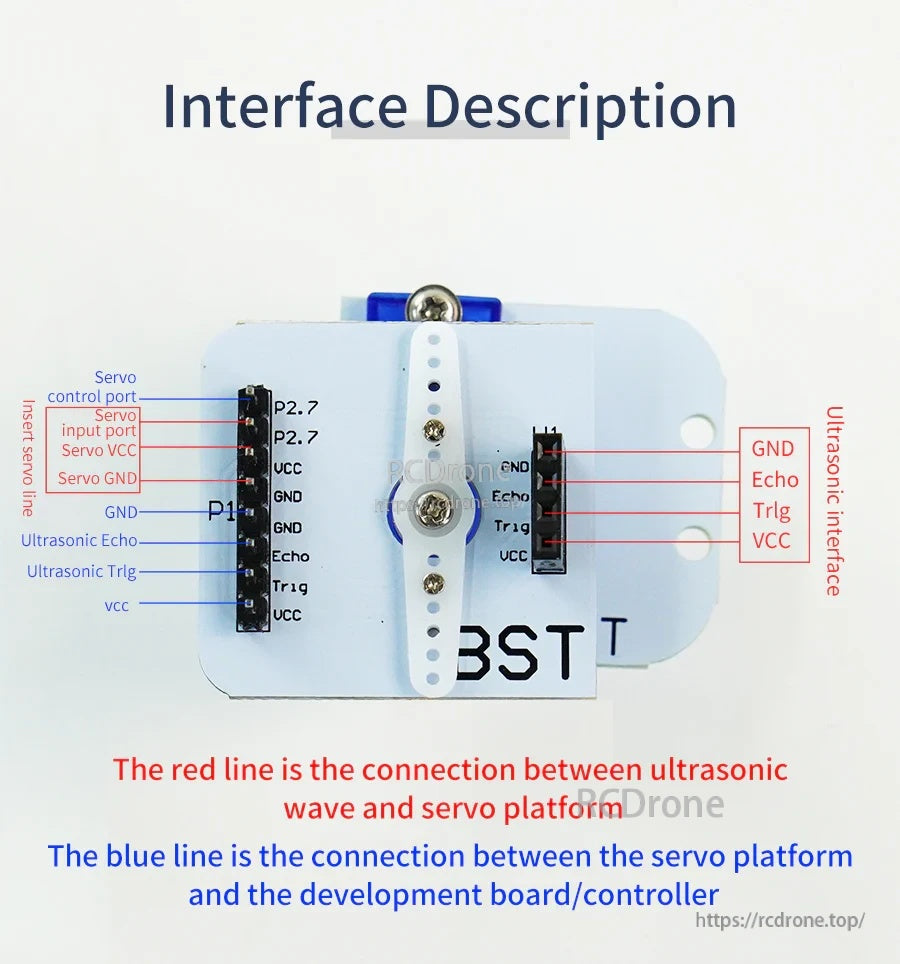

Interface wiring diagram for servo control and HC‑SR04 ultrasonic sensor connections on the platform

Clear pin labeling simplifies connecting servo power/control and the HC‑SR04 Trig/Echo lines to a controller.

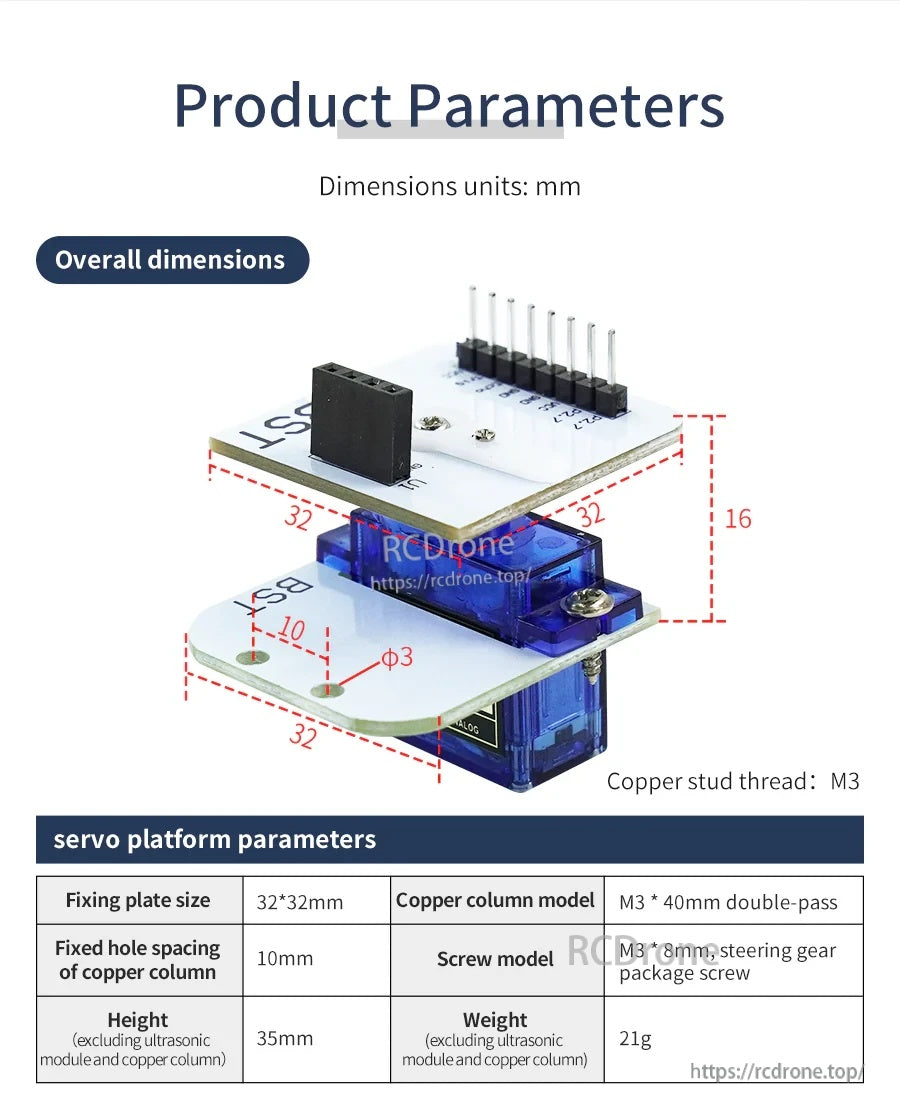

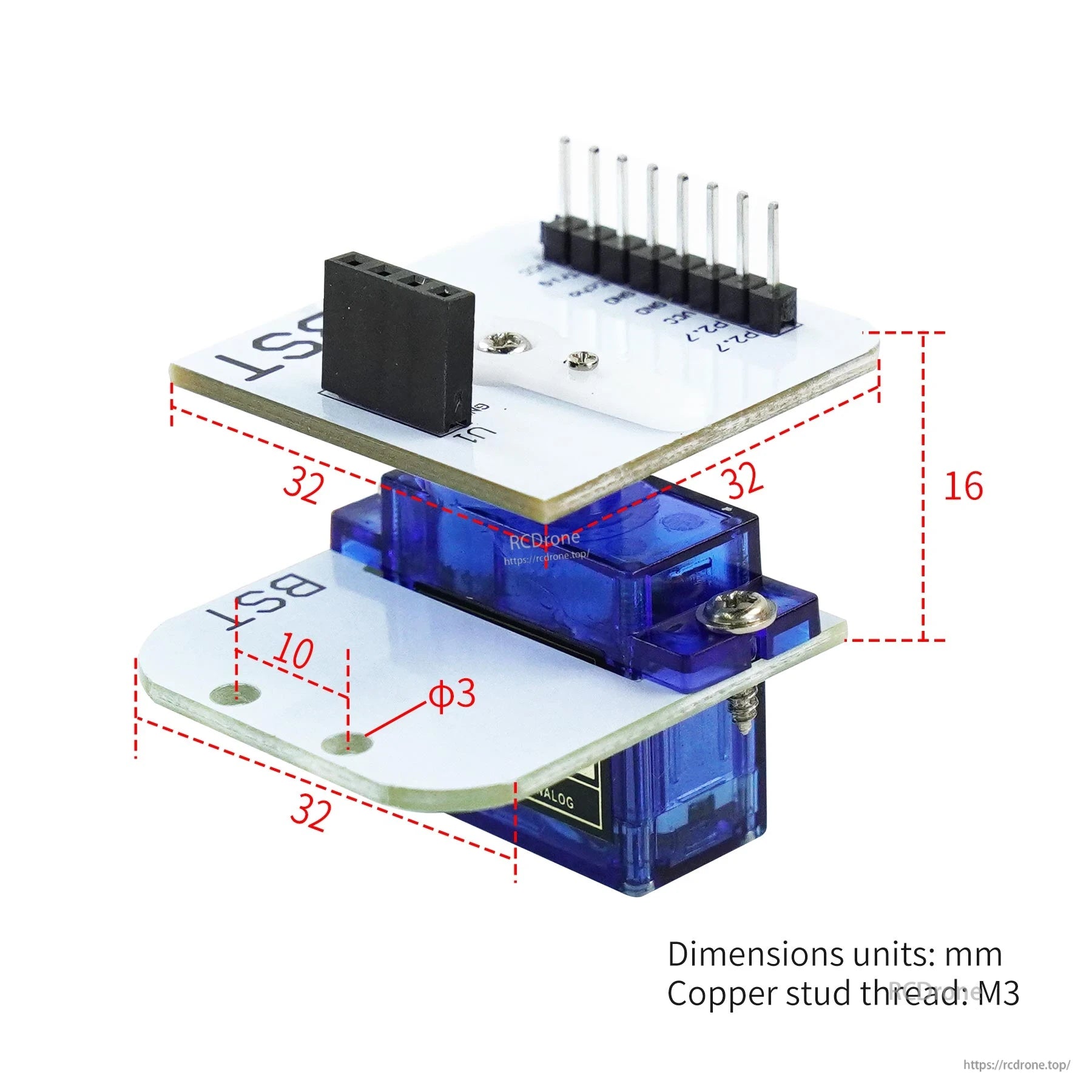

Servo platform dimensions and mounting hole spacing diagram, 32×32 mm fixing plate with M3 hardware

Mounting dimensions and M3 hardware details help confirm fit with your chassis and standoffs before assembly.

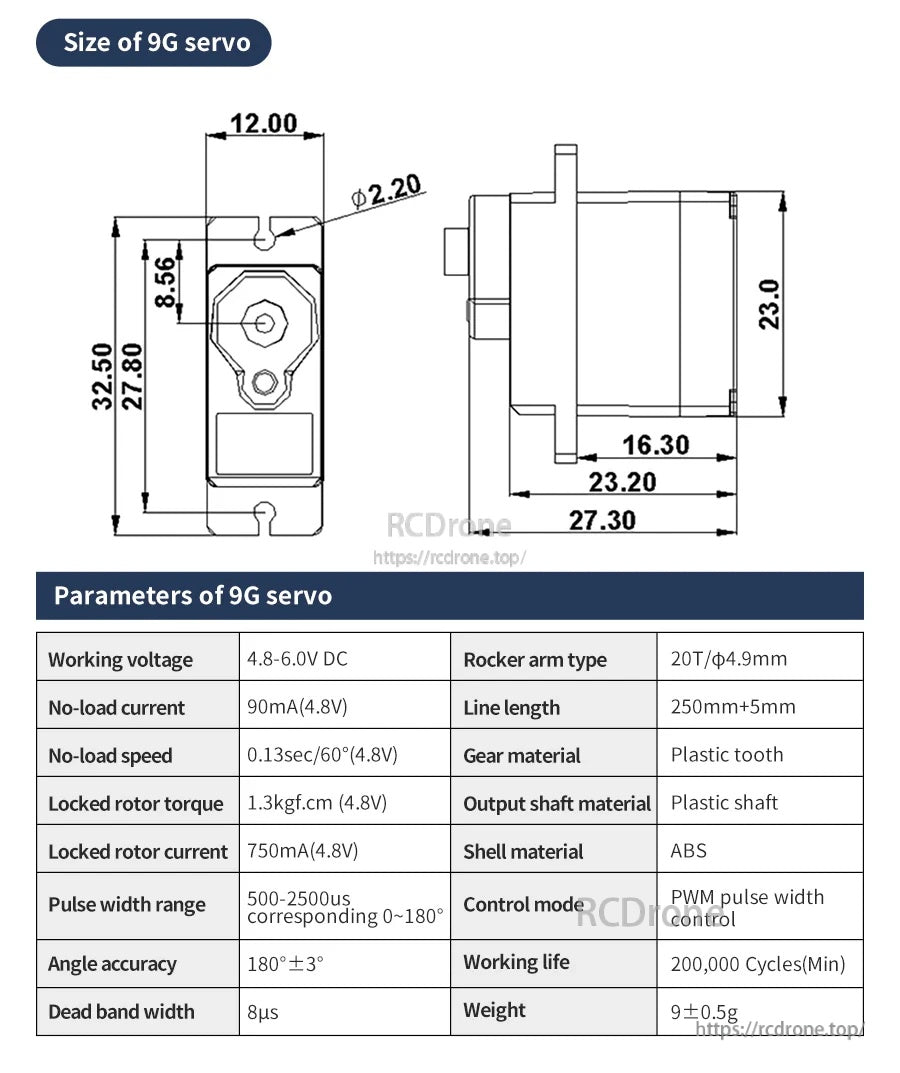

9g micro servo size drawing and specifications table, including 4.8–6V and 500–2500 µs pulse range

Compact 9g servo dimensions are provided for tight robot builds and pan/tilt mechanisms.

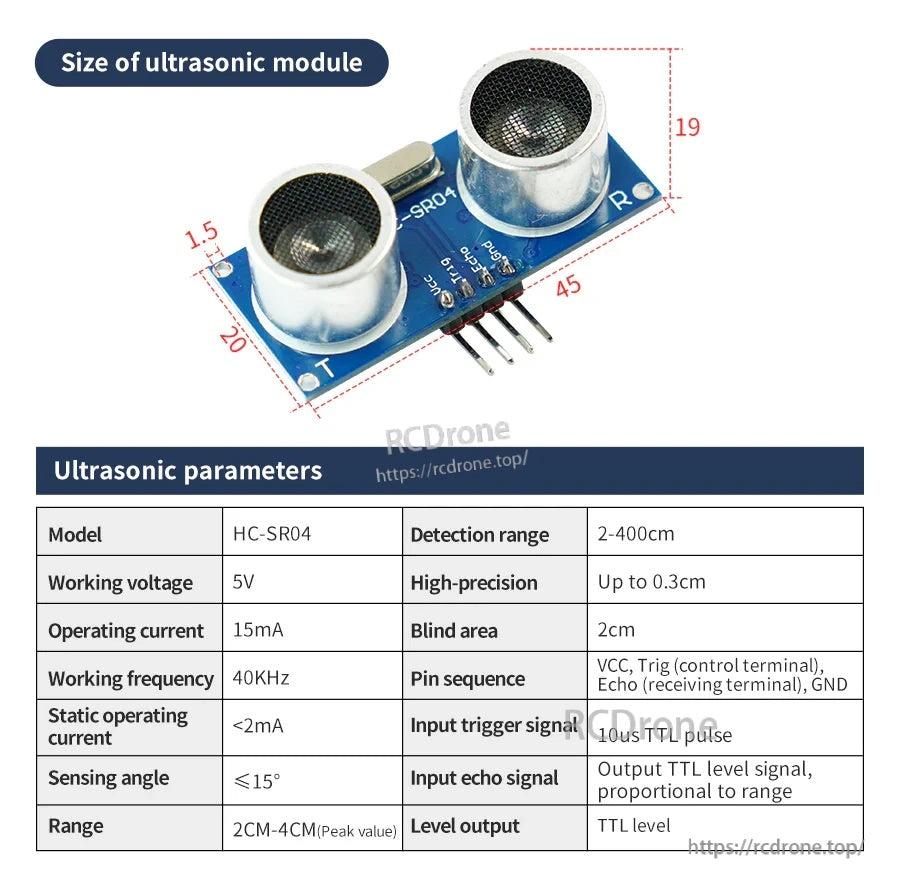

HC‑SR04 ultrasonic module size and parameter table with pin sequence and detection range information

HC‑SR04 module dimensions and pin order are included for clean integration into the scanning bracket.

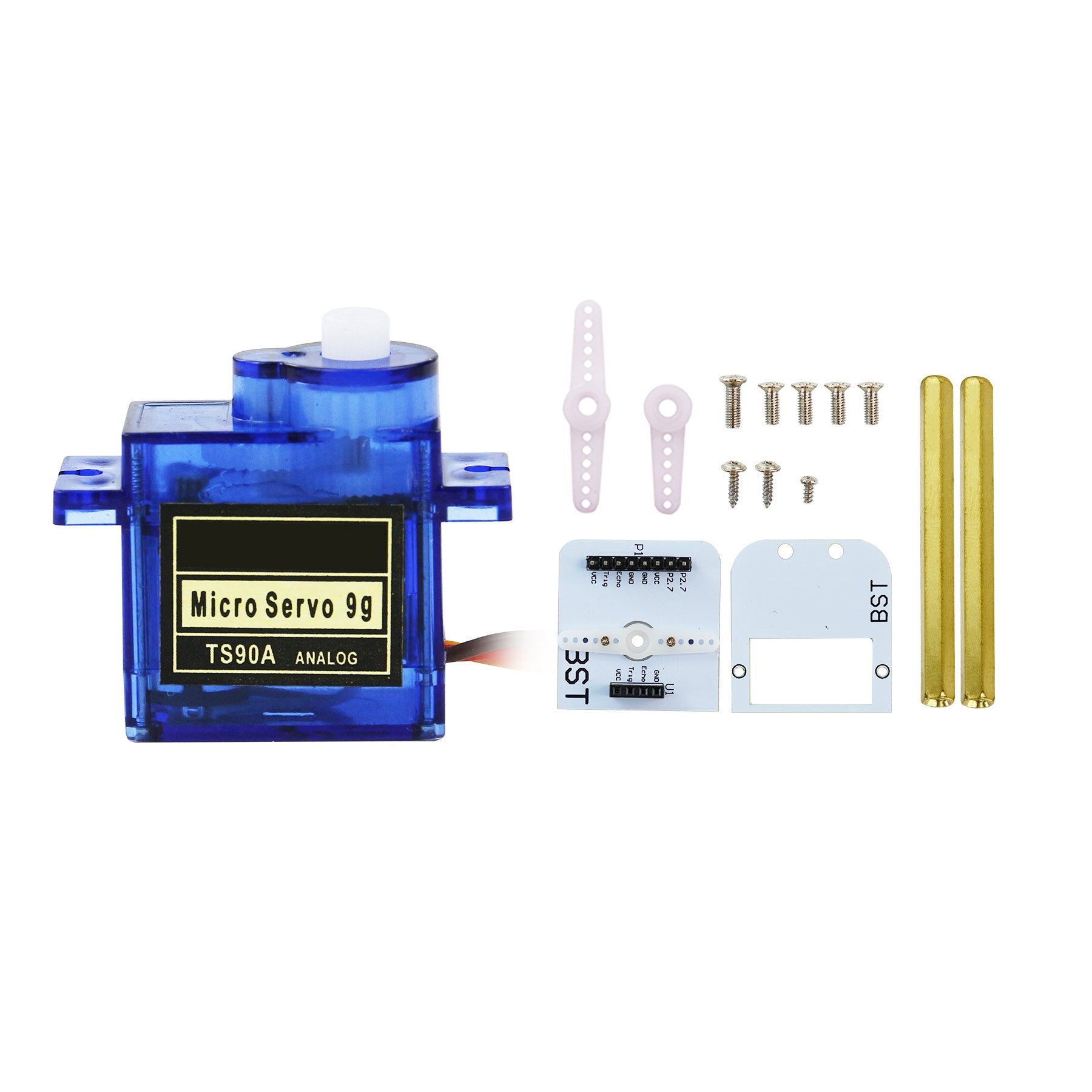

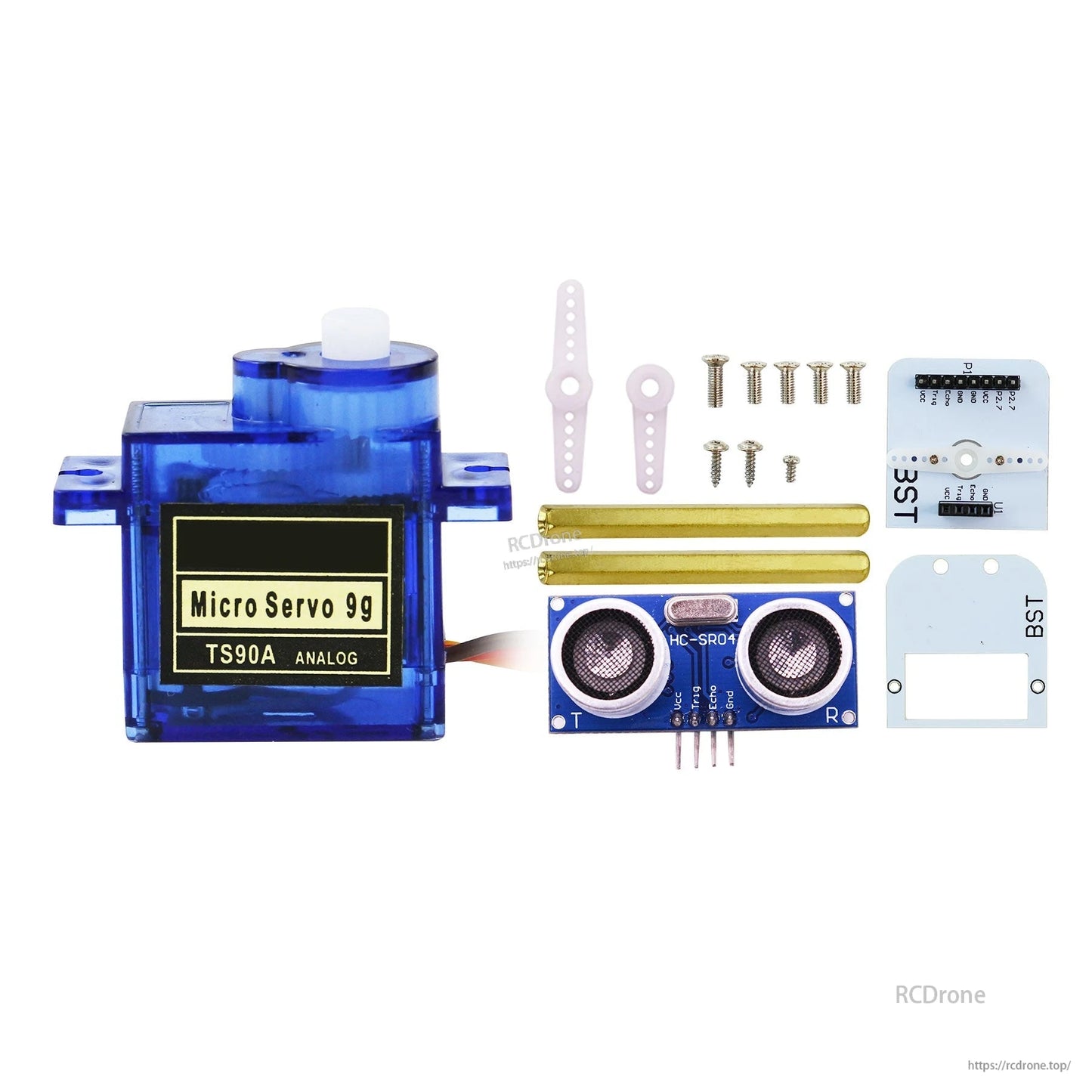

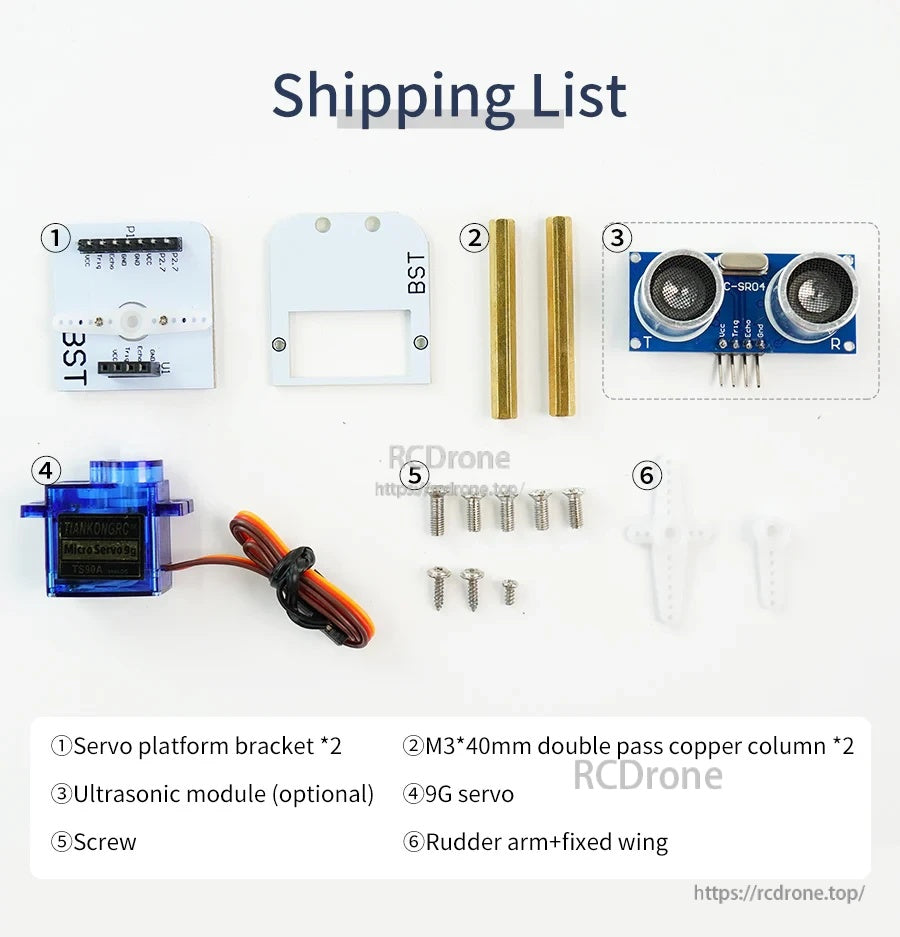

Package contents list showing servo platform brackets, copper columns, optional HC‑SR04, screws, and horns

Check the parts list to confirm you have the bracket plates, standoffs, screws, and servo horn set needed to assemble the mount.

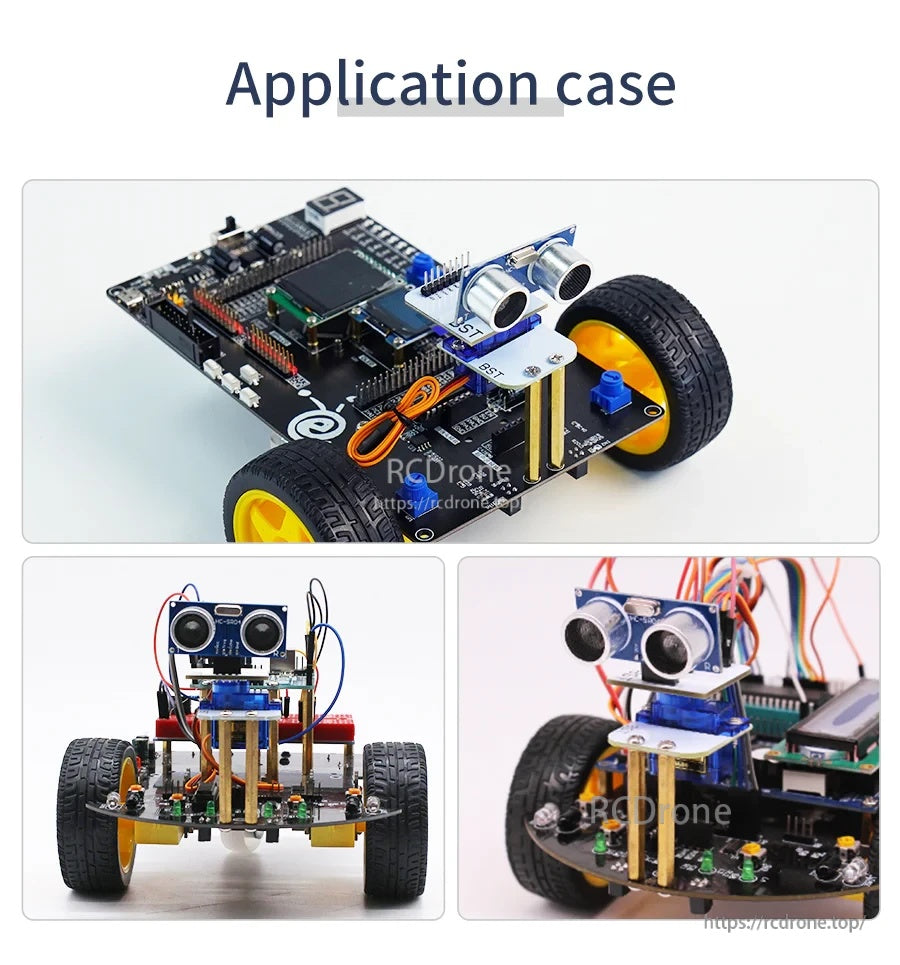

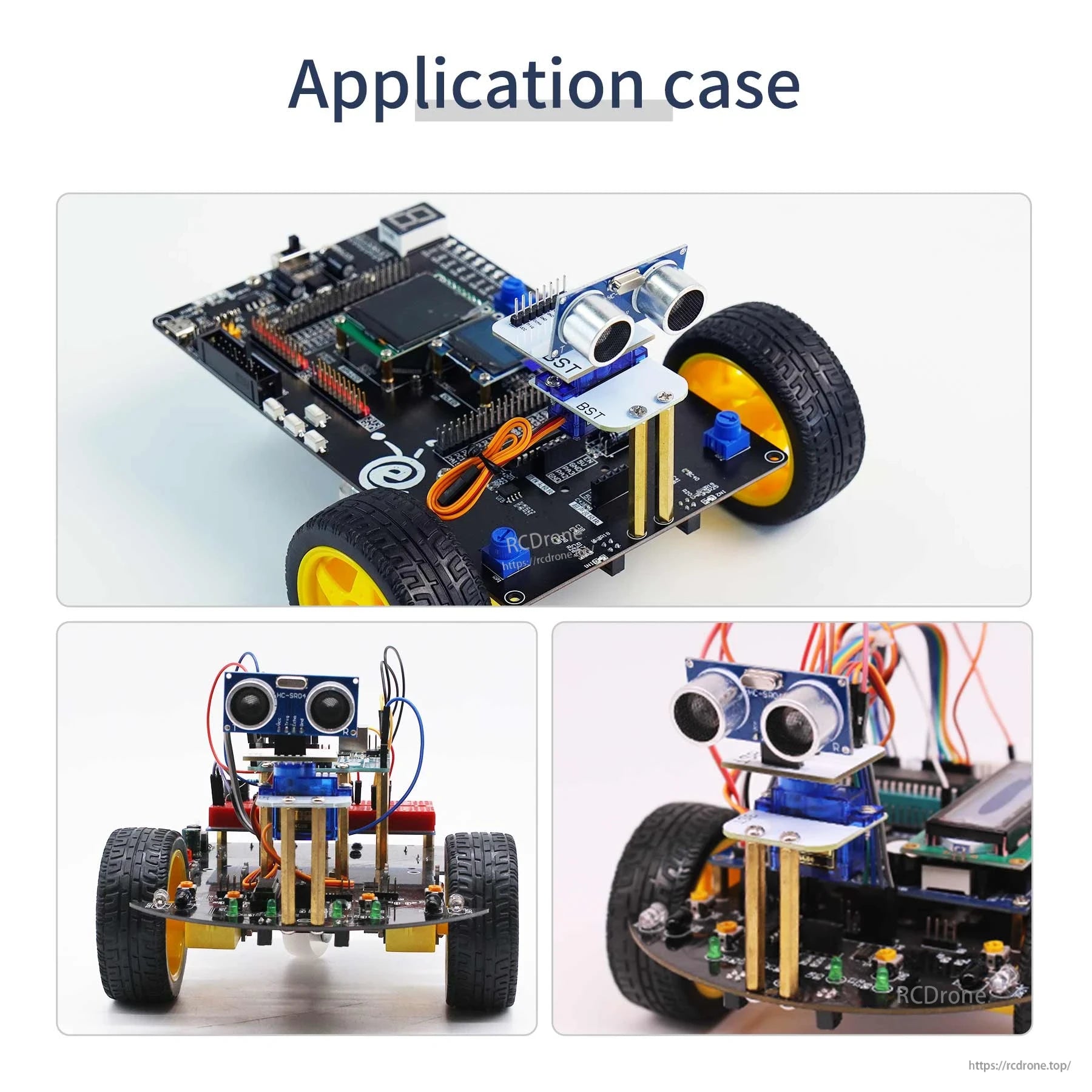

Application examples of the assembled ultrasonic scanning servo platform mounted on a robot smart car chassis

Common use case: mounting on a smart car to give the ultrasonic sensor a sweeping field of view.

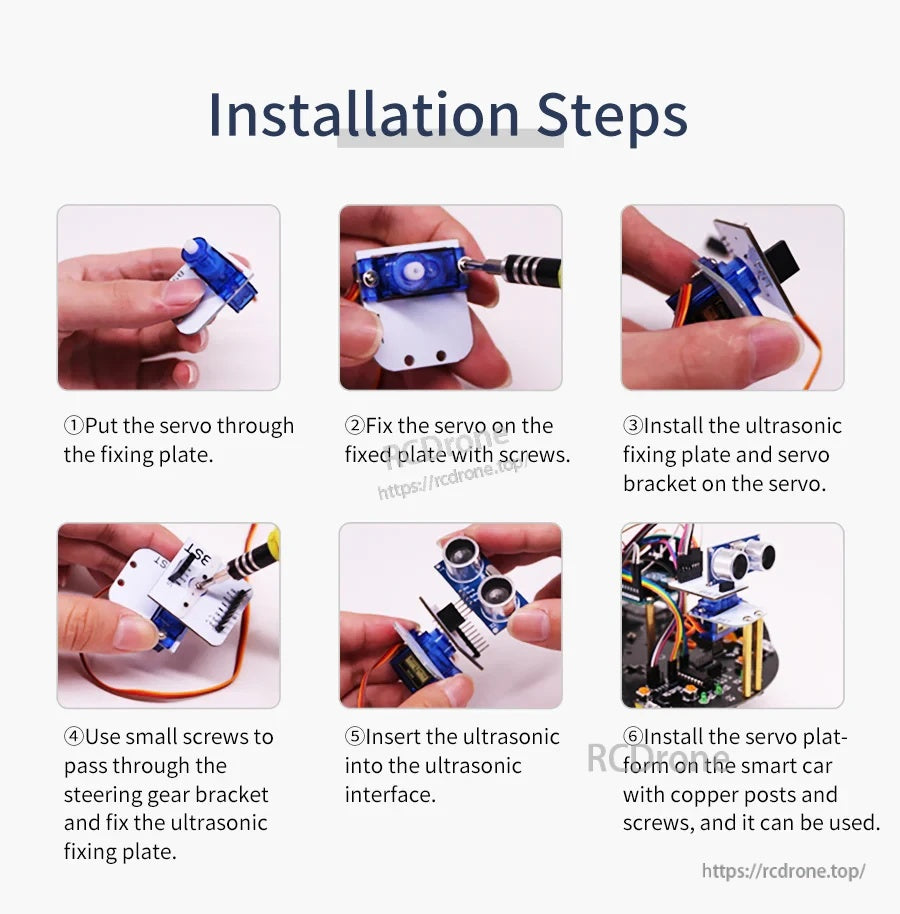

Step-by-step assembly photos for mounting the 9g servo, bracket plates, and ultrasonic sensor module

A simple build sequence walks from servo mounting to installing the ultrasonic module and fixing the assembly onto a car.

Downloadable tutorial and documentation folders for servo, ultrasonic module, and platform setup

Reference materials are provided to help you get started with servo control and ultrasonic ranging.

Software routines and documentation resources for MSPM0G3507 microcontroller ultrasonic ranging projects

Included code resources support building ultrasonic distance measurement routines on compatible controllers.

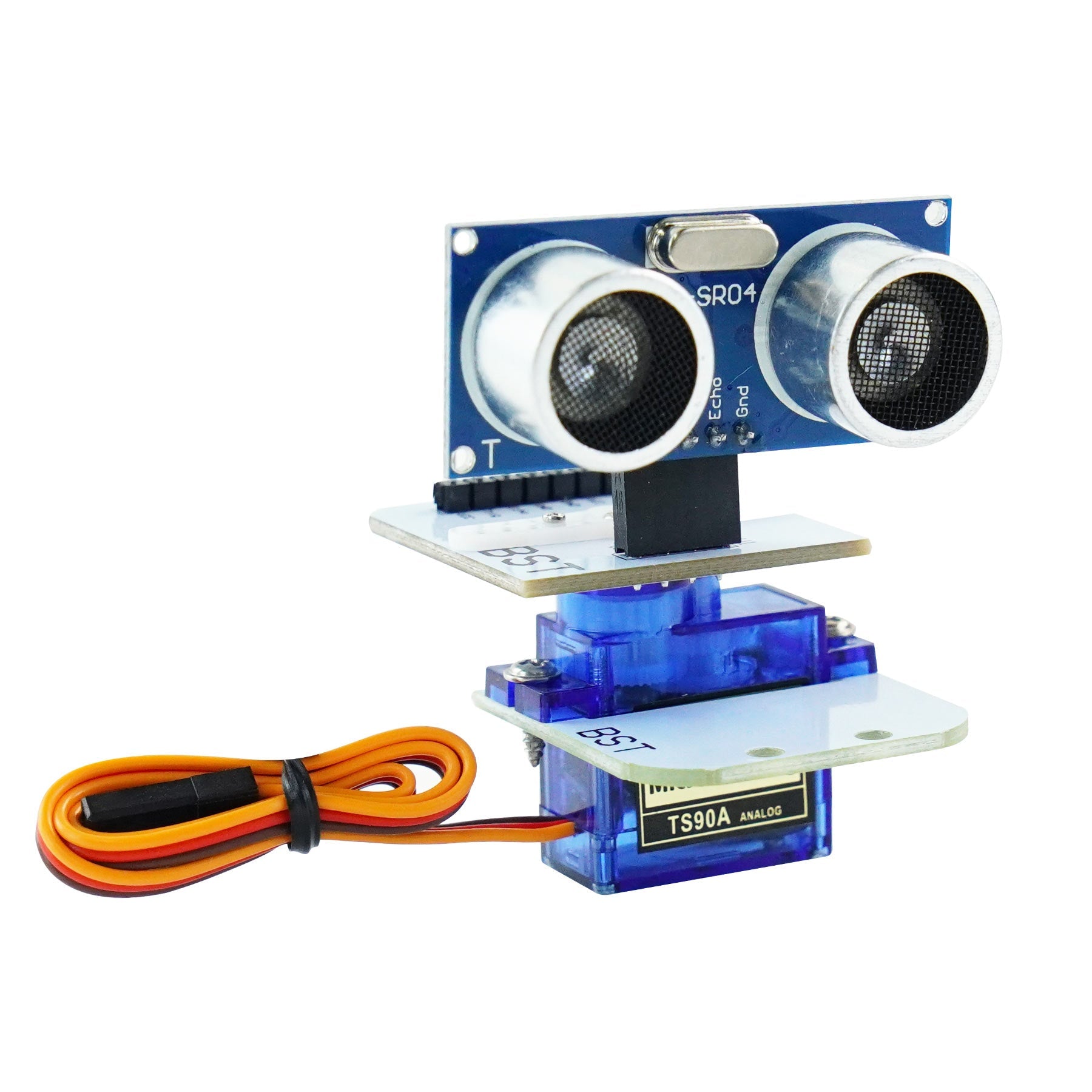

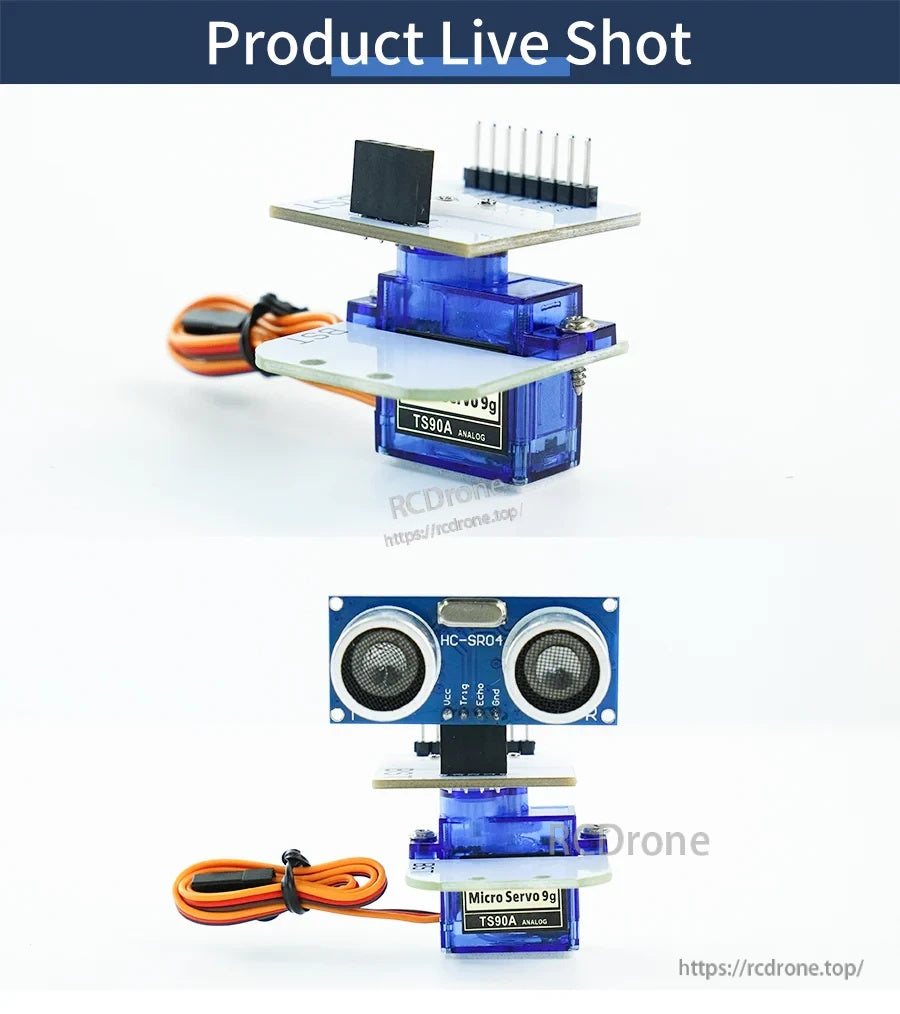

Live product photos of the Yahboom SG90 9g servo with mounting platform, with and without HC‑SR04 module

The assembled mount is available as a servo platform, with an optional HC‑SR04 ultrasonic module for scanning builds.
