Overview
MAD BSC 2306 is an FPV drone motor (MAD BSC2306 V1.0) offered in 6S KV options (1750KV and 1950KV). Recommended accessories (as provided):
- For 5 inch: Motors 2205/2206/2207/2305/2306; ESC 30A-50A; Propeller 5 inch; Battery 4S 1500mAh, 6S 11 50mAh
- For 6 inch: Motors 2207/2207.5/2305/2306/2407; ESC 35A-60A; Propeller 6 inch; Battery 4S 1500mAh, 6S 1300mAh
- For 7 inch: Motors 2305/2306/2407/2408/2507; ESC 40A-60A; Propeller 7 inch; Battery 4S 1800mAh, 6S 2200mAh
Key Features
- Shock absorbing design (stated to extend bearing life and reduce motor vibration)
- High slot fill rate (stated to save power and deliver rapid response)
- N52H arc-shaped magnet
- Linearity-focused low-throttle output description for 5" long-range FPV drones (stated)
- KV options shown: BSC2306 KV1750 / KV1950 (also referenced alongside BSC2207.5 KV1750 / KV1950)
For build compatibility or setup questions (prop/ESC selection, 6S KV choice, mounting), contact support@rcdrone.top or visit https://rcdrone.top/.
Specifications
Motor Data
| Motor Model | MAD BSC2306 V1.0 | Number of pole pairs | 12N14P |
| Motor Size | D:28.2 × 31.9 mm | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | M5 Nut | Motor Mounting Holes | D:16 M3×4 |
| Shaft Diameter | IN: 4 mm | Cable Length | 150 mm 20# Awg(Black) silicone |
Drawing and Mount Holes (dimensions shown)
- Overall length: 31.9
- Threaded shaft length: 13
- Prop shaft thread: M5
- Diameter: Ø28.2
- Mounting pattern: Ø16 - M3×4
1750KV (6S) — MAD BSC2306
Test note (stated): Data measured with input voltage of 24 V, at 25°C and sea level; rotational speed adjusted by throttle. Legend: I = Current, P = Input Power, η = Electrical Efficiency, T = Thrust, N = Rotational Speed.
| RPM/V | 1750 KV | Internal resistance | 72mΩ |
| No Load Current | 1.37A / 10V | Maximum thrust | 1.61 kg |
| Maximum Current | 35.7 A | Maximum Power | 885.4 W |
| Motor Weight | 34.6 g | Product Boxed Weight | 48.3 g |

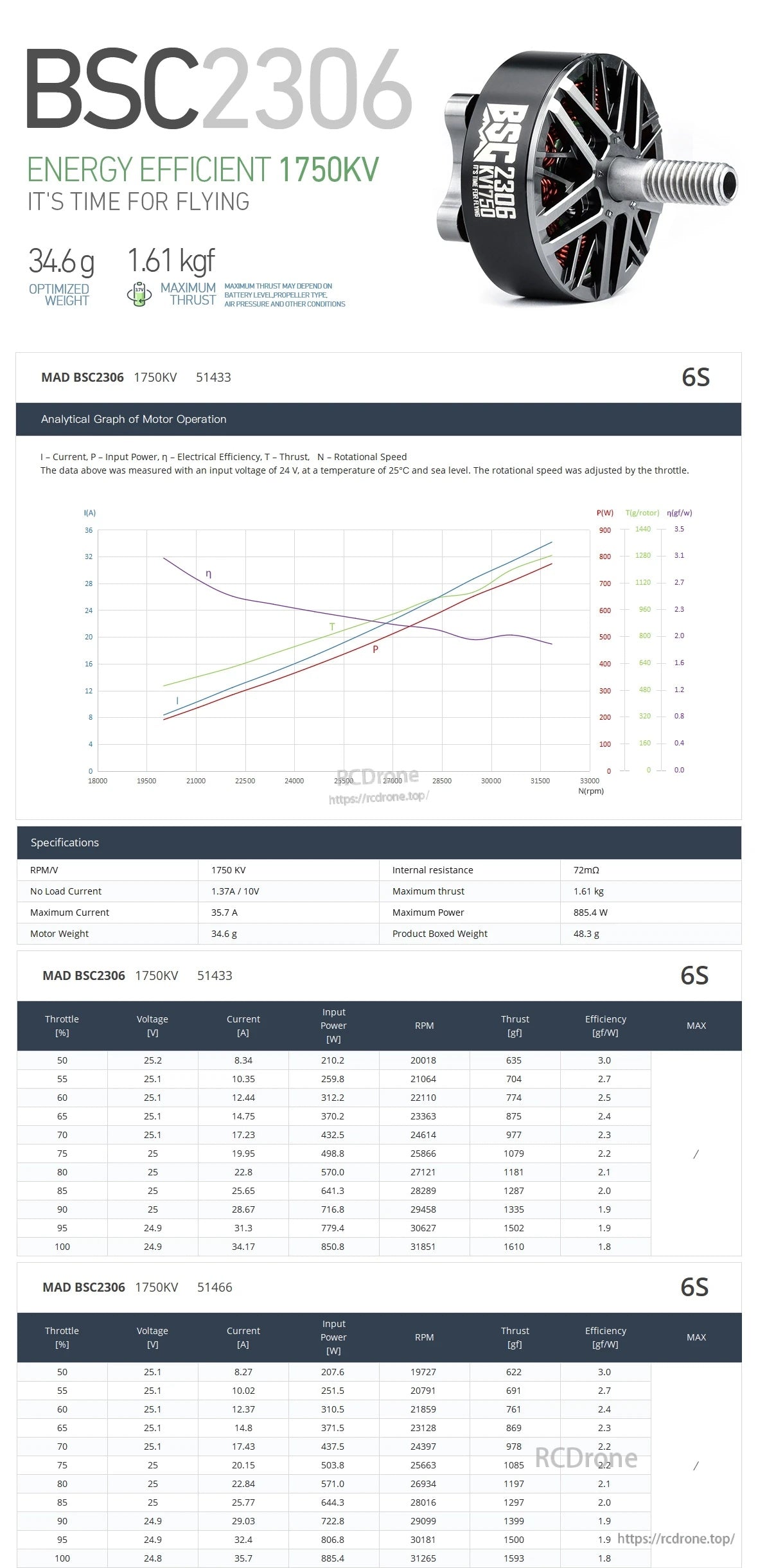

1750KV (6S) Performance Table — MAD BSC2306 1750KV 51433
| Throttle (%) | Voltage (V) | Current (A) | Input Power (W) | RPM | Thrust (gf) | Efficiency (gf/W) | MAX |
|---|---|---|---|---|---|---|---|
| 50 | 25.2 | 8.34 | 210.2 | 20018 | 635 | 3.0 | / |
| 55 | 25.1 | 10.35 | 259.8 | 21064 | 704 | 2.7 | |
| 60 | 25.1 | 12.44 | 312.2 | 22110 | 774 | 2.5 | |
| 65 | 25.1 | 14.75 | 370.2 | 23363 | 875 | 2.4 | |
| 70 | 25.1 | 17.23 | 432.5 | 24614 | 977 | 2.3 | |
| 75 | 25 | 19.95 | 498.8 | 25866 | 1079 | 2.2 | |
| 80 | 25 | 22.8 | 570.0 | 27121 | 1181 | 2.1 | |
| 85 | 25 | 25.65 | 641.3 | 28289 | 1287 | 2.0 | |
| 90 | 25 | 28.67 | 716.8 | 29458 | 1335 | 1.9 | |
| 95 | 24.9 | 31.3 | 779.4 | 30627 | 1502 | 1.9 | |
| 100 | 24.9 | 34.17 | 850.8 | 31851 | 1610 | 1.8 |
1750KV (6S) Performance Table — MAD BSC2306 1750KV 51466
| Throttle (%) | Voltage (V) | Current (A) | Input Power (W) | RPM | Thrust (gf) | Efficiency (gf/W) | MAX |
|---|---|---|---|---|---|---|---|
| 50 | 25.1 | 8.27 | 207.6 | 19727 | 622 | 3.0 | / |
| 55 | 25.1 | 10.02 | 251.5 | 20791 | 691 | 2.7 | |
| 60 | 25.1 | 12.37 | 310.5 | 21859 | 761 | 2.4 | |
| 65 | 25.1 | 14.8 | 371.5 | 23128 | 869 | 2.3 | |
| 70 | 25.1 | 17.43 | 437.5 | 24397 | 978 | 2.2 | |
| 75 | 25 | 20.15 | 503.8 | 25663 | 1085 | 2.2 | |
| 80 | 25 | 22.84 | 571.0 | 26934 | 1197 | 2.1 | |
| 85 | 25 | 25.77 | 644.3 | 28016 | 1297 | 2.0 | |
| 90 | 24.9 | 29.03 | 722.8 | 29099 | 1399 | 1.9 | |
| 95 | 24.8 | 32.4 | 806.8 | 30181 | 1500 | 1.9 | |
| 100 | 24.8 | 35.7 | 885.4 | 31265 | 1593 | 1.8 |
1950KV (6S) — MAD BSC2306
Test note (stated): Data measured with input voltage of 24 V, at 25°C and sea level; rotational speed adjusted by throttle. Maximum thrust may depend on battery level, propeller type, air pressure and other conditions.
| RPM/V | 1950 KV | Internal resistance | 63mΩ |
| No Load Current | 1.4A / 10V | Maximum thrust | 1.64 kg |
| Maximum Current | 39.1 A | Maximum Power | 872.5 W |
| Motor Weight | 34.6 g | Product Boxed Weight | 48.3 g |
1950KV (6S) Performance Table — MAD BSC2306 1950KV 51466
| Throttle (%) | Voltage (V) | Current (A) | Input Power (W) | RPM | Thrust (gf) | Efficiency (gf/W) | MAX |
|---|---|---|---|---|---|---|---|
| 50 | 23.8 | 9.02 | 214.7 | 18275 | 619 | 2.9 | / |
| 55 | 23.72 | 11.11 | 263.5 | 19646 | 725 | 2.7 | |
| 60 | 23.6 | 13.52 | 319.1 | 21147 | 838 | 2.6 | |
| 65 | 23.47 | 16.26 | 381.6 | 22428 | 959 | 2.5 | |
| 70 | 23.36 | 19.29 | 450.6 | 23681 | 1076 | 2.4 | |
| 75 | 23.25 | 22.15 | 515.0 | 24812 | 1174 | 2.3 | |
| 80 | 23.12 | 25.22 | 583.1 | 25881 | 1264 | 2.2 | |
| 85 | 23.01 | 28.05 | 645.4 | 26669 | 1354 | 2.1 | |
| 90 | 22.82 | 31.6 | 721.1 | 27631 | 1457 | 2.0 | |
| 95 | 22.61 | 35.16 | 795.0 | 28338 | 1482 | 1.9 | |
| 100 | 22.42 | 37.6 | 843.0 | 29010 | 1591 | 1.9 |
1950KV (6S) Performance Table — MAD BSC2306 1950KV 51466 (set 2)
| Throttle (%) | Voltage (V) | Current (A) | Input Power (W) | RPM | Thrust (gf) | Efficiency (gf/W) | MAX |
|---|---|---|---|---|---|---|---|
| 50 | 23.75 | 10.18 | 241.8 | 18100 | 631 | 2.6 | / |
| 55 | 23.66 | 12.36 | 292.4 | 19336 | 734 | 2.5 | |
| 60 | 23.53 | 14.73 | 346.6 | 20748 | 843 | 2.4 | |
| 65 | 23.41 | 17.61 | 412.3 | 22200 | 965 | 2.3 | |
| 70 | 23.29 | 20.67 | 481.4 | 23414 | 1086 | 2.3 | |
| 75 | 23.17 | 23.8 | 551.4 | 24463 | 1198 | 2.2 | |
| 80 | 23.05 | 26.88 | 619.6 | 25441 | 1284 | 2.1 | |
| 85 | 22.92 | 29.47 | 675.5 | 26152 | 1374 | 2.0 | |
| 90 | 22.74 | 32.78 | 745.4 | 26961 | 1478 | 2.0 | |
| 95 | 22.52 | 36.51 | 822.2 | 27728 | 1557 | 1.9 | |
| 100 | 22.32 | 39.09 | 872.5 | 28107 | 1643 | 1.9 |
What’s Included

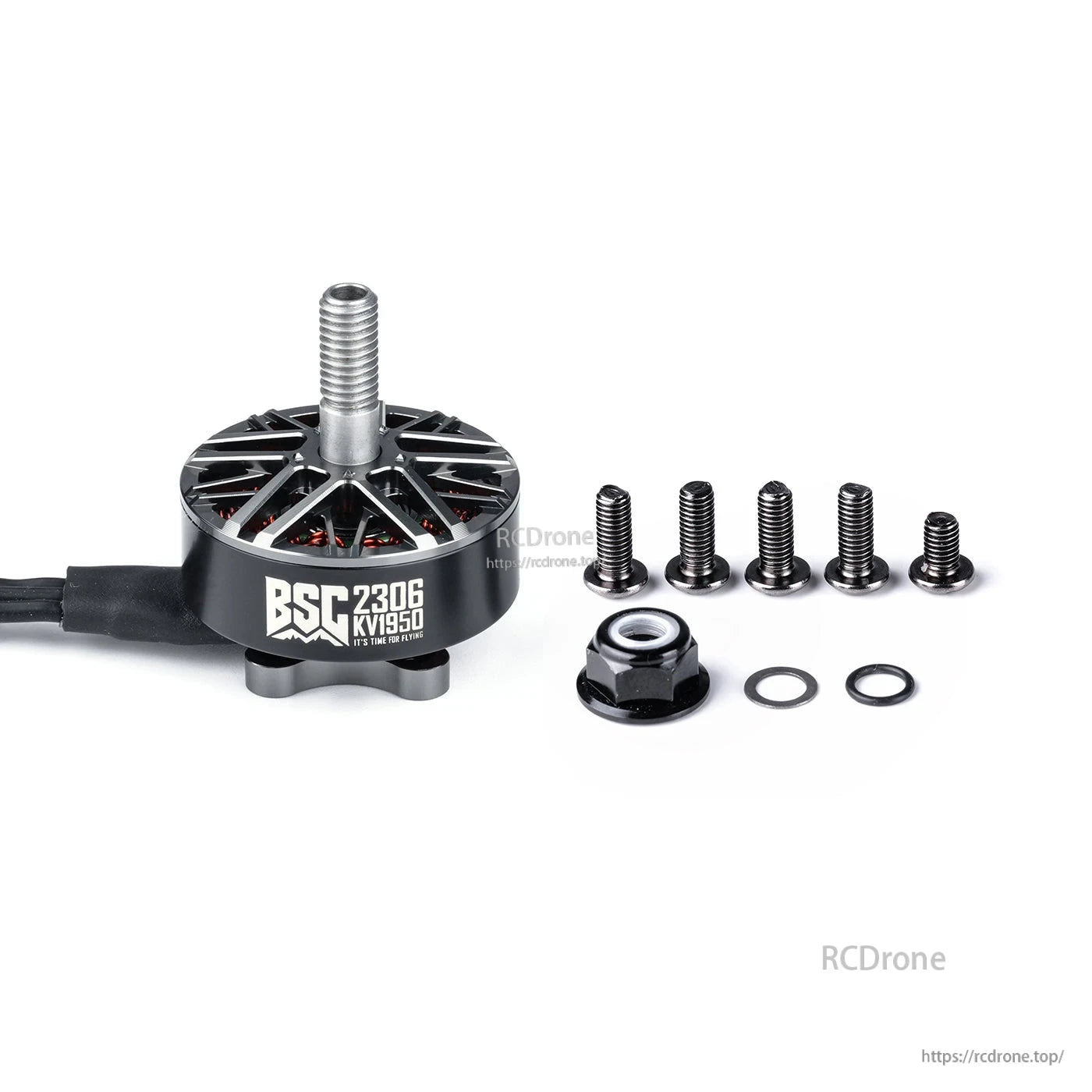

- BSC2306 motor
- M5 NUT ×1
- M3×8mm cuphead screw ×4
- GASKET ×1
- O-RING ×1
- M3×5mm pan head screws ×1
- MAD sticker ×6
Applications
- FPV drone builds using MAD BSC2306 V1.0 motors
- 5 inch, 6 inch, and 7 inch propeller setups (with the listed ESC and battery recommendations)
Details
MAD BSC2306 V1.0 motor dimensions list a 28.2 mm outer diameter, 31.9 mm overall length, and a 16 mm M3x4 mounting pattern.
The MAD BSC2306 V1.0 motor comes with a nut, mounting screws, gasket, O-ring, and MAD sticker set for installation.

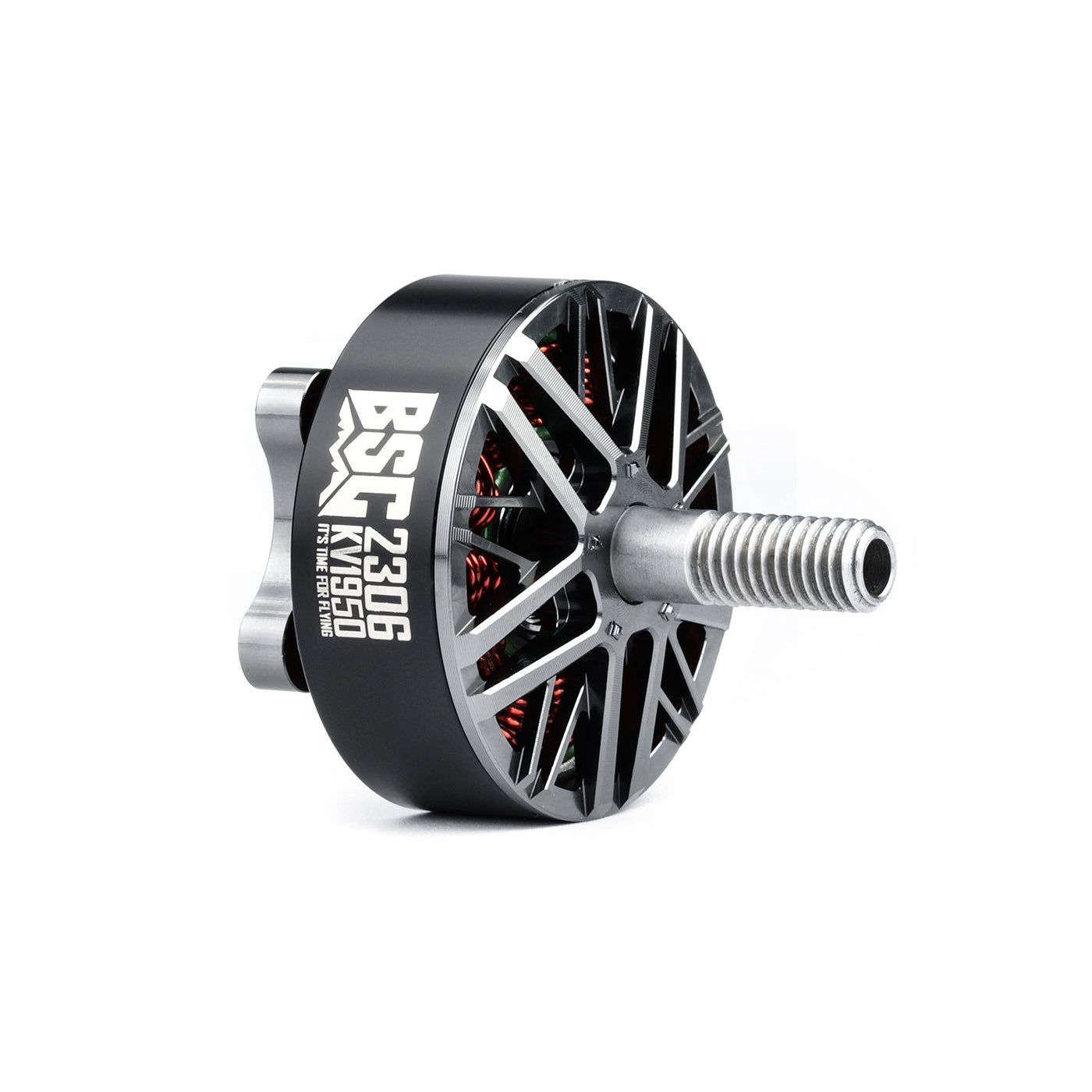

The MAD BSC2306 FPV drone motor features a compact black housing with MAD Components branding and visible copper windings for clean, straightforward installs.

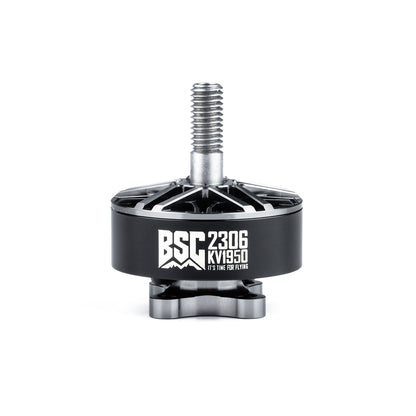

The MAD BSC2306 motor features a silver bell with a threaded shaft and clearly labeled KV1950 marking for easy identification.
The MAD BSC2306 V1.0 FPV drone motor is positioned for 5-inch long-range builds and emphasizes linear low-throttle power delivery.
The MAD BSC2306 V1.0 motor features a shock-absorbing design intended to reduce vibration and help extend bearing life.

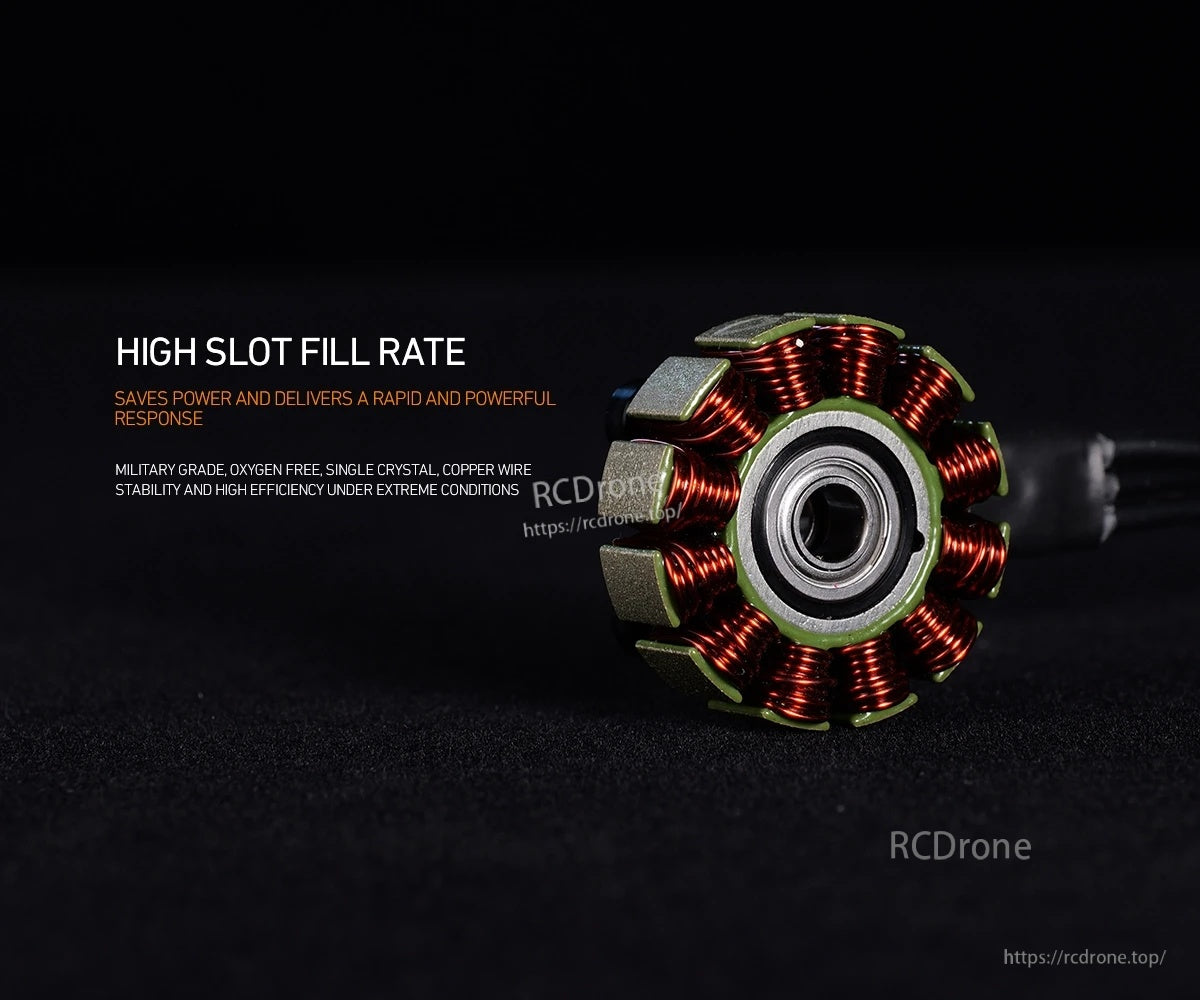

The MAD BSC2306 V1.0 motor features a high slot fill stator with tightly wound copper coils around the center bearing.
The MAD BSC2306 V1.0 motor uses N52H arc-shaped magnets inside the bell for a clean, robust rotor assembly.
MAD Motor offers a range of FPV brushless motor options across BSC, Freestyle, Cinematic, and X-Class series for different build styles.
The MAD BSC2306 V1.0 1750KV motor is rated for 6S setups and lists key dimensions like 34.6g weight and 16.1mm length for fit planning.
The MAD BSC2306 V1.0 motor is rated at 1950KV and lists a 34.6g weight with up to 1.64kg of thrust in the provided performance tables.
