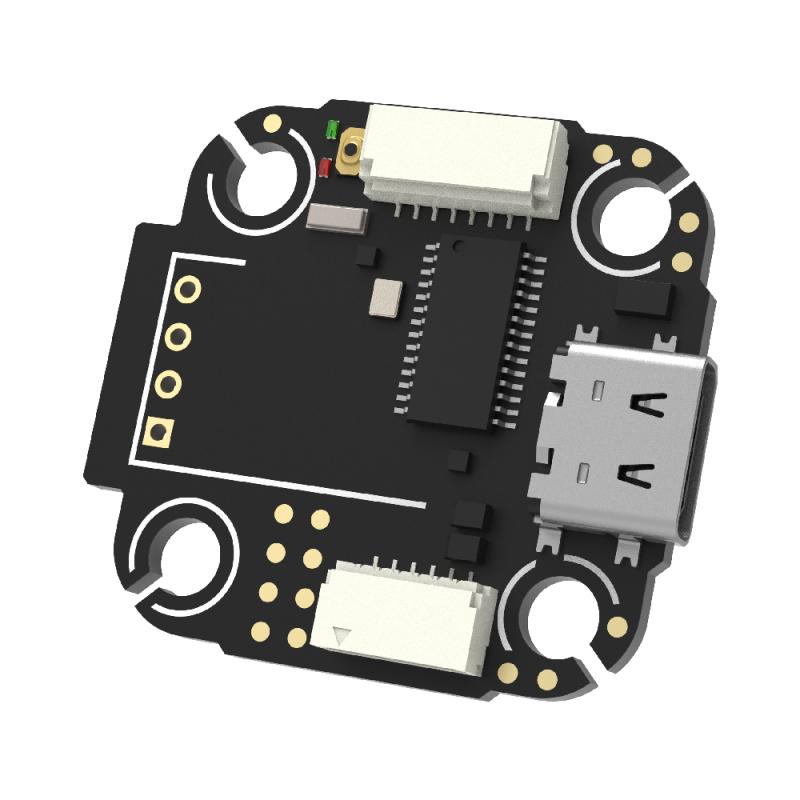

TBS Lucid FC Pro 20x20 Flight Controller with MPU-6000 Gyro and 6 UARTs

Overview

The TBS Lucid FC Pro is a 20x20 flight controller designed for racing and freestyle drone builds. It uses an MPU-6000 gyro, provides six UARTs, supports 3S-6S input, and includes plug-and-play connections for compatible ESCs and the DJI O3 digital system.

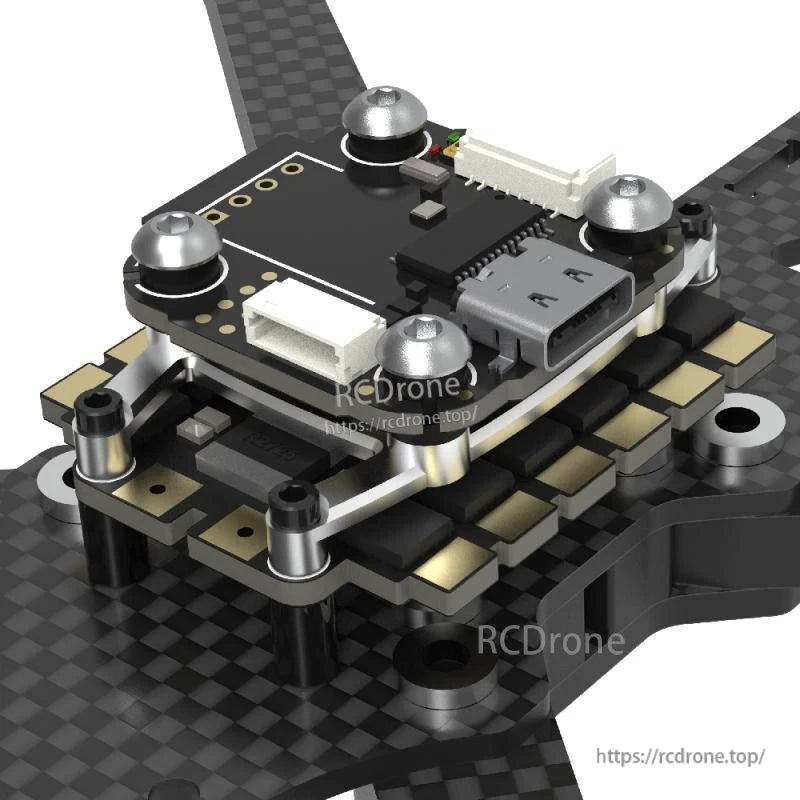

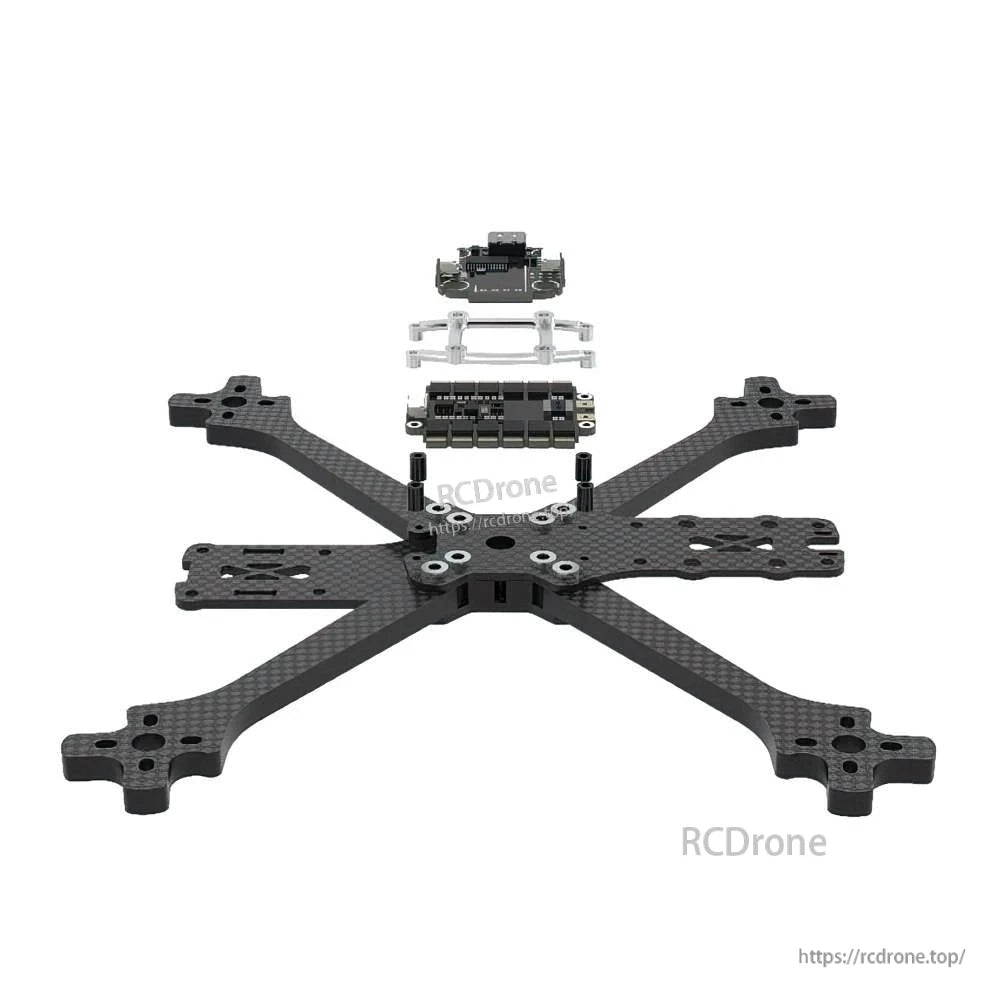

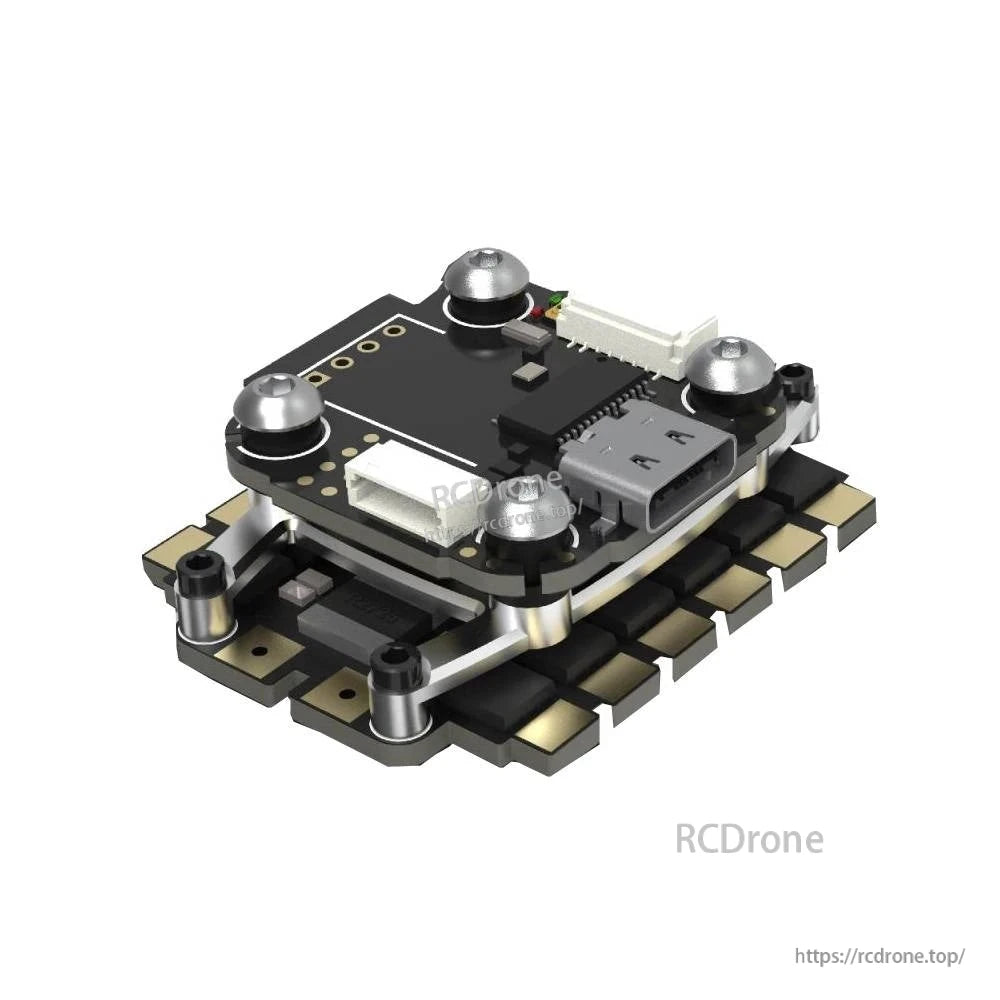

The flight controller is designed for the TBS Lucid flight stack and is compatible with 20x20 ESCs. It supports TBS Crossfire and TBS Tracer ecosystems, as well as other radio receiver systems. Auxiliary solder pads are arranged for installation in compact drone frames, including frames such as the TBS Source One.

Key Features

• 20x20 mounting pattern for compact flight controller installations
• MPU-6000 gyro

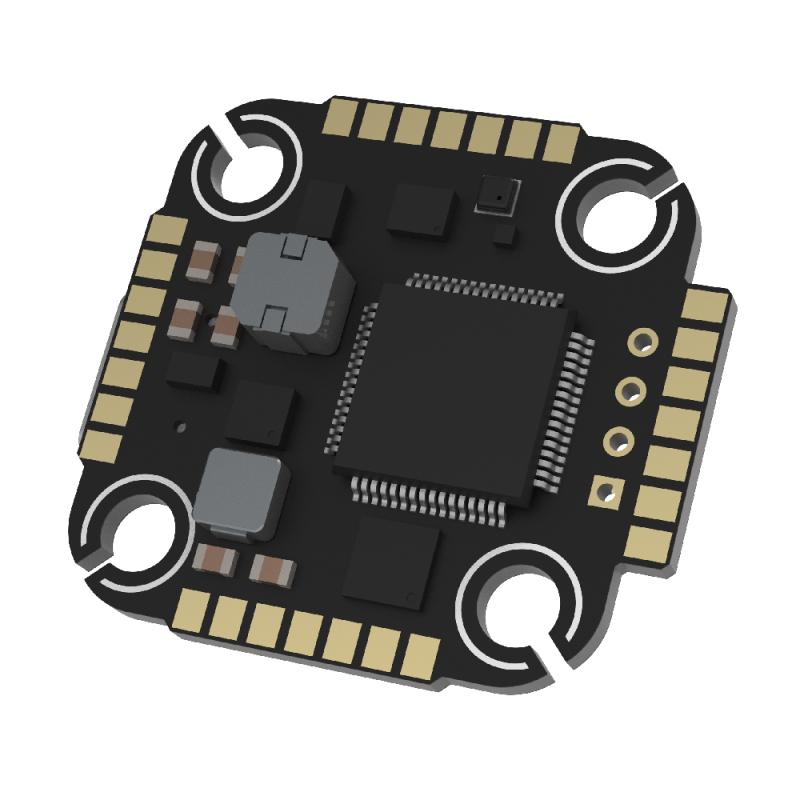

• AT32F435RMT7 MCU running at 288 MHz
• Six UARTs
• Plug-and-play FC-to-ESC connection following the Betaflight connector standard
• Plug-and-play DJI O3 cable connection
• Four motor outputs with telemetry and current sensor support
• AT7456E OSD
• 8M blackbox storage

Specifications

What's Included

• TBS Lucid 20x20 FC
• FC-to-ESC plug-and-play cable
• DJI O3 plug-and-play cable
• 4 M3 rubber dampers
• 4 M3x8 screws

Manuals

• TBS Lucid Manual
• STEP file for design and prototyping
