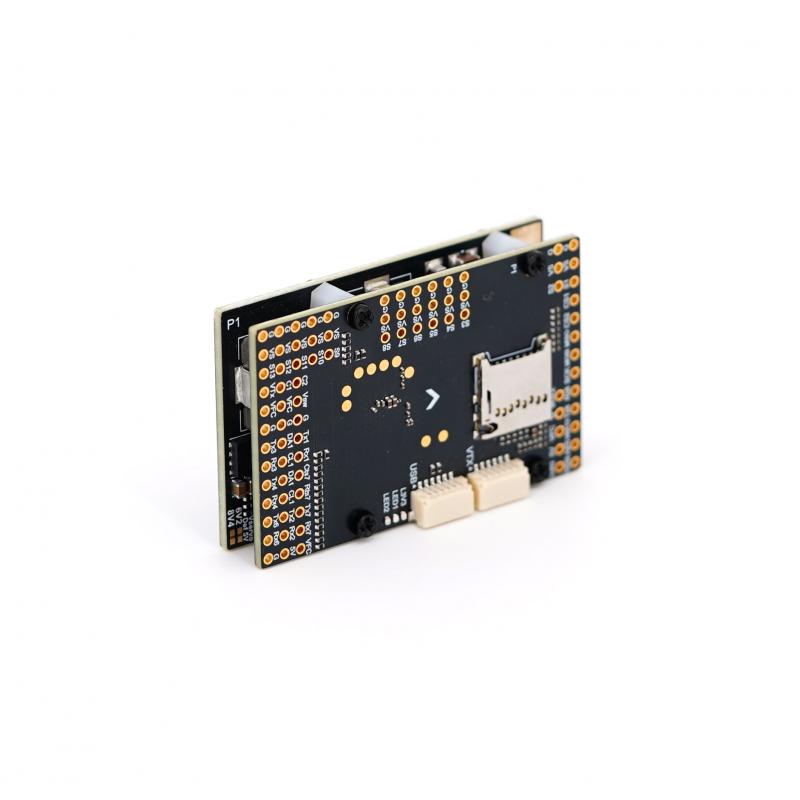

• TBS Lucid H7 Wing Flight Controller rear board view with microSD slot and connectors

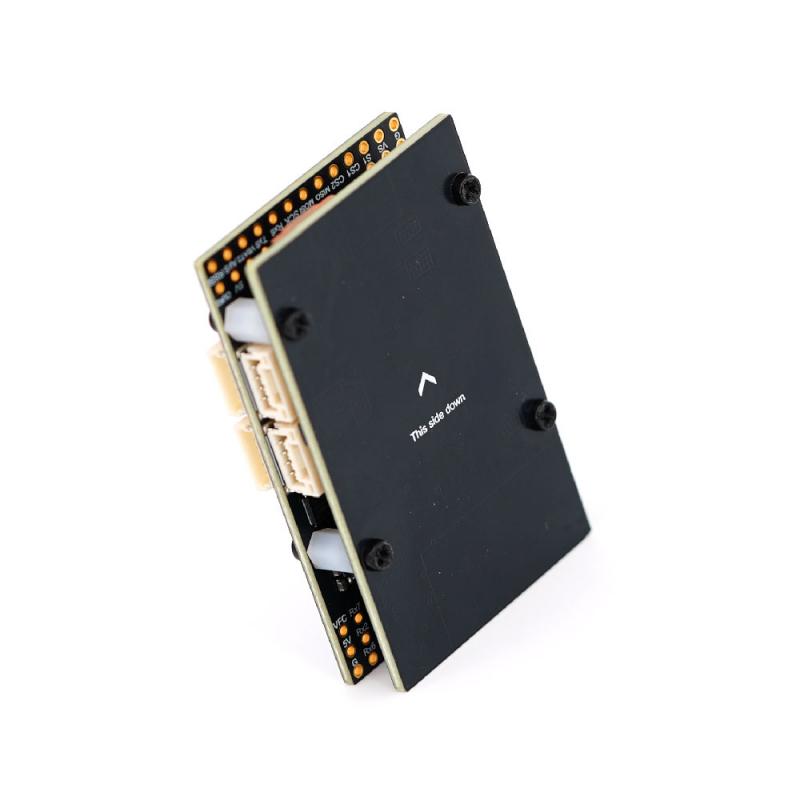

  • TBS Lucid H7 Wing Flight Controller underside marked “This side down”

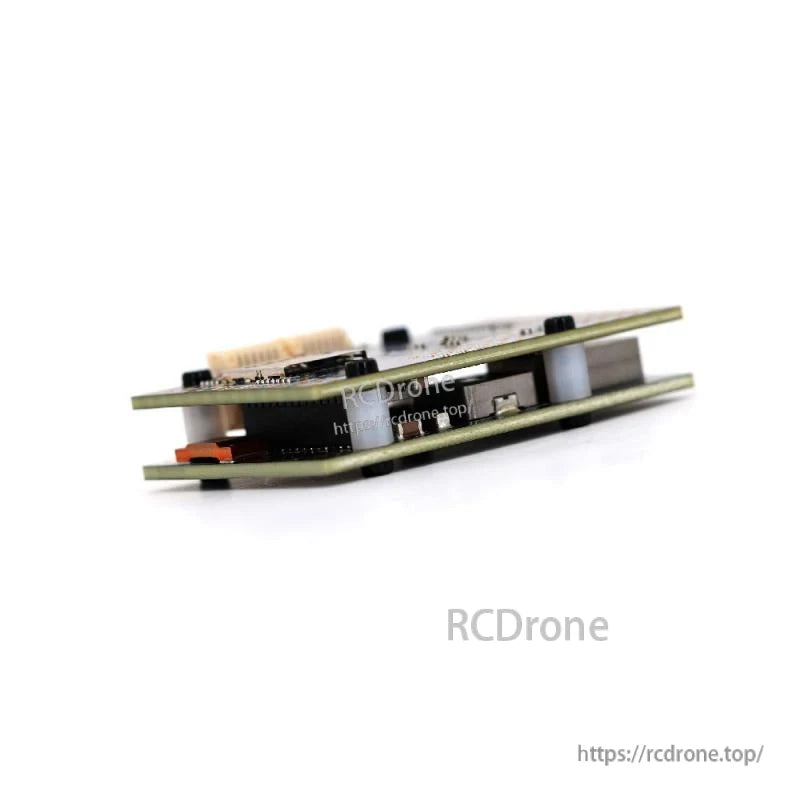

  • Low side profile of the stacked flight controller and power distribution board

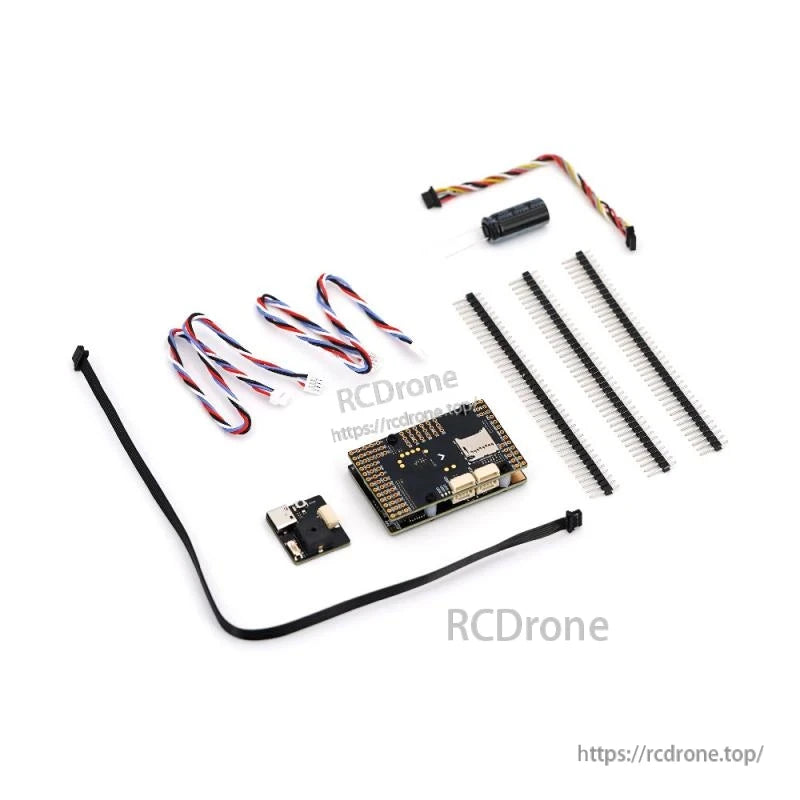

  • Flight controller package contents with cables, headers, USB board, capacitor and mounting hardware
1 4

TBS Lucid H7 Wing FC Flight Controller with PDB for Fixed-Wing FPV Aircraft

TBS Lucid H7 Wing FC Flight Controller with PDB for Fixed-Wing FPV Aircraft

TBS

$129.00 USD
$129.00 USD
セール 売り切れ
税込。 配送料はチェックアウト時に計算されます。
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
詳細を表示する

Overview

The TBS Lucid H7 Wing Flight Controller is a flight controller and power distribution board (PDB) set for wing aircraft projects. It combines an STM32H743VIH6 processor, dual ICM42688 gyros, DPS310 barometer, onboard current sensing, analog FPV support, and a connector for digital FPV systems.

Key Features

  • STM32H743VIH6 MCU running at 480MHz with 2MB flash
  • Dual ICM42688 gyros on SPI1 and SPI4
  • 13 PWM channels, including LED output
  • MicroSD BlackBox logging and SPI3 on pin headers
  • Switchable dual analog camera inputs with AT7456E OSD
  • Digital FPV connector with SBUS and OSD communication
  • Seven UARTs, two I2C ports, and one CAN port

Specifications

MCU STM32H743VIH6, 480MHz, 2MB flash
Input voltage 8V-50.4V (3-12S)
Power BEC 5V, 6V, or 8.4V selectable; 8A continuous, 10A peak
FC BEC 5V, 3A continuous
PWM channels 13, including LED
Gyroscopes 2x ICM42688
Barometer DPS310
Interfaces 7x UART, 2x I2C, 1x CAN
ADC inputs 6x: Vbat, Current, CB2, CU2, RSSI, AirSpeed
High-speed ports MicroSD BlackBox, SPI3 on pin headers
Analog FPV Dual switchable camera inputs, AT7456E OSD, selectable 5V/9V/12V output at 5A
Digital FPV Connector with SBUS and OSD communication
Current sensor 165A continuous, 240A peak
Battery voltage sensor divider 1K:20K
VB2 voltage divider 1K:20K
AirSpeed voltage divider 20K:20K
ArduPilot target TBS_LUCID_H7_WING
Dimensions 54 x 36 x 13 mm

What's Included

  • 1x TBS Lucid H7 Wing FC and PDB sandwiched-board set
  • 1x USB Type-C and buzzer extender board
  • 1x 10cm JST-SH-6P to JST-SH-6P USB extender cable
  • 1x 25cm JST-SH-6P to JST-SH-6P cable for HD systems
  • 2x 20cm JST-GH-4P to JST-GH-4P cables for CAN and I2C
  • 1x 330uF 63V electrolytic capacitor
  • 120x unsoldered 2.54 pin headers

For product assistance and order support, contact RCdrone.top.
