Overview

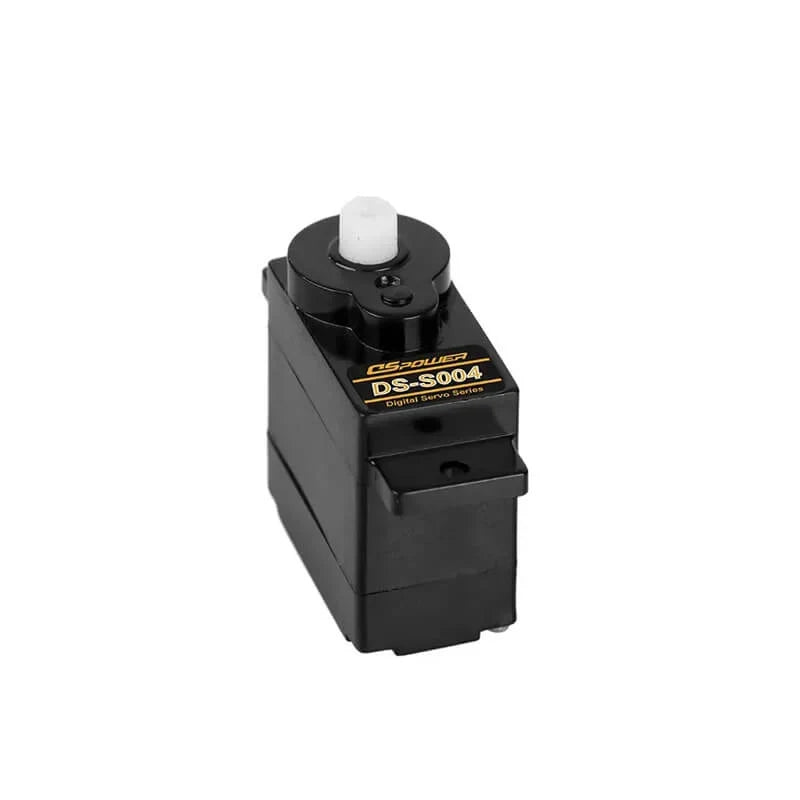

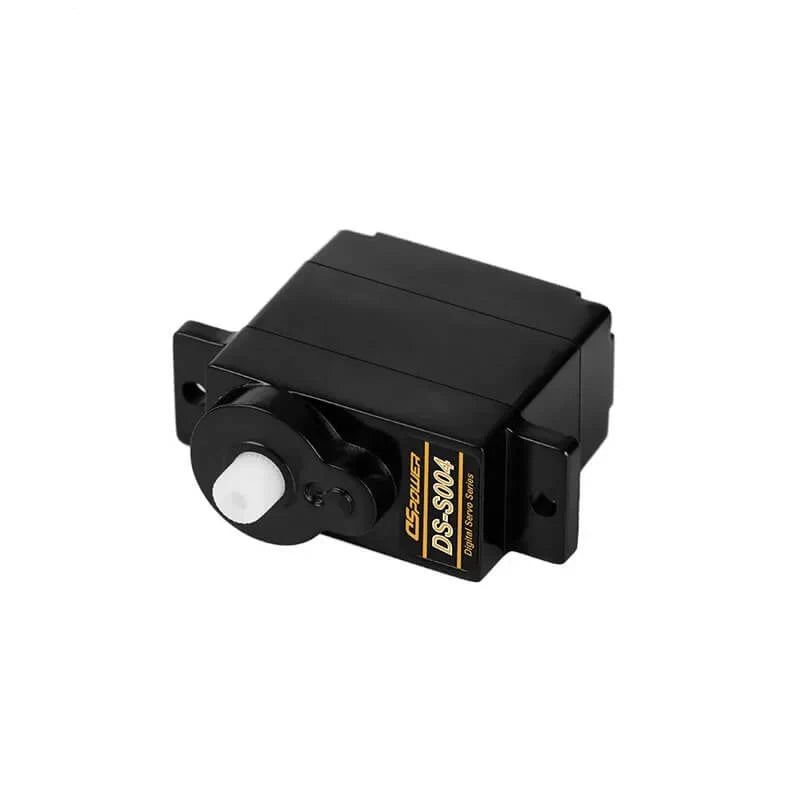

The DSpower DS-S004 is a 6 g plastic-gear micro servo for RC and robotics motion-control tasks. It operates from 4.8–6 V and provides stall torque of at least 0.9 kgf·cm. Its 90° ± 10° operating travel, 28T / Φ3.90 mm output shaft, and 245 ± 5 mm wire support compact installations where controlled angular movement is required.

Features

Compact body with high-sensitivity, high-precision, anti-stripping, anti-jumping, anti-shake, and anti-burn feature claims.

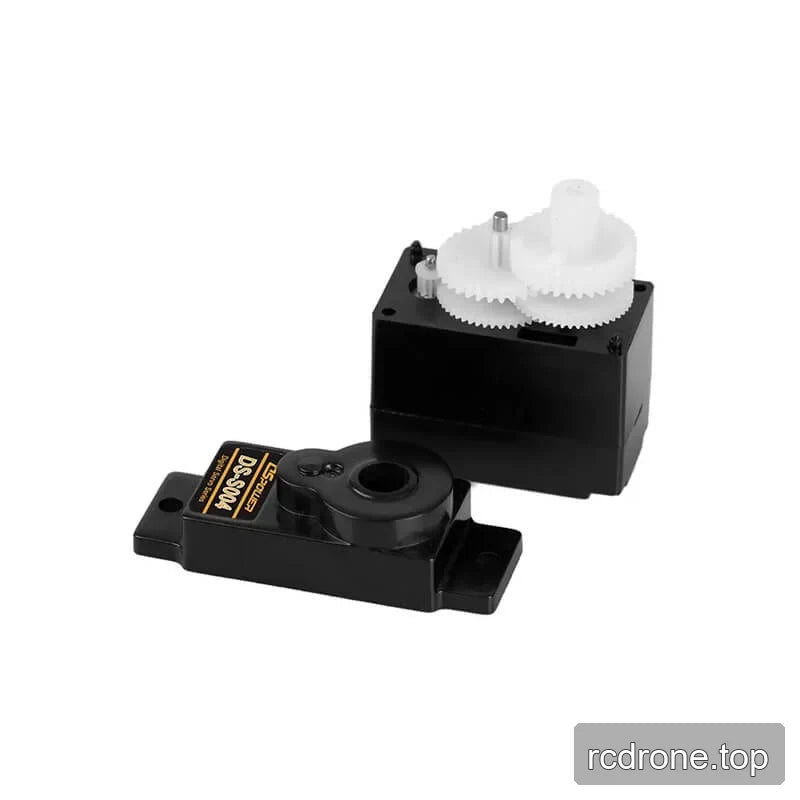

Plastic gear train described as new-material, high-precision gears; the gear production is described as using precision molds and automated injection molding.
Coreless motor and core gearbox technology.
Described for smooth, delicate, lower-noise operation, large torque, long life, and prevention of tooth sweeping.
Imported potentiometer rated for more than 500,000 cycles.
Stall, voltage, temperature, and locked-rotor protection are listed.

Specifications

Parameter	Value
Model	DS-S004
Gear type	Plastic gear
Weight	6 ± 0.5 g
Operating voltage	4.8–6 V
No-load current	≤90 mA
Stall current	≤700 mA
Stall torque	≥0.9 kgf·cm
Rotating direction	CCW (1000 → 2000 μs)
Pulse width range	500–2500 μs
Operating travel angle	90° ± 10° (1000–2000 μs)
Return angle deviation	≤1°
Output shaft specification	28T / Φ3.90 mm
Wire length	245 ± 5 mm
Potentiometer lifespan	>500,000 cycles

Applications

Remote-controlled aircraft, drones, and RC car toys requiring compact servo movement.
Humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots for controlled angular actuation.
Smart switches where servo-driven movement is required.
