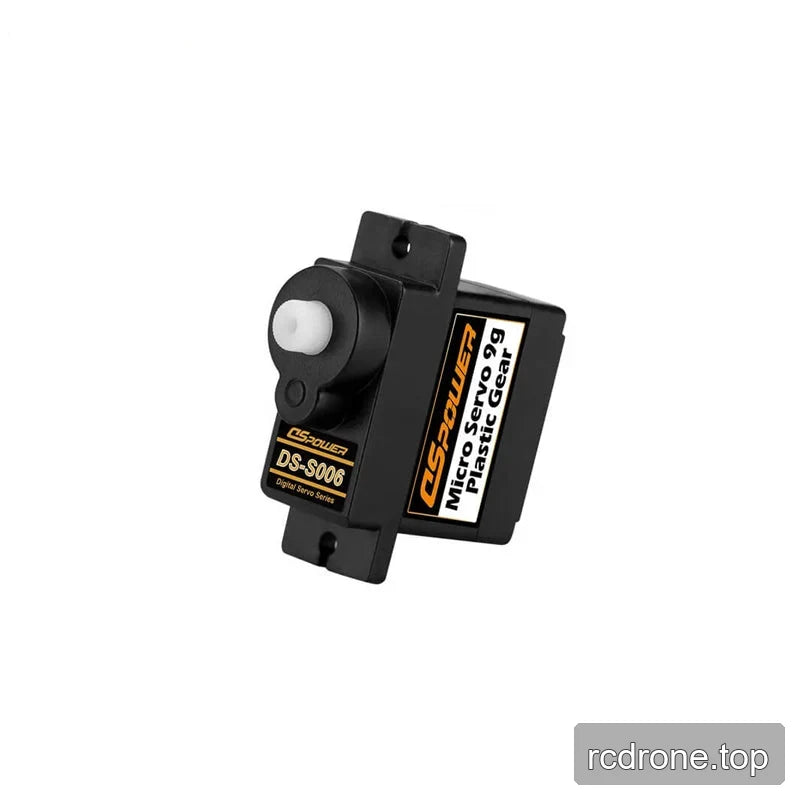

DSpower DS-S006 9 g Micro Servo Motor with Nylon Gears for STEM, Arduino & RC Helicopters

DSpower

$35.00 USD

할인 품절

세금이 포함된 가격입니다. 배송료는 결제 시 계산됩니다.

Version DS-S006

수량

전체 세부 정보 보기

Overview

The DSpower DS-S006 is a 9 g micro servo motor for STEM education, Arduino experiments, RC helicopters, and light-duty movement tasks. It operates from 4.8 to 6 V DC and provides rated stall torque of at least 1.3 kgf·cm at 4.8 V or 1.5 kgf·cm at 6.0 V. Its 90° ± 10° operating travel and plastic gear set suit controlled movement of sensors, cameras, and small robotic mechanisms.

Features

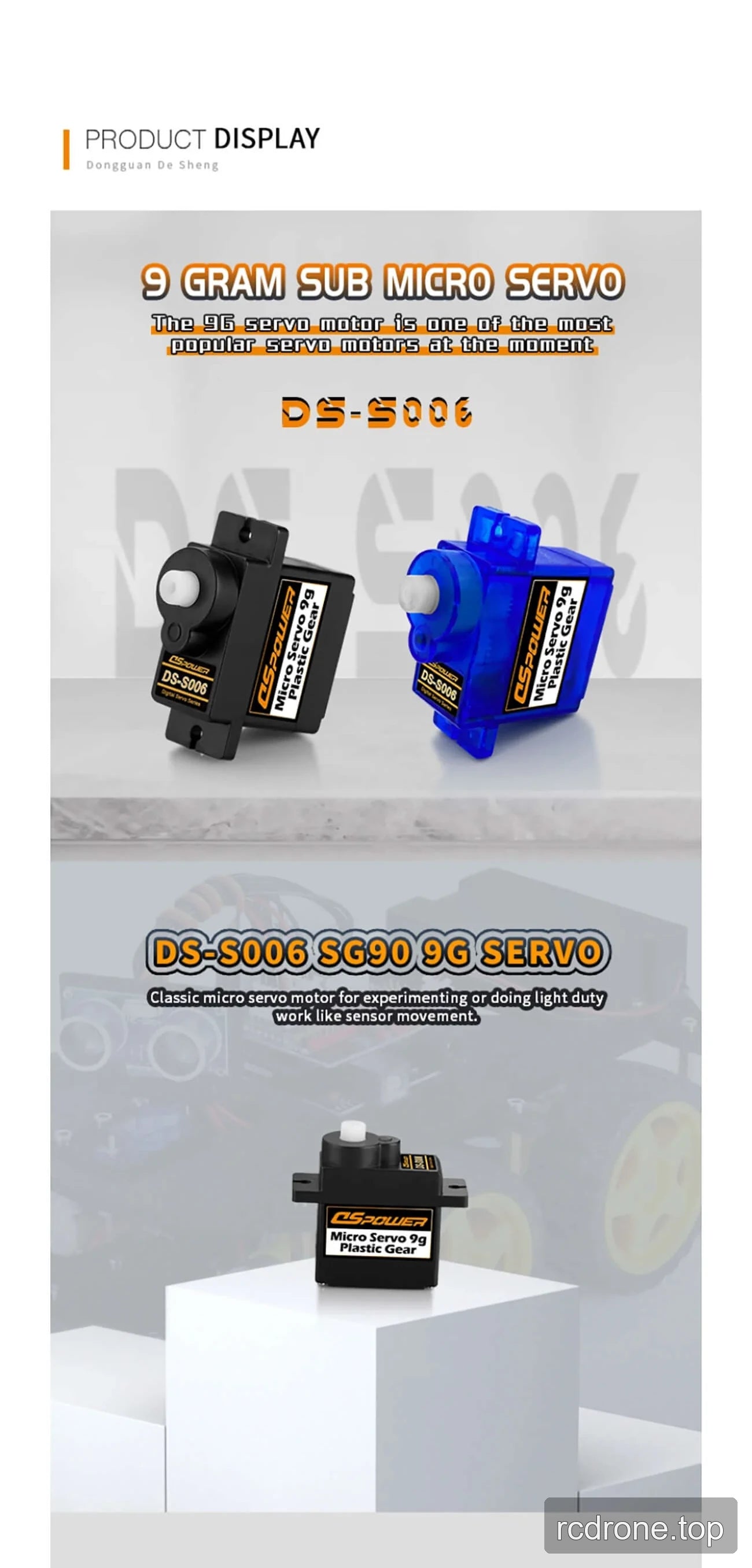

9 g sub-micro servo format with an iron-core motor.

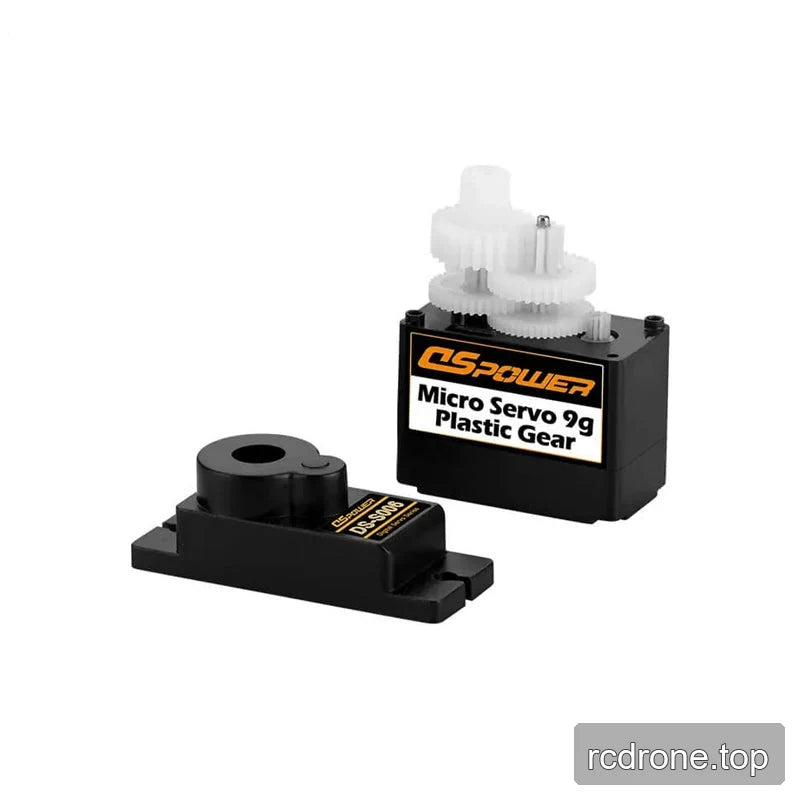

Nylon/plastic gear set and ABS case.

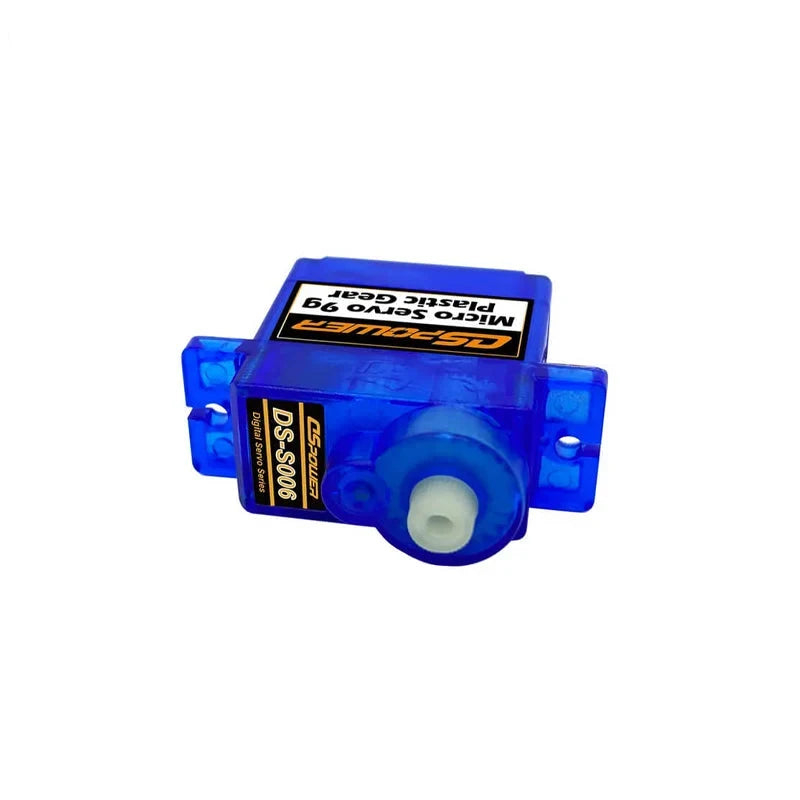

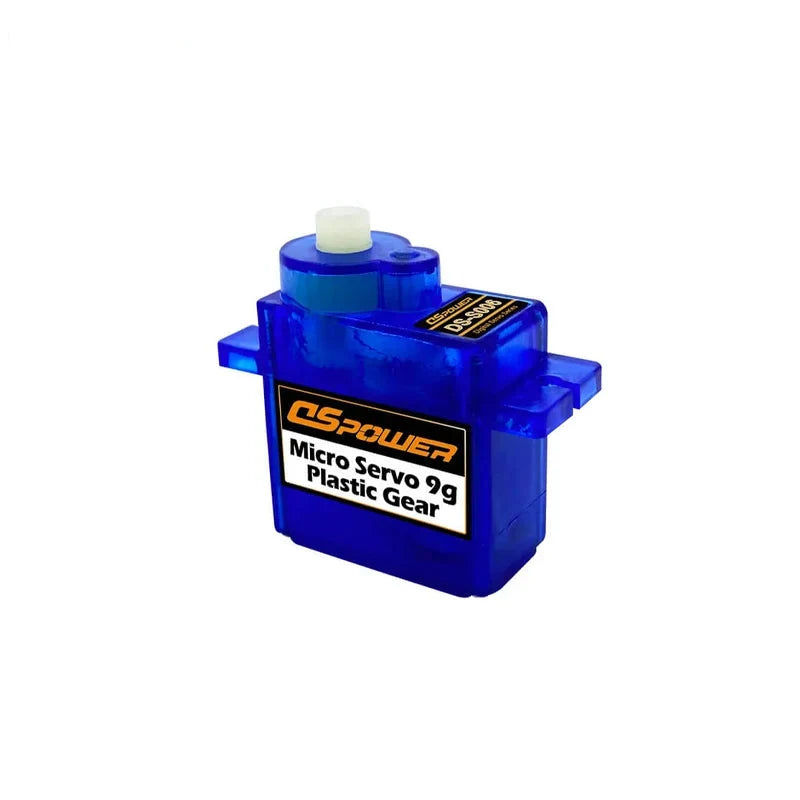

Blue classic casing.
Described as stable, shock proof, lightweight, compact, and ultra-high precision.
Pulse width range: 500–2500 μs.
Operating travel angle: 90° ± 10°; mechanical limit angle: 210°.

Specifications

Parameter	Value
Operating Voltage	4.8–6 V DC
No Load Speed	≤0.13 sec/60° at 4.8 V (REF.) ≤0.11 sec/60° at 6.0 V (STD.)
Stall Current	≤700 mA at 4.8 V (REF.) ≤800 mA at 6.0 V (STD.)
Stall Torque	≥1.3 kgf·cm at 4.8 V (REF.) ≥1.5 kgf·cm at 6.0 V (STD.)
Pulse Width Range	500–2500 μs
Operating Travel Angle	90° ± 10°
Mechanical Limit Angle	210°
Weight	9 ± 0.5 g
Case Material	ABS
Gear Set Material	Plastic gear
Motor Type	Iron Core motor

Applications

STEM education and Arduino experiments requiring compact servo-driven movement.
Radio-controlled helicopters.
Light-duty sensor or camera movement, where the 9 g form factor and specified travel are useful.
Small robots, including humanoid robots, robotic arms, exoskeletons, quadruped robots, AGV vehicles, and ARU robots.
