DSpower DS-S006M Metal-Geared Coreless Micro Servo, 1.5 kgf·cm, for Robotics and RC Models

DSpower

$53.00 USD

할인 품절

세금이 포함된 가격입니다. 배송료는 결제 시 계산됩니다.

Version DS-S006M

수량

전체 세부 정보 보기

Overview

The DSpower DS-S006M is a metal-geared, coreless micro digital servo for compact motion tasks in robotics, hobby projects, and RC applications. It operates from 4.8–6 V DC and provides up to 1.5 kgf·cm stall torque at 6.0 V (STD.). A 500–2500 μs pulse-width range, 90° ± 10° operating travel, and 210° mechanical limit support servo-control integration where compact metal gearing is required.

Features

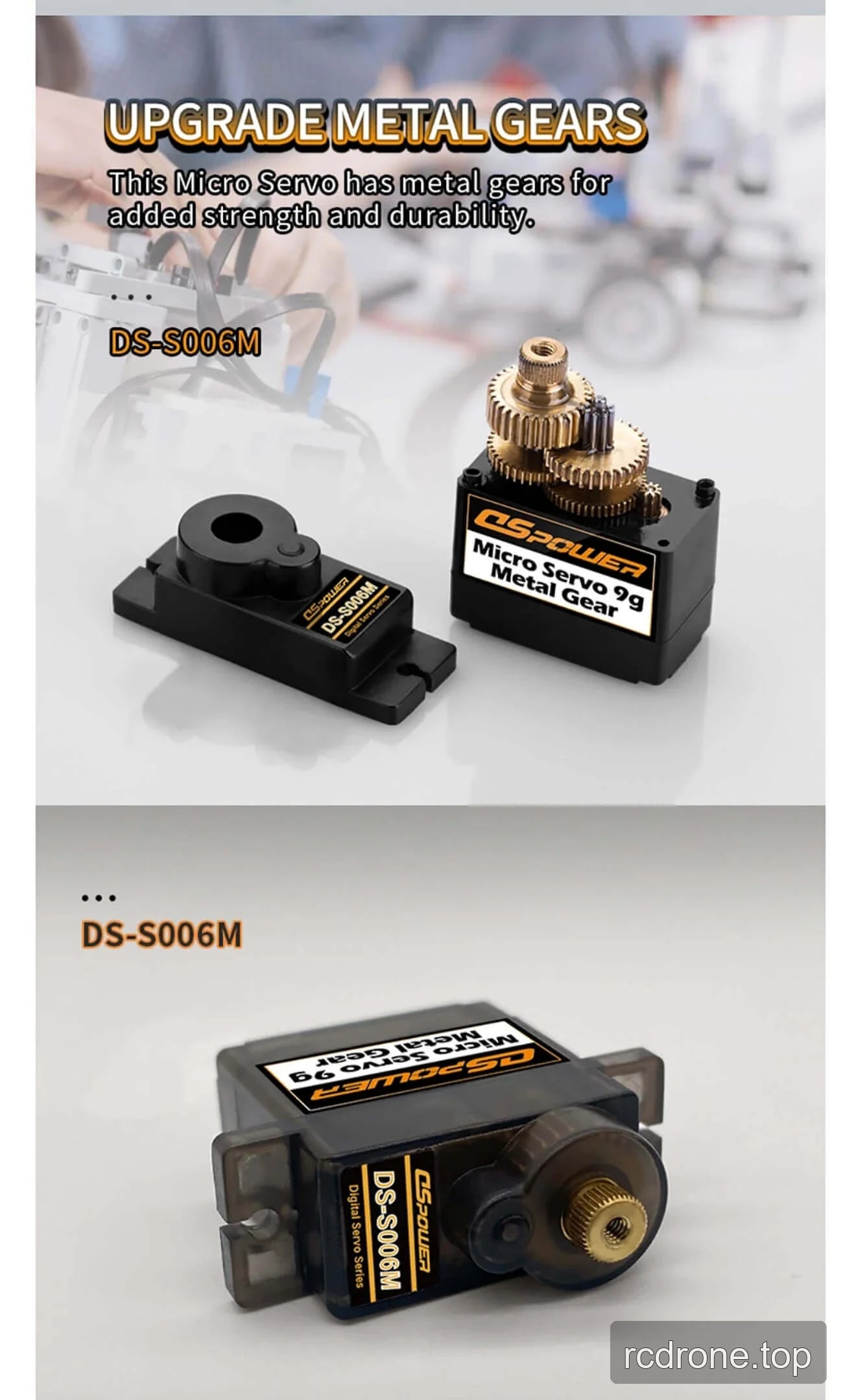

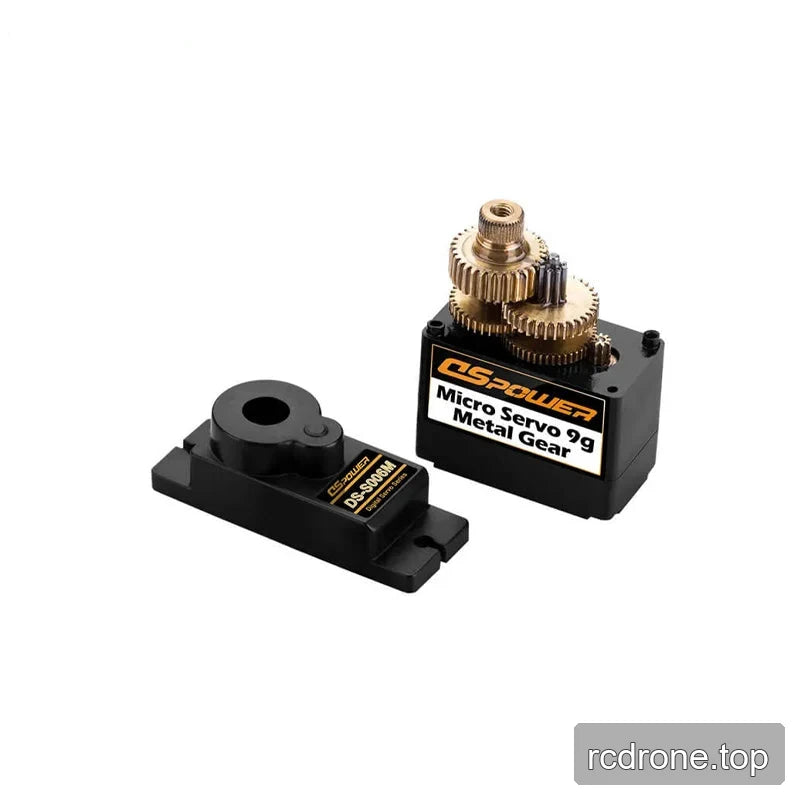

Metal gear set for added strength and durability.
Coreless motor in an ABS case.
Micro digital servo format for compact robotics and hobby mechanisms.
500–2500 μs pulse-width range.
90° ± 10° operating travel angle and 210° mechanical limit angle.

Specifications

Parameter	Value
Operating Voltage	4.8–6 V DC
No Load Speed	≤0.13 sec/60° at 4.8 V (REF.) ≤0.11 sec/60° at 6.0 V (STD.)
Stall Current	≤700 mA at 4.8 V (REF.) ≤800 mA at 6.0 V (STD.)
Stall Torque	≥1.3 kgf·cm at 4.8 V (REF.) ≥1.5 kgf·cm at 6.0 V (STD.)
Pulse Width Range	500–2500 μs
Operating Travel Angle	90° ± 10°
Mechanical Limit Angle	210°
Weight	13.5 ± 0.5 g
Case Material	ABS
Gear Set Material	Metal gear
Motor Type	Coreless motor

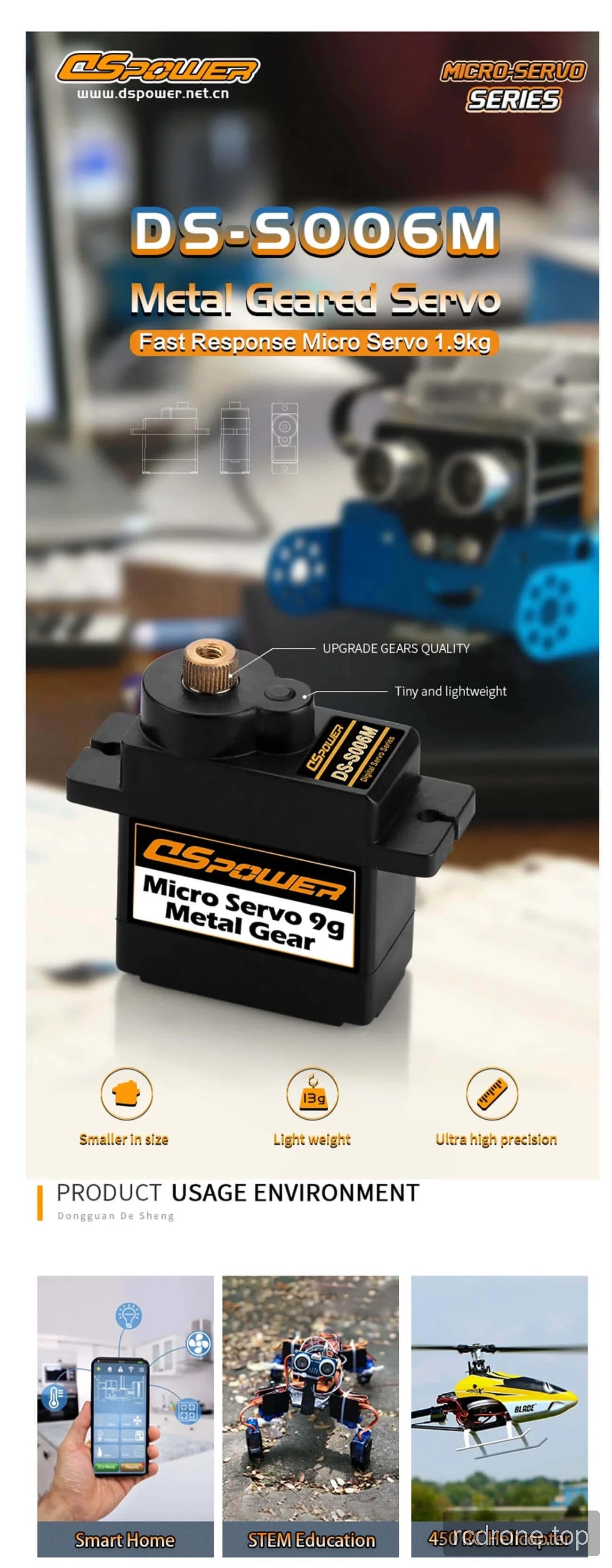

Applications

Robotic arms, humanoid robots, quadruped robots, and exoskeletons: compact servo actuation for mechanisms requiring controlled angular travel.
AGV vehicles and ARU robots: compact motion mechanisms using the 4.8–6 V DC operating range.
Smart-home projects and STEM education: servo-driven prototype and learning projects using the specified pulse-width range.
450 RC helicopters and other hobby projects: metal-geared servo actuation where the stated torque, speed, and travel specifications suit the design requirements.
