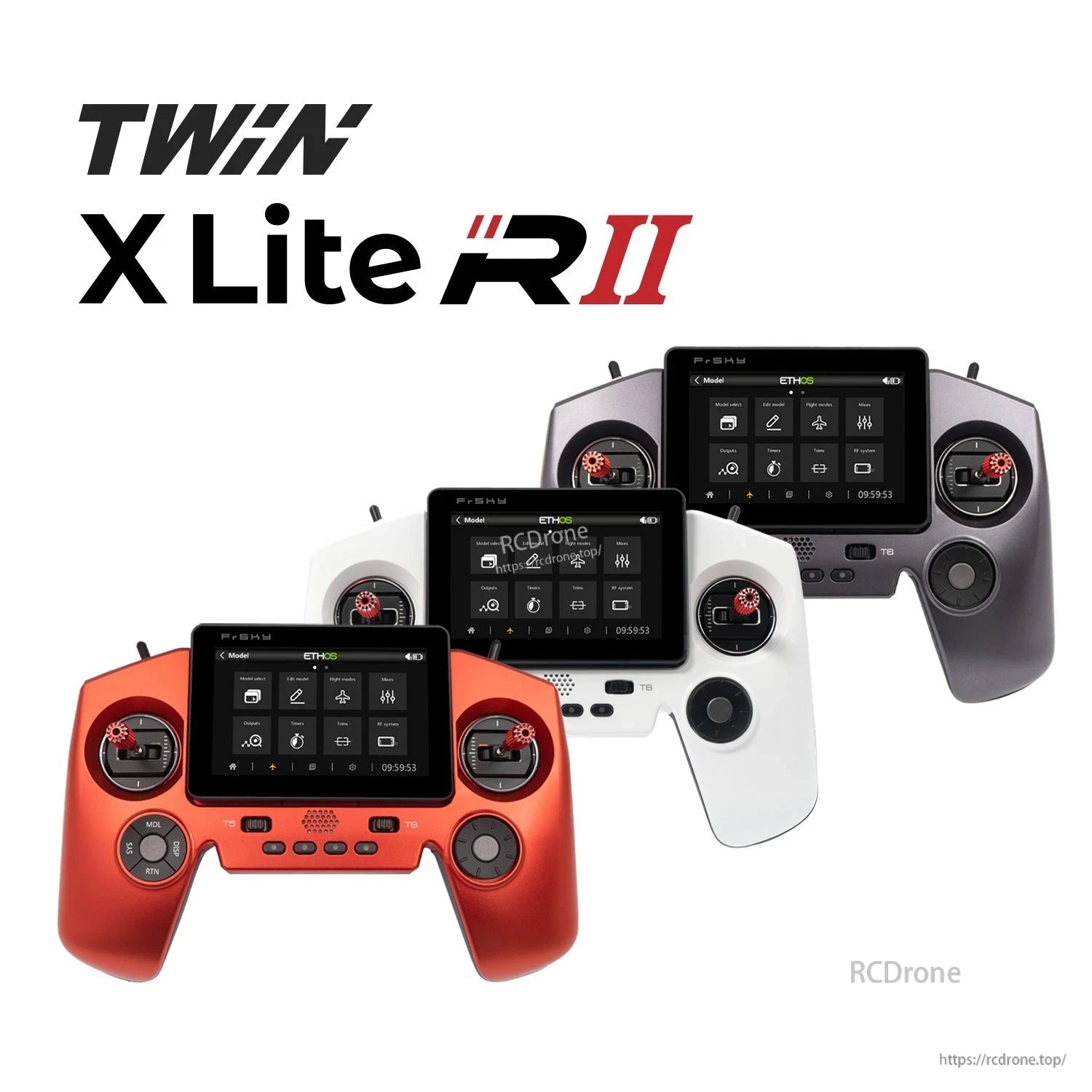

Color Ruby Red[03010277] Porcelain White[03010281] Meteorite Gray[03010282]

Mode Mode 1 (right hand throttle) Mode 2 (left hand throttle)

Version FCC(Non-EU) LBT(EU)

수량

전체 세부 정보 보기

Overview

The FrSky TWIN X-Lite RII transmitter is a compact 2.4G radio system designed for RC model control, featuring the TWIN “TW” active-active dual 2.4G band protocol (two 2.4G frequency bands active simultaneously on the RF module and receiver). It also supports ACCST D16 and ACCESS modes, providing flexible receiver compatibility across different builds. The RII version integrates 4 enhanced-performance built-in 2.4G antennas positioned along the upper edge of the screen to improve RF stability in complex radio environments.

Key Features

Dual 2.4G system with TW active-active protocol for low-latency operation (＜4 ms) with full telemetry support in TW mode
Multi-protocol support: ACCST D16 / ACCESS / TW mode

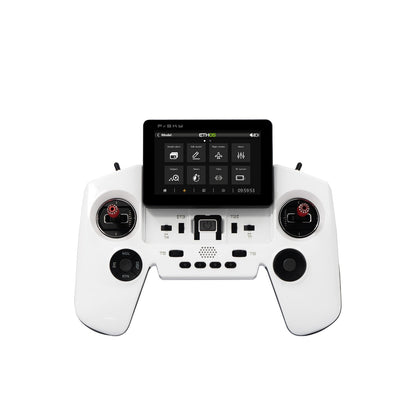

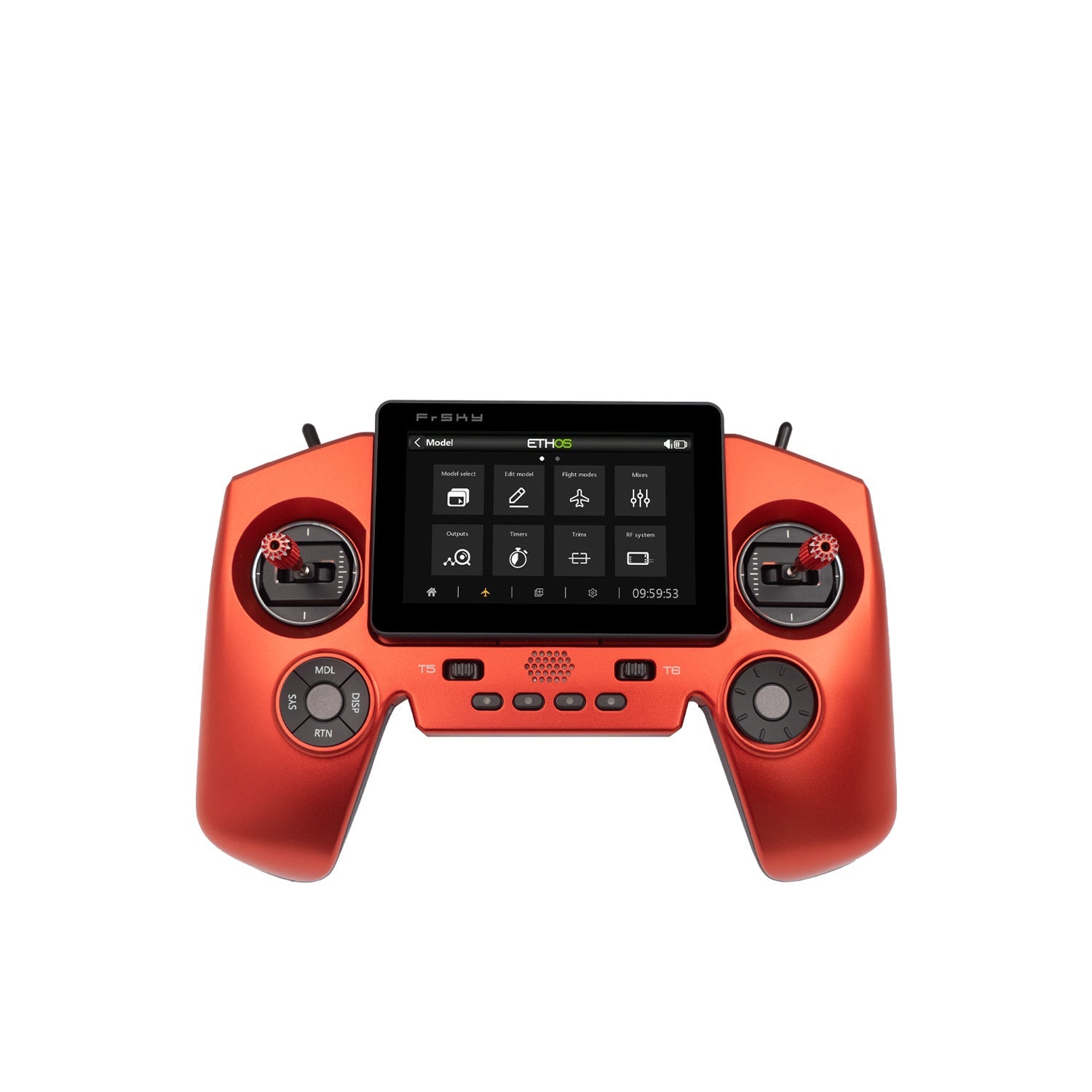

ETHOS operating system

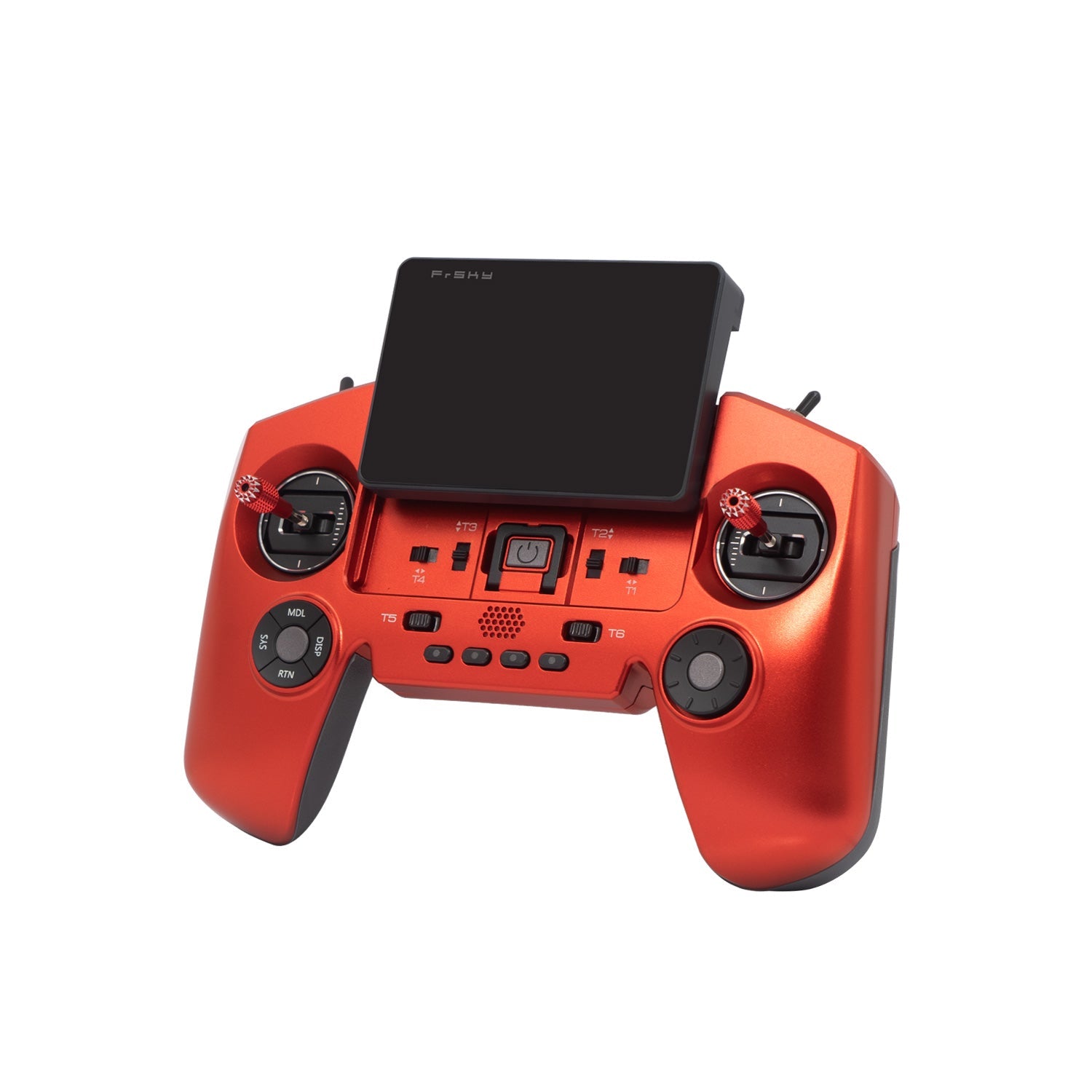

800 × 480 high-brightness touchscreen with sliding screen design and upgraded sliding rail structure
Input layout: 6 trims (4 AETR trims + 2 additional trims) and 4 quick-mode custom buttons
2 upgraded top sliders with center detent and damping feedback

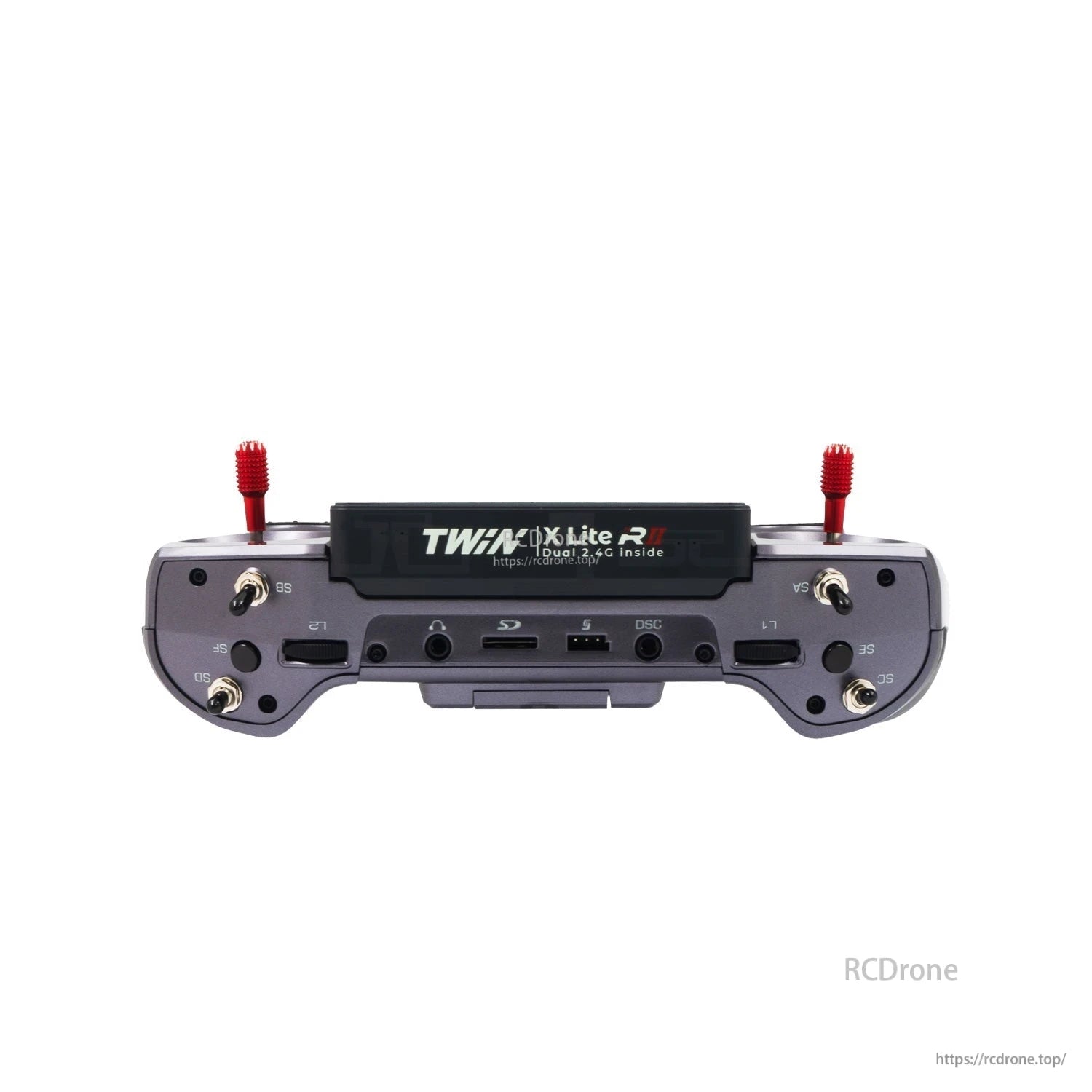

Top controls: 2 momentary buttons, 2 sliders, and 4 switches
MC12 CNC metal gimbals with integrated high-precision Hall sensor; analog gimbal output

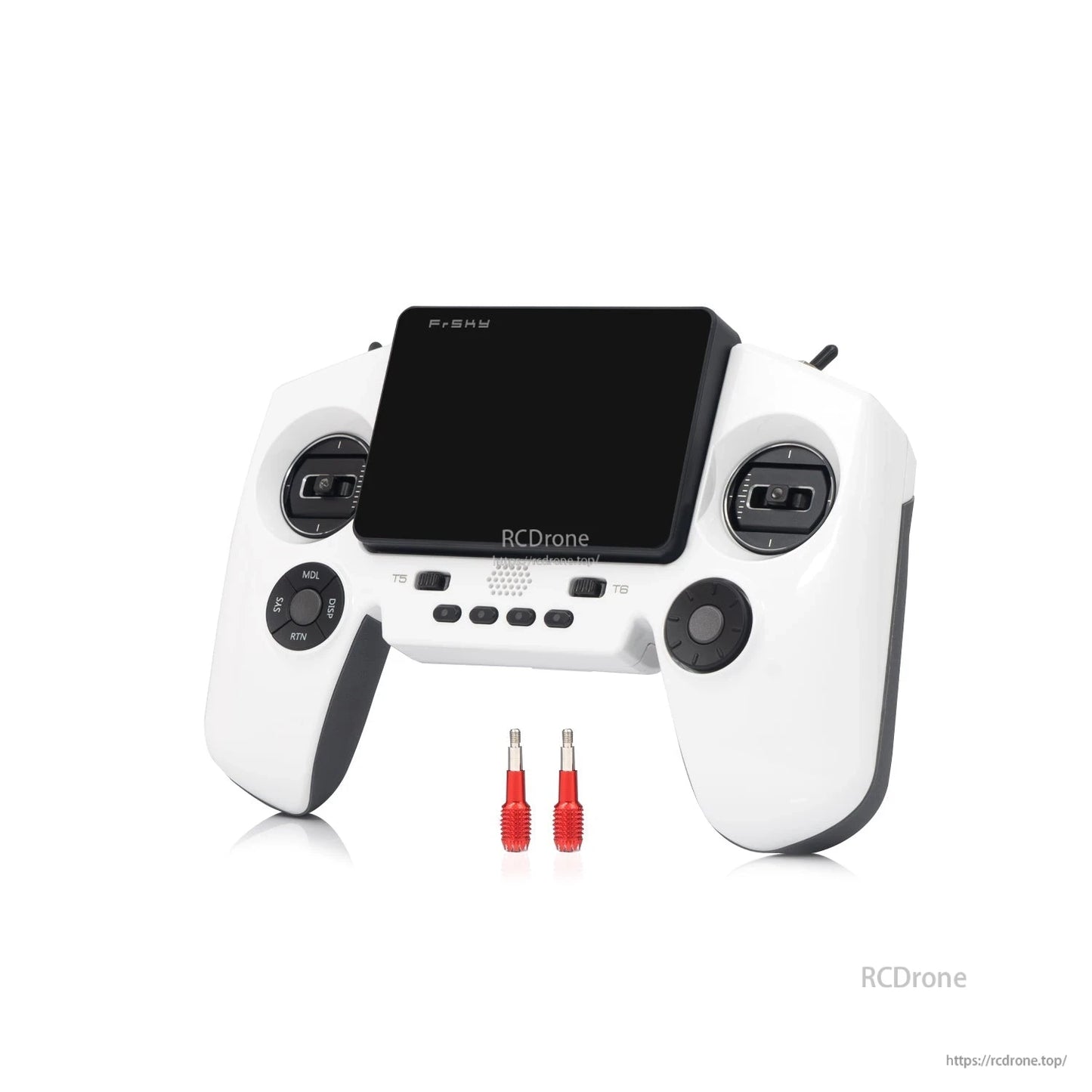

M3 all-around spiked anti-slip stick ends
Built-in 6-axis gyroscope sensor (motion control)
Built-in 512MB flash storage plus TF card slot for expansion
USB Type-C for data transmission and battery charging; supports 2S battery charging
Haptic vibration alerts and voice speech outputs
Lite type external module bay
Foldable tab / neck strap hook
High-speed PARA wireless training system (Bluetooth) and wired trainer function (DSC)
Fixed built-in RF power: 100 mW (non-adjustable)
Removable battery compartment cover

Specifications

Model	TWIN X-Lite RII
Dimensions (L x W x H)	197 x 131 x 68 mm
Weight	487 g (battery incl.)
Operating System	ETHOS
Internal RF Module	TW-ISRM
Number of Channels	Up to 24 channels
Built-in RF Power	Fixed 100 mW (non-adjustable)
Supported RF Protocols	ACCST D16 / ACCESS / TW mode
Battery	Includes 2100mAh 2S Li-ion battery
Operating Voltage Range	6.5 - 8.4 V (2S Li-battery)
Operating Current	440 mA @ 7.4 V (typ.)
Operating Temperature	-10°C to 60°C (14°F to 140°F)
Battery Bay Size (L x W x H)	68 x 44.5 x 13 mm
Data Transmission & Charging Interface	USB Type-C
USB Adapter Voltage / Current	5V + 0.2V, > 2.0A (use a certified 10W/15W power adapter)
Storage	Built-in 512MB flash storage + TF card slot
LCD Touchscreen Resolution	800 x 480
Gimbal	MC12 CNC metal gimbals with integrated high-precision Hall sensor
Gimbal Output Signal	Analog
Gimbal Stick Ends Size	M3
External Module Bay Type	Lite module bay

Applications

RC aircraft and gliders (trim-friendly layout for frequent in-flight adjustments, such as flap/surface tuning)
RC helicopters and multirotors requiring multi-protocol receiver compatibility
Motion-sensing control use cases via the built-in 6-axis gyroscope (when supported by the model setup)

For setup or compatibility questions (receivers, binding modes, firmware, charging), contact support@rcdrone.top or visit https://rcdrone.top/.

Details

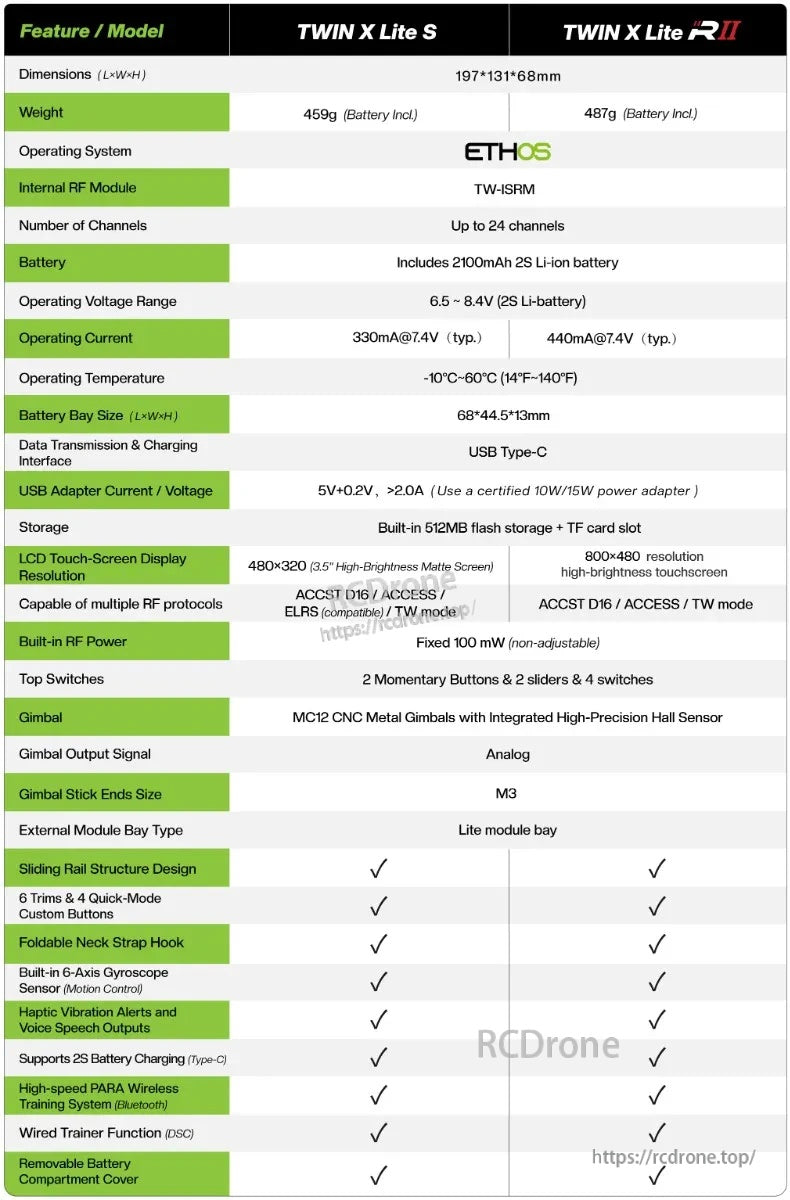

FrSky TWIN X-Lite RII transmitter specs comparison chart with ETHOS, 24 channels, USB‑C and TW/ACCESS/ACCST modes

ETHOS-based spec comparison highlights the TWIN X-Lite RII upgrades, including up to 24 channels, USB‑C charging/data, and TW/ACCESS/ACCST D16 protocol support.
