HGLRC Wind5 Lite V2 195mm FPV Racing Frame Kit – Quick-Release

Overview

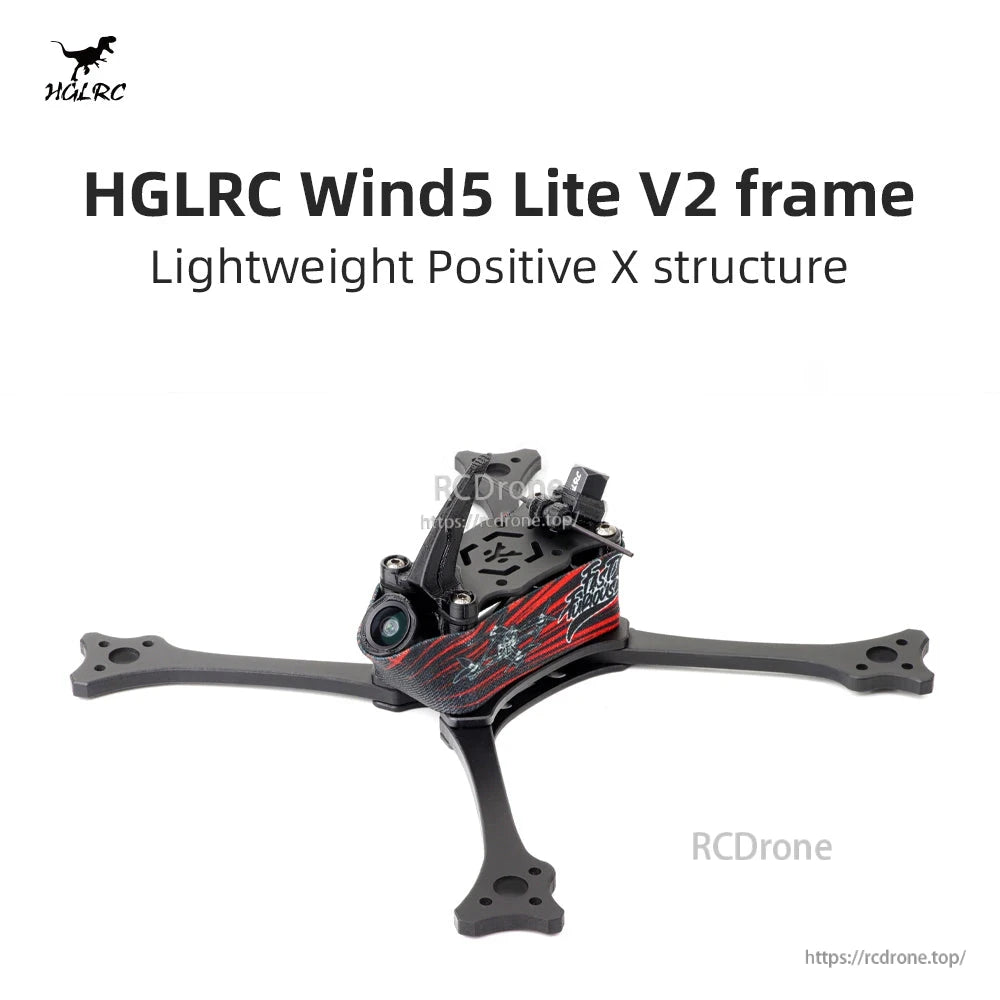

The HGLRC Wind5 Lite V2 is a lightweight racing frame kit for racing drone competitions. It uses a Positive X structure with a shortened 195mm wheelbase for responsive handling, and combines high-strength carbon fiber with customized 7075 aviation-grade aluminum columns and limit aluminum parts.

Key Features

Lightweight Positive X structure racing frame design
High-strength carbon fiber frame
Customized high-strength 7075 aviation-grade aluminum columns to protect camera/stack and other equipment
Customized high-strength 7075 aviation-grade limit aluminum parts to help prevent empty space
Arm quick-release design: one screw to quickly remove an arm for maintenance
Top plate reserves 20x20*M3 holes for HDZero digital VTX installation
Standard arm protection bar design
Standard simulated RHCP mini hammer antenna (analog version antenna)
Standard Kevlar 15*250mm anti-slip battery strap

For product support or pre-sale compatibility questions, contact support@rcdrone.top or visit https://rcdrone.top/.

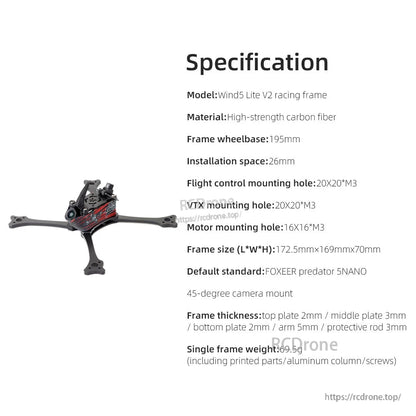

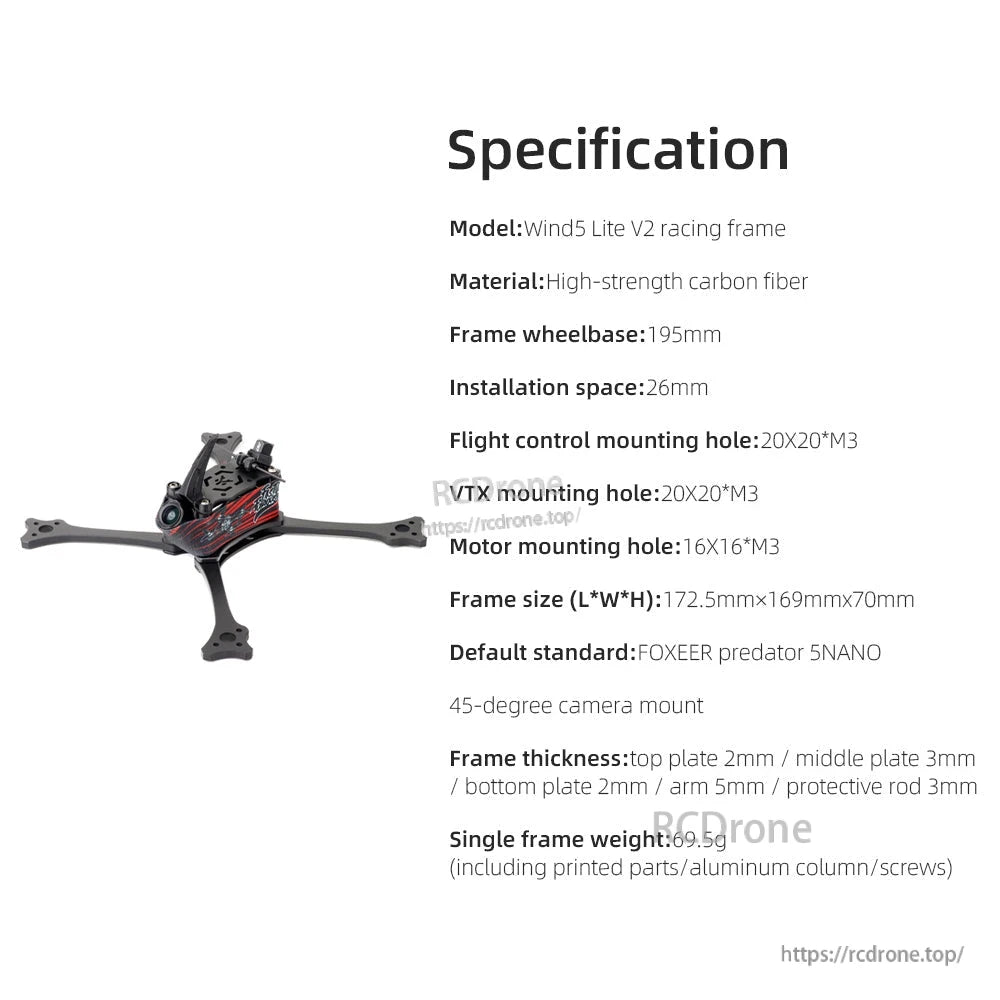

Specifications

Model	Wind5 Lite V2 racing frame
Structure	Lightweight Positive X structure
Material	High-strength carbon fiber
Frame wheelbase	195mm
Installation space	26mm
Flight control mounting hole	20X20*M3
VTX mounting hole	20X20*M3
Motor mounting hole	16X16*M3
Frame size (LWH)	172.5mm×169mmx70mm
Default standard	FOXEER predator 5NANO 45-degree camera mount
Frame thickness	top plate 2mm / middle plate 3mm / bottom plate 2mm / arm 5mm / protective rod 3mm
Single frame weight	69.5g (including printed parts/aluminum column/screws)
Frame weight	69.5g

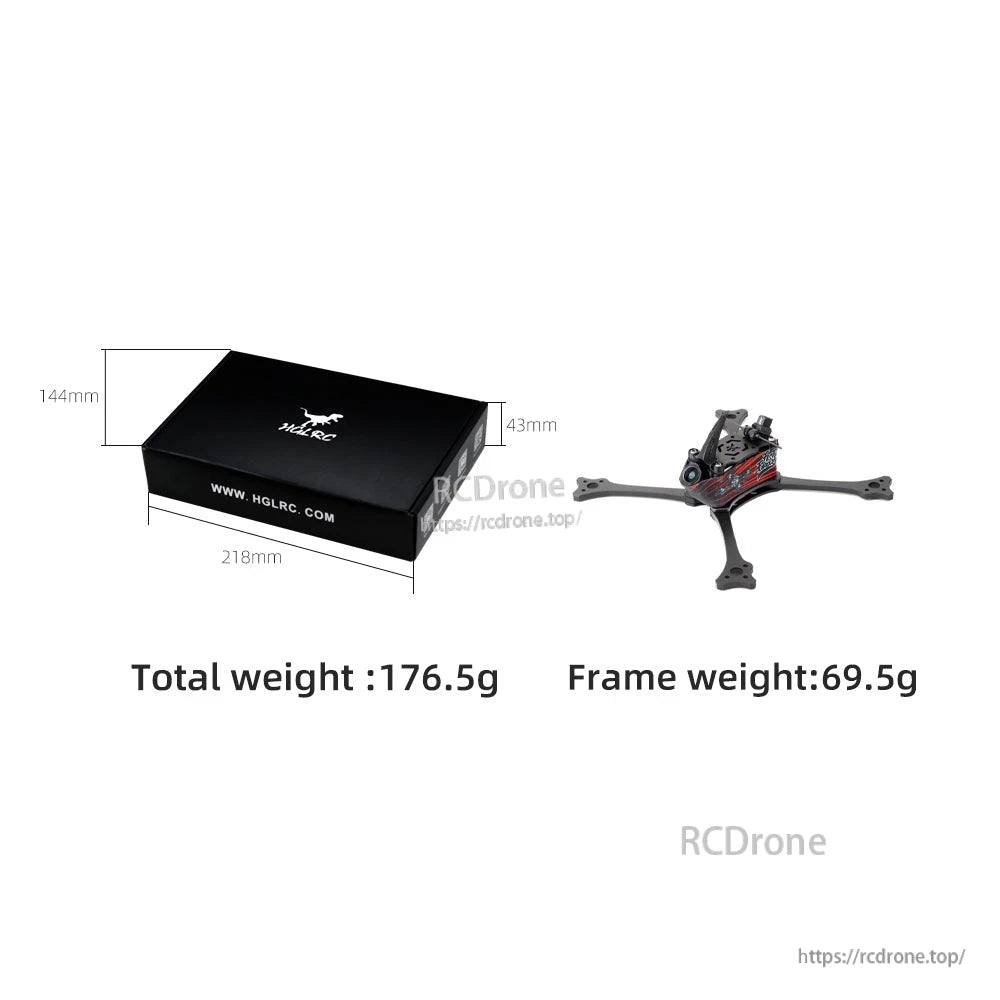

Total weight	176.5g
Package size	218mm x 144mm x 43mm

What’s Included

Arm *4
Arm protection bar *2
Top plate *1
Middle plate *1
Bottom plate *1
Battery anti-slip sticker *1
Battery strap 15*250mm *2
Dustproof belt *1
Camera mount *1 (default standard Foxeer Nano Predator 5)
TPU shark fin *1
Antenna mount *1
Antenna *1 (default standard analog version antenna)
CNC arm limiter *1
M3*25mm 7075 aluminum column *4
Round head M3*25mm *4
Countersunk head M3*16mm *4
Round head M3*12mm *4
Round head M3*10mm *4
Countersunk head M3*10mm *2
Round head M2*4mm *2
M3 nylon nut *4

Notes

The default configuration includes FOXEER predator 5NANO 45-degree camera mount and an analog RHCP mini hammer antenna.
The frame antenna mount is only compatible with the new HGLRC mini hammer antenna. If a digital antenna is needed, it must be purchased separately.
Runcam Nano4 camera / HDZero Nano 90 camera adapter printouts are available for download from the official HGLRC WeChat account.

Recommended Parts (Not Included)

ESC: SPECTER 60A
Flight controller: SPECTER F722 MINI
Motor: SPECTER 2306.5-1900KV
Camera: FOXEER predator 5NANO / Runcam Nano4
Propeller: Gemfan 51466

Details

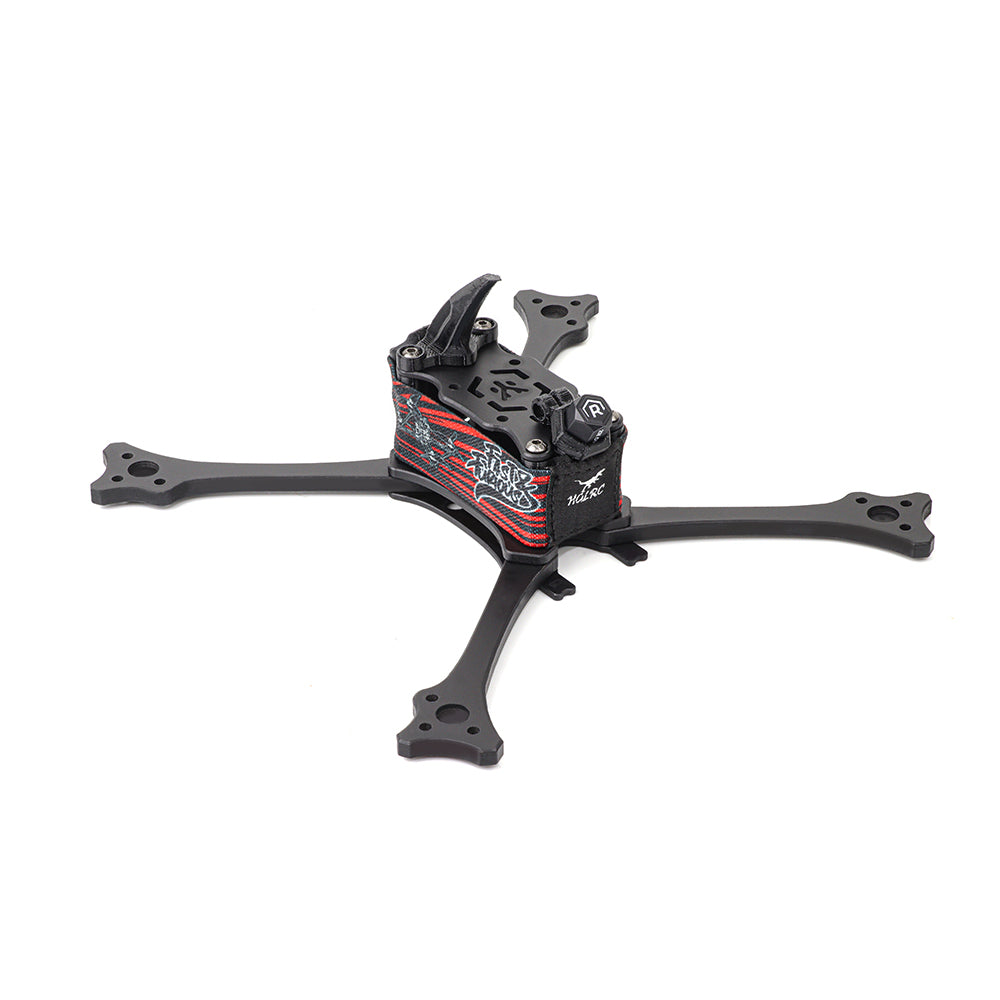

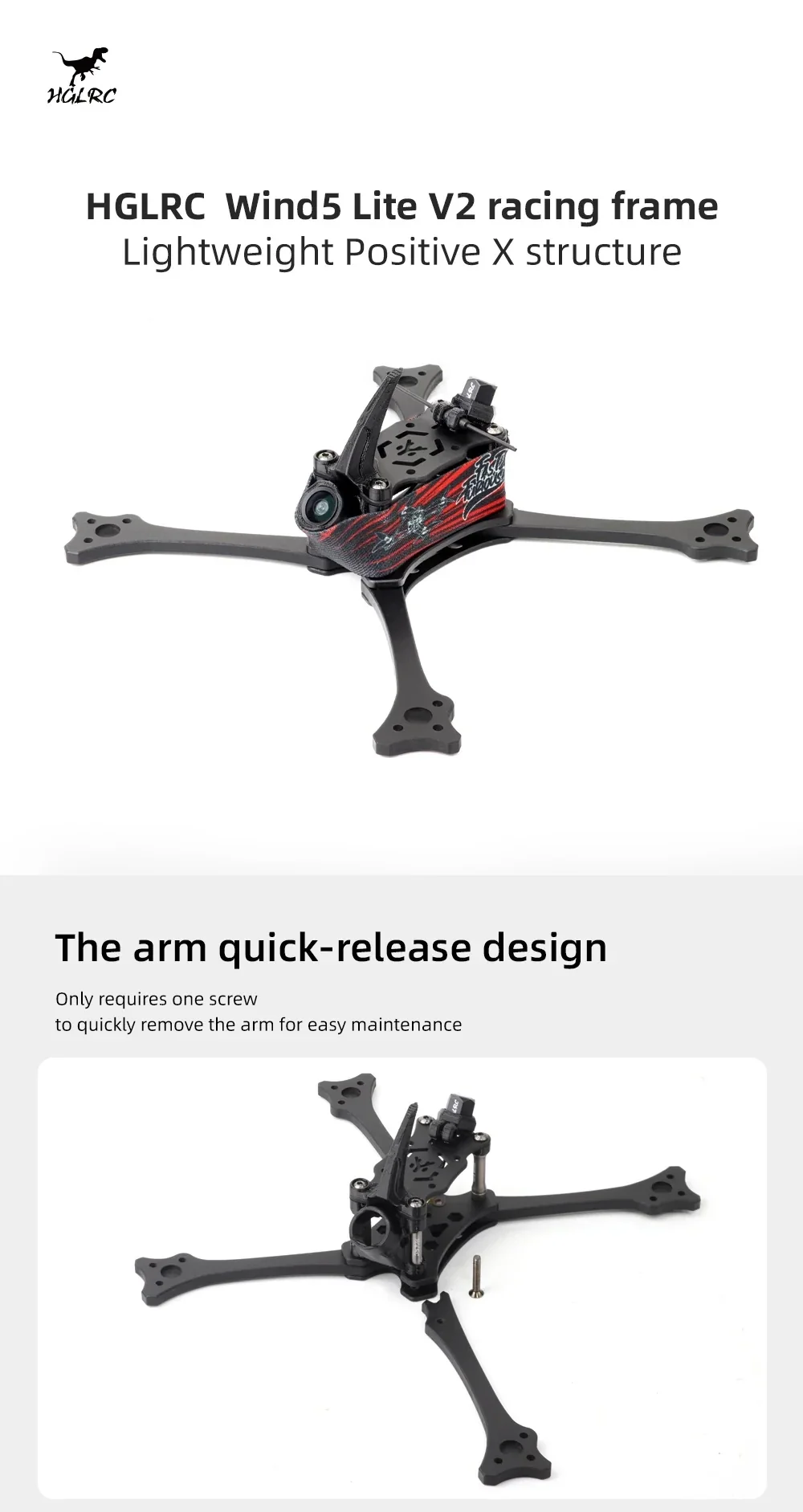

HGLRC Wind5 Lite V2 racing drone frame kit with Positive X layout and one-screw quick-release arm design

Quick-release arms use a single screw for faster maintenance between race heats.

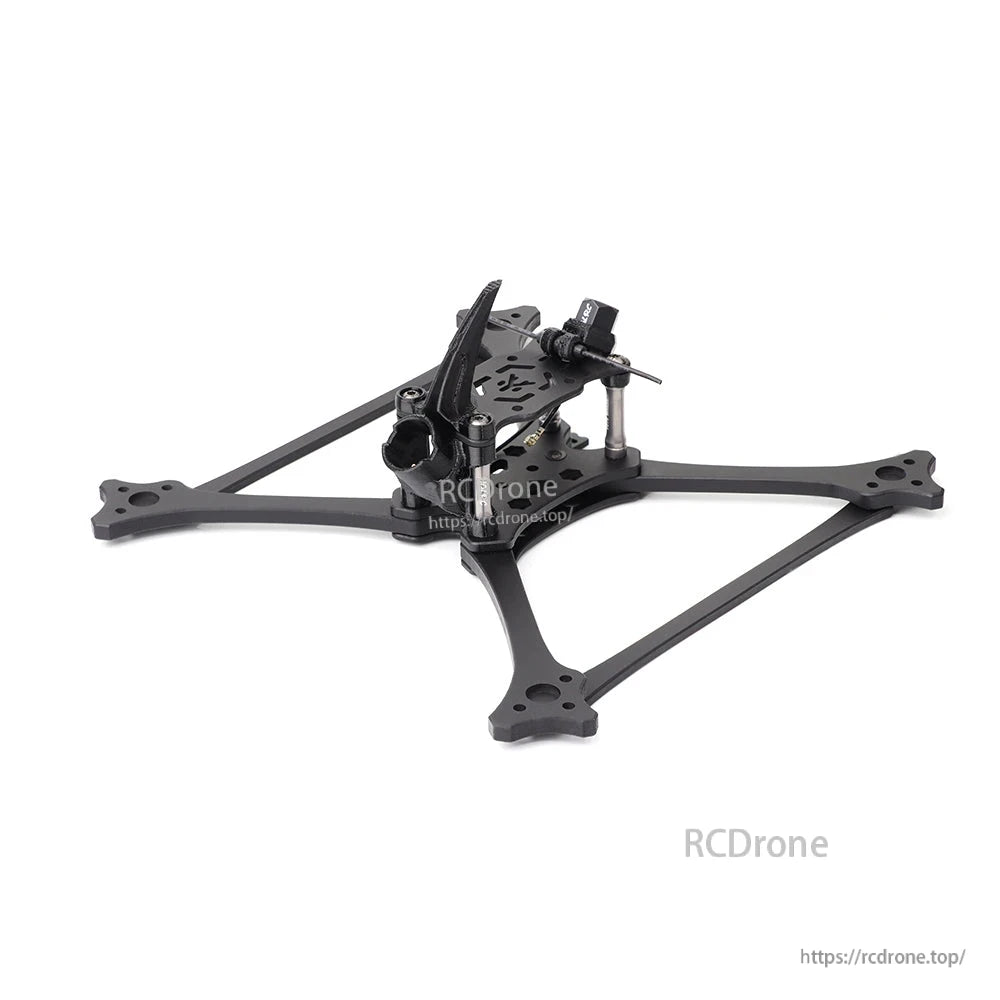

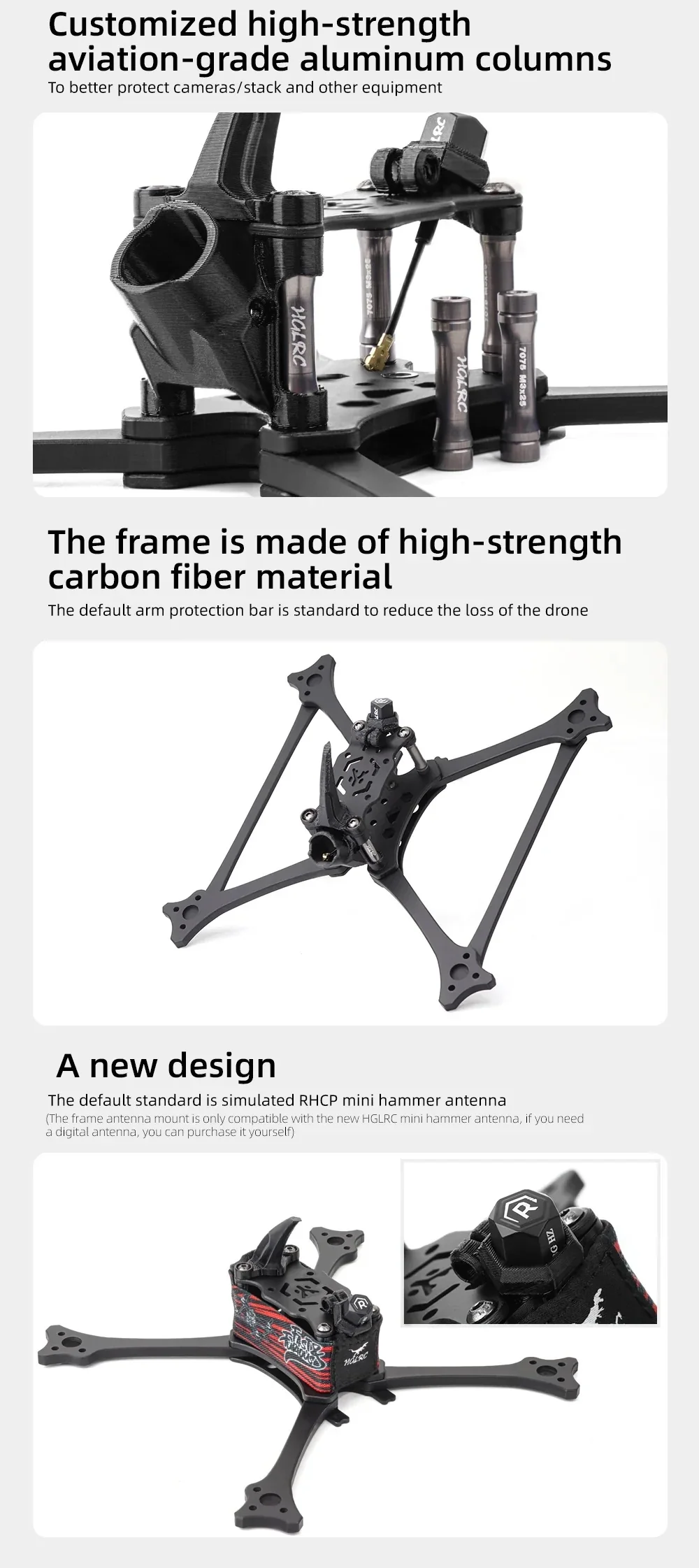

Close-up of HGLRC Wind5 Lite V2 carbon fiber frame with 7075 aluminum standoffs and camera/stack protection

High-strength carbon fiber plates pair with 7075 aluminum columns to help protect the camera and electronics stack.

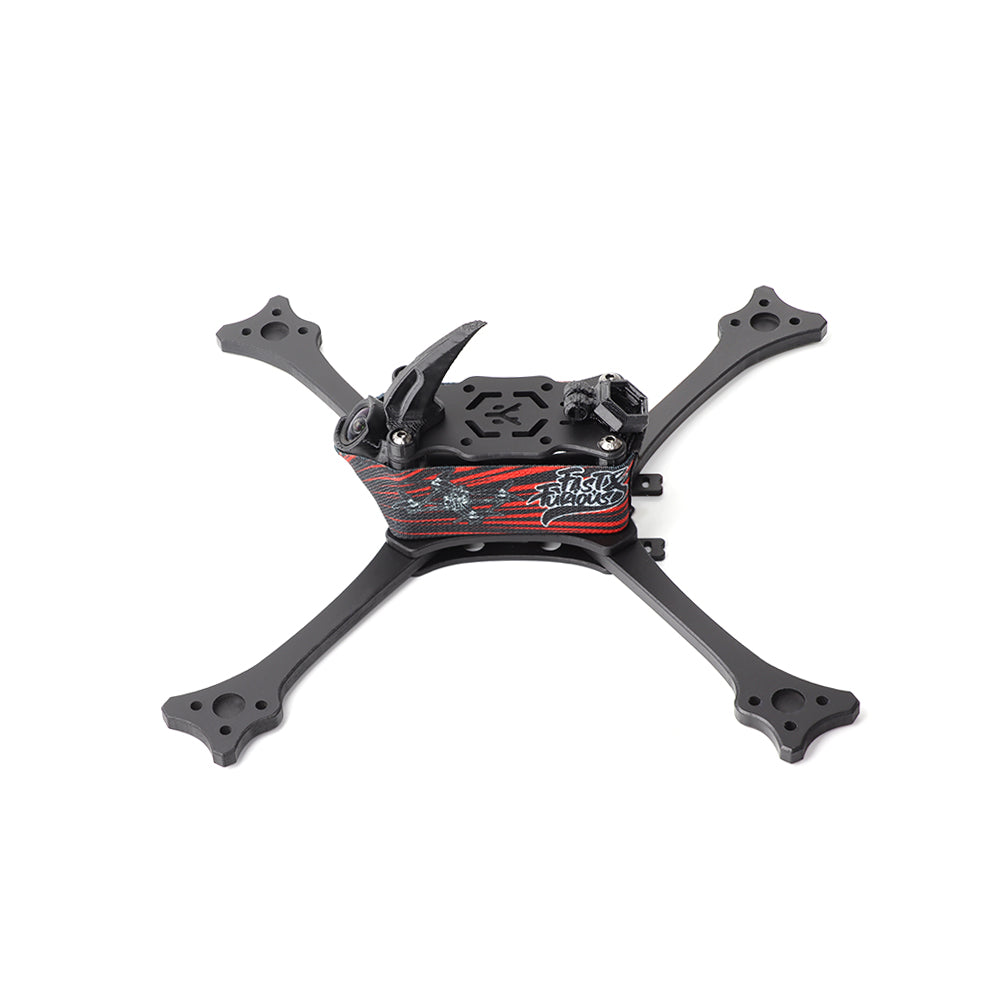

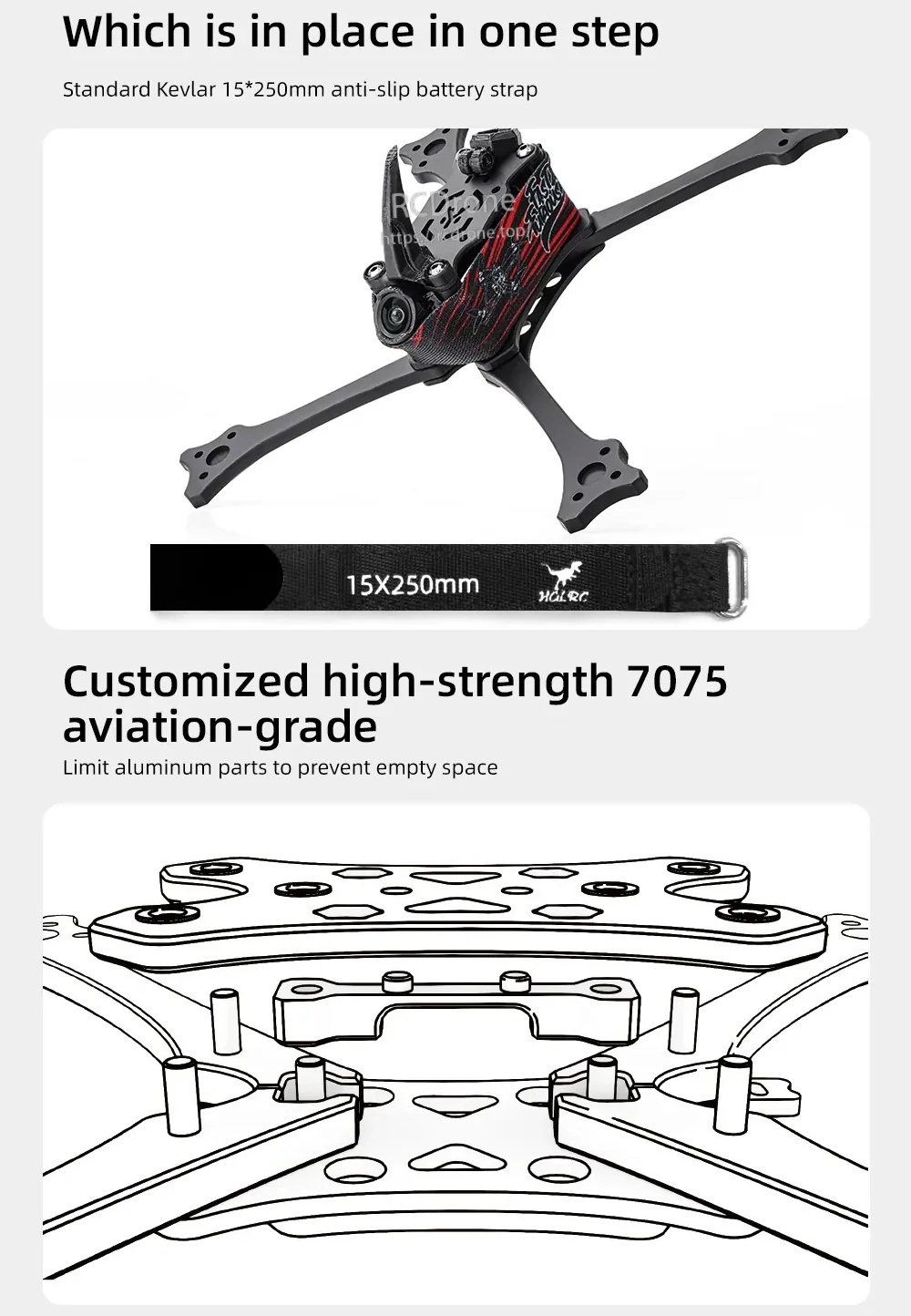

Wind5 Lite V2 frame with Kevlar 15×250mm anti-slip battery strap and 7075 aluminum arm limiter layout

A Kevlar anti-slip battery strap is included, along with limit aluminum parts designed to reduce empty space around the build.

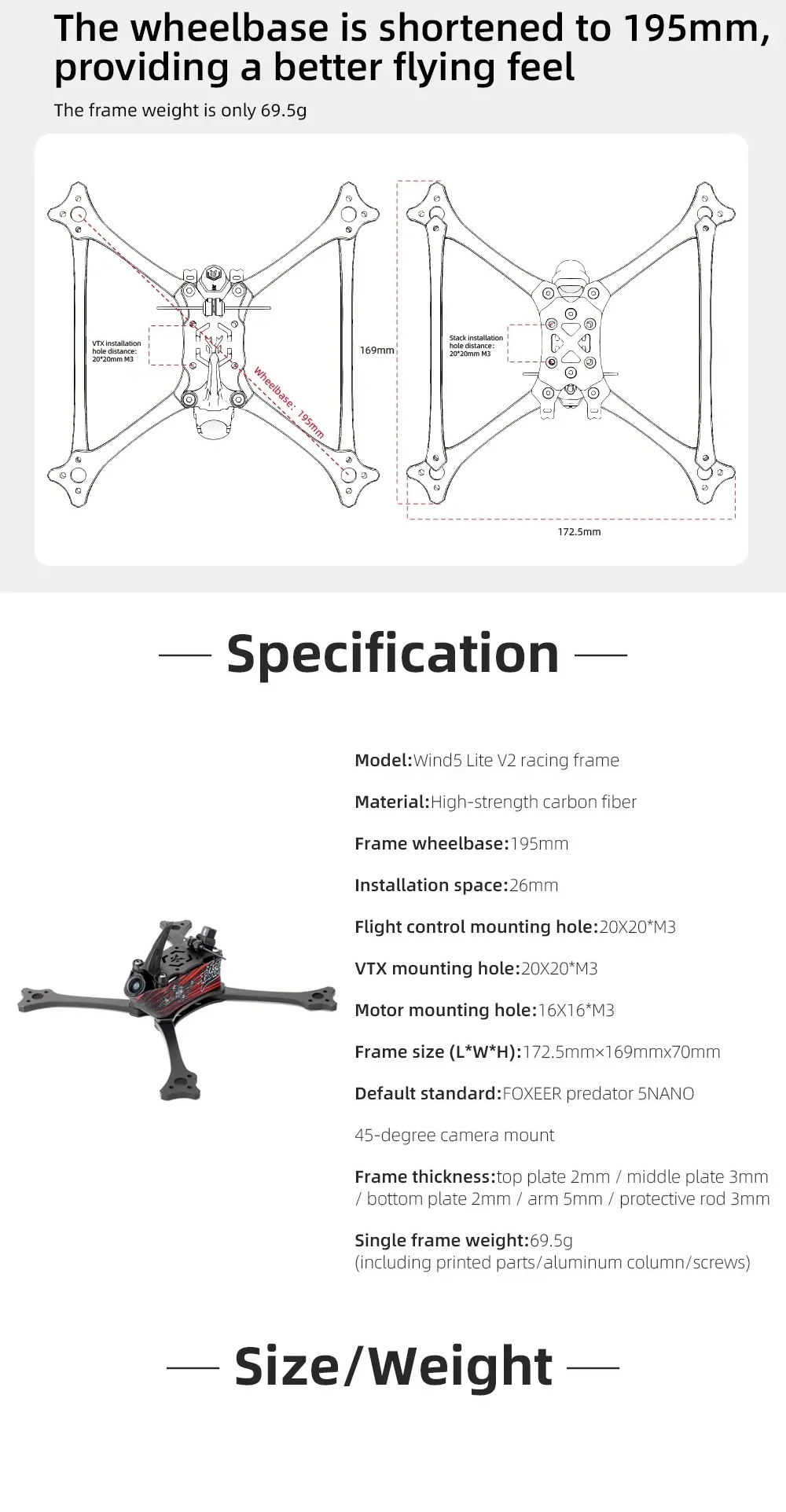

Wind5 Lite V2 frame dimension diagram showing 195mm wheelbase, 20x20 M3 stack/VTX mounts, and 16x16 M3 motor pattern

A compact 195mm wheelbase and 20×20 M3 mounting keep electronics placement straightforward for lightweight builds.

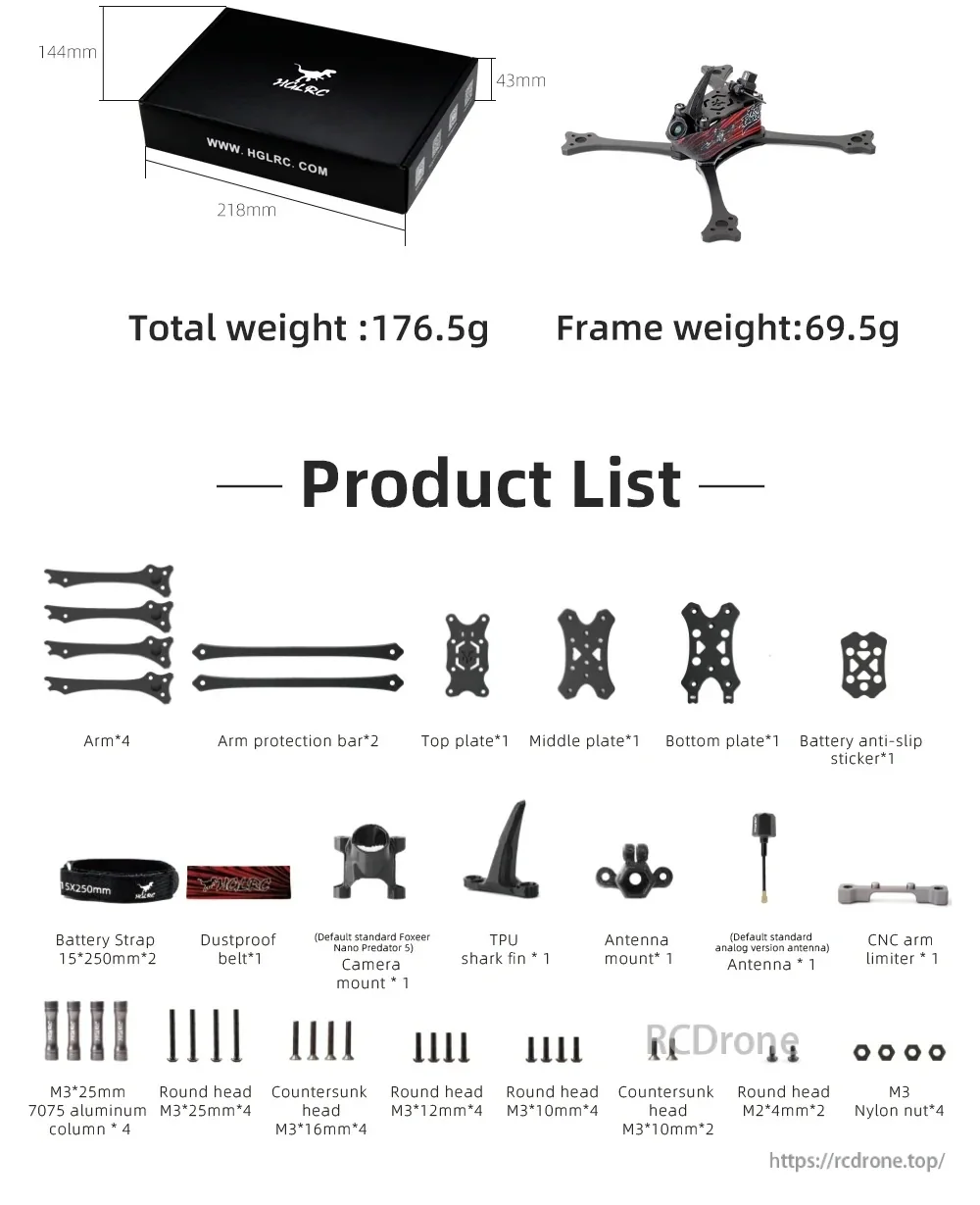

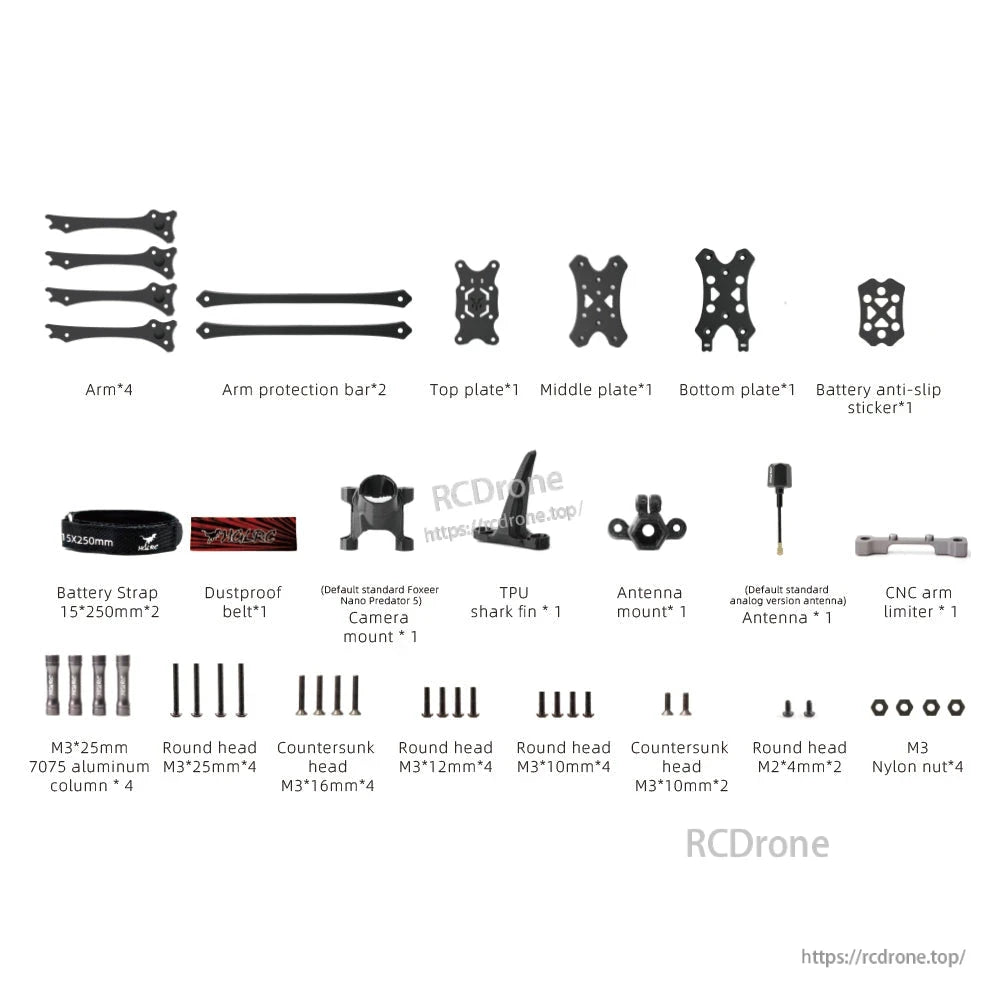

Package contents list and weights for HGLRC Wind5 Lite V2 frame kit, including arms, plates, mounts, antenna, and hardware
