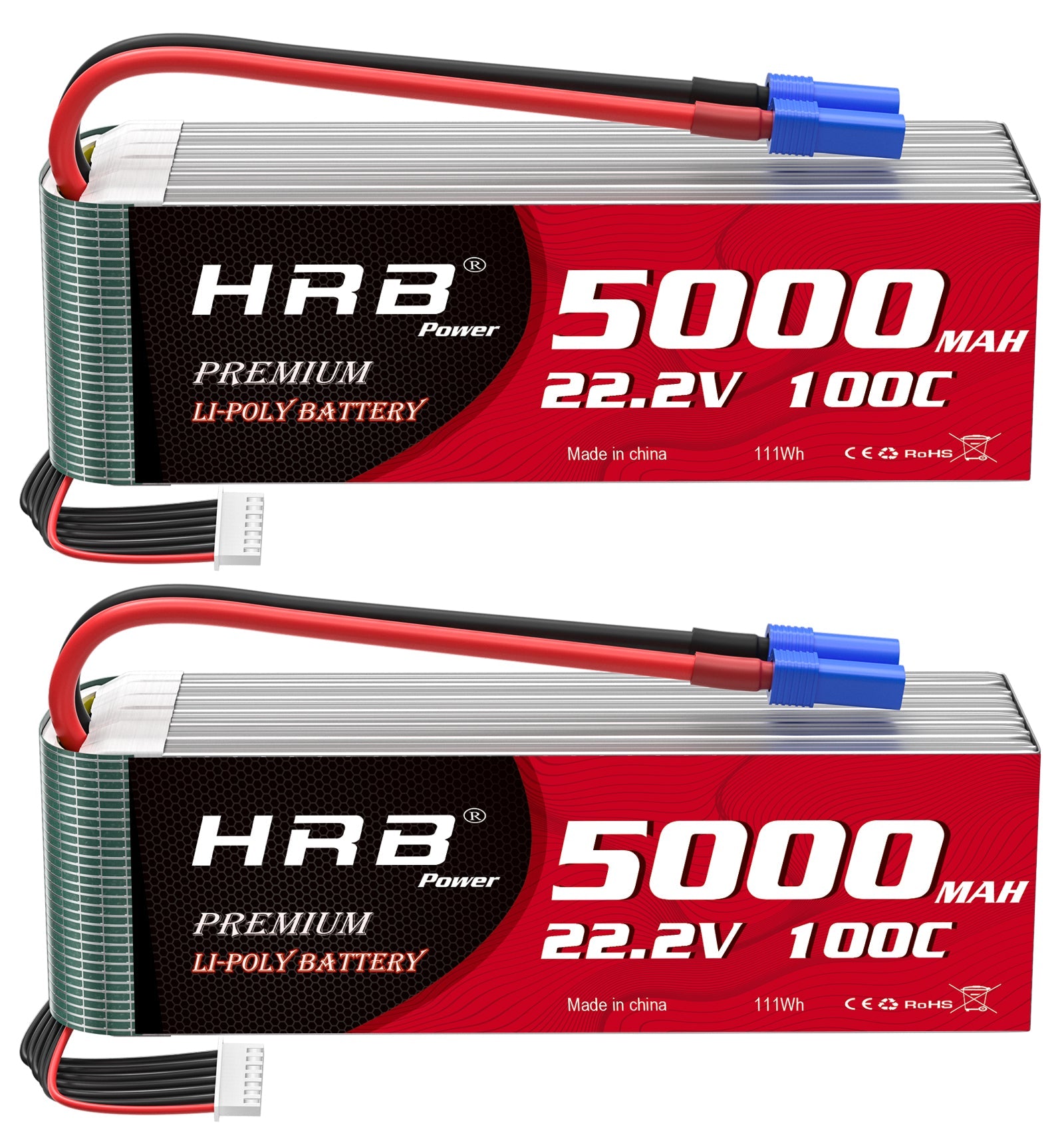

• 2-pack HRB 22.2V 6S 5000mAh 100C LiPo batteries with blue EC5 connectors, side view

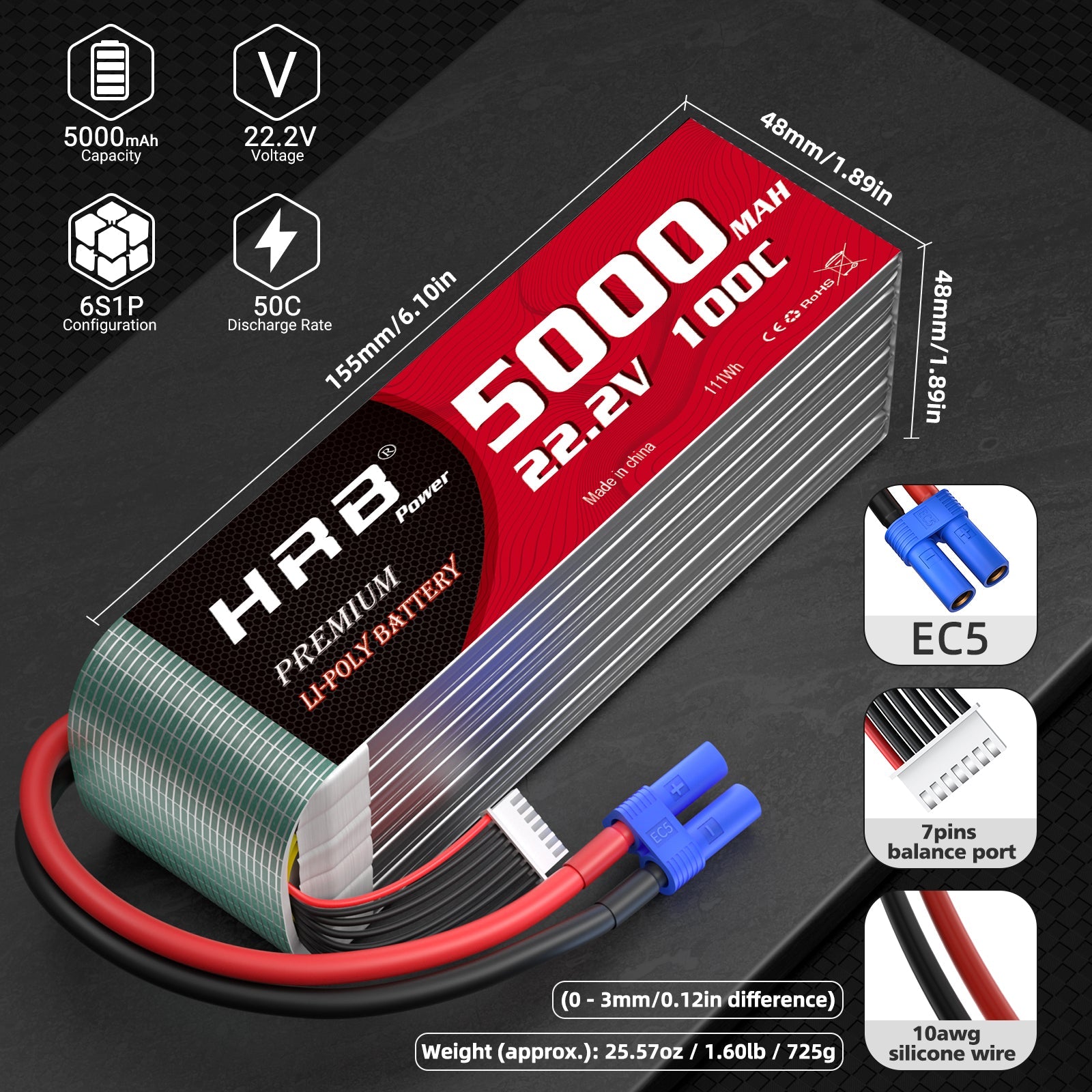

  • HRB 5000mAh 22.2V 6S1P LiPo size chart with EC5 plug, 7-pin balance port and wire details

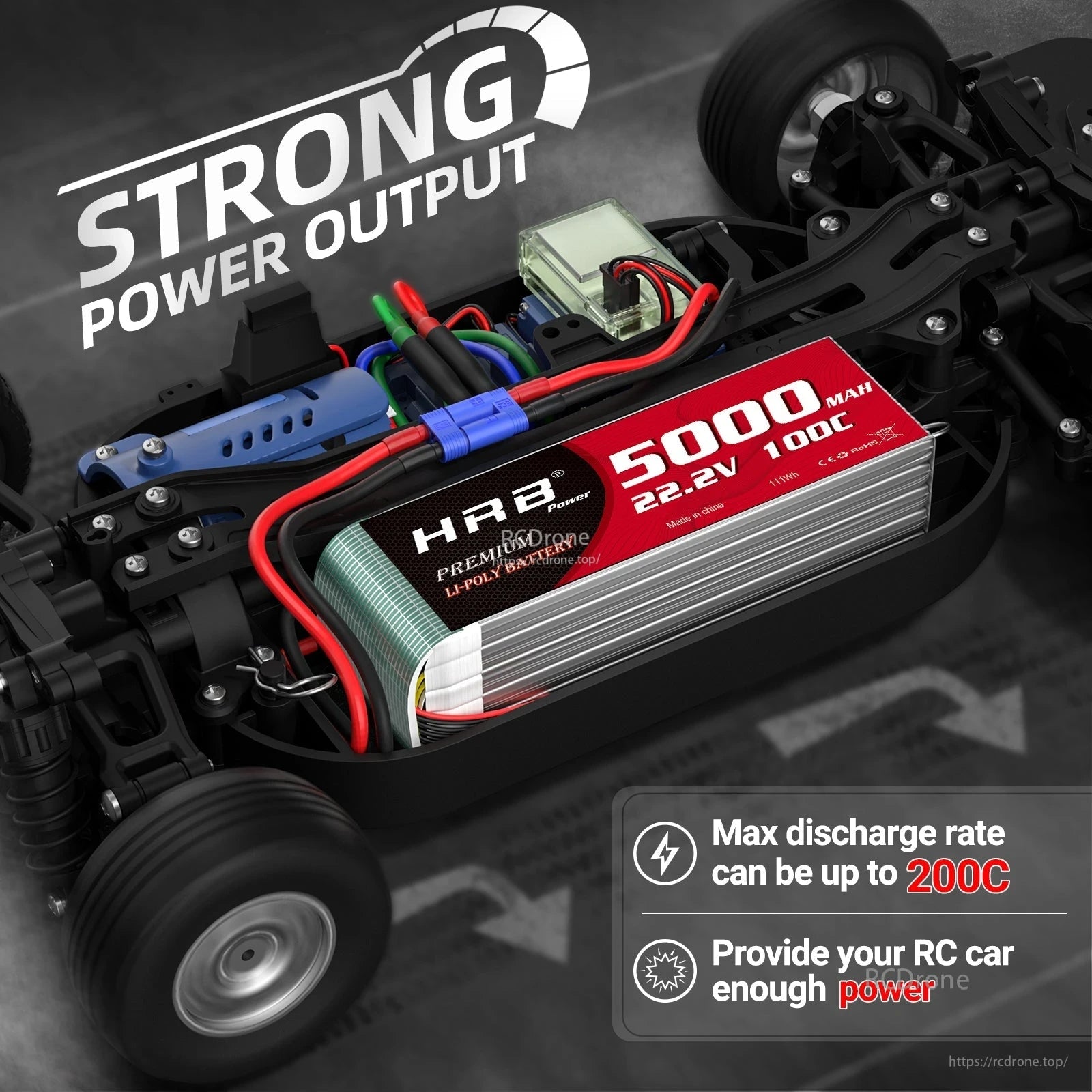

  • HRB 22.2V 5000mAh 6S LiPo battery installed in RC car chassis with wiring and connector shown

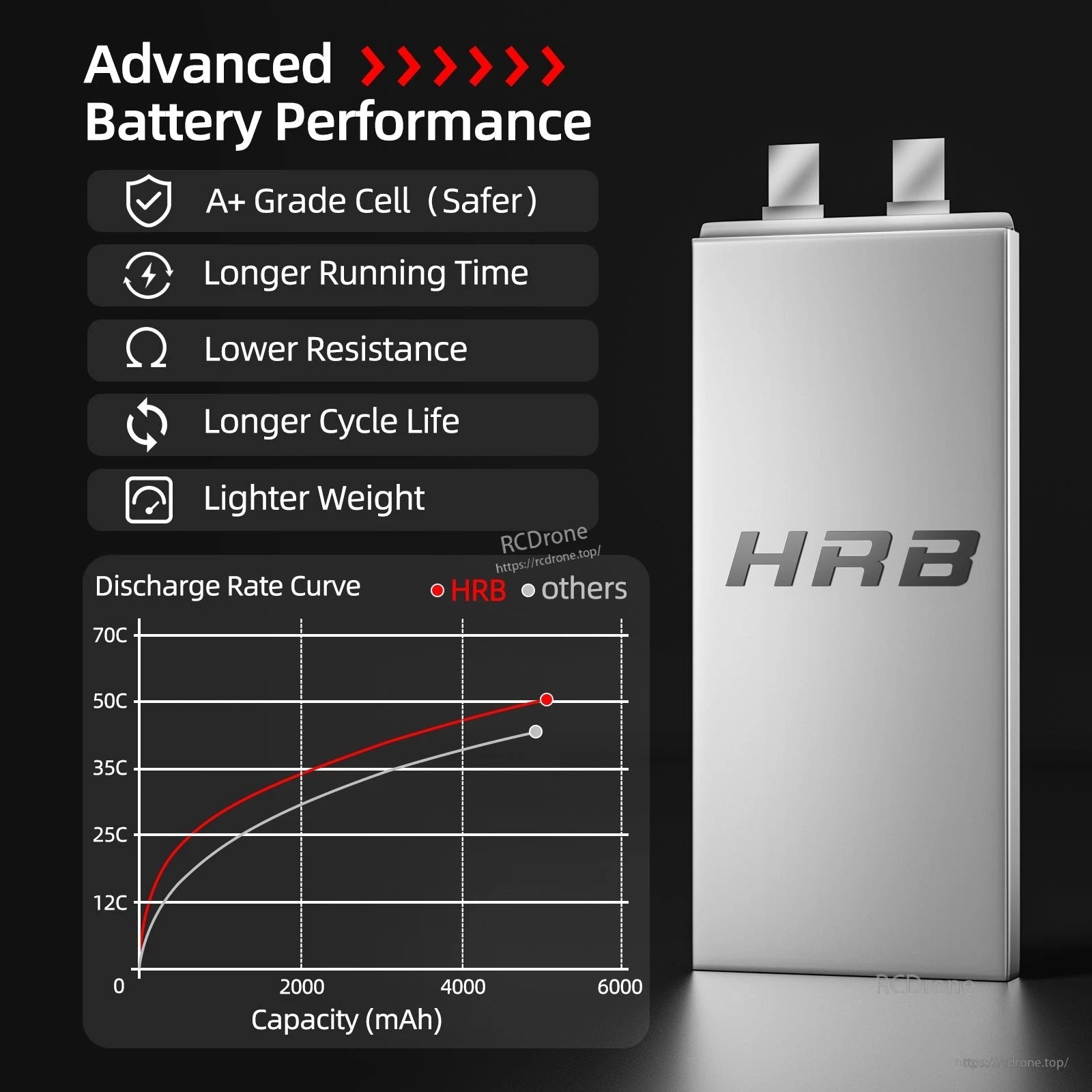

  • Advanced battery performance infographic with discharge rate curve comparing HRB vs others

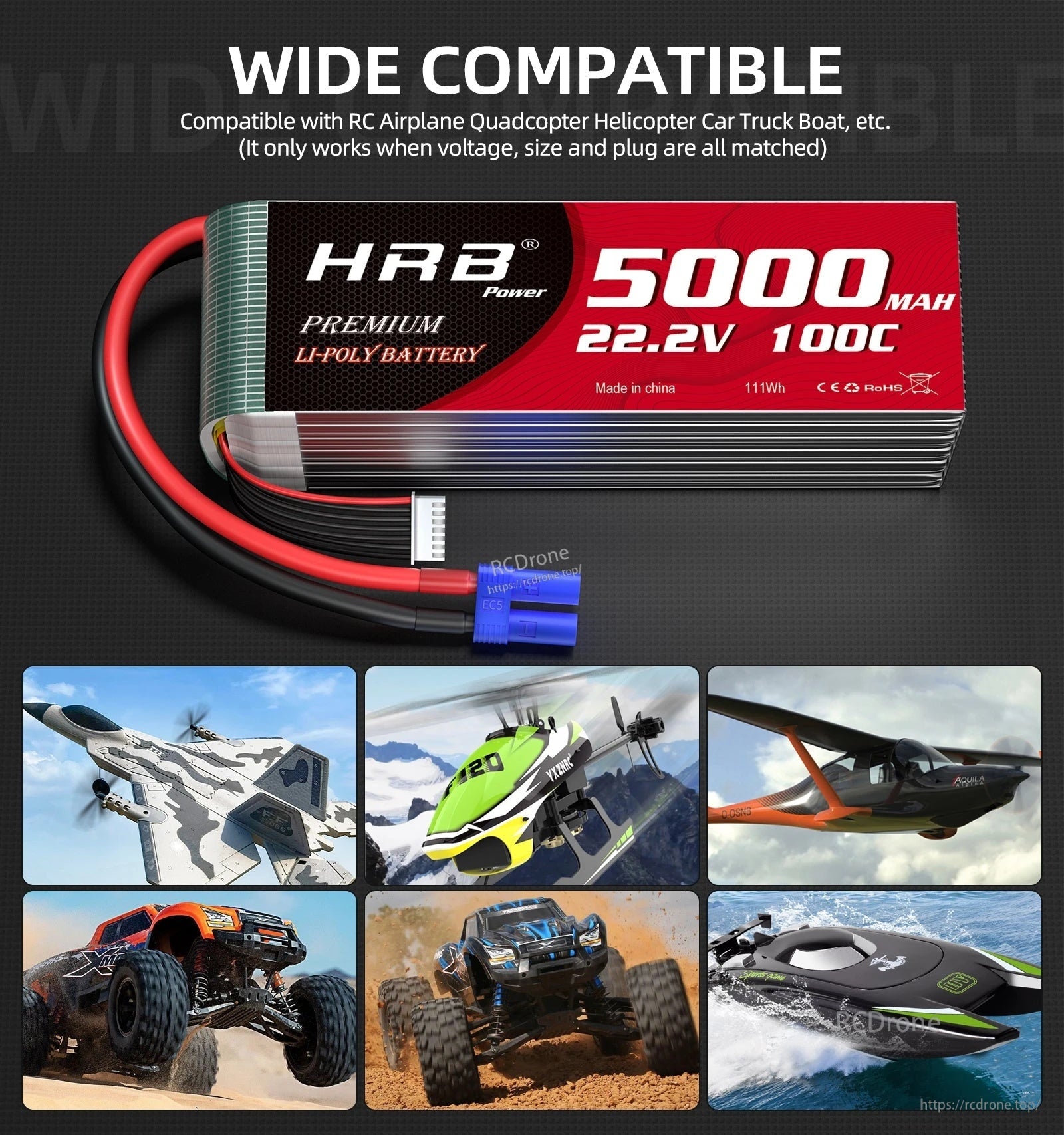

  • Compatibility graphic showing HRB 5000mAh 22.2V LiPo for RC airplane, helicopter, car, boat and truck
  • EC5 connection guide showing battery in RC car tray and steps to connect and fasten the pack
  • Packing list showing HRB LiPo battery, user manual and white carton box contents
1 7

2pcs HRB 22.2V 6S1P 5000mAh 111Wh 100C LiPo Battery EC5 for RC Truck Helicopter EDF Jet

2pcs HRB 22.2V 6S1P 5000mAh 111Wh 100C LiPo Battery EC5 for RC Truck Helicopter EDF Jet

HRB

$226.04 USD
$226.04 USD
할인 품절
세금이 포함된 가격입니다. 배송료는 결제 시 계산됩니다.
Plug
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
전체 세부 정보 보기

Overview

This set includes 2pcs HRB 22.2V 6S LiPo battery packs (5000mAh) with EC5 female plug, designed for compatible RC trucks, helicopters, and EDF jet models where voltage, size, and connector match.

Key Features

  • 6S1P LiPo configuration, 22.2V nominal, 5000mAh capacity
  • 100C continuous discharge rate (as marked on the battery label)
  • EC5 connector and 7-pin balance port
  • 10AWG silicone wire
  • Marked energy: 111Wh

Specifications

Brand HRB
Battery type LiPo (Li-Poly)
Cell configuration 6S1P
Nominal voltage 22.2V
Capacity 5000mAh
Energy 111Wh
Continuous discharge rate 100C
Charge rate (recommended) 2.5A-5A (0.5C-1C)
Connector (main lead) EC5 female plug
Balance connector 7-pin balance port
Wire 10AWG silicone wire
Size (L x W x H) 155 x 48 x 48 mm
Size (L x W x H) 6.10 x 1.89 x 1.89 in
Weight (approx.) 725 g (25.57 oz / 1.60 lb)
Dimension tolerance note 0-3 mm (0.12 in) difference

What's Included

  • 2 x HRB 22.2V 6S 5000mAh LiPo Battery (EC5)
  • User manual
  • Carton box

Applications

  • RC truck / RC car (EC5 power system)
  • RC helicopter
  • RC airplane / EDF jet
  • Other RC models (boat, quadcopter, etc.) where voltage, size, and plug are matched

Charging & Storage Notes

  • Do not overcharge above 4.2V per cell.
  • Do not over-discharge below 3.7V per cell.
  • New batteries may reach best performance after 2-3 complete cycles of 1C charge & discharge.
  • If the pack will not hold a full charge or loses charge quickly, use a balance charger and cycle several times first.
  • Recommended long-term storage voltage: around 3.85V per cell; check the battery every 1-2 months.
  • A LiPo safe bag is recommended for transport.
  • Use a balance charger and do not leave the battery unattended while charging.

For setup or compatibility questions (dimensions, EC5 wiring, or charger settings), contact [email protected] or visit https://rcdrone.top/.

Details

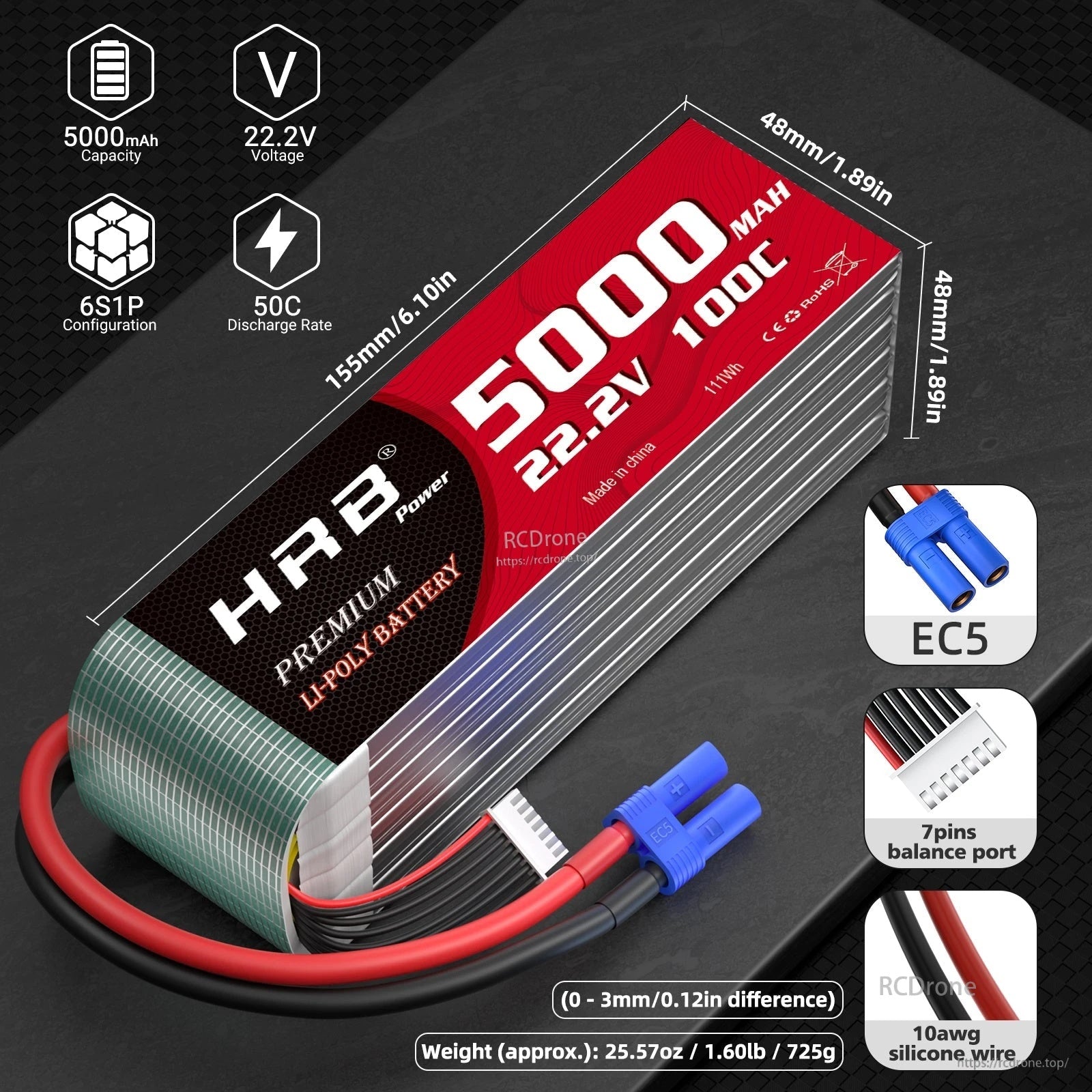

HRB 22.2V 6S 5000mAh 100C LiPo battery pack with EC5 plug, size 155×48×48mm and 7-pin balance lead

HRB 6S 22.2V 5000mAh LiPo packs use an EC5 main connector with a 7-pin balance port and 10AWG silicone wire for high-current RC setups.

HRB 6S 22.2V 5000mAh LiPo battery installed in an RC car tray with EC5 connector and power leadsHRB battery performance graphic with discharge rate curve and feature list for longer runtime and lower resistanceHRB 22.2V 6S 5000mAh LiPo with EC5 plug, compatibility graphic for RC airplane, helicopter, truck, boat and jet

Compatible with many RC cars/trucks, helicopters, airplanes/EDF jets, and boats when voltage, dimensions, and EC5 wiring match your power system.

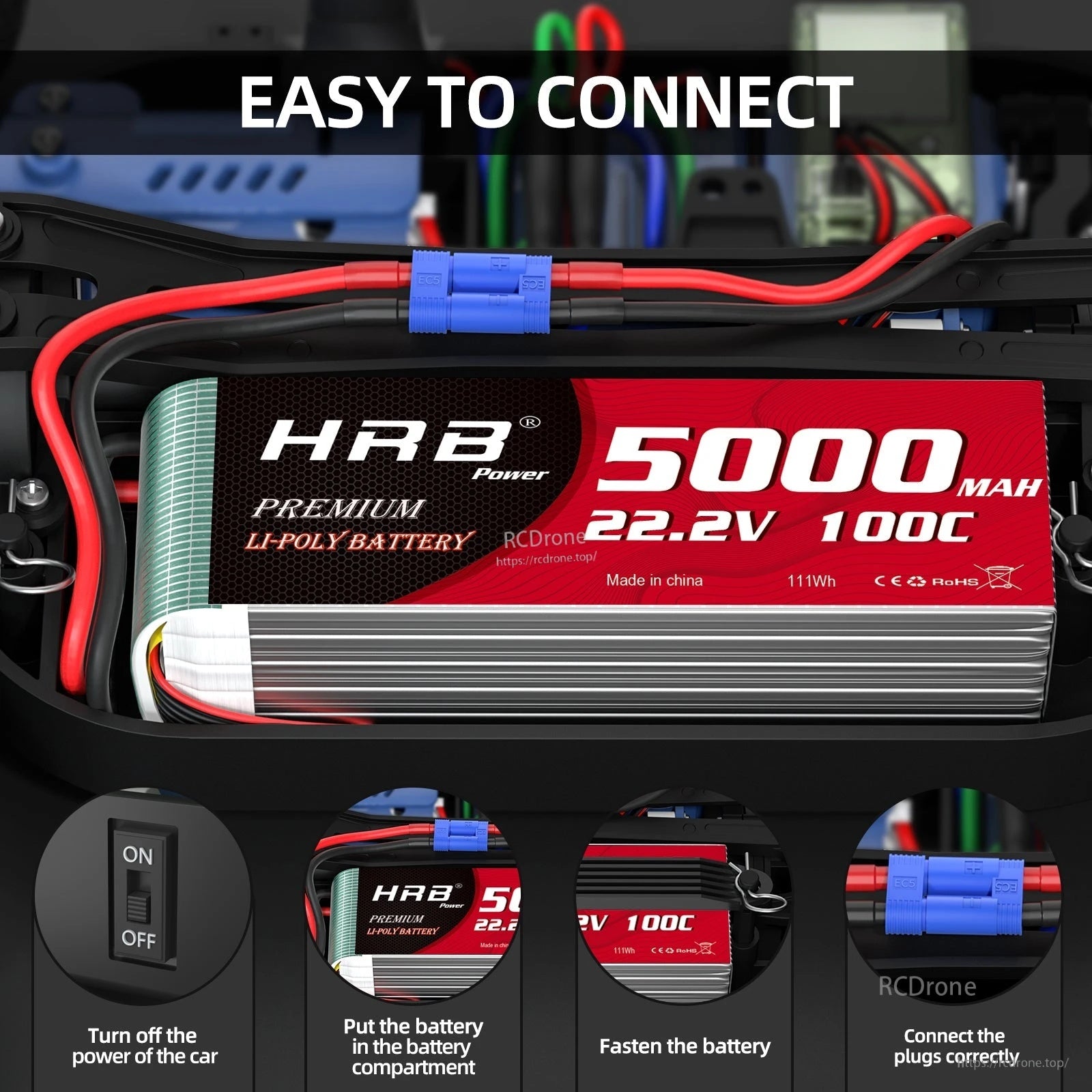

Close-up of HRB 22.2V 6S 5000mAh LiPo in RC car compartment highlighting easy EC5 plug connection

A straightforward EC5 connection helps make installation quick once the model is powered off and the battery is secured in the tray.

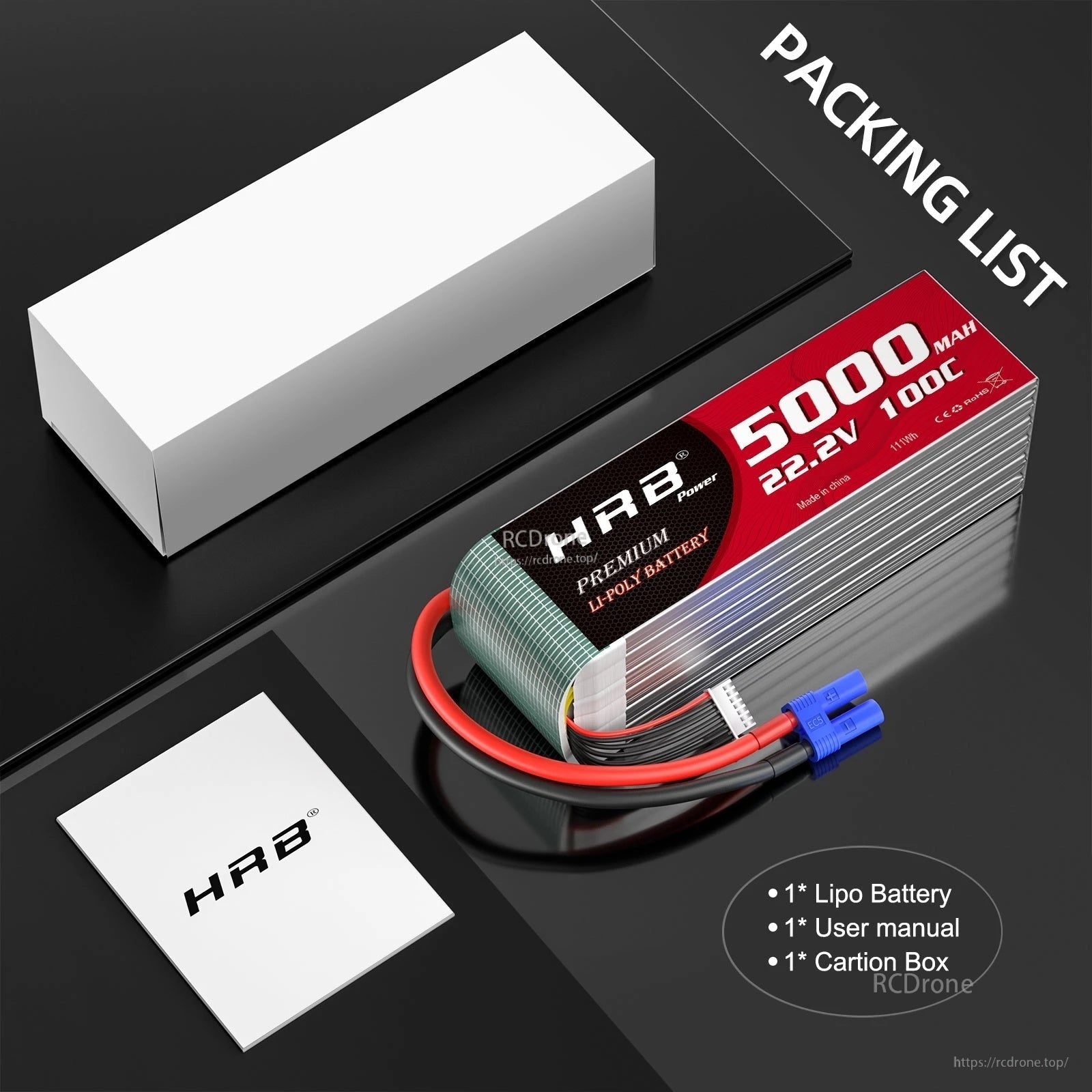

HRB LiPo packaging list graphic showing battery, user manual and carton box

The set arrives boxed with a user manual for storage and charging guidance.
