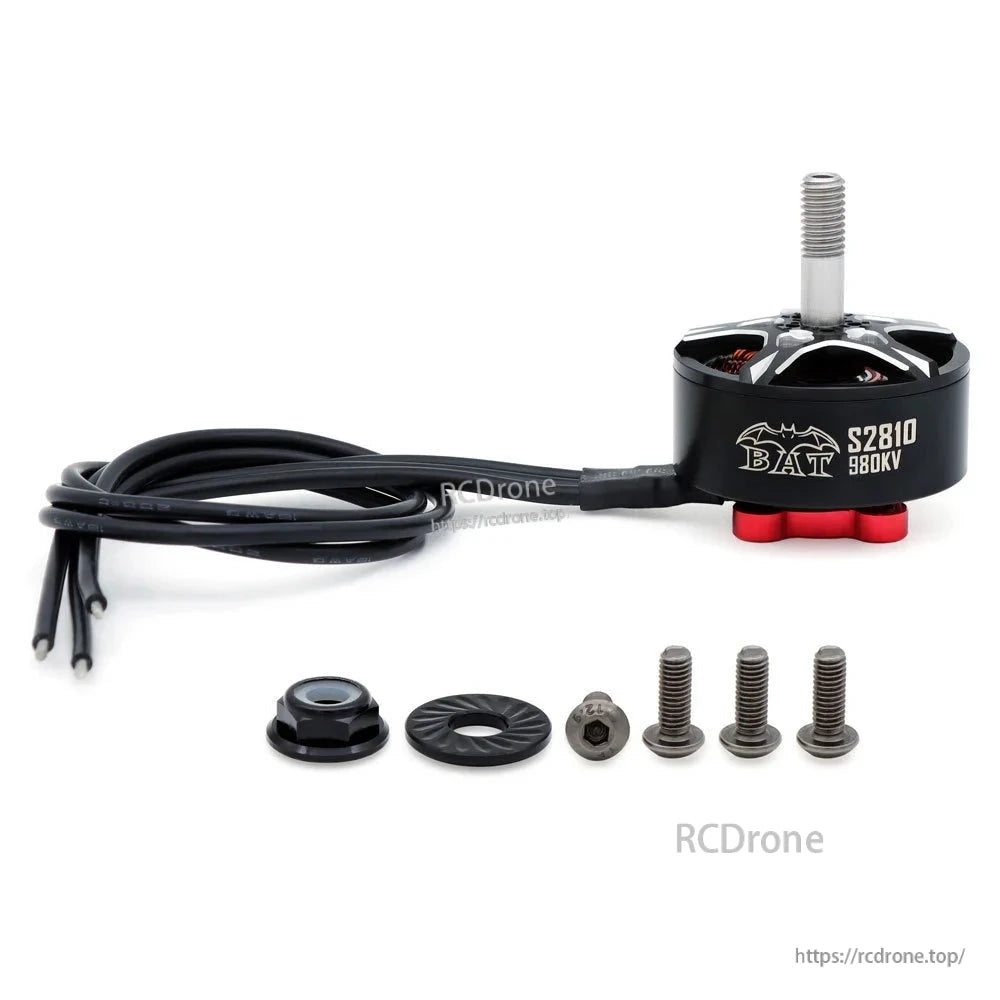

  • Surpass Hobby BAT S2810 980KV motor with cable leads, prop adapter, washer, nut, and screws

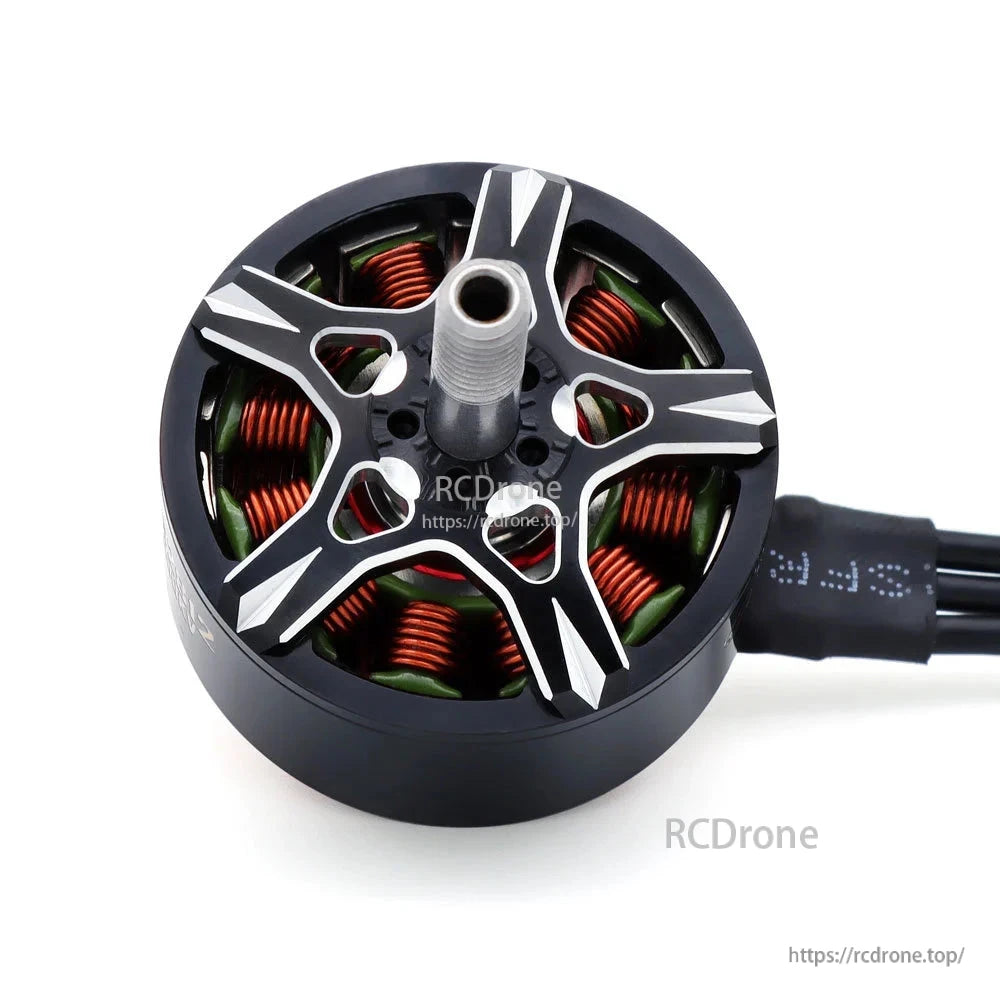

  • Top view of brushless motor rotor showing silver cutouts, copper windings, and threaded shaft

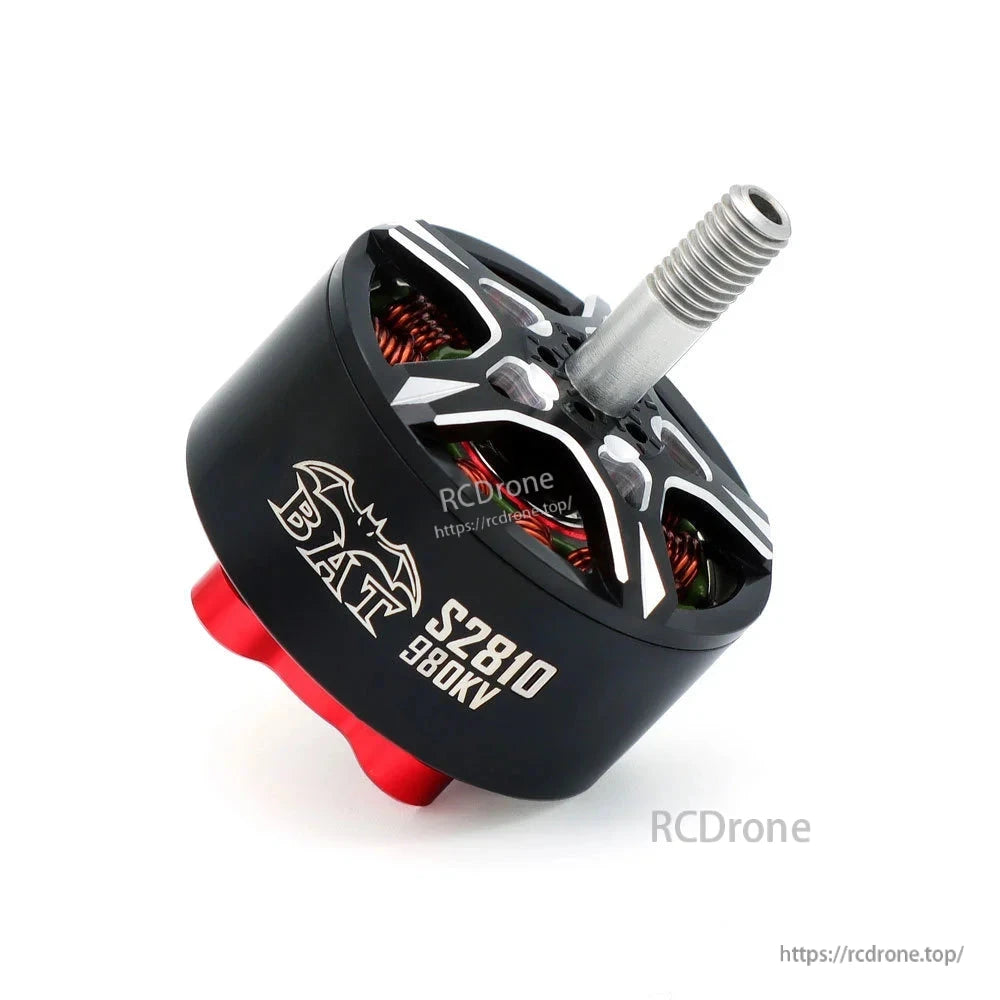

  • Angled view of BAT S2810 980KV motor showing side marking, threaded shaft, and red base

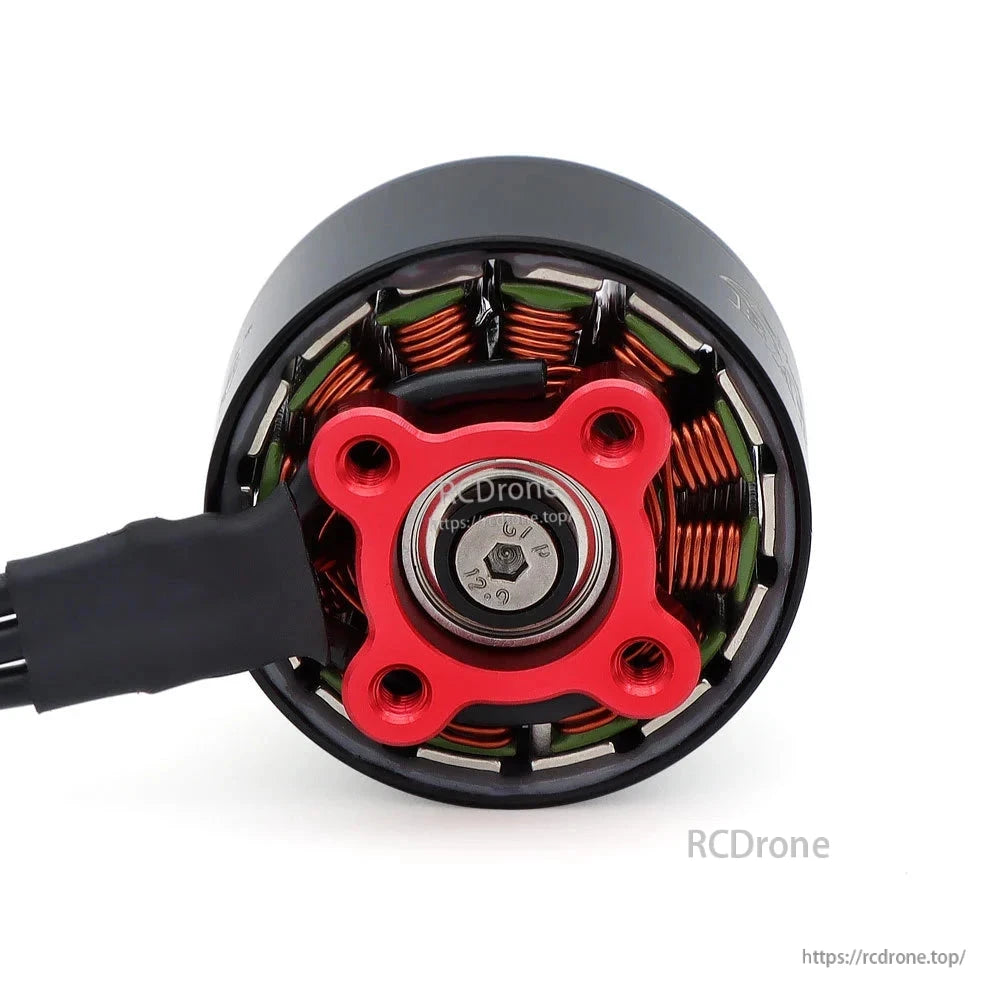

  • Rear mounting view of motor with red four-hole base plate, center bearing, and copper windings

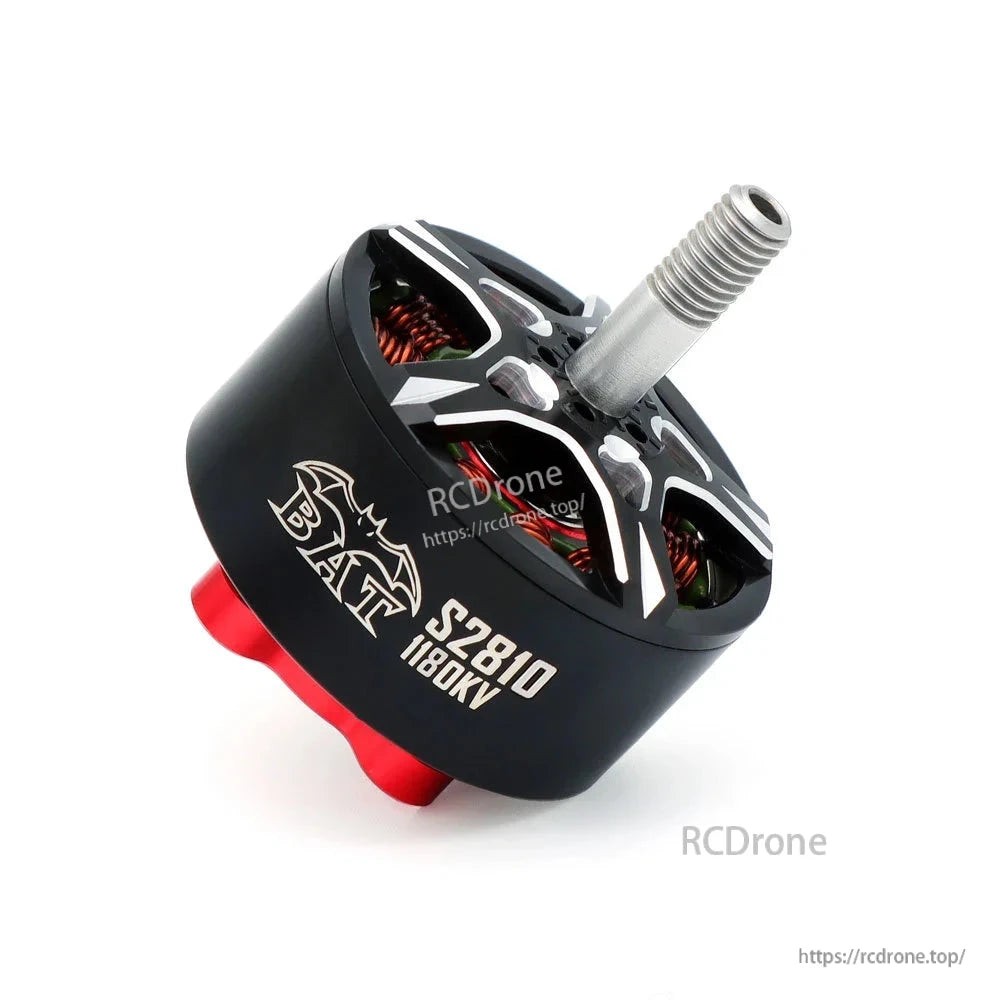

  • Angled BAT S2810 1180KV motor view with black housing, exposed windings, and red mounting base

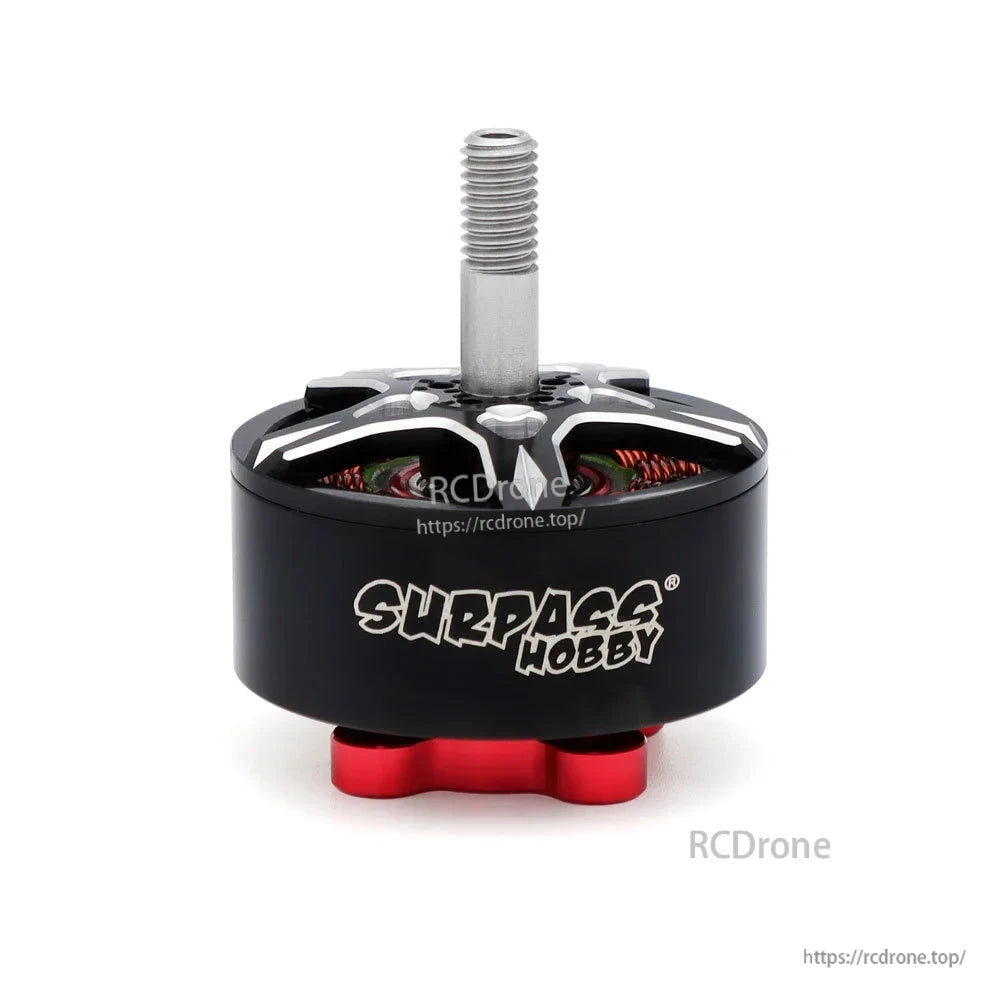

  • Surpass Hobby branded motor housing with upright threaded shaft and red mounting base

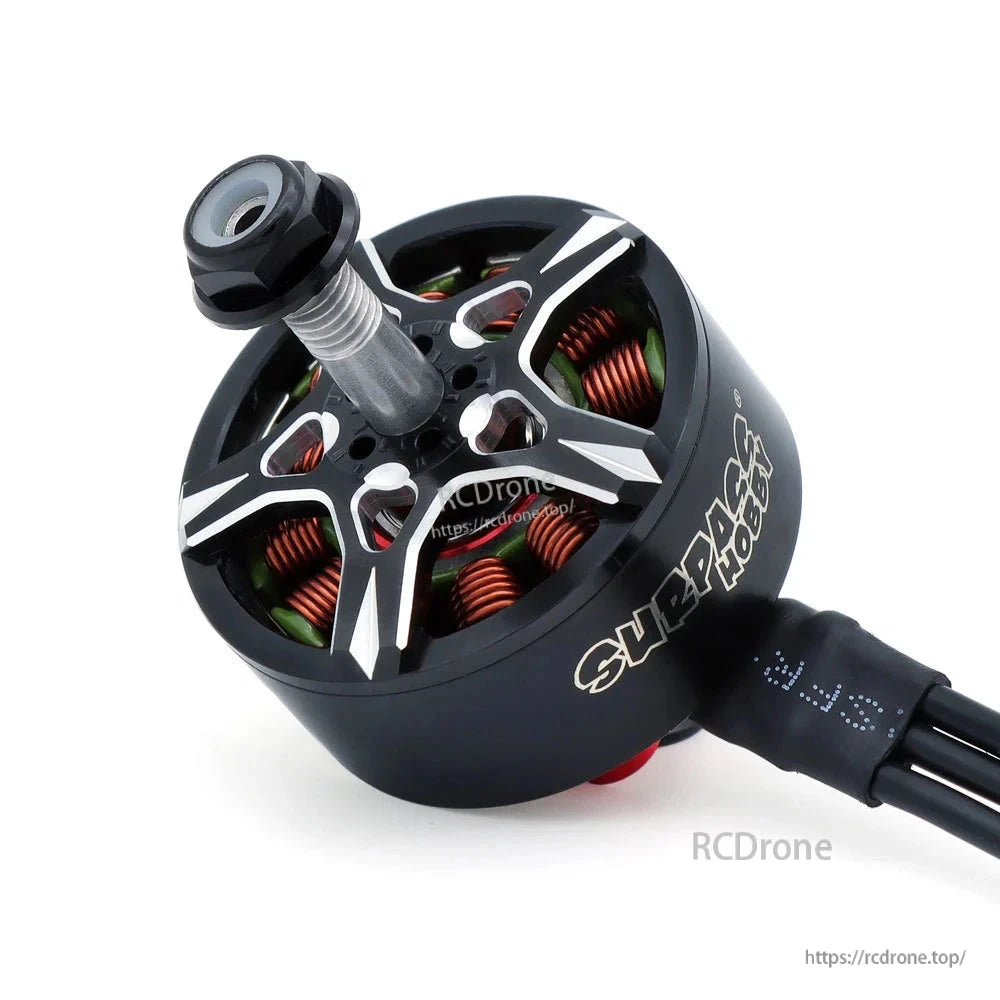

  • Close-up angled view of Surpass Hobby motor top, copper windings, shaft, and attached cable
1 9

Surpass Hobby BAT S2810 980KV/1180KV FPV Brushless Motor for Multirotor Aircraft

Surpass Hobby BAT S2810 980KV/1180KV FPV Brushless Motor for Multirotor Aircraft

Surpass Hobby

$36.00 USD
$36.00 USD
할인 품절
세금이 포함된 가격입니다. 배송료는 결제 시 계산됩니다.
KV
Quantity
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
전체 세부 정보 보기

Overview

The Surpass Hobby BAT S2810 is an FPV brushless motor available in 980KV and 1180KV versions for multirotor aircraft. It uses a detachable structure with front air outlets to support cleaning and heat dissipation.

Key Features

  • 48SH rotor with NdFeB magnet tiles.
  • M5 steel shaft for propeller mounting; custom nuts help protect the shaft threads.
  • NMB bearings and 0.2 mm silicon steel laminations.
  • 220°C high-temperature single-strand copper wire.
  • 12N14P slot/pole configuration.

Specifications

Model S2810
KV options 980KV or 1180KV
Motor size Ø33.3 x 38.7 mm
Stator size Ø28 x 10 mm
Shaft diameter Ø5 mm (M5)
Motor wires 18#, 200 mm
Slot/pole count 12N14P

980KV Version

Maximum power 1164.0 W
Maximum current 48.97 A
No-load current 0.72 A
Resistance 79.8 mΩ
Weight including wires 66.1 g
Test propeller GF9045-3
Maximum tested thrust 2696 g

1180KV Version

Maximum power 1445.9 W
Maximum current 58.00 A
No-load current 1.41 A
Resistance 64.0 mΩ
Weight including wires 65.5 g
Test propeller GF8040-3
Maximum tested thrust 2947 g

Applications

Suitable for FPV multirotor aircraft builds using an M5 propeller mounting interface. For product selection assistance, contact rcdrone.top.

Available Selections

Choose 980KV or 1180KV, with 1PCS and 4PCS quantity options.

Details

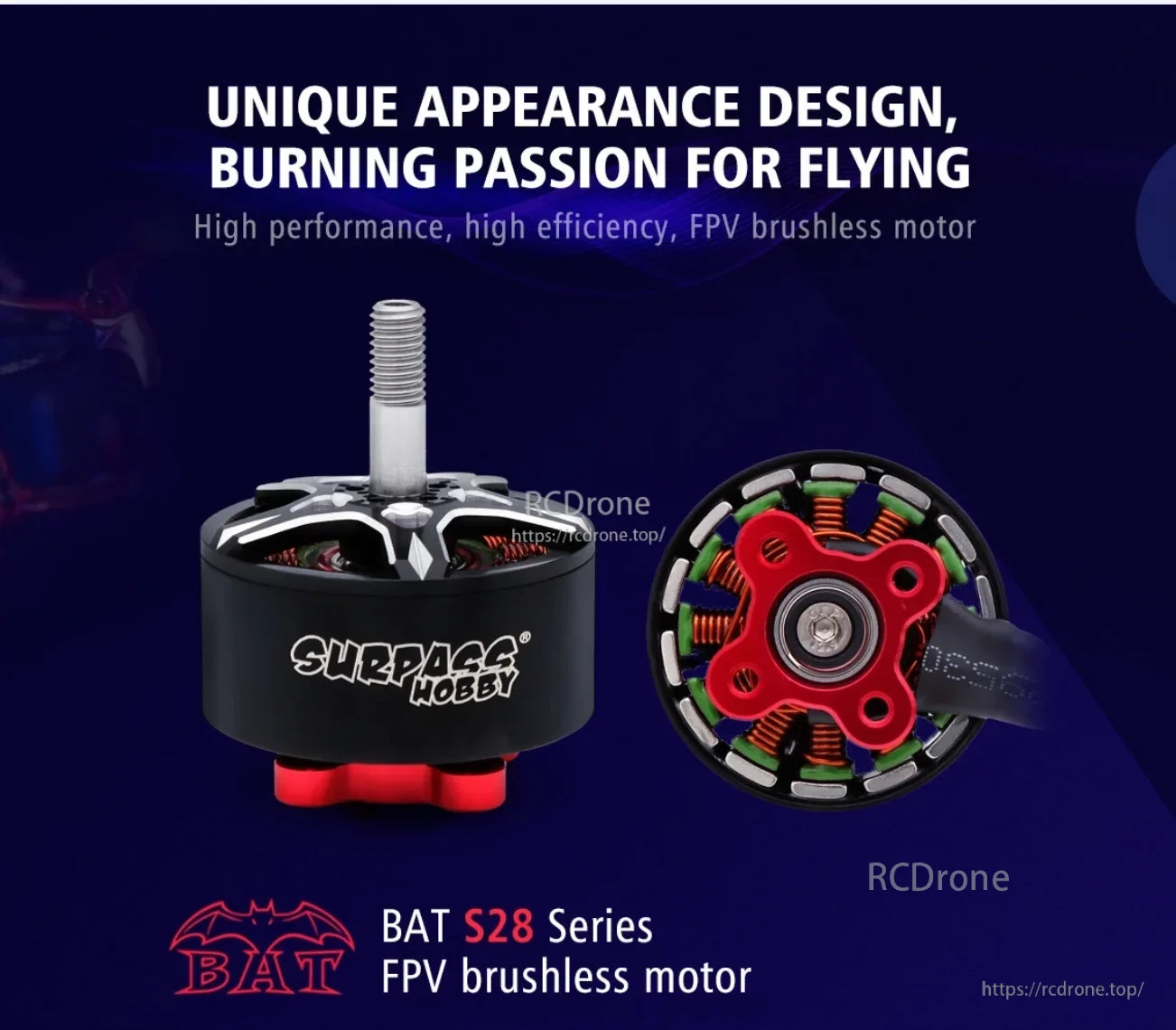

Surpass Hobby BAT S2810 FPV brushless motor with red base, threaded M5 shaft, and exposed stator

Surpass Hobby BAT S2810 FPV brushless motor is available in 980KV and 1180KV versions for multirotor aircraft.

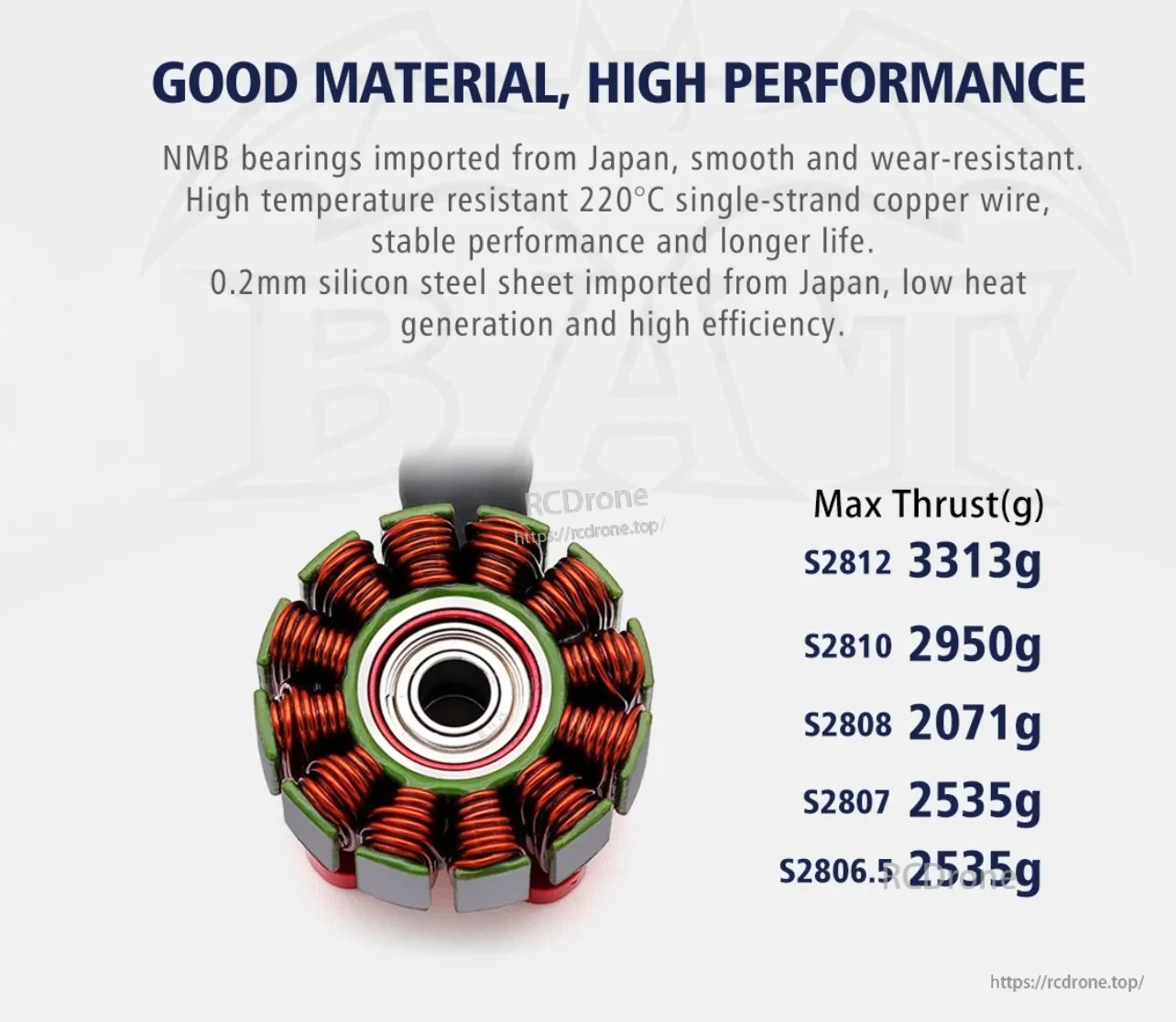

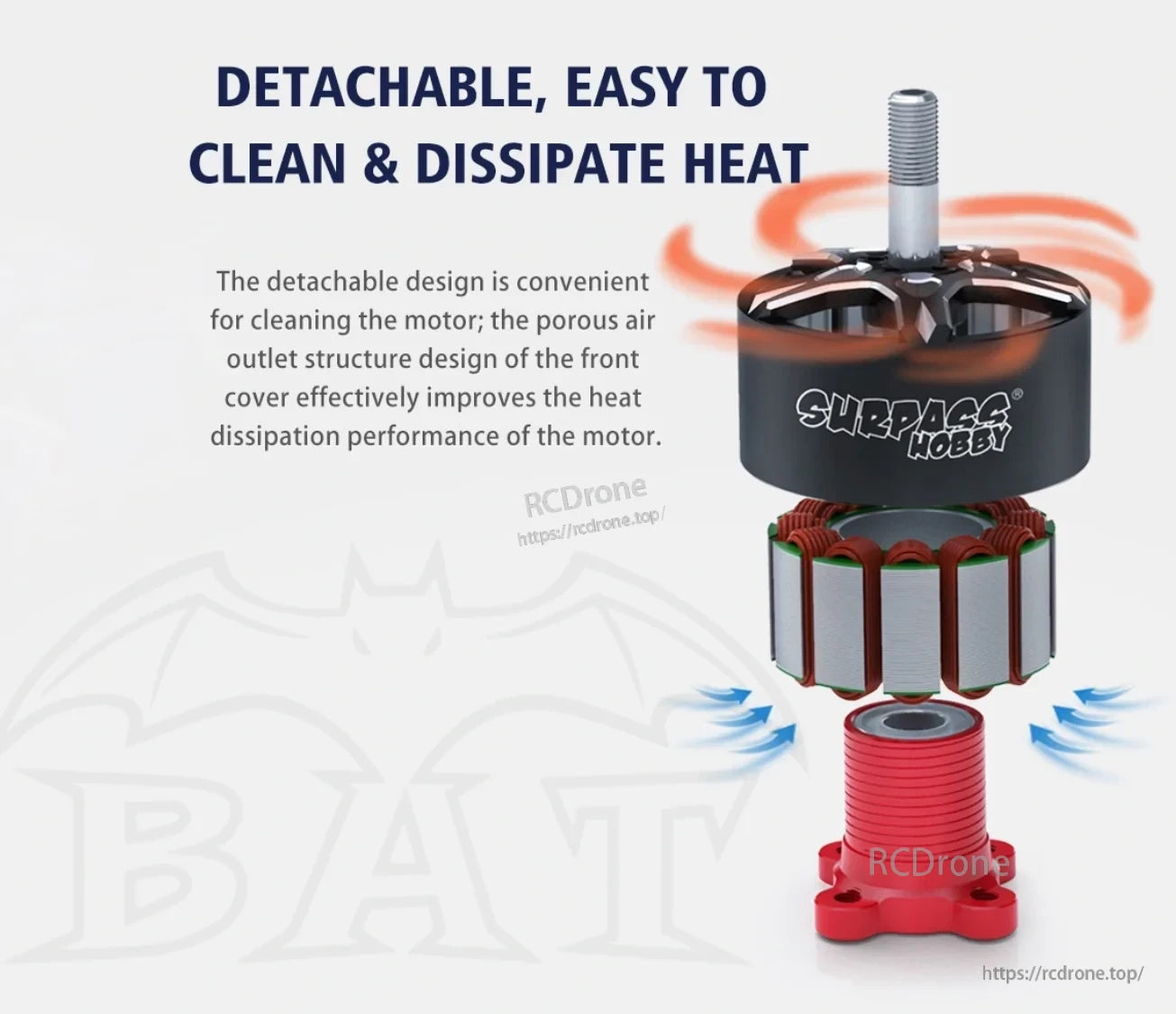

Close view of the BAT S2810 motor stator with copper windings, magnets, and center bearingExploded view of the Surpass Hobby BAT S2810 motor showing detachable rotor, stator, and base

A detachable structure and front air outlets make cleaning easier while supporting motor heat dissipation.

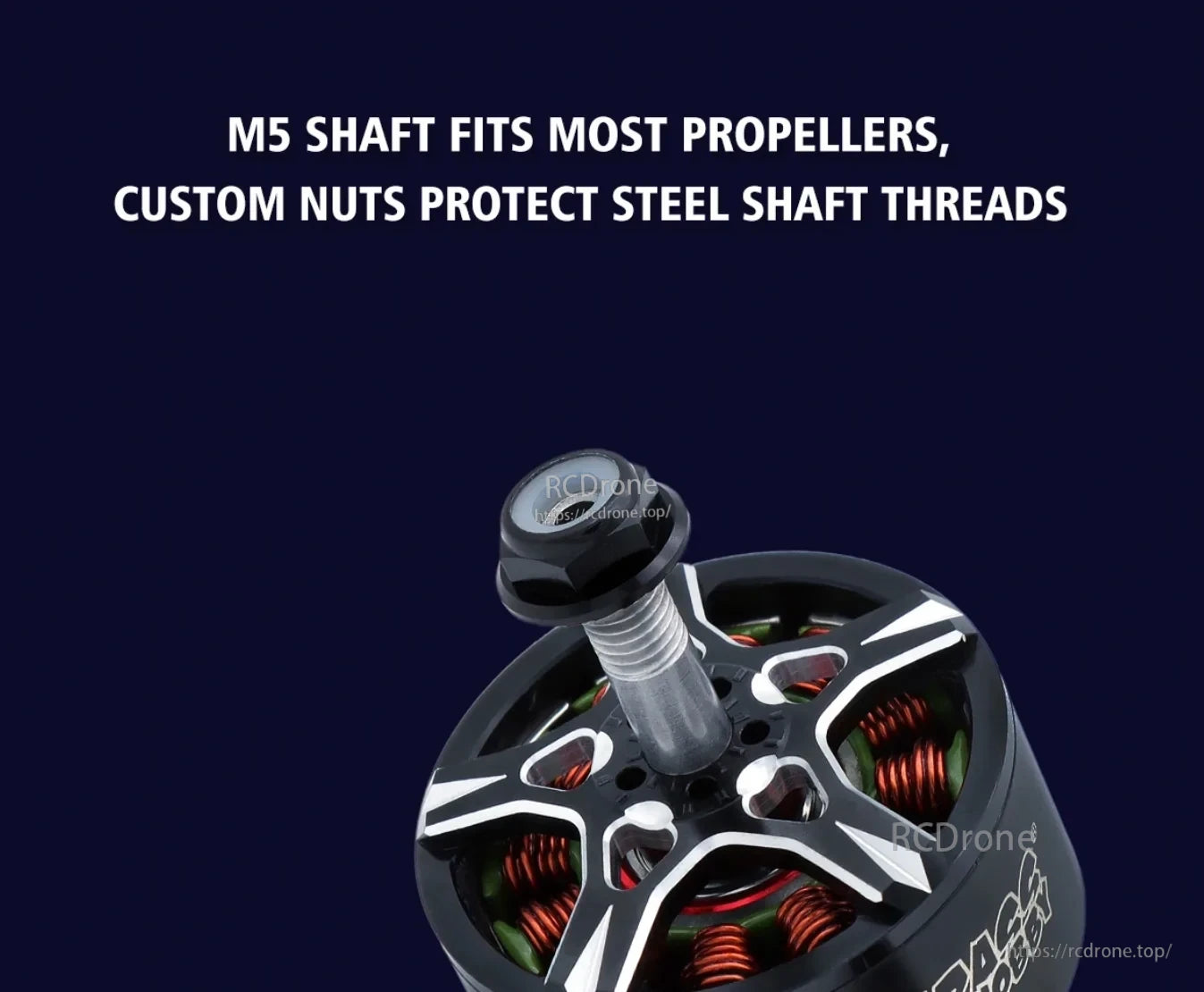

BAT S2810 brushless motor top with threaded M5 steel propeller shaft and protective custom nut

The M5 steel shaft provides a propeller mounting interface, while the custom nut helps protect its threads.

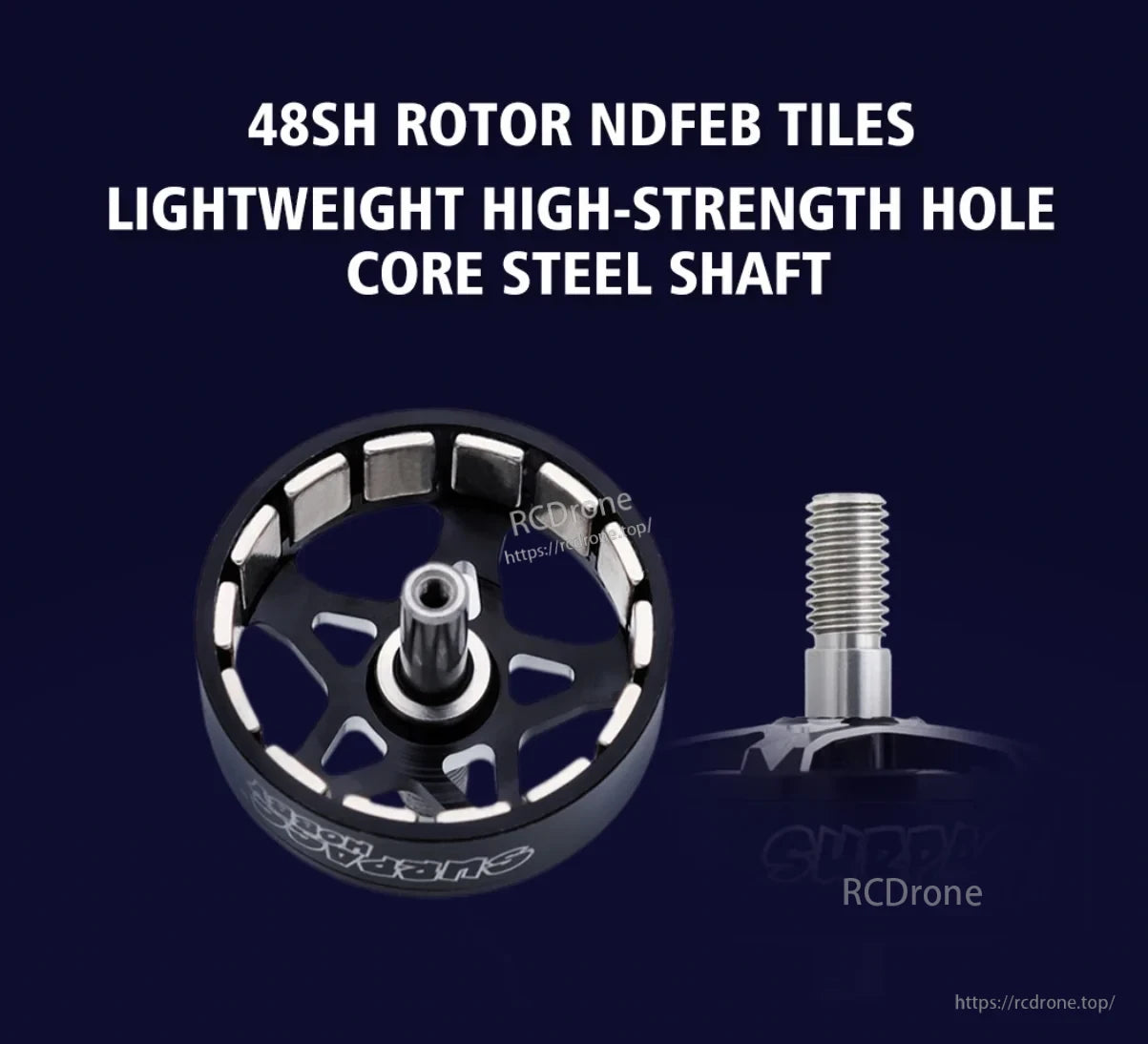

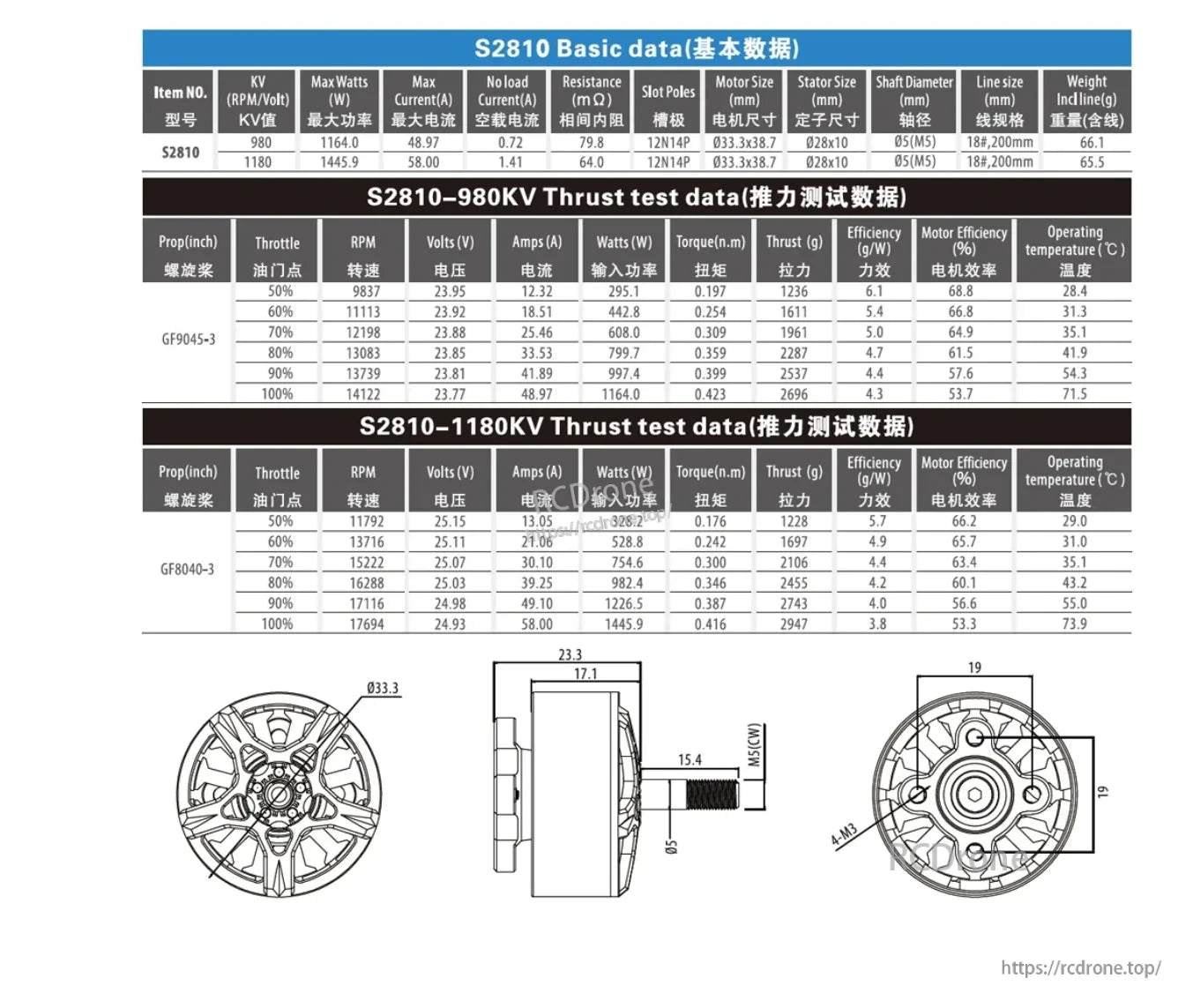

BAT S2810 rotor bell with 48SH rotor, NdFeB magnet tiles, and hollow-core steel shaftSurpass Hobby BAT S2810 980KV and 1180KV motor specification, thrust-test, and dimension tables

Technical data compares the 980KV and 1180KV options, including electrical values, thrust tests, and motor dimensions.
