VCI SPARK 1203 7000KV/10000KV Brushless Motor (2PCS) for Micro FPV Drones - 1.5mm Shaft, 1203 Stator

VCI

$37.40 USD

할인 품절

세금이 포함된 가격입니다. 배송료는 결제 시 계산됩니다.

KV 7000KV 10000KV

수량

전체 세부 정보 보기

Overview

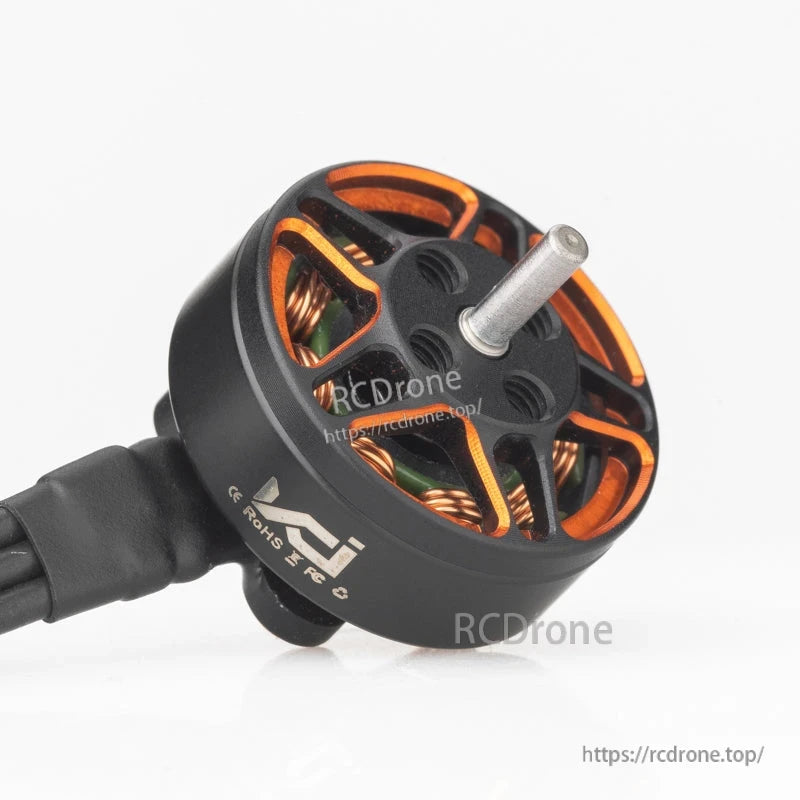

VCI SPARK 1203 is a brushless motor (2pcs per set) for micro FPV drone builds, offered in 7000KV and 10000KV options. It uses a 1203 stator and is designed for lightweight multirotor setups where fast throttle response and compact size are required.

Key Features

Two KV options available: 7000KV or 10000KV
Compact 1203 motor class with 1.5mm shaft diameter
N52SH arc magnets
28AWG 50mm silicone wire

Specifications

Series/Model	VCI SPARK 1203
KV options	7000KV or 10000KV
Motor configuration	9S12P
Magnets	N52SH arc
Stator size	Ø12*L3mm

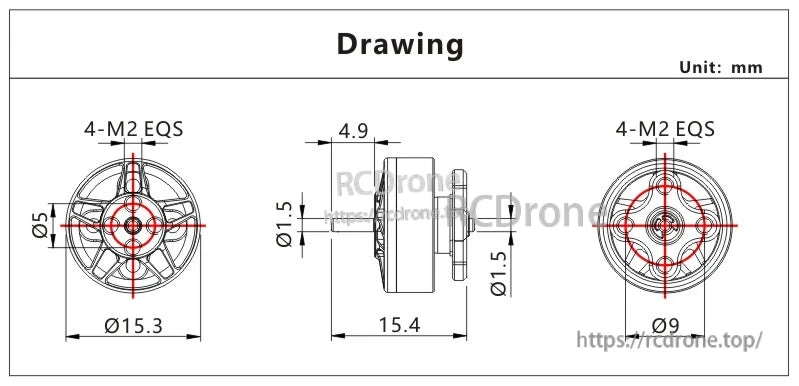

Dimensions	Ø15.3*L15.4mm
Shaft diameter	Ø1.5mm
Shaft length	4.9mm
Silicone wire	28AWG 50mm

7000KV (SPARK 1203-7000KV)

Rated voltage	3S (12V)
Internal resistance	245mΩ
Peak current	8.77A
Idle current (10V)	0.6A
Max instantaneous power	105.25W
Weight (incl. cable)	4.9g

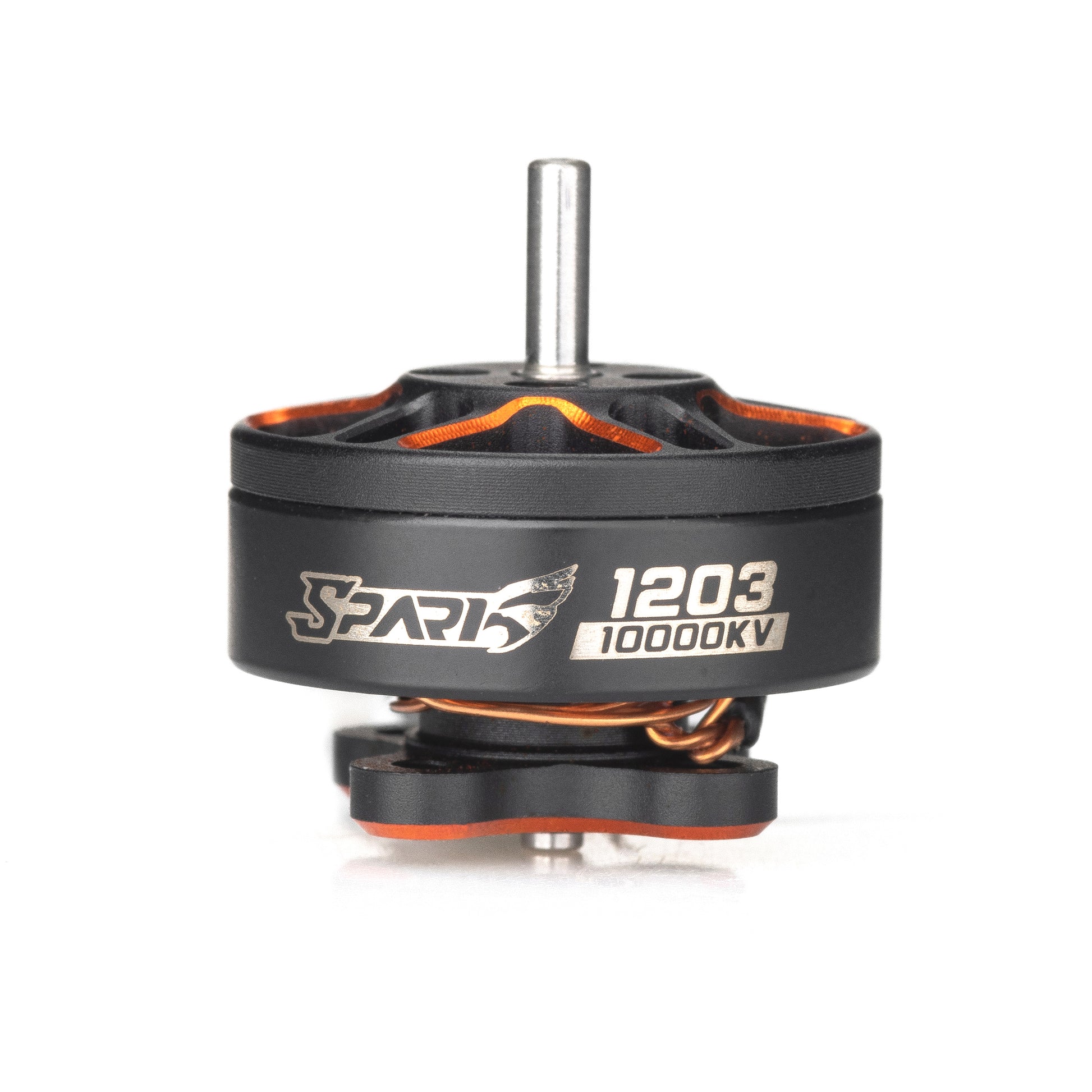

10000KV (SPARK 1203-10000KV)

Rated voltage	2S (8V)
Internal resistance	155mΩ
Peak current	11.31A
Idle current (10V)	1.0A
Max instantaneous power	90.48W
Weight (incl. cable)	4.8g

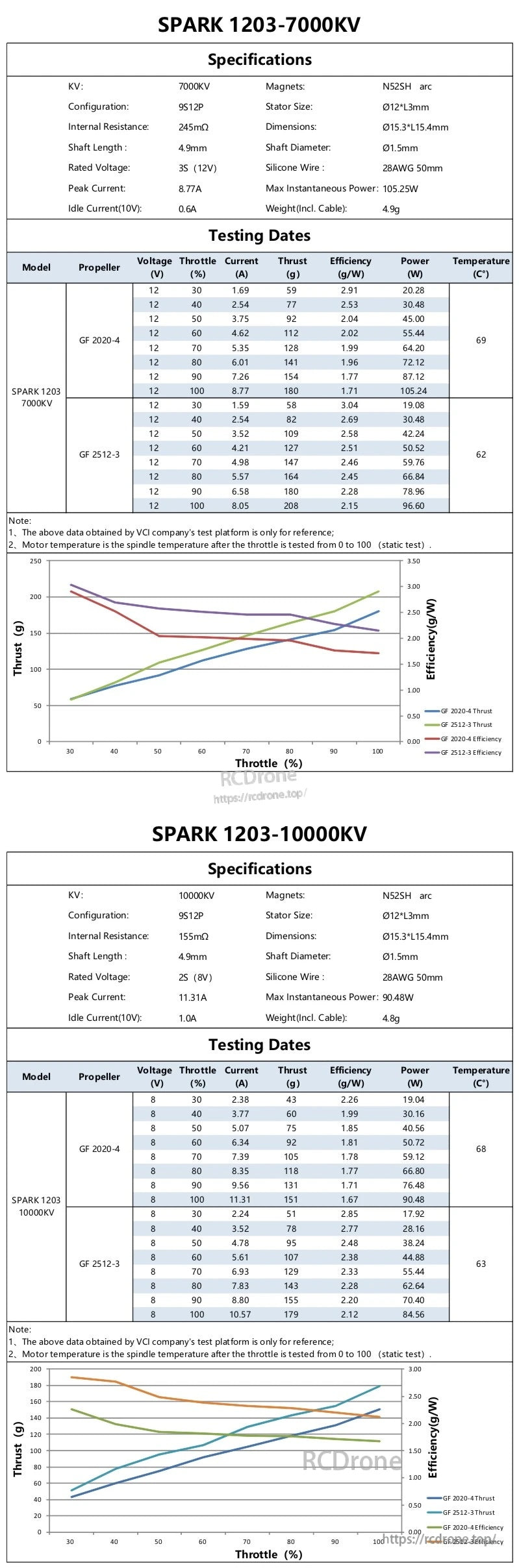

Testing Data (Static Test)

Reference static test data is provided for two propeller models: GF 2020-4 and GF 2512-3.

SPARK 1203 7000KV @ 12V: up to 180g thrust (GF 2020-4, 100% throttle) and up to 208g thrust (GF 2512-3, 100% throttle).
SPARK 1203 10000KV @ 8V: up to 151g thrust (GF 2020-4, 100% throttle) and up to 179g thrust (GF 2512-3, 100% throttle).
Temperature (static test): 62–69C depending on setup and throttle.
