VCI SPARK 1405 Brushless Motor 2400KV/3050KV/3850KV/4550KV for FPV Micro Quad Builds

VCI

$23.15 USD

할인 품절

세금이 포함된 가격입니다. 배송료는 결제 시 계산됩니다.

KV 2400KV 3050KV 3850KV 4550KV

수량

전체 세부 정보 보기

Overview

VCI SPARK 1405 is a compact brushless motor series offered in 2400KV, 3050KV, 3850KV, and 4550KV options. It uses a 9S12P configuration with N52SH arc magnets and a Ø14*L5mm stator, making it suitable for lightweight multirotor builds where consistent response and predictable prop matching are required.

Key Features

Multiple KV options: 2400KV / 3050KV / 3850KV / 4550KV
9S12P configuration with N52SH arc magnets
Ø19*L17.4mm motor dimensions with Ø1.5mm shaft diameter
24AWG 100mm silicone wire
4x M2 mounting holes (4-M2 EQS)

For build compatibility questions (prop selection, voltage choice, or integration), contact [email protected] or visit https://rcdrone.top/.

Specifications

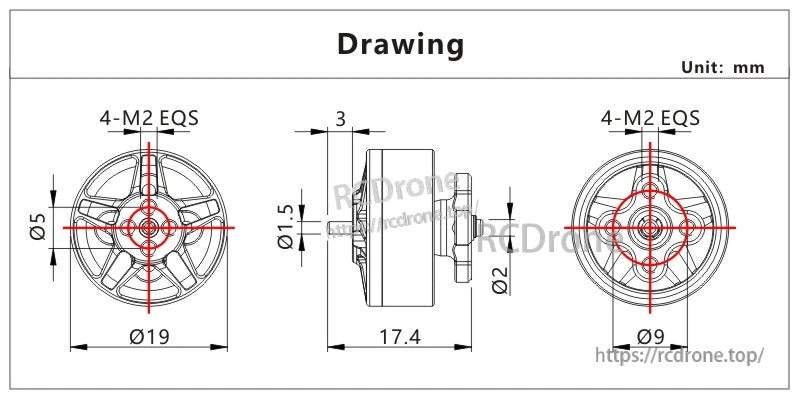

Common Mechanical

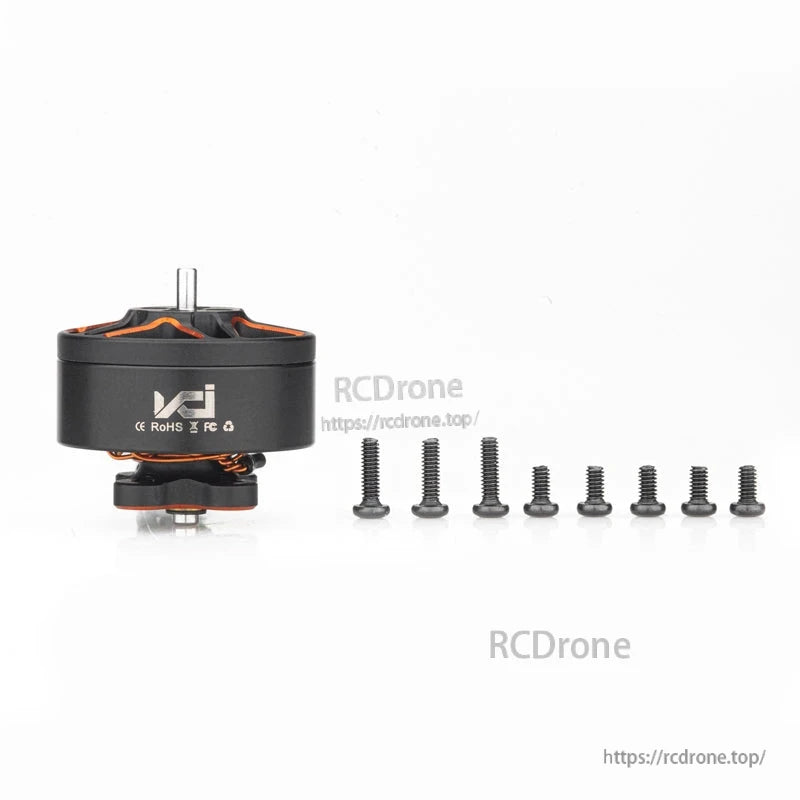

Mounting	4-M2 EQS
Motor dimensions	Ø19*L17.4mm
Shaft diameter	Ø1.5mm
Shaft length	3mm
Stator size	Ø14*L5mm
Configuration	9S12P
Magnets	N52SH arc
Silicone wire	24AWG 100mm

Electrical (by KV option)

KV Option	Rated Voltage	Internal Resistance	Idle Current (10V)	Peak Current	Max Instantaneous Power	Weight (Incl. Cable)
2400KV	6S (24V)	330mΩ	0.2A	9.86A	236.64W	12.6g
3050KV	6S (24V)	270mΩ	0.4A	12.01A	288.24W	12.3g
3850KV	4S (16V)	195mΩ	0.6A	13.53A	216.48W	12.4g
4550KV	4S (16V)	125mΩ	0.7A	18A	288W	12.4g

Static Test Data (Reference)

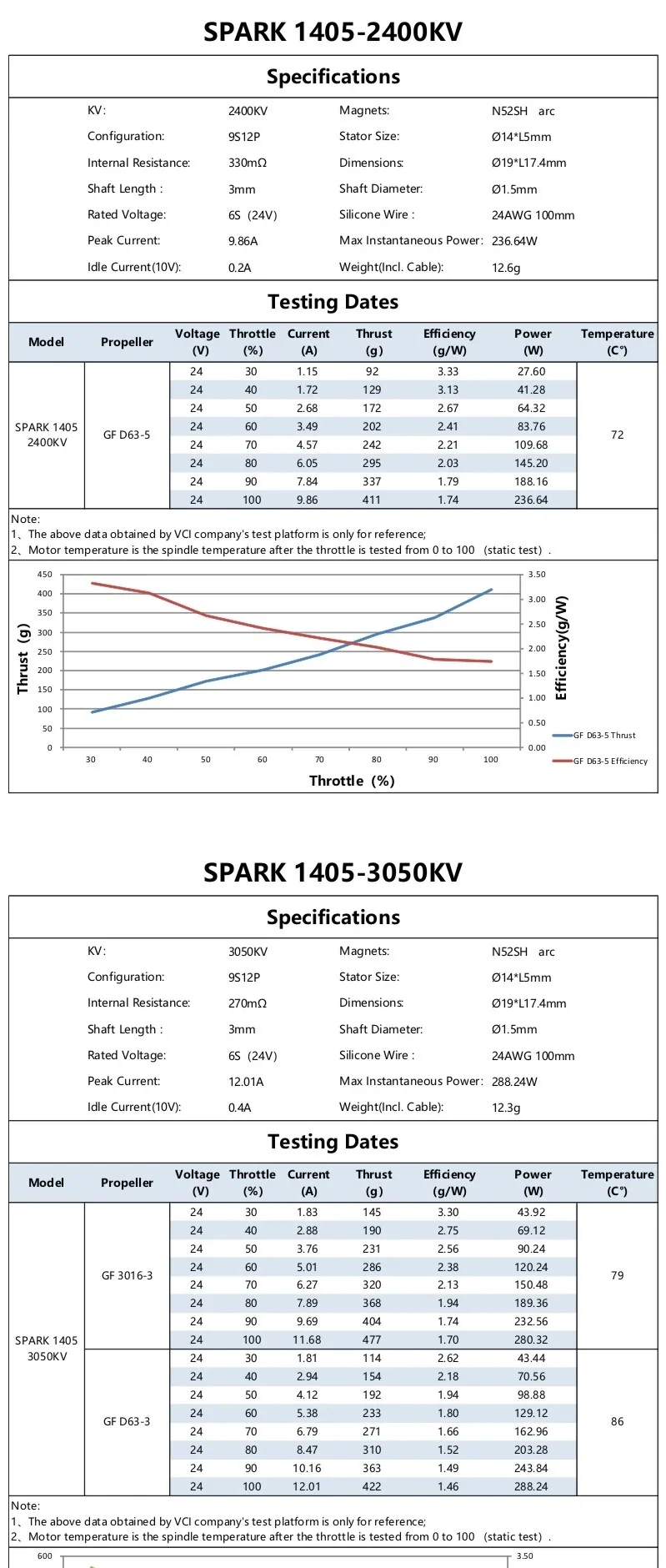

SPARK 1405 2400KV @ 24V with GF D63-5: max thrust 411g at 9.86A, 236.64W; recorded temperature 72C.
SPARK 1405 3050KV @ 24V with GF 3016-3: max thrust 477g at 11.68A, 280.32W; recorded temperature 79C.

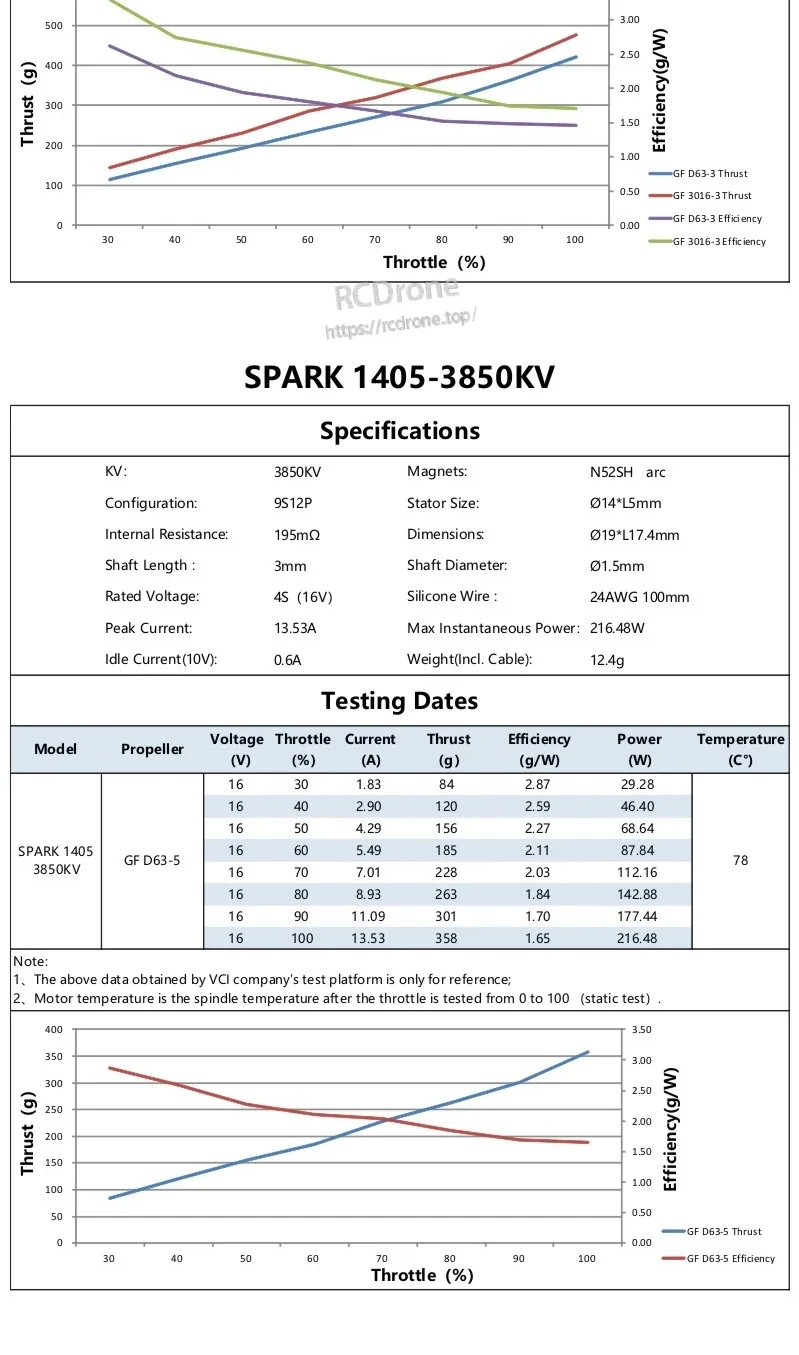

SPARK 1405 3850KV @ 16V with GF D63-5: max thrust 358g at 13.53A, 216.48W; recorded temperature 78C.

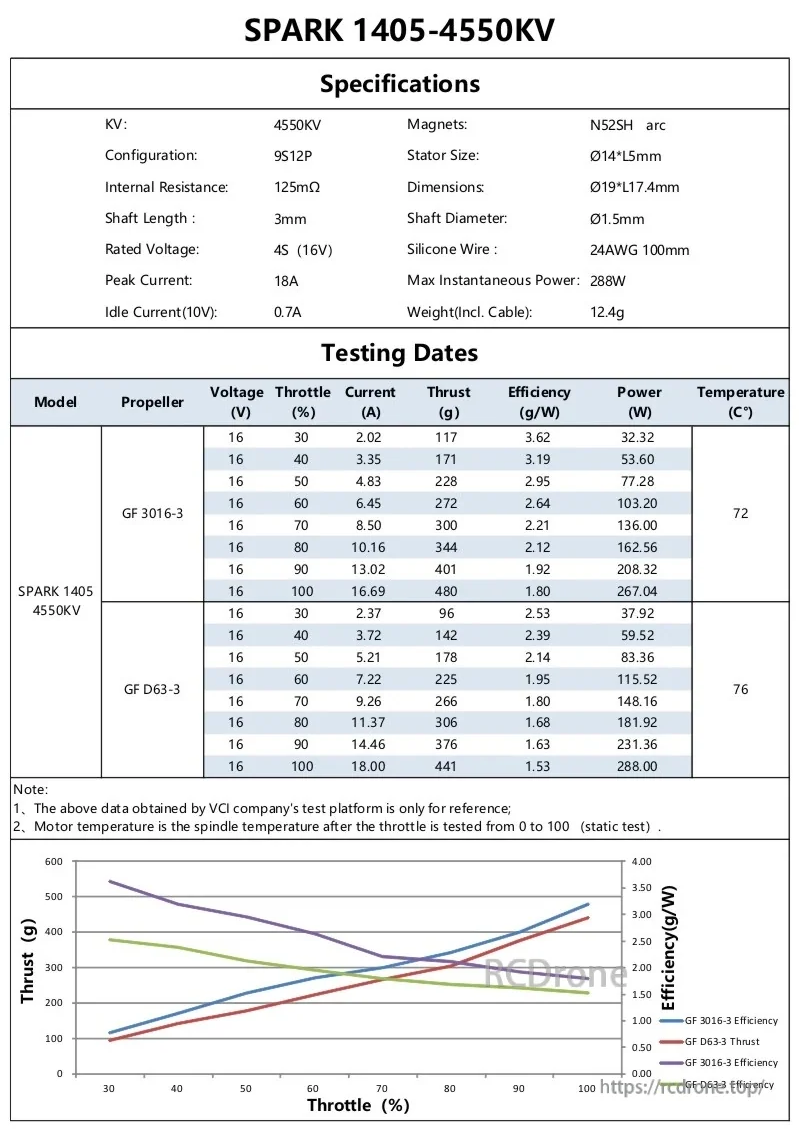

SPARK 1405 4550KV @ 16V with GF 3016-3: max thrust 480g at 16.69A, 267.04W; recorded temperature 72C.

Test values are from a static test platform and are provided for reference.
