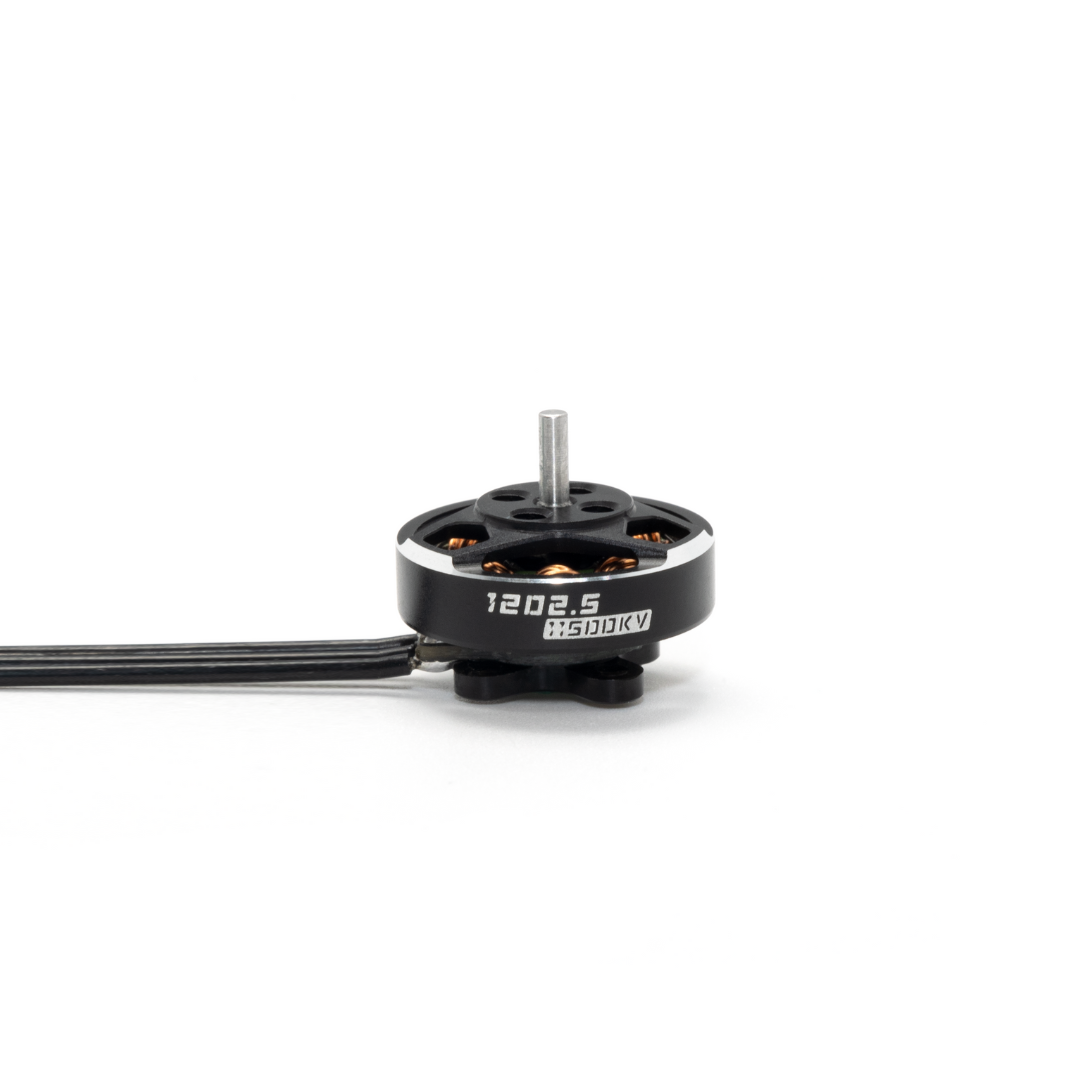

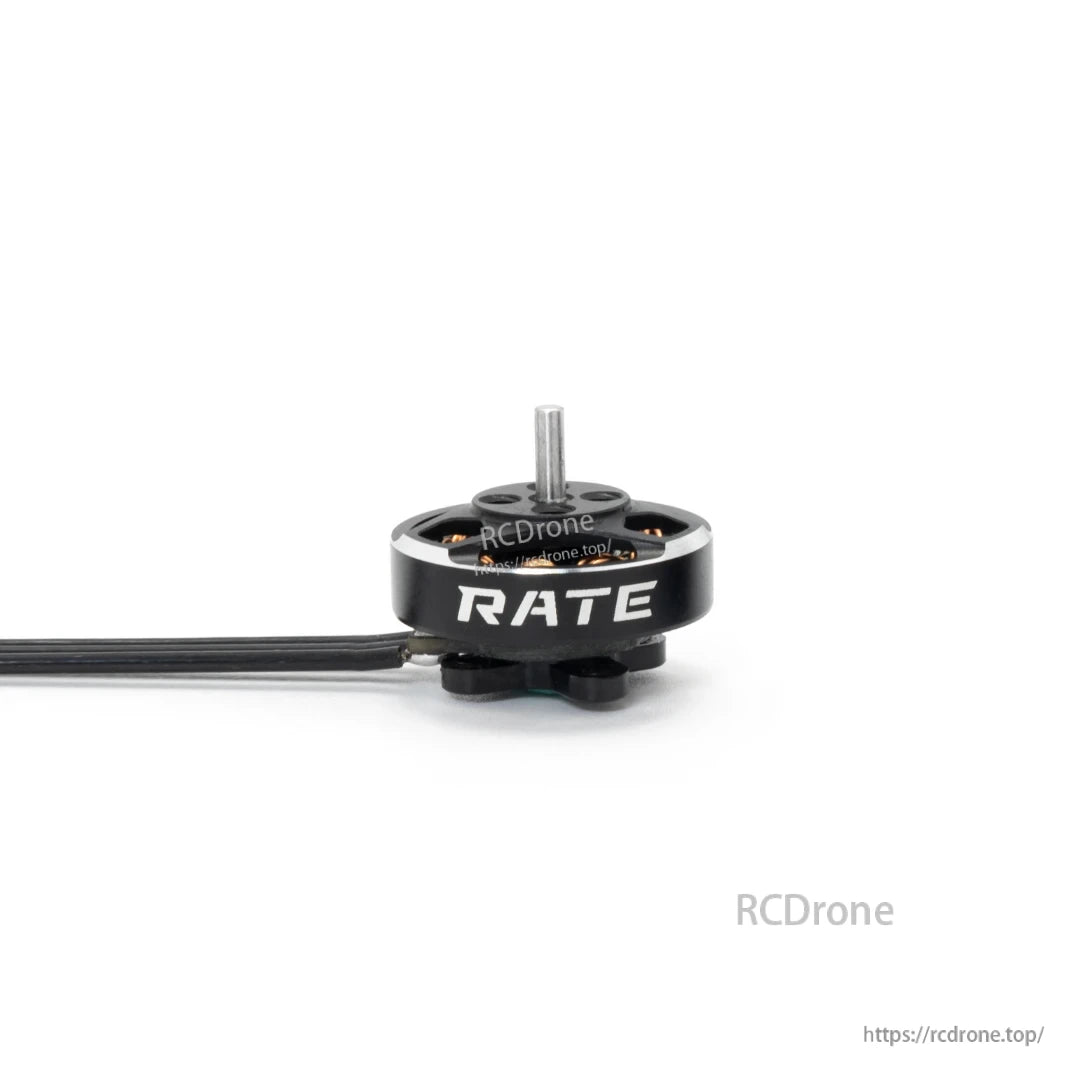

RATEFPV 1202.5 11500KV Brushless Motor for 1-2S FPV Drones
RATEFPV 1202.5 11500KV Brushless Motor for 1-2S FPV Drones
RATEFPV
Cena regularna
$26.99 USD
Cena regularna
Cena promocyjna
$26.99 USD
Cena jednostkowa
na
Z wliczonymi podatkami.
Koszt wysyłki obliczony przy realizacji zakupu.
Nie można załadować gotowości do odbioru
Overview
The RATEFPV 1202.5 11500KV brushless motor is a compact FPV drone motor designed for 1-2S LiPo HV power systems. It uses a 9N12P configuration with single-strand winding and is specified for 1-2 inch propellers with a 5 mm fixed hole.
Key Features
- 11500KV brushless motor for 3.7 V-7.4 V input voltage
- Compatible with 1-2 inch propellers using a 5 mm fixed hole
- 9 x 9 mm motor mounting pattern
- 75 mm, 26 AWG motor leads
- Specified for use with a 10A ESC
Specifications
| Model | 1202.5 |
| KV Rating | 11500KV |
| Winding Configuration | 9N12P |
| Wiring Method | Single-strand winding |
| Input Voltage | 3.7 V-7.4 V (1-2S LiPo HV) |
| Maximum Power | 92.2 W with GF2023 propeller |
| Maximum Current | 12.46 A with GF2023 propeller |
| Compatible Propeller | 1-2 inch, 5 mm fixed hole |
| Compatible ESC | 10A |
| Motor Dimensions | 15.8 mm x 8.9 mm |
| Shaft Diameter | 1.50 mm |
| Shaft Length | 4.8 mm |
| Mounting Hole Spacing | 9 x 9 mm |
| Lead Length | 75 mm, 26 AWG |
| Weight | 4.5 g with 75 mm wire |
| Recommended Mounting Screws | M2 x 4 for 1-2 mm mounting plates; M2 x 5 for 2.5-3.5 mm mounting plates; M2 x 7 for 3 mm mounting plates |
What's Included
Select the required package option: 1, 2, or 4 x RATEFPV 1202.5 11500KV brushless motor.
For product assistance, contact rcdrone.top.
