AGR B100 Agriculture Drone

Overview

The AGR B100 Agriculture Drone is a cutting-edge tool designed to transform modern farming with its robust features and high efficiency. Equipped with a large load capacity of up to 52 kg and advanced technology, this drone is built to handle a wide range of agricultural tasks, from spraying and spreading to precision mapping.

Core Parameters:

• Max Load: 52 kg
• Battery Capacity: 30,000 mAh
• Spraying Capacity: 50 L pesticide tank
• Spreading Capacity: 70 L fertilizer tank
• Spraying Efficiency: Up to 20 ha/h
• Spreading Efficiency: 5.3 ha/h
• Operating Speed: Up to 13.5 m/s
• Effective Signal Range: 1200-1500 m
• Hovering Time: 18 min 15 s (empty load), 7 min 30 s (full load)
• Brand: AGR

Key Features:

• Large Load Capacity: Handles significant payloads for extensive farming operations.
• Efficiency: Optimized for time-saving and effective field management with high spraying and spreading efficiency.
• Stability and Durability: Features like the self-developed AG6 flight controller, vertical folding arms, and robust propellers ensure stable flight and long-lasting performance.
• Advanced Design: Includes a waterproof, dustproof, and corrosion-resistant flight controller, floating type plugs, and a split frame design for easy maintenance.

Applications:

• Spraying and Spreading: Ideal for pesticide application and fertilizer distribution with high precision and efficiency.
• Precision Agriculture: Suitable for tasks such as crop monitoring, health assessment, and precision mapping.
• Land Management: Useful for tasks in forest preservation, land planning, and mine safety.
• Disaster Relief: Assists in delivering supplies and surveying disaster-affected areas for effective relief operations.

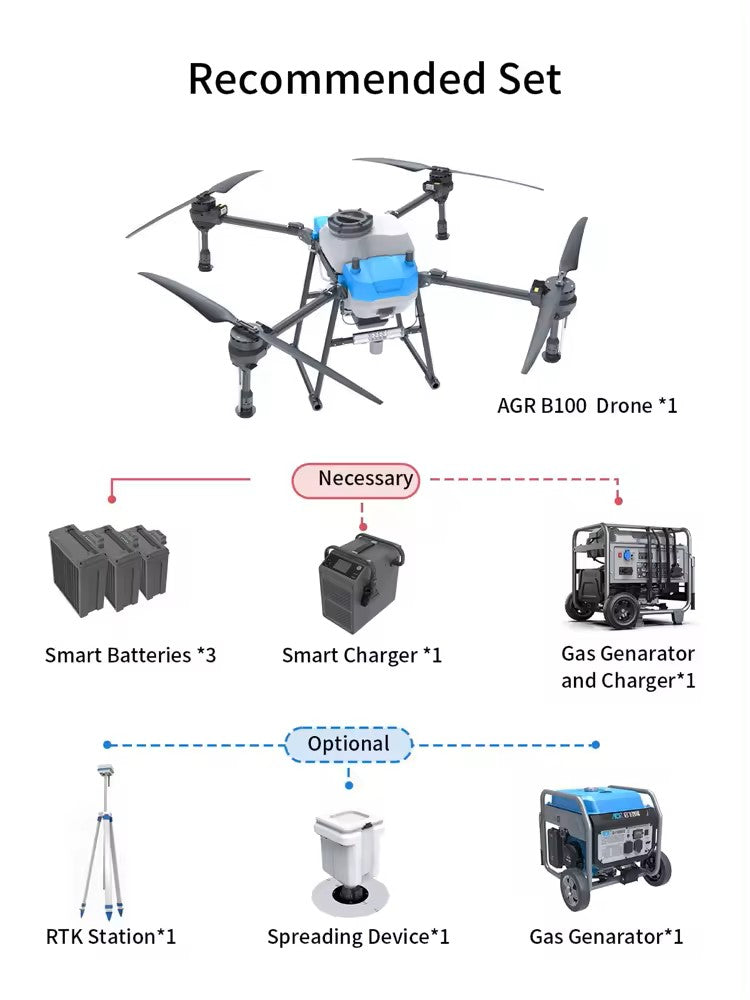

Recommended Set

• AGR B100 Drone: 1 unit
• Smart Batteries: 3 units
• Smart Charger: 1 unit
• Gas Generator and Charger: 1 unit
• Optional Accessories:
  • RTK Station: 1 unit
  • Spreading Device: 1 unit
  • Additional Gas Generator: 1 unit

Technical Parameters

Overall Parameters

Parameter	Specification
Rated Load	50 kg
Max Load	52 kg
Empty Load Weight	55 kg
Rated Takeoff Weight	105 kg
Transport Dimension	1054 mm × 834 mm × 1120 mm
Overall Dimension	1725 mm × 1755 mm × 1075 mm
Empty Load Hovering Time	18 min 15 s
Full-load Hovering Time	7 min 30 s

Battery Parameters

Parameter	Specification
Model	ZAB1830
Weight	≈13.5 kg
Battery Dimension	175 mm × 275 mm
Cells	309 mm
Capacity	30,000 mAh
Nominal Voltage	68.4 V

Spreading Parameters

Parameter	Specification
Fertilizer Tank Volume	70 L
Spreading Efficiency	5.3 ha/h
Spreading Endurance	Each battery = 6 times, 240 kg fertilizer
Spreading Range	6-15 m (varies with discharging rate of height)
Max Discharging Rate	80 kg/min
Suitable Material	0.5-20 mm dry solid particle

Spraying Parameters

Parameter	Specification
Pesticide Tank Volume	50 L
Spraying Efficiency	6.67-20 ha/h
Spraying Range	8-10 m (varies with height)
Flow Rate	Single Pump: 12 L/min, Double Pumps: 24 L/min
Number of Nozzles	2/4 pieces
Filtration Grade	Level 3 (dosing hole, discharging hole, nozzle)
Atomizing Diameter	50-500 µm

Fuel Generator Parameters

Parameter	Specification
Model	ZAM790D-01
Output Voltage	DC45.0-78.3V 9000W (Max.)
Frequency	50 Hz
Displacement	500 cc
Weight	72 kg
Fuel Tank Capacity	36 L
Dimension	700 ± 5 mm × 595 ± 5 mm × 620 ± 5 mm
Max Power	12000 W
Rated Power	9000 W

Smart Charger Parameters

Parameter	Specification
Model	ZAC8045-01
Weight	5.5 kg
Charger Dimension	~300 mm × 137 mm × 198 mm (without charger cable)
Number of Channels	Single channel
AC Input Interface	10A (AC voltage range: 90-290V)
Power	Rated 3000W (Home-use slow charging)
Charging Time	40 min (20%-100%)

Remote Control Parameters

Parameter	Specification
Model	H12 PRO
Effective Signal Range	1200-1500 m
Built-in Battery	3.7V 2S Lithium Battery 20000 mAh
Number of Channels	12
Ambient Temperature	-10ºC ~ 55ºC
Storage Temperature	-20ºC ~ 70ºC
Battery Life	8-12H

Network RTK Marker Parameters

Parameter	Specification
Location Accuracy	2 cm ± 1 ppm
Frequency Band	RTK
Location Update Rate	1 Hz
Location Lock-in Time	Cold Start < 60 s
Warm Start Time	< 30 s
Power	0.8 W
Battery Capacity	6000 mAh
Dimension	103.5 mm × 56 mm × 201 mm
Battery Life	24-26 H

Super Large Volume Tank

Pesticide Tank

• Volume: 50L
• Features: Oversized loading port for easy and fast loading, multiple filters to eliminate residue.

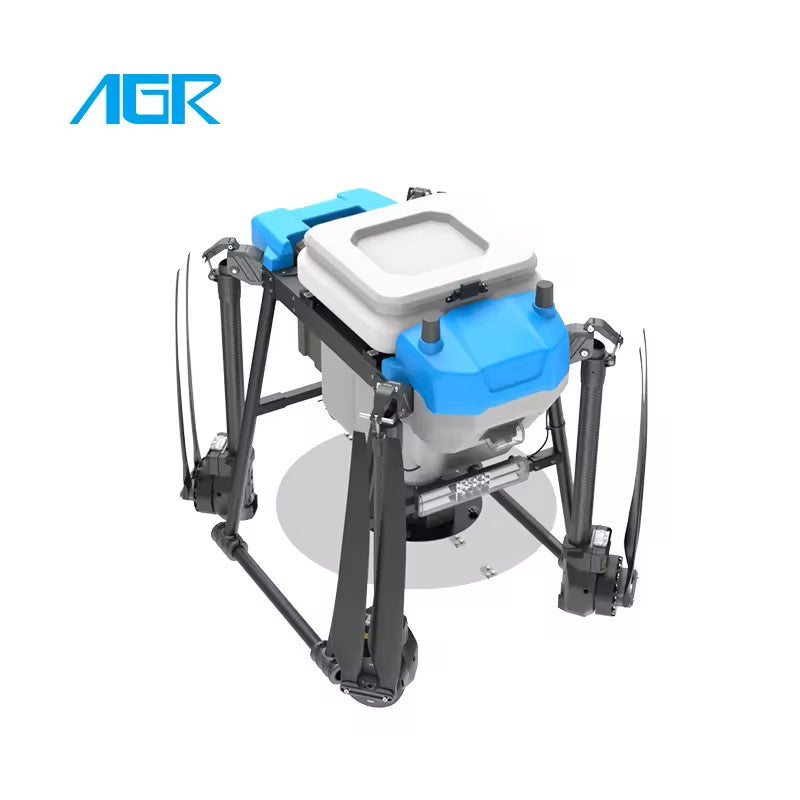

Fertilizer Tank

• Volume: 70L
• Features: Oversized loading port, 360° spreading, discharging rate up to 80 kg/min.

Advanced Design Features

• Floating Type Plug: Mistake-proof design for plugs simplifies wiring, waterproof and dust-proof, easy to clean.
• B100 Split Frame Design: Die-cast connecting pieces increase strength, open frame lowers maintenance costs.

High-Efficiency Components

• Inner Rotor High-Efficiency Brushless Motor: Efficient heat dissipation, high torque, strong atomization.
• Double Atomization Centrifugal Disc: Low power, high atomization, supports 50-500 microns.
• Centrifugal Nozzle: Efficient heat dissipation, air-cooled, and liquid cooling.

Double Atomization Centrifugal Nozzle

• High flow rate up to 12 L
• Inner rotor motor
• High heat dissipation efficiency

BP14 Brushless Water Pump

• Small in size (100 mm × 125 mm × 90 mm)
• Light in weight (610 g)
• High flow rate (Max: 15 L/min, Rated: 0.5-14 L/min)
• FOC control multiple protection: Over current, under voltage, blocked rotor, over temperature, over voltage, signal loss alarm.

Self-developed AG6 Flight Controller

• Integrated Avionics System: Waterproof, dustproof, and corrosion-resistant.

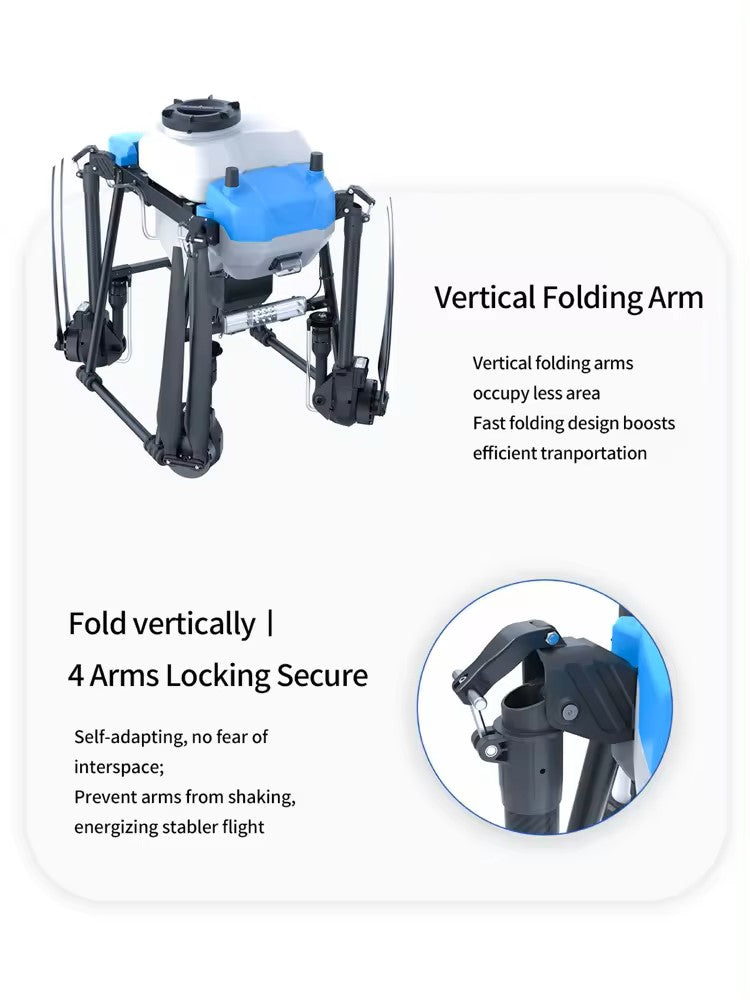

Vertical Folding Arm

• Vertical Folding Arms: Occupy less area, fast folding design boosts efficient transportation.
• 4 Arms Locking Secure: Self-adapting, no fear of interspace; prevents arms from shaking, ensuring stable flight.

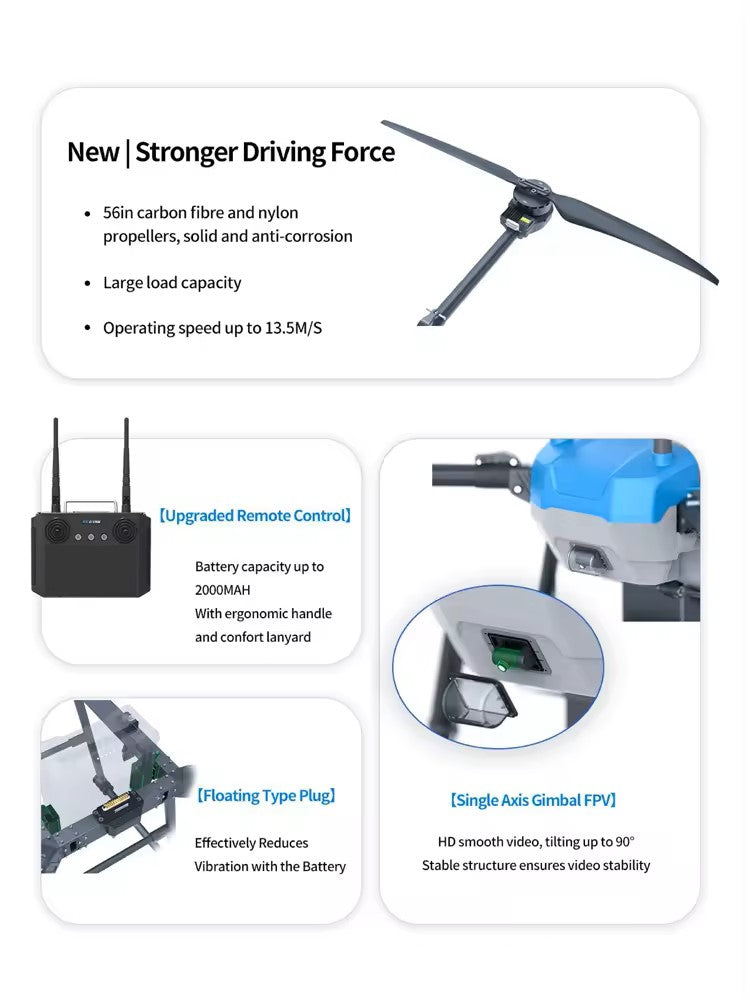

New Stronger Driving Force

• Propellers: 56-inch carbon fiber and nylon propellers, solid and anti-corrosion.
• Large Load Capacity
• Operating Speed: Up to 13.5 m/s

Upgraded Remote Control

• Battery Capacity: Up to 20,000 mAh, with ergonomic handle and comfort lanyard.

Single Axis Gimbal FPV

• HD Smooth Video: Tilting up to 90°, stable structure ensures video stability.

The AGR B100 Agriculture Drone is a versatile and powerful tool for modern farming, offering a wide range of features designed to enhance efficiency, precision, and durability in various agricultural tasks.
