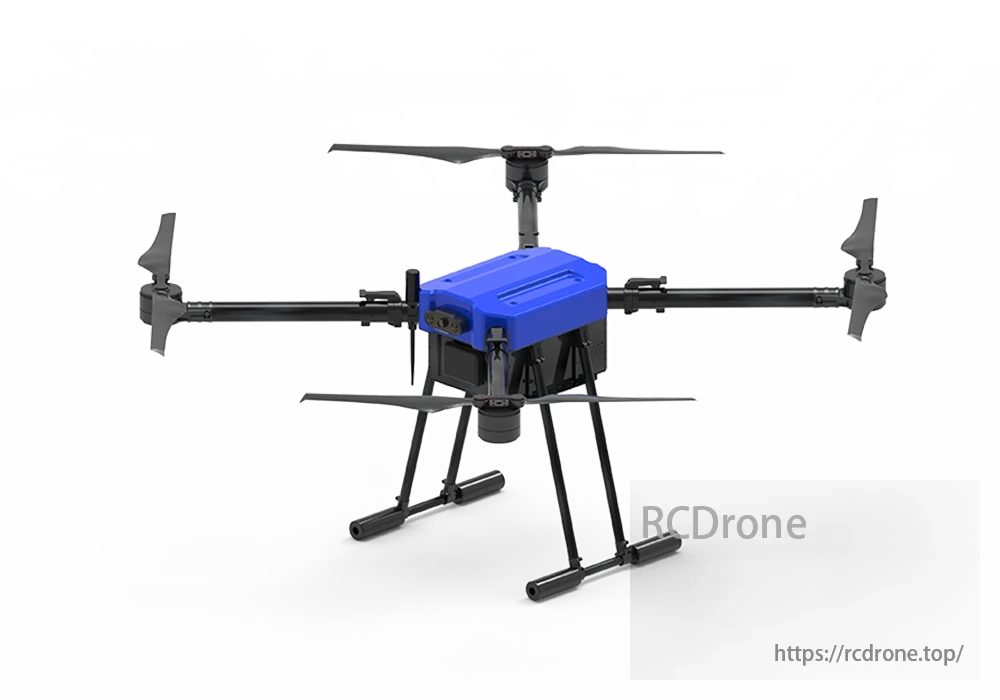

D1200 Drone Overview
The D1200 Drone is a cutting-edge industrial-grade drone designed for inspection and mapping tasks. It boasts a 10kg payload capacity, a no-load flight time of up to 60 minutes, and an impressive control distance of 10km. Constructed from aviation aluminum alloy and carbon fiber, the D1200 Drone is both robust and lightweight. With a maximum flight altitude of 5000 meters and a top speed of 20m/s, this drone is ideal for extensive and detailed inspections.
Note:
This drone needs to be customized, do not pay directly, we will not ship it. Please send an email to buysom2022@gmail.com first.
D1200 Drone Key Features:
-
Impressive Payload and Endurance: The D1200 Drone supports a maximum load of 10kg, allowing it to carry a variety of inspection equipment. With a no-load flight time of 60 minutes, it can conduct extensive surveys without frequent recharging. The 30000mAh battery ensures reliable power, even in demanding conditions.
-
Extended Control Range: With a maximum control distance of 10km in open areas without electromagnetic interference, the D1200 Drone allows for wide-ranging inspections. This capability is crucial for tasks requiring extensive area coverage and detailed data collection.
-
High-Performance Flight Capabilities: The drone can ascend and descend at speeds of up to 5m/s and achieve a maximum flight speed of 20m/s in no-wind conditions. It can also withstand wind levels up to Level 7, ensuring stable flight in various environmental conditions. The maximum flight altitude of 5000 meters allows for high-altitude inspections.
-
Precision Hovering: Equipped with advanced GPS/GLONASS/BDS/Galileo satellite positioning modules, the D1200 Drone maintains hover accuracy with a vertical deviation of ±0.5m and a horizontal deviation of ±1m. This precision is essential for detailed inspection tasks.
-
4K HD Camera: The integrated HD 4K camera, featuring 10/30 times zoom capabilities, captures high-quality aerial footage, perfect for detailed inspections and mapping projects. This allows for close-up inspections without the need for proximity.
Versatile Applications:
The D1200 Drone is perfect for a variety of industrial applications, including:
-
Infrastructure Inspection: Inspect bridges, towers, and pipelines with precision and efficiency. The drone's high payload capacity and long flight time enable thorough inspections without the need for multiple trips.
-
Mapping and Surveying: Create detailed maps and conduct land surveys with the integrated high-definition camera and advanced positioning systems. The extended control range ensures comprehensive area coverage.
-
Environmental Monitoring: Monitor large areas for environmental changes, wildlife tracking, and conservation efforts. The drone's ability to operate in various weather conditions makes it ideal for outdoor monitoring.
D1200 Drone Specifications:
Parameter | Specification |
---|---|
Fuselage Dimensions | 1380mm x 1380mm x 650mm |
Folding Dimension | 600mm x 600mm x 650mm |
Wheelbase | 1200mm |
Material | Aviation aluminum alloy, carbon fiber |
Body Weight | 10KG |
Maximum Takeoff Weight | 26kg (near sea level) |
Maximum Load | 10kg |
Maximum Ascent Speed | 5m/s |
Maximum Descent Speed | 5m/s |
Maximum Wind Resistance | Level 7 |
Maximum Flight Altitude | 5000m |
Maximum Flight Speed | 20m/s (no wind environment) |
No-load Flight Time | 60 minutes |
Maximum Control Distance | 10km (open without shelter, no electromagnetic interference) |
Maximum Flight Climb Altitude | 1000m |
Hover Accuracy | Vertical: ± 0.5m (when GPS positioning is working normally)<br>Horizontal: ± 1m (when GPS positioning is working normally) |
Satellite Positioning Module | GPS/GLONASS/BDS/Galileo |
Camera | HD 4K quality with 10/30 doubling |
Power System | Integrated FOC power system |
Working Temperature | -20℃ to 50℃ |
Waterproof Grade | In the rain, the fuselage can be flushed with water |
Battery Capacity | 30000mAh |
Hand-held Ground Station | |
Operating Frequency | 2.4GHz & 5.8GHz Dual Band |
Chip | Surging S1 |
System | Android |
Signal Effective Distance | About 10km (open without shelter, no electromagnetic interference) |
Video Output Interface | HDMI/Wi-Fi |
Built-in Battery | 7.4V 20000mAh LiPo2S |
Endurance | 20 hours |
Display | 7 inch screen, resolution 1920*1200, |
Brightness | 2000cd/㎡ |
Memory Card Type | Maximum support for 128GB capacity microSD card |
Integrated Operation Page | Flight parameters integration, image map can be switched at will |
Voice Broadcast | With adjustable real-time voice broadcast |
Note: All the above product parameters are subject to modification based on different customer needs for mounting equipment without further notice!
Invest in the D1200 Drone for your industrial inspection and mapping needs to experience unparalleled performance, reliability, and efficiency.

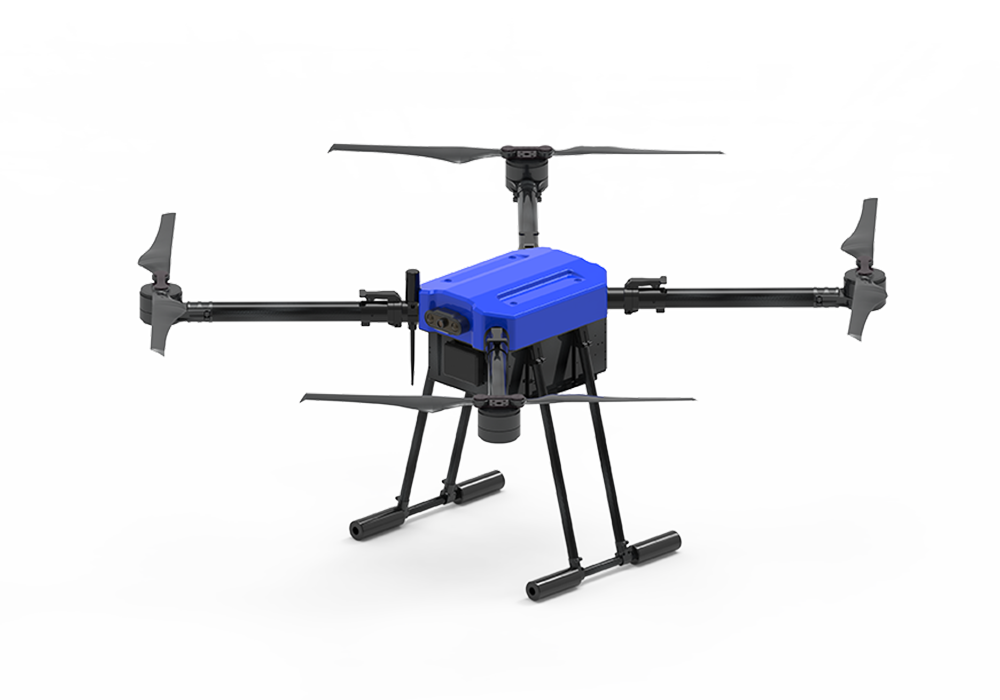

![D1200 Drone - 10KG Payload 60 Minutes 10KM Distance Industrial Drone for Inspection and Mapping](http://rcdrone.top/cdn/shop/files/3515a538-d563-4a16-a214-9fd4d5faaf04.png?v=1722860394&width=1445)
