Dreameagle X420 20L Agriculture Drone Overview
The Dreameagle X420 20L Agriculture Drone is a powerful and efficient solution for large-scale farming operations, designed with advanced features to enhance productivity and ease of use. With a wheelbase of 1810mm and a foldable design that expands to 1385×1385×763mm, this drone offers both portability and robust performance. The 20L payload capacity and high working efficiency of 90 acres per hour make the Dreameagle X420 ideal for tasks such as crop spraying and fertilization. Powered by the Hobbywing X9 plus system, this drone delivers strong, reliable performance even under demanding conditions.
Key Features of Dreameagle X420 20L Agriculture Drone
- Brand: Dreameagle
- Model Number: X420
- Material: Carbon Fiber
- Wheelbase: 1810mm
- Expanded Size: 1385×1385×763mm

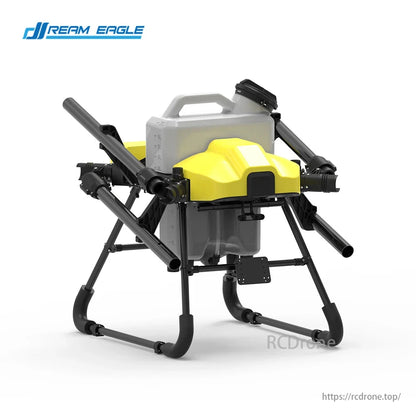

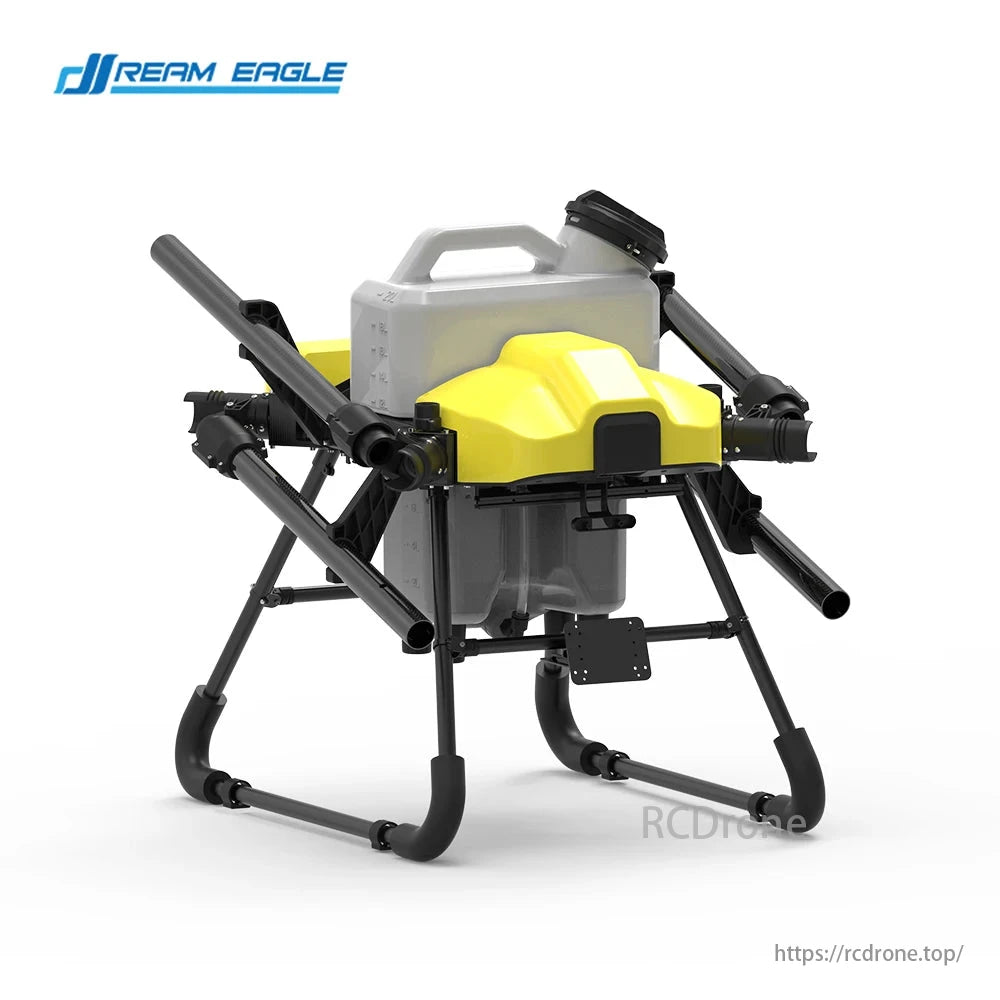

- Folded Size: 770×790×780mm
- Arm Size: 37×40mm carbon fiber tube

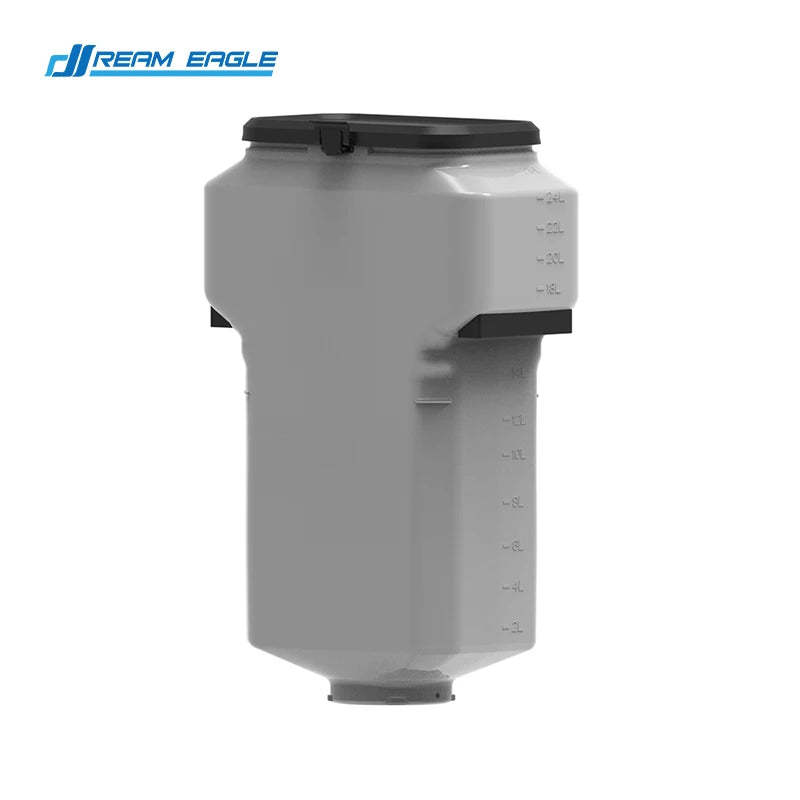

- Medicine Box Volume: 20L
-
Product Weight:
- Frame weight: 11kg
- Full load takeoff weight: 50.5kg
- Spray Width: 5-8 meters (adjustable)

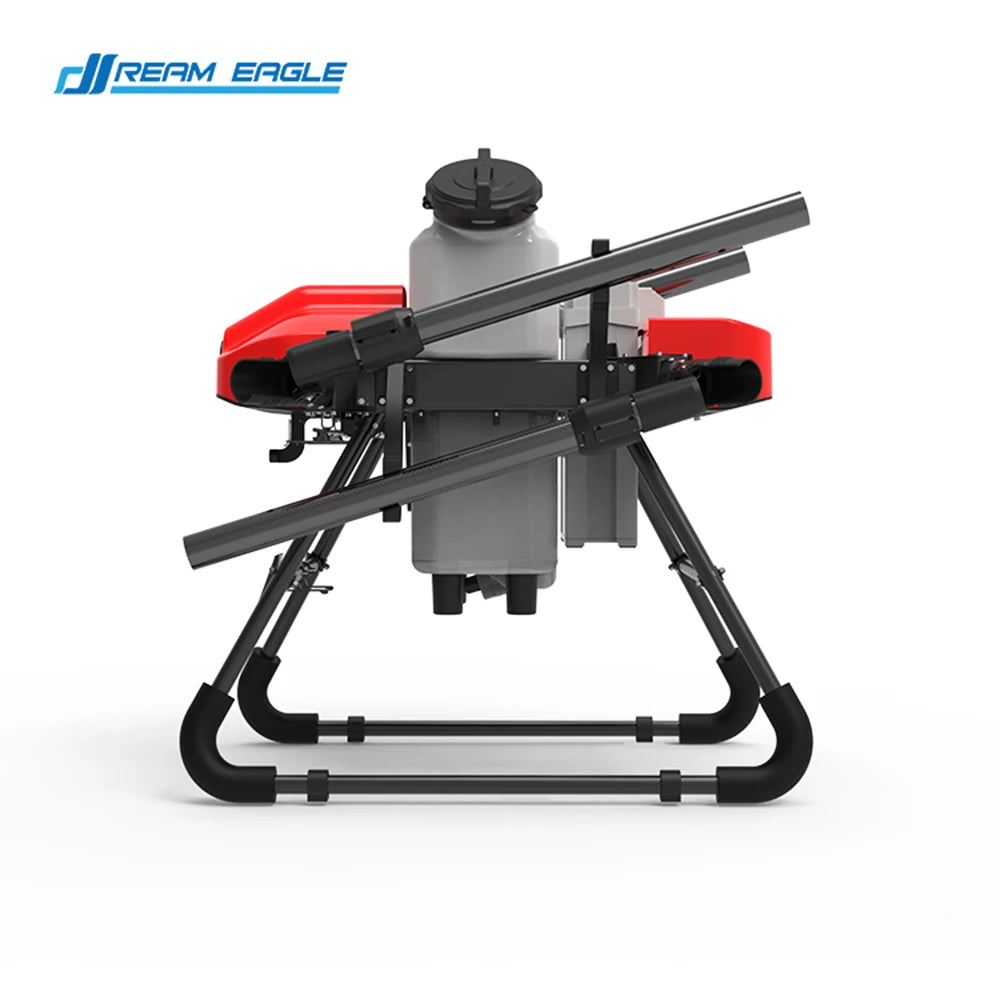

The Dreameagle X420 20L Agriculture Drone features a streamlined structural design with a front and rear folding quadrotor layout, making it easy to transport and deploy. Its quick-plug battery and water tank design, along with modular components, ensure quick setup and minimal downtime during operations. The obstacle avoidance radar and ground defense radar provide enhanced safety, while the front FPV camera offers real-time monitoring.
Specifications Table for Dreameagle X420 20L Agriculture Drone
Product Name | X4-20 Agriculture Drone |
---|---|
Medicine Box Volume | 20L |
Drone Self Weight | 11kg |
Take-off Weight | 50.5kg |
Spray Width | 5-8 meters |
Battery | 14S 19000mAh/22000mAh/28000mAh |
Spraying Efficiency | 90 acres/hour |
Hover Time | 25 minutes (no-load) / 10 minutes (full-load) |
Machine Size | 1385×1385×763mm (expanded) |
Advanced Features of Dreameagle X420 20L Agriculture Drone
-

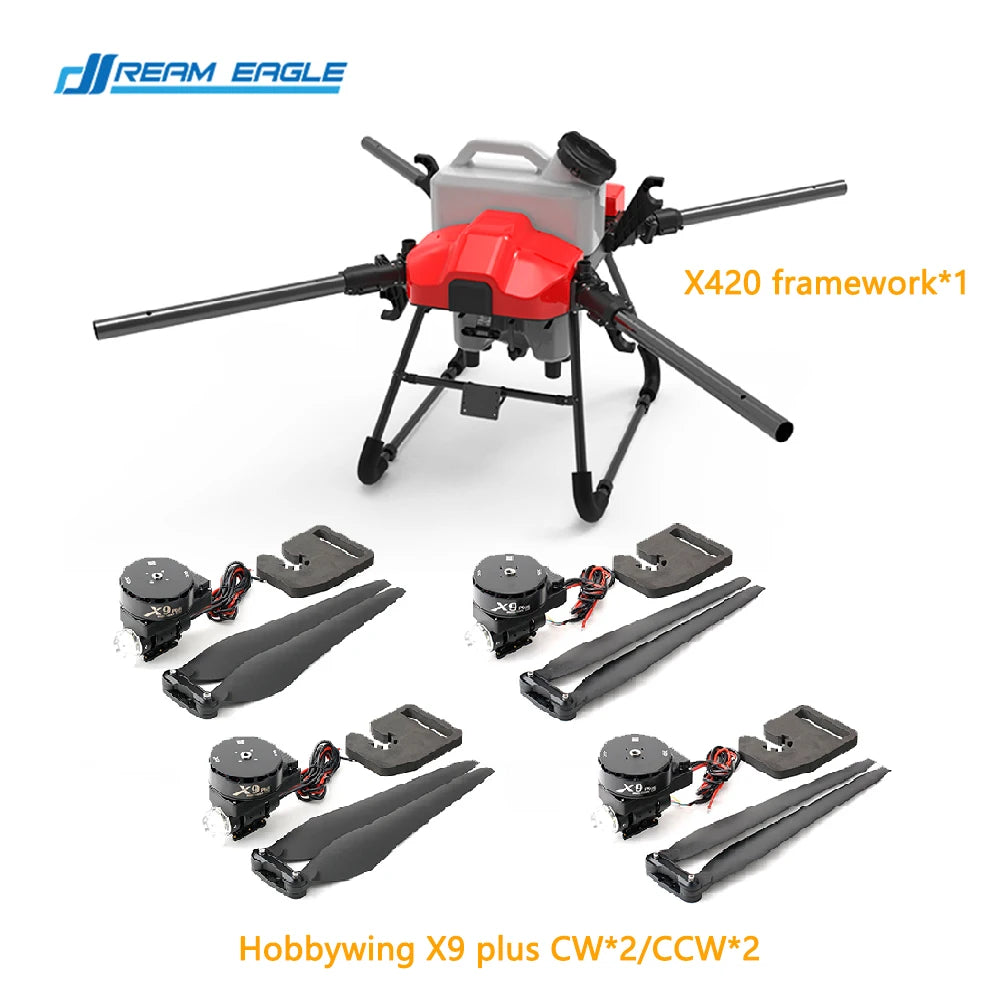

Enhanced Power System: The Dreameagle X420 20L Agriculture Drone is equipped with the Hobbywing X9 plus power system, featuring 100kv motors, 120A ESCs, and 36-inch propellers, delivering superior thrust and stability for heavy-duty agricultural tasks.
-
High Efficiency and Large Coverage: With a spraying width of up to 8 meters and a working efficiency of 90 acres per hour, the Dreameagle X420 20L Agriculture Drone significantly reduces the time and labor needed for crop management.
-
Durable and Lightweight Construction: The carbon fiber frame ensures a strong yet lightweight build, providing both durability and ease of maneuverability in the field.
-
Modular Design for Easy Maintenance: The drone’s modular structure allows for quick assembly, maintenance, and replacement of parts, ensuring minimal downtime during critical farming seasons.
-
Advanced Safety and Control: Equipped with obstacle avoidance radar, ground defense radar, and a front FPV camera, the Dreameagle X420 20L Agriculture Drone offers precise control and enhanced operational safety in diverse terrains and weather conditions.
The Dreameagle X420 20L Agriculture Drone is the perfect combination of power, efficiency, and user-friendly design, making it an essential tool for modern agricultural operations. With its advanced features and robust build, this drone offers a reliable solution for farmers looking to optimize their crop management processes.
The Dreameagle X420 20L 20kg 4-Axis Agricultural Spray Drone features an impressive expanded size of 1385mm x 1385mm x 763mm, which folds down to a compact 770mm x 790mm x 775mm. The product has a wheelbase of 1810mm and arm sizes of 37mm x 40mm carbon fiber tubes. Weighing in at just 1kg (frame weight) or 21kg (highest configuration without battery), this drone is designed for agricultural use with a spray width of 3-5.5m (about 1.5-3m from crop height). The hover time stands at 25 minutes no-load (@28,000mAh takeoff 30.5kg) and 10 minutes full load hovering (@28,000mAh 730mm take-off weight 50.5kg).
![Dreameagle X420 agricultural spray drone with Hobbywing power system specifications.](https://rcdrone.top/cdn/shop/files/S9689ffdeb5504065b381c2ddc8ef4758K_31e4b68d-3e4b-4f42-95fd-c0c214af1330.webp?v=1724776760)
Dreameagle X420 20L 20kg 4-Axis Agricultural Spray Drone with Hobbywing X9 Plus Power System. Specifications: Overall Dimensions - 371mm x 276mm x 675mm, Spreader Size - 276mm x 276mm x 163mm, Spreading Box Weight - 1.42kg, Spreader Weight - 1.60kg, Total Weight - 3.02kg, Spreading Box Capacity - 25L, Operating Particle Diameter - 0.5~6mm (Dry Particle). Valve Angle: 0~60 degrees, Spreading Width - 110cm, Control Signal Pulse Width - 1000us~2000us, Maximum Speed - 11.0R/min, Maximum Power - 150W, Waterproof Level - IP67.
The Dreameagle X420 20L 4-Axis Agricultural Spray Drone features a strong and durable Z-shaped foldable design, fully waterproof body, and spray switchable spread. It also has an intelligent battery that can expand, a modular fuselage for easy camera hanging installation and maintenance.
![We are a company that specializes in showcasing products through physical displays.](https://rcdrone.top/cdn/shop/files/S9e485b4735f747749c9922a0d378801dP.webp?v=1724776800)
![The company accepts FOB, CFR, CIF, EXW delivery terms and various payment currencies/types, with English and Chinese spoken.](https://rcdrone.top/cdn/shop/files/S6d2d46e9d7144d458c558a43aa2b808eW.webp?v=1724776816)
![The Dreameagle X420 Agricultural Spray Drone features a 20L water tank, 4-axis flight control, and Hobbywing power system, designed for efficient planting.](https://rcdrone.top/cdn/shop/files/S3bda0ca5569d49ad9a8465ecb3d495f34.webp?v=1724776842)
Dreameagle X420 Agricultural Spray Drone features a 20L water tank with a 3D size display. The drone has a 4-axis flight control system and is powered by Hobbywing X9 plus power system. It comes with a sowing box with dimensions of 372 x 180 mm and an inlet/outlet design for efficient planting.
![Agricultural spray drone with 4-axis control and Hobbywing X9 power system for efficient crop application.](https://rcdrone.top/cdn/shop/files/Sb8c5a1508b0c4201a69464fc43368a550.webp?v=1724776866)
![Dreameagle X420 drone has a compact design, measuring 580x380mm or 580x190x400mm, and weighs 2.2kg.](https://rcdrone.top/cdn/shop/files/S89dc06c26f39457a8be315178c550da4Q.webp?v=1724776896)
Dreameagle X420 20L 20kg 4-Axis Agricultural Spray Drone with Hobbywing X9 Plus power system features a compact design, measuring 580mm*380mm (2 sets) or 580mm*190mm*400mm (1 set), and weighing 2.2kg (1 set). The finished water tank display ensures efficient spraying operations.
![Dreameagle X420 Agricultural Spray Drone with Hobbywing X9 Plus Power System features a 20L tank capacity, compact size, and 4-axis flight system.](https://rcdrone.top/cdn/shop/files/S190b0a3a0ca94e4daf6810f887c2a5beV.webp?v=1724776924)
Dreameagle X420 Agricultural Spray Drone with Hobbywing X9 Plus Power System features a 20L tank capacity, weighs 20kg and has a compact size of 580mm*200mm*400mm. It also includes a 4-axis flight system for precise spraying control.
![Agricultural spray drone with 4-axis precision and obstacle avoidance, ideal for pesticide and fertilizer application.](https://rcdrone.top/cdn/shop/files/S8808489f5f48422cb6dc415147661a57N.webp?v=1724776950)
Dreameagle X420 20L 20kg 4-Axis Agricultural Spray Drone with Hobbywing X9 plus power system. The drone features a sturdy frame, high-precision spraying system and advanced obstacle avoidance technology. It ideal for agricultural use, offering efficient and precise application of pesticides and fertilizers.
![The company provides UAV system solutions, including agricultural frames, spreading systems, and modules, with products exported globally.](https://rcdrone.top/cdn/shop/files/S718947b7e96b414d84ec187f4f4508f6m.webp?v=1724776986)
Shenzhen Dream Eagle Technology Co., Ltd. is a professional UAV system solution provider established in 2014. Our company offers a range of products, including agricultural UAV frames, particle spreading systems, and distribution point management modules. We also provide customized solutions for industrial transportation UAVs. Our products have gained popularity both domestically and internationally, with exports to Japan, South Korea, Southeast Asia, Europe, America, and other regions. **Product Details** * Model: Dreameagle X420 * Capacity: 20L * Power System: Hobbywing X9 plus
![Introducing Dreameagle X420, an agricultural spray drone with 20kg payload capacity and 20L tank size for efficient crop spraying.](https://rcdrone.top/cdn/shop/files/Sdf35098832074102bcc3c9c135e4c9743.webp?v=1724777012)
Introducing Dreameagle X420 20L 20kg 4-Axis Agricultural Spray Drone with Hobbywing X9 plus power system. This powerful drone features a 20kg payload capacity and 20L tank size for efficient crop spraying.
![The Dreameagle X420 is an agricultural spray drone featuring a 4-axis system and Hobbywing X9 Plus power system for efficient crop spraying.](https://rcdrone.top/cdn/shop/files/Sa4c3d4356d21416984cf2c7ea540296cN.webp?v=1724777036)
Dreameagle X420 20L 20kg 4-Axis Agricultural Spray Drone with Hobbywing X9 Plus Power System
![Buy from us for reliable and efficient agriculture drones and spare parts, ensuring your farm productivity and yield.](https://rcdrone.top/cdn/shop/files/Sd855e1fef10e4c9abf893704ee40a8ef0.webp?v=1724777052)
Product physical display
