EFT E416P - 16L 16kg Agriculture spray drone frame kit four-axis Folding Quadcopter with Hobbywing X9 power system UAV

Package 1:

EFT E416P frame + 16L water tank * 1 set

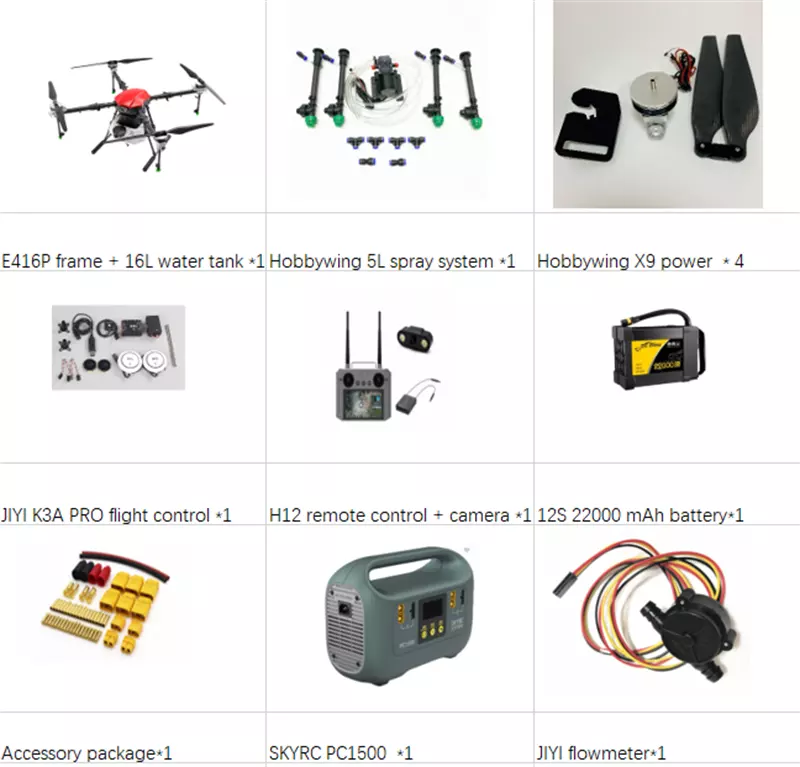

Package 2:

1: EFT E416P frame + 16L water tank * 1 set

2: Hobbywing 5L spray system kit *1 set

3: Hobbywing X9 power system * 4 sets

4: JIYI K3A PRO flight control *1 set (or JIYI K++ flight control)

5: skydroid H12 remote control + camera *1

6: TATTU 12S 22000 mAh battery*1 set

7: SKYRC PC1500 charger*1

8: Accessory package*1

9: JIYI flowmeter*1

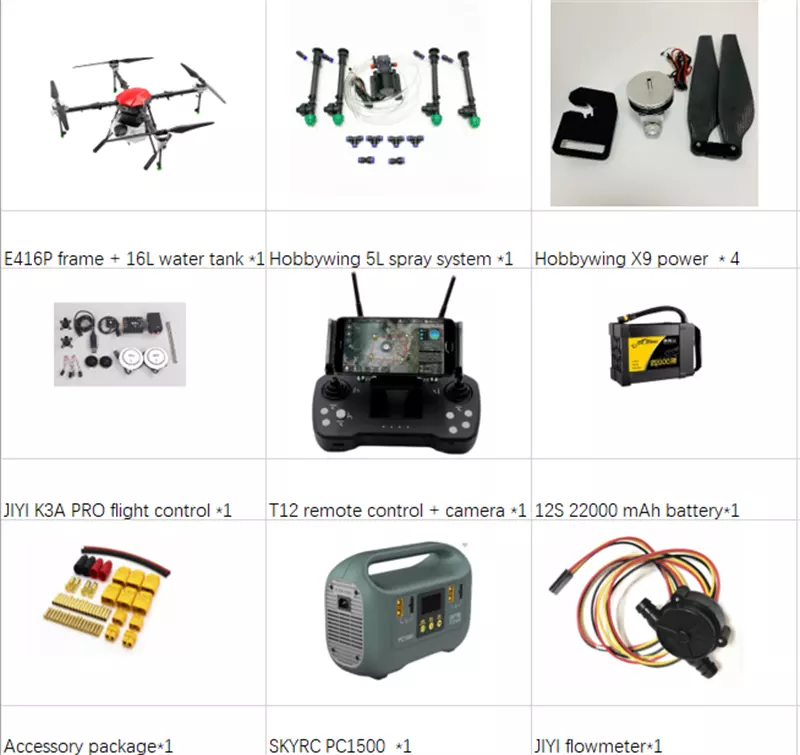

Package 3:

1: EFT E416P frame + 16L water tank * 1 set

2: Hobbywing 5L spray system kit *1 set

3: Hobbywing X9 power system * 4 sets

4: JIYI K3A PRO flight control *1 set

5: skydroid T2 remote control + camera *1

6: TATTU 12S 22000 mAh battery*1 set

7: SKYRC PC1500 charger*1

8: Accessory package*1

9: JIYI flowmeter*1

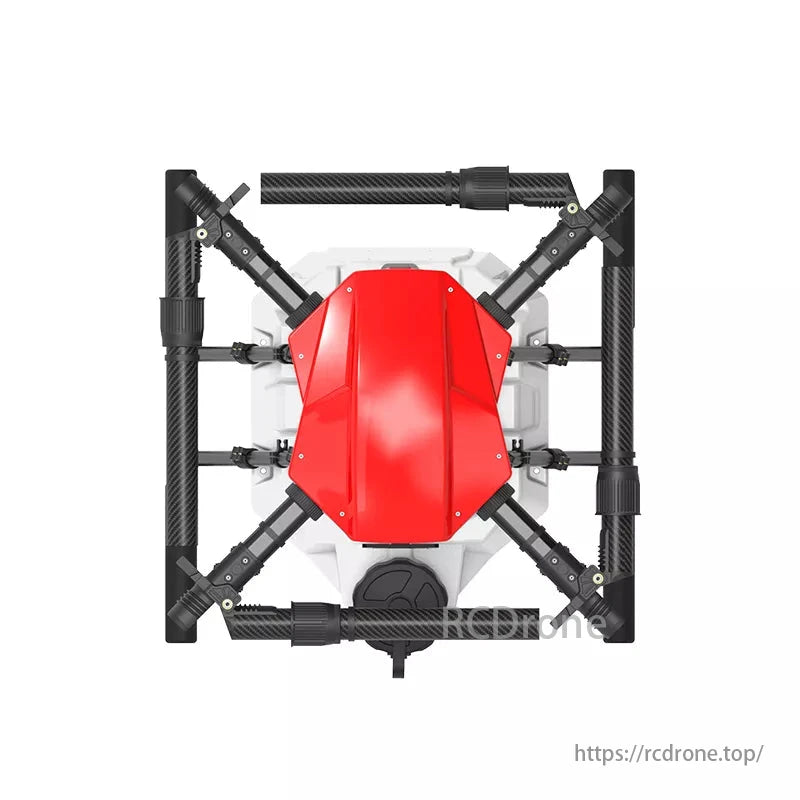

The frame parameter:

Model: E416P
Wheelbase: 1362mm
Expanded size: 1844*1844*628mm
Folding size: 648*671*628mm
Water tank volume: 16L/16kg
The weight of frame: 6.5KG(don`t included spray system)



Motor: Hobbywing X9 / T10

Propeller:34inch folding propeller
ESC:80A FOC
The diameter of wing arm: 40mm
Arm:40*380mm
Supply voltage: 12S
Center board battery connector: AS150U
Maximum take-off weight:37kg
Landing gear height: 460mm(If you need 550mm landing gear. You can leave a message or contact us. Thank you)
Cover color: Red/White
Note: the default frame is red, and the arm is 40mm with X9
If you need a white frame. You can contact us. Or leave a message to remark the color. Thank you

Hobbywing 5L Brushless Water Pump:

Operating voltage: 12-14S (DC44-60.9V)

Details

EFT E416P 4 Axis 16L Farm Drone Agriculture Spraying Drone complete version comes E416P 4 axis drone frame kit, brushless spraying system, ARRIS A40 10010 Motor 100A ESC 32" Propeller Propulsion System, JIyi K++ Flight controller with obstcle radar terrain radar, SIYI AK28 Transmitter Datalink Videolin 3in1 Radio with LCD screen remote controller. With the 12S battery, you can complete the drone and make it work. This combo is designed for 12-4S Lipo batteries. We suggest the 12S-14S 20000mah to 22000mah intelligent batteries.

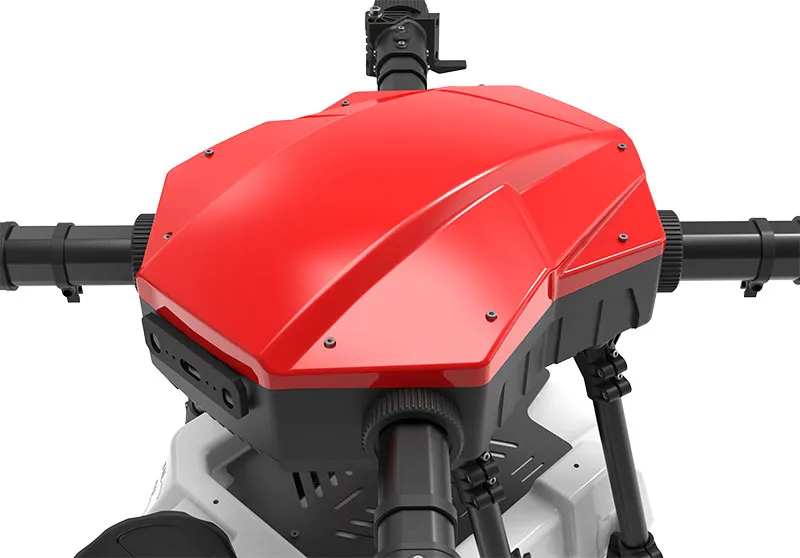

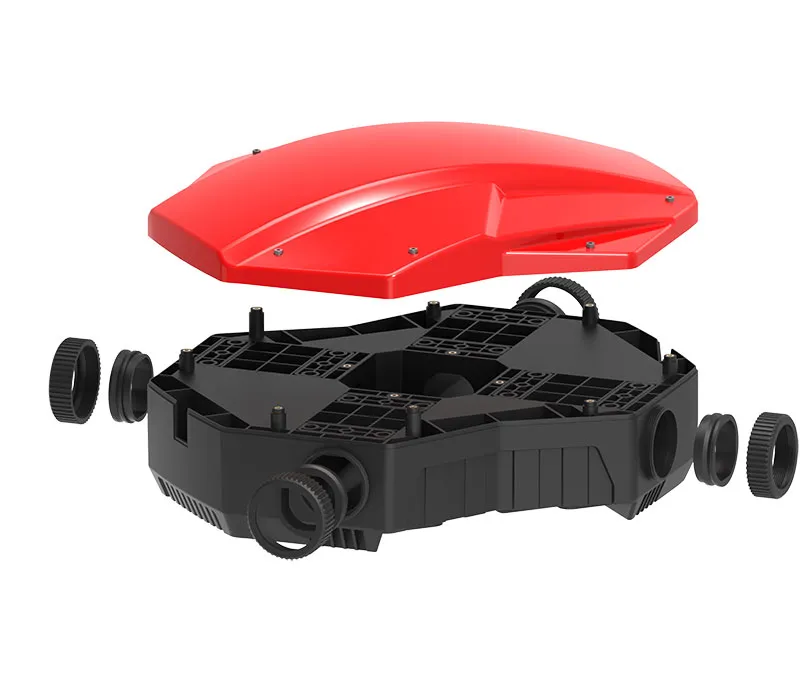

The E416P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.

The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.

There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.

The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference
