EFT E610P 10L Agriculture Drone Parameter

Package included(The blue and white of the drone shell are random, if you need to specify the color, please contact us or leave a message, thank you)

Package 1:
EFT E610P 6 Axis Drone Frame Kit x 1
10L Water tank x1

Package 2:
EFT E610P 6 Axis Drone Frame Kit x 1
10L Water tank x1
Hobbywing X6 Power System x 6set (3CW+3CCW)

Package 3:
EFT E610P 6 Axis Drone Frame Kit x 1
10L Water tank x1
Hobbywing X6 Power System x 6set (3CW+3CCW)
Brushless Spraying System x 1
(type 1 nozze+Hobbywing 5L pump)

Package 4:
EFT E610P 6 Axis Drone Frame Kit x 1
10L Water tank x1
Hobbywing X6 Power System x 6set (3CW+3CCW)
Brushless Spraying System x 1
(Y-type nozze+Hobbywing 5L pump)

Package 5:
EFT E610P 6 Axis Drone Frame Kit x 1
10L Water tank x1
Hobbywing X6 Power System x 6set (3CW+3CCW)
Brushless Spraying System x 1
(type 3 nozze+Hobbywing 5L pump)

Package 6:
EFT E610P 6 Axis Drone Frame Kit x 1
10L Water tank x1
Hobbywing X6 Power System x 6set (3CW+3CCW)
Hobbywing 5L Brushless Spraying System x 1
JIYI K++ V2 Flight Controller x 1 (or JIYI K3A pro x1)
Skydroid H12 Remote Controller x 1
Camera x1
Flow meter x1
TATTU 12S 16000mah Smart Battery x 1
SKYRC PC1500 Charger x 1
Accessory bag x1

Package 7:
EFT E610P 6 Axis Drone Frame Kit x 1
10L Water tank x1
Hobbywing X6 Power System x 6set (3CW+3CCW)
Hobbywing 5L Brushless Spraying System x 1
JIYI K++ V2 Flight Controller x 1 (or JIYI K3A pro x1)
Skydroid H12 Remote Controller x 1
Camera x1
Flow meter x1
TATTU 6S 16000mah Smart Battery x 2
SKYRC PC1080 Charger x 1
Accessory bag x1

EFT E610P agriculture drone Installation Guide

EFT E610P Agriculture Drone Review

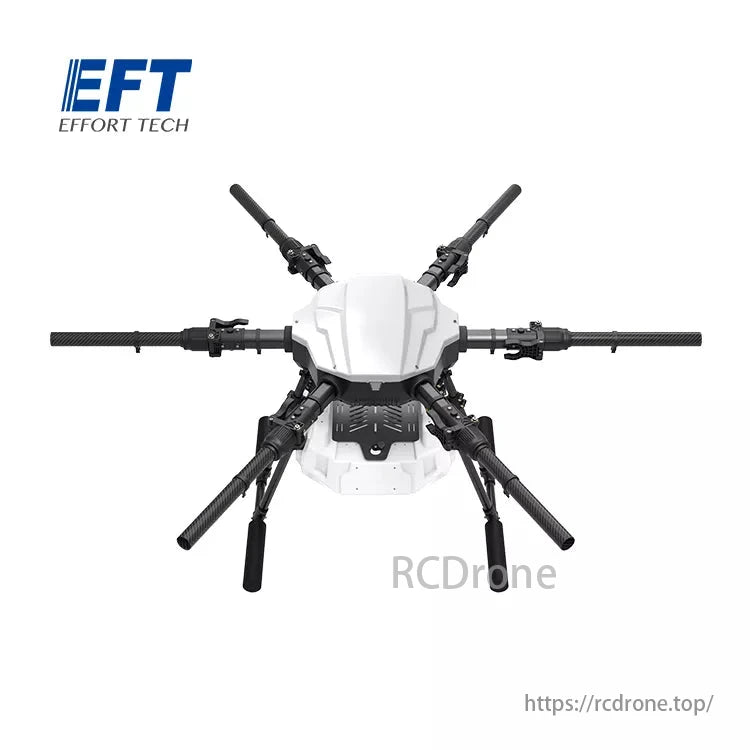

EFT E610P 10L agriculture drone Details

EFT E610P 6 Axis 10L Farm Drone Agriculture Spraying Drone comeplete version comes with the E610P 6 Axis 10L drone frame kit, spraying system, hobbywing X6 power system, Siyi AK28 Radio and Jiyi k++ flight controller with obstacle radar, terrain radar. You just need to prepare the 12S battery for it.

E610P 6 axis 10L agriculture drone is the upgrade version of the E610S. Compared with the E610S, the biggest differences of it is integration. The structure of the E610P's fuselage has been improved. The body is different from the original carbon structure, and the improved product is processed by plastic injection molding

The E610P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.

The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.

There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.

The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference

The new product continues the classic foldable body design, using threaded locking and folding parts, which are stable and not loose, and the volume is small after folding, which is convenient for transportation and transition.

Specifications:
Digonal Wheelbase: 1362mm
Folding Dimensions: 648x671x628mm
Unfolded Dimensions: 1844x1844x628mm
Arm Diameter: 40mm
Payload: 16L
Frame Weight: 6.5kg
Frame with power equipement: about 15kg
Take off weight: 37kg
Power source: Battery
Power Connector: AS150U
Operation temperature:10~50℃

Hobbywing X6 propulsion system is great for the E610S, E610P, EP100, G06 and the similar size drones with 30mm arms.

The Hobbywing X6 propulsion system, which integrates motor, ESC, propeller and motor mount (with the optional 30-to-28 tube adapter, it’s compatible with 28mm&30mm diameter carbon fiber arm tubes) together, is easy to mount and use.
Note: with the foldable 2388 propeller, the propulsion system is capable of carrying the load of 3~5KG for each axis.

the X6 propulsion system integrates motor; ESC, propeller and motor mount together . with the foldable 2388 propeller the propulsion System is capable of carrying a load of 3-SKG .

The FOC-based Permanent Magnet Synchronous Motor (PMSM) algorithm enhances the collaborative performance of the Electronic Speed Controller (ESC), motor, and propeller, resulting in a more balanced and efficient propulsion system with improved stability and reliability.

The X8 propulsion system boasts a modular design, allowing for easy replacement of individual components in case of damage. Specifically, you can swap out single or dual blades, or replace the propeller adapter as needed. Alternatively, if more extensive repairs are required, the entire power combo (ESC and motor) can be swapped out.

Package Included:

EFT E610P products feature a robust one-body design, with a strong cross-folding structure that ensures a fully waterproof body. Additionally, the drone boasts a durable E3-8 integrated power supply, which allows for an enlarged tank inlet and includes a detachable camera mount. This setup also features convenient wiring.

Delivery status: EFT E610P. Package size: 71cm x 440mm x 210mm. Weight: approximately 7.55kg. This package includes subject parts: D281 060 (multiple).

Product information: EFT E610P Agriculture Drone features a 10L tank from EFT Electronic Technology Co., Ltd. Package size: approximately 485mm x 345mm x 245mm. Weight: approximately 1.92kg.

Packaging details: The product features foam protection, ensuring safe transportation. Shipping style: Global Air and Land (UPS Freight) with express options available, including FedEx.

Affordable E41OP 10L agricultural spray drone from EFT Hexcopter, featuring high-quality quadcopter technology. Our products and services have earned excellent reviews, with rapid shipping available to Chile and other global locations. [Customer testimonial:] 'Very satisfied with supplier service.' - John Cloiten (and others).
