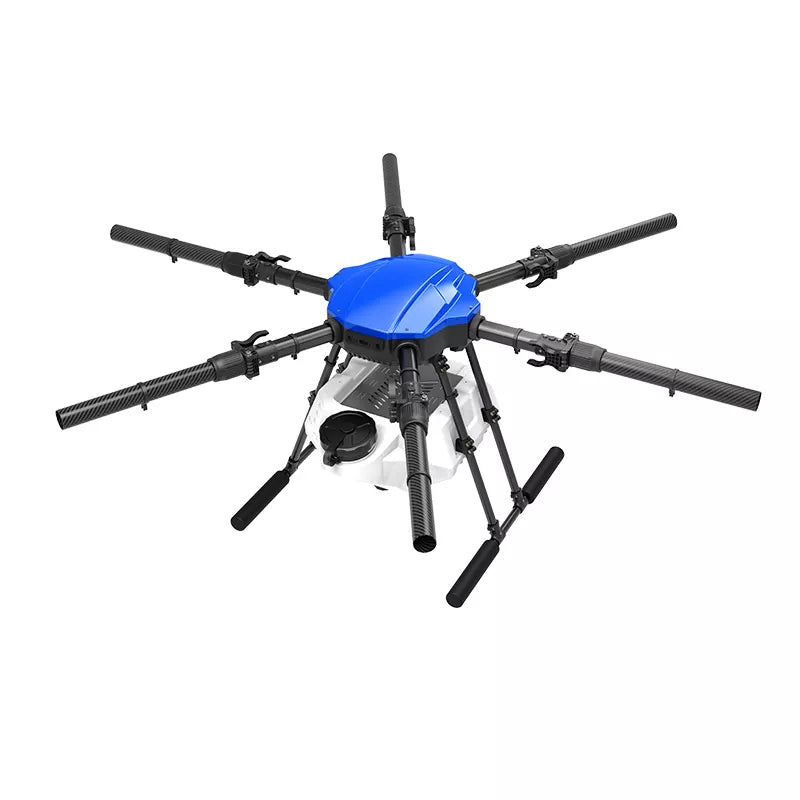

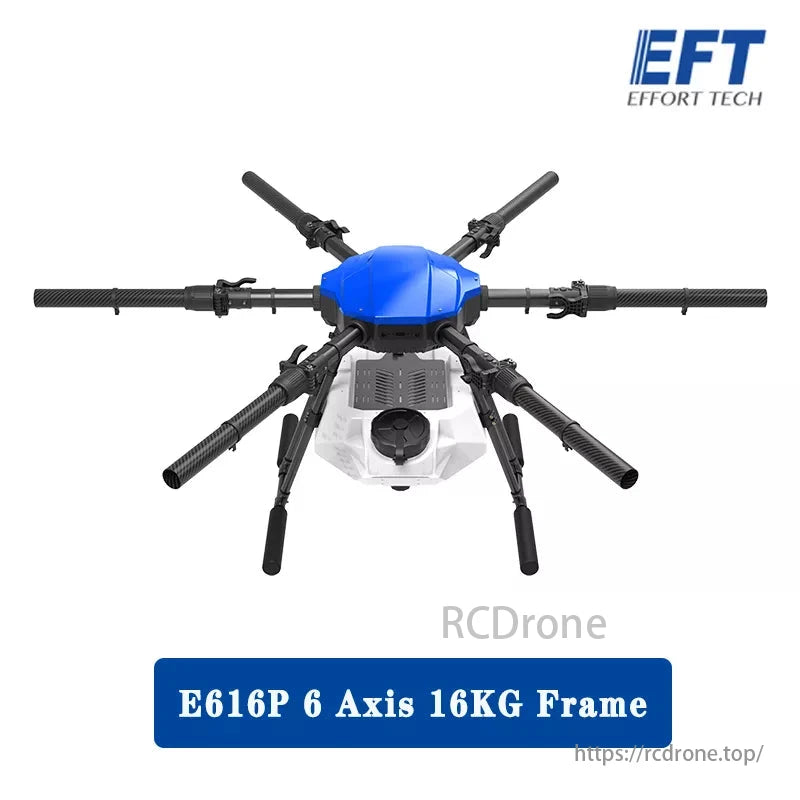

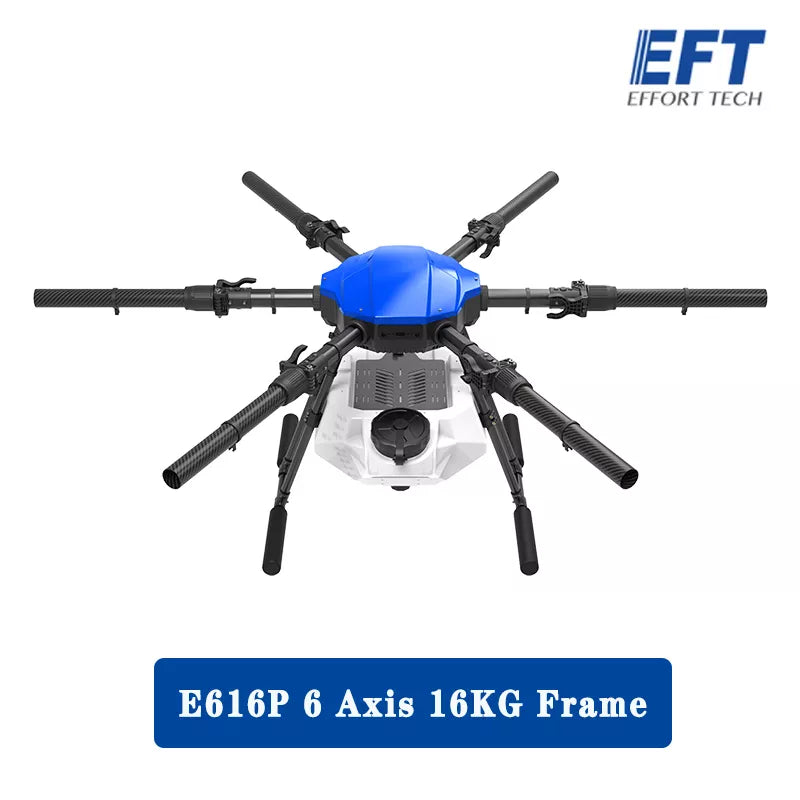

EFT E616P 16L Agriculture Drone Specification

E616P Frame +16L water tank*1set



Kit 2:

E616P Frame +16L water tank*1set

Hobbywing 40mm X8 power system *6set



Kit 3:

E616P Frame +16L water tank*1set

Hobbywing 40mm X8 power system *6set

Brushless spray system *1 set  (type 1)

(Bobbywing 5L pump)



Kit 4:

E616P Frame +16L water tank*1set

Hobbywing 40mm X8 power system *6set

Brushless spray system *1 set  ( (type 2 "Y”)

(Bobbywing 5L pump)



Kit 5:

E616P Frame +16L water tank*1set

Hobbywing 40mm X8 power system *6set

Brushless spray system *1 set  (type 3)

(Bobbywing 5L pump)



Kit 6:

E616P Frame +16L water tank*1set

Hobbywing X8 power system *6set

Bobbywing 5L Brushless spray system *1 set
JIYI K++ V2 Flight Controller x 1  (or JIYI K3A pro x1)
Skydroid H12 Remote Controller x 1
Camera x1
TATTU 12S 22000mah Battery x 1
SKYRC PC1500 Charger for 12S Battery x 1

Accessory Bag x1

Flow meter x1





Kit 7:

E616P Frame +16L water tank*1set

Hobbywing X8 power system *6set

Bobbywing 8L Brushless spray system *1 set
JIYI K++ V2 Flight Controller with 2pcs radar x 1
Skydroid H12 Remote Controller x 1
Camera x1

XT60 Male plug x1



if need extra battery or accessory, pls contact us, thansk!



EFT E616P 16L Agriculture Drone Introducing

EFT E616P 16L Agriculture Drone Installation Guide

EFT E616P 16L Agriculture Drone Details

The new E-series upgrade features a cutting-edge one-piece molding process, which streamlines the drone's fuselage from numerous original components into a single, unified structure. Constructed with high-strength, impact-resistant materials, this robust body provides exceptional durability and resistance to damage.

The EFT E616P 16L agriculture drone features a removable camera mount located at the front of the frame. This versatile design allows for easy installation or removal of the camera as needed.

The EFT E616P 16L agriculture drone features an integrated power supply wiring system that offers centralized power management, separate signal and power lines, and a reliable classic 10-16L tank design - one of the most widely used and stable load solutions in the market.

EFT E616P 16L Agriculture Drone Review

EFT E616P 16L agriculture spraying drone complete version comes with E616P drone frame kit, brushless spraying system, Hobbywing X8 propulsion system, JIyi K++ Flight controller with obstacle radar, terrain radar, and radar mounting parts. You just need to prepare 12S 22000mah battery, then you can make it work.

E616P 6 axis 16L agriculture drone is the upgrade version of the E616S. Compared with the E616S, the biggest differences of it is integration. The structure of the E616P's fuselage has been improved. The body is different from the original carbon structure, and the improved product is processed by plastic injection molding. E616P crop sprayer with the A30 power system is compatible with all the flight controller, such as PIX, DJI, JiYi,  Topgun FC and other electronic components in the market.

The E616P Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new P series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.

The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.

There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.

The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference

The new product continues the classic foldable body design, using threaded locking and folding parts, which are stable and not loose, and the volume is small after folding, which is convenient for transportation and transition.

Specifications:
Digonal Wheelbase: 1362mm
Folding Dimensions: 648x671x628mm
Unfolded Dimensions: 1844x1844x628mm
Arm Diameter: 40mm
Payload: 16L
Frame Weight: 6.5kg
Frame with power equipement: about 15kg
Take off weight: 37kg
Power source: Battery
Power Connector: AS150U
Operation temperature:10~50℃
