Emax Tinyhawk S II Indoor Racing Drone with F4 16000KV Nano2 camera Professional Camera Drone

Emax Tinyhawk S II Indoor Racing Drone with F4 16000KV Nano2 camera Professional Camera Drone

Emax

Regular price $169.20 USD
Regular price Sale price $169.20 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

171 orders in last 90 days

Color
Ships From

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

Emax Tinyhawk S II  SPECIFICATIONS

Warranty: ==

Video Capture Resolution: 480P SD

Type: HELICOPTER

State of Assembly: Ready-to-Go

Remote Distance: about 50M

Remote Control: Yes

Recommend Age: 12+y

Power Source: Electric

Plugs Type: usb

Package Includes: USB Cable

Package Includes: Batteries

Package Includes: Camera

Package Includes: Original Box

Package Includes: Operating Instructions

Origin: Mainland China

Operator Skill Level: Beginner

Operator Skill Level: Intermediate

Motor: Brushless Motor

Model Number: Tinyhawk II

Material: Metal

Material: Carbon Fiber

Material: Plastic

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: about 20 mins

Features: App-Controlled

Dimensions: 78*78*40MM

Controller Mode: MODE2

Controller Battery: AAA ( not include )

Control Channels: 4 Channels

Charging Voltage: 12V

Charging Time: about 2 hours

Certification: CE

Camera Mount Type: Fixed Camera Mount

Brand Name: U-Angel-1988

Barcode: Yes

Aerial Photography: Yes

Tinyhawk II RTF Version comes already bound to your radio and on the right video channel matched with your goggle. Please work it with user manual on Page 7  Start FPV Flight to operate it.

We strongly recommend that you fly in an open place, away from crowds and buildings.


User Manual & QA


EMAX Tinyhawk II 75mm 1-2S Whoop FPV Racing Drone RTF FrSky D8 Runcam Nano2 Cam 25/100/200mw VTX 5A Blheli_S ESC

BNF version without goggles and radio control, Click here.

Specification:
Brand name: EMAX
Item model: Tinyhawk II

Frame

Wheelbase: 75mm
Dry Weight: 31.2g
All Up Weight: 43.5g with 1x 450mAh 1S battery
Frame Material: Polypropylene

Motors

Stator Size: 0802
Kv: 16000kv
Propeller Mount: Push-On Avan TH-style
Propeller: Avan Turtlemode 4-Blade

All-In-One (AIO) Flight Controller

Flight Controller: F4 (MATEKF411RX Firmware)
ESC: 4-in-1 5A BlHeli_S
Receiver: EMAX SPI Receiver (Compatible with FrSky D8 mode)
Battery Connector: JST-PH2.0

Camera and VTX

VTX Power: 25/100/200mw Switchable
Channels: 37CH incl. Raceband
Camera: RunCam Nano 2 1/3" 700TVL CMOS
Smart Audio Connected

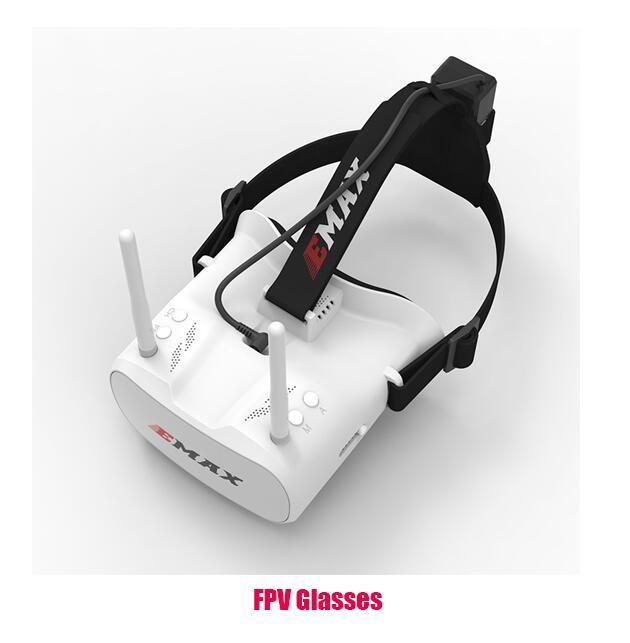

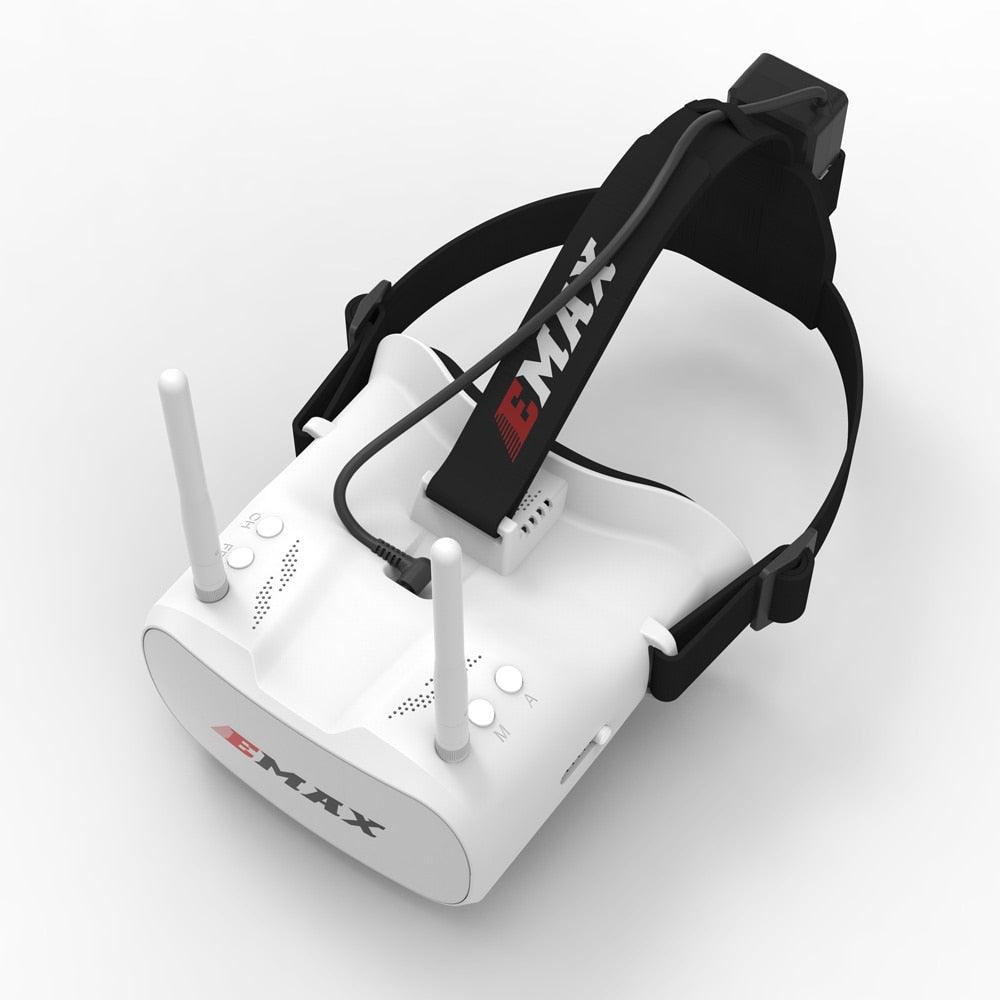

Goggles

EMAX Transporter Goggles Specifications:
Maximum appearance size 140×153×90(mm)
Weight (without battery) 398g
Resolution 480×272
Battery 1 cell 18650 lipo battery

Transmitter

EMAX E6 Transmitter Specifications:
Maximum appearance size 181×213×80(mm)
Weight (without battery) 211g
Number of channels 6 Channels
Transmission frequency 2.4GHz ISM Band(2400MHz~2483.5MHz)
Output Power 22dbm
Modulation GFSK
Battery 1 cell 18650 lipo battery

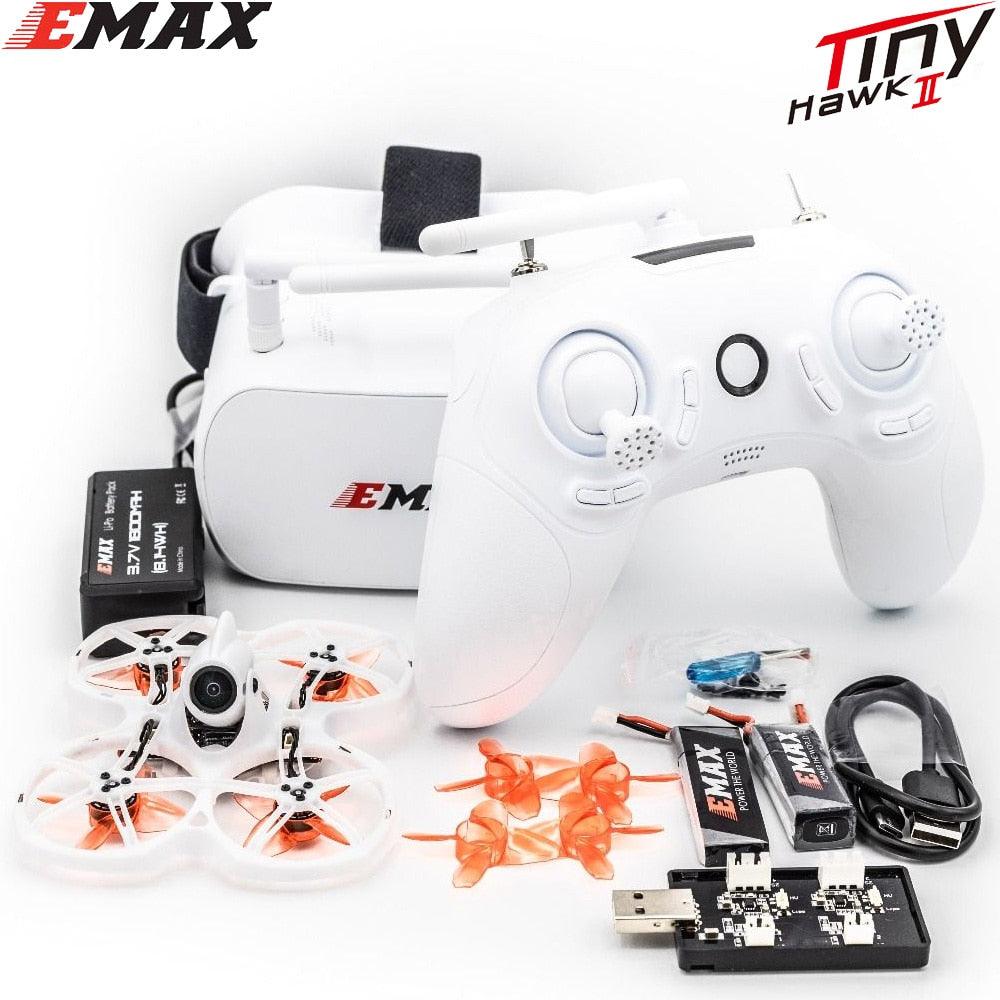

Package Included:

1x Tinyhawk II FPV Racing Drone
1x EMAX Transporter 5.8G FPV Goggles
1x EMAX Transporter 18650 Goggle Battery Pack w/ USB Charging
1x EMAX E6 Transmitter
1x EMAX 450mAh 1S HV Battery
1x EMAX 300mAh 2S HV Battery
2x CCW + 2x CW Spare Props
1x 1S-2S USB LiPo Charger
1x Screwdriver + Hardware Kit
1x Micro USB Charging Cable
1x Faux Carbon Fiber Carrying Case








Related Article:
(If there is any information error in the article, the product description shall be the standard.)
Title: EMAX Tinyhawk S II Indoor Racing Drone: Unleash Your Indoor FPV Racing Skills

Introduction:
The EMAX Tinyhawk S II Indoor Racing Drone is a high-performance quadcopter designed specifically for indoor FPV racing. With its compact size, powerful motor, and advanced features, this drone delivers an exhilarating and immersive racing experience. In this comprehensive review, we will explore the composition, functions, parameters, advantages, related competing products, how to choose, DIY assembly tutorials, operation tutorials, and frequently asked questions (FAQ) related to the EMAX Tinyhawk S II.

Composition and Function:
The EMAX Tinyhawk S II Indoor Racing Drone consists of the following components:

1. Frame: The drone features a lightweight and durable frame designed to withstand crashes and impacts during intense racing sessions. The compact size allows for agile maneuverability in tight indoor spaces.

2. Motor and Propellers: Equipped with high-speed 16000KV brushless motors and efficient propellers, the Tinyhawk S II delivers exceptional thrust and speed, allowing for precise control and dynamic flight maneuvers.

3. Integrated Camera: The Nano2 camera provides a high-quality video feed, allowing for a clear and immersive FPV racing experience. It captures sharp and vibrant footage, enhancing the overall racing experience.

4. Flight Controller: The F4 flight controller ensures stable and responsive flight performance. It incorporates advanced features such as Betaflight OSD and support for multiple flight modes, enabling pilots to customize their flying experience.

5. Battery: The drone utilizes a lightweight and compact LiPo battery to provide power for extended racing sessions. The battery is easily replaceable for continuous racing enjoyment.

Advantages:
1. Indoor Racing Performance: The Tinyhawk S II is specifically designed for indoor FPV racing, providing exceptional agility, speed, and control in tight spaces.

2. Powerful Brushless Motors: The high-speed 16000KV brushless motors deliver impressive thrust and acceleration, allowing for rapid maneuvers and thrilling racing experiences.

3. Integrated Nano2 Camera: The Nano2 camera captures high-quality video footage, ensuring a clear and immersive FPV experience. It allows racers to navigate through challenging courses with precision.

4. Beginner-Friendly Features: Despite its high-performance capabilities, the Tinyhawk S II incorporates features suitable for beginners, such as stabilized flight modes and easy setup. This makes it an ideal choice for both experienced racers and newcomers to the FPV racing scene.

Related Competing Products:
- BetaFPV Meteor65
- Eachine TRASHCAN
- Mobula6

How to Choose:
When selecting the EMAX Tinyhawk S II Indoor Racing Drone, consider the following factors:

1. Skill Level: The Tinyhawk S II is suitable for both beginners and experienced racers. Beginners can start with stabilized flight modes, while experienced pilots can explore more advanced settings.

2. Racing Environment: The Tinyhawk S II is designed for indoor racing. Ensure you have access to suitable indoor spaces such as warehouses, large indoor areas, or dedicated FPV racing tracks.

DIY Tutorials:
The Tinyhawk S II comes as a ready-to-fly (RTF) package, requiring minimal assembly. Follow the manufacturer's instructions for attaching the propellers, installing the battery, and binding the drone to the remote controller.

Operation Tutorials:
1. Pre-flight Checks: Before each flight, ensure the battery is fully charged, propellers are securely attached, and the camera lens is clean for optimal visibility.

2. Power On: Insert a fully charged battery into the drone, ensuring proper polarity. Power on the drone and the remote controller.

3. Flight Modes: The Tinyhawk S II offers multiple flight modes. Start with a stabilized mode for beginners and gradually progress to acro mode for more advanced racers. Experiment with different

settings to find the ideal balance between stability and agility.

4. FPV Experience: Put on FPV goggles or connect a compatible FPV monitor to the drone's video transmission system to enjoy a real-time immersive racing experience.

FAQ:
1. Can the Tinyhawk S II be used for outdoor racing?
While the Tinyhawk S II is primarily designed for indoor racing, it can also be flown outdoors in calm weather conditions. However, it is recommended to avoid high winds or adverse weather that may affect its stability and control.

2. Can I upgrade the components of the Tinyhawk S II?
Yes, the Tinyhawk S II is compatible with various aftermarket components, allowing you to customize and upgrade parts such as motors, propellers, and the camera.

Conclusion:
The EMAX Tinyhawk S II Indoor Racing Drone is an impressive and capable quadcopter designed for thrilling indoor FPV racing. With its powerful motor, integrated camera, and beginner-friendly features, it offers an exhilarating racing experience for both seasoned racers and newcomers to the FPV scene. Choose the Tinyhawk S II to unleash your indoor racing skills, navigate challenging courses, and experience the adrenaline rush of FPV racing at its best.
