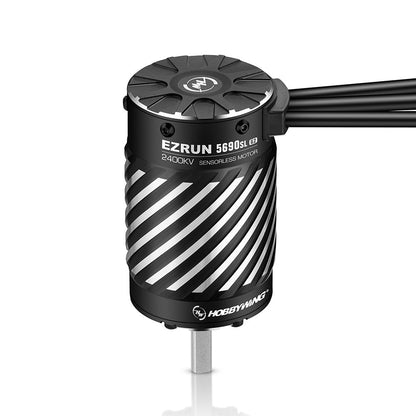

• EZRUN MAX 5690SL G2 Brushless Sensorless RC Motor, Hobbywing EZRUN 5690SL G2 2400KV sensorless brushless RC motor with black finned can and wires
  • EZRUN MAX 5690SL G2 Brushless Sensorless RC Motor, Hobbywing EZRUN 5690SL G2 sensorless brushless RC motor with finned black can and three lead wires

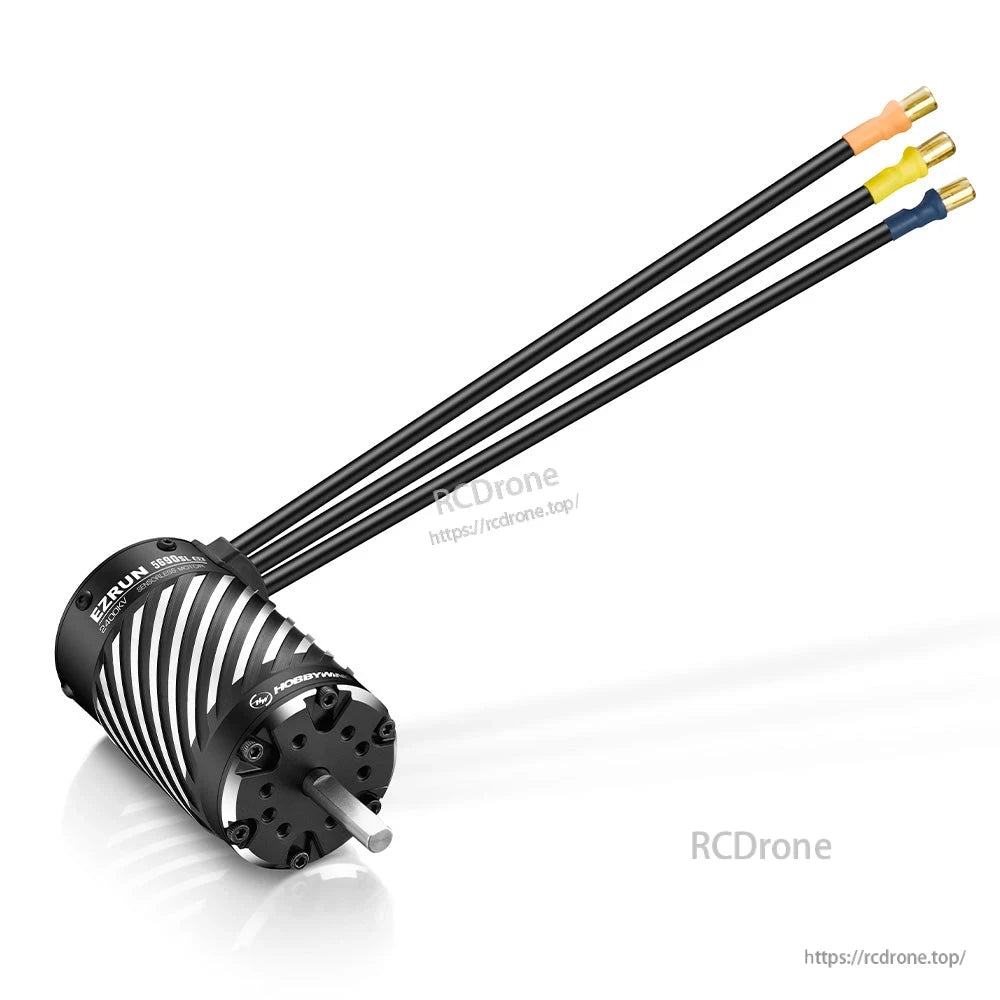

  • Hobbywing EZRUN MAX 5690SL G2 brushless sensorless RC motor with three bullet-connector leads
1 3

EZRUN MAX 5690SL G2 Brushless Sensorless Motor 2400KV for 1/7 & 1/8 Extreme Speed RC Vehicles

EZRUN MAX 5690SL G2 Brushless Sensorless Motor 2400KV for 1/7 & 1/8 Extreme Speed RC Vehicles

Hobbywing

$239.00 USD
$239.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The EZRUN MAX 5690SL G2 Motor (Speed) is a brushless sensorless motor designed for extreme speed 1/7 and 1/8 scale RC vehicles, delivering high power output and supporting high RPM for high-speed applications.

Key Features

  • Brushless sensorless technology
  • Optimized pairing with EzRun MAX5 HV Plus G2 ESC for higher speed and greater power output (ESC sold separately)
  • Spiral groove heat sink design to improve heat dissipation and reduce temperature rise
  • Premium-material build, including CNC-machined aluminum housing, top-tier bearings, ultra-thin silicon steel laminations, high-temperature-resistant oxygen-free copper wires, carbon fiber-wrapped reinforced rotor, and high-toughness alloy output shaft
  • Rotor supports a maximum speed of up to 78,000 RPM

Specifications

Parameter EZRUN 5690SL G2 EZRUN 56118SL G2
KV Value 2400KV 1600KV
LiPo Cells 6-8S 6-12S
No-load current 16A 16A
Outer Diameter/Length 56mm(2.2in)/90.5mm(3.56in) 56mm(2.2in)/118mm(4.65in)
Shaft diameter/Exposed shaft length 8mm(0.315in)/30mm(1.18in) 8mm(0.315in)/30mm(1.18in)
Bearing size(mm) Front:D22*D8*T7 Rear:D19*D8*T6 Front:D22*D8*T7 Rear:D19*D8*T6
Pole 4 4
Weight 885g 1270g
Application 1/7 and 1/8 vehicles for Extreme Speed 1/7 and 1/8 vehicles for Extreme Speed
Maximum speed Up to 78,000 RPM Up to 78,000 RPM
Dia. of cooling fins Ø56 Ø56
Body length tolerance (drawing) 90.50±0.30 118±0.30
Length (drawing) 30±0.50 30±0.50
Diameter (drawing) Ø53.50 Ø53.50
Diameter (drawing) Ø30 Ø30
Dimension (drawing) 26 26
Marking (drawing) 7 Cut 7
Mounting (drawing) 8-M4 8-M4
Marking (drawing) C.C.W 30° C.C.W 30°
Marking (drawing) 3-Ø8.0 GBC 3-Ø8.0 GBC

Applications

  • High-speed 1/7th and 1/8th scale RC vehicles
  • 5690 Motor (2400KV): optimized for dual-motor configurations

Manuals

For product selection and support, contact support@rcdrone.top or visit https://rcdrone.top/.

Details

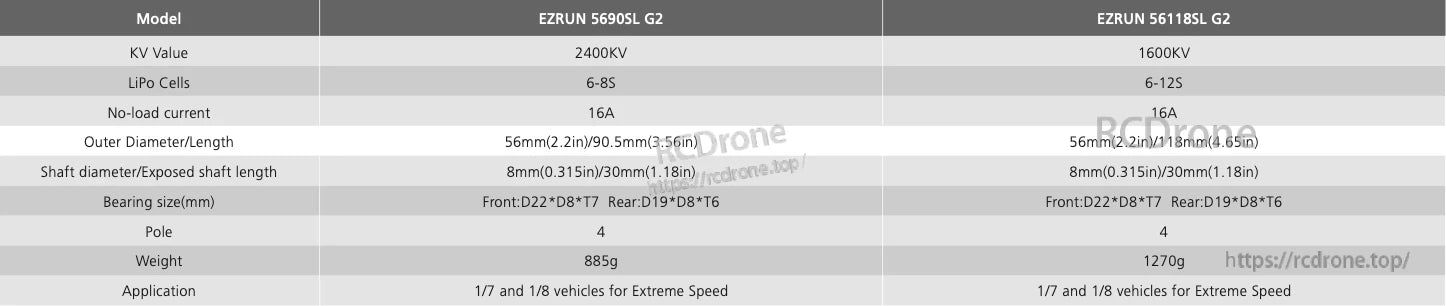

EZRUN MAX 5690SL G2 Brushless Sensorless RC Motor, EZRUN 5690SL G2 motor specifications table with 2400KV rating, 6–8S LiPo range, and 56mm diameter dimensions

EZRUN 5690SL G2 is listed at 2400KV with 6–8S LiPo support, a 56mm diameter by 90.5mm length can, and an 8mm shaft.

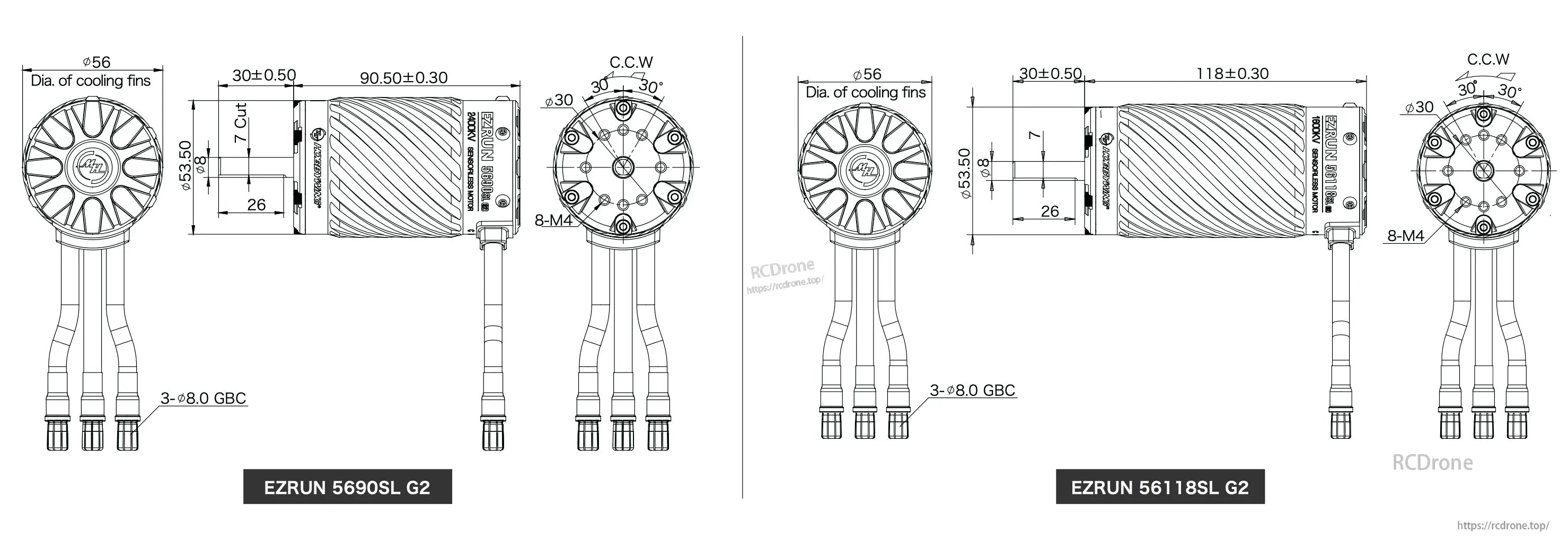

EZRUN MAX 5690SL G2 Brushless Sensorless RC Motor, Dimension drawing of EZRUN MAX 5690SL G2 brushless RC motor with Ø56 cooling fins, Ø8 shaft, 90.5mm body length

EZRUN MAX 5690SL G2 motor dimensions include a Ø56 fin diameter, Ø8 shaft, 8x M4 mounting pattern, and 3x Ø8.0 bullet connectors for wiring.

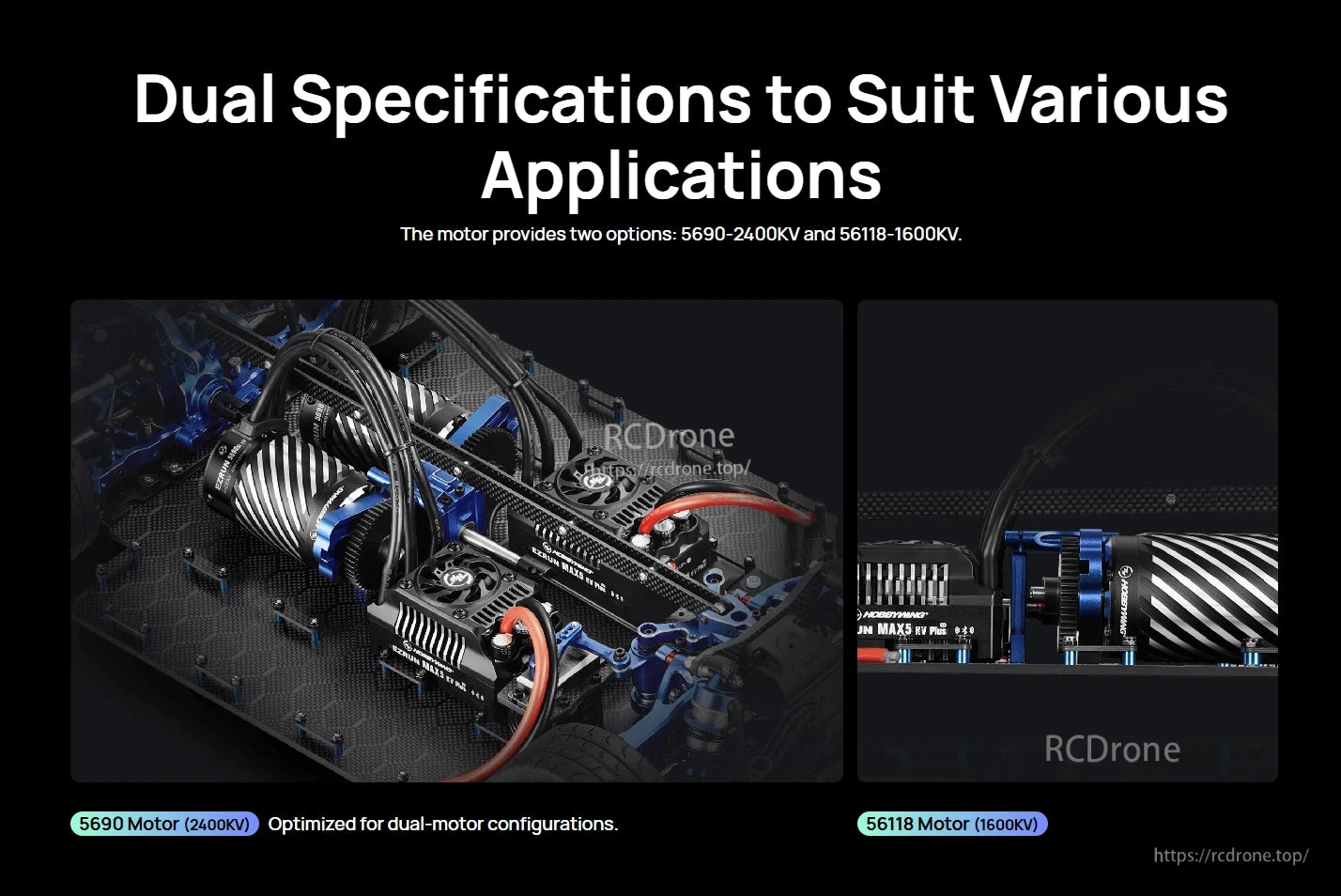

EZRUN MAX 5690SL G2 Brushless Sensorless RC Motor, Hobbywing EZRUN MAX brushless RC motors in a chassis, noting 5690 2400KV and 56118 1600KV options

The EZRUN MAX motor lineup offers 5690-2400KV and 56118-1600KV options, including a 5690 setup optimized for dual-motor configurations.

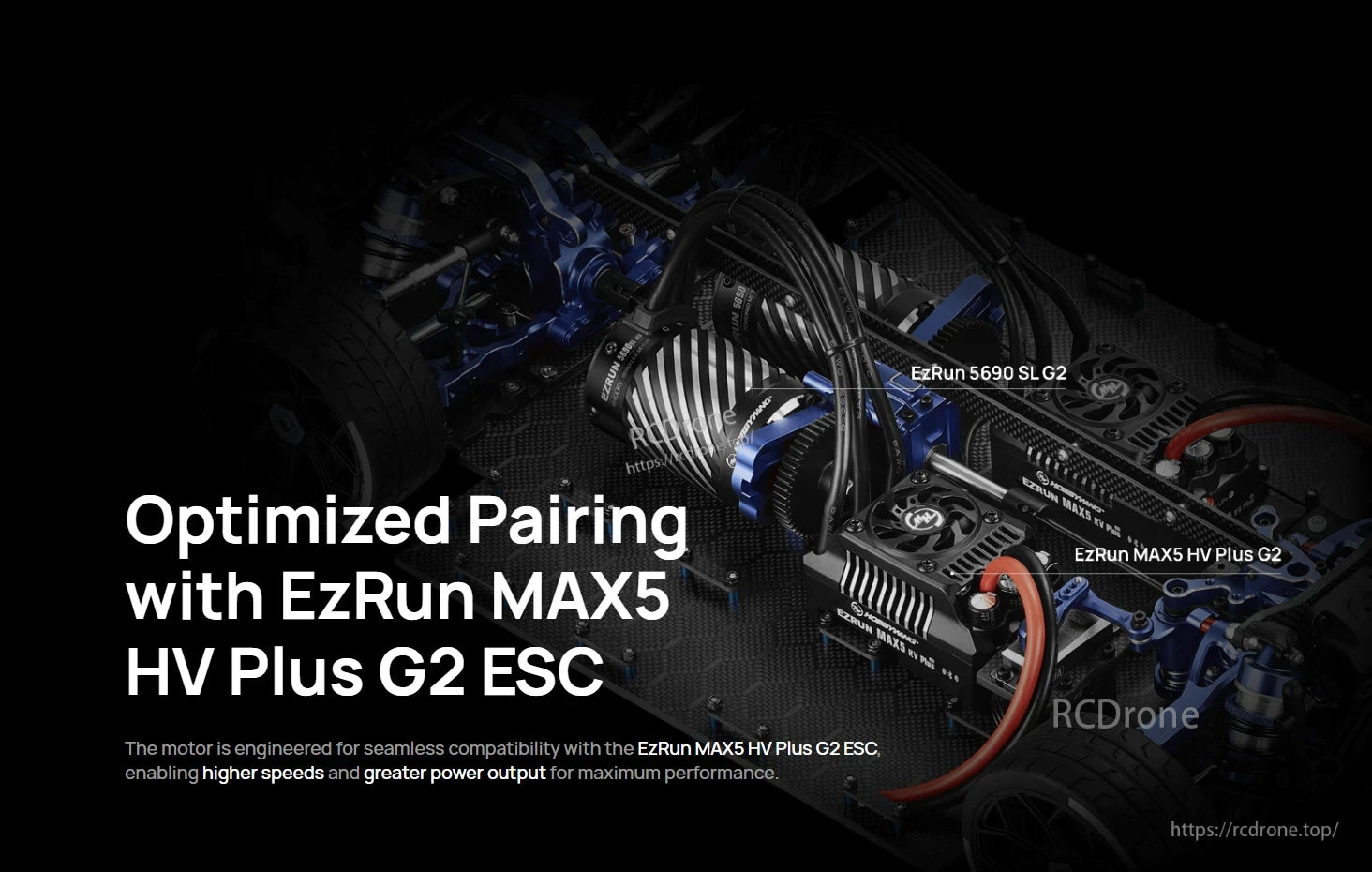

EZRUN MAX 5690SL G2 Brushless Sensorless RC Motor, EZRUN 5690 SL G2 brushless RC motor installed on a chassis with EzRun MAX5 HV Plus G2 ESC and wiring

The EZRUN 5690 SL G2 motor is commonly paired with the EzRun MAX5 HV Plus G2 ESC for a clean, straightforward RC power setup.

EZRUN MAX 5690SL G2 Brushless Sensorless RC Motor, Hobbywing EZRUN 5690SL sensorless brushless RC motor with spiral groove heat sink can and black end cap

The EZRUN MAX 5690SL G2 brushless sensorless motor uses a spiral-groove can design and pre-soldered leads for a clean, durable install.

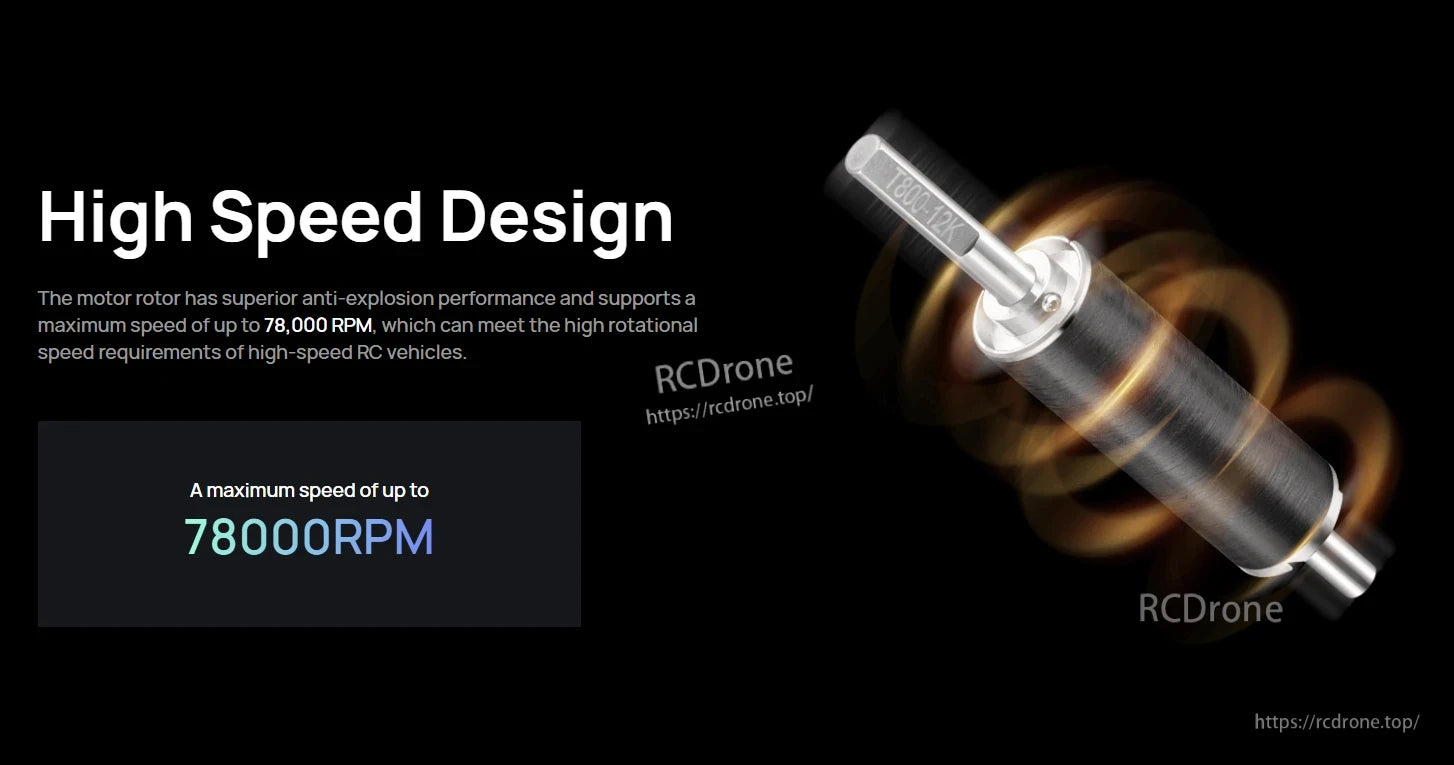

Rotor for EZRUN MAX 5690SL G2 brushless sensorless RC motor with “max speed up to 78,000 RPM” callout

The MAX 5690SL G2 motor design supports a maximum speed of up to 78,000 RPM for high-speed RC setups.

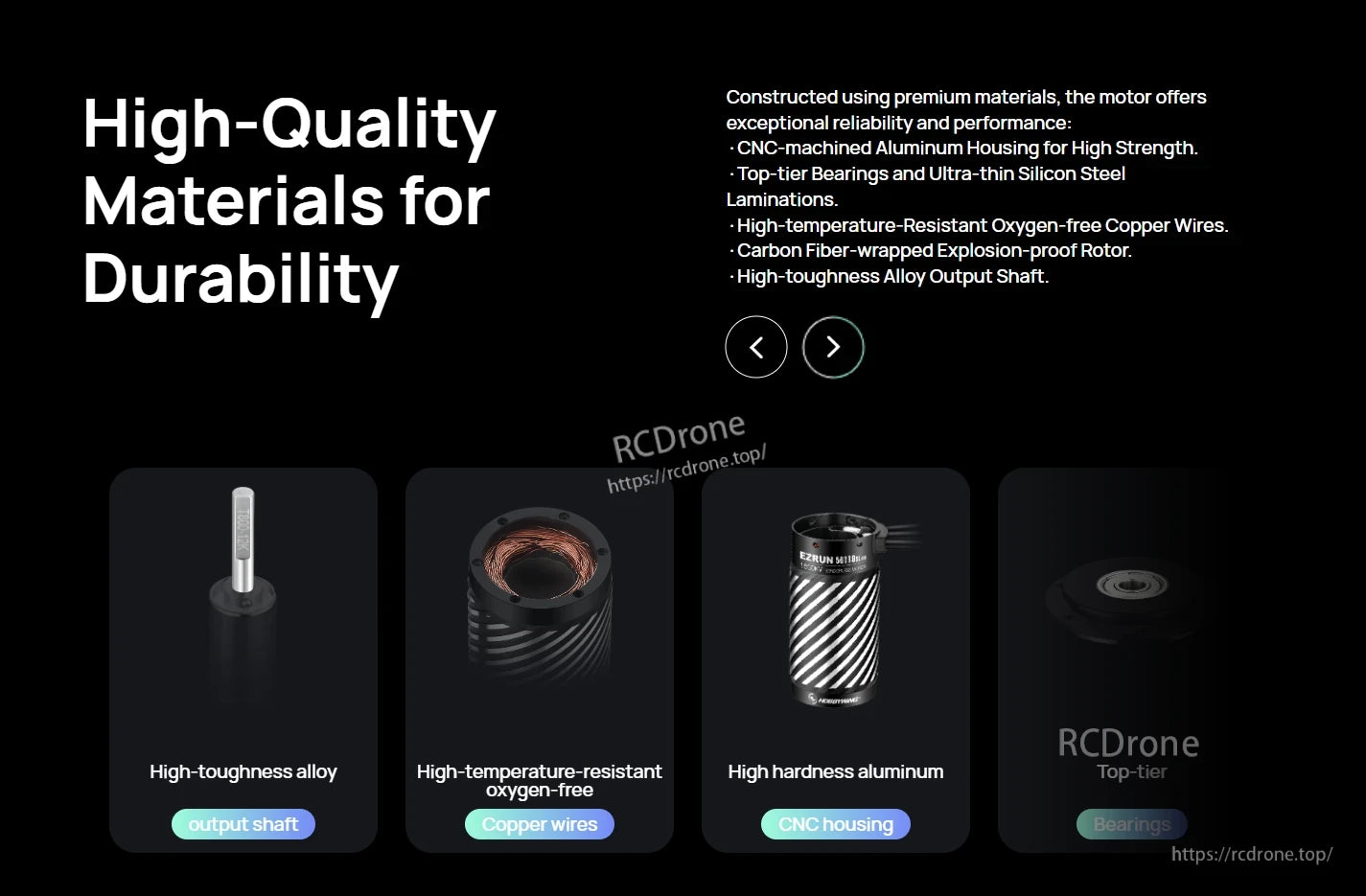

EZRUN MAX 5690SL G2 Brushless Sensorless RC Motor, EZRUN MAX 5690SL G2 brushless RC motor materials overview with CNC aluminum housing, copper windings, and shaft

EZRUN MAX 5690SL G2 uses a CNC-machined aluminum housing, copper windings, and an alloy output shaft for durability.

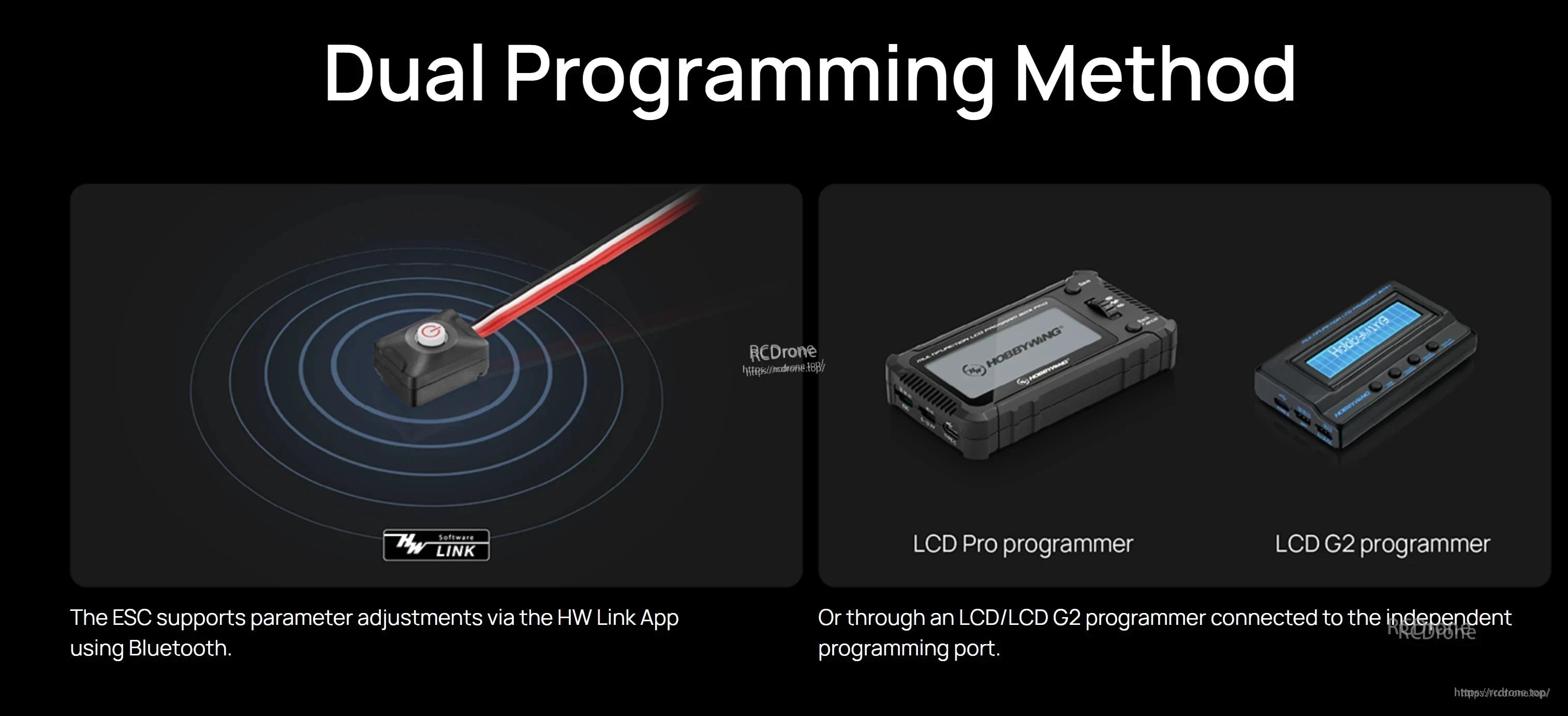

EZRUN MAX 5690SL G2 Brushless Sensorless RC Motor, Dual programming options for Hobbywing ESC: Bluetooth HW Link module and LCD Pro/LCD G2 programmer

Compatible Hobbywing ESC settings can be adjusted via the HW Link Bluetooth module or with an LCD Pro/LCD G2 programmer through the dedicated programming port.
