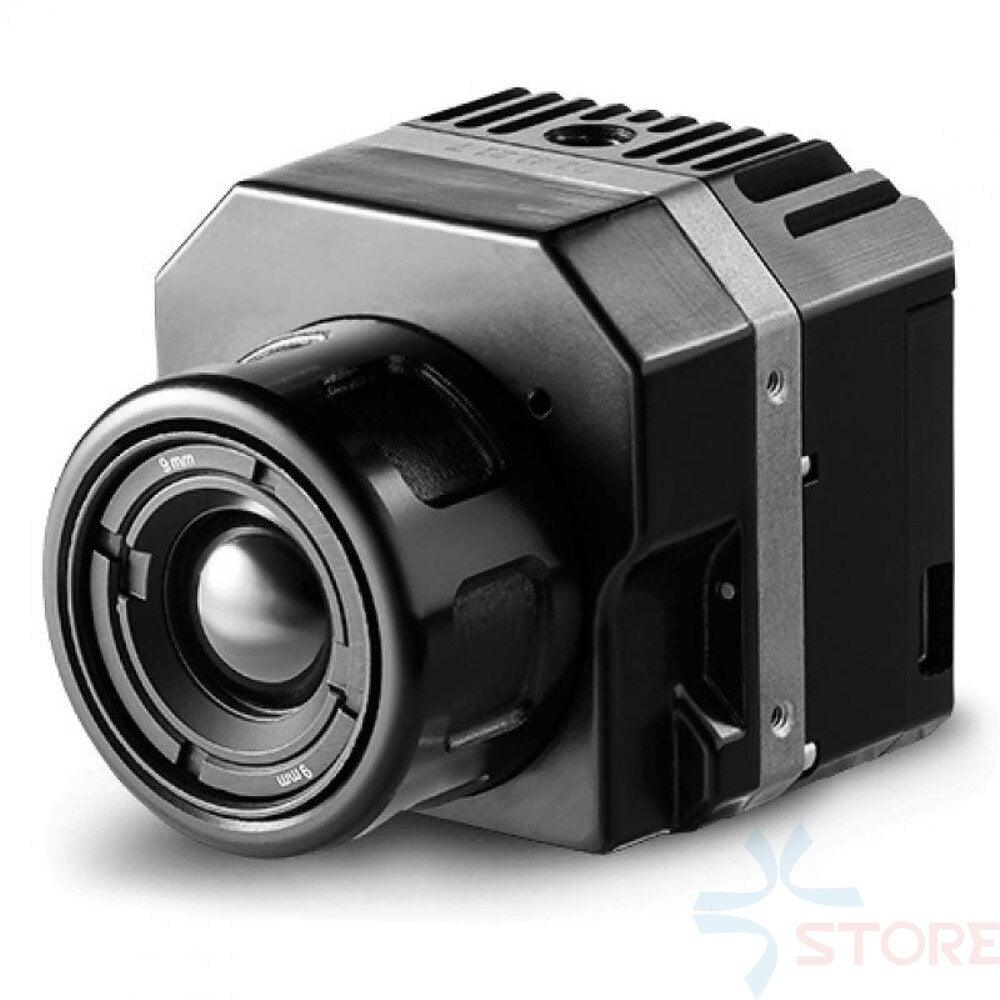

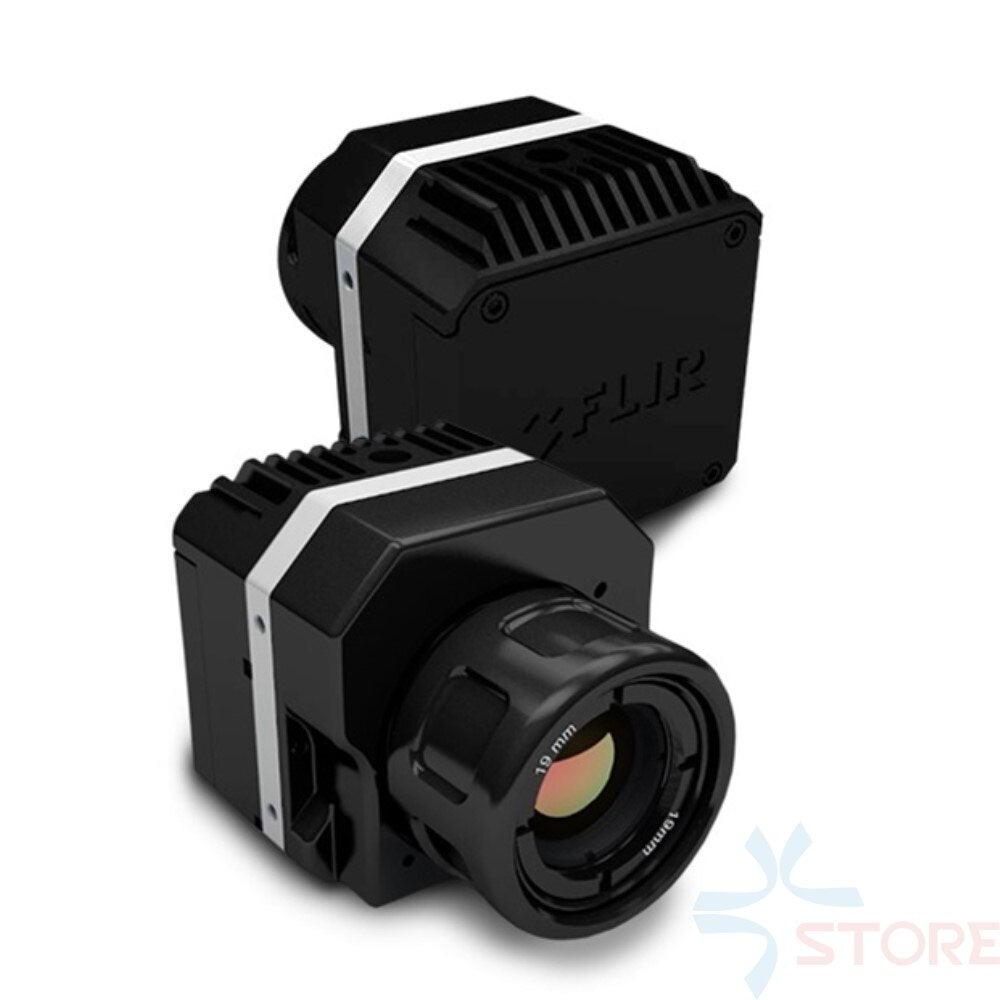

FLIR VUE PRO 640 436-0008-00 vue pro640 9Hz 640*512 Resolution Thermal Imaging Camera Thermal Imager for Drone UAV SUAS

FLIR VUE PRO 640 436-0008-00 vue pro640 9Hz 640*512 Resolution Thermal Imaging Camera Thermal Imager for Drone UAV SUAS

RCDrone

Regular price $6,413.92 USD
Regular price $8,979.49 USD Sale price $6,413.92 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

2 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

FLIR VUE PRO 640 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Shock Absorber

Tool Supplies: Assembled class

Technical parameters: Value 2

Size: 17*17*17

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Canopies

Origin: Mainland China

Model Number: Vue640

Material: nylon

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Brand Name: uuustore







FLIR VUE PRO 640 436-0008-00 vue pro640 9Hz 640*512 Resolution Thermal Imaging Camera Thermal Imager for Drone UAV SUAS

  • Spectral Band 7.5 - 13.5 μm; Full Frame Rates 30 Hz (NTSC); 25 Hz (PAL); Resolution 640x512
  • Size 57.4 x 44.4 mm (including lens); Weight 92.1 - 113.4 g; Precision Mounting Holes Two M2x0.4 on each of two sides & bottom; One 1/4-20 threaded hole on top
  • Input Power (max 2.5 amp during shutter) 4.0 - 6.0 VDC; Power Dissipation (steady state) <1.2 W ˜1.0 W
  • Operating Temperature Range -20 DegreeC to +50 DegreeC; Non-Operating Temperature Range -55 DegreeC to +95 DegreeC; Operational Altitude +40,000 feet
  • Image Optimization for sUAS; Digital Detail Enhancement; Invertible Image; Polarity Control (black hot/white hot) & Color Palettes

FLIR Vue™ brings affordable thermal imaging that is easy to integrate and easy to use to every small unmanned aircraft.



Overview

Thermal Imager Uncooled VOx Microbolometer
Resolution 640x512 336x256
Lens Options 9 mm; 69° x 56°
13 mm; 45° x 37°
19 mm; 32° x 26°
6.8 mm; 45° × 35°
9 mm; 35° x 27°
13 mm; 25° x 19°
Spectral Band 7.5 - 13.5 μm
Full Frame Rates 30 Hz (NTSC); 25 Hz (PAL)
Exportable Frame Rates 7.5 Hz (NTSC); 8.3 Hz (PAL)
Physical Attributes

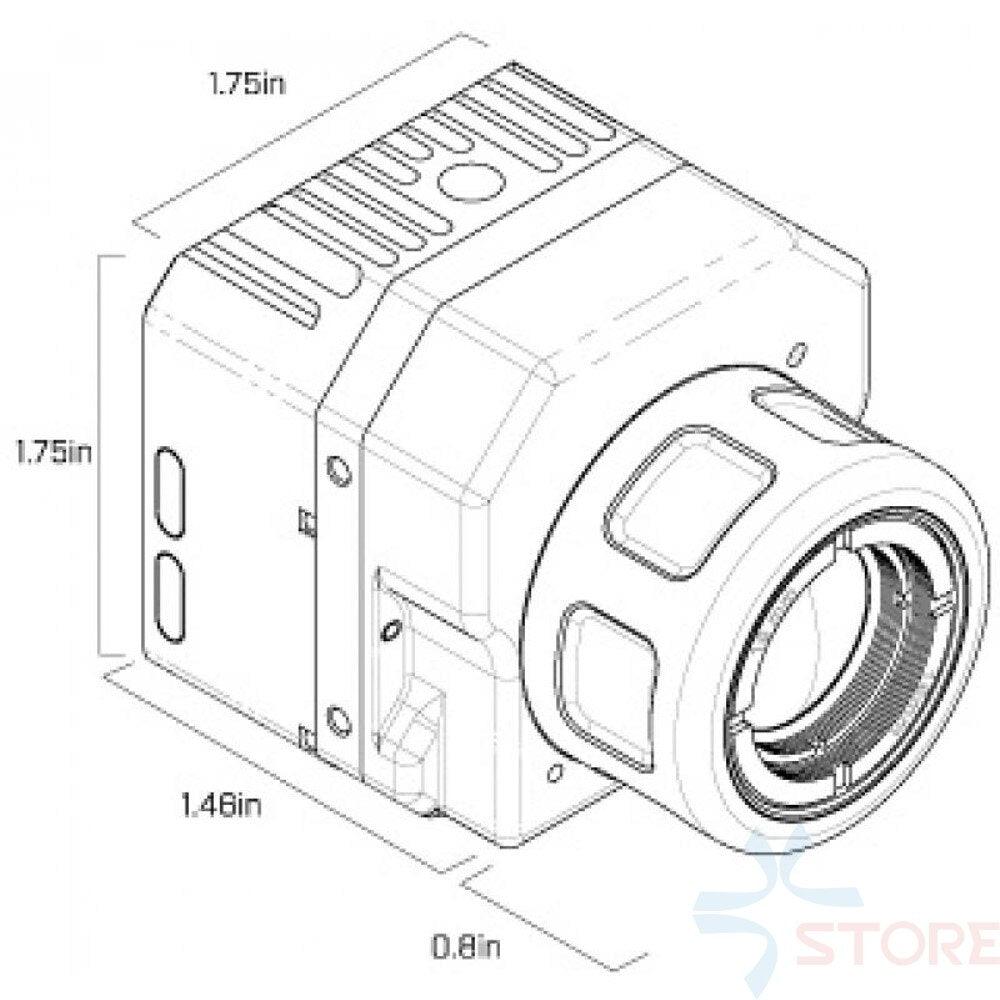

Size 2.26" x 1.75" (including lens)
Weight 3.25 - 4 oz (Configuration Dependant)
Precision Mounting Holes Two M2x0.4 on each of two sides & bottom
One 1/4-20 threaded hole on top
Image Processing & Display Controls
Image Optimization for sUAS Yes
Digital Detail Enhancement Yes - Adjustable in GUI
Invertable Image? Yes - Adjustable in GUI
Polarity Control (black hot/whitehot) & Color Palettes Yes - Adjustable in GUI
Interfacing
Input Power (max 2.5 amp during shutter) 4.0 - 6.0 VDC
Power Dissipation (steady state) <1.2 W ˜1.0 W
Environmental
Operating Temperature Range -20°C to +50°C
Non-Operating Temperature Range -55°C to +95°C
Operational Altitude +40,000 feet



FLIR VUE Features

With FLIR Vue™ you get all the thermal imager you need for sUAS operations without having to pay for functionality you'll never use.

Pre-configured to give you optimal imagery in a wide variety of conditions, FLIR Vue is light enough that it won't throw off your center of gravity or impact your flight times. With simple power-in and video-out connections, it's easy to integrate and get flying on just about any platform.

Best of all, with MSRPs of only $1,499 for 336 resolution cameras and $2,999 for 640 cameras, FLIR Vue is affordable for today's commercial sUAS operations.

Thanks to FLIR Vue, thermal's done right.

FLIR VUE Applications

With the same powerful thermal imaging core used in the most popular cameras in the world, FLIR Vue gives the same performance for a ground breaking low price, making it perfect for applications like:

  • Search and Rescue
  • Fire Fighting (see FAQ for details)
  • Precision Agriculture
  • Roof Inspections
  • Power Line Inspections
  • Substation Inspections
  • Cell Tower Inspections
  • Security Surveying
  • And just about anything else you can dream up

Easy to Connect





Just plug in a GoPro-compatible cable into the 10-pin mini-USB connector to feed the camera a regulated 5VDC power supply and get analog video out to your video transmitter or OSD, and you're ready to go. If you need more detailed information, the pinout for Vue's 10-pin mini-USB connector is available in the Vue IDD drawing under the Product Literature tab below.







 Flir Vue on with GoPro mount

    Easy to Mount

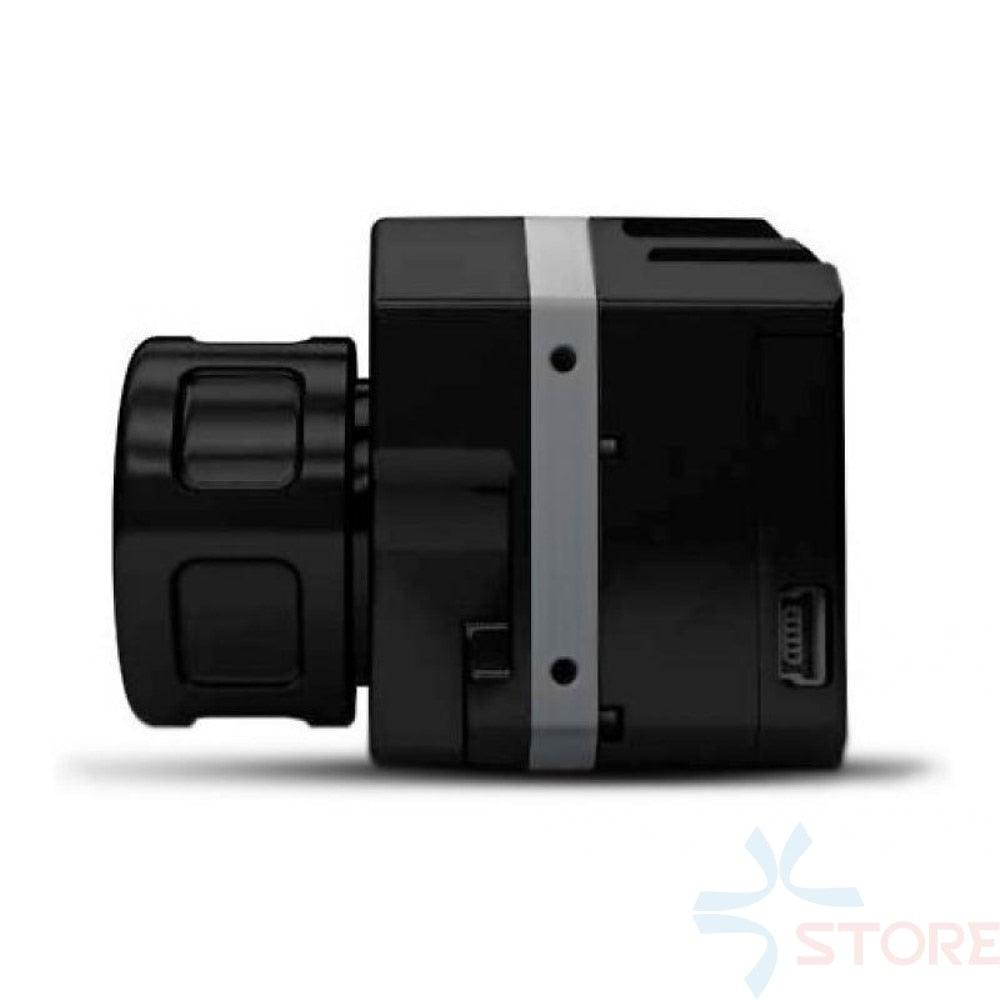

 Flir Vue Left Side View



  Because of FLIR Vue's light weight, you've got lots of mounting options available to you on any kind of aircraft. Whether you want to hard-mount it or put it on a brushless gimbal, FLIR Vue can do the job.





uuustore FLIR VUE PRO 640 436-0008-00 Whether you want to hard-mount it or put it on a brushless g

FLIR Vue gives the same powerful thermal imaging core used in the most popular cameras in

the pinout for Vue's 10-pin mini-USB connector is available in
