• Foxeer FT384 V2 Analog CVBS Thermal camera 384x288 Resolution 50FPS 1.1KM Detection Distance
  • Foxeer FT384 V2 Analog CVBS Thermal camera 384x288 Resolution 50FPS 1.1KM Detection Distance
  • Foxeer FT384 V2 Analog CVBS Thermal camera 384x288 Resolution 50FPS 1.1KM Detection Distance
  • Foxeer FT384 V2 Analog CVBS Thermal camera 384x288 Resolution 50FPS 1.1KM Detection Distance
  • Foxeer FT384 V2 Analog CVBS Thermal camera 384x288 Resolution 50FPS 1.1KM Detection Distance
1 5

Foxeer FT384 V2 384x288 Thermal camera For Drone 50FPS 1.1KM Detection Distance Analog CVBS

Foxeer FT384 V2 384x288 Thermal camera For Drone 50FPS 1.1KM Detection Distance Analog CVBS

Foxeer

$2,999.00 USD
$2,999.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

3 orders in last 90 days
  • PayPal
  • Visa
  • Mastercard
  • American Express

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

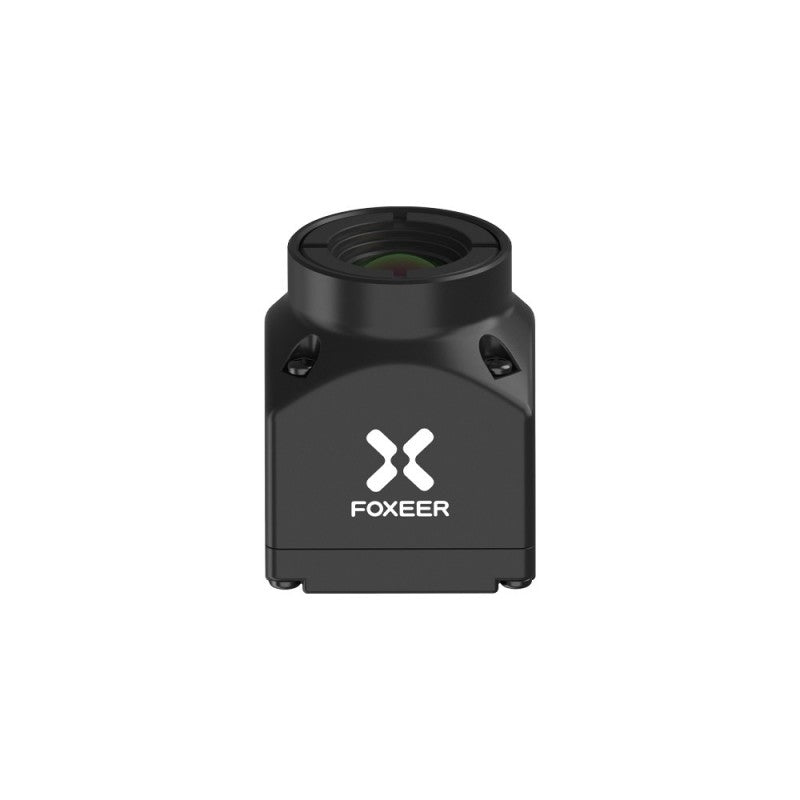

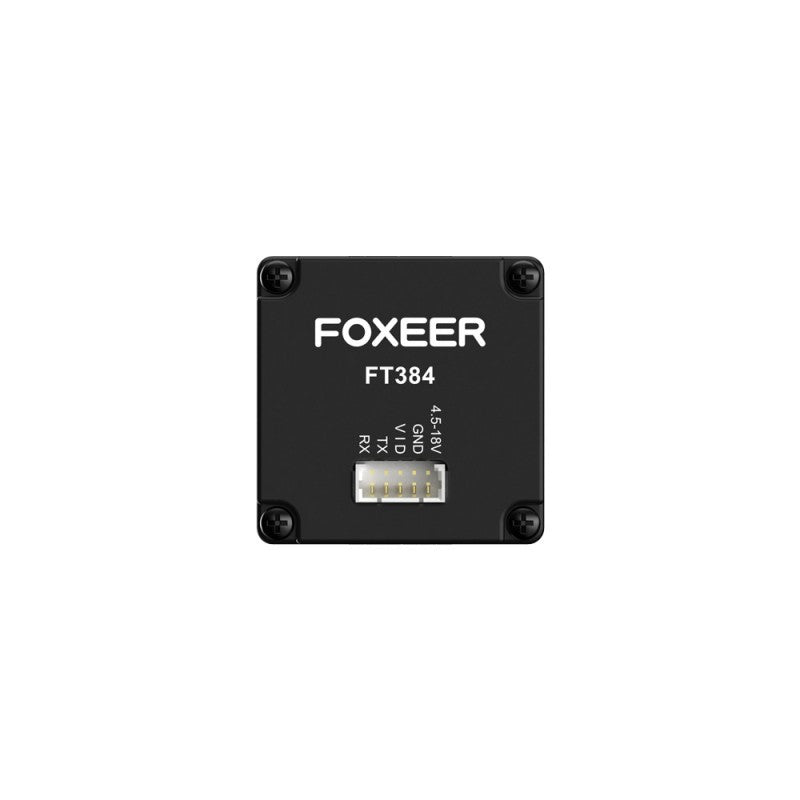

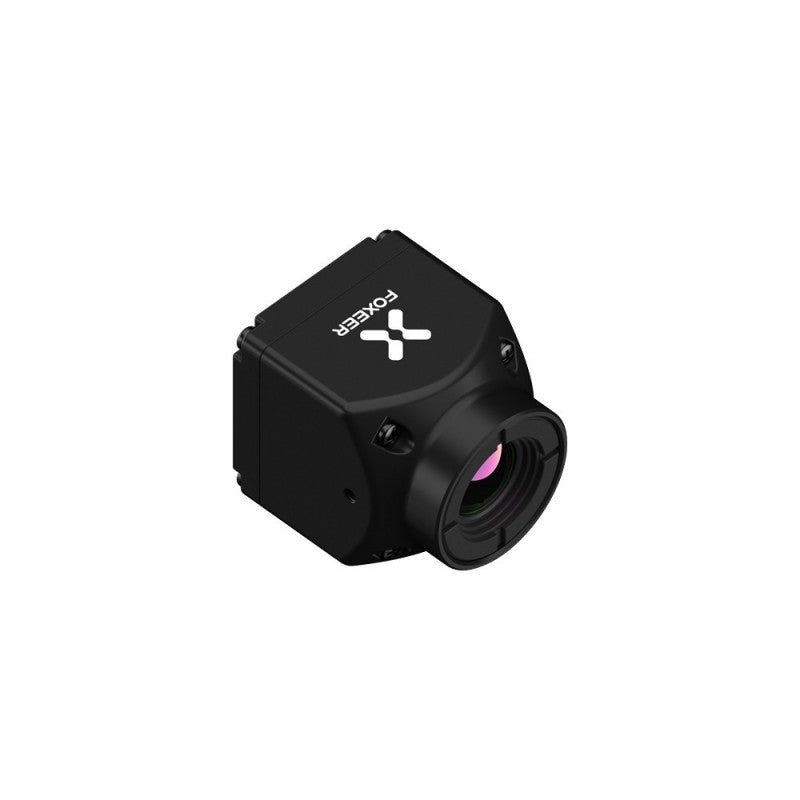

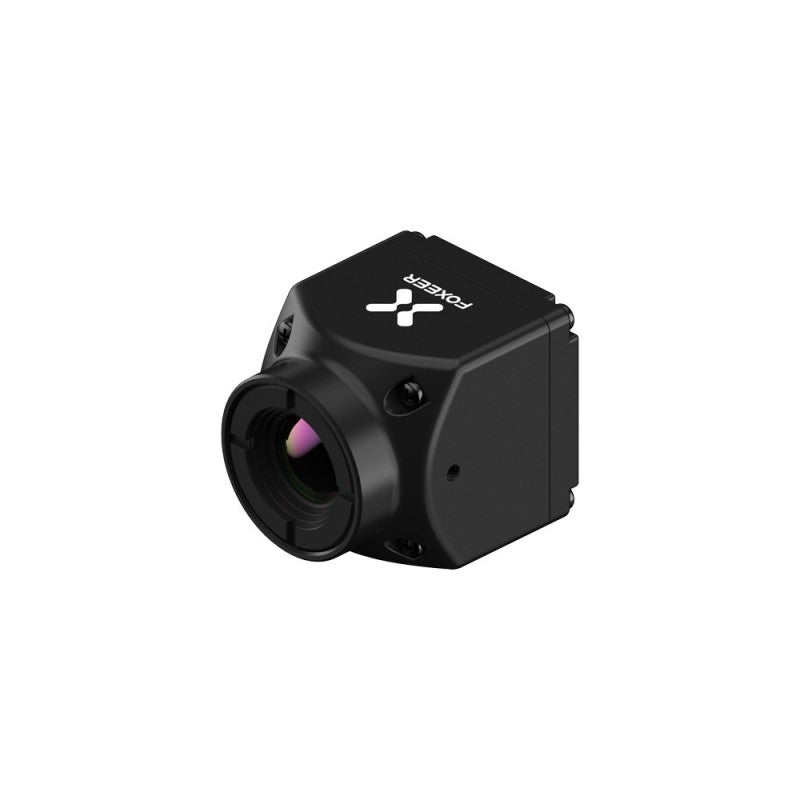

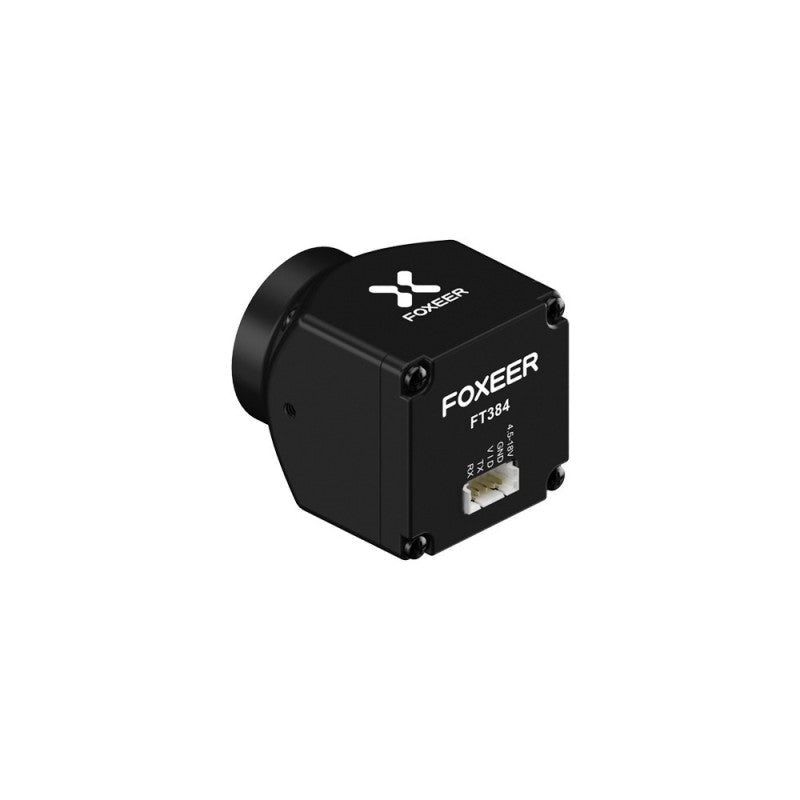

Foxeer FT384 V2 Overview

The Foxeer FT384 V2 Analog CVBS Thermal Camera is a compact thermal imaging solution for drones, offering a 384x288 resolution at 50fps and a 9.1mm fixed-focus lens with a 29.2° x 21.7° field of view. It features Non-uniformity Correction (NUC), 3D Noise Reduction (3DNR), and Digital Detail Enhancement for optimized image quality. With a detection distance of 1.1km and thermal sensitivity <50mk, it provides accurate thermal imaging in a variety of environments. Weighing just 38g and powered by 4.5-18V with low power consumption (<1W), it's built for reliability, operating in extreme temperatures from -40℃ to +80℃. Ideal for inspection, surveillance, and search-and-rescue applications.

Foxeer FT384 V2 Specifications

Resolution 384x288
Frame Rate 50fps
Lens Fixed Focus Atherma 9.1mm
FOV(H*V) 29.2°*21.7°
Refresh Rate 25Hz
Detector Type 12μm
Spectral Range 8～14μm
Thermal Sensitivity <50mk
Image Display White Hot
Image Algorithm Non-uniformity Correction (NUC); 3D Noise Reduction (3DNR); Digital Detail Enhancement
Power Input 4.5-18V
Video Output CVBS
Weight 38g
TV System PAL
Size 23*23*29mm
Consumption <1W
Working Temperature -40℃～+80℃
Storage Temperature -50℃～+85℃
Humidity 5%~95%, Non-condensin
Vibration 6.06grms, 3-axis
Shock Half-sine Wave, 80g/4ms, 3-axis 6-directi
Package Includes 1 x Camera, 1 x Cable



Depth of Field Detection Distance Recognition Distance Identification Distance
1.69m~∞ 1.1km 0.25km 0.17km


FT384 V2 Analog CV

FOXEER FT384 VTX 8x888 8 3 S0FPS CVBS Output Easy Deployment CNC Case for Full Protection .
