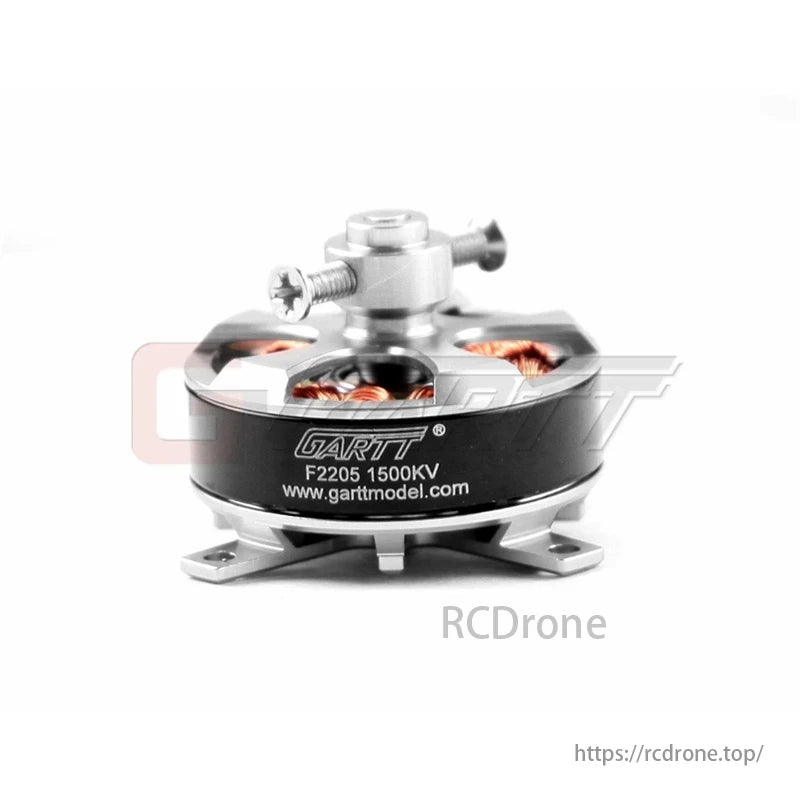

GARTT F2205 1500KV Brushless Outrunner Motor for KT F3P RC Fixed-Wing Airplane

The GARTT F2205 1500KV brushless outrunner motor is engineered for RC fixed-wing and F3P aircraft, delivering balanced efficiency and smooth performance. With a KV rating of 1500 RPM/V, it offers reliable power output while maintaining a lightweight design at only 24g. Built with high-quality 12N14P configuration, 7075 aluminum, and precision Japanese NSK bearings, it ensures stable operation across 2S–3S LiPo battery setups.

This motor performs optimally with 8045 and 7045 propellers under 8V and 12V, reaching a maximum thrust of up to 778g and continuous power of 192W for 30s. The idle current is 0.4A/10V, and the max continuous current is 16A, making it suitable for high-efficiency fixed-wing setups that demand sustained power and low thermal output.

Please ensure the thickness of your motor mounting plate is appropriate. If it's too thin, the provided screws might press against the motor coils and cause damage.

Specifications

Performance Data Highlights

With 8045 Prop @ 12V:

• Thrust up to 778g at 100% throttle

• Power consumption: 187.2W

• Efficiency: up to 8.44 g/W

• Max temp: 82°C

With 7045 Prop @ 12V:

• Thrust up to 472g at 100% throttle

• Efficiency: up to 9.72 g/W

• Max temp: 45°C

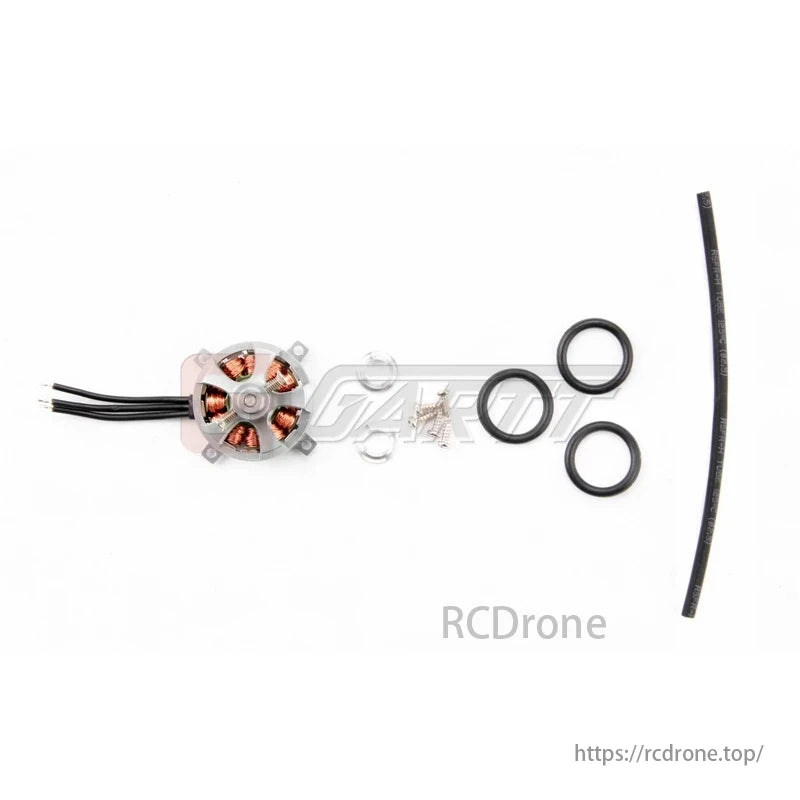

What's Included

• 1 × GARTT F2205 1500KV Brushless Motor

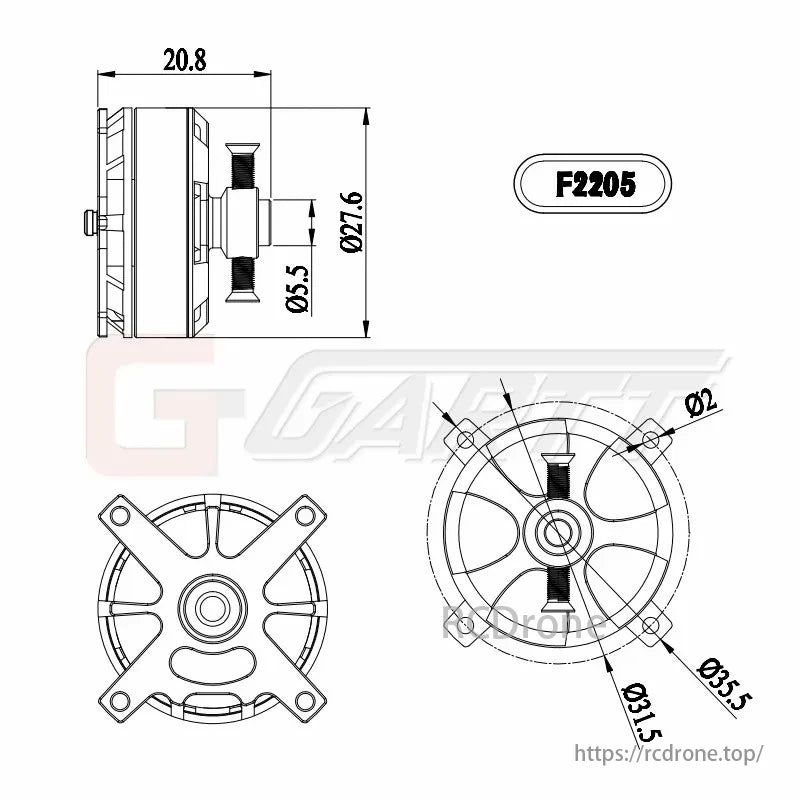

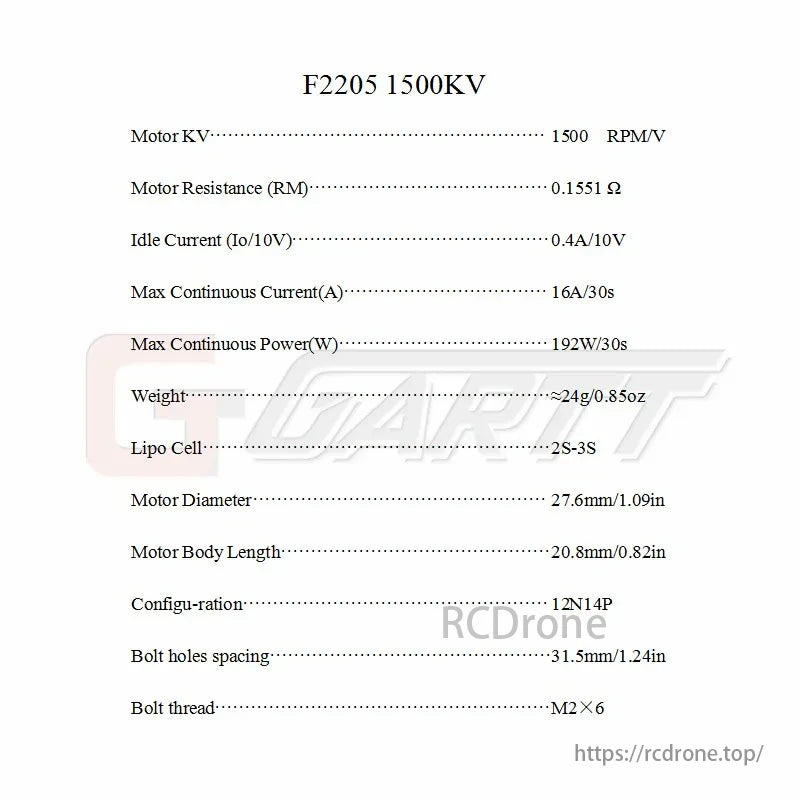

F2205 1500KV motor specs: 1500 RPM/V, 0.1551 Ω resistance, 0.4A idle current, 16A max continuous current, 192W power, 24g weight, 2S-3S Lipo, 27.6mm diameter, 20.8mm length, 12N14P config, 31.5mm bolt spacing, M2×6 thread.

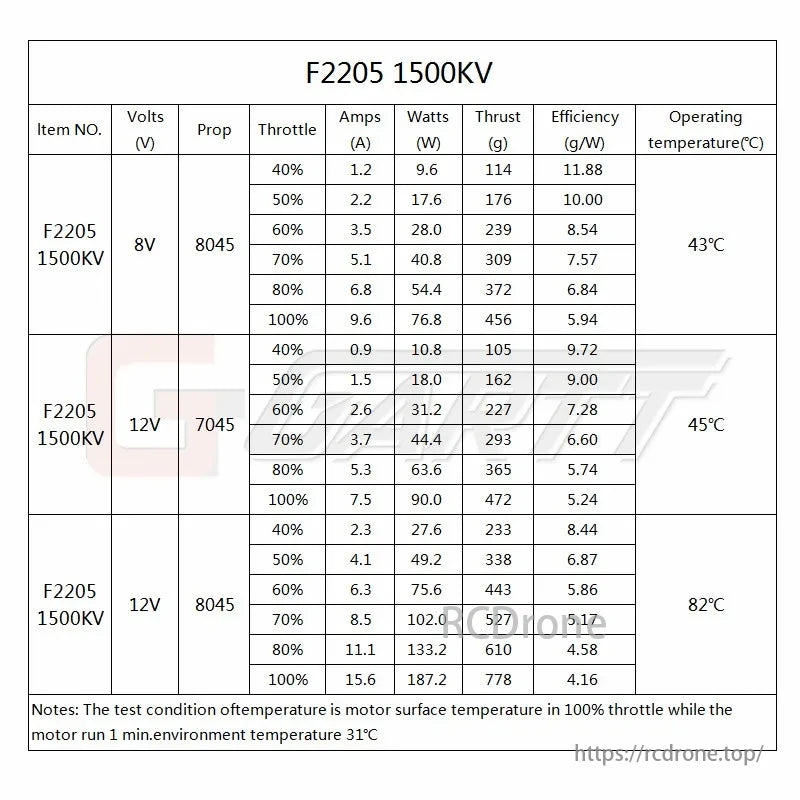

F2205 1500KV motor performance data for various voltages, props, and throttle settings. Includes amps, watts, thrust, efficiency, and operating temperatures. Tested at 100% throttle for 1 minute with an environment temperature of 31°C.

GARTT F2205 1500KV brushless motor for RC systems, red packaging.
