SPECIFICATIONS
Warranty: 3 month
Warning: Minors please use under the supervision of an adult
Video Capture Resolution: 2K QHD
Video Capture Resolution: Other
Type: HELICOPTER
State of Assembly: Ready-to-Go
Remote Distance: 2000 meters
Remote Control: Yes
Recommend Age: 14+y
Recommend Age: 12+y
Power Source: Electric
Plugs Type: XT60
Package Includes: Original Box
Package Includes: Operating Instructions
Package Includes: Camera
Origin: Mainland China
Operator Skill Level: Expert
Operator Skill Level: Beginner
Operator Skill Level: Intermediate
Motor: Brushless Motor
Model Number: GEPRC CineLog35 Performance HD VISTA Nebula Pro FPV Drone
Material: Carbon Fiber
Material: Metal
Material: Plastic
Indoor/Outdoor Use: Indoor-Outdoor
Flight Time: 5-8 minutes
Features: App-Controlled
Features: Other
Features: FPV Capable
Dimensions: 3.5 inch
Controller Mode: MODE1
Controller Mode: MODE2
Controller Battery: Not Include
Control Channels: 8 Channels
Charging Voltage: 14.8V
Charging Time: 30 minutes
Certification: CE
Camera Mount Type: Other
Camera Mount Type: Fixed Camera Mount
CE: Certificate
Brand Name: GEPRC
Barcode: Yes
Aerial Photography: Yes
Summary:

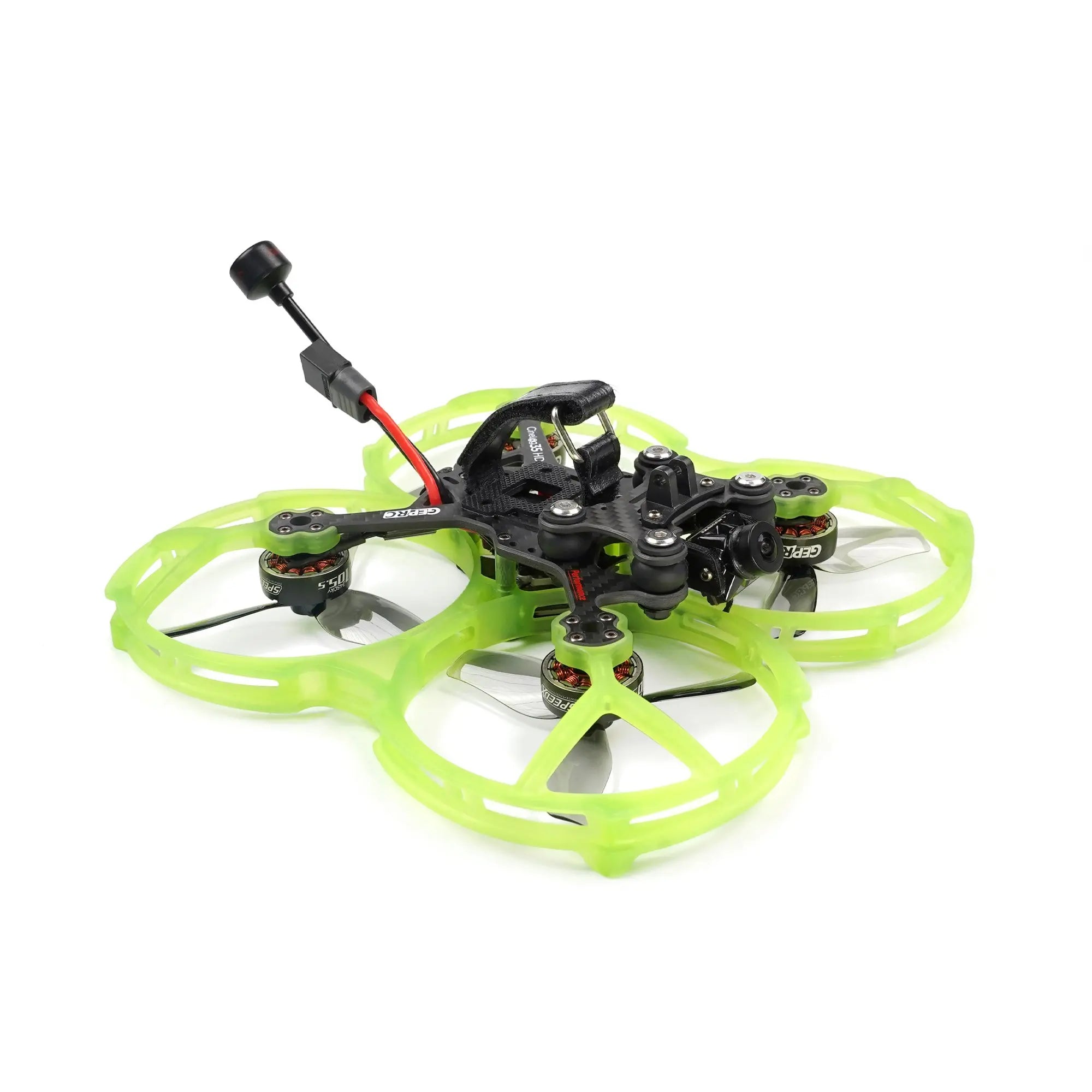

The CineLog35 Performance version is now released in three versions: VISTA Nebula PRO,AVATAR HD 1080P and Analog version.There are 4 receiver options.

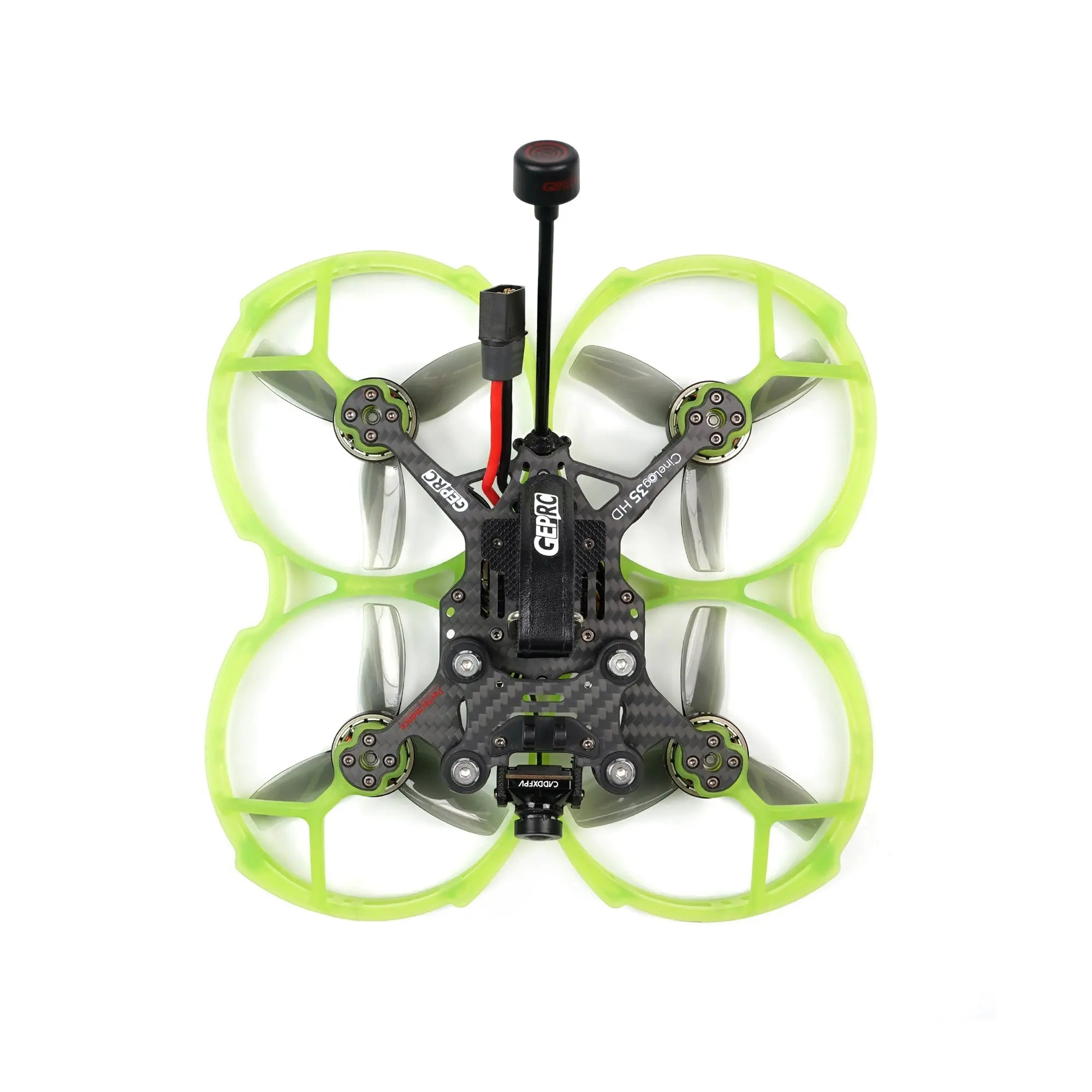

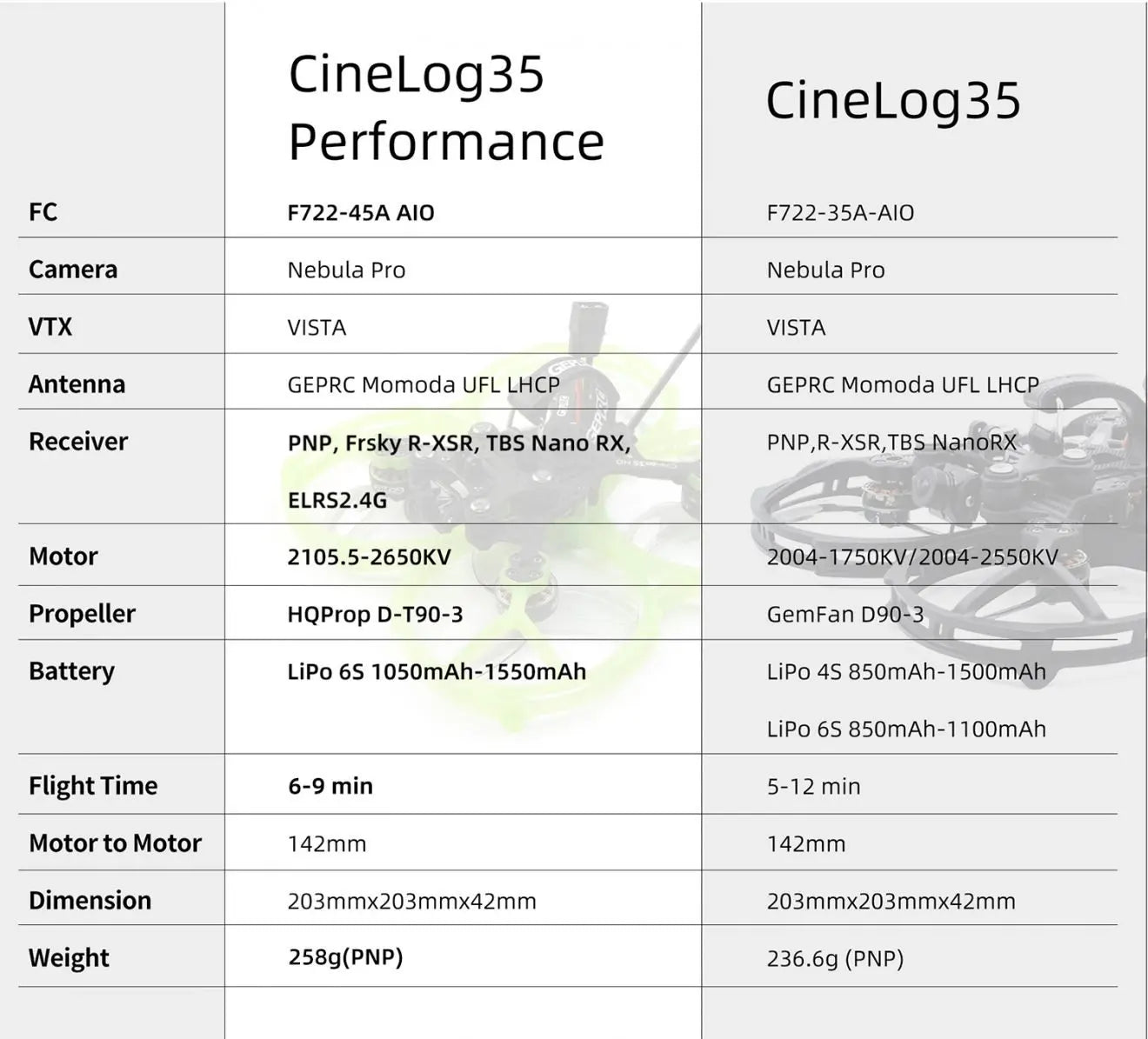

The CineLog35 Performance version is optimized and upgraded based on the standard version. The CineLog35 is designed with lighter weight and longer endurance.The concept of the Performance version is to maximize Racing performance and achieve perfection with the existing frame size.

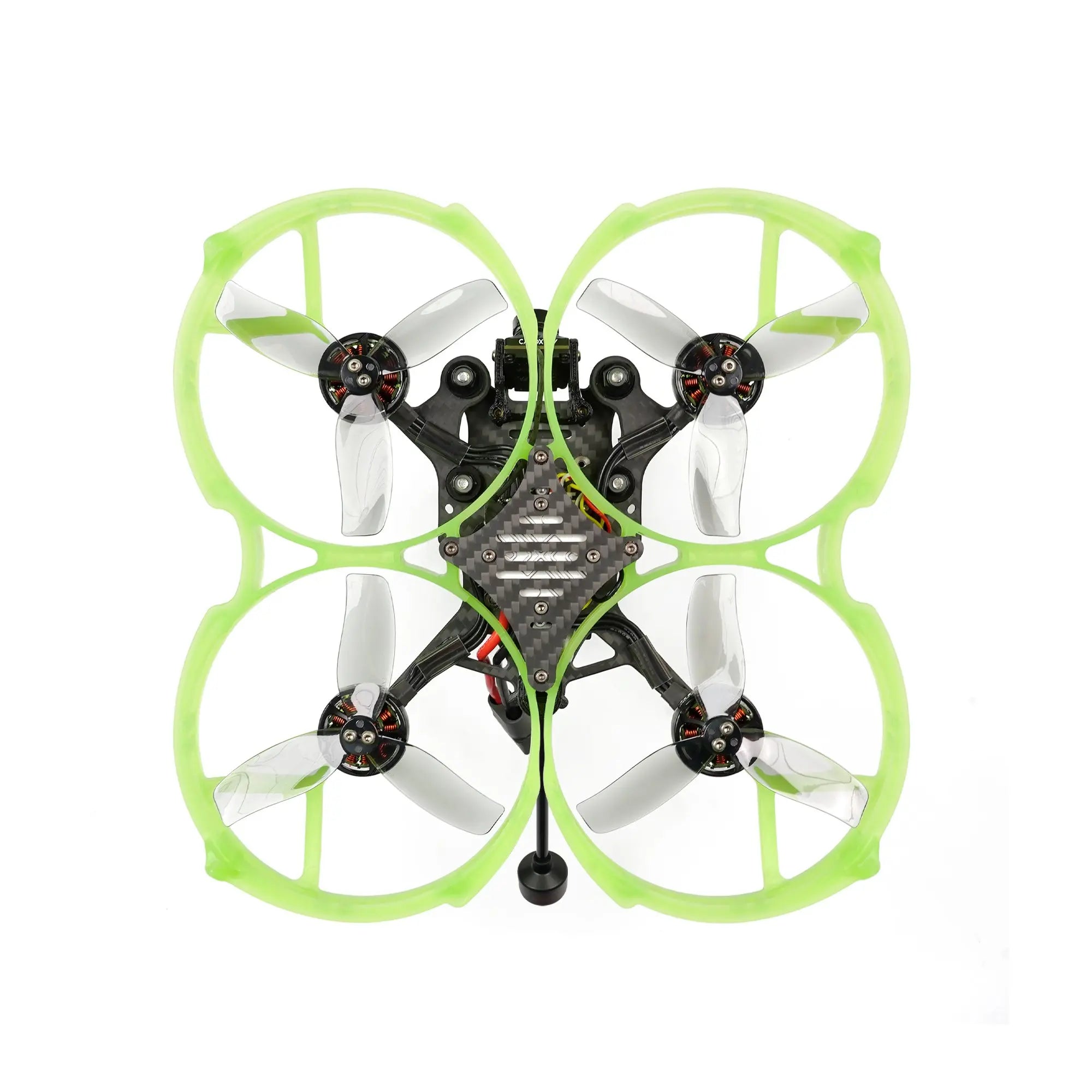

We upgraded the power system, using F722-45A AIO with the new SPEEDX2 2105.5 motor, which has stronger power and faster response speed.
It makes more easier flying with GoPro camera and allows you to perform some difficult action flying.You can even Freestyle with GEPRC Naked Hero 8 Camera. Therefore, the CineLog35 Performance can perfectly meet all requirements of aerial photography creators to reach higher-level quality shooting.

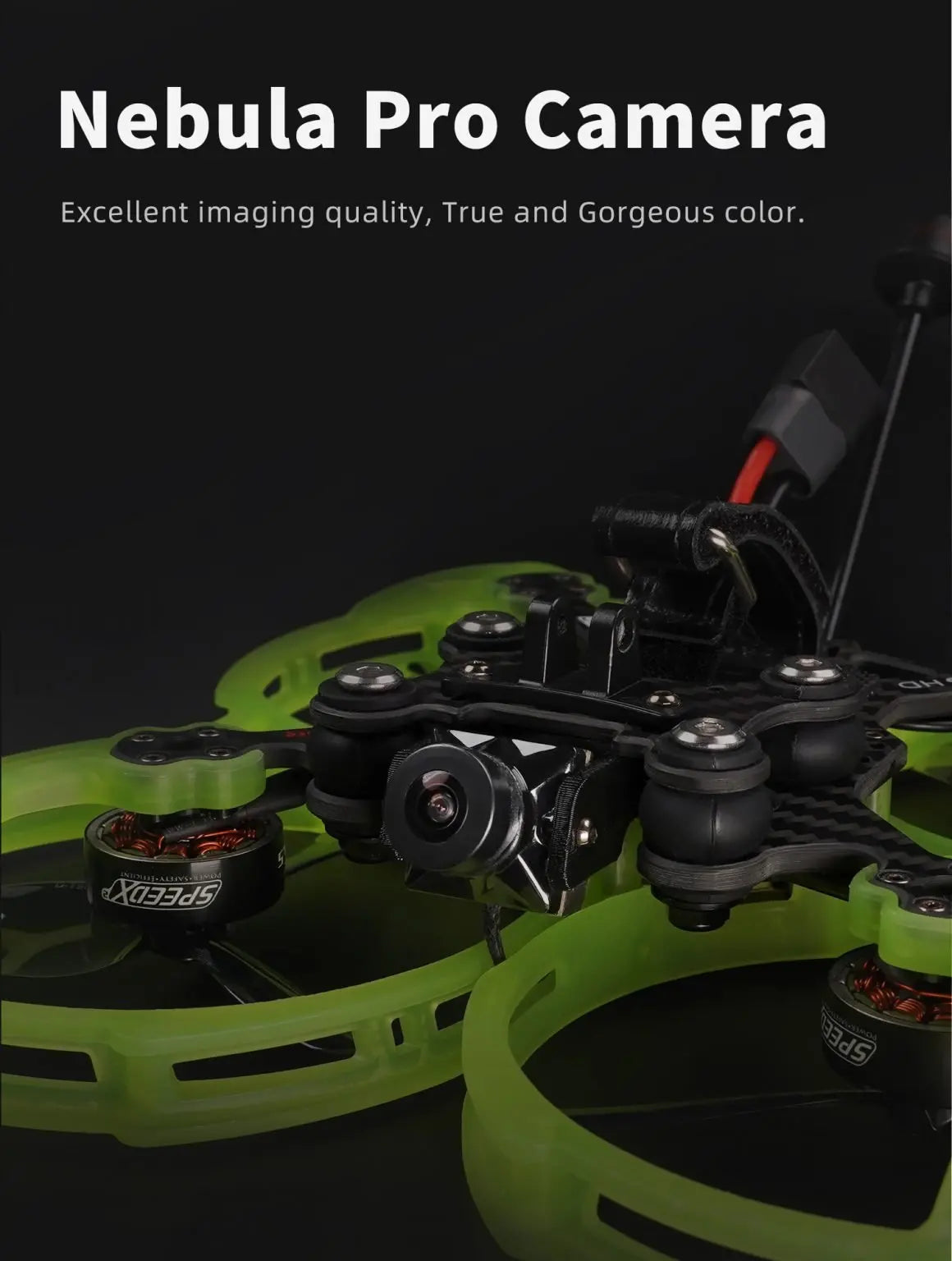

Absolutely, we upgraded more than power.In the FPV imaging system, we use the Nebula Pro camera, which has better imaging effects, clearer FPV images, and better color and detail reproduction.
Of course, The analog version has also been greatly upgraded.Uses an amazing 1.6W high power RAD VTX,stable signal transmission, strong anti-interference ability, farther signal transmission distance.
The CineLog35 Performance is also equipped with excellent and affordable GEPRC ELRS 2.4G.
In short, we've made a lot of upgrades and optimizations for the CineLog35 Performance, which makes it easy for you to mount your GoPro camera for creative shooting work.The integrated propeller guard design with high flight safety allows indoors and outdoors flight.
This is a FPV quad that combines Cinematic shooting, Freestyle, Racing and Cruising to satisfy your indoor & outdoor flying requirements in various scenes.
We've been pursuing for lighter weight, better flying experience, and more functionality for all our products!
Features:

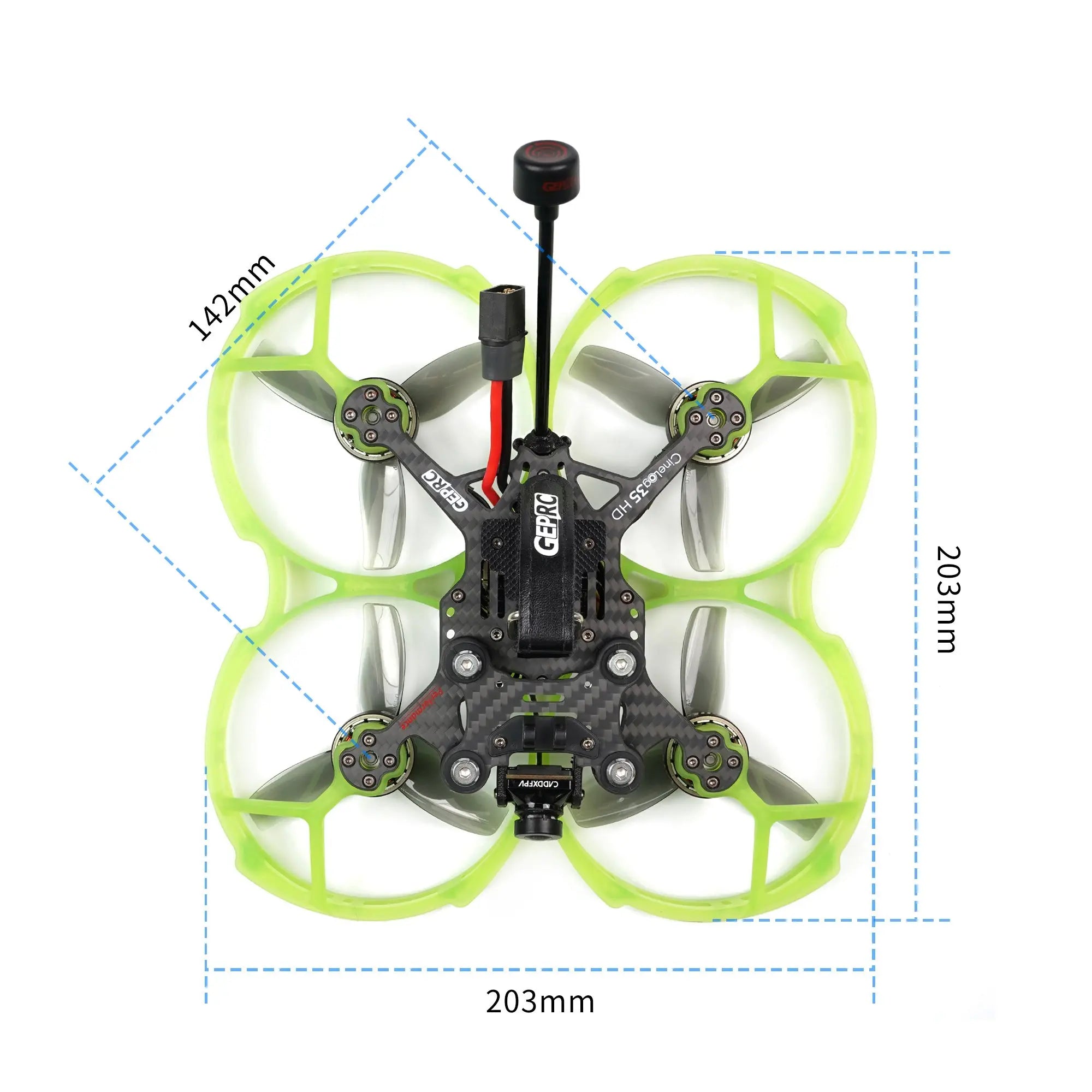

1. 3.5-inch integrated propeller guard, hollowed-out weight reduction and noise reduction design, quiet and safe flight,brand new appearance design

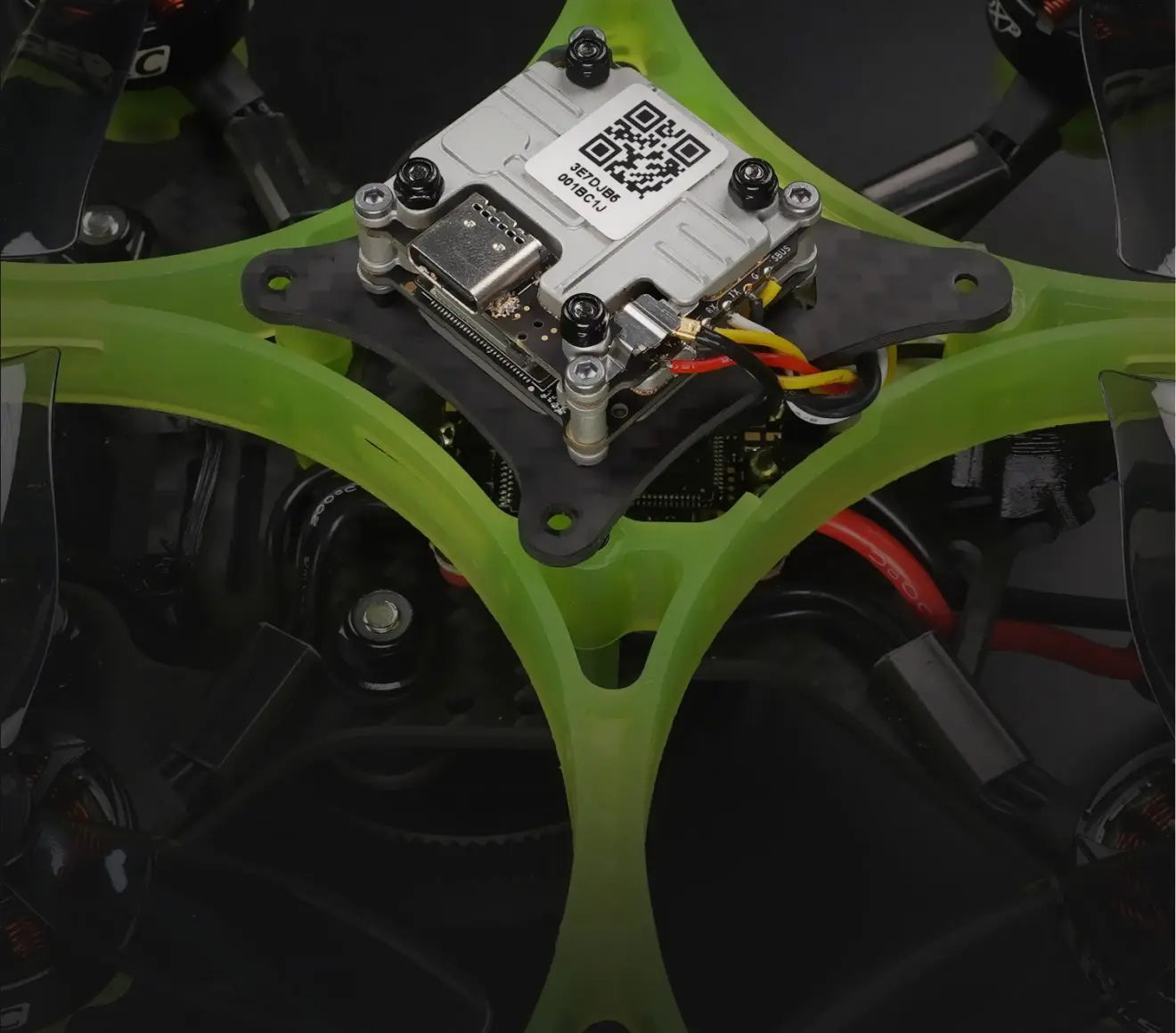

2.Equipped with GEPRC F722-45A AIO high-performance FC and integrated BLHeli_S 45A 6S ESC.
3.Caddx VISTA HD and Walksnail AVATAR HD digital image transmission system make the FPV image stable and clear, and restore true colors and details.

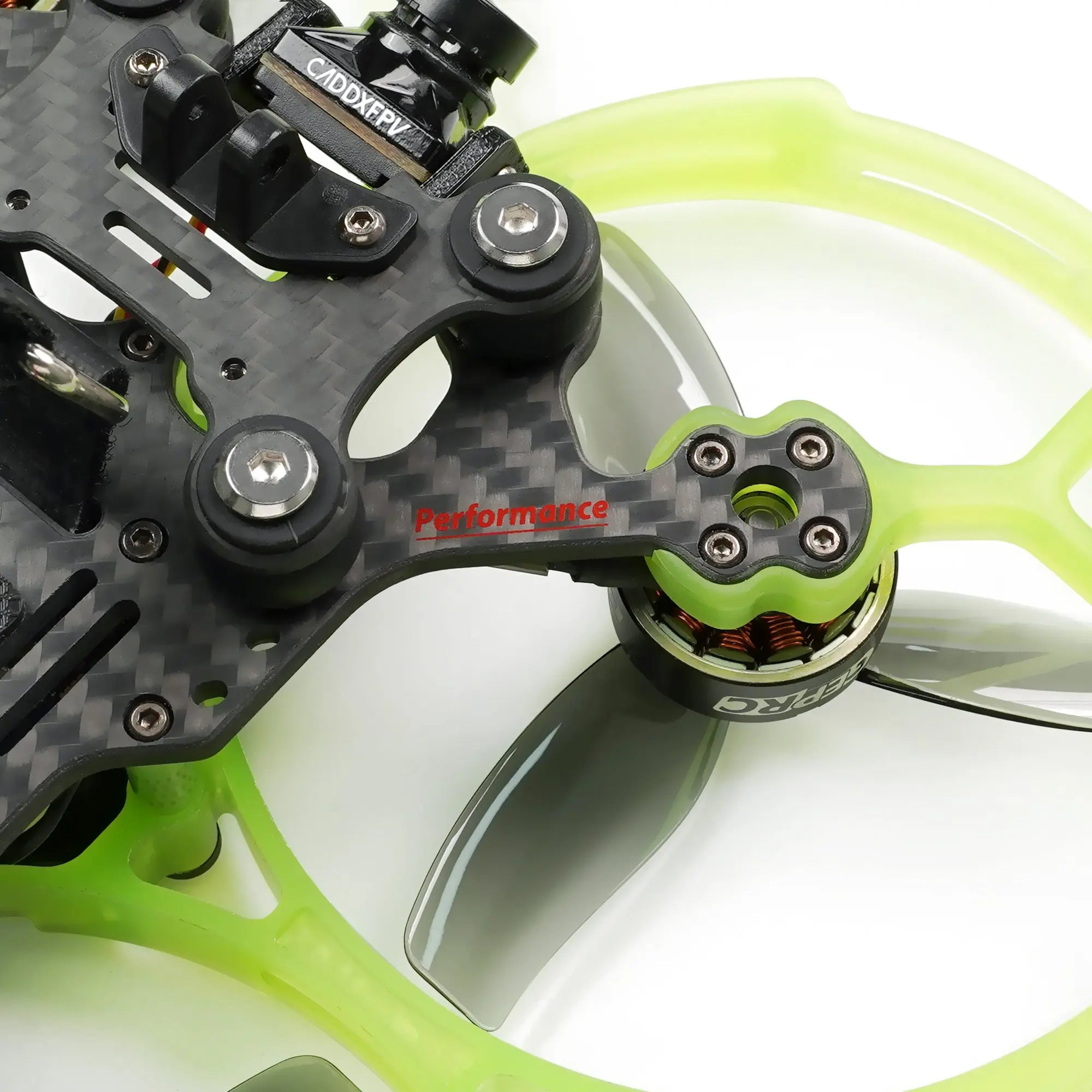

4.SPEEDX2 2105.5 motor with DT90-3 propeller, stable power output and smooth flight experience.
5.Reversed-motor design, higher flight efficiency, longer flight endurance, flexible flight attitude.
6.Comes with two 3D printed parts,which can be installed with GoPro cameras or Naked 8,10 Camera, Insta 360 GO2 and Caddx Peanut cameras.

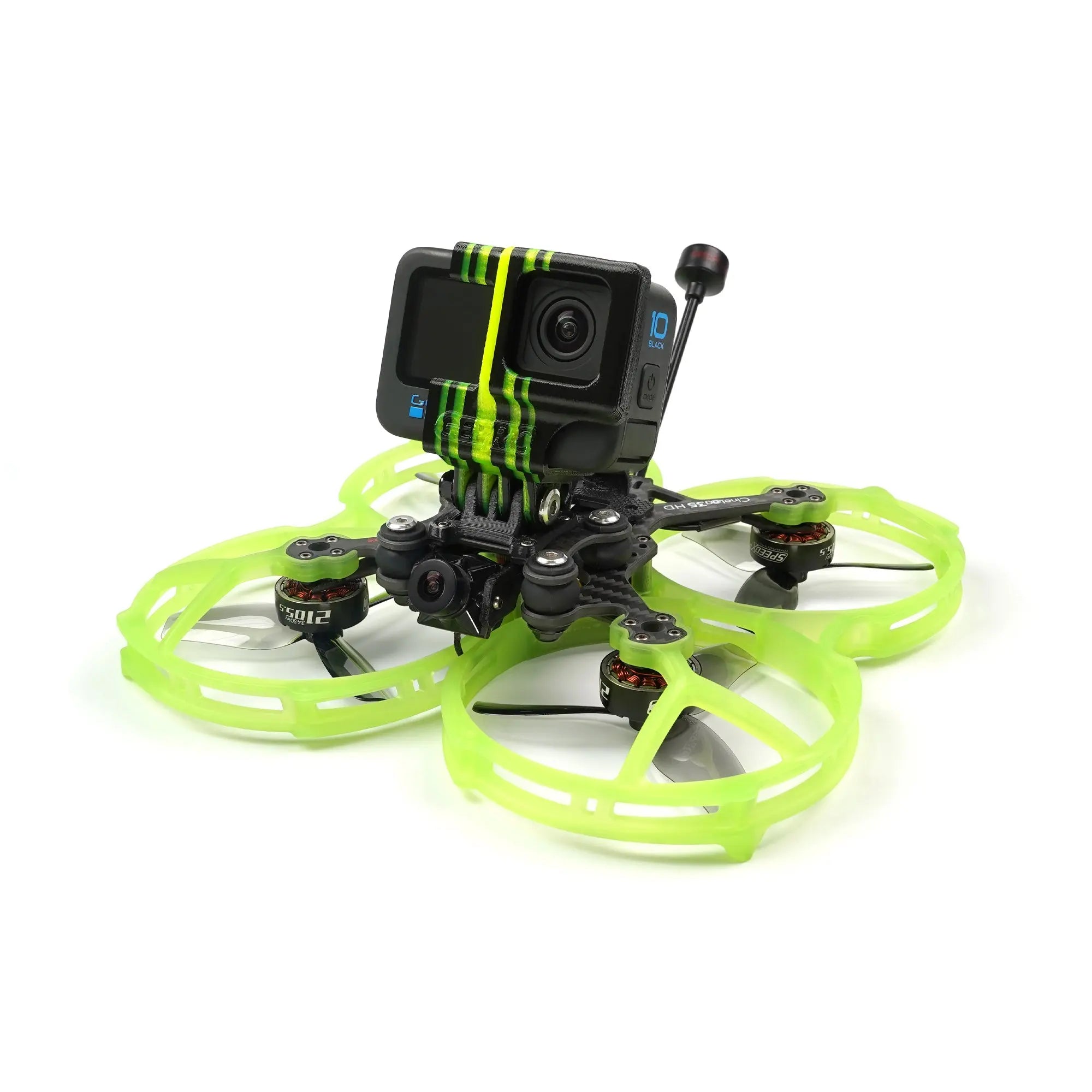

7.Shock-absorbing gimbal design, more stable and clearer shooting, Without jelly any more.
8.The analog version uses RAD high power 1.6W VTX, stable signal transmission, strong anti-interference ability and longer signal transmission distance.
9.The GEPRC Team's Splendid Tuning and the overall flight feel is delicate and flexible.
Cruising Flight Time:
6S 1550MAH Battery: 5 minutes 30 seconds (with GoPro10 mounted)
6S 1550MAH Battery: 7 minutes 30 seconds (None)
Specifications:
Model: CineLog35 Performance HD VISTA Nebula Pro
Brand: GEPRC

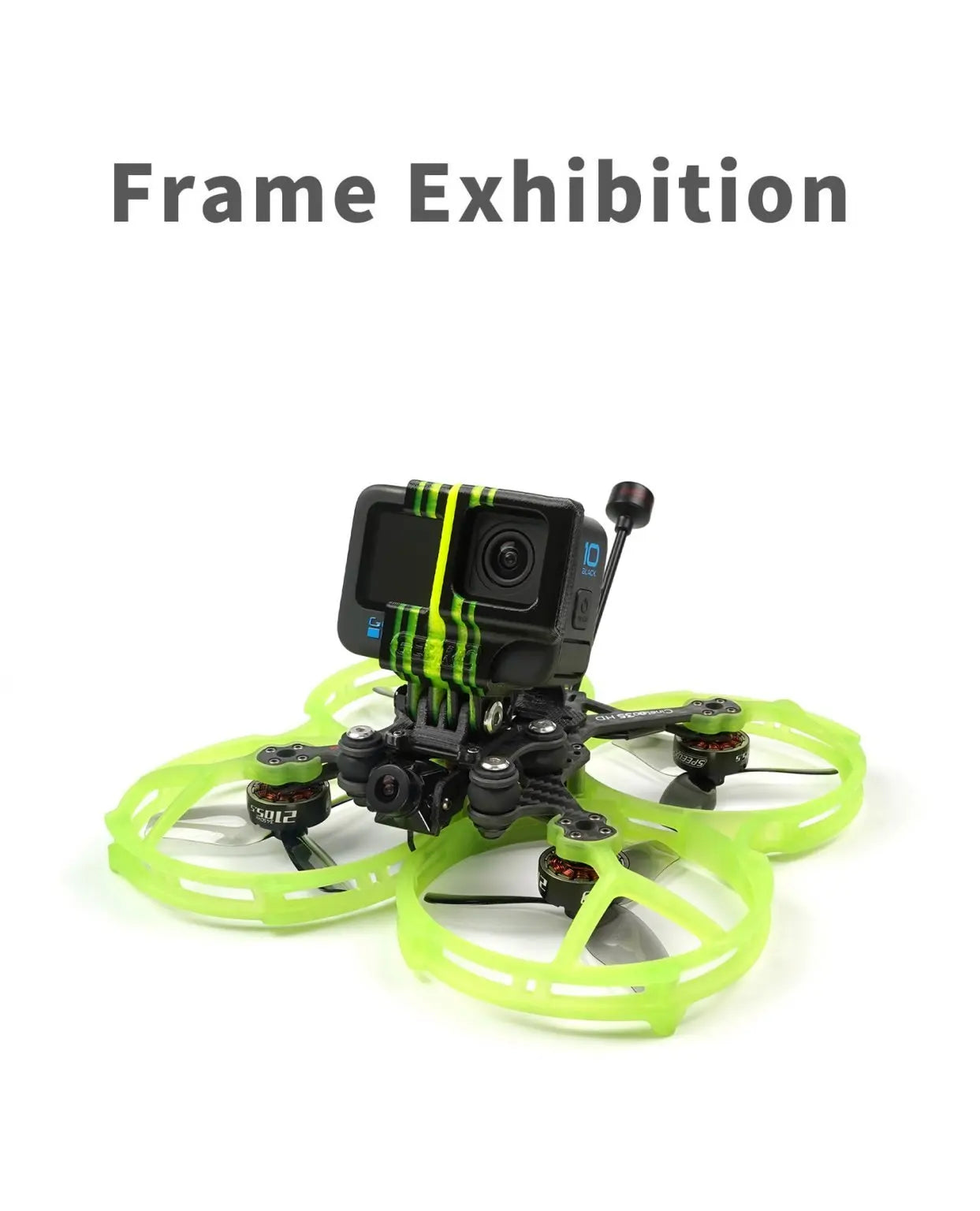

Frame: GEP-CL35 Performance
Wheelbase:142mm
Top plate: 2.5mm
Bottom plate: 2.0mm
Arm plate: 3.5mm
FC system: GEP-F722-45A AIO
MCU: STM32F722
IMU: 6-Axis
OSD: BetaFlight OSD w/AT7456E chip
ESC: BLheli_S 45A
VTX: VISTA
Camera: Caddx Nebula Pro
Propeller: HQ DT90-3
Antenna: GEPRC Momoda 5.8g UFL LHCP 175mm Long Version Antenna
Motor: SPEEDX2 2105.5-2650KV
Weight: 258.1g (CineLog35 Performance HD VISTA Nebula Pro 6S PNP)
Receiver: PNP, Frsky R-XSR, TBS Nano RX, ELRS2.4G
Battery:LiPo 6S 850mAh-1550mAh
Includes:
1 x CineLog35 Performance HD VISTA Nebula Pro
2 x HQ DT90-3 propellers (pair)
1 x Battery strap M15x220mm
2 x Battery Silicone Pads
2 x Landing Pads
5 x 15 degree damping rings
1 x TBS Nano RX Antenna Mount
1 x Set of screws
1 x Set of screwdriver
1 x Antenna fixed tube

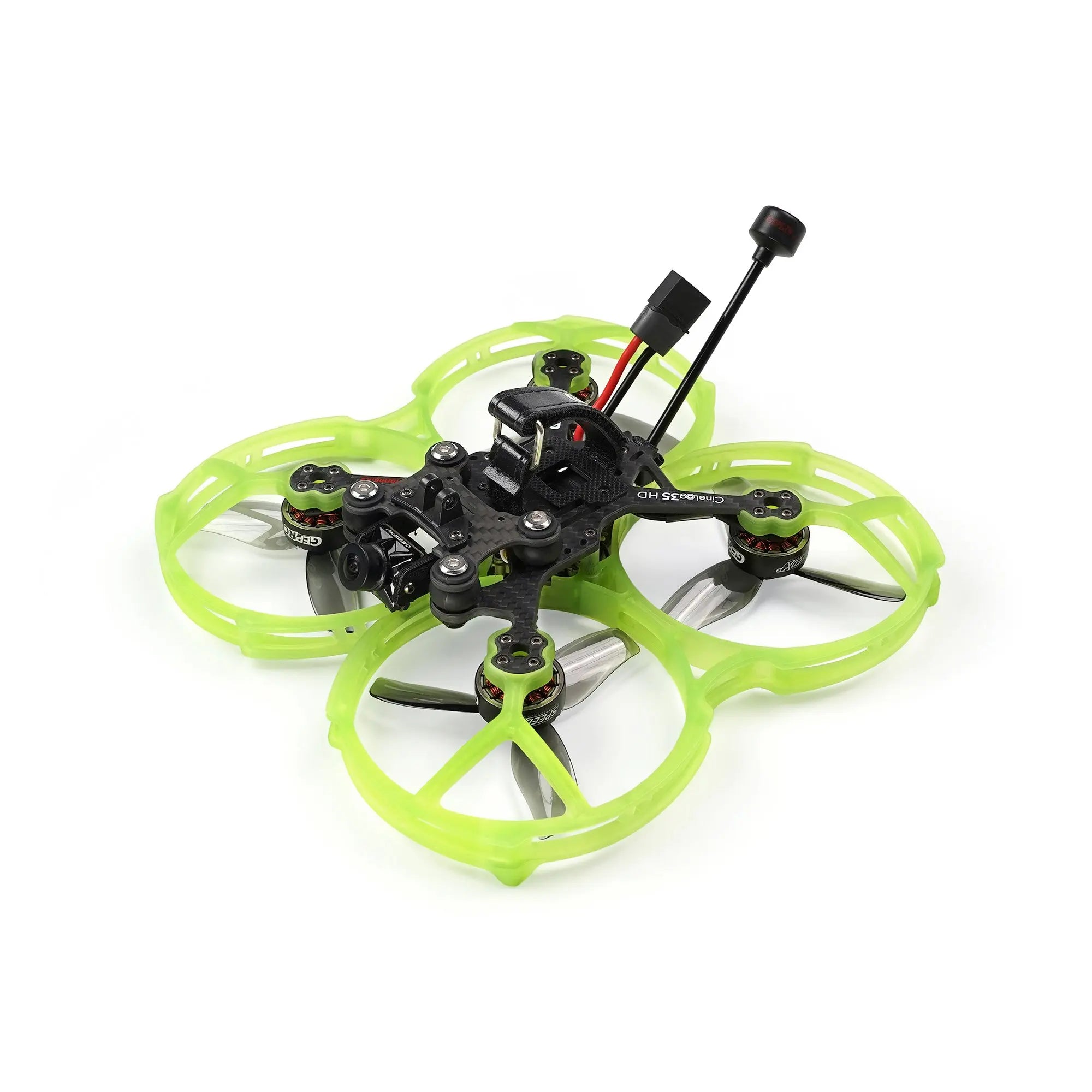

GEPRC Cinelog35 Cinewhoop features an integrated F722-45A motor, offering great mounting options for cameras and protection with its AIO design, making it compatible with Nebula Pro 6S quadcopters for high-performance FPV freestyle flying.

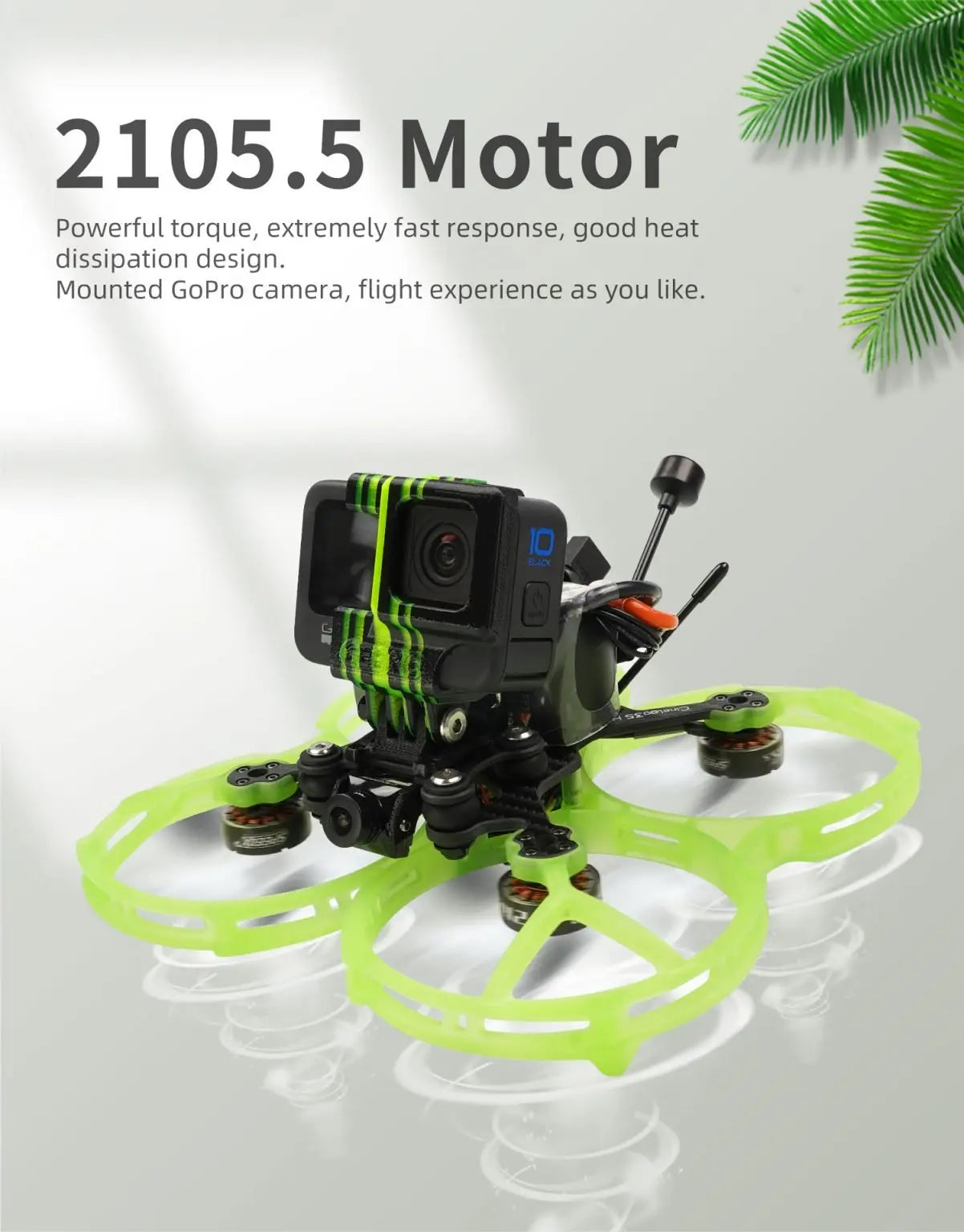

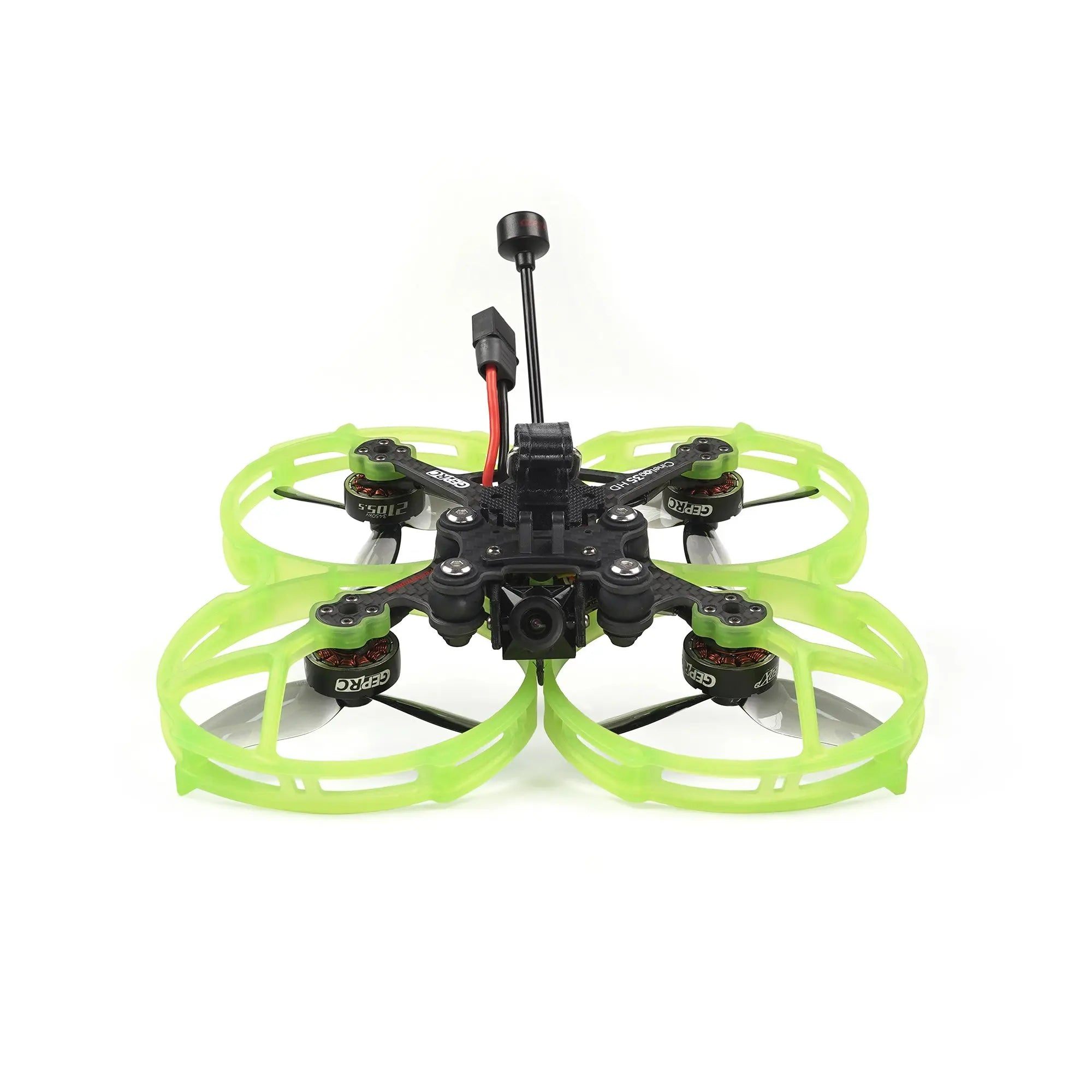

Equipped with the F722-45A motor, this CineLog35 Cinewhoop delivers powerful torque and fast response times, while its heat dissipation design ensures reliable performance. The mountable GoPro camera allows for personalized flight experiences and stunning video captures.

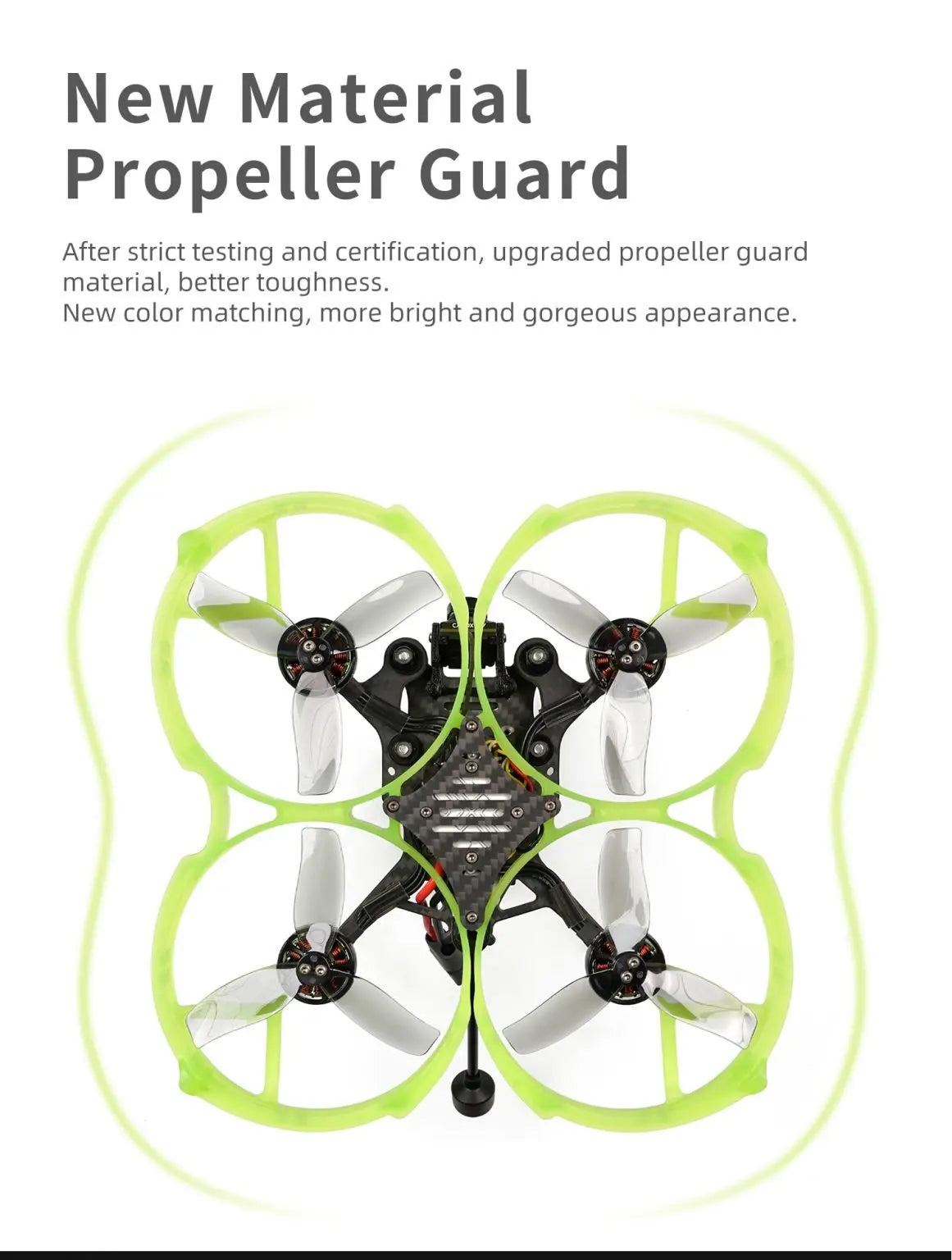

Featuring an upgraded propeller guard made from a new, highly durable material that has undergone rigorous testing and certification, this CineLog35 Cinewhoop boasts a fresh new look with vibrant color-matching options that produce a brighter and more stunning appearance.
Equipped with the Caddx Vista VTX, this CineLog35 Cinewhoop delivers high-quality, low-latency video transmission with a stable and clear signal, boasting an impressive latency of just 28ms. Furthermore, it offers extended image transmission capabilities to a remarkable distance.

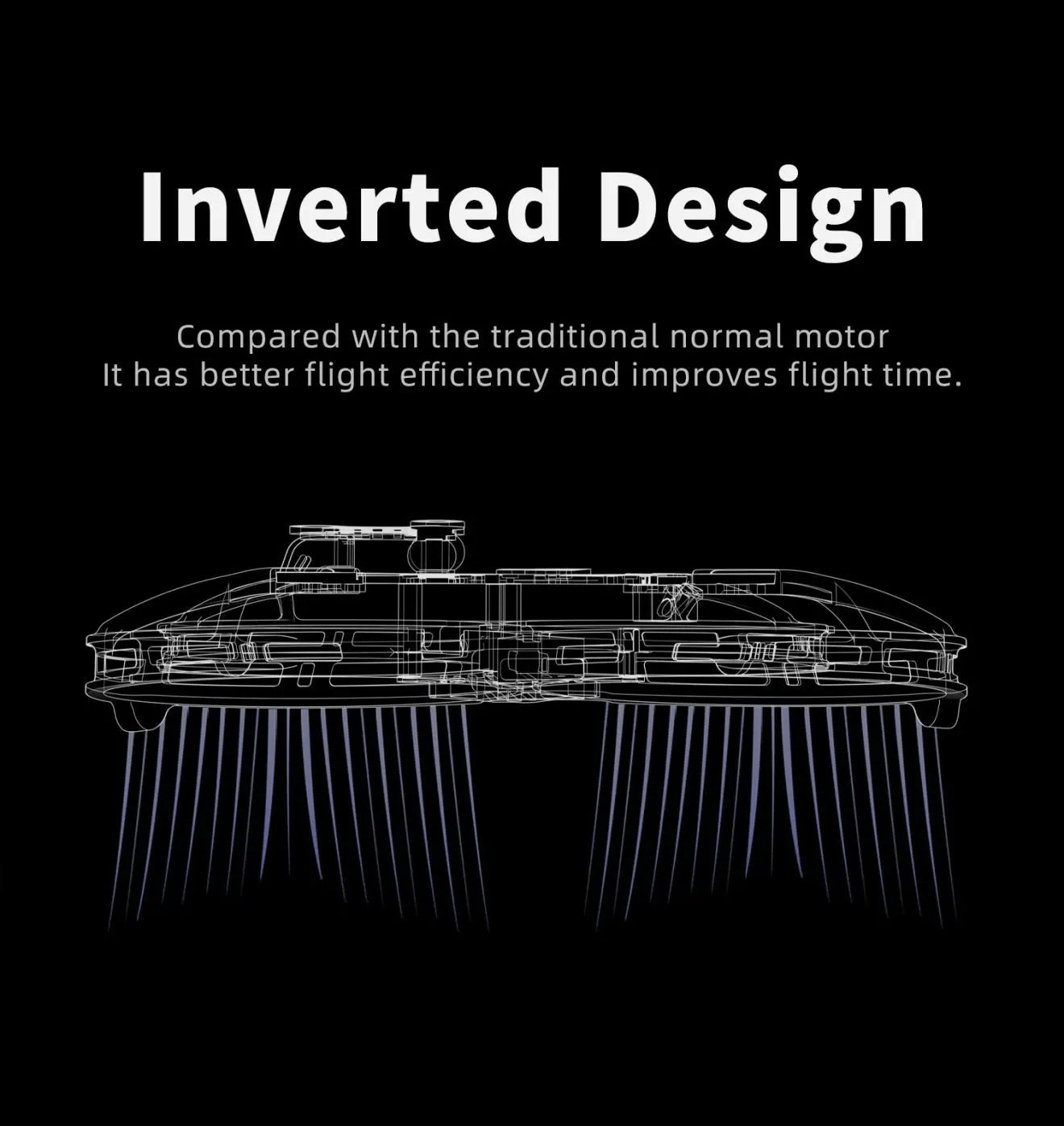

The inverted design of this CineLog35 Cinewhoop offers improved flight efficiency, resulting in longer flight times and enhanced overall performance. In comparison to traditional designs, it provides a noticeable boost in aerodynamics and range.

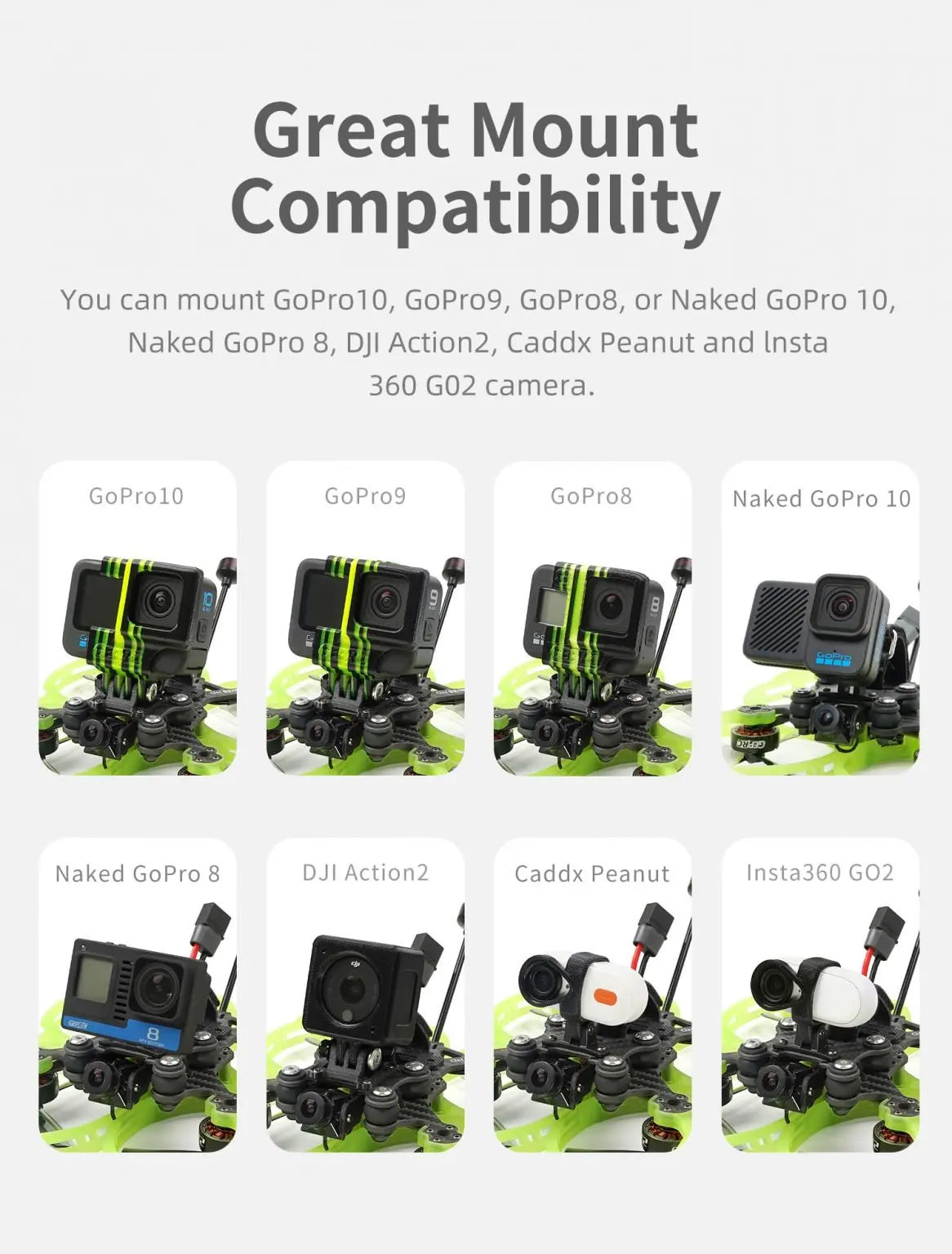

Enjoy great mount compatibility with this CineLog35 Cinewhoop, which supports a wide range of cameras, including GoPro 10, GoPro 9, GoPro 8, Naked GoPro 10, and more. Specifically, compatible cameras include: GoPro Hero0, GoPro Hero 9, GoPro Hero 8, DJI Action2, Caddx Peanut, and Insta360 One X2.

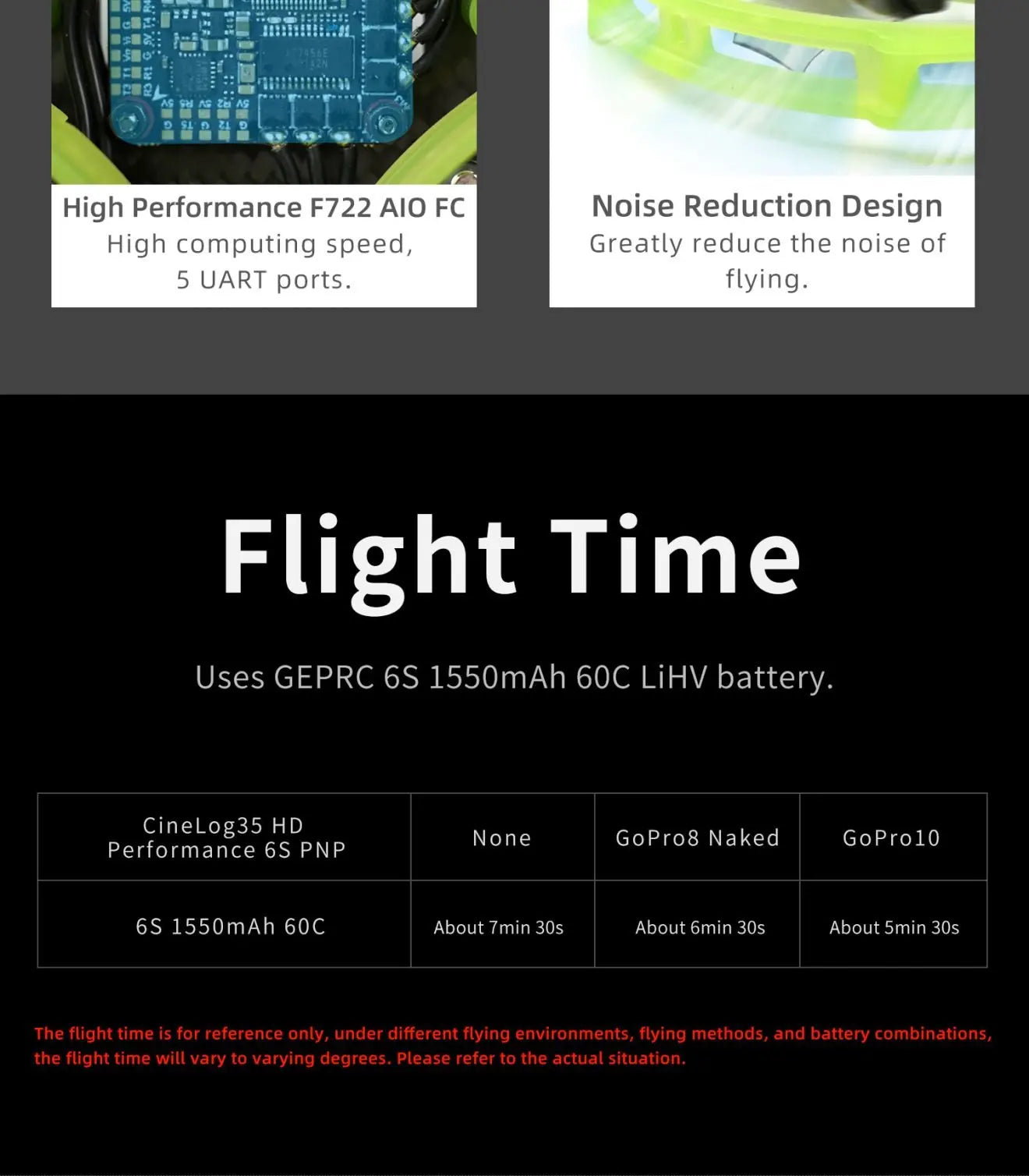

Featuring an F722 AIO FC with Noise Reduction Design, this CineLog35 Cinewhoop significantly reduces noise from its 5 UART ports. Note that the stated flight time is for reference purposes only; actual flight times may vary depending on factors such as flying environment, methods, and battery combinations.

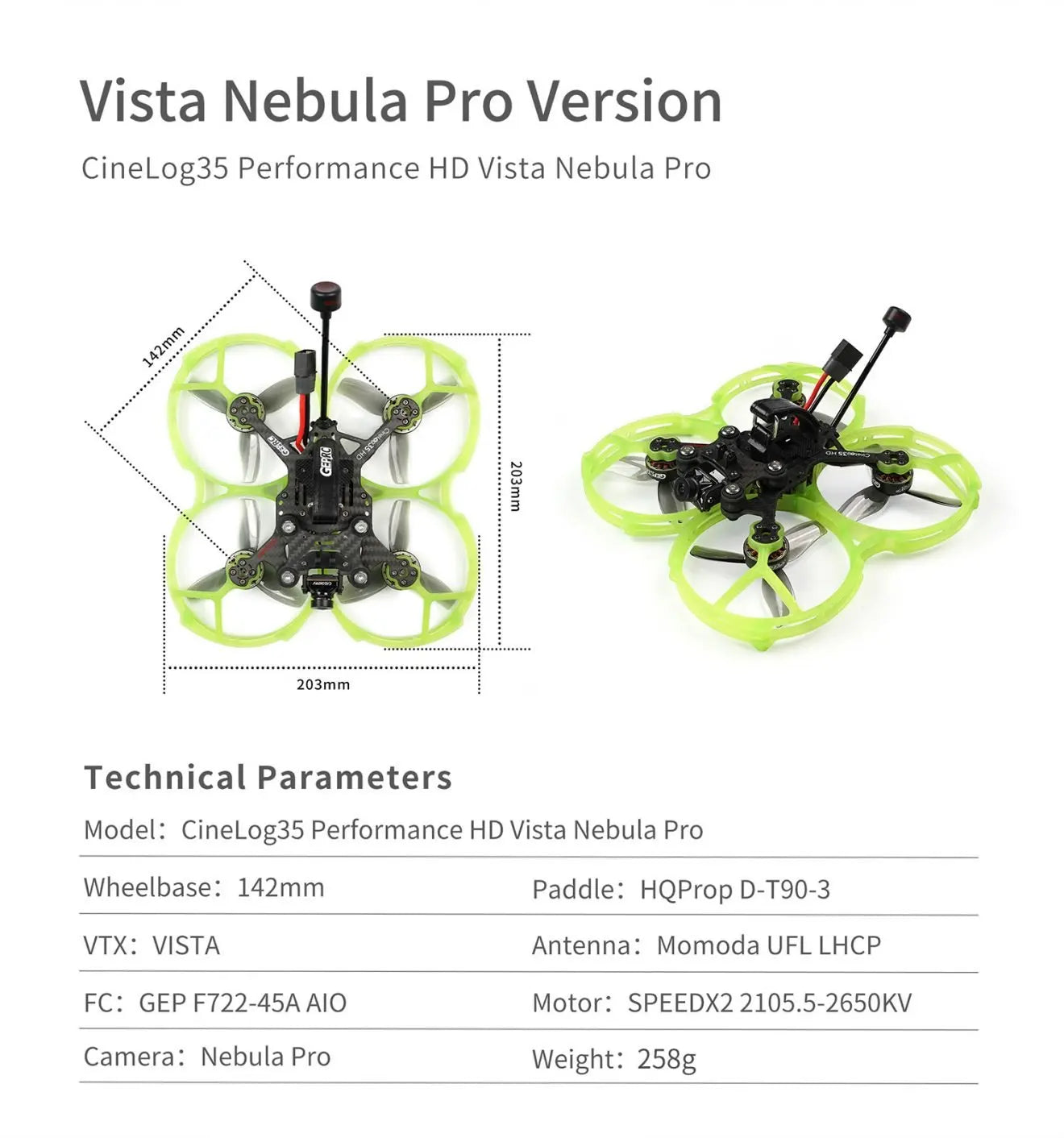

CineLog35 Performance HD Vista Nebula Pro 6S: * Wheelbase: 142mm * Paddle: HQProp D-T90-3 * VTX: VISTA with Momoda UFL LHCP antenna * FC: GEPRC F722-45A AIO Motor: SPEEDX2 2105.5-2650KV * Weight: 258g * Diameter: 143mm
CineLog35 Performance utilizes the GEPRC F722-45A-AIO flight controller, which features an AIO design for streamlined performance. Additionally, this quadcopter is equipped with a GEPRC Momoda UFL LHCP antenna for reliable and efficient communication.

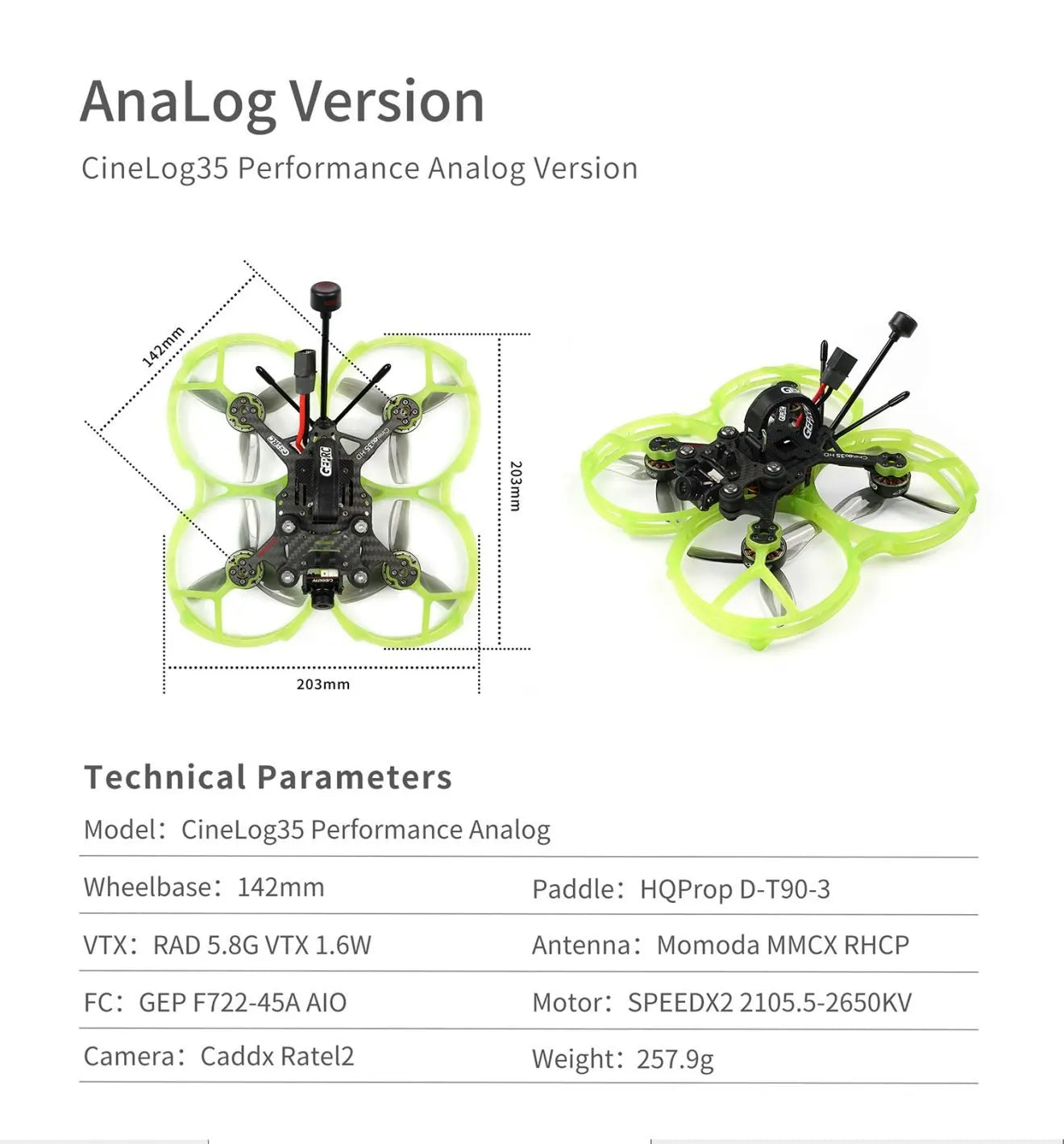

Technical Specifications: * Paddle: HQProp D-T90-3 (142mm) * VTX: RAD 5.86 GHz with 1.6W output * Antenna: Momoda MMCX RHCP antenna * FC: GEPRC F722-45A AIO flight controller * Motor: SPEEDX2 2105.5-2650KV motor * Camera: Caddx Ratel2 camera * Weight: 257.9g * Diameter: 152mm * Length: 203mm
