GEPRC Vapor-X5 WTFPV 6S F722 60A 230mm Wheelbase GPS Freestyle 5 Inch FPV Drone

GEPRC

$209.00 USD

Sale Sold out

Taxes included. Shipping calculated at checkout.

Options PNP ELRS 2.4G TBS Nano RX PNP With GPS ELRS 2.4G With GPS TBS Nano RX With GPS

Quantity

View full details

Summary

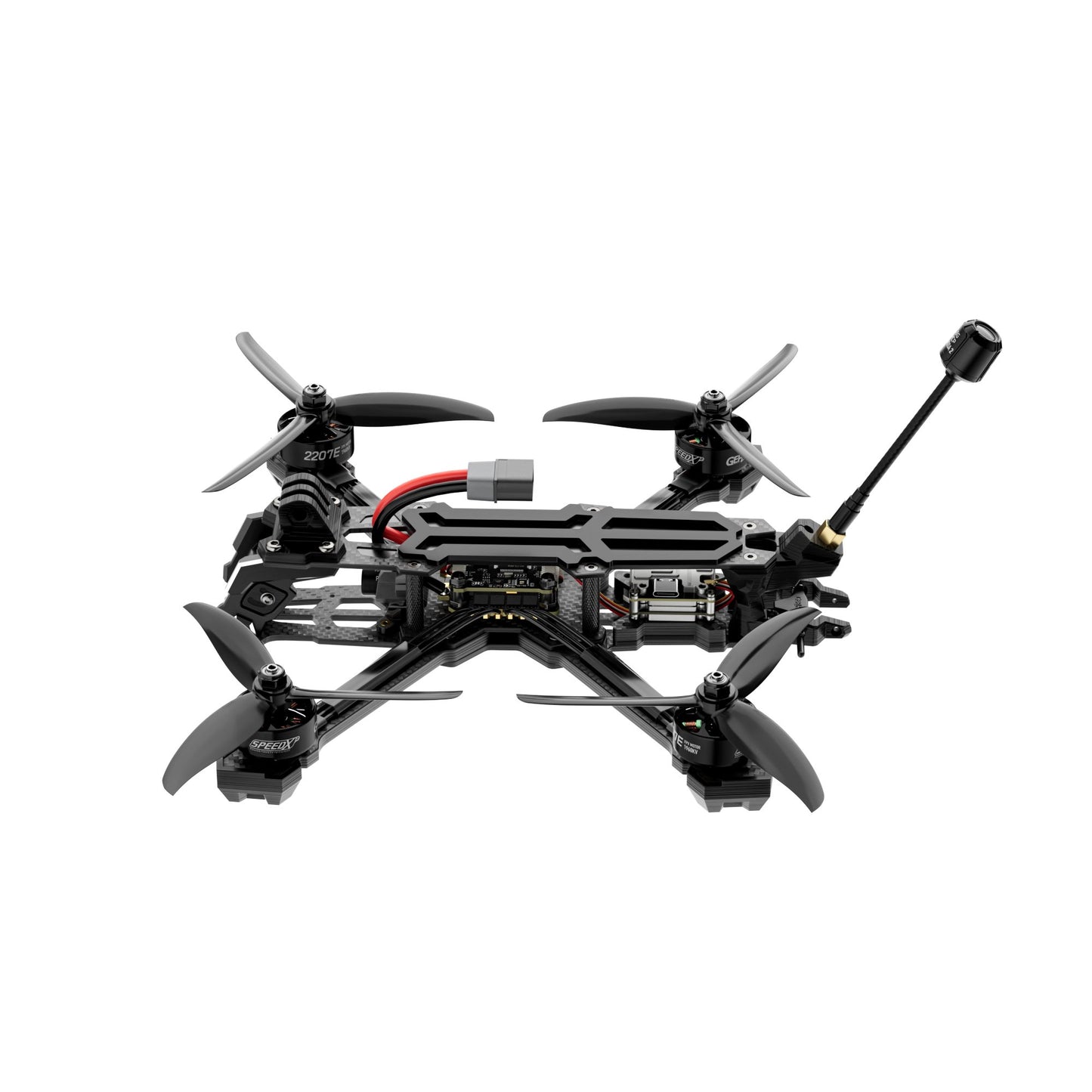

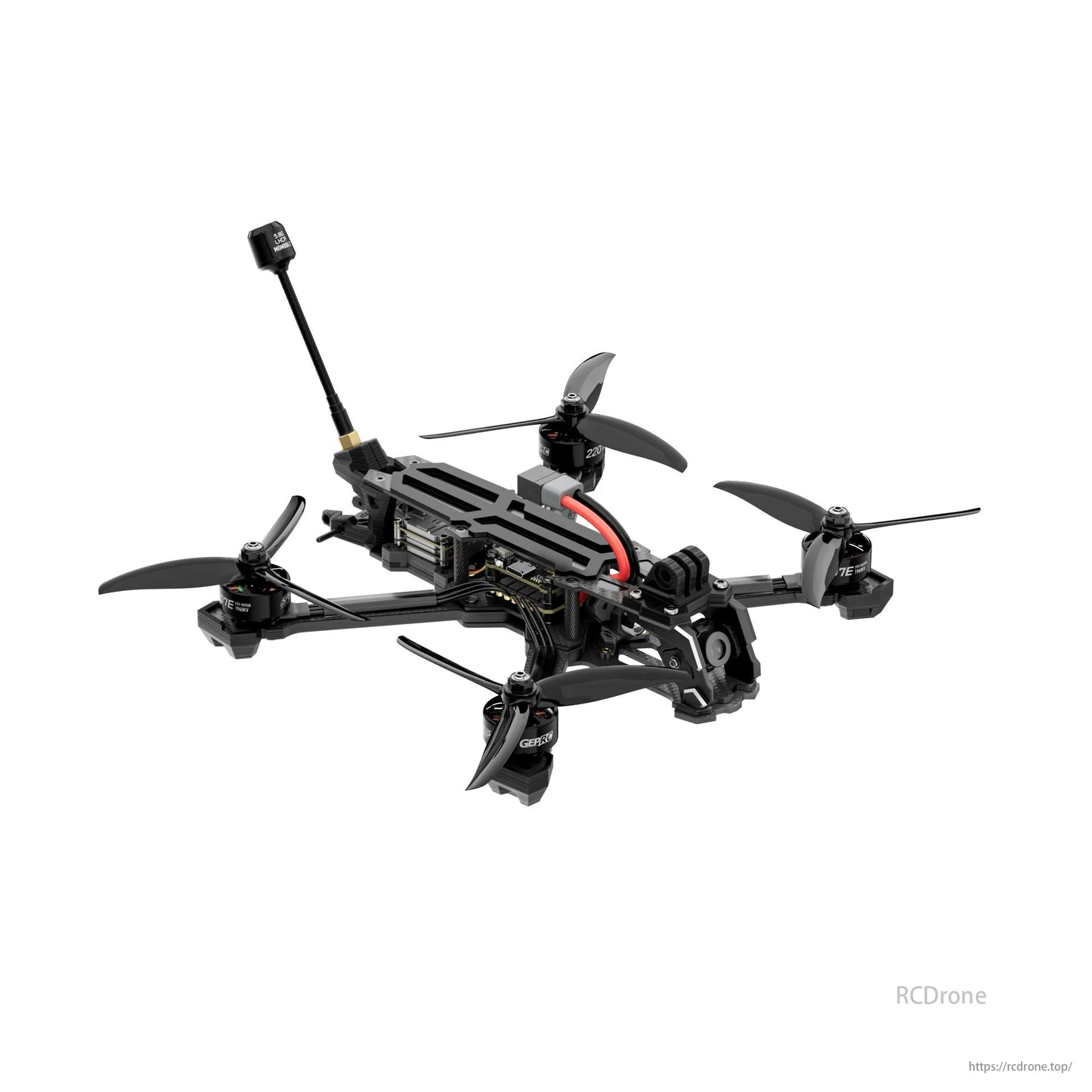

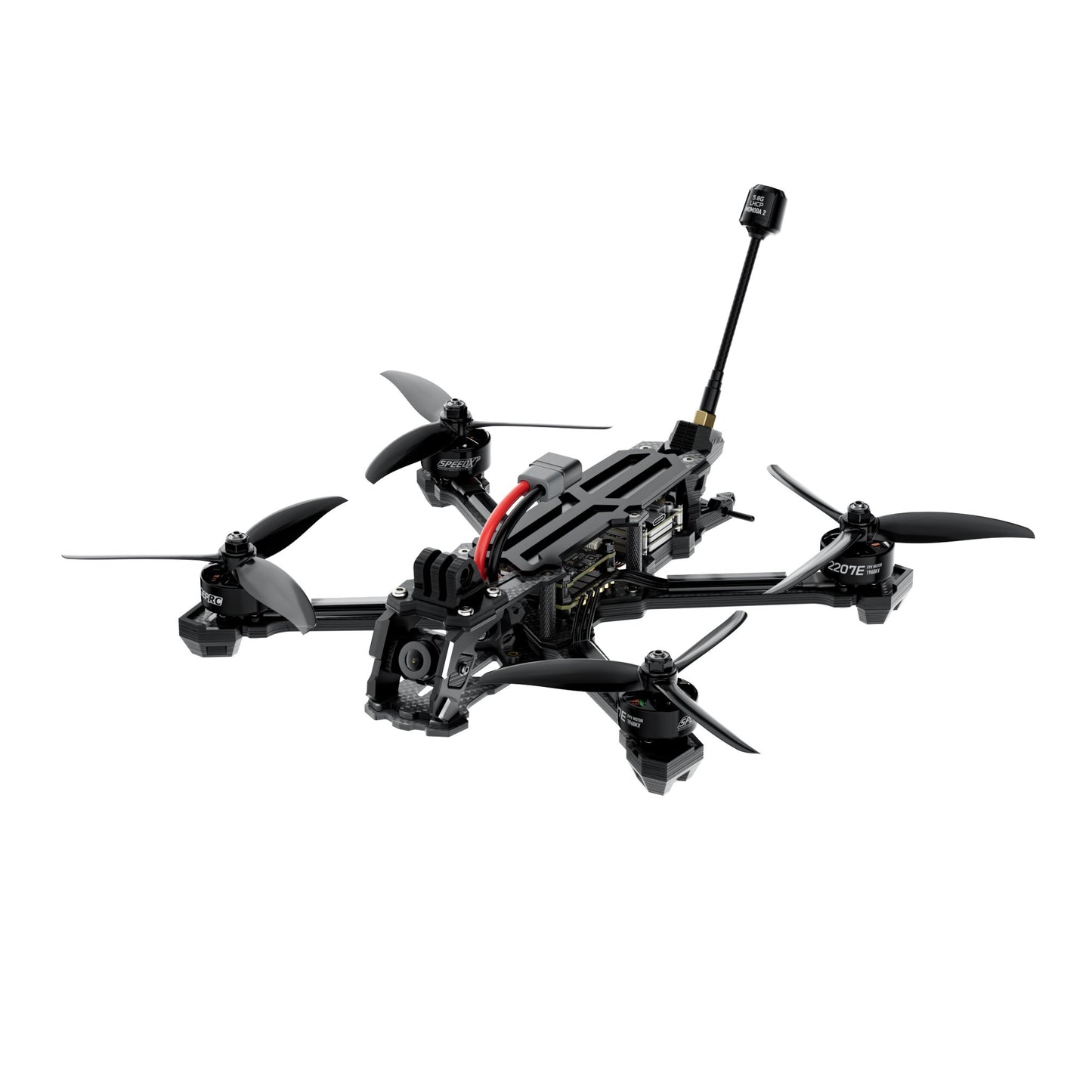

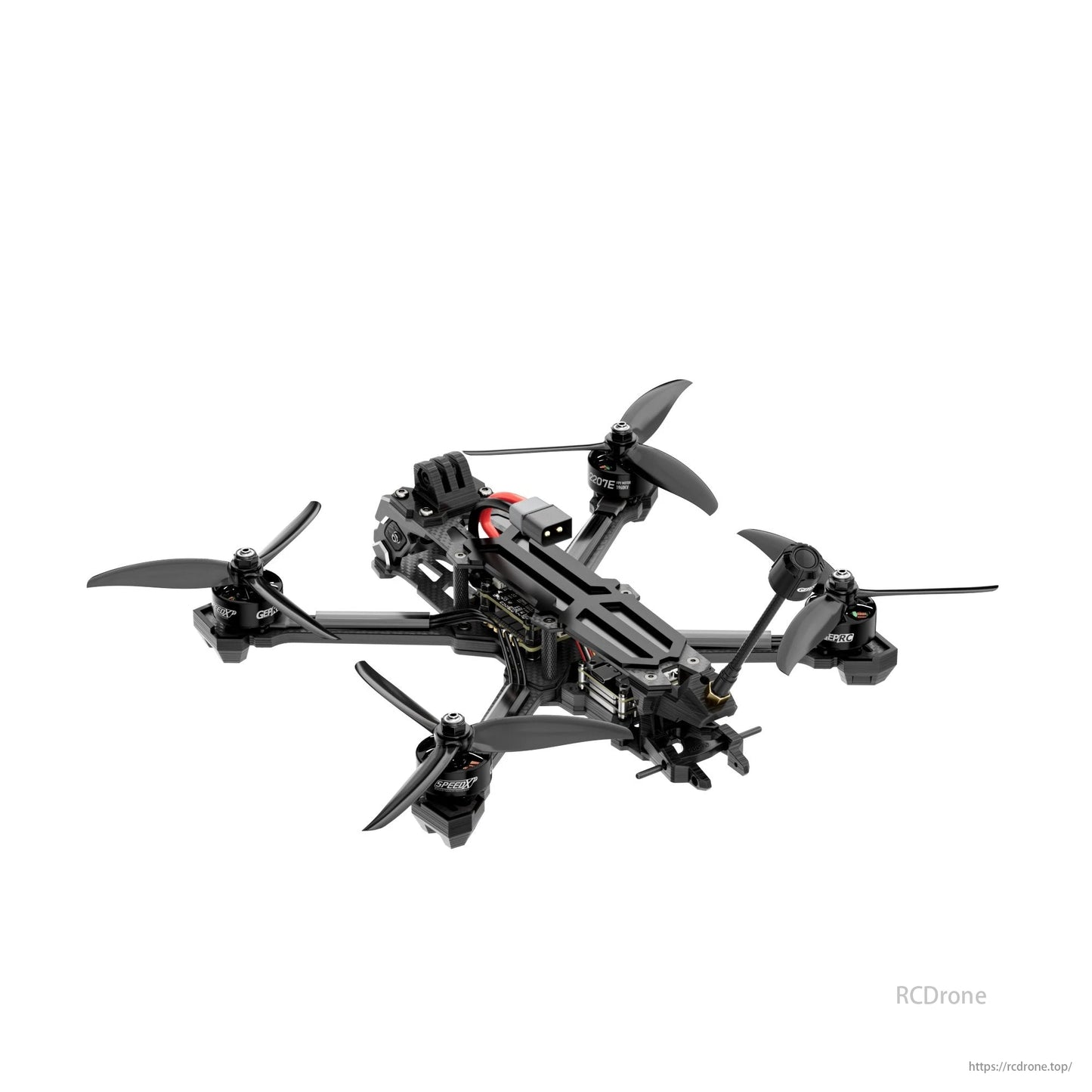

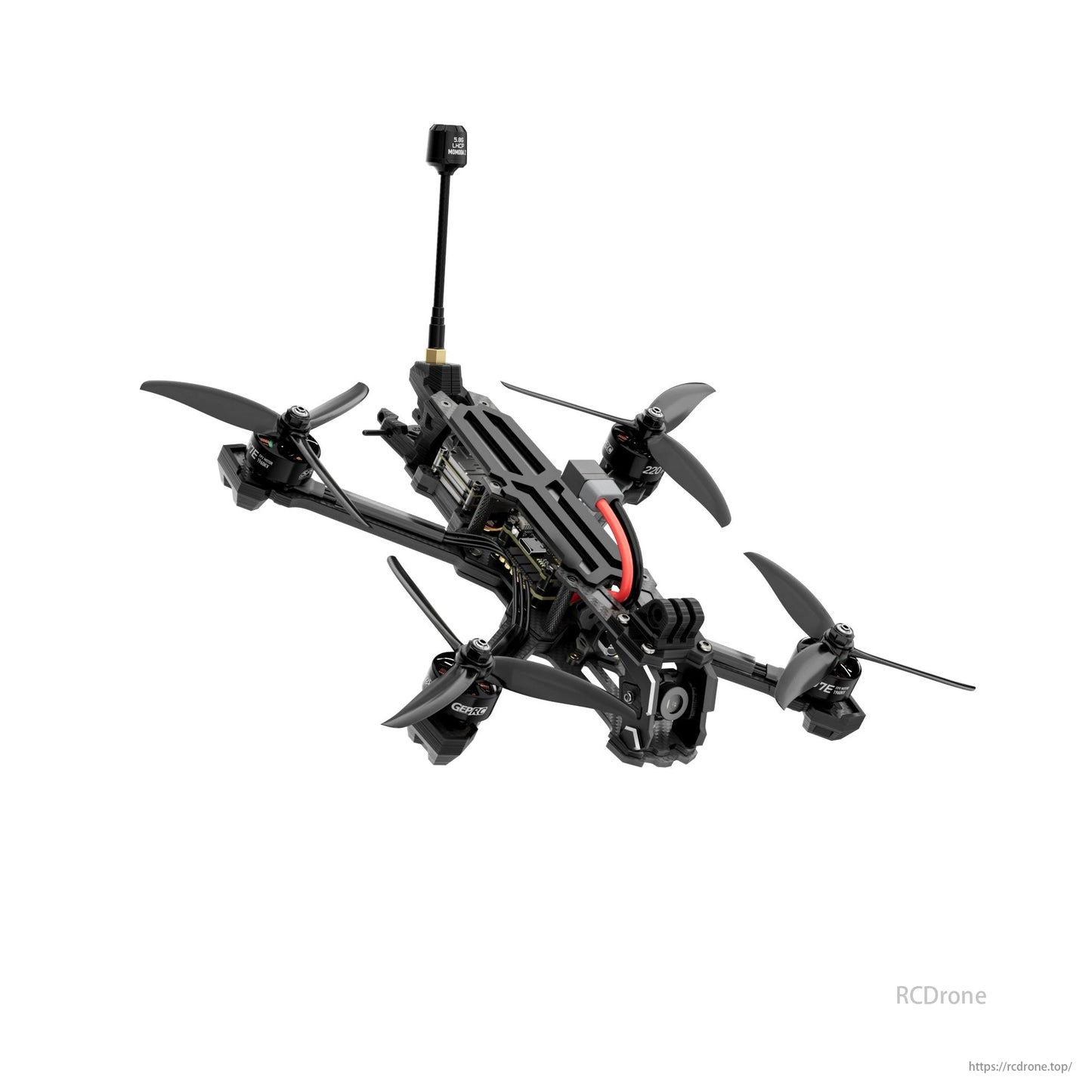

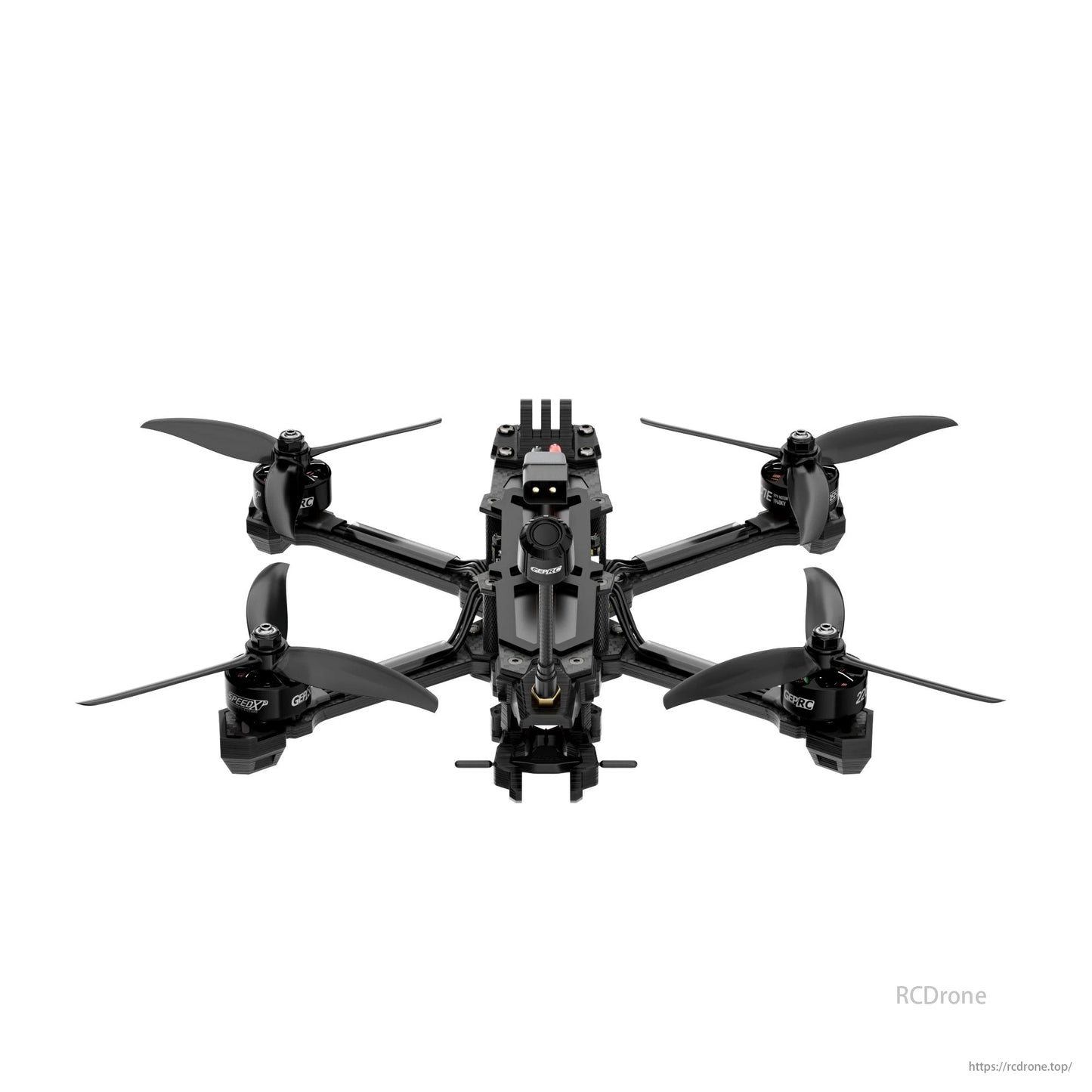

The Vapor-X is a robust and agile FPV designed for freestyle flying. The name “Vapor-X” is inspired by the pursuit of freestyle flying and the distinctive wide X-shaped design.

It features the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance. The CNC aluminum alloy camera protection side plates enhance both durability and aesthetics.

Available in 5-inch and 6-inch models, catering to various flying preferences, the Vapor-X offers an unparalleled flying experience for every pilot.

Feature

Equipped with the TAKER H60_BLS 60A 4IN1 ESC and the GEP-F722-HD v2 FC, ensuring exceptionally smooth flight performance.
Paired with GEPRC SPEEDX2 series motors to deliver robust power for freestyle flying.
The CNC aluminum alloy camera protection side plates enhance durability and aesthetics.
The front lens protection design provides reassuring protection for flying.
The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.
Available in 5-inch and 6-inch models, catering to various flying preferences.

Specifications

Model: Vapor-X5 WTFPV Quadcopter
Frame: GEP-Vapor-X5 frame
Wheelbase: 230 mm
Top Plate: 2.0 mm
Middle Plate: 2.0 mm
Bottom Plate：2.5 mm
Arm Thickness：5.0 mm
FC: GEP-F722-HD v2
MCU: STM32F722
Gyro: ICM42688-P(SPI)
Barometer: BMP280
OSD: Betaflight OSD w/AT7456E
ESC: TAKER H60_BLS 60A 4IN1 ESC
VTX: /
Camera: /y
Antenna: /
Connector: XT60
Optional GPS: GEP-M10 GPS
5-inch Motor: GEPRC SPEEDX2 2207E 1960 KV
5-inch Propeller: GEMFAN 5136
Vapor-X5 Analog PNP Version Weight: 380g±5g
Receiver: PNP/GEPRC ELRS24/TBS Nano RX
Recommended Battery: 6S LiPo 1550mAh – 2200mAh
Flight Time: 14-19 min

Includes

1 x Vapor-X5 WTFPV Quadcopter

2 x GEMFAN 5136

2 x Battery anti-slip pads

1 x Spare screw pack

2 x M20*250mm battery straps

1 x L-shaped screwdriver 1.5mm

1 x L-shaped screwdriver 2.0mm

1 x GoPro mount

Details

GEPRC Vapor-X5 WTFPV Series: Customizable 6S F722 60A 230mm wheelbase GPS drone for advanced aerial photography and racing.

GEPRC Vapor-X5 WTFPV, GEPRC Vapor-X5 drone features GEP-Vapor-X5 frame, SPEEDX2 motor, F722-HD v2 controller, optional GPS, 14-19 min flight time, and supports 6S LiPo; perfect for freestyle FPV.

GEPRC Vapor-X5 drone with GEP-Vapor-X5 frame, 14-19 min flight time, SPEEDX2 motor, F722-HD v2 controller, optional GPS, ESCs, connectors, propellers; supports 6S LiPo batteries. Ideal for freestyle FPV.

The GEPRC Vapor-X5 WTFPV drone features a DC structure, 60A ESC, V2 FC, E-series motors, aluminum panels, and a lens guard, available in 5-inch or 6-inch models for stable flight and shooting.

GEPRC Vapor-X5 WTFPV drone has a DC structure, TAKER H60_BLS 60A ESC, GEP-F722-HD V2 FC, SPEEDX2 E-series motors, CNC aluminum panels, and a front lens guard. Available in 5-inch or 6-inch models for stable flight and shooting.

GEPRC Vapor-X5 WTFPV, 7075-T6 aluminum ensures stability and impact resistance for FPV drones.

7075-T6 Aerospace-Grade Aluminum for exceptional stability and impact resistance in FPV drone.

GEPRC Vapor-X5 WTFPV drone offers advanced features for smooth flights and thrilling experiences.

GEPRC Vapor-X5 WTFPV drone with advanced setup for smooth flights and ultimate thrills.

GEPRC Vapor-X5 WTFPV, A drone featuring the M10 chip and optional GPS module for reliable emergency rescue, marked "ANTENNA" with a "THIS SIDE UP" indicator.

A drone with an optional GPS module features the M10 chip for enhanced emergency rescue reliability. The unit is labeled "ANTENNA" with a "THIS SIDE UP" indicator.

The GEPRC Vapor-X5 WTFPV drone comes in three versions—TBSNanoRX, ELRS2.4, and PNP—optimized for signal strength, speed, and cost-effectiveness.

GEPRC Vapor-X5 WTFPV drone offers three versions: TBSNanoRX, ELRS2.4, and PNP, each designed for signal strength, speed, and cost-effectiveness.

GEPRC Vapor-X5 WTFPV, Two drones, X5 and D5-inch, vary in wheelbase and width but share a 59mm height.

Two drones: X5-inch (219mm wheelbase, 212mm width) and D5-inch (210mm wheelbase, 224.4mm width). Both have a height of 59mm.

GEPRC Vapor-X5 WTFPV, The increased width of the 5mm carbon fiber arms enhances frame aesthetics and strength.

GEPRC Vapor-X5 WTFPV, GEP Vapor-X5 WTFPV Quadcopter with specifications and components for a comprehensive aerial photography and videography system.

GEPRC Vapor-X5 WTFPV, Increased width of 5mm carbon fiber arms improves frame aesthetics and strength.

GEPRC Vapor-X5 WTFPV, A drone features an H60_BLS 60A 4IN1 ESC and GEP-F722-HD v2 FC for exceptional flight performance.

GEPRC Vapor-X5 WTFPV, The product list includes the Vapor WTFPV Quad drone, Gemfan propellers, tools, a Naked GoPro, accessories, and a stainless ejector pin.

Product list: Vapor WTFPV Quad drone, Gemfan propellers (4CCW + 4CW), battery straps, M8 wrench, hex screwdriver kit, Naked GoPro, keychain, silicone fastener pair, camera fastener pair, and stainless ejector pin included.

GEPRC Vapor-X5 WTFPV, The GEPRC Vapor-X5 drone comes with spare screws that differ in size, material, and type (round head, countersunk, hex socket, flanged), with quantities ranging from 1 to 6.

Spare screws included with the GEPRC Vapor-X5 drone vary in size, material, and type—round head, countersunk, hex socket, flanged—with quantities from 1 to 6.
