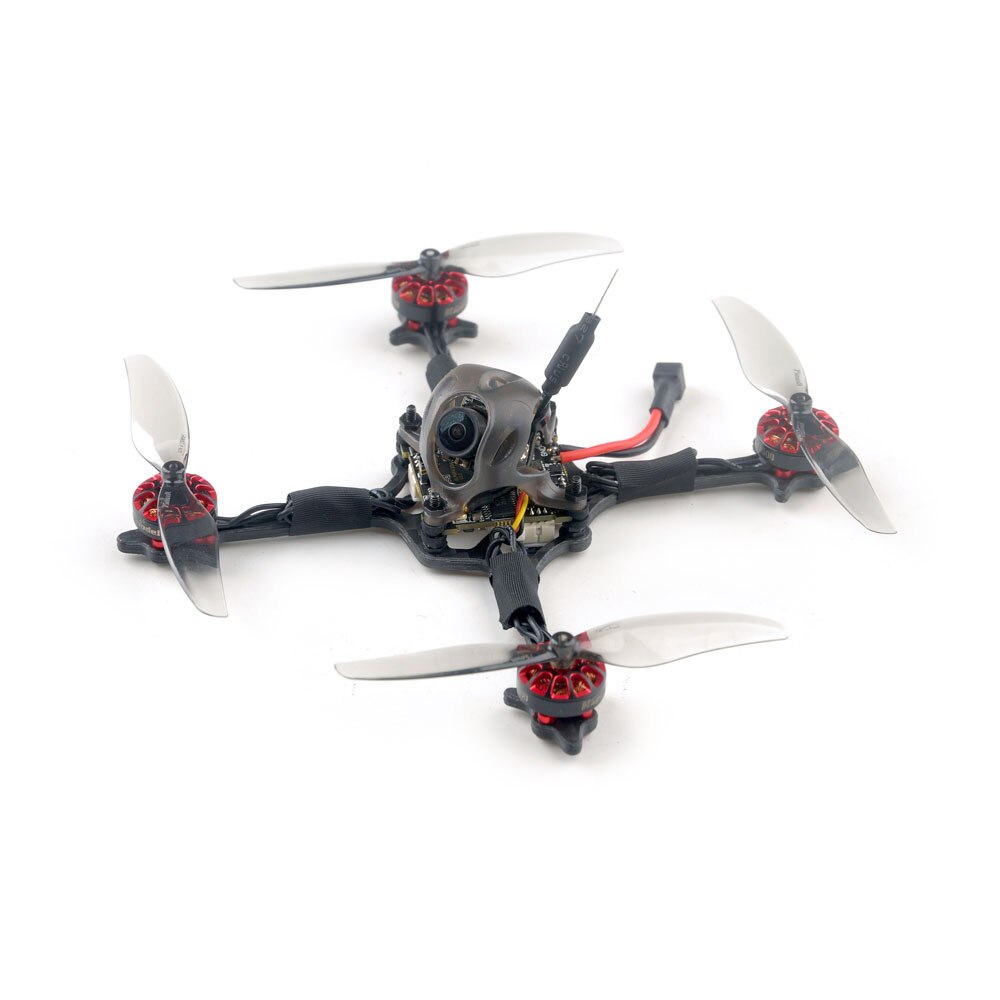

HappyModel Crux3 - 1S ELRS 3inch FPV Toothpick Drone F4 2G4 Built-in SPI ELRS 2.4G OPENVTX 400mW Caddx Ant EX1202.5 KV11500 1S

HappyModel Crux3 - 1S ELRS 3inch FPV Toothpick Drone F4 2G4 Built-in SPI ELRS 2.4G OPENVTX 400mW Caddx Ant EX1202.5 KV11500 1S

HappyModel

Regular price $134.27 USD
Regular price $187.98 USD Sale price $134.27 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

59 orders in last 30 days

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

HappyModel Crux3 SPECIFICATIONS

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: other

Tool Supplies: other

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Receivers

Origin: Mainland China

Model Number: Crux3 1S ELRS

Material: Composite Material

Four-wheel Drive Attributes: other

For Vehicle Type: Helicopters

Brand Name: happymodel






Flight test video


Features:

40gram 1s brushless Toothpick drone

AIO Flight controller with ELRS Receiver and 5.8G VTX

CADDX ANT Camera

New 1202.5 KV11500 brushless motor

Recommend to use 1s 450mah/650mah/660mah/720mah battery

Compatible with CaddxFPV Peanut and Insta360 GO2

Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery




Specifications:
Brand Name: Happymodel
Item Name: Crux3 1S ELRS

Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)
Weight: 40g(without battery)




Package includes:

Item Name

Qty

Crux3 Frame and canopy

1

ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver

1

Happymodel EX1202.5 KV11500 brushless motor

4

Gemfan 75mm bi-blade Propellers(4cw+4ccw)

1

Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera

1

5.8G 25mw~200mw 40ch vtx (Flight controller built-in)

1

Screw Driver

1

Propeller disassemble tool

1

3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut



Happymodel Handbag

1







Motor

Mode: EX1202.5 KV11500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):1S



Propellers

Gemfan 75mm

Center Thickness:5mm

Prop Diameter:75mm

Center Hole diameter:1.5mm

Pitch:0.9in


Flight controller

MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI ExpressLRS 2.4GHz receiver

Built-in 5V 1A BECFlight controller

firmware target: CRAZYBEEF4SX1280


Onboard 4in1 ESC

MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV

Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT300



Onboard SPI ExpressLRS 2.4GHz Receiver

Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz

Antenna : SMD antenna
Telemetry output Power: <12dBm

Receiver protocol to flight controller:  CRSF

Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest


Onboard 5.8g VTX

Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band

Smartaudio ready


Caddx ANT 1200tvl camera

Image Sensor: 1/3" CMOS Sensor

Horizontal Resolution: 1200 TVL

TV System: NTSC or PAL

IMAGE: 16:9 or 4:3

Synchronization: Internal

Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000

S/N Ratio : >52dB (AGC OFF)

Video Output: CVBS

Lens: 1.8mm

Min. Illumination: 0.001Lux@F1.2

Auto Gain Control: YES

BLC: YES

WDR: Global WDR

DNR: 3D DNR

Dimensions: 14*14mm(with bracket to 19*19mm)

Wide Power Input: DC 3.7-18V

Work Temperature: -20℃~+60℃

Weight: 2g (N.W.)
