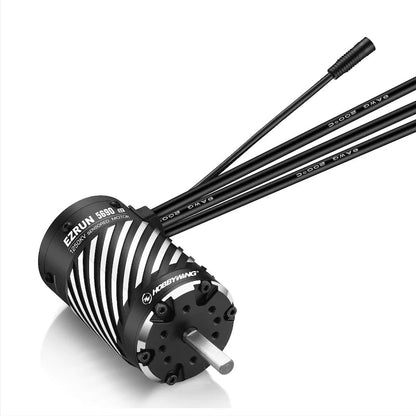

• Hobbywing EZRUN 5690 1250KV sensored brushless RC motor with black can, cooling vents, and three wires

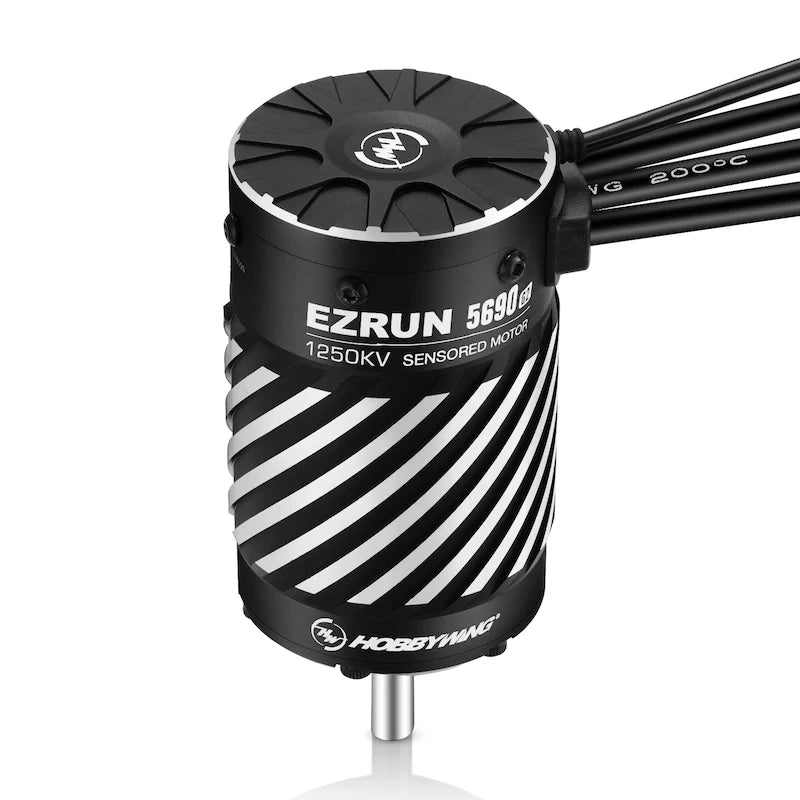

  • Hobbywing EZRUN 5690 G2 1250KV sensored brushless RC motor with black striped can and attached wires

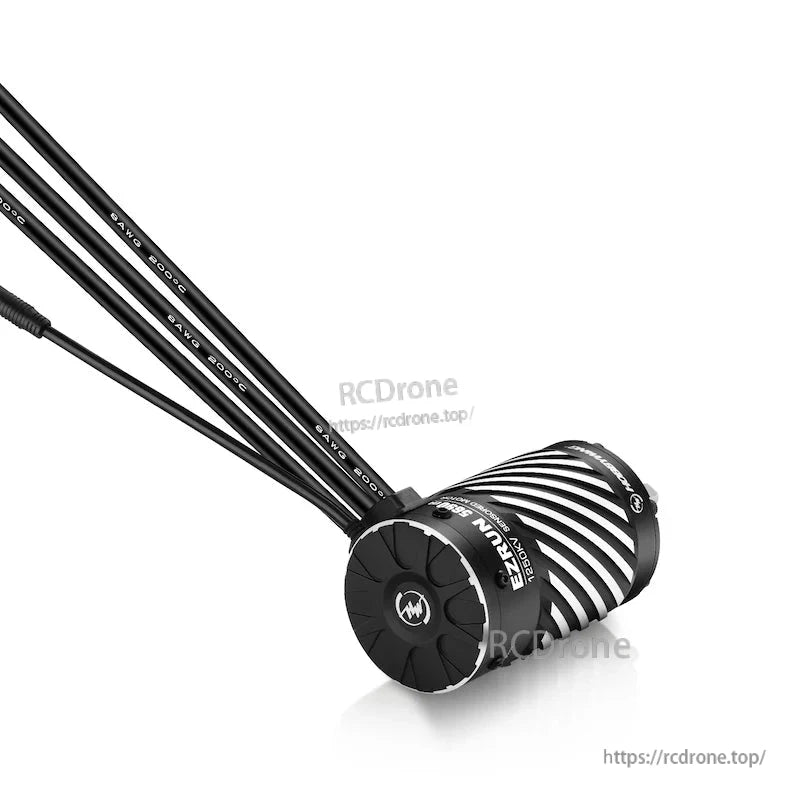

  • Hobbywing EZRUN brushless RC motor with black and white striped can and three heavy-gauge motor wires
1 4

Hobbywing EZRUN MAX 5690SD G2 1250KV Sensored Brushless Motor, 3-8S LiPo, 1/6 1/5 RC

Hobbywing EZRUN MAX 5690SD G2 1250KV Sensored Brushless Motor, 3-8S LiPo, 1/6 1/5 RC

Hobbywing

$189.00 USD
$189.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Options
  • PayPal
  • Visa
  • Mastercard
  • American Express
  • JCB
  • Discover
  • Diners Club
  • Google Pay
  • Apple Pay
View full details

Overview

The Hobbywing EZRUN MAX 5690SD G2 is a sensored brushless motor designed for uber-sized 1/6 and 1/5 RC vehicles. This G2 version upgrades to a sensored system with a new sensor wire connection for improved throttle linearity and stable sensor operation, and supports 3-8S LiPo setups.

Key Features

  • Sensored system upgrade with a new sensor wire connection for improved protection and all-weather operation capability
  • Independent high-precision encoder outputs a pure rotor position signal to reduce sensor signal interference and maintain stable sensored operation
  • Compatible with Hobbywing EZRUN MAX5 G2 ESC; the ESC can automatically recognize the motor and enable full sensor mode, plus motor overheat protection (when supported by the ESC)
  • Motor casing uses a spiral groove heat dissipation structure
  • Modular structure design for easier daily cleaning and maintenance
  • Protection level: IP67 (splash-proof, water-proof, dust-proof under normal use); do not soak in water for a long time

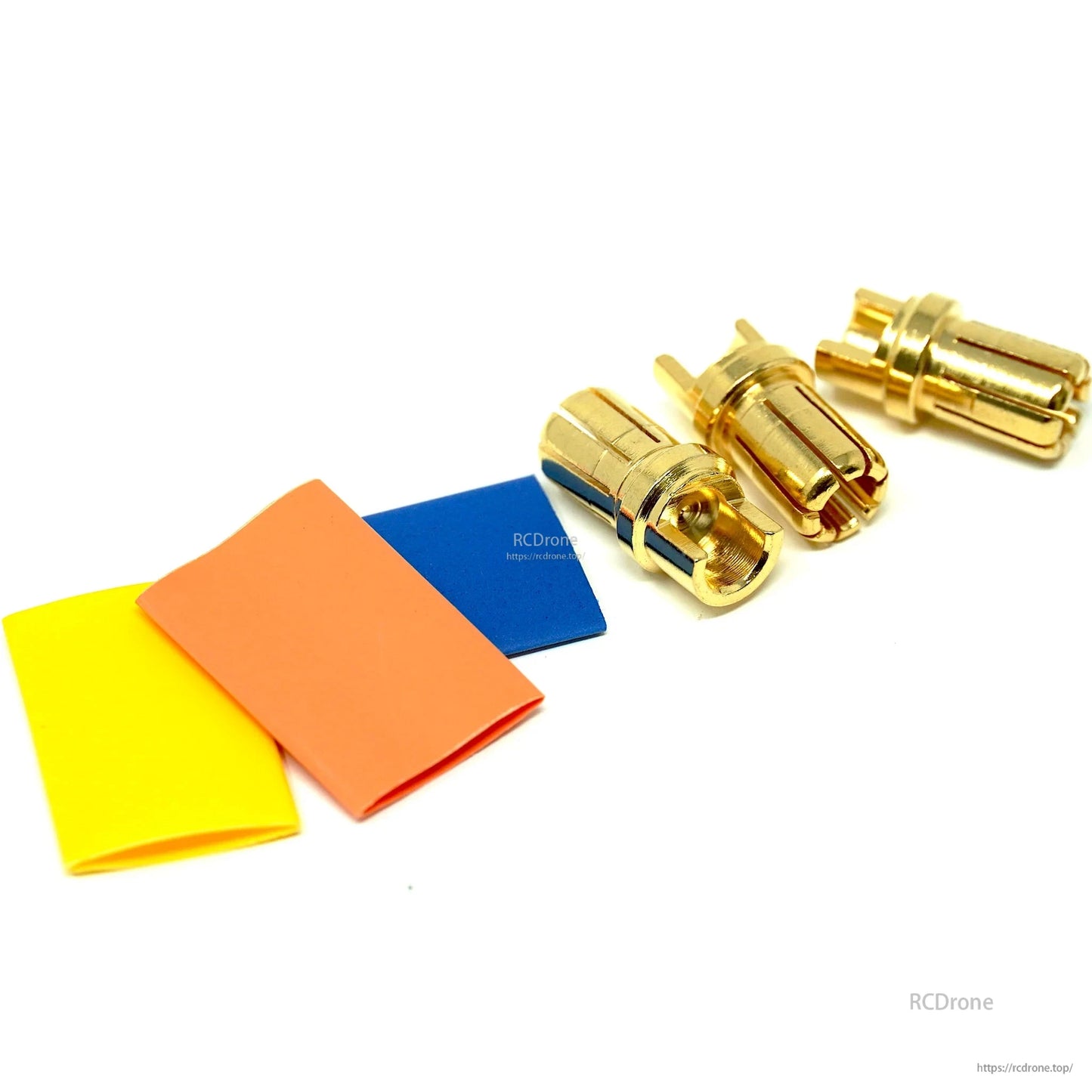

  • Motor comes with 6.5mm plugs pre-installed on the motor power wires; additional 8.0mm motor plugs are included for ESCs that use 8mm motor plugs (e.g., Max5 G2)
  • Note: 5690 supports up to 43000 RPM

For customer service and order support, contact https://rcdrone.top/ or email support@rcdrone.top.

Specifications

Product name EZRUN 5690SD G2-1250KV
Product number 30402350
Scale 1/5, 1/6
Brushed/Brushless BL
Sensored/Sensorless SD
Poles 4
KV rating 1250KV
LiPo cells 3-8S LIPO
No-load current 6.6A
O.D. 56 mm
Length 90.2 mm
Shaft diameter 8 mm
Connectors 6.5 mm (male)
Wire Black 8AWG 250 mm x 3
Weight 867 g
Front bearing D22*D8*T7
Rear bearing D19*D8*T6
Maximum speed (note) Up to 43000 RPM
Protection level IP67
Diagram dimensions/markings phi 56 (phi 2.2"); 90.2 +/- 0.3 (3.55"); phi 53.5 (phi 2.1"); 30 +/- 0.5; 27; 7; phi 8 (phi 1/3"); phi 30 (phi 1.2"); 8-M4; 3-phi 6.5; C.C.W; 60 degrees; 30 degrees
Recommended ESC EZRUN MAX6 G2; EZRUN MAX5 HV G2 (8 mm motor connectors required)

Applications

  • 1/6 short course truck, truck
  • 1/5 light-load truck
  • Examples: Losi Super Baja Rey; ARRMA Kraton 8S; ARRMA Outcast 8S

Manuals

Manual download

TryOut-n' Trade Program Available

Details

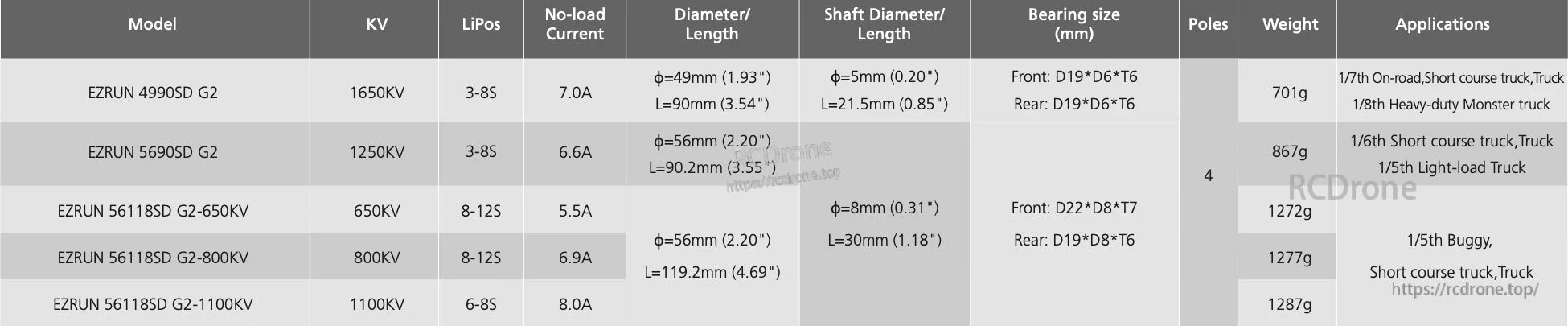

Hobbywing EZRUN 5690SD G2 motor spec table showing 1250KV, 3–8S LiPo, 56mm x 90.2mm, 867g

EZRUN 5690SD G2 is rated at 1250KV for 3–8S LiPo setups and lists a 56mm diameter, 90.2mm length, and 867g weight for fitment planning.

Hobbywing EZRUN 5690 SD G2 1250KV sensored brushless RC motor with spiral-groove heatsink casing

The EZRUN 5690 SD G2 1250KV sensored motor features a spiral-groove casing designed for heat dissipation and a clean, durable look.

Hobbywing EZRUN 5690 sensored brushless motor with sensor cable and three bullet-connector phase leads

A new sensor wire interface and IP67-rated protection help the motor handle splashes, dust, and wet running conditions.

Hobbywing EZRUN MAX 5690SD G2 sensored brushless motor graphic with 3-phase wires and 43,000 RPM note

The EZRUN MAX 5690SD G2 motor is built with an aluminum CNC can, quality bearings, and a 43,000 RPM support note for high-RPM setups.

Promotional graphic for an 8S sensored RC motor, with an off-road buggy drifting through dirt

An 8S-capable sensored motor option is designed for large-scale RC vehicles that need controlled throttle response.

Graphic stating the Hobbywing EZRUN MAX 5690SD G2 motor supports up to 8S LiPo for RC vehicles

The EZRUN MAX 5690SD G2 sensored brushless motor supports up to 8S LiPo power for high-voltage RC setups.

Hobbywing EZRUN MAX 5690SD G2 sensored brushless motor details showing new sensor connector and IP67 rating

The EZRUN MAX 5690SD G2 motor features a new sensor connection and an overall IP67 protection rating for splash-, water-, and dust-proof use.

Exploded view of Hobbywing EZRUN MAX 5690SD G2 brushless motor showing modular front end, stator, rotor, and rear end sets

The modular front end, stator, rotor, and rear end sections make cleaning and routine maintenance more straightforward.

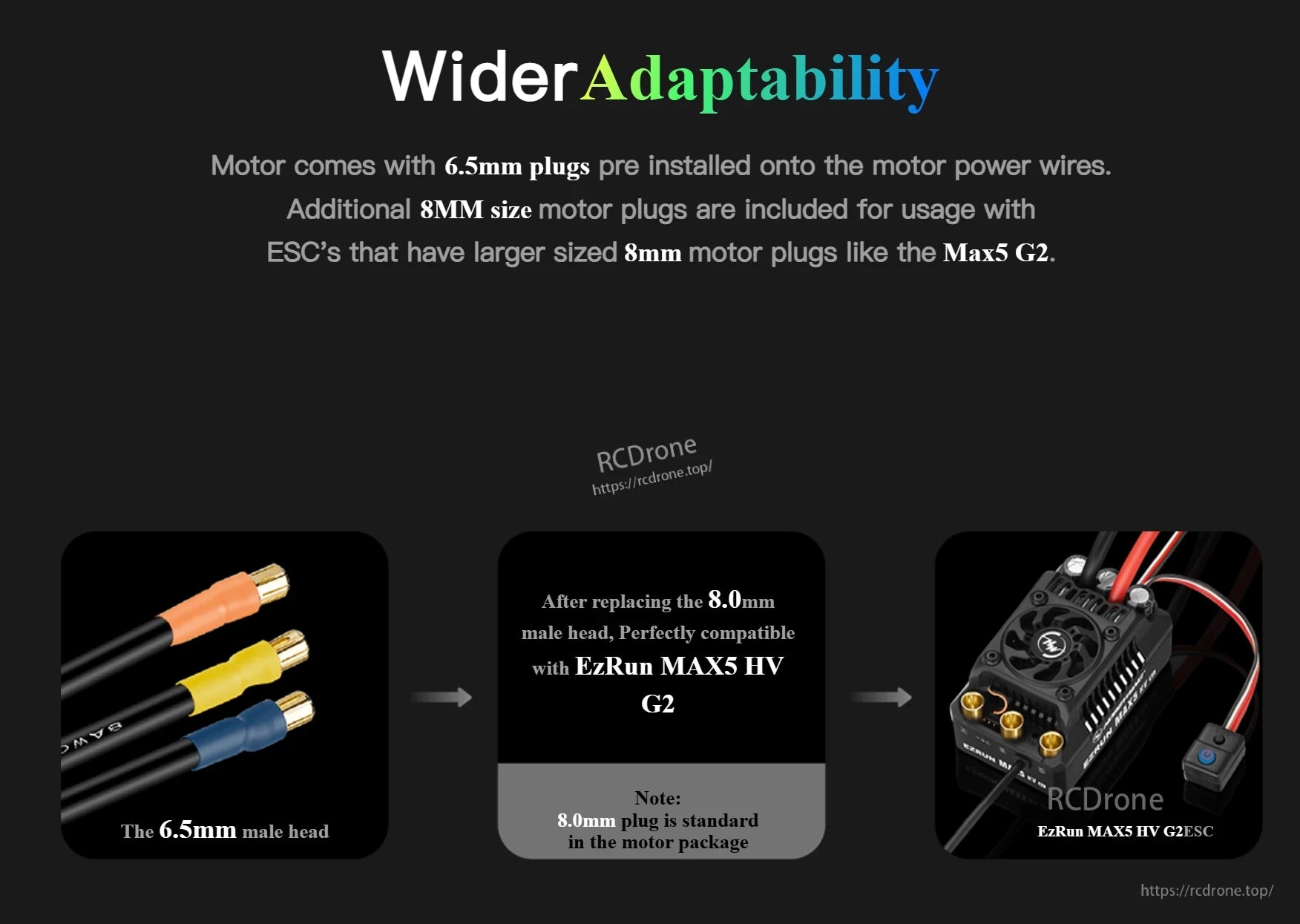

Infographic showing 6.5mm motor bullet plugs and included 8.0mm plugs for compatibility with EzRun MAX5 HV G2 ESCs

The EZRUN MAX 5690SD G2 motor comes with 6.5mm bullet plugs pre-installed and includes 8.0mm motor plugs for ESCs that use larger connectors.
