Overview

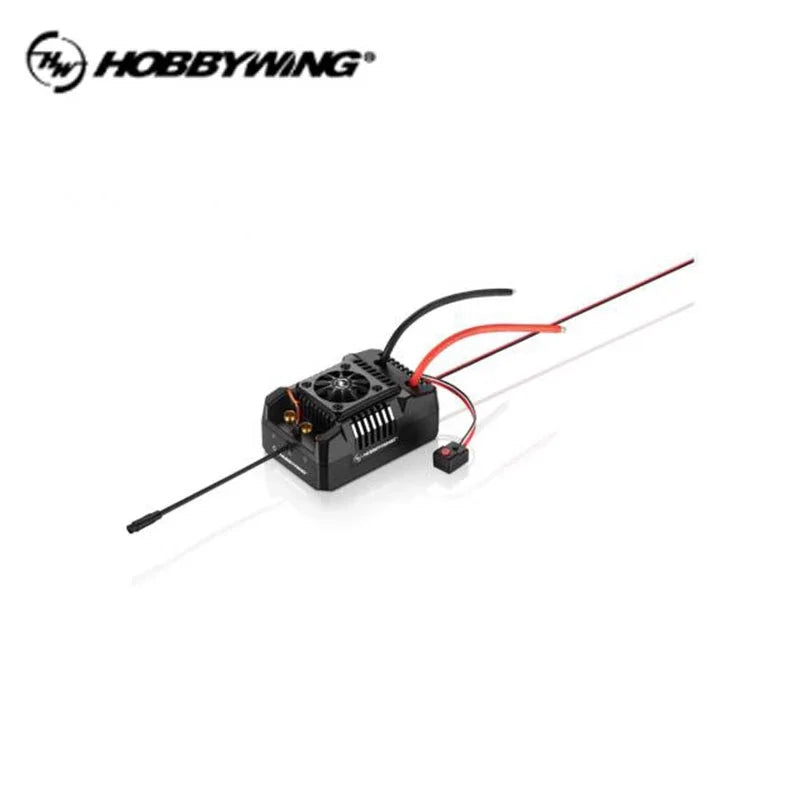

The Hobbywing EZRUN MAX4 HV is a high-voltage, waterproof brushless ESC for 1/5 scale RC cars and off-road trucks running 6–12S LiPo. It supports sensored or sensorless brushless motors, provides strong low-speed linearity in full-sensored mode, and includes an adjustable switch-mode BEC (6V / 7.4V / 8.4V).
Key Features
- IP67 waterproof system for all-weather track conditions (muddy, sandy, icy, snowy, and wet environments).
- Cont./peak current: 300A / 2000A.
- 6–12S LiPo input for high-voltage 1/5 setups.
- Switch-mode BEC output: 6V / 7.4V / 8.4V adjustable; 10A continuous; built-in BEC maximum output up to 25A.
- Capacitor thermal protection design.
- Built-in spark-proof circuit to help reduce arcing and connector damage when connecting high-voltage battery packs (6–12S).
- Advanced and secured electronic switch; longer life: 50000 times; waterproof/dustproof/shockproof design.
- Programming / upgrading / data reading wirelessly (with Hobbywing OTA module and smartphone with HOBBYWING HW LINK App installed).
- Real-time data & datalogging function; note: Bluetooth transmission distance is not effective within the 5m radius.
- New sensored cable interface; standard wire interfaces supported.
Specifications
| Brand | Hobbywing |
| Product Name | EZRUN MAX4 HV |
| Model Number | EzRun Max 4 HV |
| Product Number | 30104002 |
| Scale | 1/5 |
| Brushed/Brushless | BL (Brushless) |
| Sensored/Sensorless | SD |
| Waterproof | WP (IP67) |
| Continuous/Peak Current | 300A / 2000A |
| Input Voltage | 6-12S LiPo |
| BEC Output | 6V / 7.4V / 8.4V adjustable; 10A continuous (switch-mode); built-in BEC maximum output up to 25A |
| Input Wires | Red-8AWG-200mm*1 / Black-8AWG-200mm*1 |
| Input Connectors | No |
| Output Connectors | 8.0mm Gold (female) |
| Fan Size | 50 x 50 x 15 mm |
| Fan Voltage Range | 6-8.4V |
| Fan Power | Powered by BEC |
| ESC Programming via SET Button on ESC | Not Supported |
| ESC Programming via LED Program Box | Supported |
| ESC Programming via LCD Program Box | Supported |
| ESC Programming via WiFi Module | Supported |
| ESC Programming via OTA Programmer | Supported |
| Program Port | FAN/Program Port |
| Firmware Upgrade | Supported |
| Size | 125mm x 85mm x 61.7mm |
| Weight | 775.4g |
Wire length note: All the wire length above is the original length, not the length you see from the outside.
Applications
- Motors: sensored brushless motors / sensorless brushless motors
- Vehicles: 1/5 off-road trucks (heavy loads)
- KV rating / T count: 12S LiPo: KV <= 600KV (70125 size motors)
What's Included
- 1 x Hobbywing EZRUN MAX4 HV ESC (1 pc)
For installation, wiring, and programming support, contact [email protected] or visit https://rcdrone.top/.
Details
Full specification overview for the EZRUN MAX4 HV, including 6–12S input, 300A continuous current, BEC settings, and physical dimensions.
Built for 1/5 scale power systems, the MAX4 HV combines high current output with IP67 waterproof protection and optional wireless setup and data features via the Hobbywing app.
