Holybro Kakute H7 v1.5 Flight Controller Stack with Tekko32 F4 4in1 50A / 65A ESC – DJI HD Ready, AM32, 8S Support

Overview

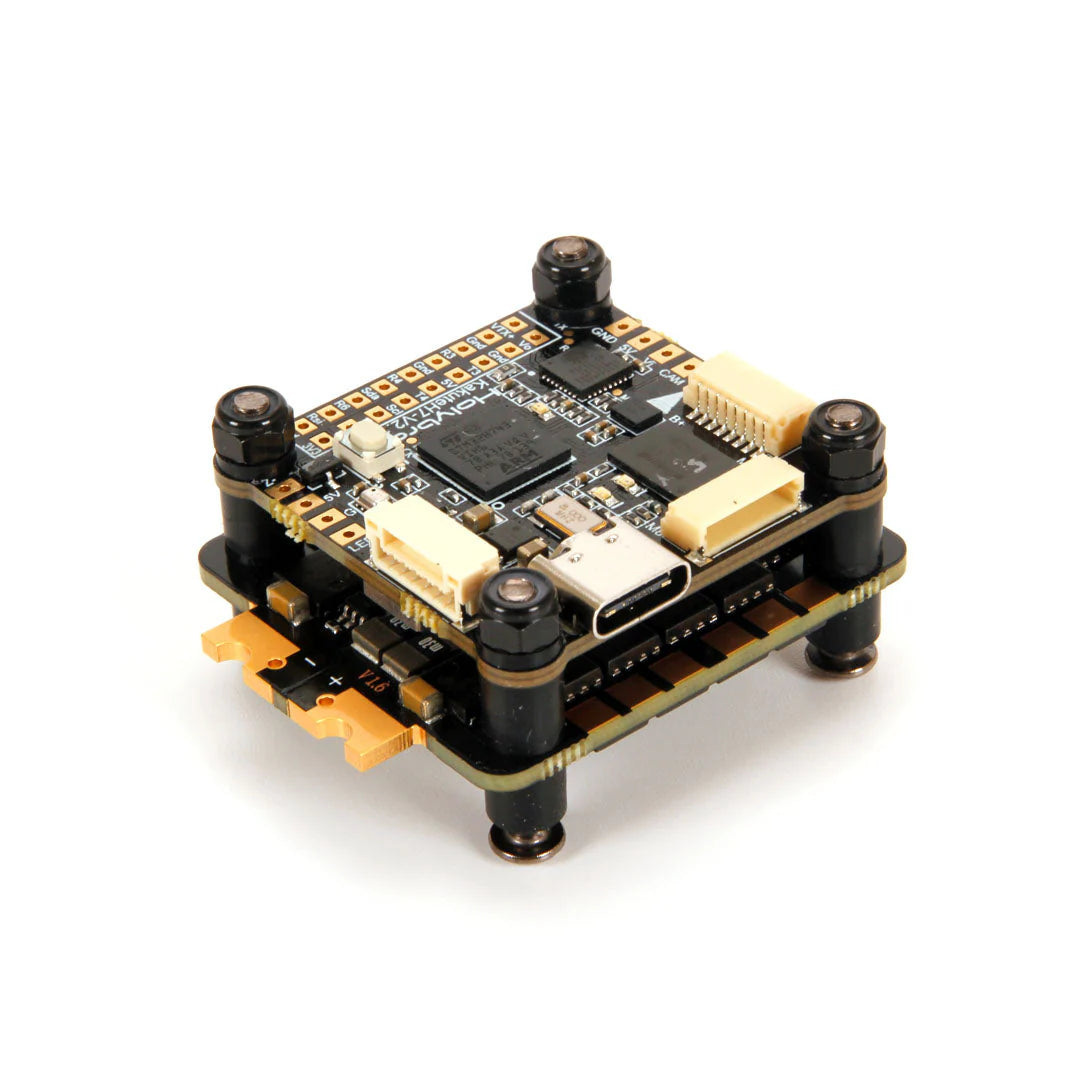

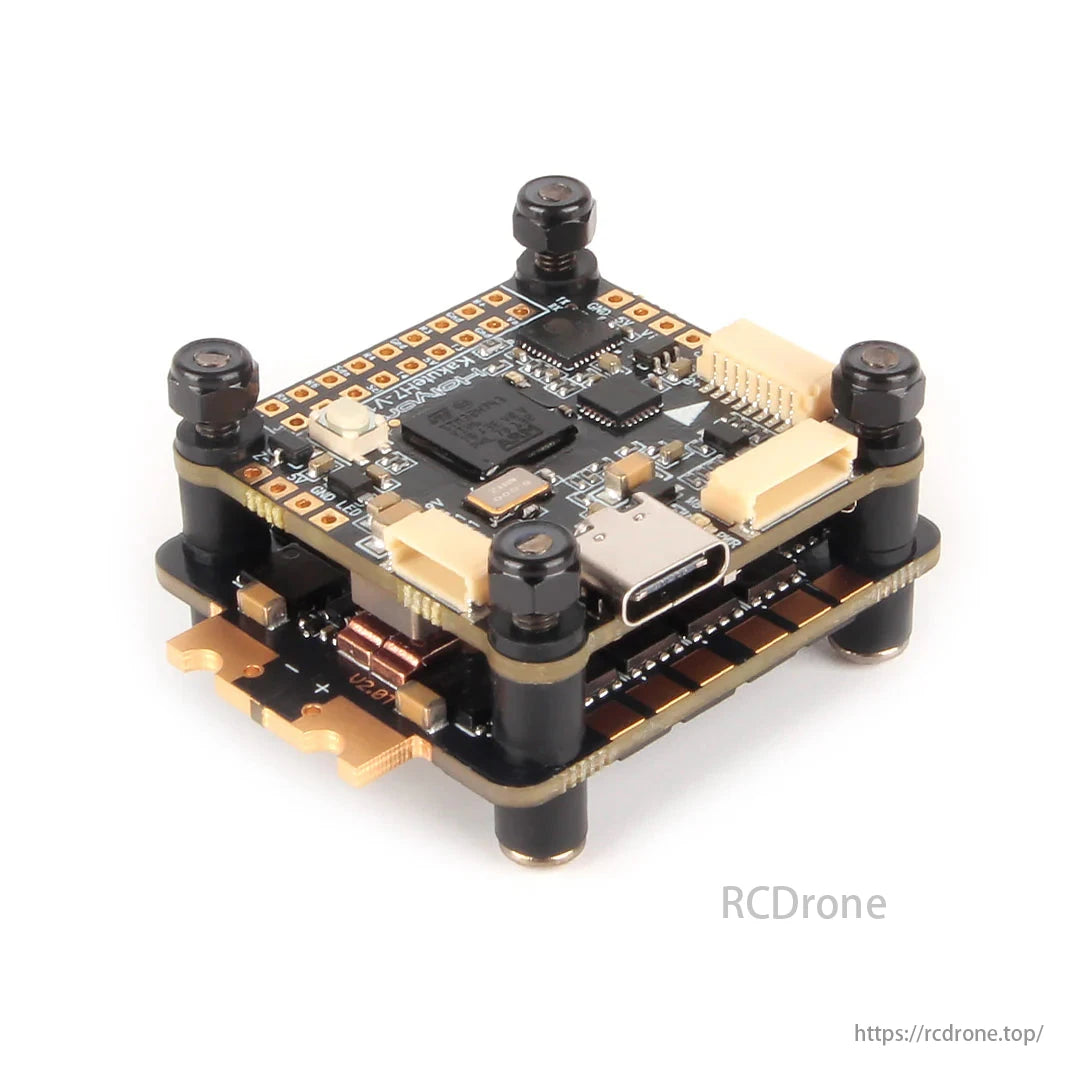

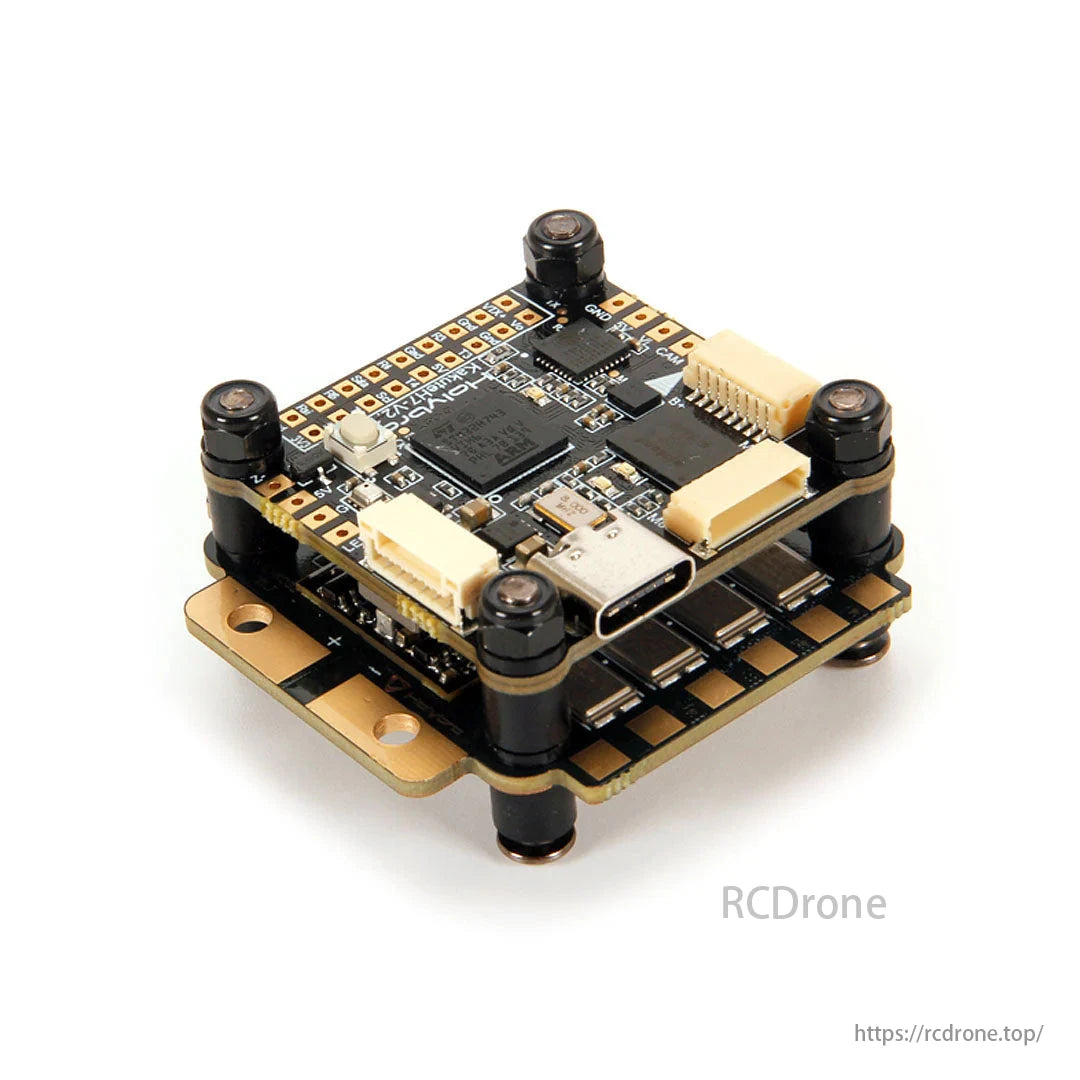

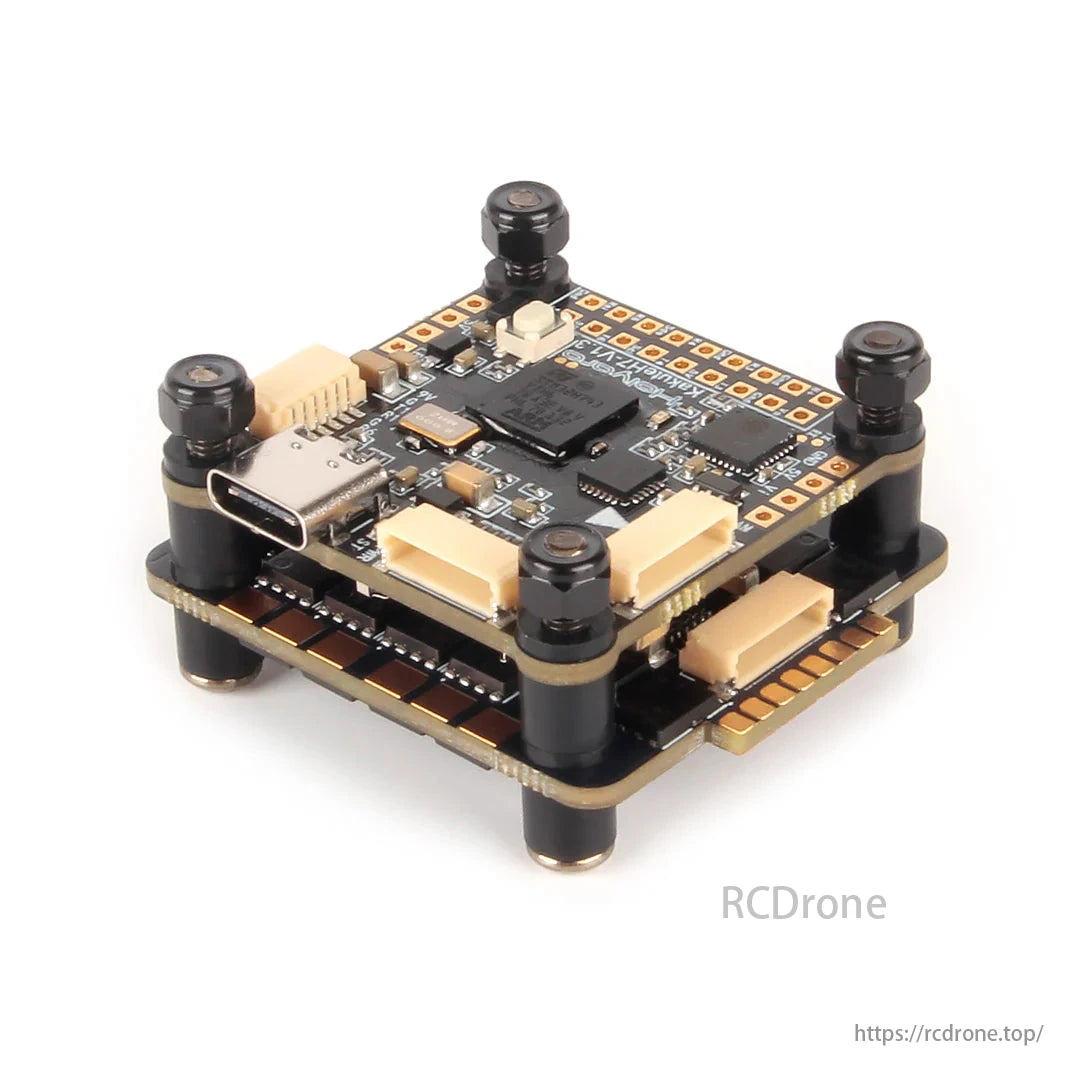

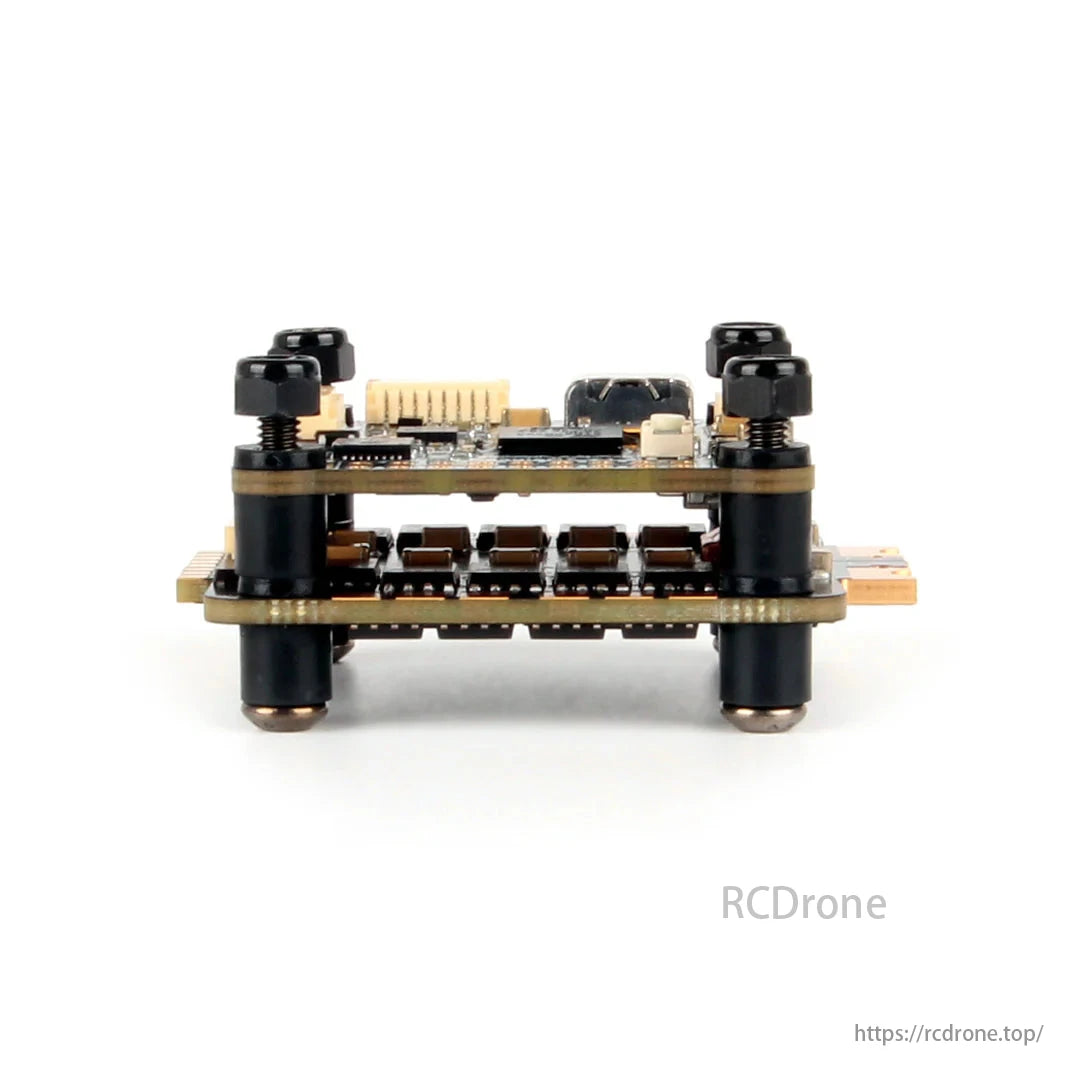

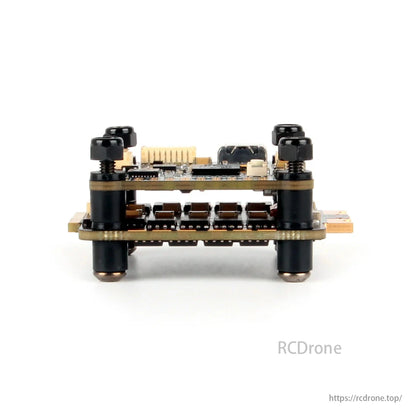

The Holybro Kakute H7 v1.5 Stack combines the advanced Kakute H7 v1.5 Flight Controller with your choice of Tekko32 F4 4in1 ESCs (50A or 65A Metal), offering exceptional performance, flexible connectivity, and reliable power delivery for both analog and digital FPV systems.

Now upgraded with USB-C, a dedicated JST-SH VTX port, and a robust 9V/3A BEC, the Kakute H7 v1.5 is fully compatible with DJI O3 and Caddx Vista digital video transmitters. The updated ICM-42688-P IMU replaces the retired MPU6000 and is supported from Betaflight v4.5.2+.

Bluetooth is built-in for seamless wireless Betaflight tuning using the SpeedyBee App (iOS & Android), and dual 8-pin ESC ports support up to x8 octocopter configurations with clean, plug-and-play wiring.

Flight Controller: Kakute H7 v1.5

ESC Options: Tekko32 F4 Series

Tekko32 F4 50A 4in1 ESC (AM32 Firmware)

• F4 MCU @150MHz

• Input: 4S–6S LiPo

• PWM Frequency: 16kHz – 96kHz

• AM32 open-source firmware

• Separate drive & control circuits to reduce EMI

• 30x30mm standard mounting

Tekko32 F4 Metal 65A 4in1 ESC (AM32 Firmware)

• F4 MCU @150MHz

• Input: 4S–6S LiPo

• PWM Frequency: 16kHz – 96kHz

• Metal-cased MOSFETs for superior heat dissipation

• Onboard 2068μF capacitors for enhanced noise filtering

• 3oz copper PCB for higher current handling

• Isolated drive/control design to minimize electrical interference

Key Features

• DJI HD Ready with native plug-and-play VTX port and 9V/3A BEC

• Wireless Configuration via built-in Bluetooth and SpeedyBee App

• Dual 4in1 ESC Ports for clean wiring and x8 motor compatibility

• Fully Open-Source Compatible with Betaflight, ArduPilot, and INAV

• Advanced Logging via full-sized MicroSD slot

• Supports Analog and Digital FPV systems

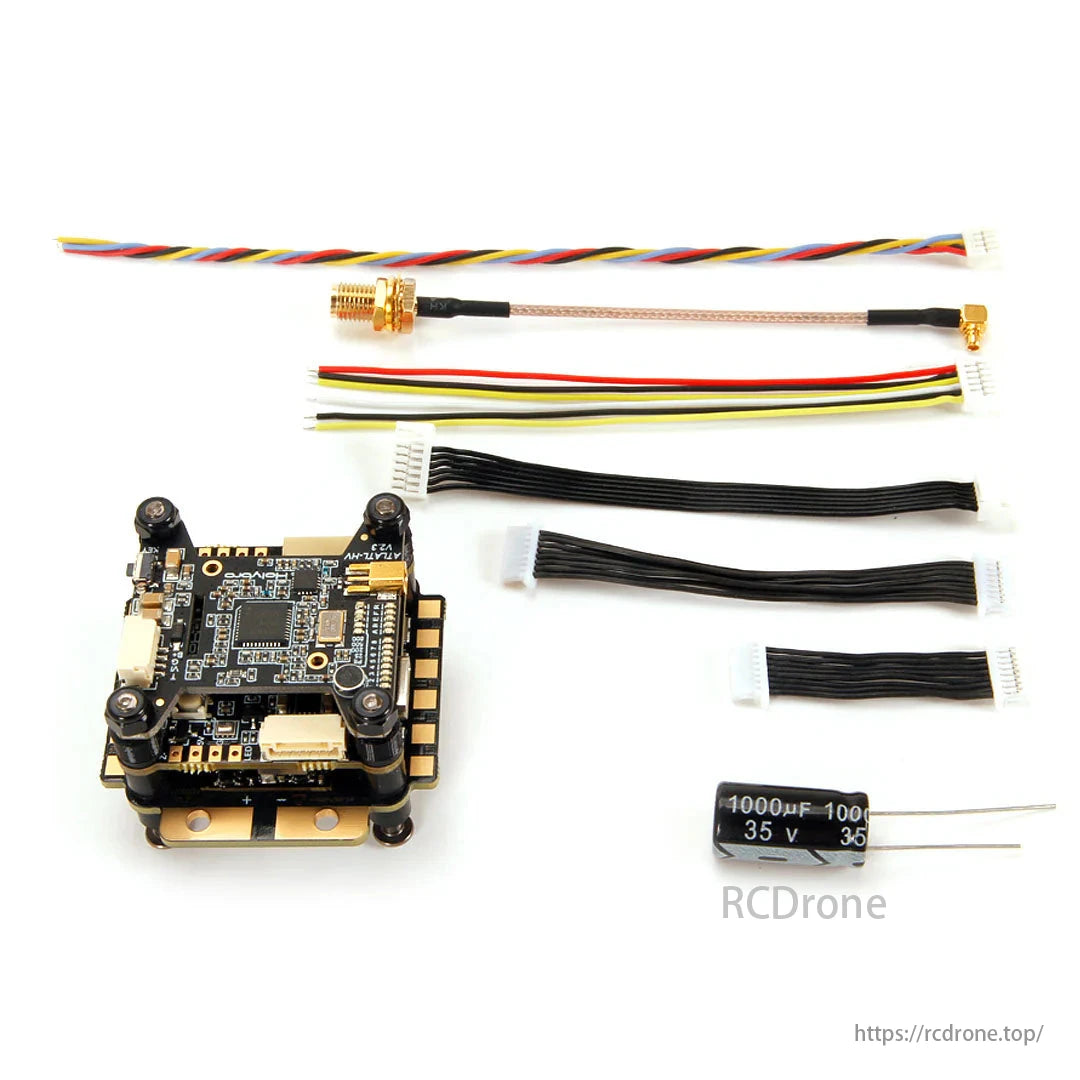

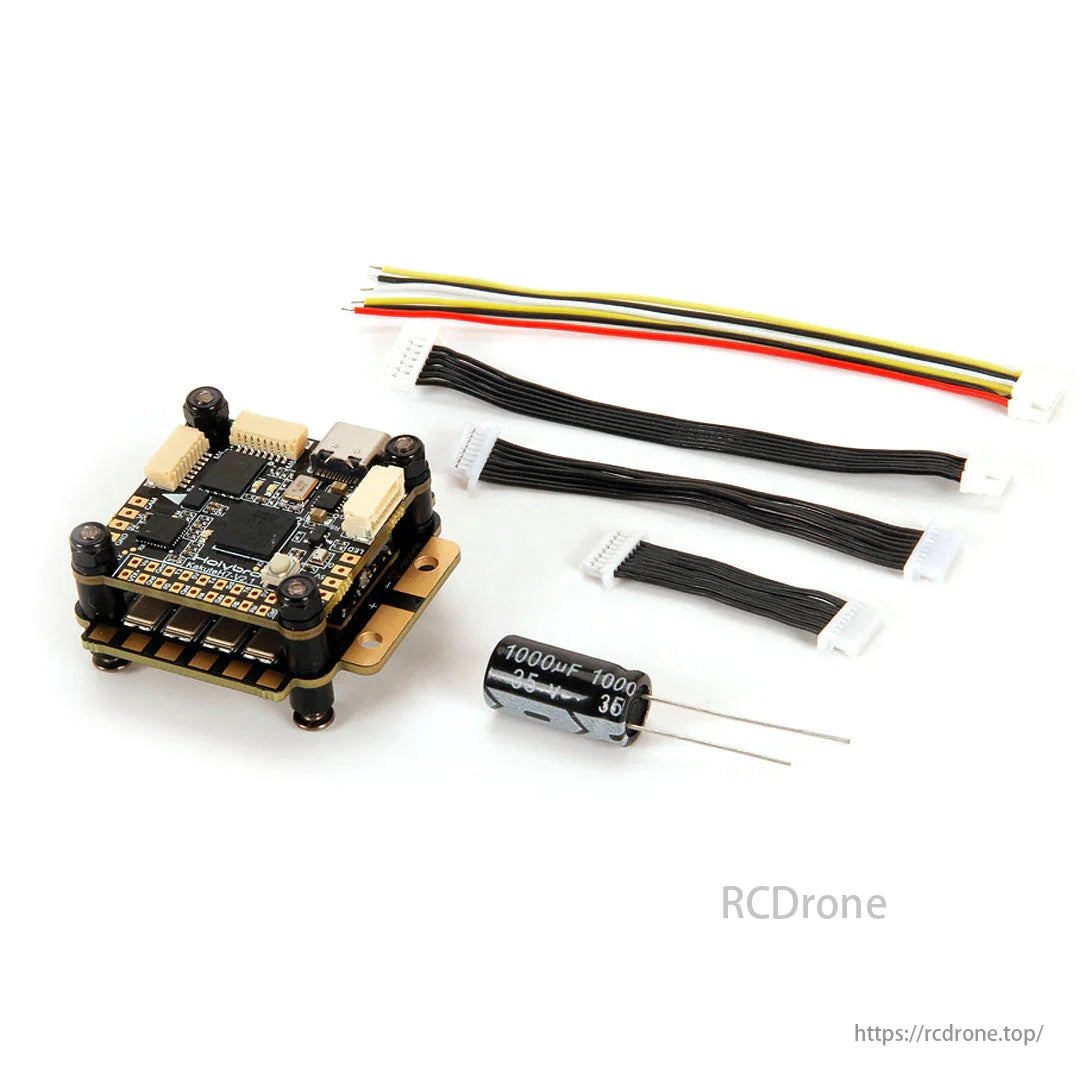

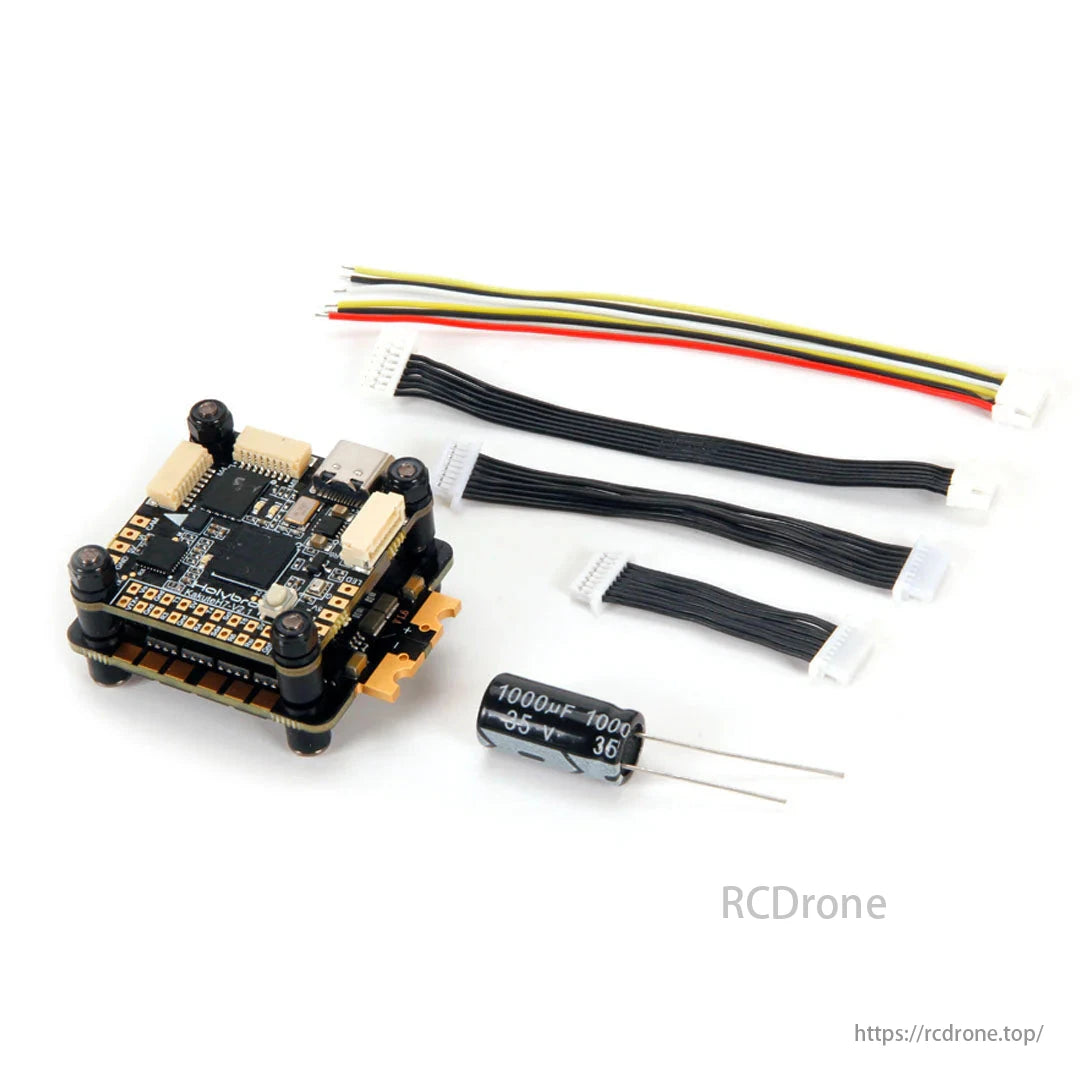

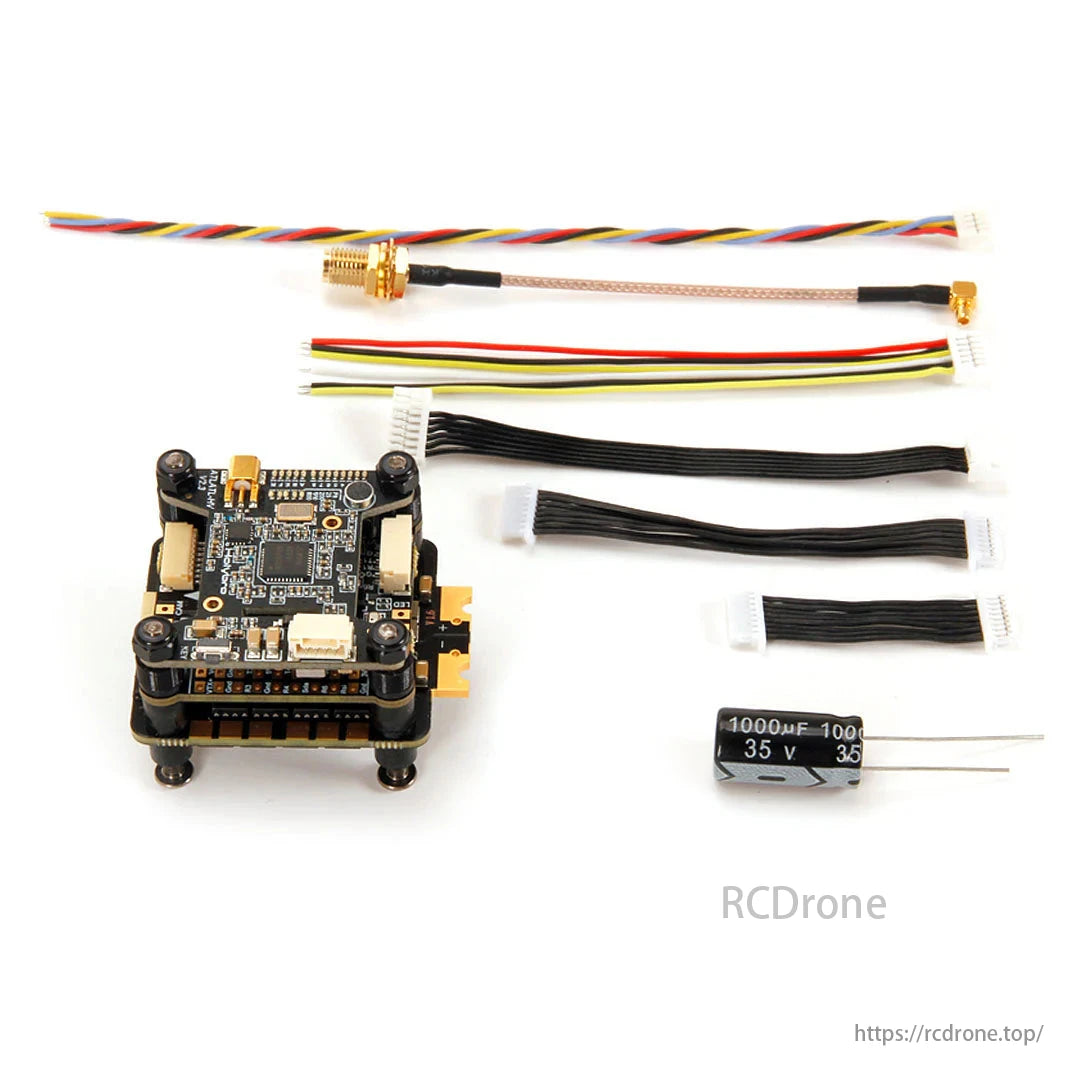

What’s Included

For SKU20353 & SKU20354 (FC + ESC Stack Only):

• 1x Kakute H7 v1.5 Flight Controller

• 1x Tekko32 F4 4in1 ESC (50A or 65A Metal)

• 1x Electrolytic Capacitor: 1000uF 35V

• 1x 8-pin to 8-pin 65mm Cable

• 1x 8-pin to 8-pin 25mm Cable

• 1x JST SH 6-pin to JST GHR 8-pin Cable (80mm & 150mm) – for DJI HD system

• 1x JST SH 6-pin Cable (100mm) – for Caddx HD system

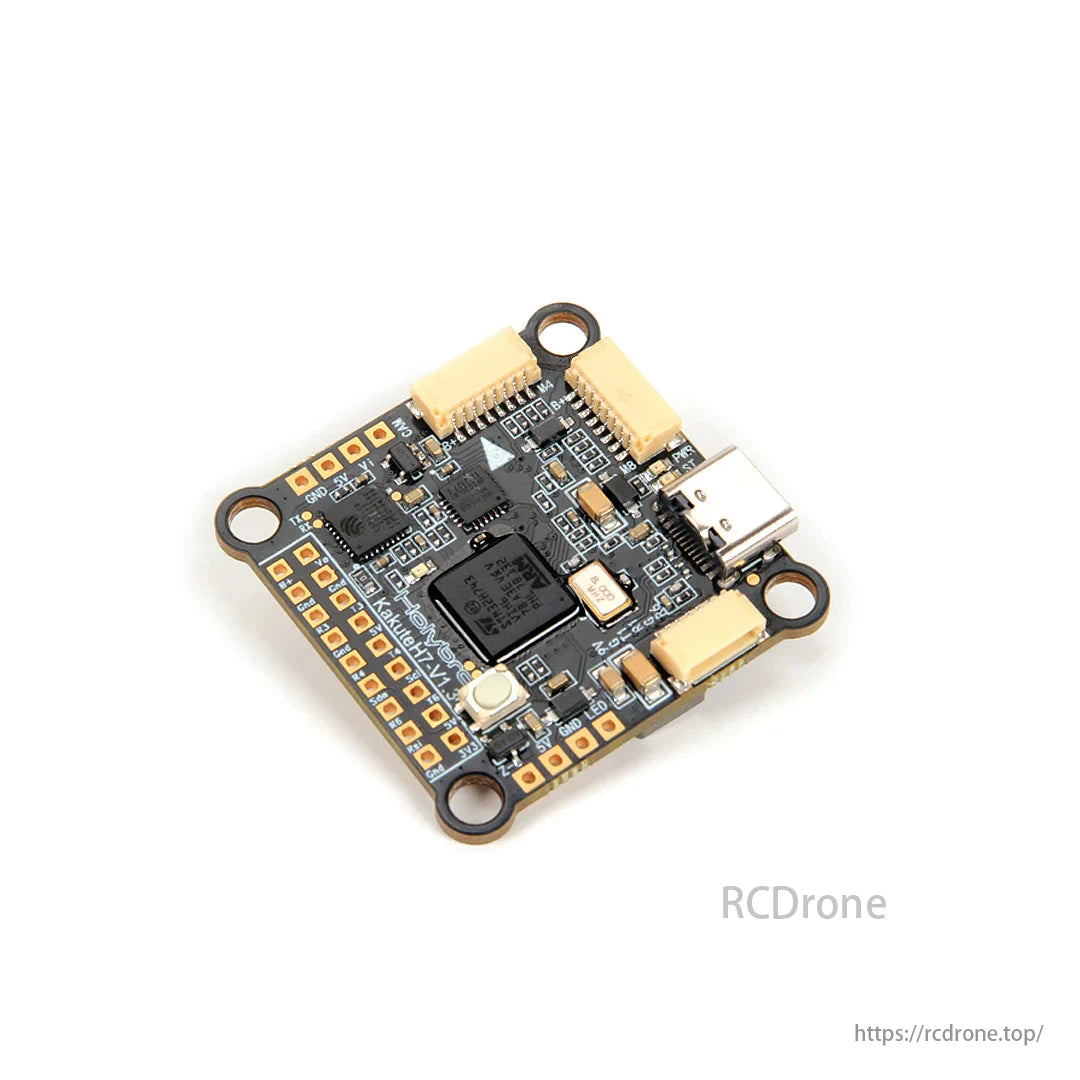

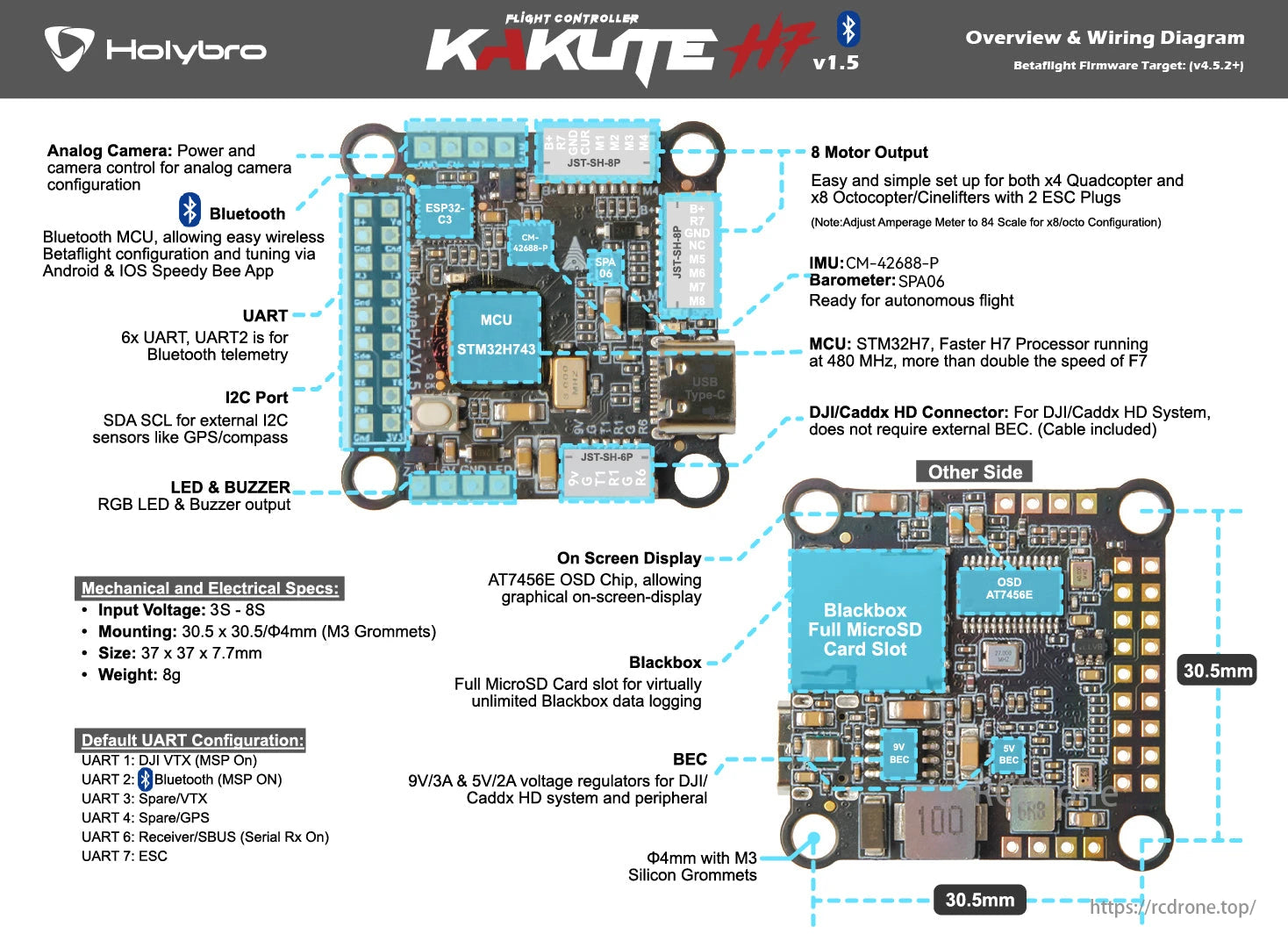

Flight Controller with STM32H7 MCU, 8 motor outputs, Bluetooth, I2C, UARTs, LED/buzzer, OSD, blackbox logging, DJI/Caddx HD connector. 30.5x30.5mm, 8g.
