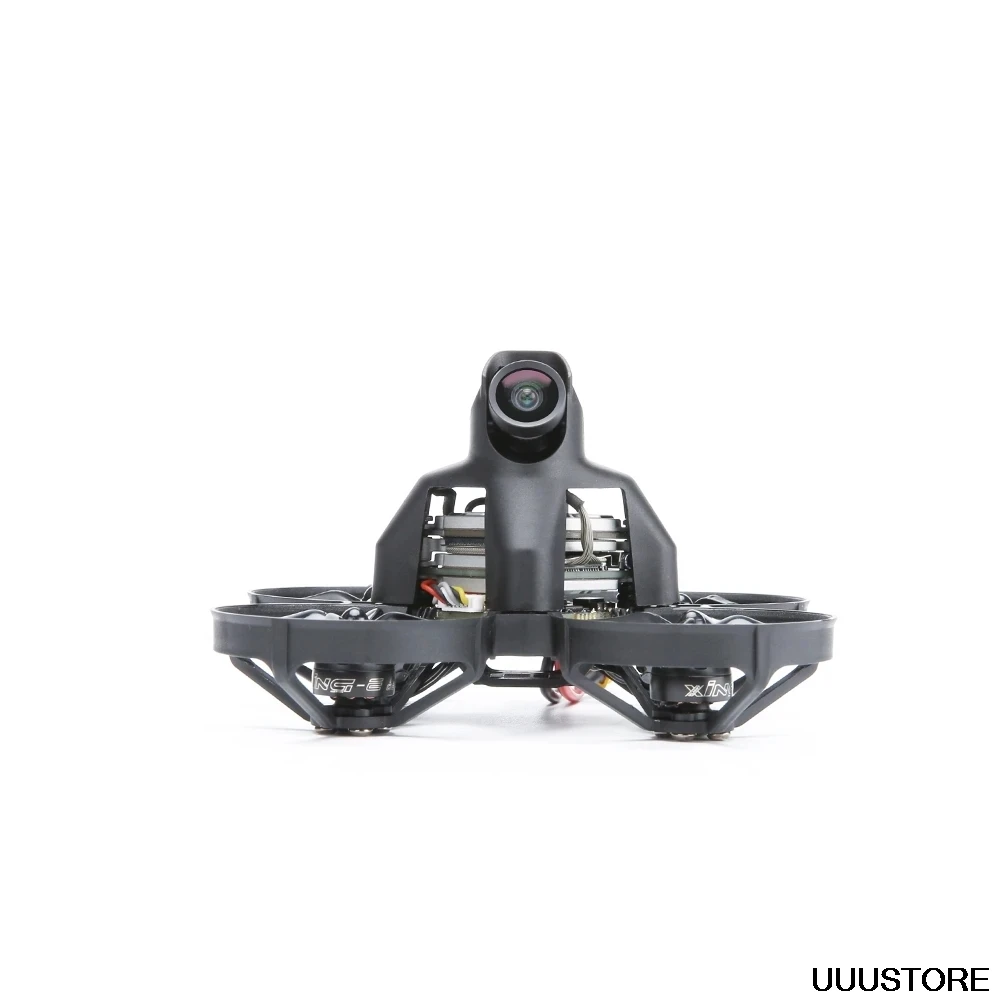

iFlight A75 Racing Drone - HD 78mm SucceX-D 20A Whoop F4 3S CineWhoop RC FPV Racing Drone BNF with Caddx Nebula Nano HD Digital System toy

iFlight A75 Racing Drone - HD 78mm SucceX-D 20A Whoop F4 3S CineWhoop RC FPV Racing Drone BNF with Caddx Nebula Nano HD Digital System toy

iFlight

Regular price $376.18 USD
Regular price $526.65 USD Sale price $376.18 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

21 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Warranty: as show

Warning: as show

Video Capture Resolution: Other

Remote Distance: as show

Remote Control: Yes

Recommend Age: 12+y

Power Source: Electric

Plugs Type: as show

Package Includes: Original Box

Origin: Mainland China

Operator Skill Level: Beginner

Motor: Brushless Motor

Model Number: Alpha A75 HD

Material: Carbon Fiber

Indoor/Outdoor Use: Indoor-Outdoor

Flight Time: as show

Features: FPV Capable

Dimensions: as show

Controller Mode: MODE2

Controller Mode: MODE1

Controller Battery: as show

Control Channels: 12 Channel & Up

Charging Voltage: as show

Charging Time: as show

Camera Mount Type: Fixed Camera Mount

Aerial Photography: Yes

Specification:

Brand Name: iFlight

Model: A75 HD

Item Name: 78mm F4 3S Whoop FPV Racing Drone

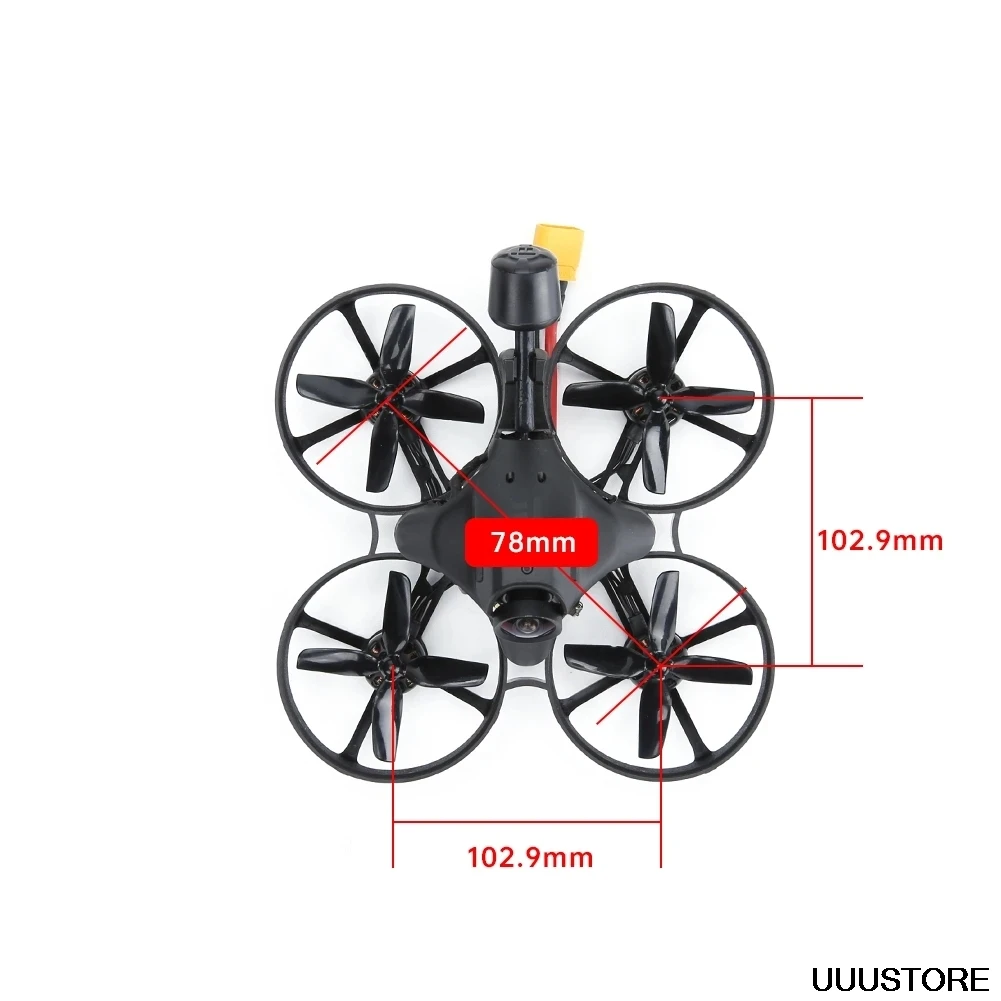

Body Size: 102.9x102.9mm

Weight: 66.9g (without battery)

Recommend Lipo Battery: 3S 450mAh 70C Lipo  XT30 ( NOT Included)



SucceX-D 20A Whoop F4 AIO FC ESC

Brand Name: iFlight

Model: SucceX-D 20A Whoop F4 AIO

Item Name:  F4 Flight Controller AIO 20A ESC Board

Size: 30.5*30.5mm
Mounting pattern: 25.5*25.5mm/φ3mm
Connector: Micro-USB
MCU: STM32F411
Gyroscope: MPU6000
Blackbox: 8MB
BEC  Output: 5V 2A
INA pad: nR2
Barometer: no
Constant Current: 20A,

Burst Current: 25A

Input: 2-4S
Current Sensor: yes
BLHeli: BLHeli_S
ESC Telemetry:no
Firmware Target: IFLIGHT_F411_PRO
ESC Firmware:G-H-30 BLS

XING-E 1103 8000KV Brushless Motor

Brand Name: iFlight

Model: XING-E 1103

Height: 10.2mm
Weight: about 3.8g(with 30AWG 32mm length)
Shaft: φ1.5mm
Motor Mount Holes: M1.6 on Dia 8.5mm
KV: 8000KV
Input Voltage Voltage: 2-3S Lipo battery
- 32mm wire without plugs

HQProp 40mm & Gemfan 1635 4-Blade Propeller

Item Name: HQProp 40mm & Gemfan 1635 4-Blade Propeller

Quantity: 4 CW & 4 CCW ( HQProp 2 Pairs & Gemfan 2 Pairs)

Color: Color May Vary

Optional Receiver Version

BNF-DJI Version: Built-in DJI Receiver

Frsky XM+ RX Version: Built-in DJI Receiver & With External Frsky XM+ Receiver ( FCC)

Frsky R-XSR RX Version: Built-in DJI Receiver & With External Frsky R-XSR Receiver ( FCC)

TBS Crossfire Nano RX Version: Built-in DJI Receiver & With External TBS Crossfire Nano RX

                                                                                                                                                                                                                                        Features:


- 66.9 grams (without battery)
- Butter smooth XING 1103 8000KV,more torque and efficiency
- Ducts to protect the sensitive environment or yourself
- Pre-tuned with smooth cinematic settings
- iFlight Albatross 5.8G light antenna upgrade (included)
- iFlight Albatross 900mhz light micro antenna upgrade (included with every Crossfire Nano RX)


Pacakge Included:

Prebuilt and tested
1x 78mm Frame

1x SucceX-D 20A Whoop F4 AIO FC ESC Board

4x iFlight XING-E 1103 Motor
1x Caddx Nebula Nano Digital HD System Kit
1x Albatross LHCP ipex 5.8g light Antenna
2x HQ 40mm 4-Blade Prop CW

2x HQ 40mm 4-Blade Prop CCW

2x Gemfan 40mm 1.6inch 1635 3-Blade Propeller CW

2x Gemfan 40mm 1.6inch 1635 3-Blade Propeller CCW
2x 10*130mm iFlight Lipo Strap

iFlight A75 Racing Drone, iFlight XING-E 1103 8000KV Brushless motor

iFlight A75 Racing Drone, iFlight XING-E 1103 8000KV Brushless motor

iFlight A75 Racing Drone, iFlight XING-E 1103 8000KV Brushless motor

iFlight A75 Racing Drone, iFlight XING-E 1103 8000KV Brushless motor

iFlight A75 Racing Drone, iFlight XING-E 1103 8000KV Brushless motor

iFlight A75 Racing Drone, iFlight XING-E 1103 8000KV Brushless motor

iFlight A75 Racing Drone, iFlight XING-E 1103 8000KV Brushless motor

iFlight A75 Racing Drone, iFlight XING-E 1103 8000KV Brushless motor
