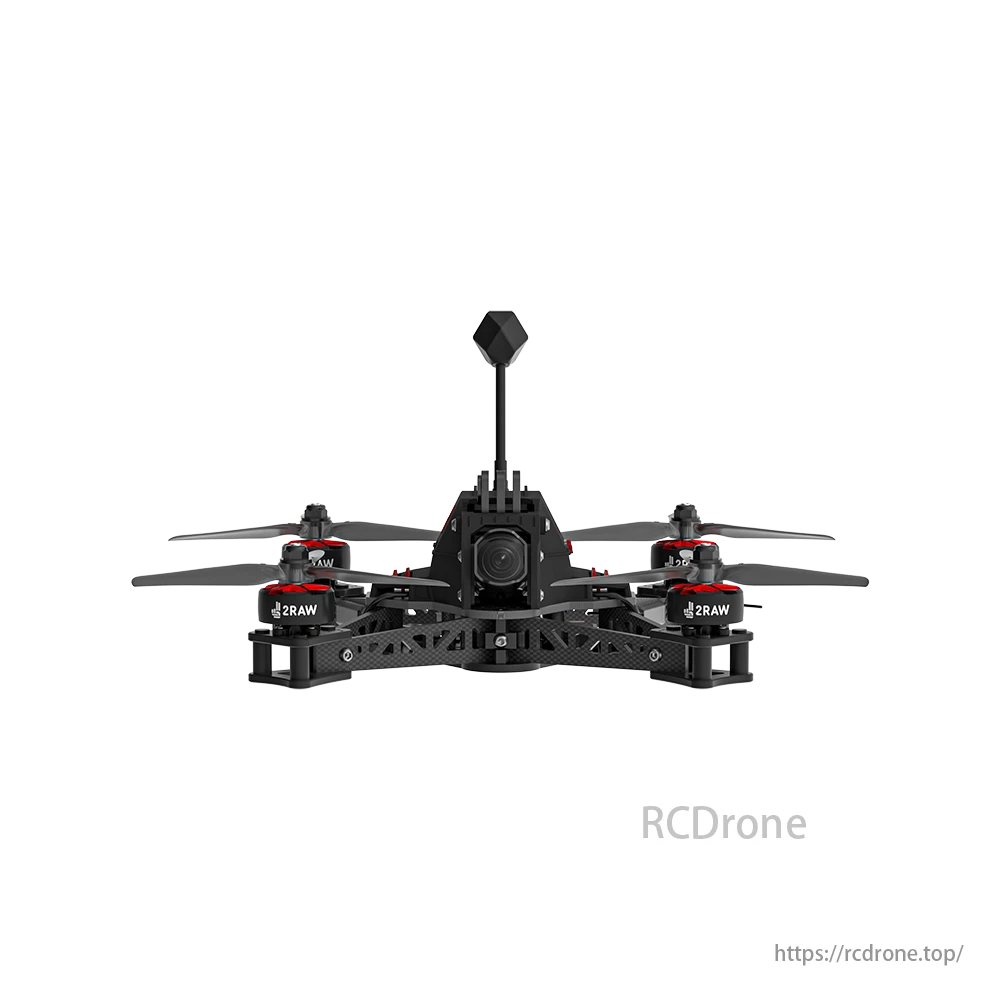

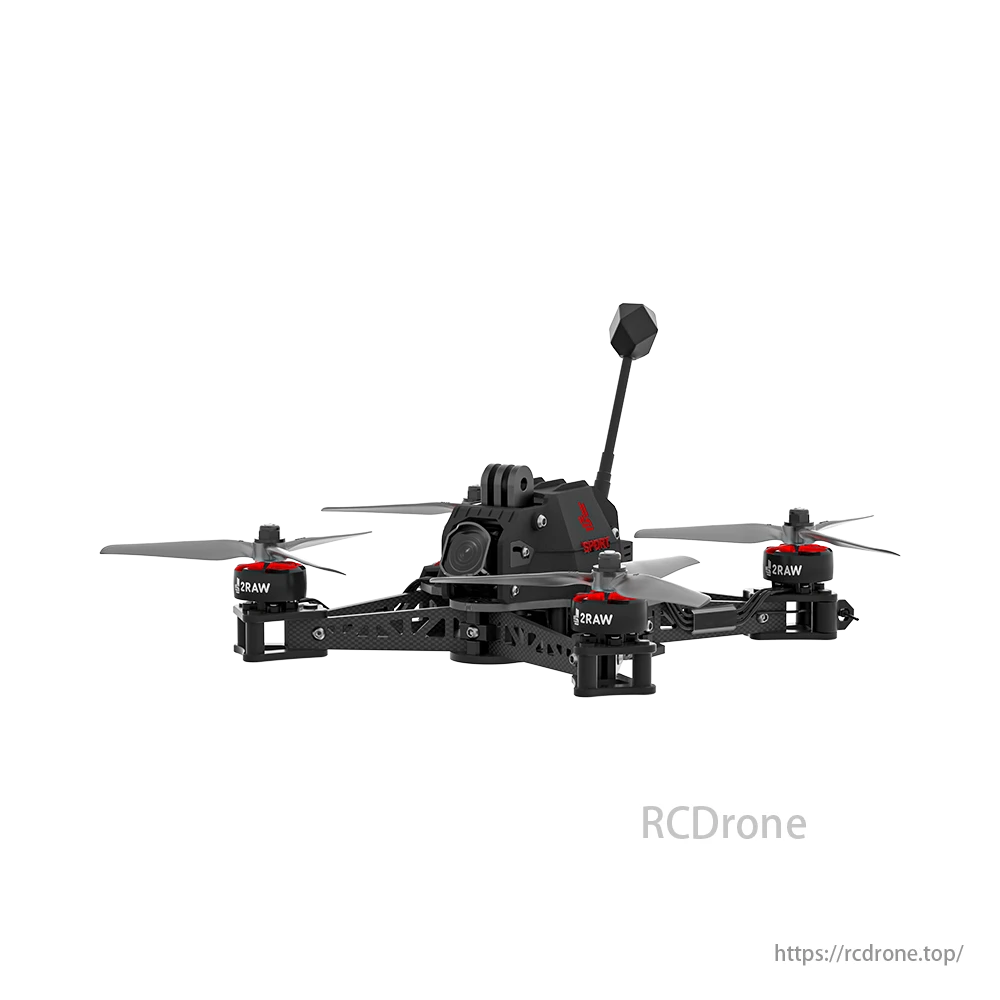

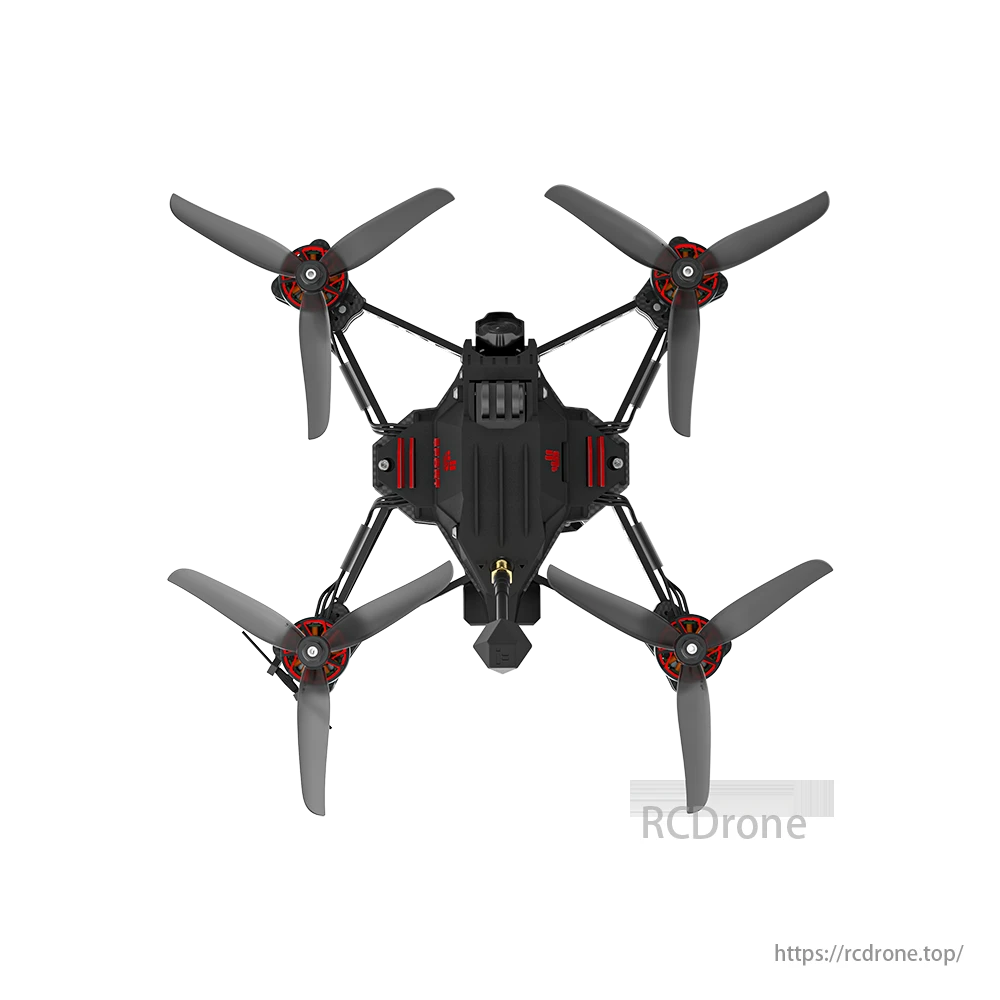

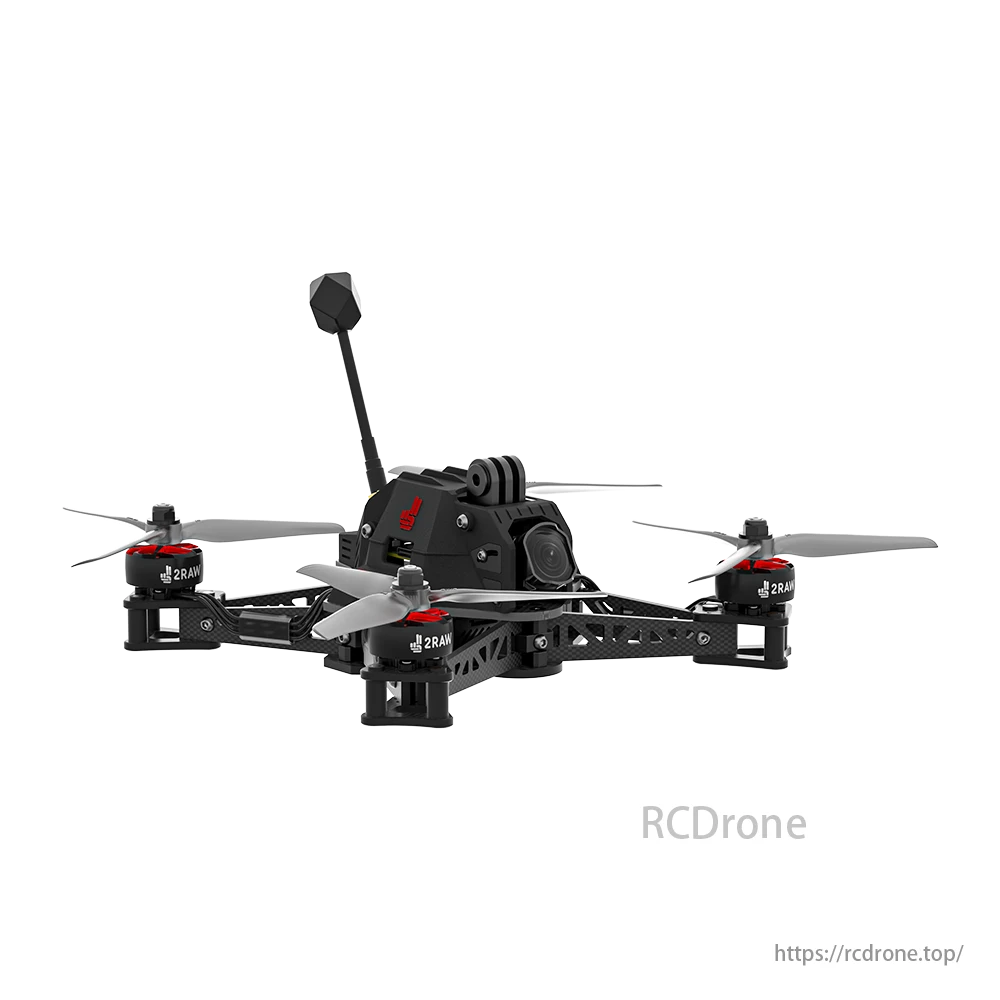

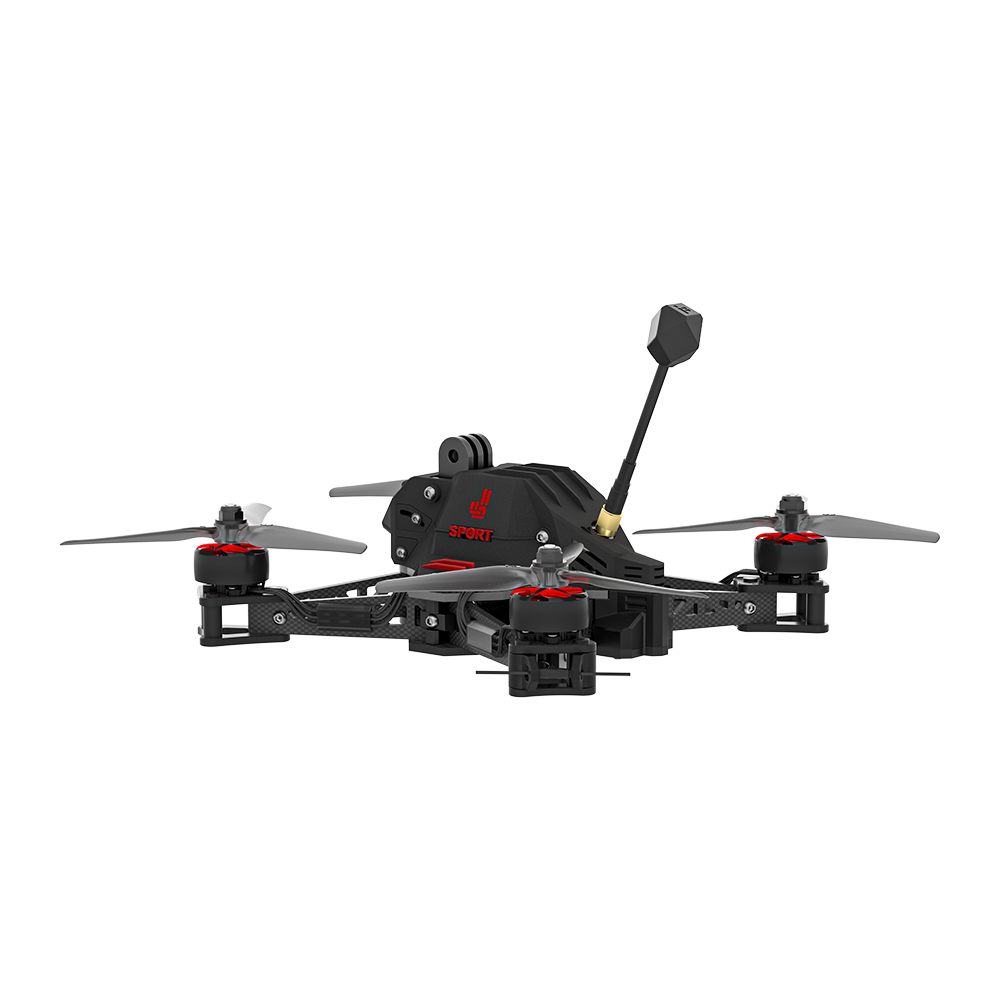

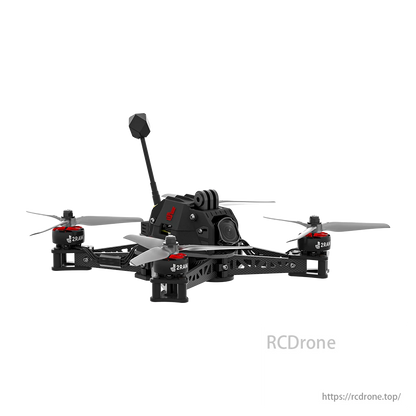

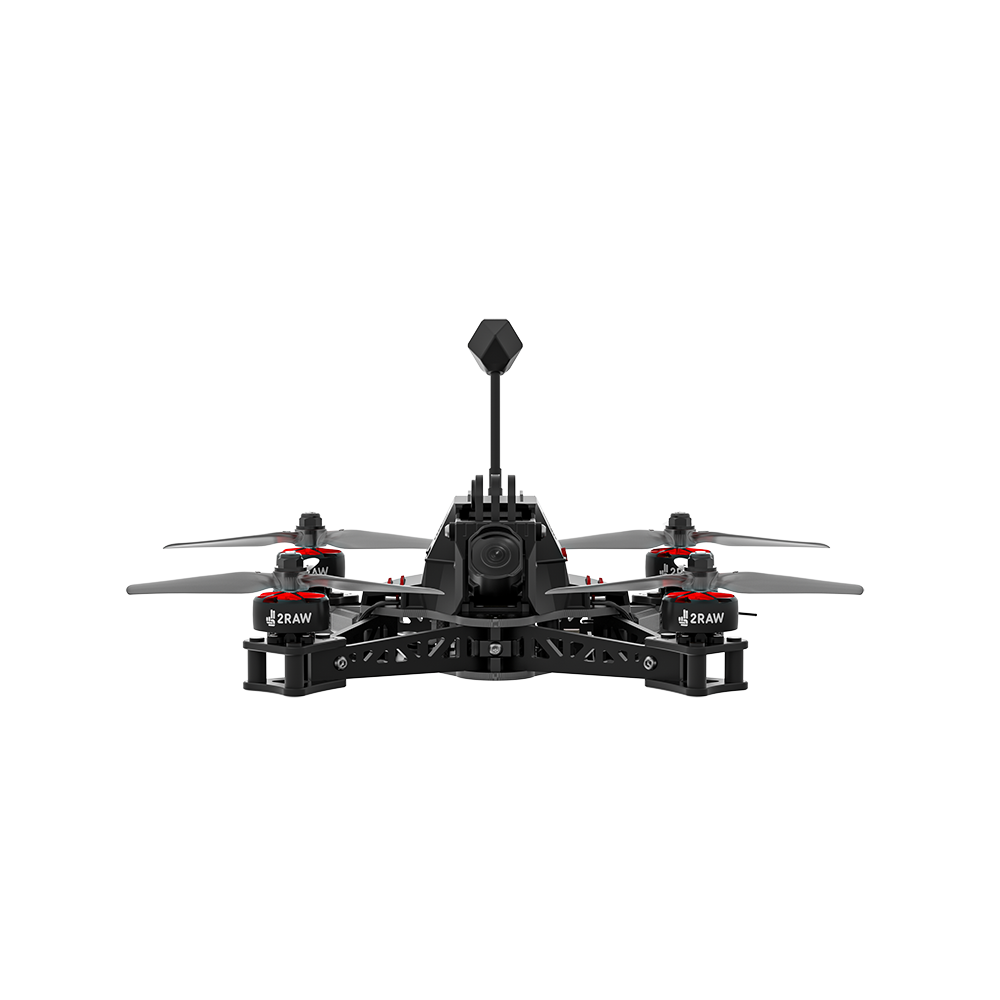

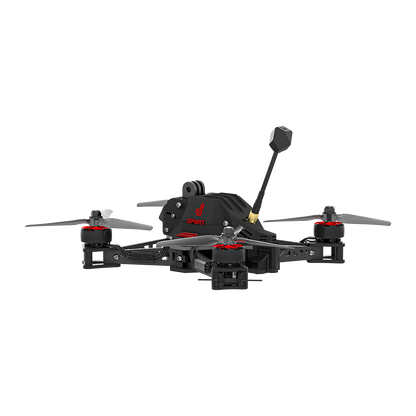

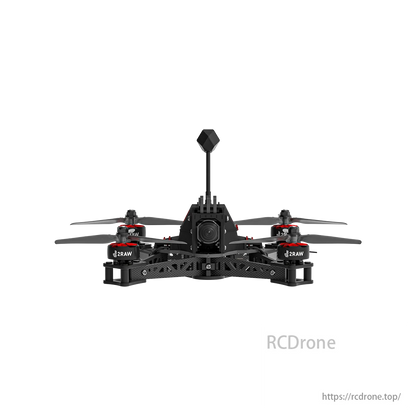

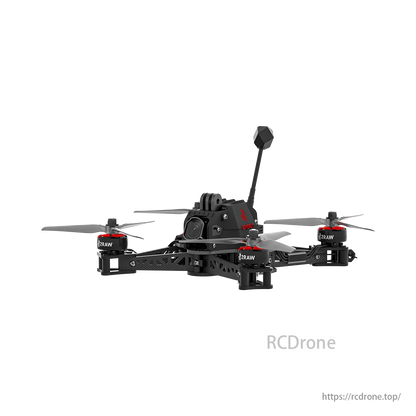

iFlight Afterburner Sport O4 6S HD 4K 5-Inch FPV Drone With DJI O4 Air Unit Pro, BLITZ F7 FC, XING2 2207 Motors

iFlight Afterburner Sport O4 6S HD 4K 5-Inch FPV Drone With DJI O4 Air Unit Pro, BLITZ F7 FC, XING2 2207 Motors

iFlight

Regular price $899.00 USD
Regular price Sale price $899.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Receiver
View full details

The iFlight Afterburner Sport O4 6S HD is a high-performance FPV drone designed for ultimate speed, agility, and cinematic capture. With a DJI O4 Air Unit Pro for low-latency video transmission and XING2 2207 1750KV motors, the Afterburner Sport O4 6S HD reaches speeds up to 185 km/h. Ideal for racing, chasing, and freestyle applications, this drone is engineered for precision and reliability, offering an exceptional flight experience in high-speed environments. Built for FPV enthusiasts who demand top-tier performance, this drone ensures smooth and high-quality video footage.

Key Features:

  • Aeroshell Design: Optimized to protect internal components while minimizing drag for maximum aerodynamic efficiency.

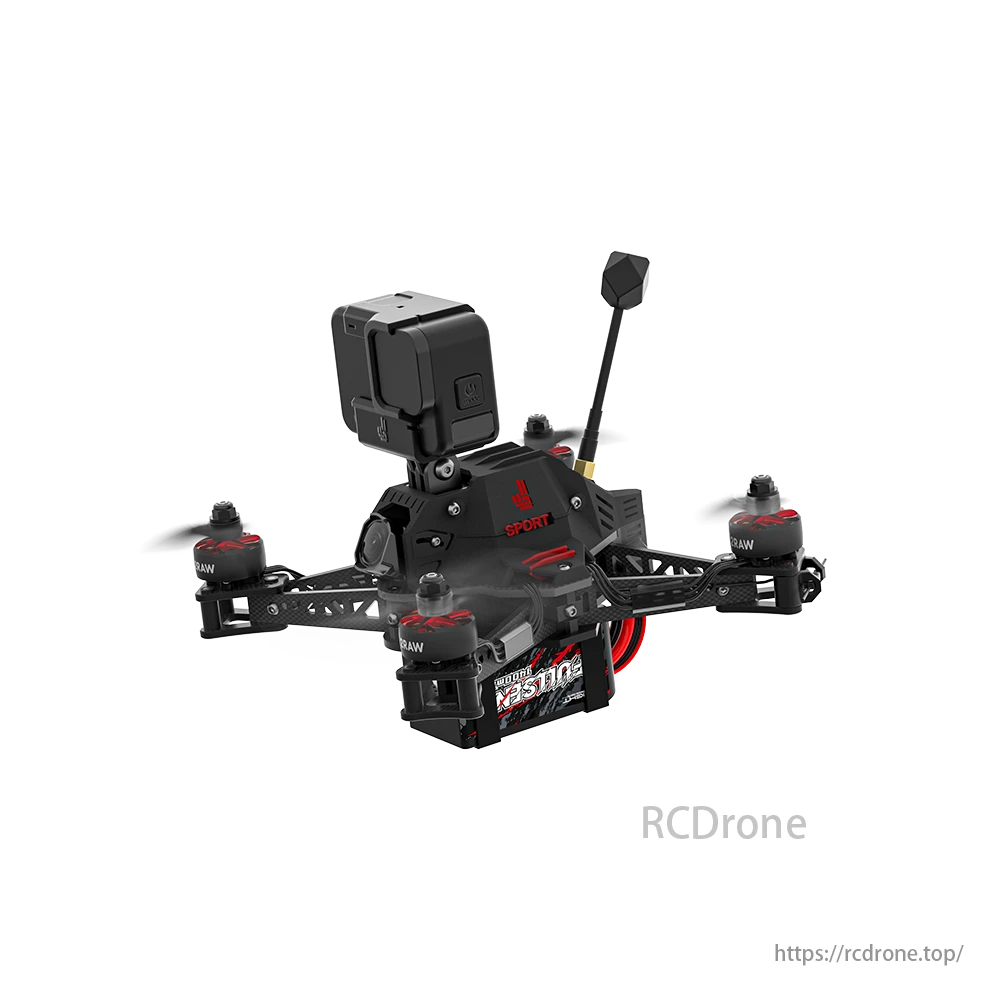

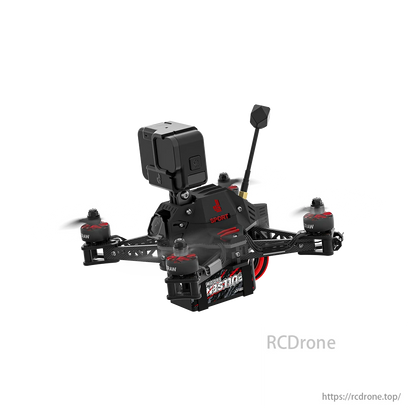

  • Top-Mounted Action Camera: Supports a 10-60° field of view with no propeller visibility, ensuring pristine, uninterrupted footage at high speeds.

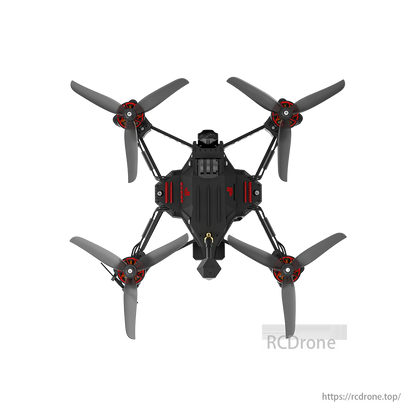

  • Bottom-Mounted Battery: Positioned for optimal center of gravity and balanced flight dynamics, ensuring exceptional stability and control.

  • Compact 5-Inch Footprint: Designed for unmatched agility and responsiveness, ideal for precise maneuvers in high-speed situations.

  • 2RAW Performance Tune: Expertly tuned to provide consistent, high-quality footage during both high-speed pursuits and technical flights.

  • CNC Machined Parts: Built for durability and easy repairs, enhancing structural integrity and providing quick access to internal components.

  • High-KV Race Motors: XING2 2207 1750KV motors provide ultra-fast acceleration and top speeds for racing-ready performance.

Specifications:

Parameter Details
Brand iFlight
Product Name Afterburner Sport O4 6S HD
Geometry True-X
Flight Controller (FC) BLITZ F7
ESC BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission DJI O4 Air Unit Pro
Frame 210mm wheelbase
Motor XING2 2207 1750KV motors
Propellers GEMFAN 5.1X3.6X3
Weight 490g ± 5g
Takeoff Weight Approx. 714g ± 5g (With 6S 1480mAh)
Dimensions (L×W×H) 148mm x 148mm x 77mm
Max Speed 185 km/h
Max Takeoff Altitude 7000m
Max Hover Time Approx. 11-12 minutes (No Load with 6S 1480mAh)
Operating Temperature -20°C to 40°C
Antennas Single Antennas
GNSS GPS + SBAS + Galileo + QZSS + Glonass

Video Transmission Specifications:

Parameter Details
Product Name DJI O4 Air Unit Pro
FOV (Single Screen) 155°
Communication Frequency 2.400-2.4835 GHz (RX only), 5.725-5.850 GHz (RX and TX)
Max Video Transmission Range 10 km (FCC), 2 km (CE), 6 km (SRRC)
End-to-End Latency As low as 28 ms (810p/120fps with DJI Goggles V2)
Max Video Bitrate 50 Mbps
Operating Temperature -10ºC to 40ºC

Packing List:

  • 1 x Afterburner Sport O4 6S HD BNF

  • 1 x Screw Bag

  • 1 x Battery Strap

  • 1 x Battery Pads

Compatibility:

  • DJI Goggles 3 / DJI Goggles N3

  • DJI FPV Remote Controller 3

  • DJI Goggles 2 / DJI Goggles Integra

  • (Other radios matching RX in the drone)

Additional Parts & Battery Recommendation:

  • GEMFAN 5.1x3.6x3 Prop (3 sets)

  • 2RAW Slim GoPro Mount (1 pc)

  • Commando 8 ELRS Radio 2.4GHz V2

  • Commando 8 ELRS Radio 868/900 MHz V2

  • HOTA D6 Pro Battery Charger (EU Plug, 1 pc)

  • HOTA D6 Pro Battery Charger (US Plug, 1 pc)

  • Fullsend 6S 1480mAh Battery (1 pc)

iFlight Afterburner Sport O4 6S HD 4K 5-Inch FPV, Built for FPV enthusiasts, this drone delivers top-tier performance with smooth, high-quality video footage.

iFlight Afterburner Sport O4 6S HD 4K 5-Inch FPV, Ideal for racing, chasing, and freestyle applications, this drone offers precision, reliability, and exceptional flight experience in high-speed environments.

iFlight Afterburner Sport O4 6S HD 4K 5-Inch FPV, Expertly tuned for consistent high-quality footage during high-speed pursuits or technical flights.

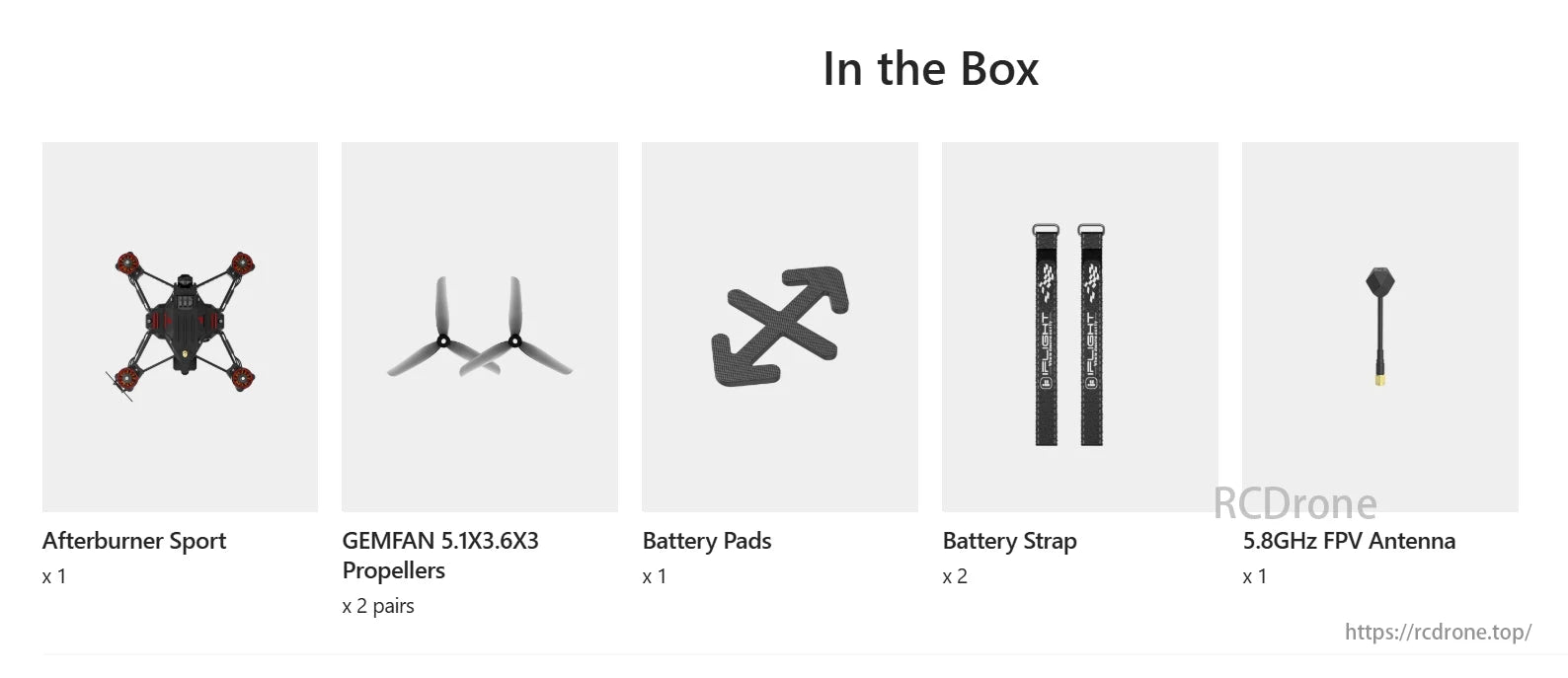

iFlight Afterburner Sport O4 6S HD 4K 5-Inch FPV, The box includes Afterburner Sport propellers, battery accessories, and a 5.8GHz FPV antenna.

Afterburner Sport, GEMFAN 5.1X3.6X3 Propellers (2 pairs), Battery Pads, Battery Strap (2), 5.8GHz FPV Antenna included in box.
