iFlight Alpha A65 1S Tinywhoop FPV Drone With Commando 8 ELRS 2.4G Lite Radio

Let's welcome our Alpha series, a new way to fly FPV!

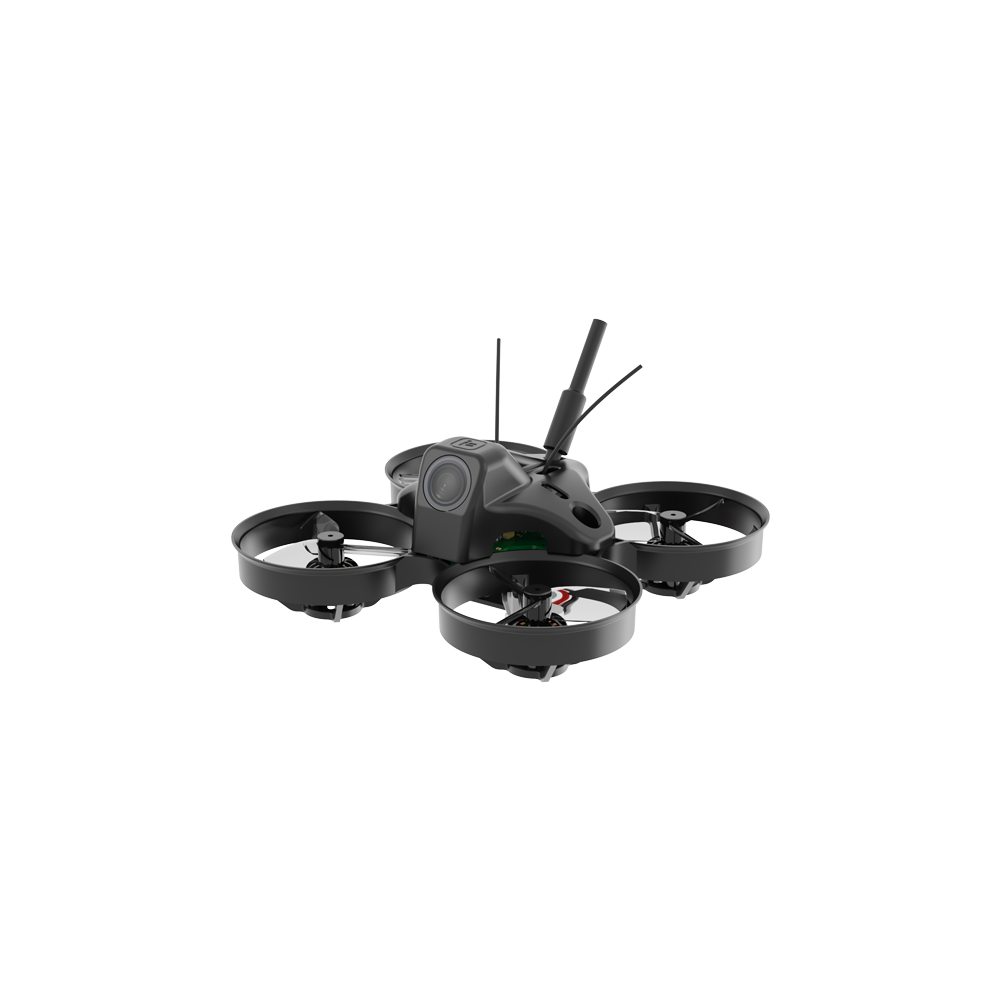

The Alpha A65 is an even smaller size 65mm lightweight 24.5g whoop. This version features an updated canopy, frame, motors, AIO Board, and camera. Stuffed with our newest electronic components and technology, this thing will guarantee hours of practice or racing across even the smallest spaces. The Alpha A65 is your answer to the problem of flight time efficiency while maintaining sufficient power.

Butter smooth XING 0803 (more torque and efficiency with longer flight times)

Ducts to protect the sensitive environment or yourself

Pre-tuned with smooth cinematic settings

1200TVL 2.1mm 160° Camera

24.5 grams (without battery)

Product Name: Alpha A65

AIO : BLITZ F411 Whoop AIO

Video Transmission: Force Mini 300mW VTX

Frame: 65mm Whoop frame

Motor: 0803

Prop: 31mm

Weight：24.5g

Takeoff Weight：33g(aprox.)

Dimensions (L×W)：46*46mm

Max Speed：50km/h

Max Hover Time：4mins

Max Flight Distance：1km

Antennas：1 Antenna

GNSS: NO

Output Power: 0-25-400-800-1500-2500mw

Input Volts: 6-36V

Working Current: ≤450mA@12V,800mW; ≤850mA@12V,2500mw

Frequency Channel: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Mounting: 30.5*30.5mm--20*20mm

Weight: 4.8 grams

PCB Size: L38mm*W 6.5mm*H7.2mm

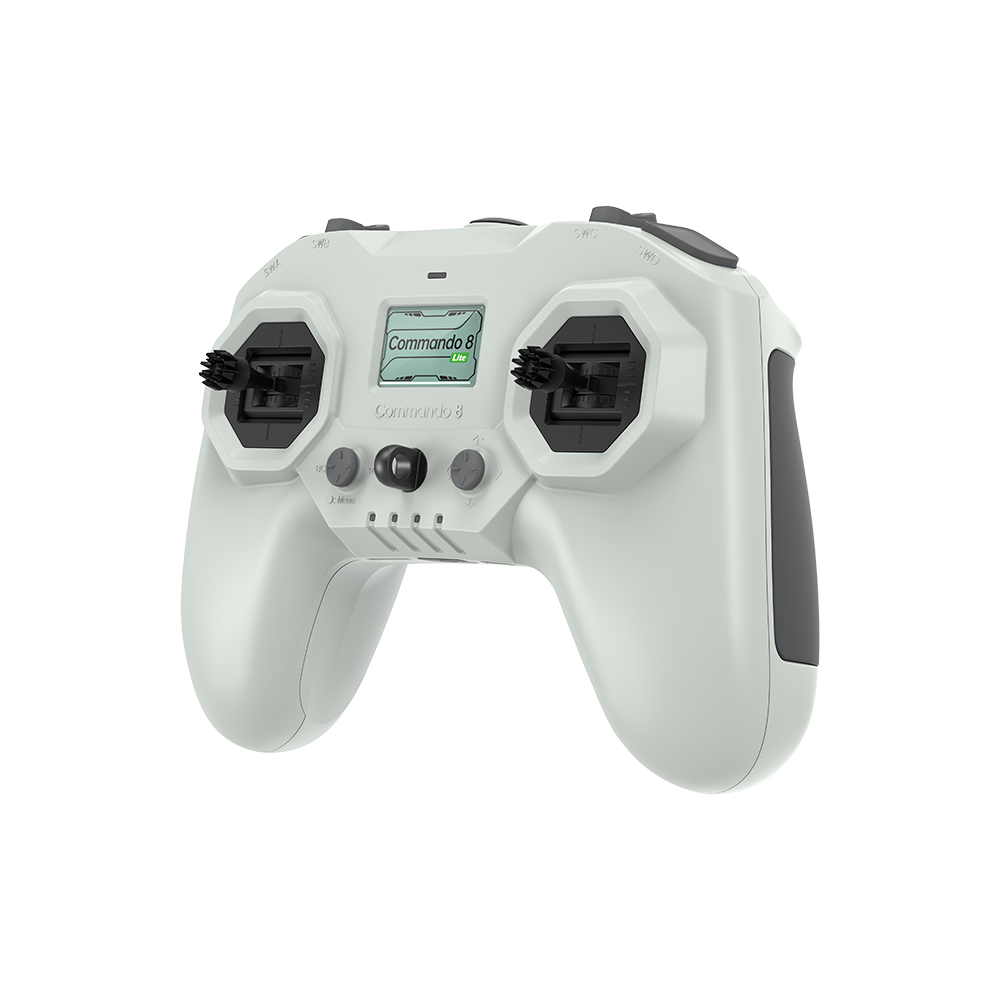

Product Name: Commando 8 ELRS Lite Radio

Weight: 275g (±10g）

Communication Frequency: 5.725-5.850 GHz

Transmission Power(EIRP):

2.4GHz: FCC: 27 dBm; CE: <14 dBm; SRRC: <19 dBm

Operating Current/Volts:  0.6 A @ 7.6 V

Charging Time: 1 hour and 30 mini

Operating Time: Approx. 8 hours

Operating Temperature Range: 0°C  to  40°C（32°F to 104°F）

Charging Temperature Range: 5°C to  40°C（41°F to 104°F）

1 x Alpha A65 1S Whoop BNF

1 x Commando 8 ELRS Lite Radio

1 x Battery charge hub

All iFlight BNFs are tested before shipment to guarantee the highest quality.

If you still encounter a problem after receiving your shipment, please immediately contact our iFlight customer support at www.iflightrc.freshdesk.com.
