SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Cutting
Technical parameters: Value 2
Size: 75mm
Remote Control Peripherals/Devices: Battery
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: Alpha A75 Analog
Material: Carbon Fiber
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
Description:
Let's welcome the iFlight Alpha series, a new way to fly FPV on the smallest possible whoop size quad? We did some tuning and tried to find the optimal ratio between weight and power. This is what we came up with to combine flight time efficiency with sufficient power.
R81-SPI Frsky (Compatible W/ Frsky ACCST D8)
Tips:
VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
Features:
66.9 grams (without battery)
Butter smooth XING 1103 8000KV,more torque and efficiency
Ducts to protect the sensitive environment or yourself
Pre-tuned with smooth cinematic settings
iFlight Albatross 5.8G light antenna upgrade (included)
Alpha A75 HD BNF Specs:
SucceX-D 20A Whoop F4 AIO Board
XING 1103 8000KV FPV Micro Motor
Wheelbase: 75mm
Body size: 102.9*102.9mm
Ducted propeller size: HQ 40mm 1.6 inch
FC pattern: 25.5*25.5mm
FPV cam spacing: 14mm
Weight: 52.1g (without battery)
Battery: 3S 450mAh (not included)
PRE-TUNED & PRE-SETUP:
Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
To restore lost tunes or updates, please check our linked article on"Firmware/Factory Dumps"
Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
Please check our linked article on"How to disable Angle-Mode, activate Acro-Mode"

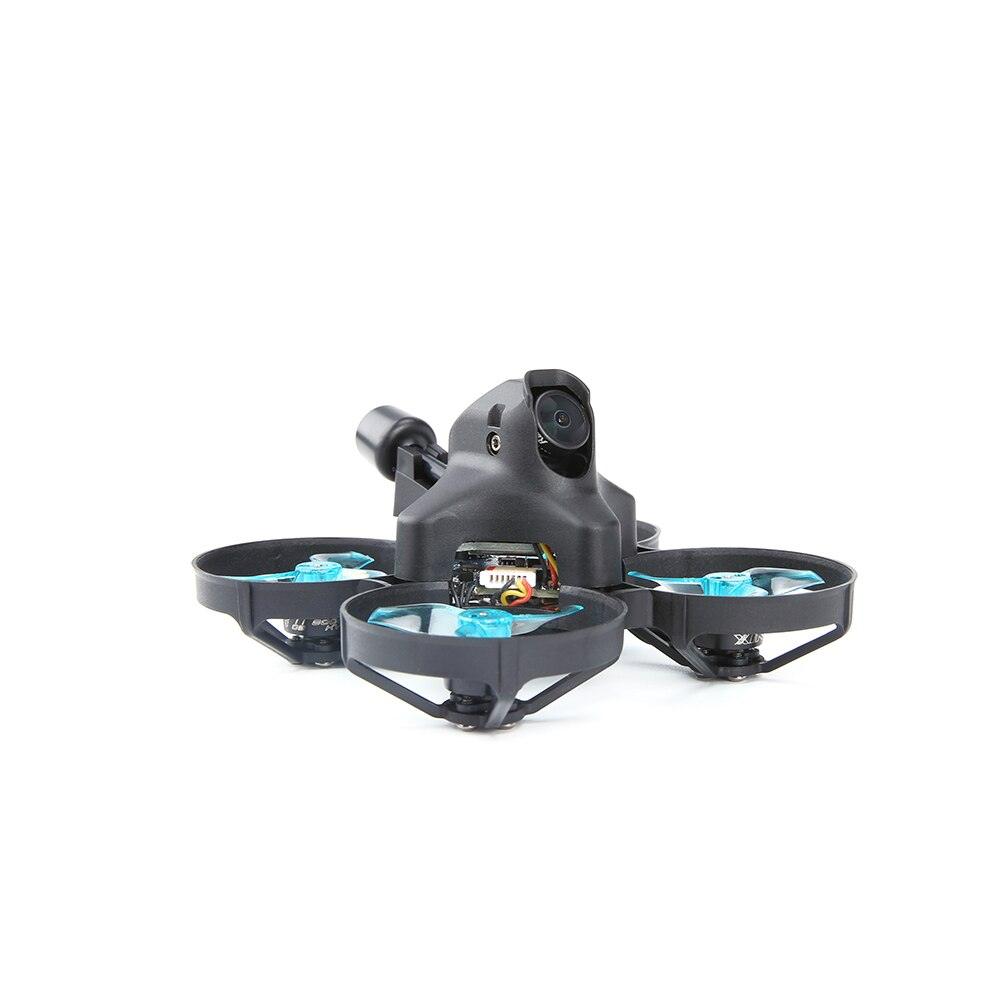

Alpha A75 Analog BNF Included Components and Parts
Prebuilt and tested Quadcopter
1x Alpha 75mm Frame
1x RaceCam R1 Micro 1200TVL 1.8mm 14*14
1x 5.8G SucceX Micro Force VTX 300mW
1xiFlightAlbatrossRHCP5.8g light antenna
1set x Gemfan 40mm 1.6inch 1635 3-blades(Set of 2 - Color May Vary)
2x 10*130mm iFlight Lipo Strap
FC // SucceX-D 20A F4 Whoop AIO
Size:30.5*30.5mm
Mounting pattern:25.5*25.5mm/φ3mm
Connector:Micro-USB
MCU:STM32F411
Gyro:MPU6000
Blackbox:8MB
BEC output:5V 2A/10V 2A
INA pad:UART2 (nR2)
Barometer:no
Constant current:20A,25A(Burst)
Input:2-4S
Current sensor:yes
BLHeli:BLHeli-S
ESC Telemetry:no
Target:IFLIGHT_F411_PRO
ESC Firmware:G-H-30 BLS
5.8GHz SucceX Micro 300mW VTX
Power: PIT/25/100/200mW/300mW
Antenna interface: IPEX (UFL)
VTX protocol : IRC Tramp
Size: 13.5x14.5mm
Weight: 1.4g
Mini VTX size: 20x20mm, 2mm hole, total weight (incl. VTX): 3.4g
Additional Suggested Parts(donot include)
Battery 3S 450mAh
