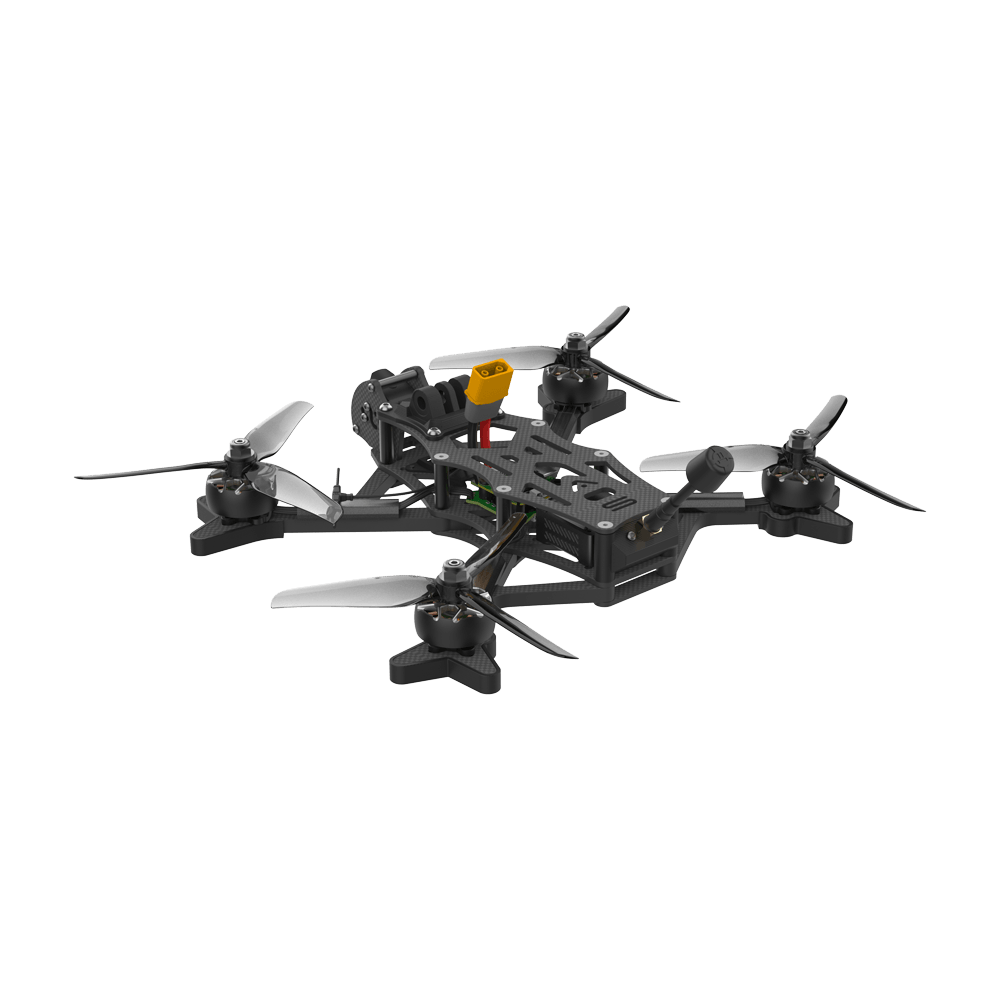

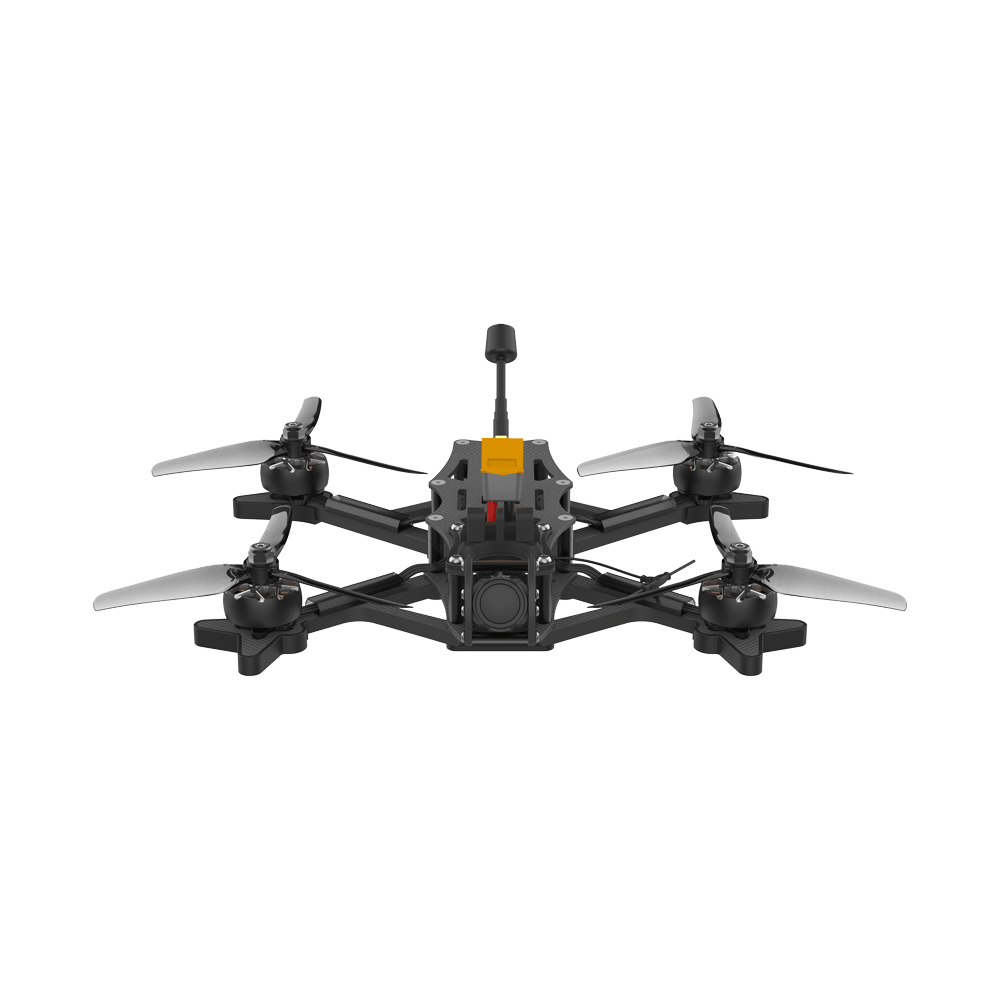

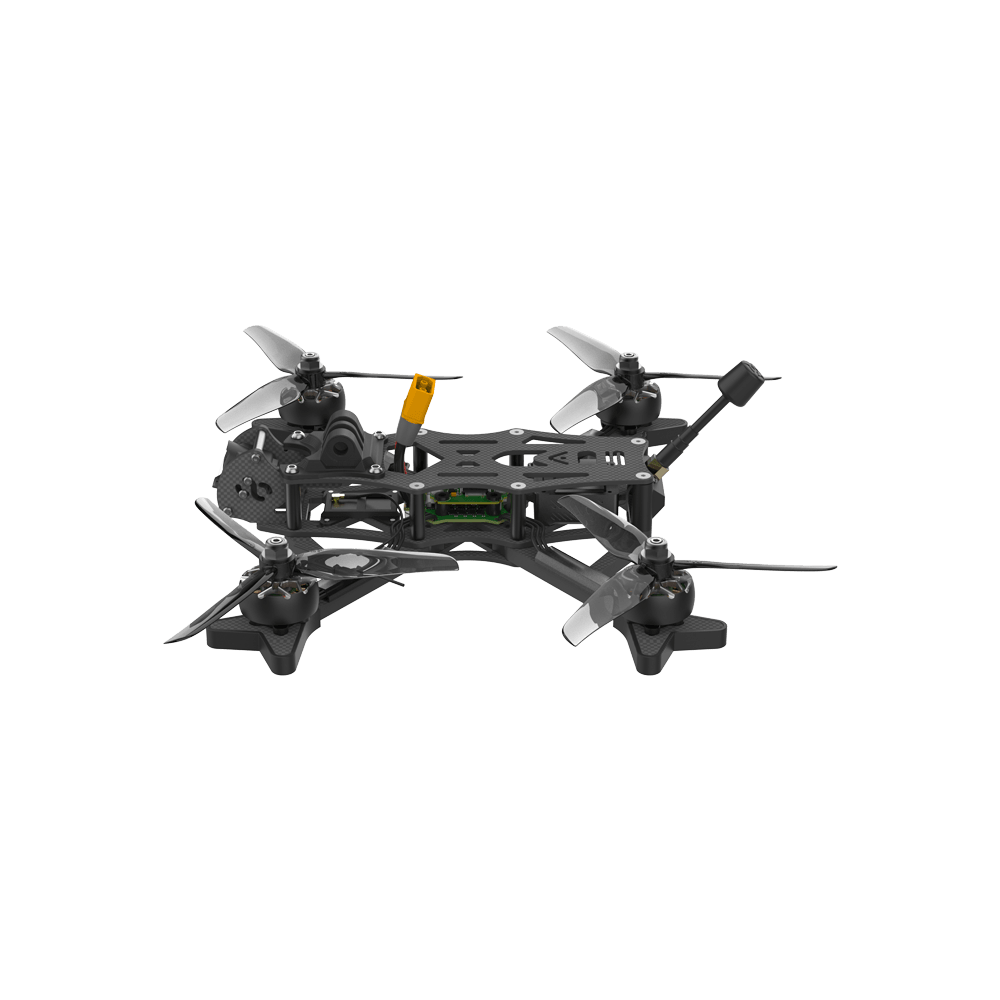

iFlight AOS 5 HD 6S 5inch FPV Drone BNF with DJI O3 Air Unit for FPV

iFlight AOS 5 HD 6S 5inch FPV Drone BNF with DJI O3 Air Unit for FPV

iFlight

Regular price $710.11 USD
Regular price Sale price $710.11 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

6 orders in last 90 days

Color
Ships From

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

iFlight AOS 5 HD 6S 5inch FPV Drone  SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 5inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: AOS 5 HD

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description:

  • The AOS 5 V2 is a lightweight drone designed with low-vibration technology. This drone features state-of-the-art electronics and topology optimization. The AOS 5 V2 allows you to run less filtering, with less associated delay, and increase your PID gains far higher than any other frame in its weight class. Get ready for the most responsive 5" quad you have ever flown!

Highlights
  • DJI O3 HD Air Unit Low-Latency Digital Transmission
  • Topology-optimized truss design arms
  • Caddx Vista Nebula Pro System
  • 2.5mm Top and Bottom Plates
  • Optimized Camera Protection
  • 32x32 GoPro Mounting
  • Built by iFlight
  • 5" BNF Drone
  • Low Vibration
Specifications
  • Product Name:AOS5 V2 HD
  • FC: BLITZ F722
  • ESC: BLITZ E45 55A 4-IN-1 ESC
  • Video Transmission: DJI O3 Air Unit
  • Frame: 255mm wheelbase
  • Motor: XING2 2207 motors
  • Prop: Nazgul 5 inch propellers
  • Takeoff Weight:Approx. 620 g
  • Dimensions (L×W×H):180×180×80 mm
  • Diagonal Distance:245mm
  • Max Speed:130 Km/h (Manual Mode)
  • Maximum Takeoff Altitude:5000 m
  • Max Hover Time:Approx. 8 mins
  • Max Flight Distance:5 km
  • Max Wind Speed Resistance:130 Km/H (Level 4)
  • Operating Temperature Range:-10° to 40° C (14° to 104° F)
  • Antennas: 1 Antenna
  • GNSS:N/A
Video Transmission
  • Product Name:DJI O3 Air Unit
  • Communication Frequency:2.400-2.4835 GHz (RX only)  /  5.725-5.850 GHz (RX and TX)
  • Communication Bandwidth: Max 40 MHz
  • Live View Quality and Latency
With DJI FPV Goggles V2:
  • 810p/120fps Video Transmission Quality: The video transmission latency is lower than 28 ms.
  • 810p/60fps Video Transmission Quality: The video transmission latency is lower than 40 ms.
With DJI Goggles 2:
  • 1080p/100fps Video Transmission Quality: The video transmission latency is as low as 30 ms.
  • 1080p/60fps Video Transmission Quality: The video transmission latency is as low as 40 ms.
  • Max Video Transmission Bitrate:50 Mbps
  • Max Video Transmission Range:10 km (FCC), 2 km (CE), 6 km (SRRC)
  • Audio Transmission:N/A
Packing List
  • 1 x AOS5 V2 6S O3 HD BNF
  • 2 x Antennas
  • 2 x Battery pads
  • 2 x Prop(Pairs)
Important
  • Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!
  • To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"
  • Angle-Mode (self balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!
  • Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"
