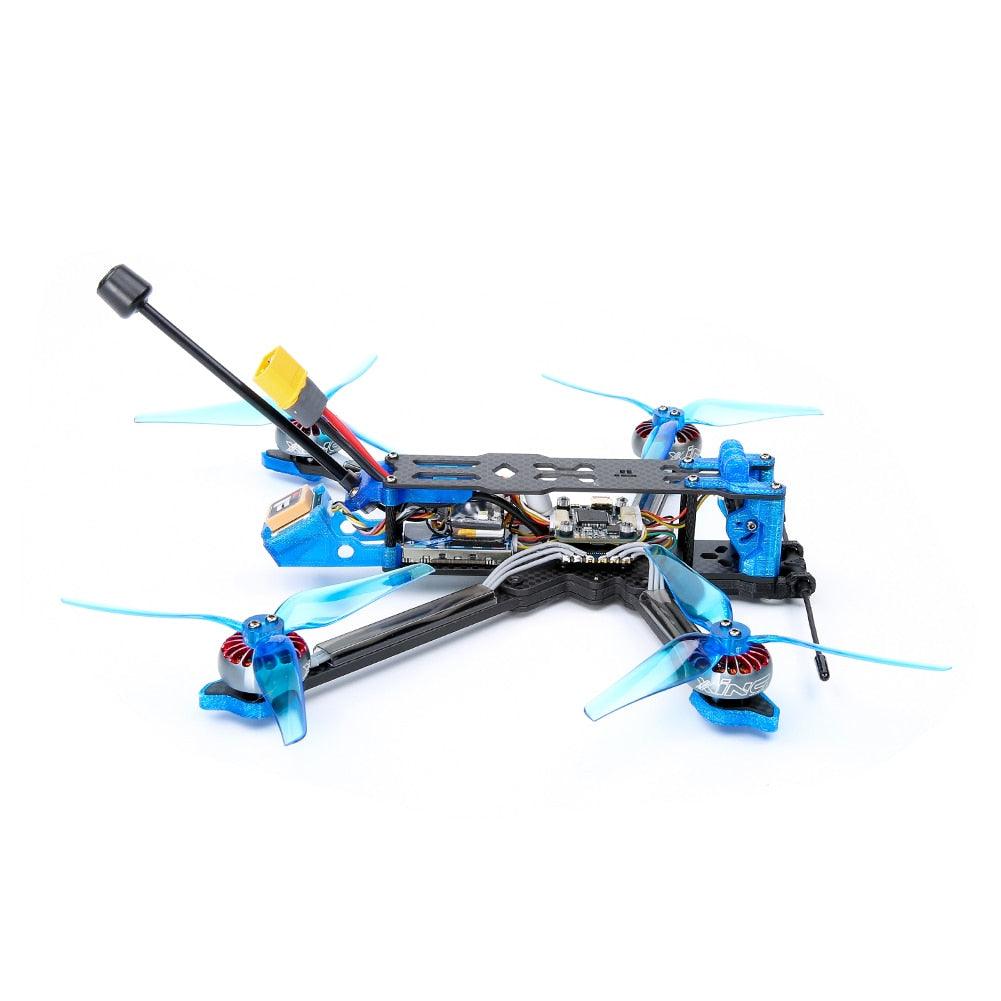

iFlight Chimera5 DC HD FPV Drone - 5inch 219mm LR BNF W/Caddx Polar Vista Digital HD System/XING 2005 2550KV motor/Beast F7 55A AIO for FPV

iFlight Chimera5 DC HD FPV Drone - 5inch 219mm LR BNF W/Caddx Polar Vista Digital HD System/XING 2005 2550KV motor/Beast F7 55A AIO for FPV

iFlight

Regular price $543.13 USD
Regular price $760.39 USD Sale price $543.13 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

47 orders in last 30 days

Color

If you have payment problems, pls refresh the page or "Chat with us".

Free Shipping: 9-15 days to arrive.

Express Delivery: 5-8 days to arrive.

Warehouse: China/USA/Europe, Can delivery to all countries, tax included.

Free shipping & User guarantee

  • Free Shipping:Ships within 3days, arrives within 10-18 days
  • Paid Express: Ships within 2days,arrives within 4-7 days
  • Money back guarantee: Quality problems, return and exchange within 30 days
  • 12-month warranty, long-term after-sales service
  • No need to register account, Order tracking url will send to your email
  • More FAQ:FAQ

iFlight Chimera5 SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 5inch 219mm

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: Chimera5 DC

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description:

  • Introducing our first ultra-light Long Range 5 inch BNF for every terrain and beyond. Our newest Beast F7 AIO on board coupled with our XING 2005 motors.If our iFlight Chimera4 is too small and light to fight against stronger winds, here you go.Get flight times above 25min using at leastLi-On4S 3000mAh packs. Go crazy and strap a Li-On 4S pack on and go even further, depending on capacity and weight!

  • GPS Rescue ready for easy recovery in case of signal loss, or even if you've been surfing those mountains and suddenly can't find the way back home.. Betaflight OSD pre-setup GPS elements will show you the way!Custom iFlight 150mm LR antenna for best signal coverage even at long distances.

  • Outstanding digital FPV experience in 720p directly on your goggles. Custom iFlight 150mm LR antenna for best signal coverage even at long distances.

Expected flight times (cruising, no freestyle, average speed):

  • Recommended battery: 4S 1300mAh and above!

  • Without GoPro: 11-13min // 4S 1300mAh, 14-15min //  4S 3000mAh Lion pack, 22-24min

  • With naked GoPro: 4S 1300mAh, 12-13min // 4S 3000mAh Lion pack, 20-22min

  • With full GoPro Hero8: 4S 1300mAh, 4-6min

  • ULTIMATE RANGEwith full GoPro: 4S 4000mAh, 13-16min (iFlight FULLSEND INR21700, iFlight 5V BEC instead of GoPro battery)

  • CAUTION:Flying LIPOs like 850mAh and below might exceed your battery's max power output on high throttle, might overheat the battery cells and shorten the battery lifespan drastically. Please fly with care!

  • CAUTION:Li-ion battery packs offer longer flight times (more capacity with less battery weight) but don't have as much current output as LiPo batteries and tend to get hot if overloaded! Please read the specs and stay within limits!

HIGHLIGHTS:

  • Mini long-range quad

  • XING 2005 2550KV Ultralight motors(Prop mount pattern currently only compatible with iFlight Nazgul Props)

  • DC (DeadCat geometry) bottom plate, No props in view

  • GPS pre-installed for more safety at distance

  • Beast F7 55A AIO board

  • Naked GoPro and Full GoPro ready (included TPU base mounts)

  • 360° TPU protection, Vista cam protection, and antenna mounts

  • Caddx Polar Vista Digital HD System Kit

PRE-TUNED & PRE-SETUP:

  • Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

  • To restore lost tunes or updates, please check our linked article on"Firmware/Factory Dumps"

  • Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

  • Please check our linked article on"How to disable Angle-Mode, activate Acro-Mode"

  • GPS Rescue is OFF by default to prevent from unwanted or unexpected drone behavior.

  • Please check our linked article on"GPS Rescue Mode // Setup"

FRAME //:Chimera5

  • Wheelbase: 219mm

  • Main body dimension: 135*173mm

  • Bottom to top distance: 28mm

  • Arm thickness: 4mm

  • Bottom plate thickness: 2mm

  • Top plate thickness: 2mm

  • Middle Plate thickness: 2.5mm

  • TPU Camera plate

  • FC: 25.5*25.5mm/20*20mm

  • FPV Cam: 19mm Micro / 20mm

FC // Beast F7 AIO

Specification:

  • MCU: BGA-STM32F745

  • Gyro: BMI270

  • Blackbox: 16Mb Onboard Flash

  • BEC output: 5V 2.5A

  • Barometer: DPS310

  • Connector: Micro-USB

  • OSD: AT745E

  • FC Firmware:IFLIGHT_F745_AIO

  • Mounting pattern: 25.5*25.5mm φ3mm

  • Dimensions: 32.5*32.5mm

  • Weight: 8.5g

ESC // 55A 2-6S

Specification:

  • Uarts: 5

  • Current Sensor: Yes

  • Input: 2-6S LIPO

  • Current scale: 200

  • Constant: 55A / Burst: 60A

  • BLHeli: BLHeli-S

  • Telemetry: no

  • ESC Firmware:BlheliS G-H-30

  • Mounting pattern: 25.5*25.5mm/Φ3mm

  • Dimensions:32.5*32.5mm

Chimera5 DC HD Quad BNF Included Components and Parts

  • Prebuilt and tested Quadcopter

  • 1x Chimera5 DC Frame

  • 1x Caddx Polar Vista Digital HD System Kit

  • 1xAlbatross LHCPRP-SMA5.8g antenna

  • 2sets x Nazgul 5030 inch 3-blades (Set of 4 - Color may vary)

  • 1x naked GoPro TPU base mount (installed)

  • 1x full GoPro TPU base mount

  • 1x 20*200mmMicrofiber PU Leather Battery Strap (Color May Vary)

  • 1x20*250mmMicrofiber PU Leather Battery Strap (Color May Vary)

Additional Suggested Parts (not included)

  • Naked GoPro Hero8 Case

  • DJI HD FPV Goggles V2

Note:The camera mount donot included











---------

Related Article

(If there is any information error in the article, the product description shall be the standard.)

iFlight Chimera5 Review

Long range flying is catching the interest of more and more FPV pilots. iFlight is clearly working on this aspect and this can be seen in some of their last released products. One of them is the iFlight Chimera5 LR, which comes in two version: iFlight Chimera5 LR Analog and iFlight Chimera5 LR Digital HD. In this article we will take a look at the analog version.

iFlight Chimera 5 LR analog comes in two version:

no receiver: it is up to the FPV pilot to install his preferred receiver
BNF (Bind-N-Fly) with TBS Crossfire Nano: this receiver is preinstalled on the drone
iFlight Chimera5 LR Front

Package Contents

The package contains the following items:

iFlight Chimera5 LR quad
2 sets x Nazgul 5030 inch 3-blades (set of 4)
1 x 20*200mm Microfiber PU Leather Battery Strap
1 x 20*250mm Microfiber PU Leather Battery Strap
Basic instruction manual
iFlight Chimera5 LR Front

Specifications and features

Specs for the iFlight Chimera5 LR Analog are the following:

Motors: XING 2005 2550KV Ultralight motors
Flight Controller: SucceX-E mini F7 Stack
ESCs: SucceX-E Mini 35A
VTX: SucceX Force PIT / 25mW / 200mW / 400mW / 800mW @5.8GHz
FPV camera: Caddx Ratel V2 2.1mm
VTX antenna: Albatross RHCP 5.8GHz with MMCX connector
Pre-installed GPS
Self powered beeper
Naked GoPro ready
TPU parts: Caddx Vista cam protection, antenna mounts, landing pads / motors protection
Weight: 264g (with no battery)
iFlight Chimera5 LR Side

Frame

The frame is the Chimera5 DC 219mm, a deadcat geometry frame which has high efficiency and it is designed to have no props in view. Along the arms there are wire protectors, which is very nice.

iFlight Chimera5 LR Top

Arms are individually connected to the center of the frame and this is always a good feature because, if one arm breaks, we do not have to replace all the frame.

iFlight Chimera5 LR Bottom

FPV Camera

The FPV camera mounted on the iFlight Chimera5 LR is the well known Caddx Ratel V2 which is probably the most popular FPV camera at the moment. This camera has a 1/1.8” Inch Starlight sensor with a resolution of 1200TVL; FOV is 165° with 2.1mm lens. It weight only 5.9g.

The following image shows also the fact that it is naked GoPro ready.

iFlight Chimera5 LR Camera

Motors and Propellers

Motors are XING 2005 2550KV Ultralight brushless motors. They are combined with Nazgul 5030 propellers and, as always, it is a good idea to buy some more for spares. As always iFlight has protected the motors with TPU protection acting also as landing pads.

iFlight Chimera5 LR Motor

Beware that prop mount pattern currently is only compatible with iFlight Nazgul props.
Here is the detail of the bottom side where motors are fixed to the frame through the classic four screws:

iFlight Chimera5 LR Motor Bottom Mount

FC and ESCs stack

iFlight Chimera5 LR is equipped with the SucceX-E mini F7 flight controller (MPU6000 gyro): this is a nice feature since F7 gives more computational power with respect to the more common F4.
ESCs are the 4in1 SucceX-E Mini 35A loaded with BLHeli-S firmware (G-H-30).

iFlight Chimera5 LR Flight Controller

VTX

VTX equipped is the SucceX Force PIT/25mW/200mW/400mW/800mW @5.8GHz, already used in many iFlight quad models. This is a good product and it assures good video signal even at long distance due to its maximum power output of 800mW combined with the Albatross RHCP 5.8 GHz antenna.

GPS

GPS module is located on the back. Beware that GPS rescue is not setup out of the box, so we have to enable it in Betaflight: Failsafe tab -> Stage 2- Settings -> GPS Rescue.

The self powered beeper is a very nice feature, so if battery gets ejected in a crash the alarm will work anyways and we can easily look for our quad.

Battery

Since this is a PNP/BNF quad, battery is not included.

Note that iFlight Chimera5 LR comes with an XT30 connector for the battery.
Valid choices for the iFlight Chimera5 LR are the following:

iFlight FULLSEND 4S 1300mAh 120C LiPo Battery XT60, which comes with XT60 connector, so you have to change the one on the quad or use an adapter
Coddar 4S 850mAh 90C LiPo Battery XT30/XT60 , which comes with XT30 or XT60 connector
GEPRC VTC6 18650 4S 3000mAh 15C/30C Li-ion Pack Battery XT30/XT60, which comes with XT30 or XT60 connector
iFlight FULLSEND VTC6 18650 4S 3000mAh 15/30C Li-ion Battery XT30, which comes with XT30 connector
Flight times

These are the flight times reported by the manufacturer:

without GoPro: 4S 850mAh, 11-13min // 4S 1300mAh, 14-15min // 4S 3000mAh Lion pack, 22-24min
with naked GoPro: 4S 850mAh, 9-11min // 4S 1300mAh, 12-13min // 4S 3000mAh Lion pack, 20-22min
with full GoPro Hero8: 4S 850mAh, 3-5min // 4S 1300mAh, 4-6min
Conclusions

If you are not concerned about the 250g limit, the iFlight Chimera5 LR is a great choice for long range flights and, as stated, it assures pretty decent flight times.
