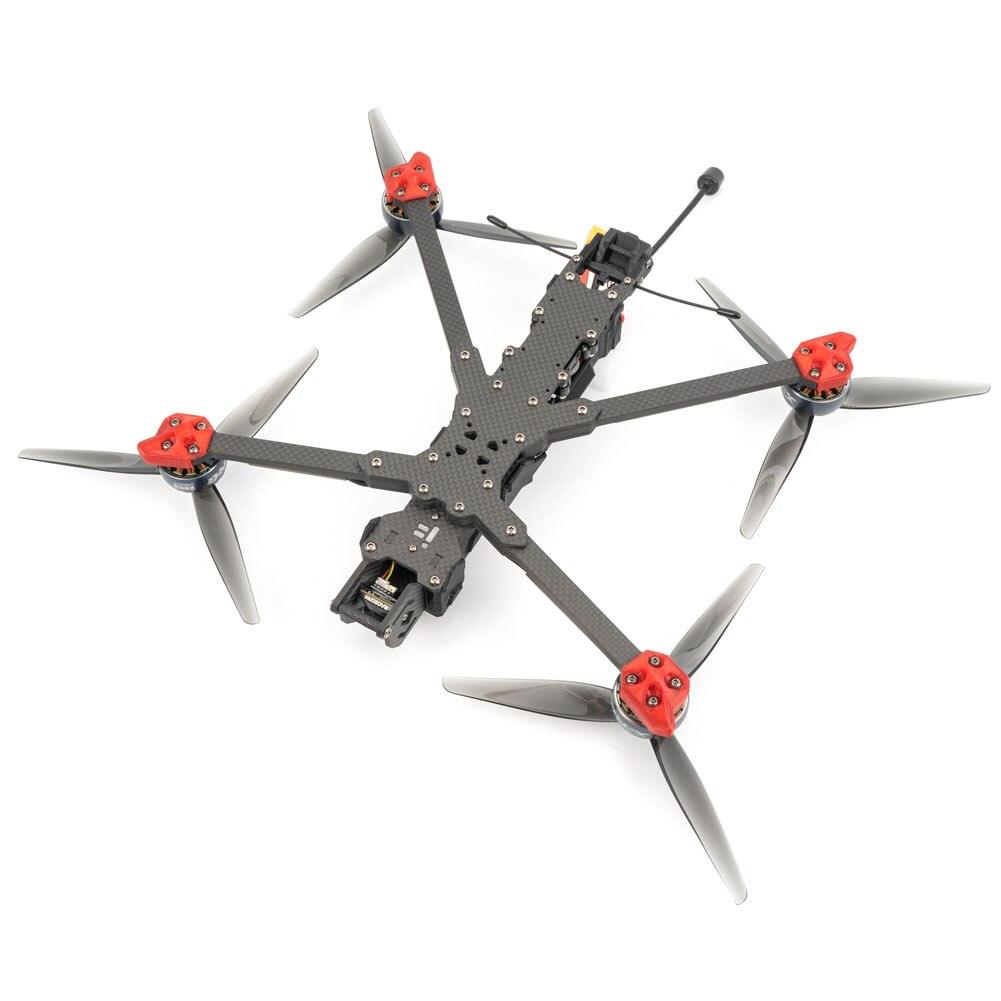

iFlight Chimera7 Pro - Analog 6S 7.5inch FPV Long Range BNF with RaceCam R1 Mini 1200TVL 2.1mm Cam/XING2 2809 1250KV motor for FPV

iFlight Chimera7 Pro - Analog 6S 7.5inch FPV Long Range BNF with RaceCam R1 Mini 1200TVL 2.1mm Cam/XING2 2809 1250KV motor for FPV

iFlight

Regular price $607.06 USD
Regular price $849.88 USD Sale price $607.06 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

12 orders in last 90 days

Color

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details

SPECIFICATIONS

Wheelbase: Bottom Plate

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Frame

Tool Supplies: Battery

Technical parameters: Value 2

Size: 7.5inch

Remote Control Peripherals/Devices: Remote Controller

Recommend Age: 12+y

RC Parts & Accs: Antennas

Quantity: 1 pcs

Origin: Mainland China

Model Number: Chimera7 Pro Analog

Material: Carbon Fiber

Four-wheel Drive Attributes: Assemblage

For Vehicle Type: Airplanes

Certification: CE

Brand Name: IFLIGHT

Description:
  • Introducing what has been requested for too long already! A super-efficient iFlight 7inch Long-Range bird that can go where you couldn't go before and can carry bigger batteries to get the flight time to surf the swiss alps if you want! A super stiff frame for minimum resonance and XING2 2809 motors for maximum 7inch prop control. Fly big batteries top-mounted, or even bigger batteries bottom-mounted, 6cells recommended or 5cells for slow cruising. But whatever style you fly, a Lipo or Lion pack will just do the job. Recommended 5S 3.000mAh above (slow cruising) or 6S 2.500mAh above.

  • GPS functionality to find your way back and Betaflight GPS Rescue mode ready to setup (default OFF to prevent unexpected behavior; Setup instructions included). Vertical and horizontal TBS Crossfire antenna mounts are included to cover you and your antenna dead-ends just in case. GoPro universal TPU bottom stand included; fits your original GoPro bracket and our TPU GoPro protectors (additional).

Main Changelog from Chimera7 to Chimera7 Pro:

  • SucceX-D F7 V2.2 Stack (F7+50A ESC) upgraded to BLITZ F722 Stack (F7 V1.1 + 55A 4in1 ESC)

  • New Lightweight Side Panels Design - Keep Your Rig Clean

  • XING 2806.5 upgraded to XING2 2809 1250KV

  • 7-inch frame upgraded to 7.5inch

HIGHLIGHTS:

  • Battery voltage LED status light (illuminated IF logo on the bottom)

  • GoPro TPU bottom stand (GoPro protector not included)
  • Lightweight Side Panels Design - Keep Your Rig Clean

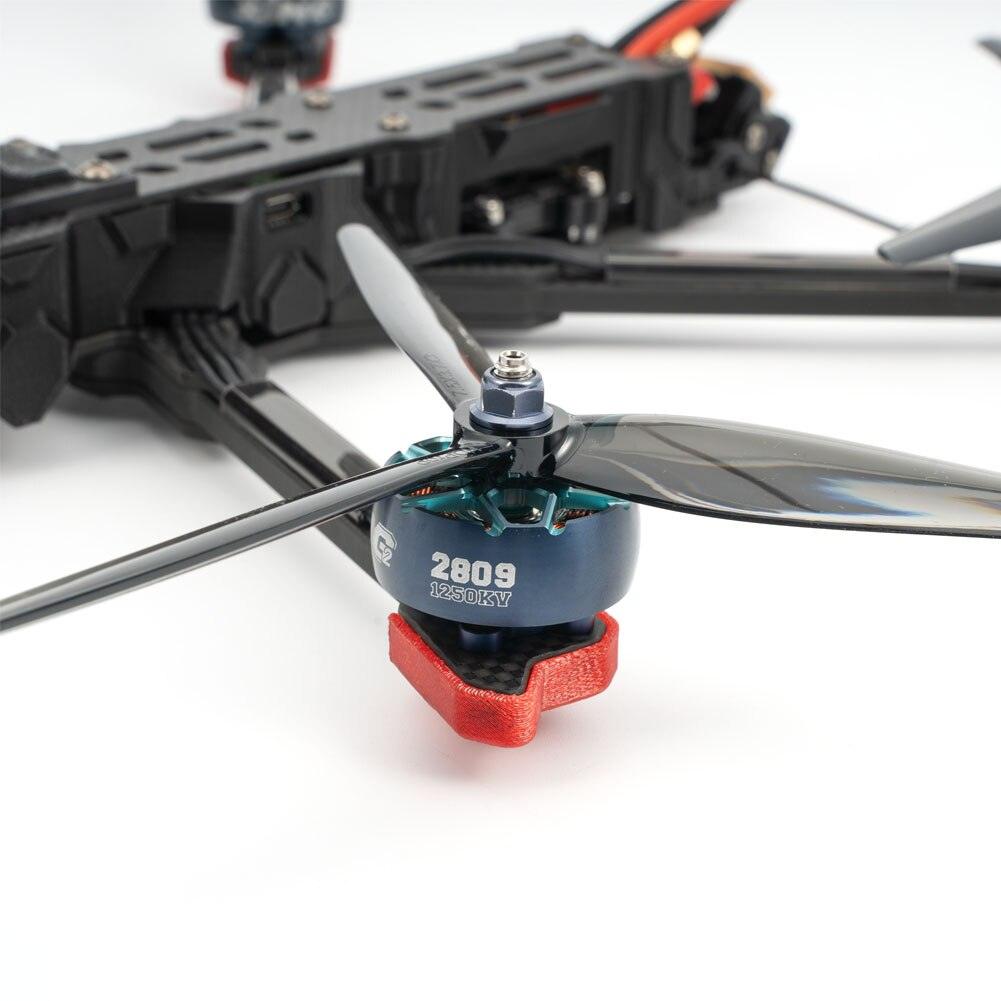

  • XING2 2809 1250KV efficient wide stator motors
  • GPS pre-installed for more safety at a distance

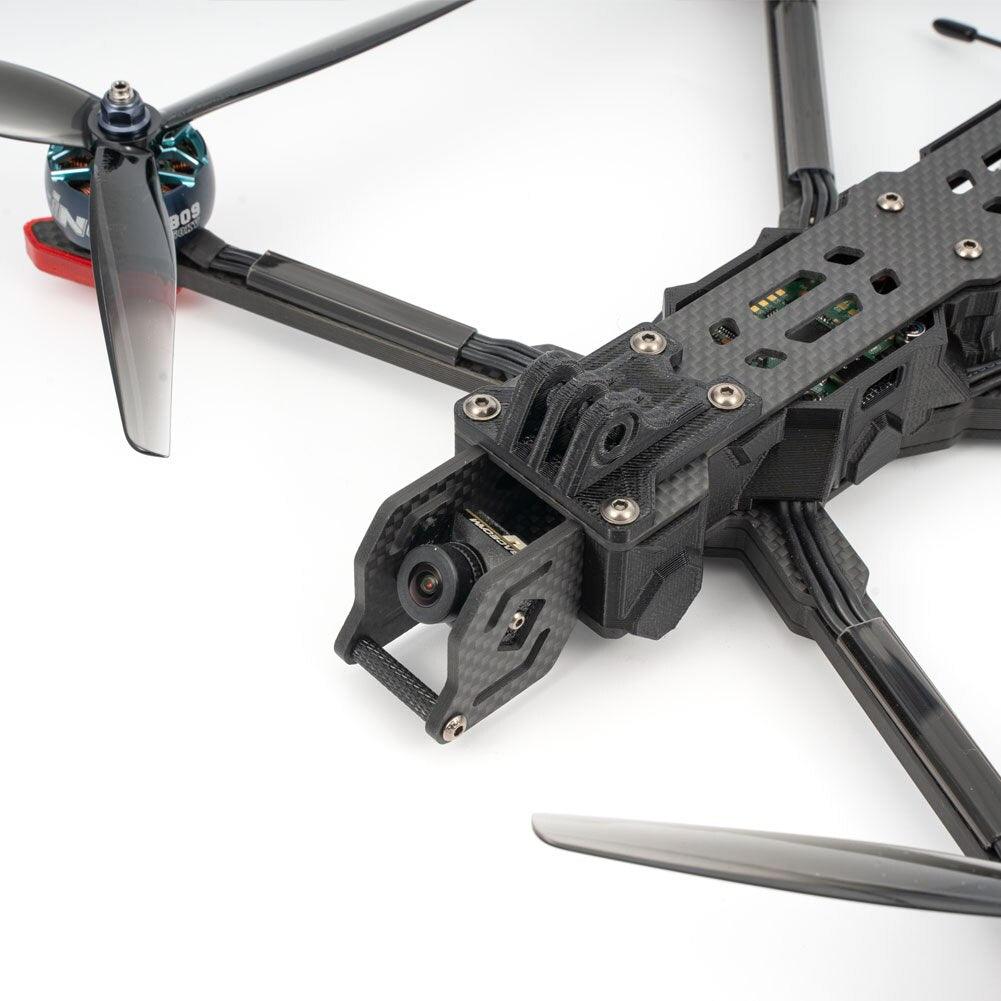

  • 360° TPU protection, FPV cam protection

  • 6mm rigid arm design for more stiffness

  • Top- and bottom battery mount option

PRE-TUNED & PRE-SETUP:

  • Is this your first BNF or are you just starting through with FPV? This article might probably help: General Guide // iFlight BNF

  • Don't worry about tuning, we did that for you already! A basic PID- and Filter tuning was applied for a great flight experience!

  • To restore lost tunes or updates, please check our linked article on "Firmware/Factory Dumps"

  • Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn't end in a mess!

  • Please check our linked article on "How to disable Angle-Mode, activate Acro-Mode"

  • GPS Rescue is OFF by default to prevent unwanted or unexpected drone behavior.

  • Please check our linked article on"GPS Rescue Mode // Setup"

Specifications:

  • Weight: 695g (without battery and GoPro mount)

  • Total Dimensions: 258*200mm (body dimension)

  • Upper(middle) Plate Thickness: 3mm

  • Bottom to Top Distance: 20-29mm

  • Bottom Plate Thickness: 3mm

  • Camera Plate Thickness: 3mm

  • Top Plate Thickness: 3mm

  • Geometry:  DC (DeadCat)

  • HQ 7.5X3.7X3 Propellers

  • Arm Thickness: 6mm

  • XING2 2809 1250KV

  • FC: BLITZ F722

  • ESC: BLITZ E55 4-IN-1 2-6S ESC

ELECTRONICS // BLITZ F7 Stack (F7 V1.1 + 55A 4in1 ESC):

FC // BLITZ F722 Flight Controller

  • Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

  • Smartaudio / IRC Tramp VTX protocol supported

  • Firmware target: IFLIGHT_BLITZ_F722

  • Motor outputs: 4x (SH1.0 connector)

  • Flash: 32MB (Blackbox flash)

  • I2C serial: SDA / SLA pads

  • Dimensions: 36.5*35 mm

  • Barometer: DPS310

  • OSD Chip: AT7456E

  • LED controller: Yes

  • MCU: STM32 F722

  • Beeper pad: Yes

  • Gyro: BMI270

  • Weight: 7.8g

  • UARTS: 6

ESC // BLITZ E55 4-IN-1 2-6S 55A ESC

  • Supports: DShot DShot150/300/600/MultiShot/ OneShot etc.

  • Mounting Holes: 30.5*30.5mm/Φ4mm

  • Target:   IFLIGHT_BLITZ_G2

  • Supports 2-6S Lipo input

  • Current sensor: Yes

  • Constant: 55 Amps

  • Current rate: 200

  • Burst: 65 Amps

  • Weight: 15.3g

  • MCU: G071

  • BEC: No

VTX// BLITZ 1.6W VTX Adjustable
  • Betaflight IRC Tramp Configuration: Please download the attached VTX table for Betaflight!

  • IRC Tramp VTX table values: 25mW/400mW/800mW/1600mW

  • Power levels: PIT/25mW/400mW/800mW/1600mW

  • All our VTX tables can also be found here: LINK

  • Lightweight: 18.9g (excluding antenna)

  • Mounting pattern: 30.5x30.5mm/Φ3

  • Channels: 40 (including Raceband)

  • VTX telemetry: IRC Tramp

  • Input voltage: 7V~36V

  • Interface: MMCX

Chimera7 Pro Analog BNF Included Components and Parts

  • 4 x HQ 7.5X3.7X3 CW propeller + 4 x  HQ 7.5X3.7X3 CCW (Color may vary)

  • 1 x RaceCam R1 Mini 1200TVL 2.1mm 19*19 camera

  • 1 x Albatross RHCP 5.8GHz SMA FPV Antenna

  • 2 x iFlight Lipo Strap 20*300mm (Black)

  • 1 x Pre-built and Tested Chimera7 Pro

Tips:

  • VTX is set to 25mW by default! Power levels above 25mW require a HAM license or have to be approved by local authorities! Please ensure you're flying legal frequencies and use our prepared Betaflight VTX tables according to your region.
