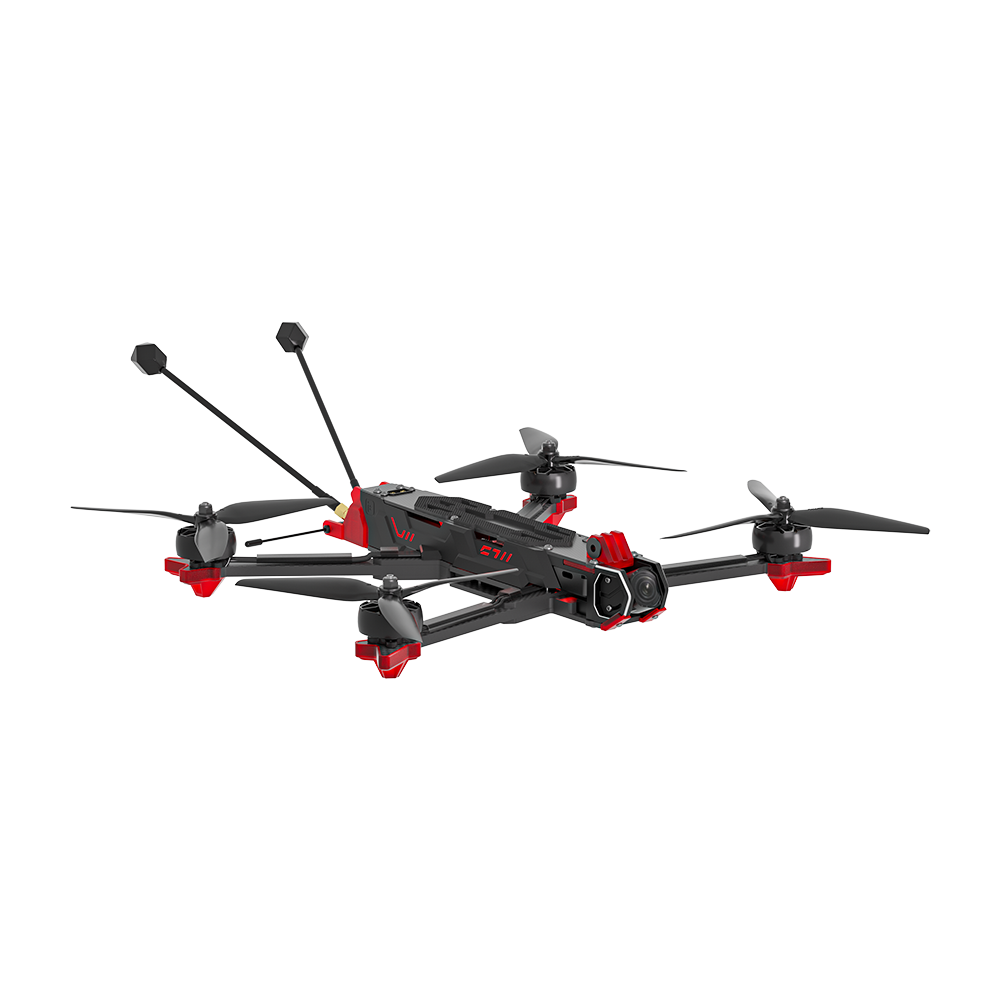

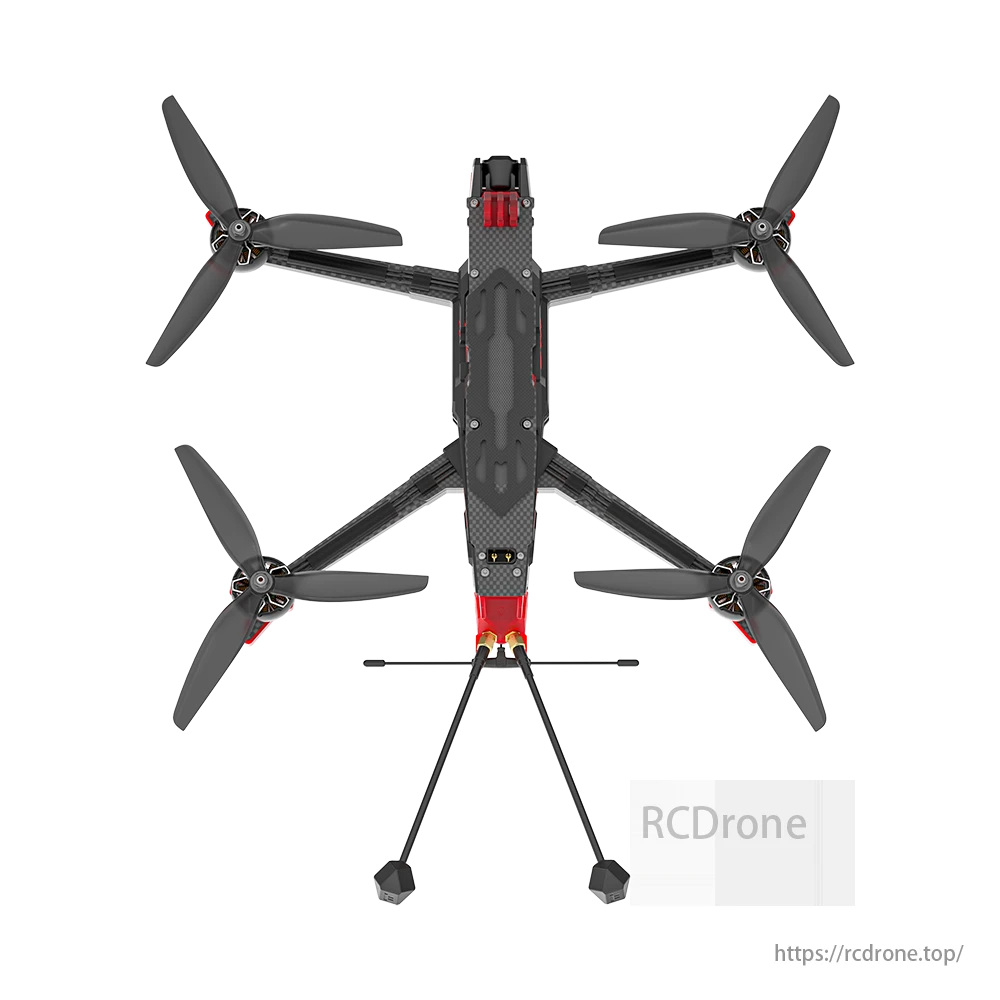

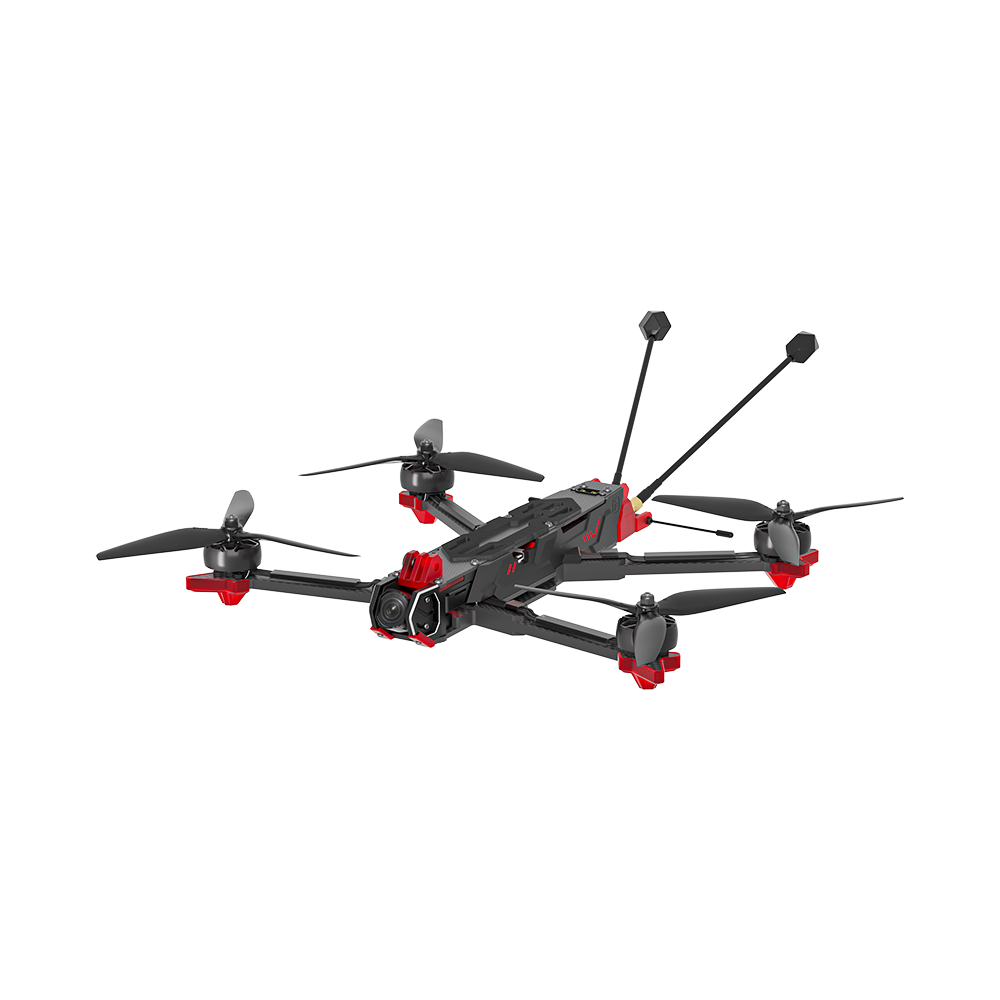

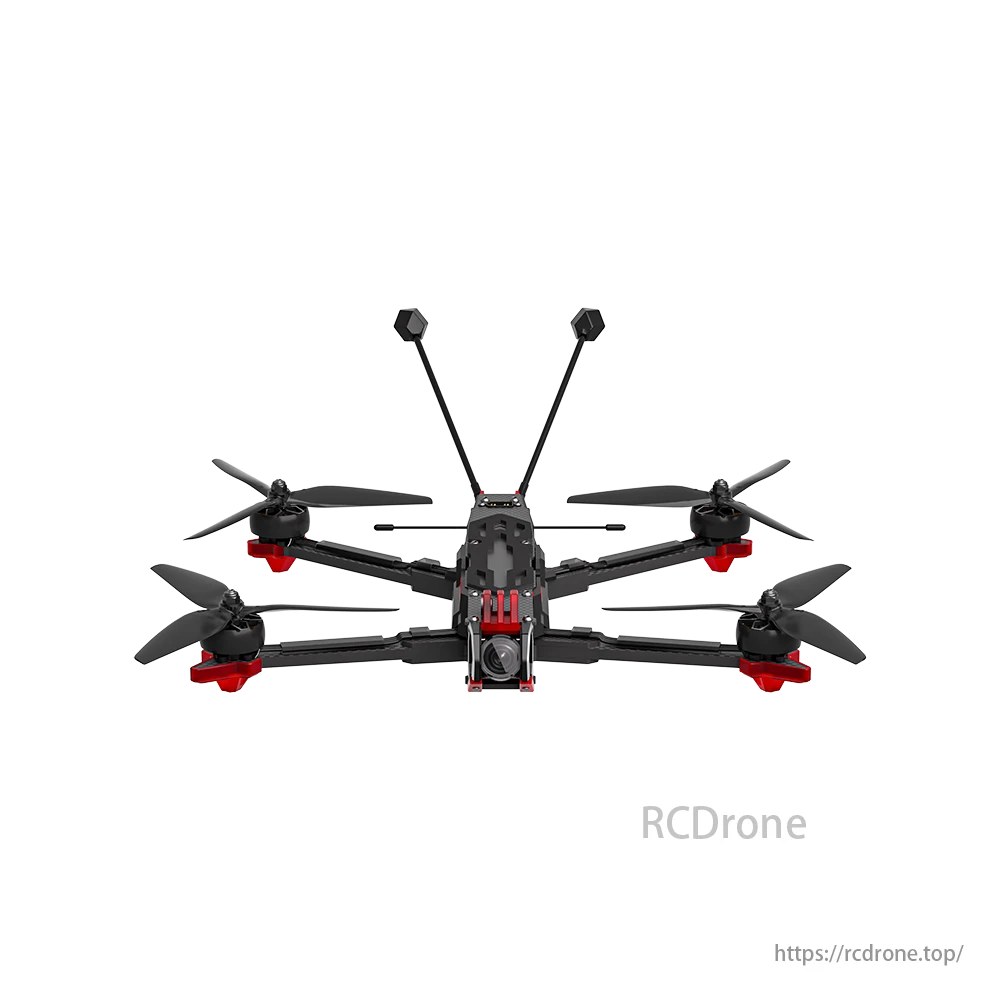

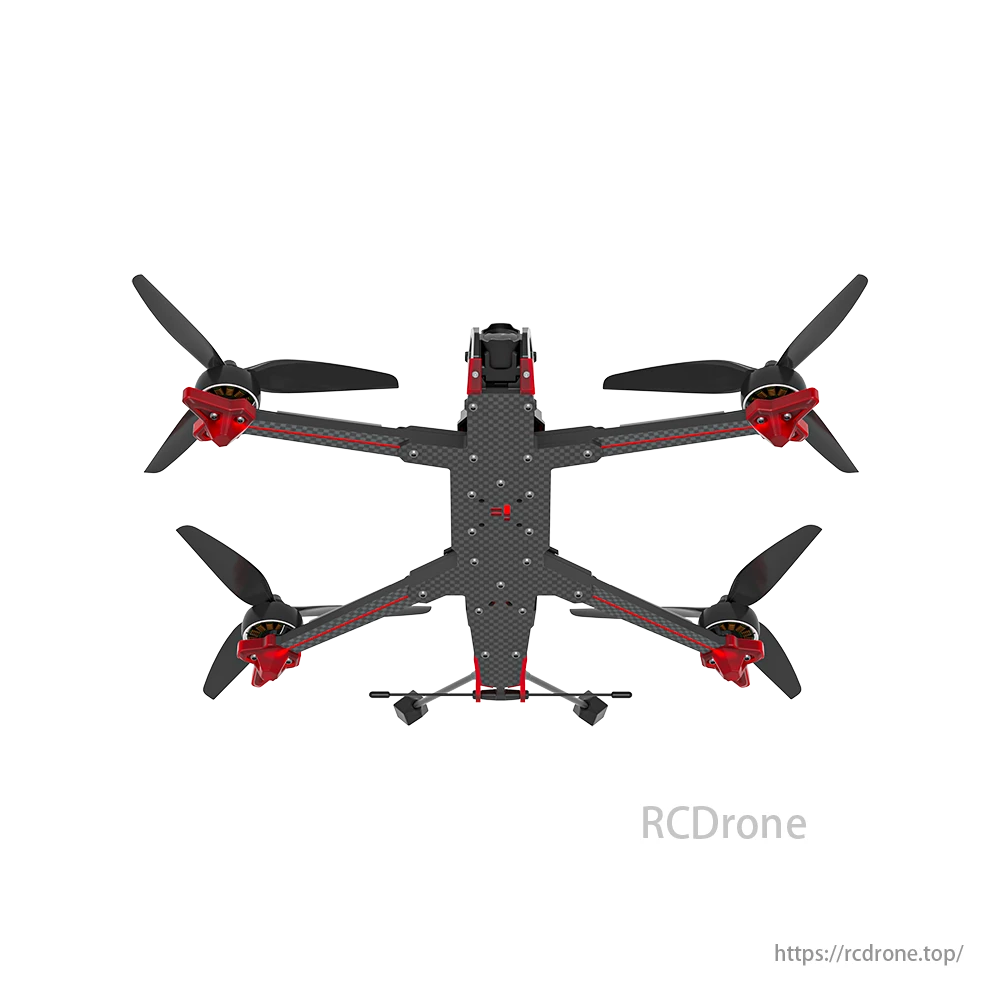

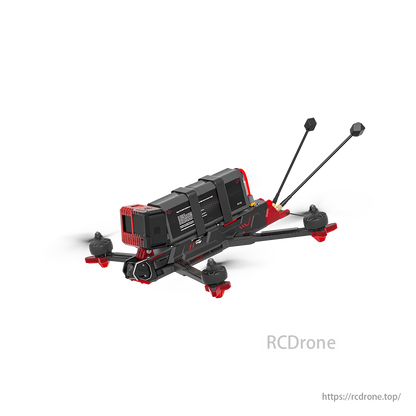

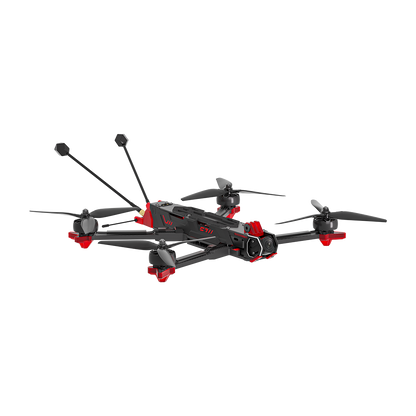

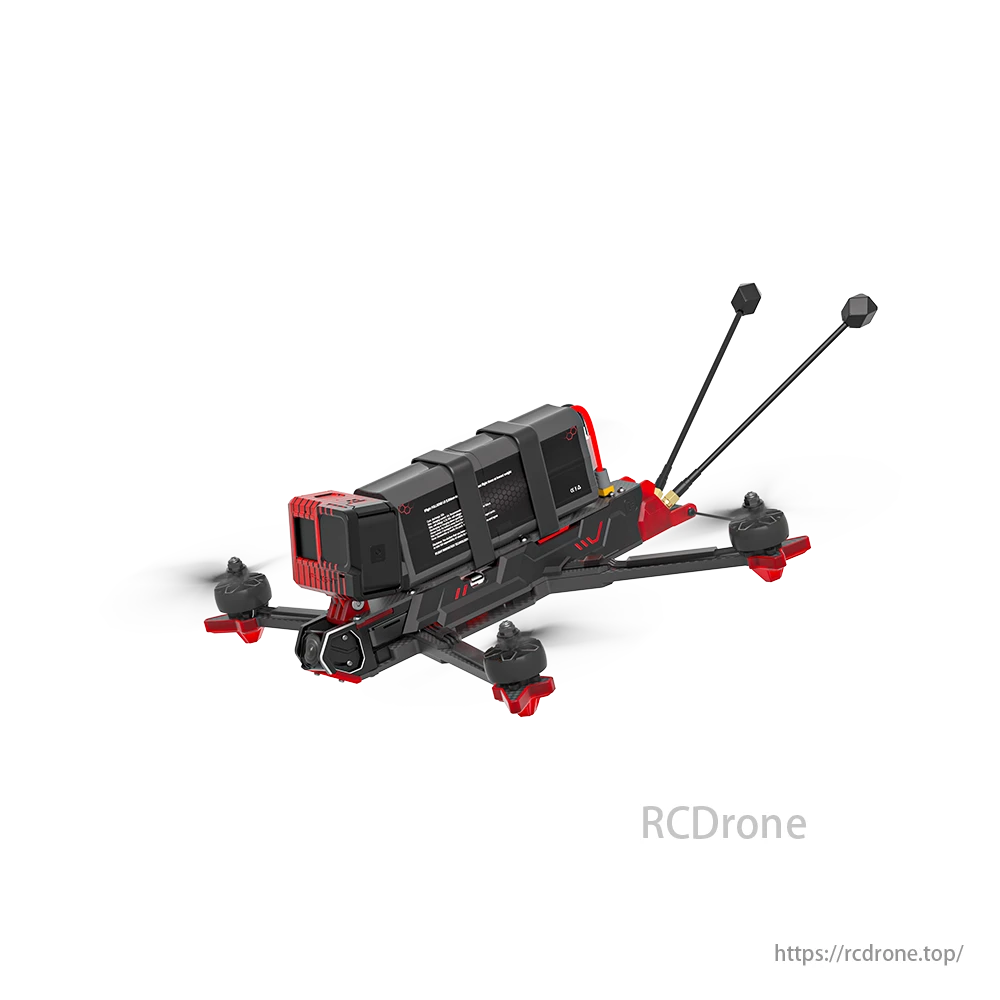

iFlight SH CineLR 7 O4 6S HD 4K 7-Inch Long-Range FPV Drone with DJI O4 Air Unit Pro

iFlight SH CineLR 7 O4 6S HD 4K 7-Inch Long-Range FPV Drone with DJI O4 Air Unit Pro

iFlight

Regular price $1,059.00 USD
Regular price Sale price $1,059.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Receiver
View full details

The iFlight SH CineLR 7 is a high-performance 7-inch long-range FPV drone designed for both cinematic video recording and freestyle FPV flying. Equipped with the DJI O4 Air Unit Pro, it captures stunning 4K stabilized footage with a 155° ultra-wide angle and smooth 1080p/100fps live video transmission. Engineered for long-range flights, the CineLR 7 offers up to 25 minutes of flight time with the recommended 6S 8000mAh battery, making it ideal for immersive FPV experiences and professional video shoots.

Key Features:

  • Innovative Frame Design: The SH Series frame features no props in view, allowing for flexible freestyle tricks, with balanced motor output for superior flight performance.

  • Quick-release Side Panels: Provides easy maintenance and ensures a cleaner setup with no cable entanglement.

  • 4K Stabilized Video: The DJI O4 Air Unit Pro with a 1.1/1.3-inch sensor ensures excellent low-light performance and smooth, immersive video transmission.

  • High-Performance Electronics: Equipped with the BLITZ F7 Flight Controller and BLITZ E55 4-IN-1 ESC for high-intensity flight maneuvers and enhanced stability.

  • Precision GPS Module: Integrated high-precision GPS with TPU cover prevents signal loss, reducing flyaway risks and enhancing safety.

Performance:

  • Max Speed: 140 km/h

  • Max Takeoff Altitude: 7000m

  • Hover Time: Up to 25 minutes with 6S 8000mAh battery

Specifications:

Product Name SH CineLR 7 6S O4 HD
Frame Geometry H-shaped
Flight Controller (FC) BLITZ F7 Flight Controller
ESC BLITZ E55 4-IN-1 2-6S 55A ESC
Video Transmission DJI O4 Air Unit Pro
Frame 334mm wheelbase
Motor XING2 2809 1250KV motors
Propeller HQ 7.5X3X3
Weight (Without Battery) 770g ± 5g
Takeoff Weight Approx. 1628g (incl. 21700 6S 8000mAh)
Dimensions (L×W×H) 285mm × 196mm × 45mm
Max Speed 140 km/h
Max Takeoff Altitude 7000m
Max Hover Time Approx. 18 minutes with 6S 3300mAh battery
Approx. 25 minutes with 6S 8000mAh battery
Recommended Load 800g
Max Wind Speed Resistance Level 7
Operating Temperature Range -20°C to 40°C
Antennas Dual Antennas
GNSS GPS + SBAS + Galileo + QZSS + Glonass

Video Transmission Specifications:

Product Name DJI O4 Air Unit Pro
Image Sensor 1/1.3-inch
Lens FOV 155°
ISO Range 100-25600
Video Resolution 1080p/100fps H.265
Video Format MP4, Max Video Bitrate: 130Mbps
Color Mode Normal Mode / D-Log M
Stabilization RockSteady 3.0+ (When RockSteady is enabled, shooting angle only supports standard)
Live View Quality 1080P@100fps
Operating Frequency 5.170-5.250 GHz & 5.725-5.850 GHz
Max Transmission Range 15 km (FCC), 8 km (CE), 8 km (SRRC)
Transmitter Power (EIRP) 5.1GHz < 23dBm (CE), 5.8GHz < 33dBm (FCC), <14dBm (CE), <30dBm (SRRC)
Communication Bandwidth Max 60 MHz
Antenna Dual Antennas
Built-in Storage 4GB
Supported SD Cards microSD (up to 512GB)
Operating Temperature -10°C to 40°C
Weight Approx. 32g (Air Unit with camera module)
Dimensions Transmission Module: 33.5 × 33.5 × 13 mm (L×W×H)

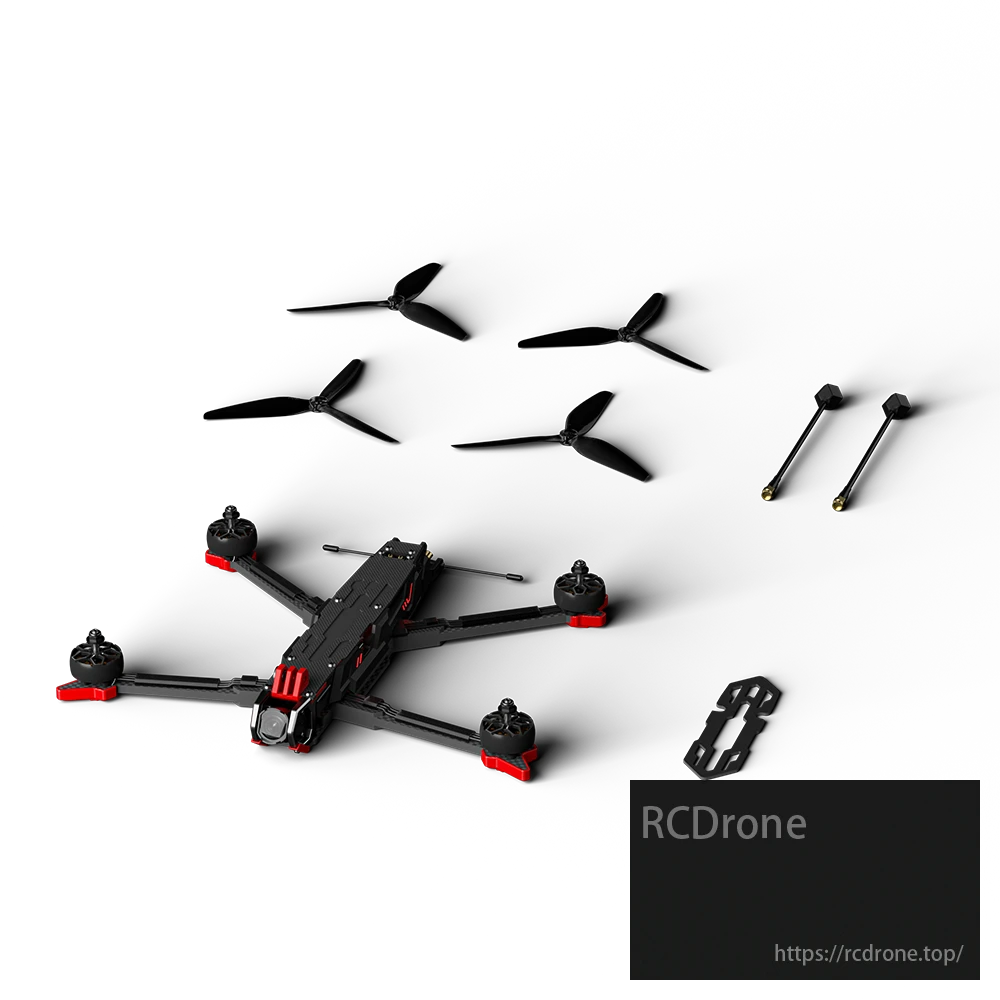

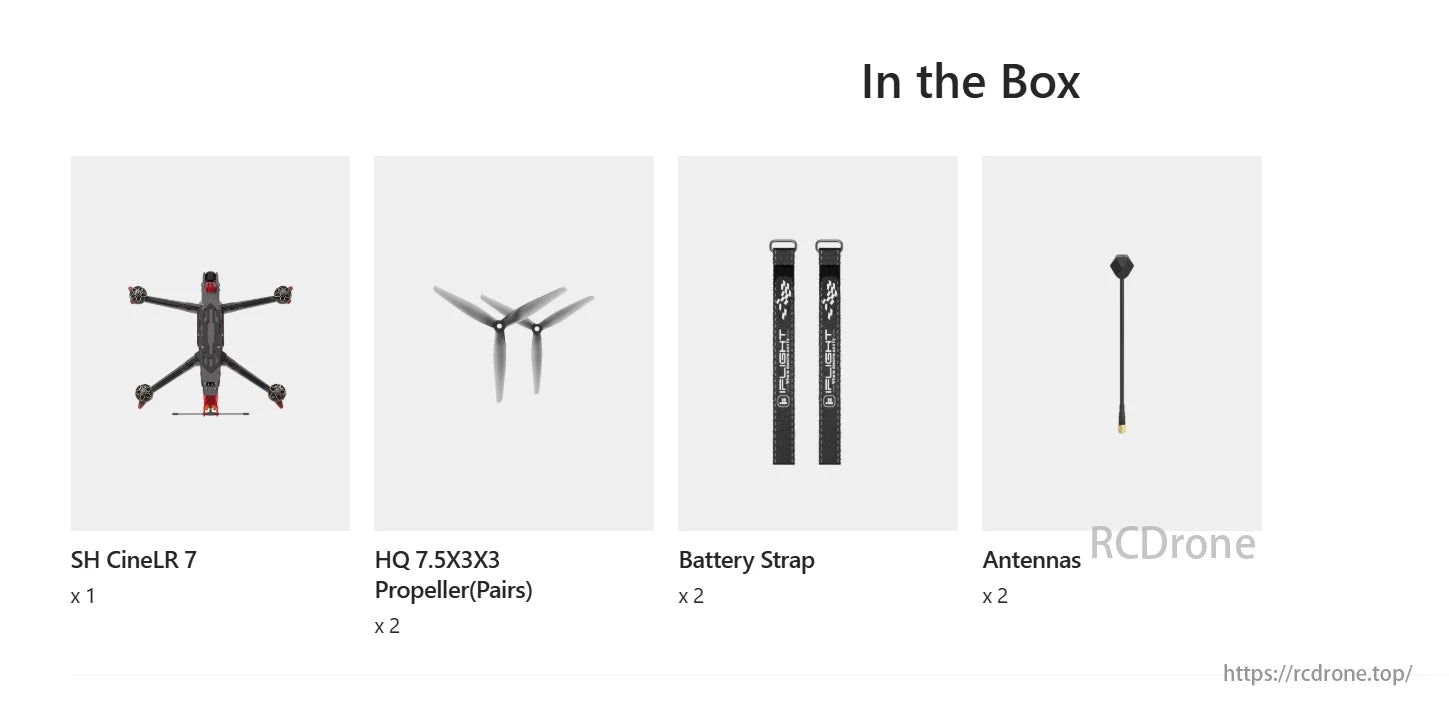

Packing List:

  • 1 x iFlight SH CineLR 7 6S O4 HD Drone

  • 1 x Battery Pad

  • 2 x 7.5-inch Prop (Pairs)

  • 2 x Battery Strap

  • 1 x Screw Bag

Compatibility:

Compatible with DJI Goggles 3, DJI Goggles N3, and DJI FPV Remote Controller 3. Custom firmware configuration is required to use with DJI remote controllers.

Details

iFlight SH CineLR 7 O4 6S FPV Drone, The drone features no visible props, quick-release panels, precise GPS, low hover throttle, 25-minute flight time, and enhanced low-light performance.

No Props in View, Quick-release Side Panels, Integrated High-precision GPS, Down to 17% Hover Throttle, Up to 25mins Long-range Flight Time, Finer Details in Low Light.

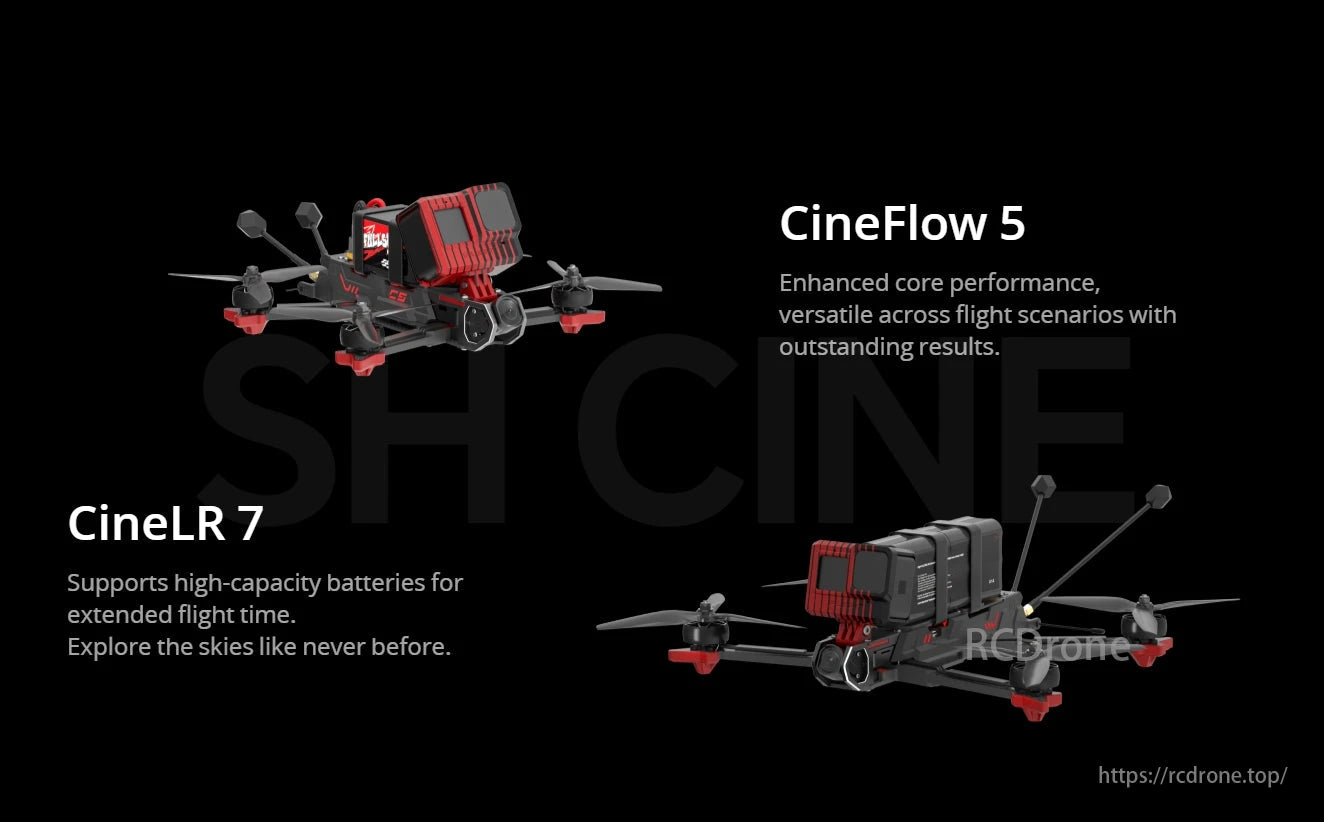

iFlight SH CineLR 7 O4 6S FPV Drone, CineFlow 5 offers improved performance and versatility, while CineLR 7 enables longer flight times with high-capacity batteries.

CineFlow 5: Enhanced core performance, versatile across flight scenarios. CineLR 7: Supports high-capacity batteries for extended flight time.

iFlight SH CineLR 7 O4 6S FPV Drone, SH Series drone with innovative frame, balanced motors, and 4K video output.

SH Series drone with innovative frame, balanced motors, and 4K video output.

iFlight SH CineLR 7 O4 6S FPV Drone, Quick-release side panels offer protection, easy maintenance, and clean setup.

Quick-release side panels offer protection, easy maintenance, and clean setup.

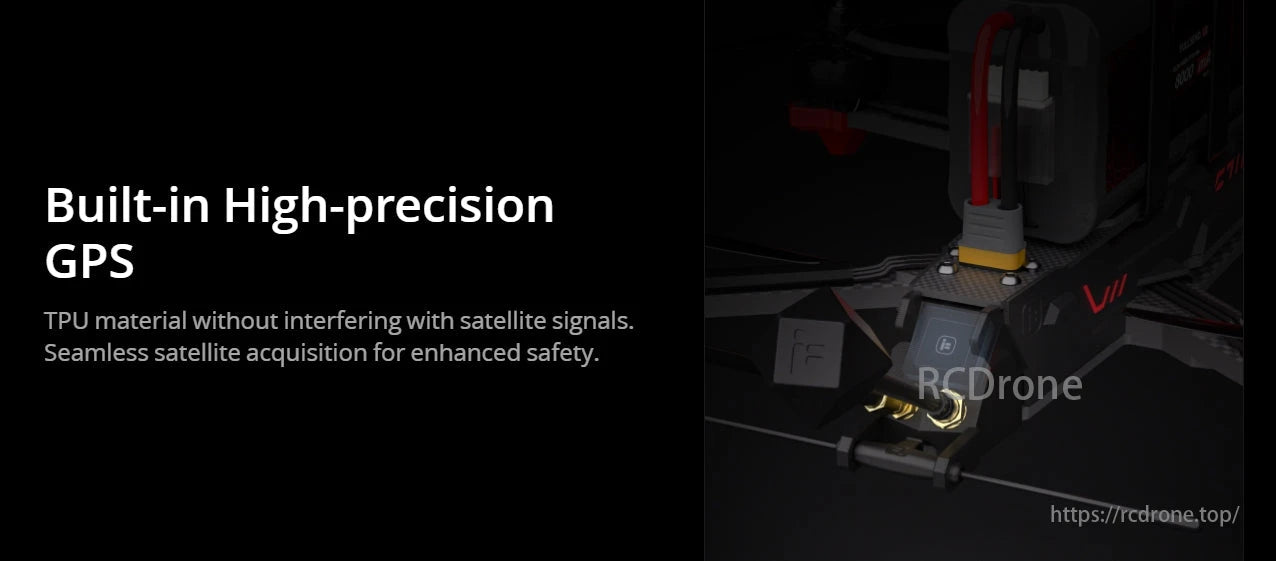

iFlight SH CineLR 7 O4 6S FPV Drone, Built-in high-precision GPS for seamless satellite acquisition, enhanced safety.

Built-in high-precision GPS for seamless satellite acquisition, enhanced safety.

iFlight SH CineLR 7 O4 6S FPV Drone, Drone specifications: Max speed 140 km/h, hover time up to 25 minutes with 6S battery.

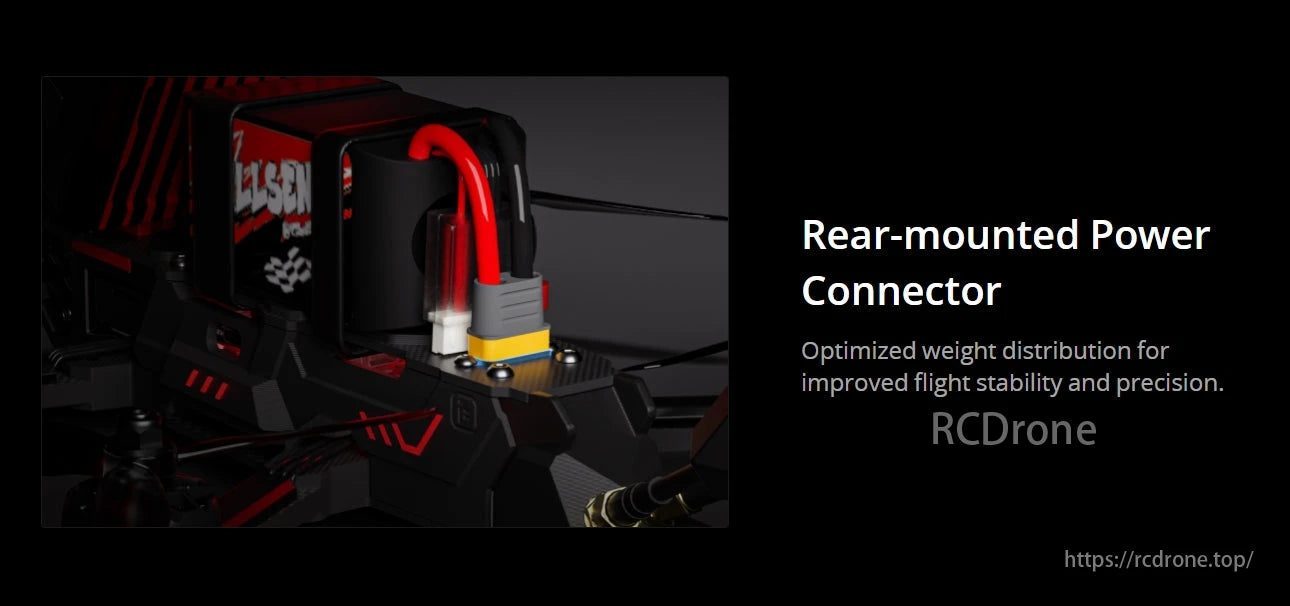

Rear power connector improves weight balance, boosting flight stability and precision in iFlight SH CineLR 7 O4 6S FPV Drone.

Rear-mounted power connector optimizes weight distribution, enhancing flight stability and precision for iFlight SH CineLR 7 O4 6S FPV Drone.

iFlight SH CineLR 7 O4 6S FPV Drone, Integrated camera mount for FPV drones, sleek design, redefines aesthetics.

Integrated Action Camera Base Mount. Sleek and integrated design, redefine aesthetics for FPV drone.

iFlight SH CineLR 7 O4 6S FPV Drone, Core Electronics boost stability. CineFlow 5: 17-19% hover, 12-13 mins, 190km/h. CineLR 7: 30-32% hover, 23-25 mins, 140km/h.

High-performance Core Electronics System enhances stability and reliability. CineFlow 5: 17-19% hover throttle, 12-13 mins flight time, 190km/h max speed. CineLR 7: 30-32% hover throttle, 23-25 mins flight time, 140km/h max speed.

iFlight SH CineLR 7 O4 6S FPV Drone, DJI O4 Air Unit Pro offers 4K/120fps recording, 1080p/100fps transmission, 155° FOV, stabilization, and low-light enhancements for stunning aerial footage.

Vision with DJI O4 Air Unit Pro. 4K/120fps recording, 1080p/100fps transmission, 155° FOV, stabilization. Enhances low-light details, ultra-wide visuals for immersive flying experiences. Ideal for capturing stunning aerial footage.

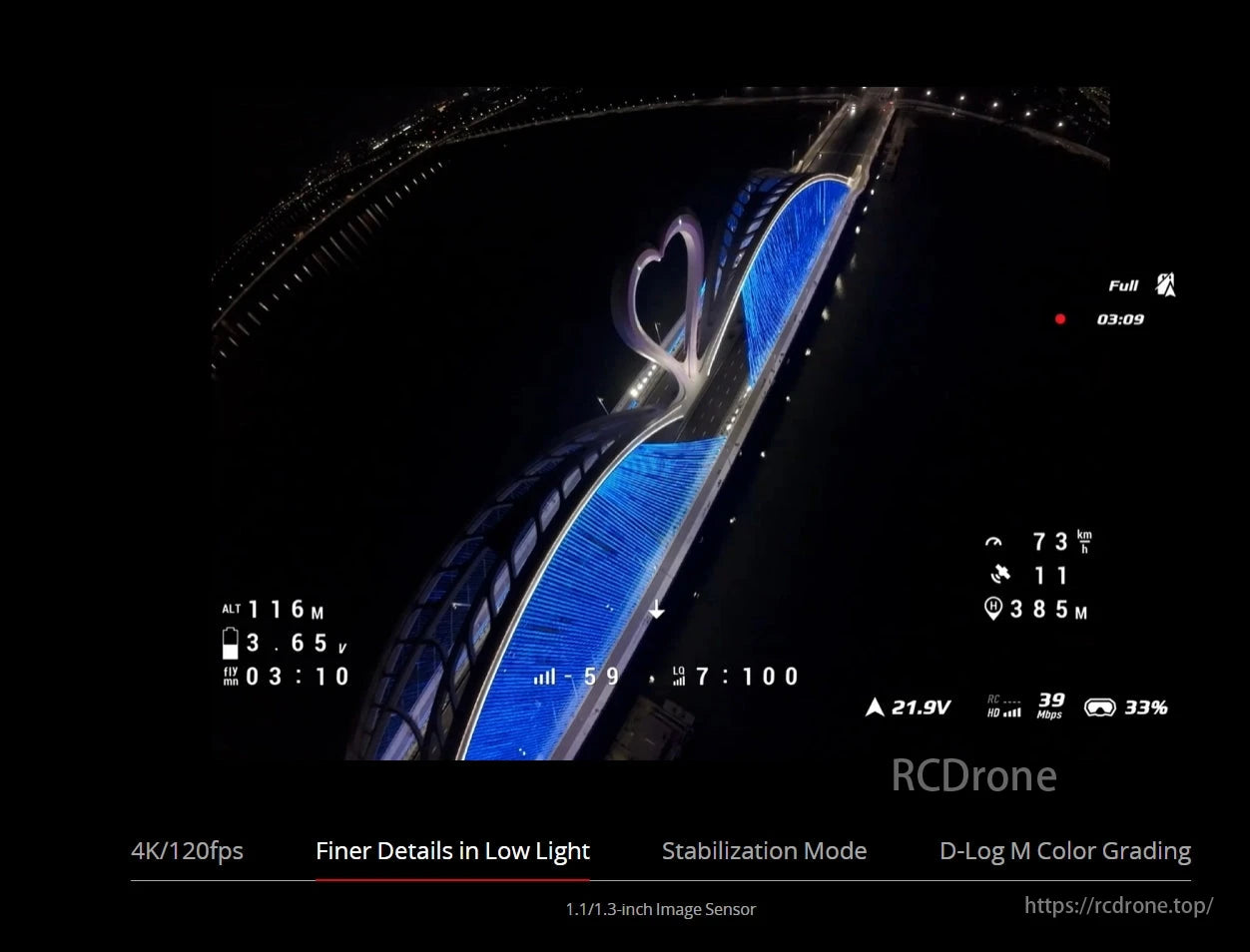

iFlight SH CineLR 7 O4 6S FPV Drone, Drone metrics: altitude 116M, speed 73 km/h, distance 385M, battery 3.65V. Features: 4K/120fps, low-light detail, stabilization, D-Log M grading. Night bridge illuminated.

Night bridge illuminated, drone metrics: altitude 116M, battery 3.65V, speed 73 km/h, distance 385M. Features: 4K/120fps, low-light detail, stabilization, D-Log M color grading.

iFlight SH CineLR 7 O4 6S FPV Drone, The design includes a physical LED button, front air unit, anti-spark filter, reinforced arm base, and up to 512GB SD card expansion for 4K video storage.

Physical LED button, front-mounted air unit, anti-spark filter, reinforced arm base, and SD card expansion up to 512GB for 4K video storage are included in the design.

iFlight SH CineLR 7 O4 6S FPV Drone, CineFlow 5 and CineLR 7 drones offer different specs for outdoor adventures, with varying wheelbases, prop sizes, flight times, and speeds, suited for diverse filming needs.

CineFlow 5: 222mm wheelbase, 5.1-inch props, 12-13 min flight time, 190 km/h max speed. CineLR 7: 334mm wheelbase, 7.5-inch props, 23-25 min flight time, 140 km/h max speed. Ideal for outdoor adventures and long-range filming.

iFlight SH CineLR 7 O4 6S FPV Drone, Top accessories for drones include DJI Goggles 3, Commando 8 Radio, GoPro Mount, and HOTA D6 Pro Battery Charger.

Don't Miss Top Accessories: DJI Goggles 3, Commando 8 Radio, GoPro Mount, HOTA D6 Pro Battery Charger.
