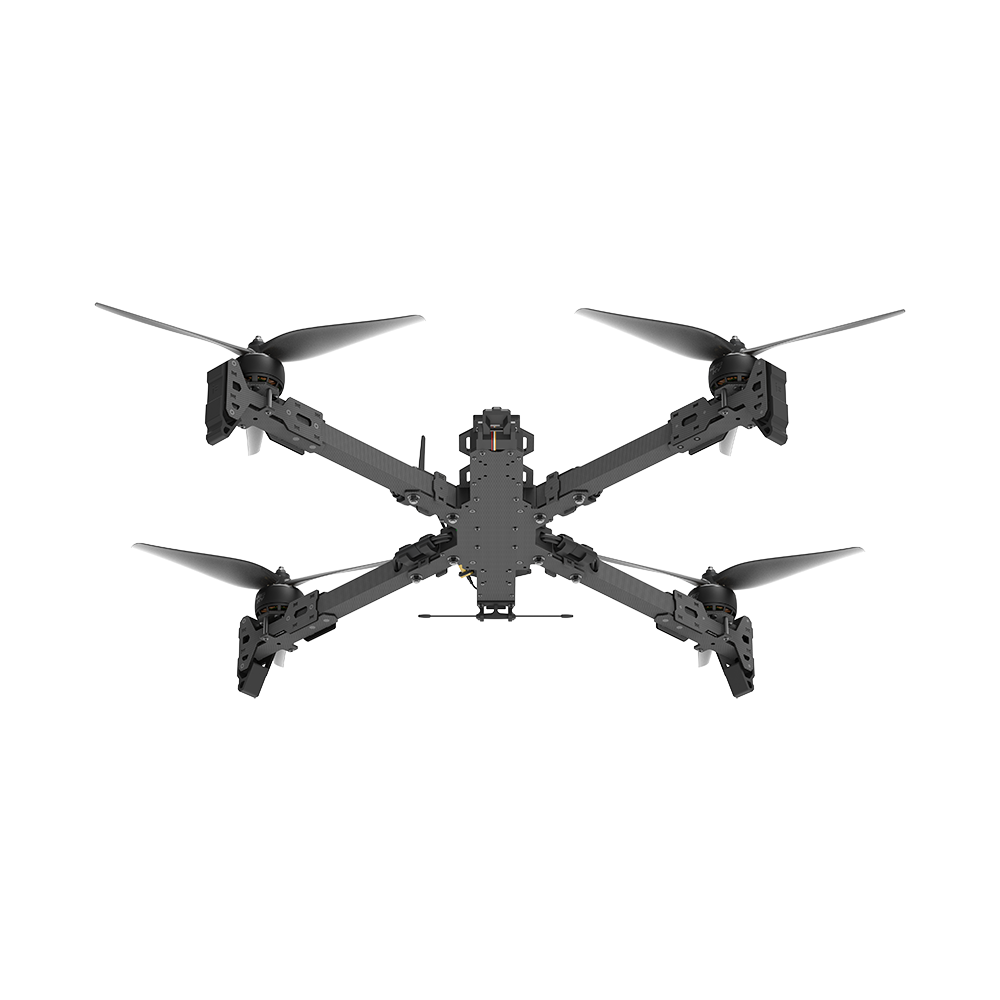

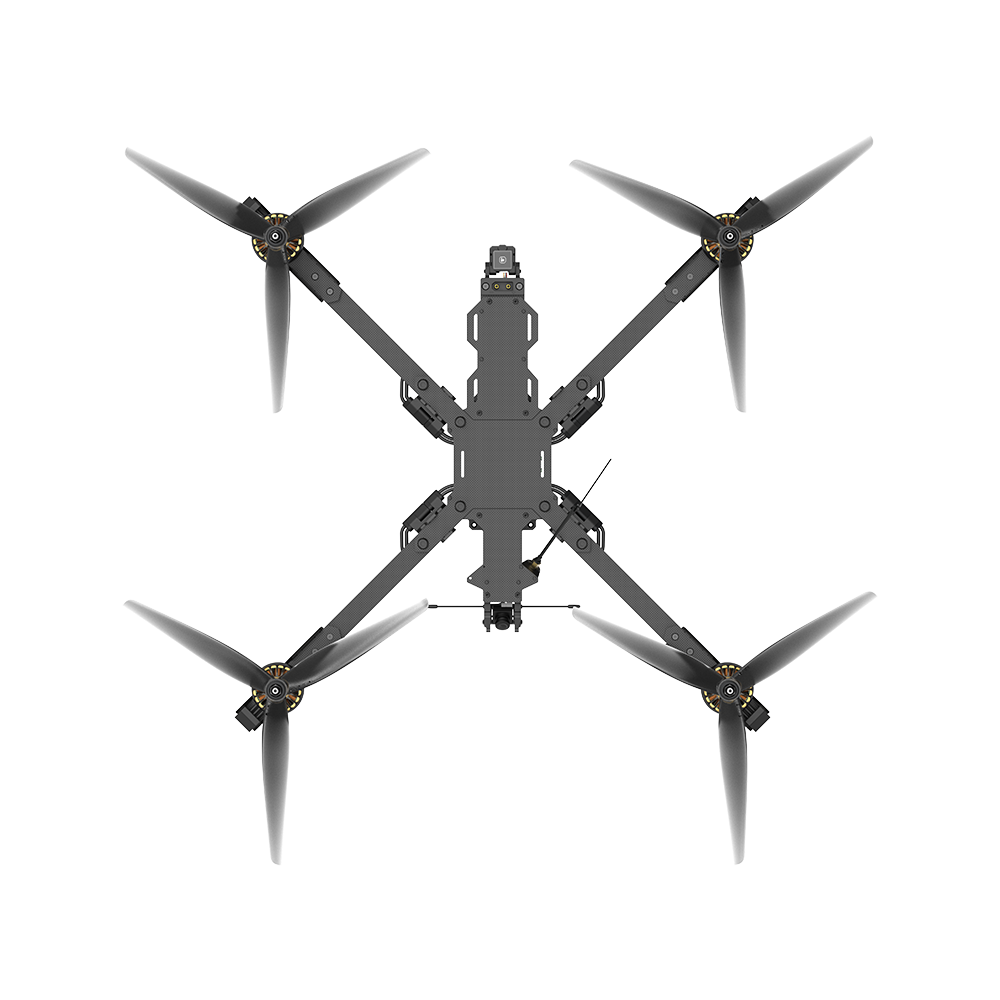

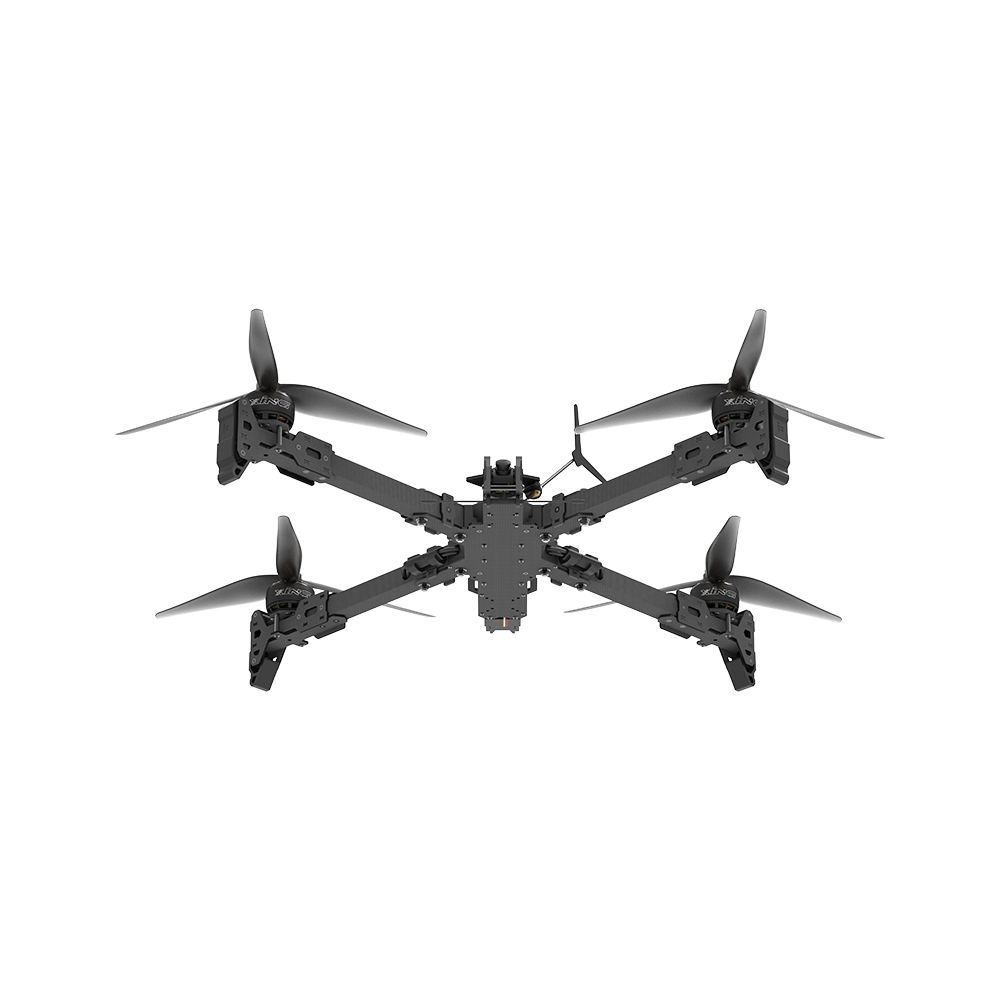

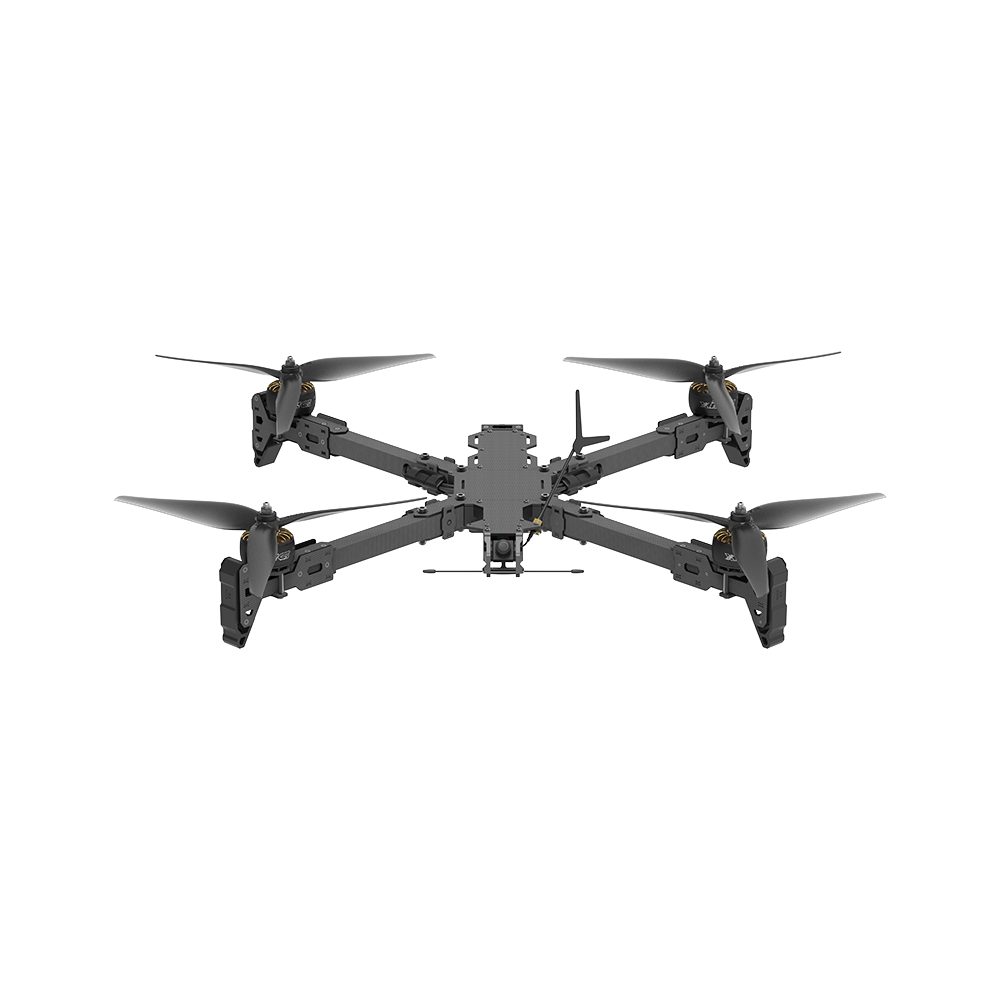

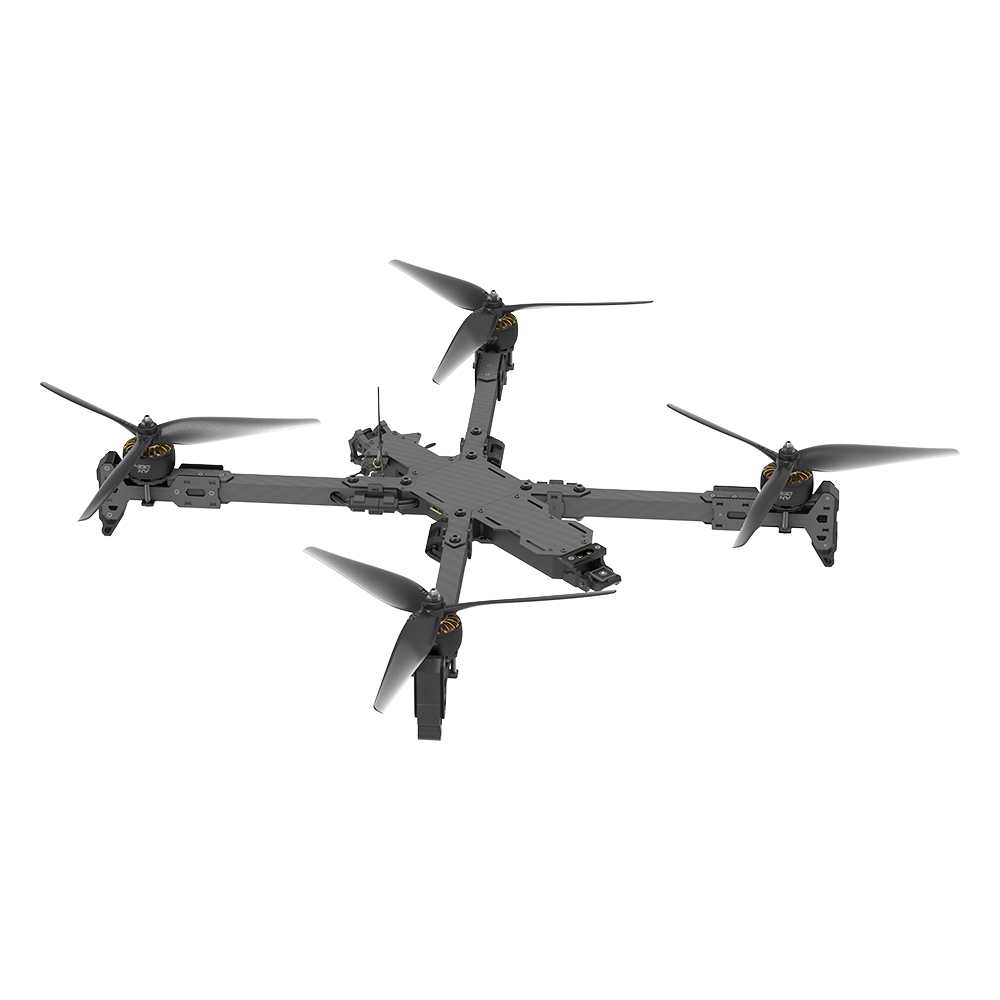

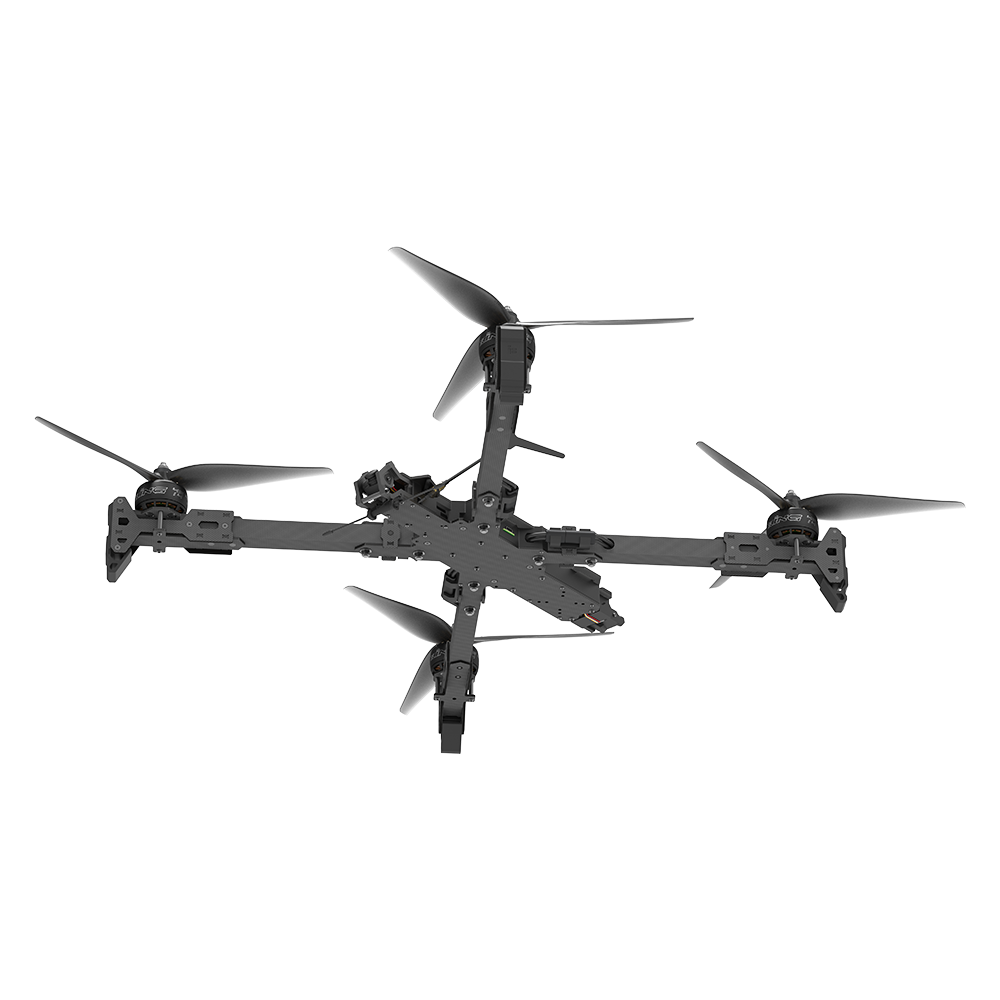

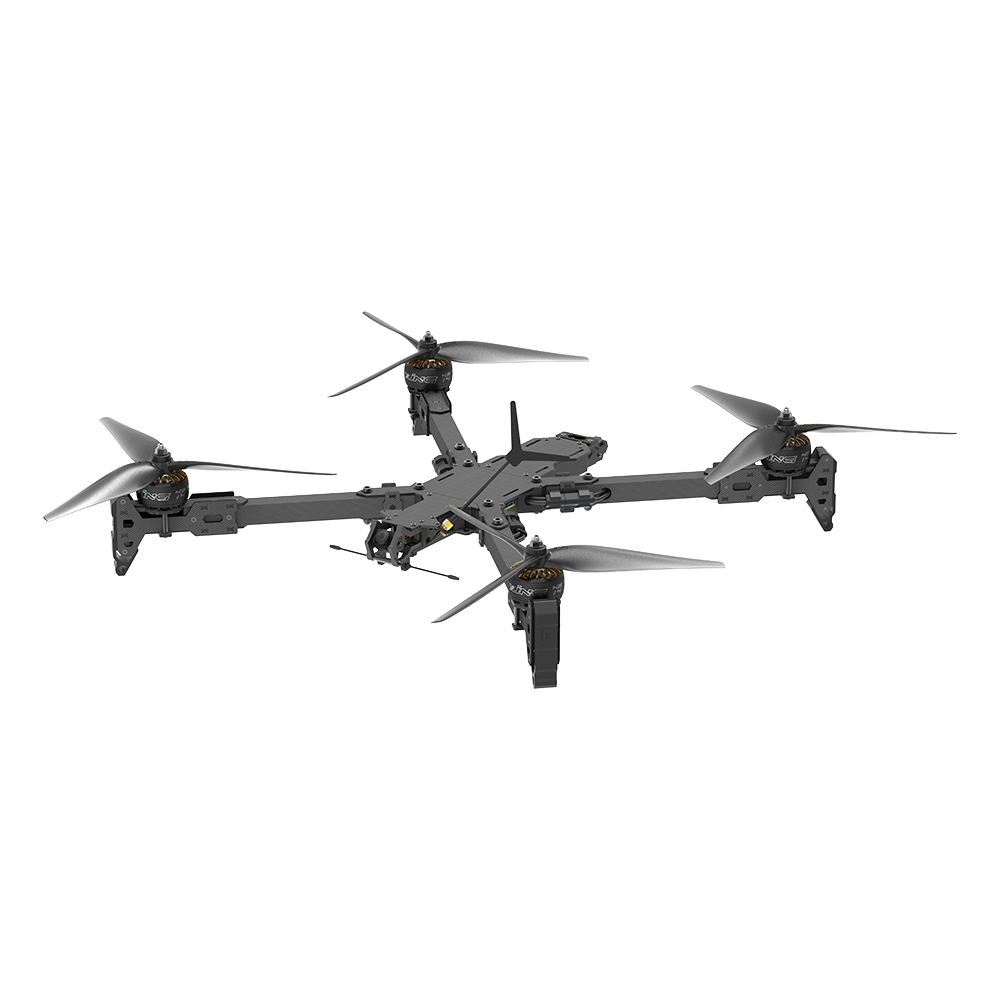

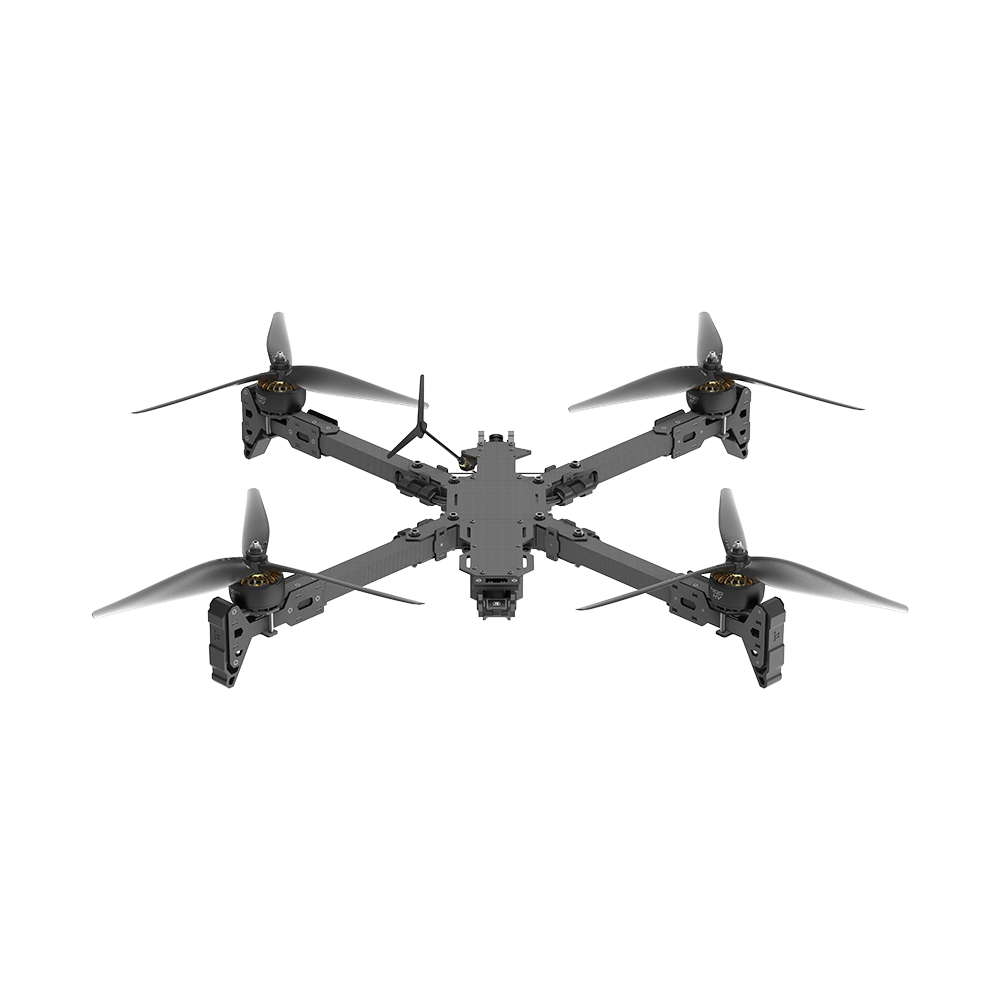

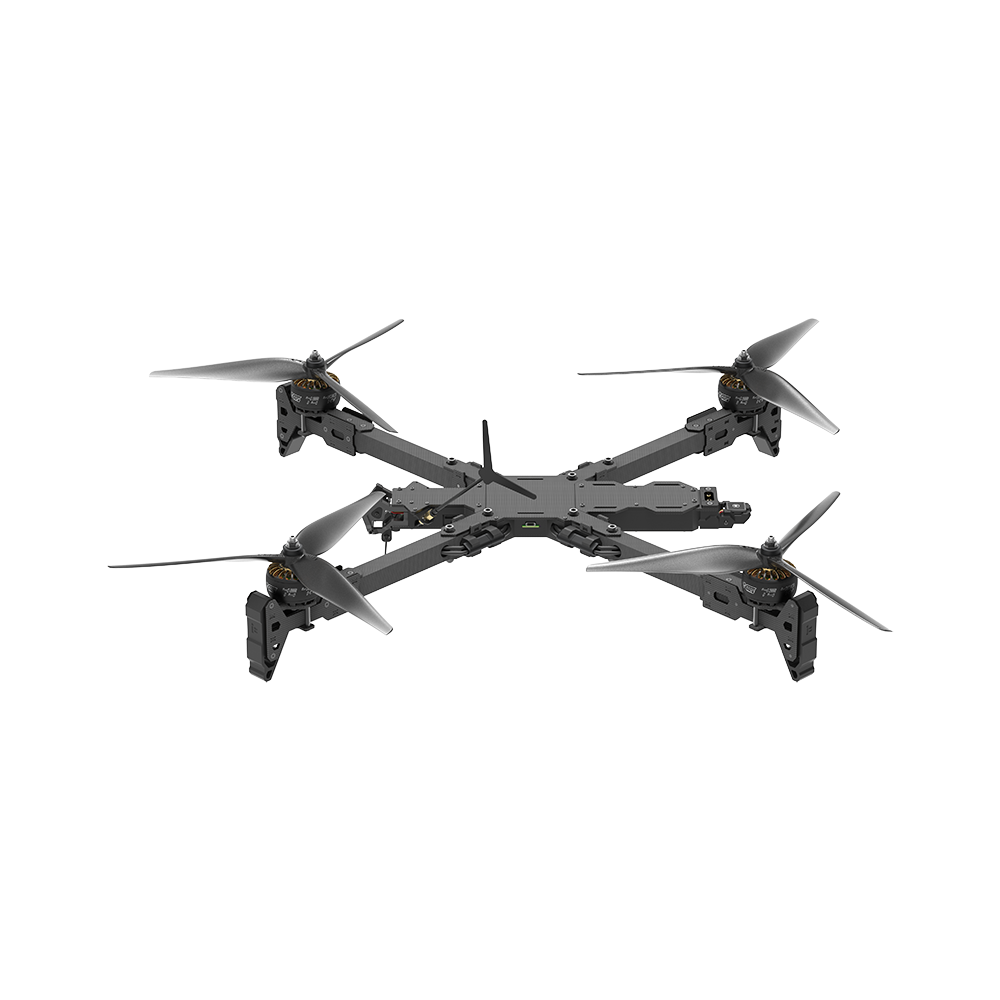

iFlight X413 8S Analog BNF 13 inch Long Range FPV Drone - Can load 6KG, BLITZ F7 Pro FC E80 4-IN-1 Pro ESC XING 4214 motors 599mm Wheelbase

iFlight X413 8S Analog BNF 13 inch Long Range FPV Drone - Can load 6KG, BLITZ F7 Pro FC E80 4-IN-1 Pro ESC XING 4214 motors 599mm Wheelbase

iFlight

Regular price $1,329.00 USD
Regular price Sale price $1,329.00 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

4 orders in last 90 days

VTX Option
Receiver Option

Warehouse: China/USA/Europe, can delivery to all countries;

Free Shipping: 9-15 days;

Express Shipping: 5-8 days;

Return&Refund: 30 Days.

View full details



Description

It's proud to announce the release of the X413 analog BNF, X413 8S Analog is a 13" BNF quadcopter that comes with the BLITZ Whoop  VTX Video Transmission System, and HQ  13" 3-Blade  propellers. The X413 has been pre-tuned and set up with everything you need, all you need to do is bind-and-fly! Loaded with lots of power; it comes with the XING 4214 motors, BLITZ F7 Pro Flight Controller, and the BLITZ E80 Pro 4-IN-1 ESC, which make this quad a must-have!

Specifications

Product Name: X413 Analog 13 inch

FC: BLITZ F7 Pro Flight Controller

ESC: BLITZ E80 4-IN-1 Pro ESC

Video Transmission: BLITZ Whoop 1.2G 1.6W VTX/ 5.8G  2.5W VTX

Frame: 599mm wheelbase

Motor: XING 4214 motors

Prop: 13X9X3 propellers

Weight: 2070g (Without Battery)

Dimensions (L×W×H):425x425x26mm

Max Speed: 140km/h

Maximum Takeoff Altitude: 6000 m

Max Hover Time: Approx. 18 mins (with 8S 5600mAh no load)

7mins (With 8S  5600mAh 4KG load)

5mins (With 8S 5600mAh 6KG loag)

Max Wind Speed Resistance: Level 8

Operating Temperature Range: -10° to 40° C (14° to 104° F)

Antennas: Single Antenna

GNSS: GPS+SBAS+Galileo+QZSS+Glonass

Video Transmission

Product Name: BLITZ Whoop 1.2G 1.6W VTX

Output Power: 0-25-400-800-1600mw

Input Volts: 7-34V

Working Current: ≤25mw@12V 410mA, ≤400mw@12V 470mA, ≤800mw@12V 490mA, ≤1600mw@12V 590mA

Transmission fre: 8CH(1080-1360MHz)

Antenna Interface: MMCX

Mounting Hole: 25*25/φ1.6mm

Weight: 32g

Dimensions: 50*30*16mm


Product Name: BLITZ Whoop 5.8G 2.5W VTX

Output Power: 0-25-400-1000-2500mw

Input Volts: 7-34V

Working Current: ≤pit @12V 140mA, ≤25mw@12V 200mA, ≤400mw@12V 340mA, ≤1000mw@12V 480mA, ≤2500mw@12V 780mA

Transmission fre: 40CH(A-B-E-F-R)

Antenna Interface: MMCX

Mounting Hole: 25*25/φ1.6mm

Weight: 32g

Dimensions: 50*30*16mm

Packing List

1 x X413 8S Analog BNF

1 x Battery pad

1 x Antennas

2 x Propellers(Pair)

3 x Battery straps

1 x Screw Bag
