JIS NV16 16L Agriculture Drone - 4 Axis 16kg Agricultural Spraying Drone With Hobbywing X9 Motor, JIYI K++ V2 Flight Controller, 14S Battery

JIS NV16 16L Agriculture Drone Specifications

Item Brand: JIS
Item Model: NV16
Unfold size: 1140 x 1330 x 575mm
Folded size: 1010 x 610 x 575mm
Dignotal Wheelbase: 1580mm
Arm Diameter: 40mm
Capacity: 16L
Frame Kit: 7kg

Electronic Parts Recommended:
Power: hobbywing X9
Flight controller: JIYI K++ V2
Battery: 14S 20000mah-22000mah Battery

Frame Kit Included:
JIS NV16 16L Agriculture drone frame kit with tank x 1

Combo 1 Included:
JIS NV16 16L Agriculture drone frame kit with tank x 1
Hobbywing X9 power system x 4 (2CW+2CCW)
Brushless Spraying System x 1

Note: The drone frame is not assembled. And to make a complete drone, you need frame, spraying system, power system, flight controller, radars (optional), radio with receiver and battery.

 JIS NV16 16L Agriculture Drone Description

JIS is one of most popular uav drone companies who provides all kinds of high quality affordable UAV Agriculture drones. The NV series (NV16 NV20) has new frame with a tilted and folded fuselage design, integrated fiber plastic frame with PCB inside, durable and easy to arrange the wires without leakage.

JIS NV Series has two versions: NV16 (16L) and NV20 (20L). The frame kit is the same, only the water tank is different. For the NV16 agriculture drone, we suggest the hobbywing X9 power combo for it. And for the NV20, the hobbywing X9 Plus power system is highly recommended.

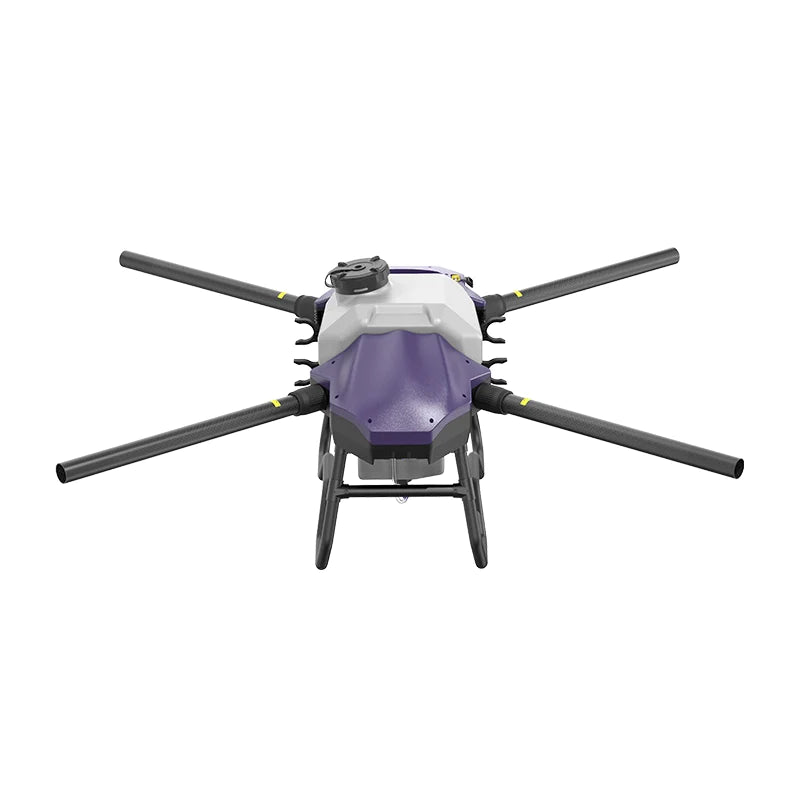

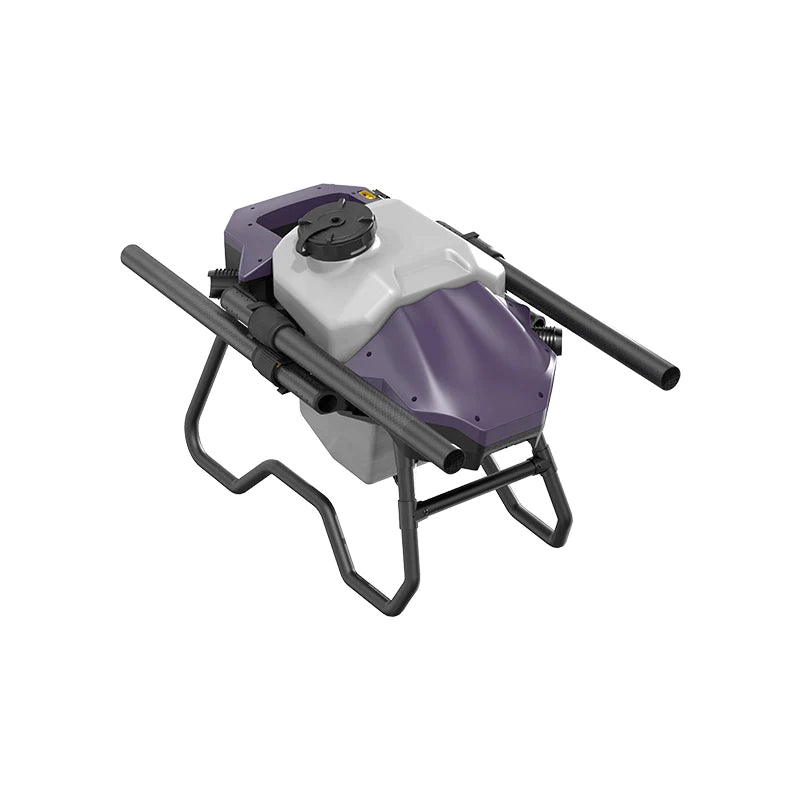

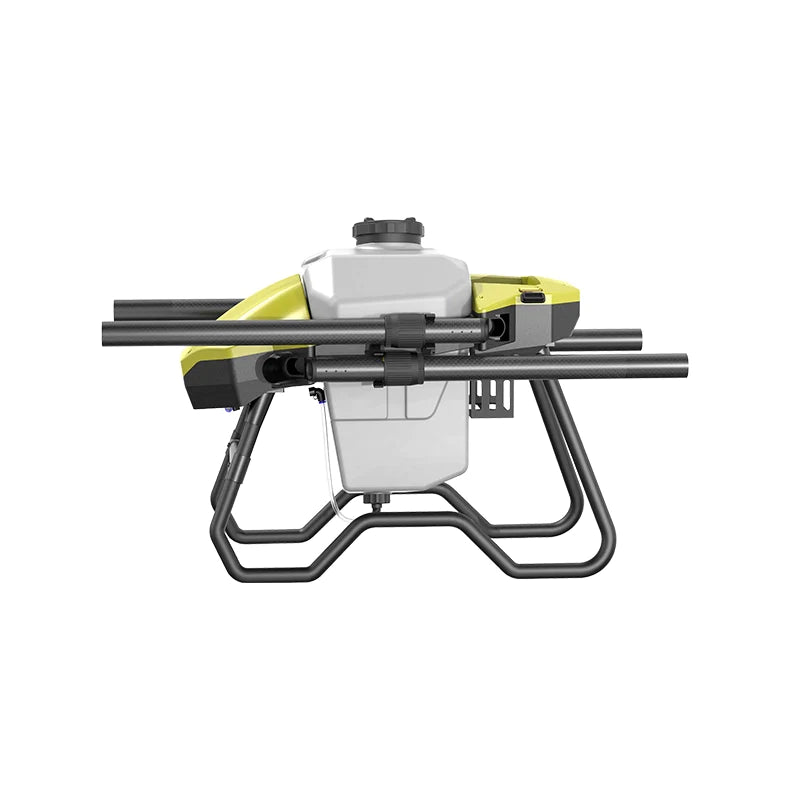

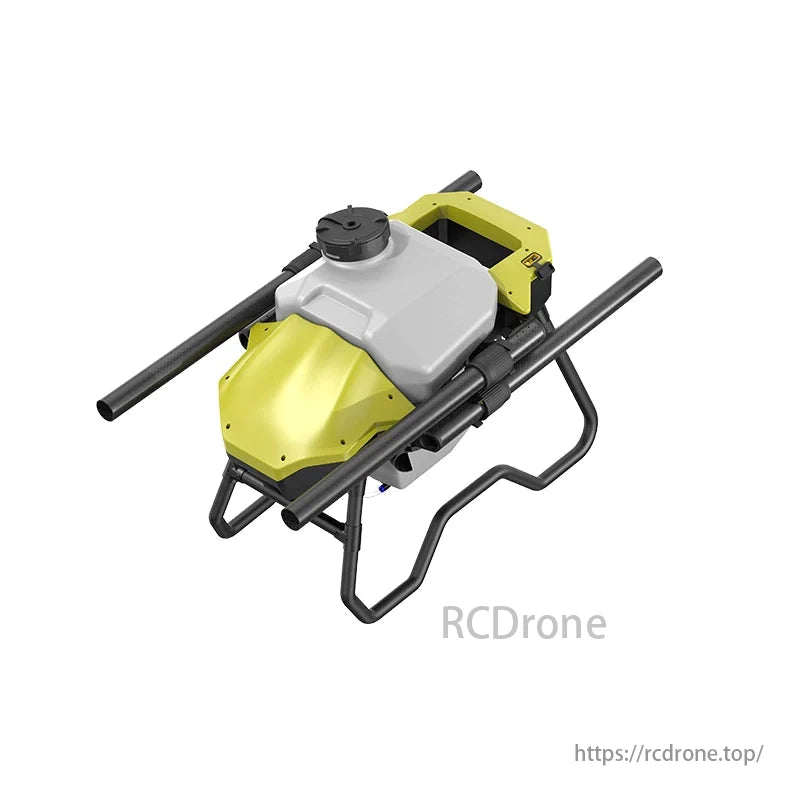

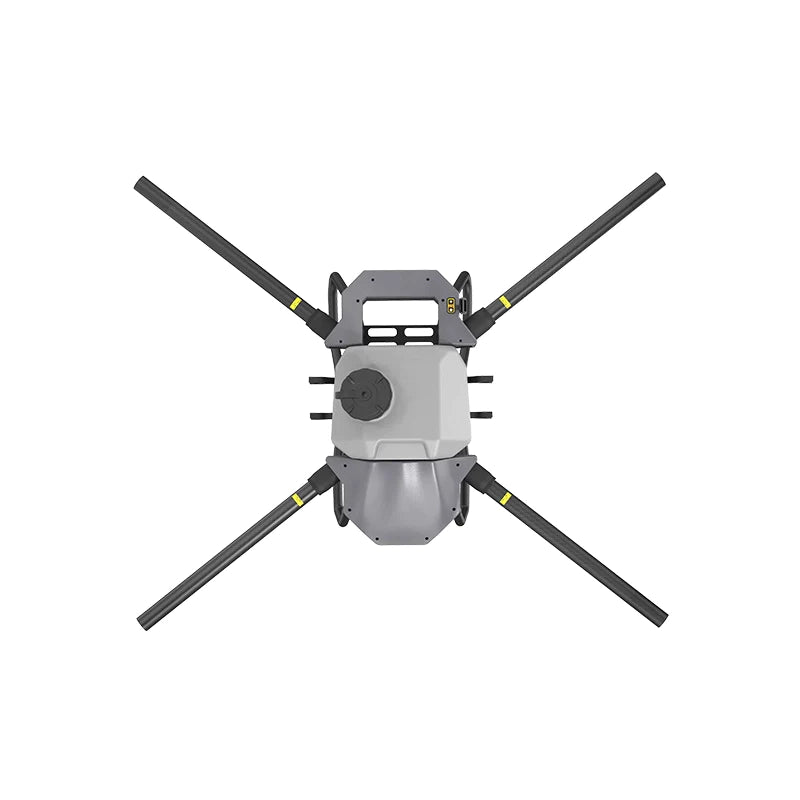

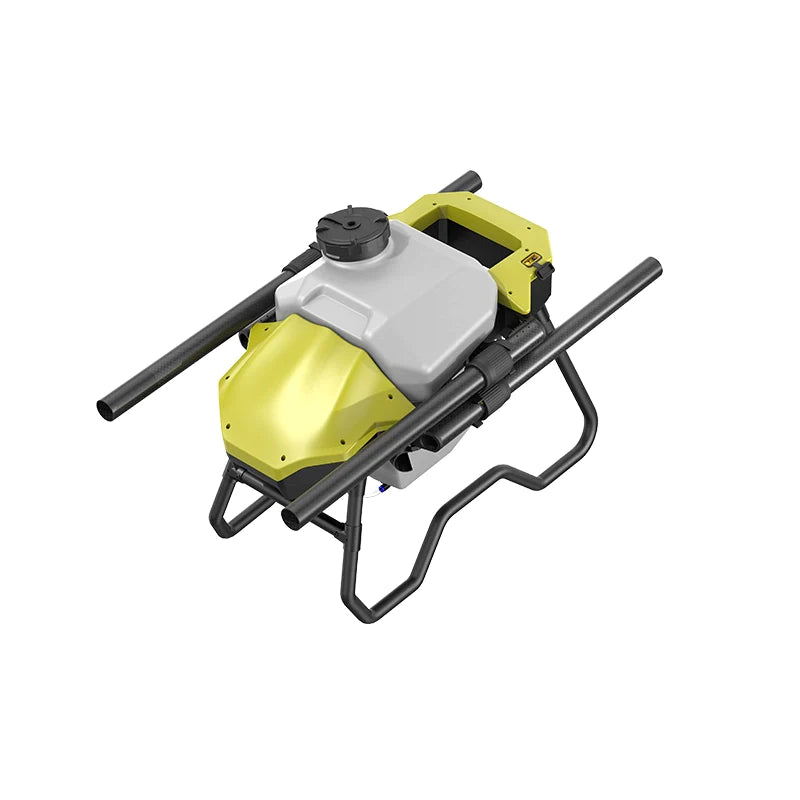

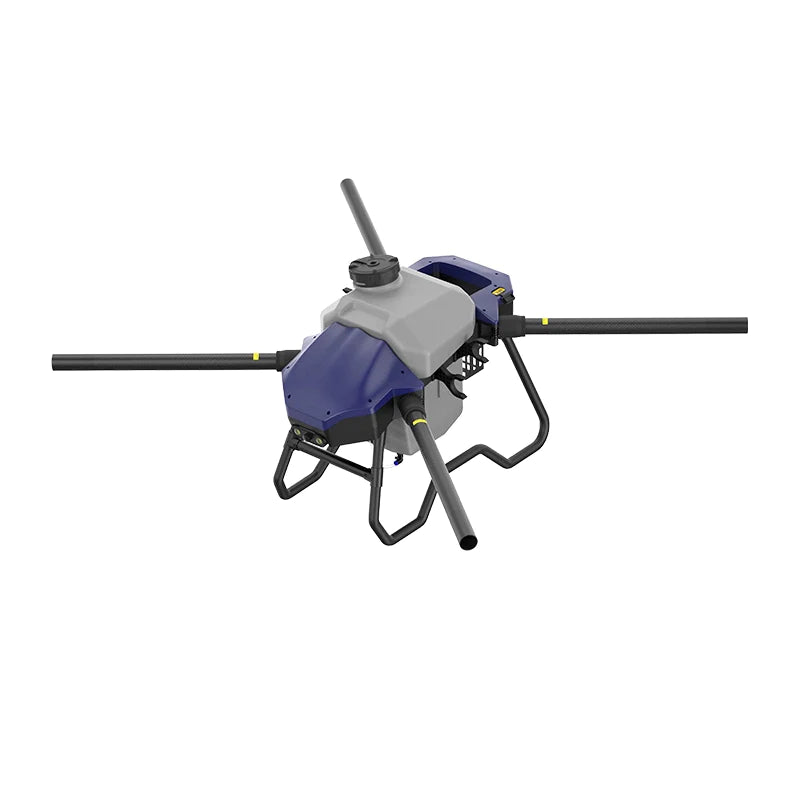

The JIS NV16 agricultural drone features a compact, foldable design with an inclined fuselage, making it easy to transport and operate solo.

The JIS NV16 features a robust structure with an integrated fiber-plastic frame, internal multi-link framework, and sturdy PCB installed within. The drone boasts a simple setup and wiring process, ensuring a leak-free operation.

The entire frame body features sealed upper and lower coverings, designed to effectively prevent dust from entering and ensure a waterproof seal.

The NV16 frame kit includes the Lument series frame with dimensions of 700x+50x200mm, and also comes with a separate accessory box measuring 510x340x280mm, weighing approximately 2.4kg.
