Sell Points:
- Vetical Takeoff & Landing
- 15kg Max. Payload
- 100kg Take-off Weight
- 4~8 Hours Flight Time
Introduction
The Mugin-5 Pro 5000mm VTOL UAV Platform with 8 Motor Mounts is a game-changer in the field of unmanned aerial vehicles (UAVs). This state-of-the-art UAV combines advanced technology with superior design to deliver unmatched performance and safety.
Key Features
Enhanced Safety and Control
One of the standout features of the Mugin-5 Pro is its 8 motor mount configuration. This design significantly enhances the safety of takeoff and landing operations. Even in the event of a motor or ESC failure, the UAV can be safely controlled and landed, preventing potential crashes.
Unmatched Stability and Durability
The Mugin-5 Pro boasts a carbon fiber construction, ensuring superior strength and reliability. This material choice not only enhances the UAV’s durability but also contributes to its stability during flight operations.
Maximum Payload Capacity
With a maximum payload capacity of 15kg, the Mugin-5 Pro is capable of carrying a variety of equipment and payloads. This feature opens up a wide range of applications and industries that can benefit from this UAV.
Extended Flight Time
The Mugin-5 Pro is designed for long-duration flights, with a maximum flying time of 4 to 8 hours. This extended flight time makes it ideal for various missions and operations that require prolonged aerial coverage.
Versatility and Applications
The Mugin-5 Pro 5000mm VTOL UAV Platform is not just a UAV; it’s a versatile solution for a wide range of applications. From aerial photography to surveillance, this UAV can be utilized in various industries and use cases.
SPECIFICATIONS:
- Main material: carbon fiber
- Wingspan: 5000mm
- Length: 3500mm
- Maximum Width of Fuselage: 375mm
- Wing Area: 261.5 dm2
- Empty Weight: 35kg
- Maximum Take-off Weight: 100kg
- Maximum Speed: 137km/hr (38m/s)
- Cruise Speed: 126km/hr (35m/s)
- Stalling Speed: 86km/hr (24m/s)
- Maximum Payload: 15kg
- Volume of Fuel Tank: 28Liters
- Maximum Flying Time: 4 to 8 Hours
- Equipment cabin size: 920mm x 340mm x 350mm
Recommended Setup (Additionally Charged):
* DLE 222 Engine x 1
* T-motor V13 60kv VTOL Motors x 8
* T-motor 24S 120A ESC x 8
* Pilot PY-48AH Servo x 4
* Pilot PW-28AH Servo x 3
* Savox 1250 Servo x 1
* 30″x14″ Forward Propeller x 1
* T-motor 40″ Carbon Fiber VTOL Propeller x 4 Pairs
* Long UAV Pitot Tube x 1
* Navigation LED lights x 1
Remarks: It is an empty airframe only, without any propulsion system. For the details of recommended power setup, please check: Gasoline Power Package for Mugin 5000 VTOL w/ 8 Motors
Conclusion
The Mugin-5 Pro 5000mm VTOL UAV Platform with 8 Motor Mounts is a testament to the advancements in UAV technology. With its enhanced safety features, superior stability, maximum payload capacity, and extended flight time, it offers a comprehensive solution for safe and efficient aerial operations. Explore the potential of the Mugin-5 Pro for your business or operations today.

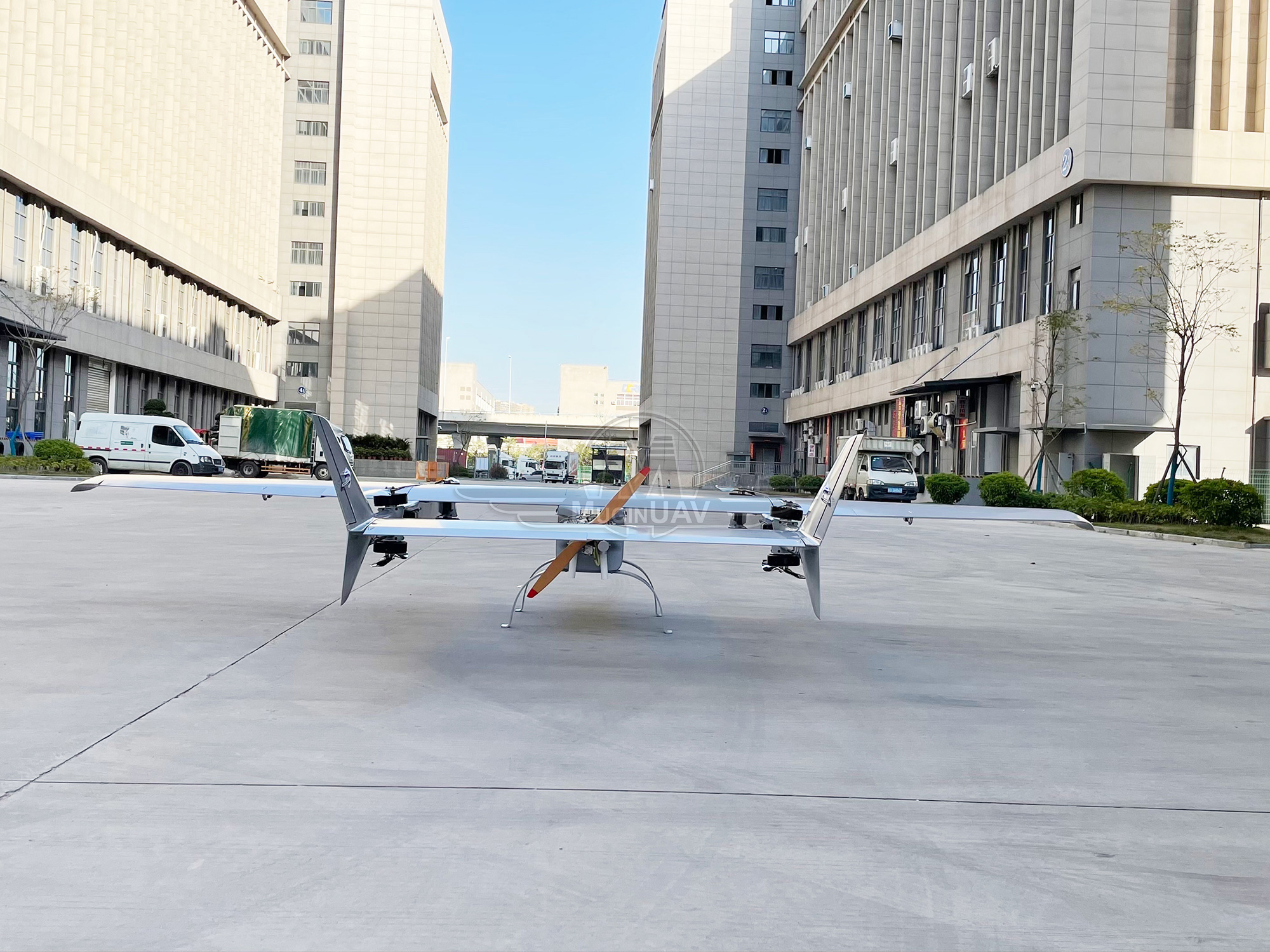

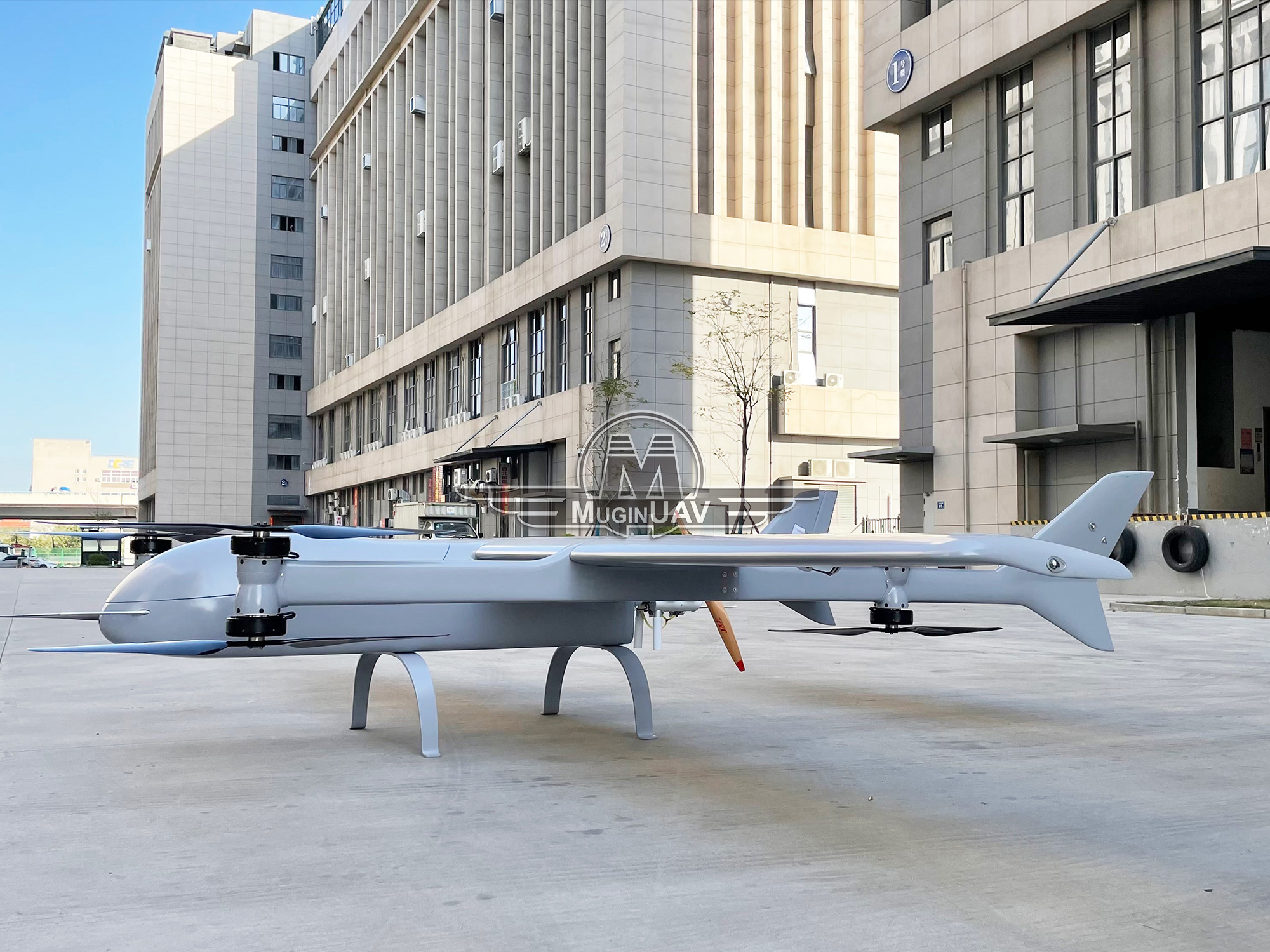

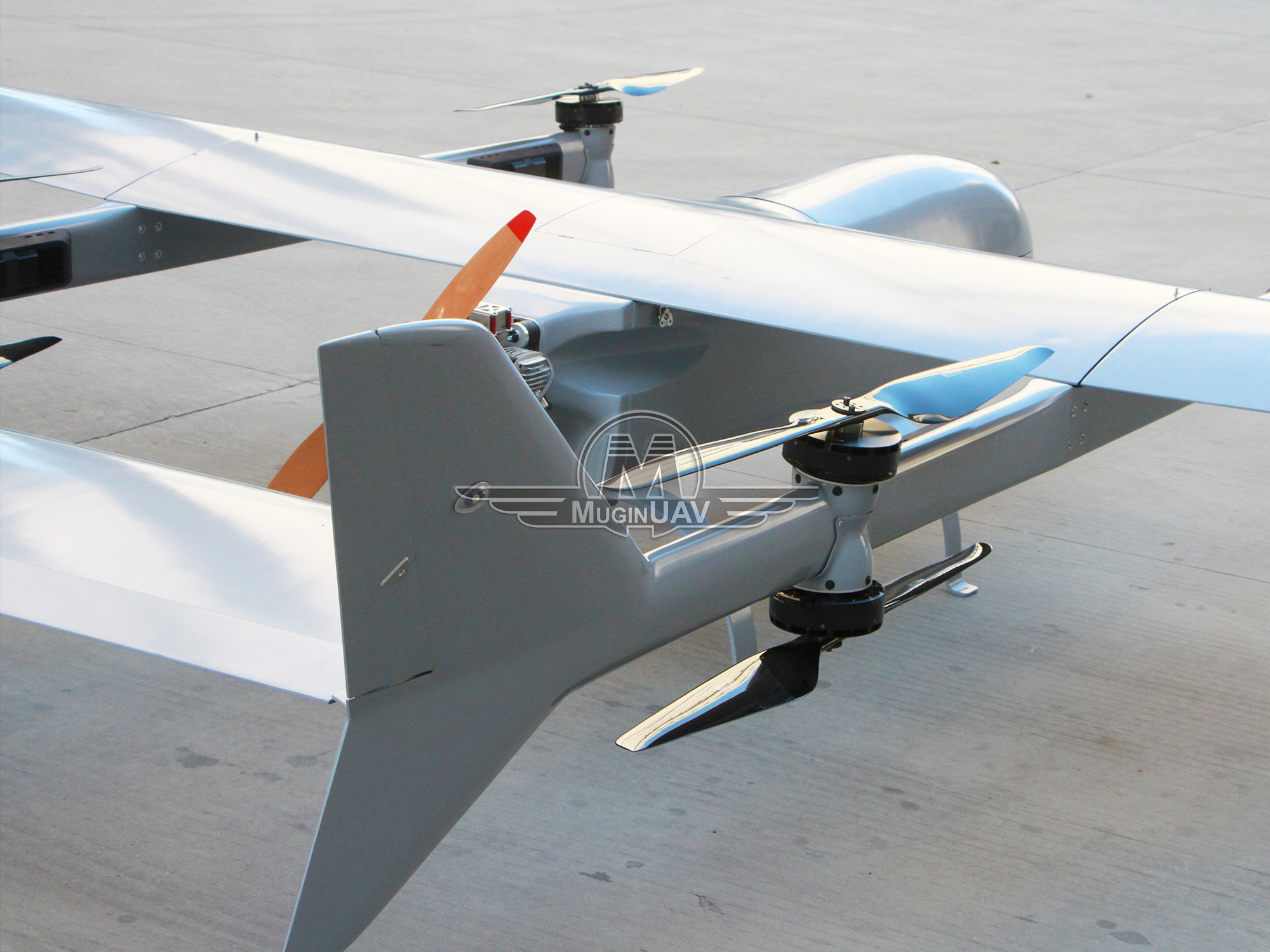

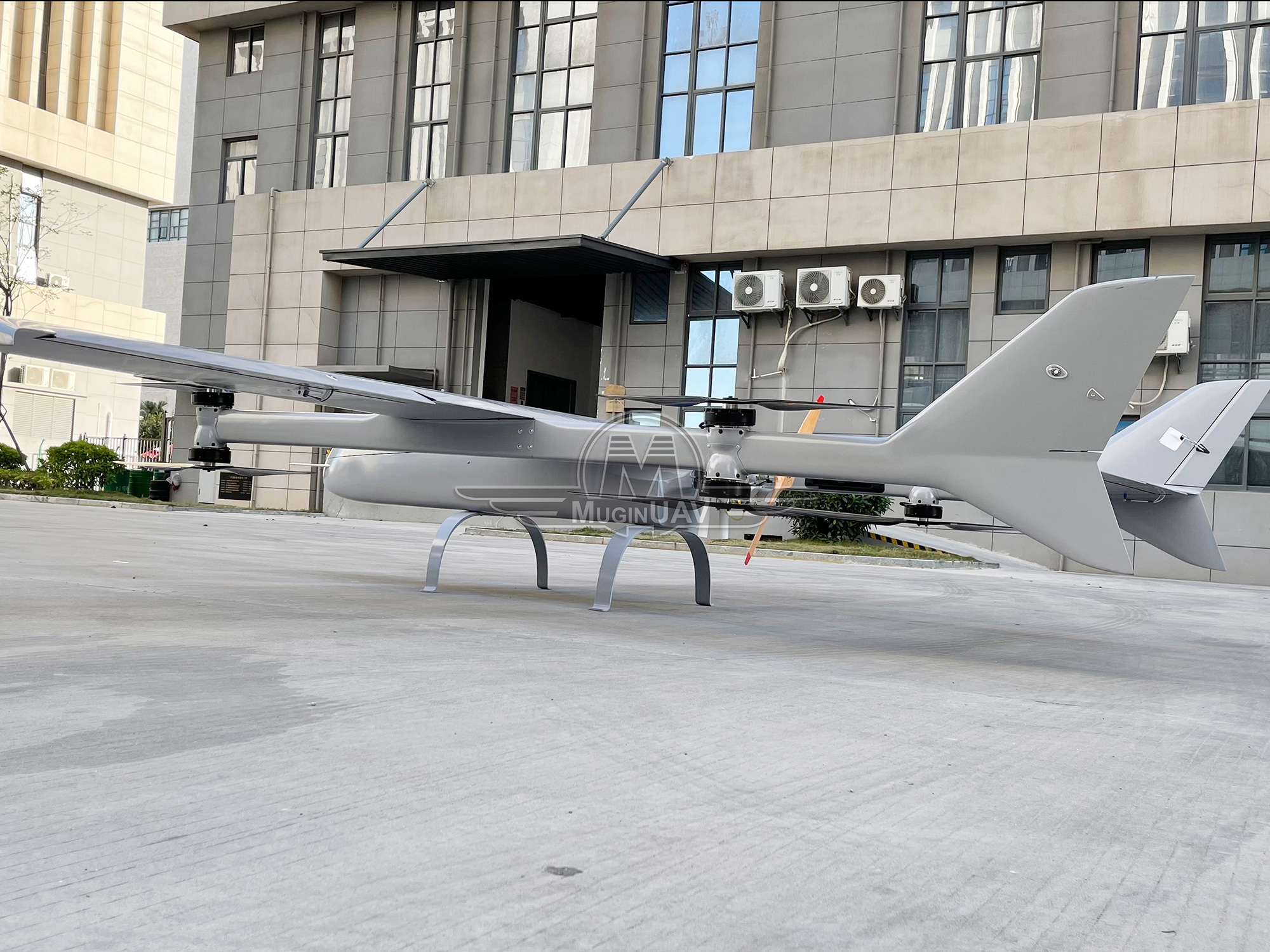

Mugin-5 Pro 5000mm VTOL Details
