OddityRC Mage Pro HD Vista 6S 3-Inch Cinewhoop FPV Drone with 2650KV Motors & Runcam WASP / Caddx Polar / Nebula Pro

Overview

The OddityRC Mage Pro HD Vista Version is a high-performance 3-inch cinewhoop FPV drone tailored for DJI Vista digital HD transmission. Designed around a compact 131mm wheelbase and reinforced carbon fiber frame, it delivers exceptional thrust, flight time, and video clarity. This Vista version features three pre-configured VTX-camera combos, each optimized for a different visual experience—from cinematic daylight shots to high-sensitivity low-light capture.

Driven by Spinnybois 2004 2650KV motors and powered via a 6S LiPo, it pairs powerful performance with aerodynamic efficiency. The ducted design is CFD-optimized, improving motor efficiency by up to 18%. Additional features include a Type-C configuration port, rugged XT60H-M battery connector, and aviation-grade aluminum camera bracket for secure action camera mounting.

Vista HD Video Transmission Combos

Choose from three fully matched DJI Vista-compatible digital systems:

• Runcam Link WASP VTX + Runcam WASP Camera
  Crisp and balanced imaging with low latency; ideal for general FPV use and freestyle.

• Caddx Vista Polar + Caddx Polar Starlight Camera
  Optimized for low-light environments with superior night performance.

• Caddx Vista Nebula Pro + Caddx Nebula Pro Camera
  Sharp image output with natural colors and high dynamic range for daylight shots.

All combos support DJI FPV Goggles V1 / V2 / Goggles 2, with 720p@120fps digital video transmission.

Specifications

Frame & Dimensions

• Frame: OddityRC Mage Pro Vista Version

• External Dimensions: 186 × 186 × 33mm

• Wheelbase: 131mm

• Propeller Diameter: 76mm

• Main Plate Thickness: 3mm

• Battery Connector: XT60H-M

• Configuration Port: USB Type-C

Flight Controller

• Model: OddityRC F7 40A AIO

• MCU: STM32F722RET6

• ESC Firmware: Bluejay 48kHz

• Input Voltage: 4S–6S

• Continuous Current: 40A / Max Burst: 50A

• Mounting Pattern: 25.5mm / 26.5mm

• Barometer: Supported

Power System

• Motor: Spinnybois 2004-2650KV

• Propellers: HQProp DT76-3 / DT76-4

Receiver Options

• PNP (No Receiver)

• ELRS 2.4GHz

• ELRS 915MHz

• TBS Nano RX

Recommended Battery

• 6S 850mAh ~ 1100mAh (Coddar recommended)

Key Features

• Fully matched Vista HD digital system with camera + VTX combos

• CFD-optimized duct design boosts motor efficiency by up to 18%

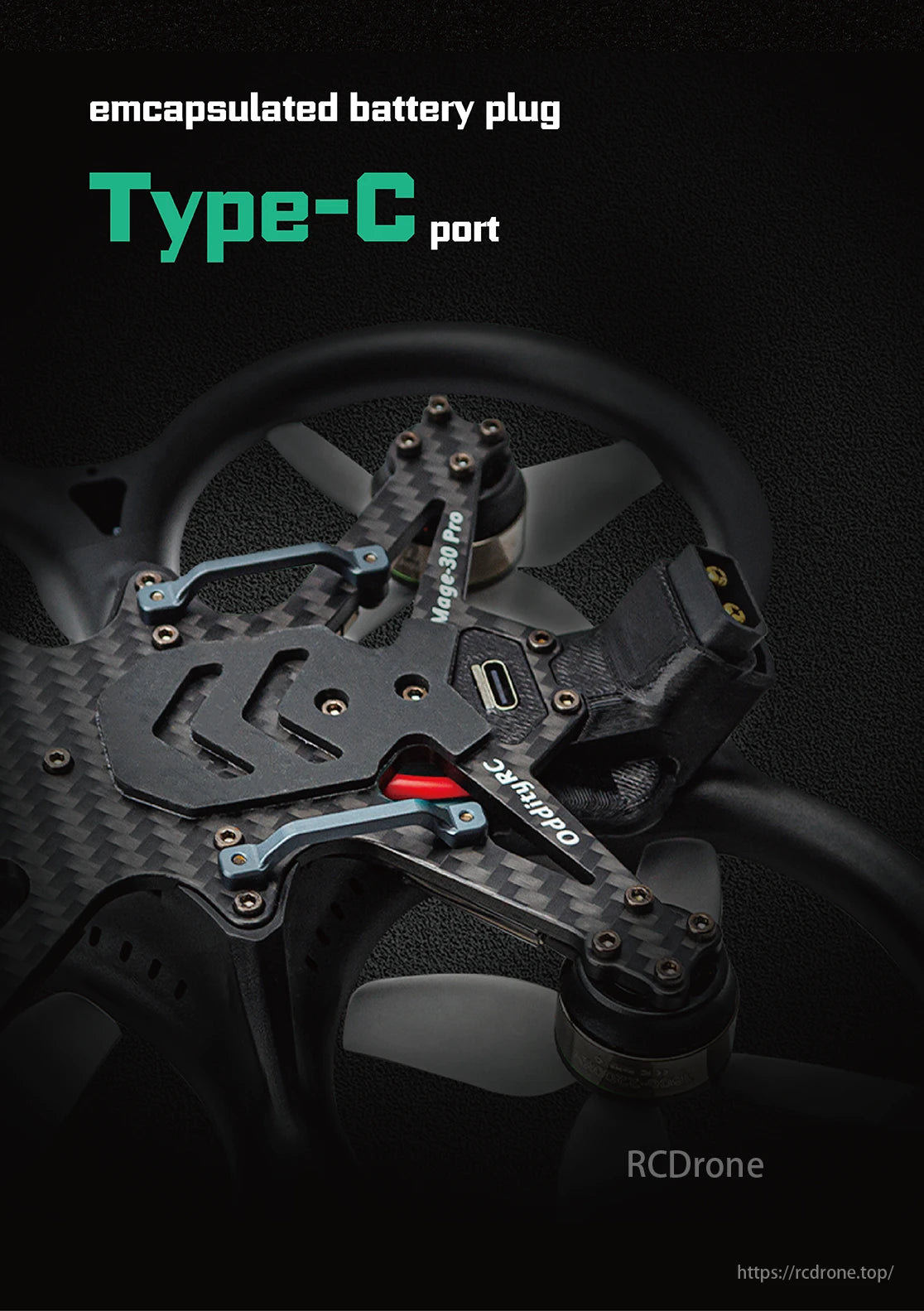

• Rugged XT60H-M battery connector and convenient USB Type-C port

• High-performance 2004 2650KV motors for reliable 6S power

• Sturdy aviation aluminum bracket with TPU camera mount

• Suitable for freestyle, indoor cinematic, and professional content creation

Package Includes

• 1 × Mage Pro HD Vista FPV Drone (pre-installed combo)

• 2 × Sets of HQProp DT76 Propellers

• 1 × Spare Screw Kit

Details

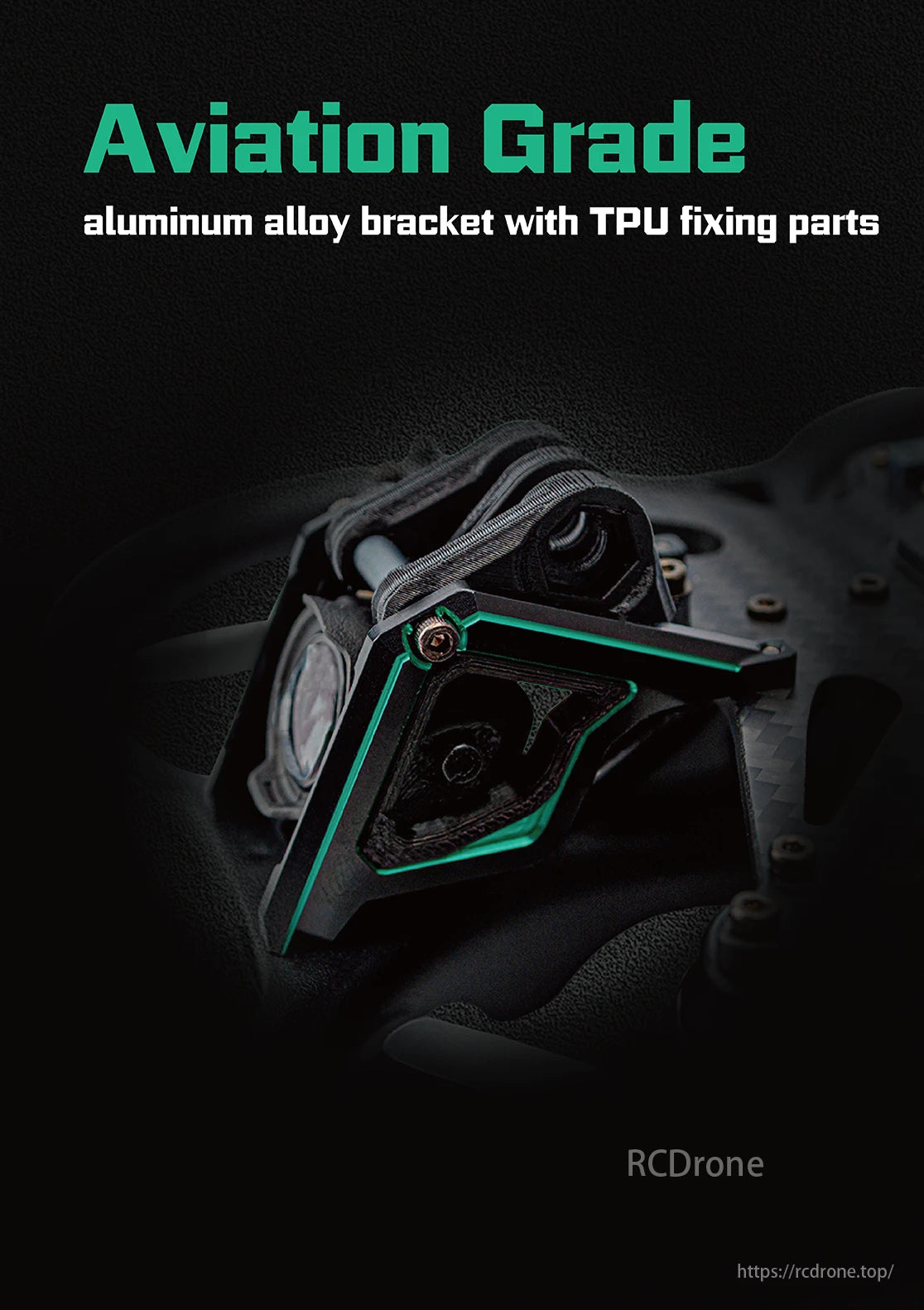

Aviation Grade aluminum alloy bracket with TPU fixing parts.

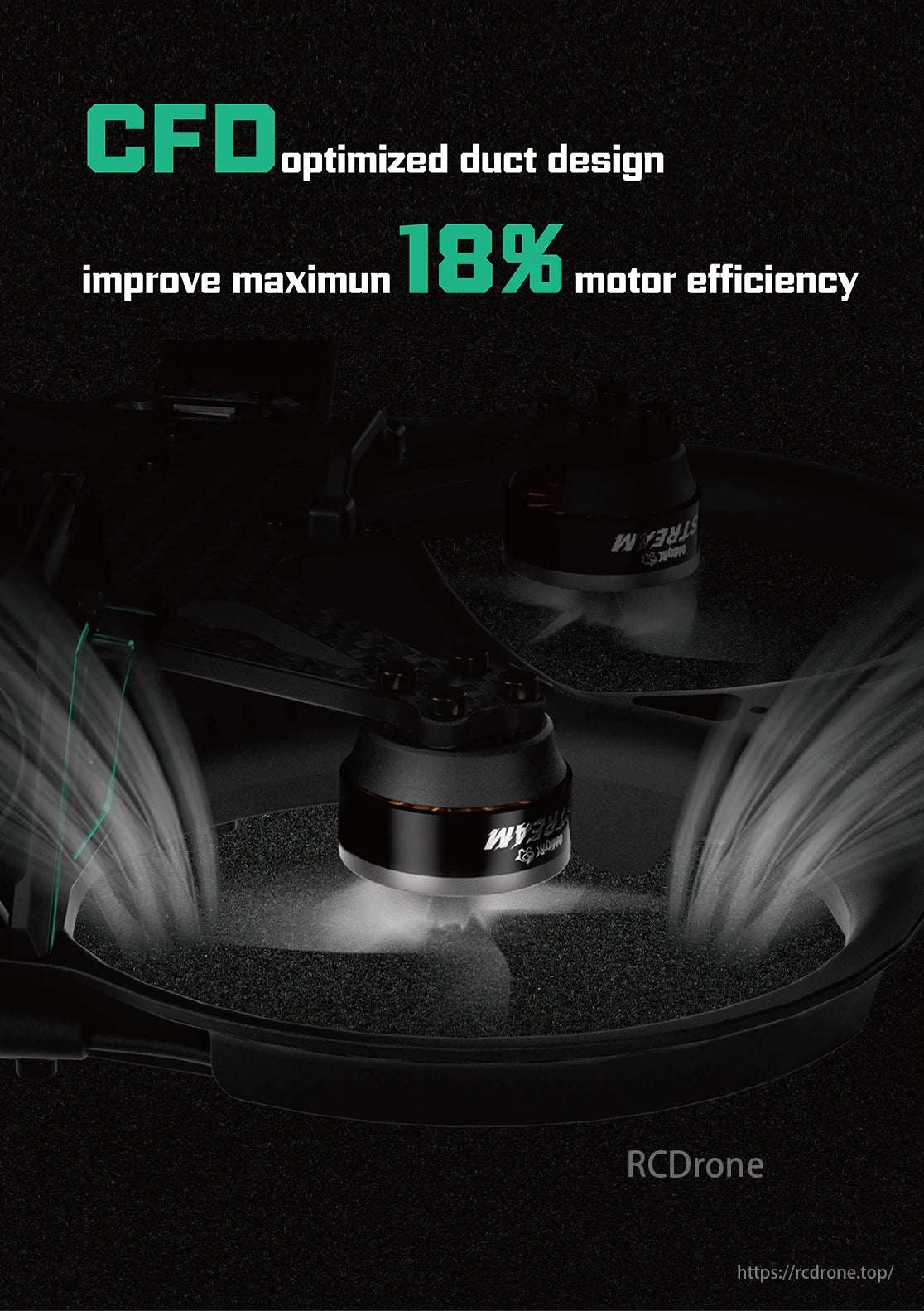

CFD optimized duct design improves maximum 18% motor efficiency.

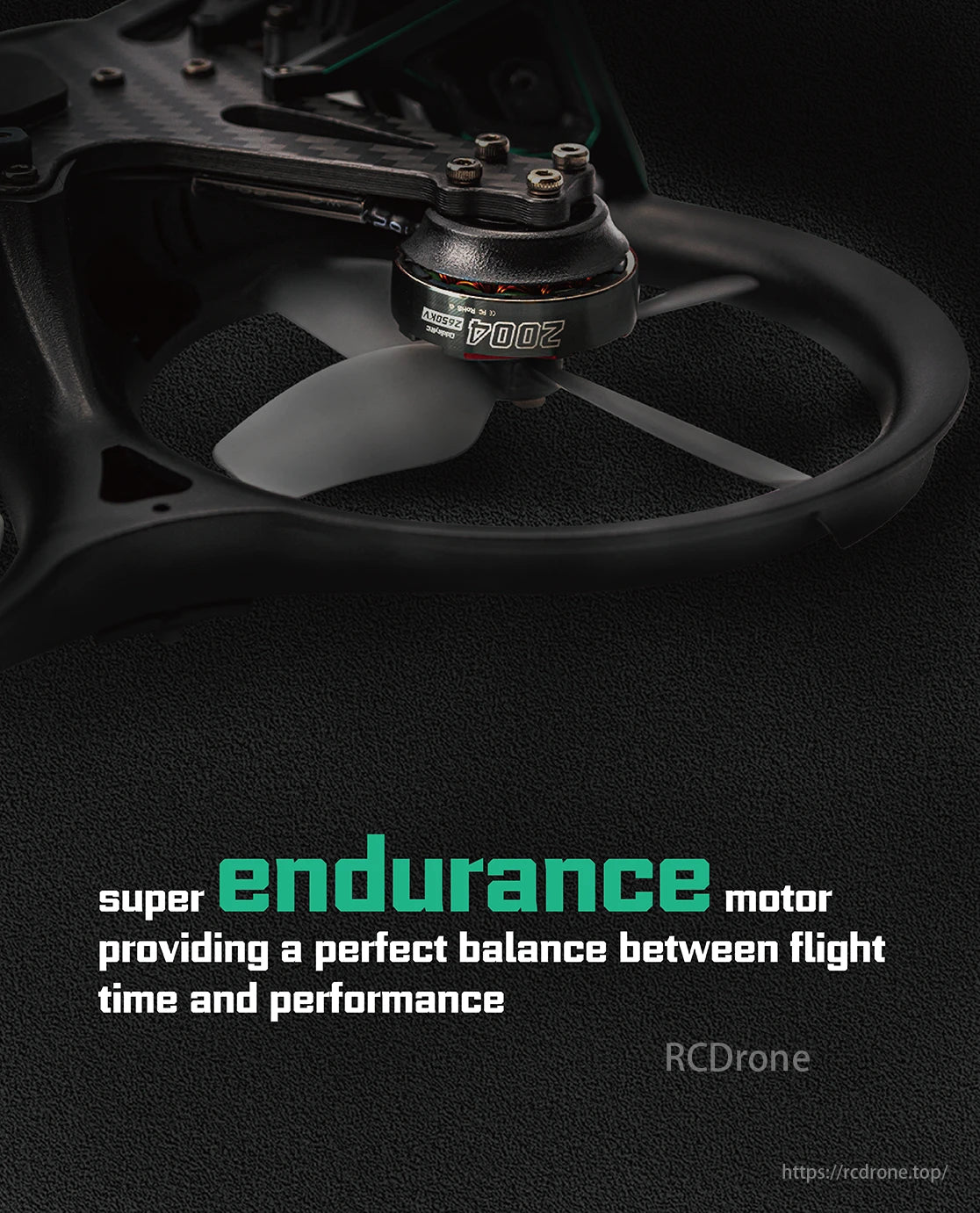

Mage Pro Cinewhoop features a super endurance motor, balancing flight time and performance perfectly.

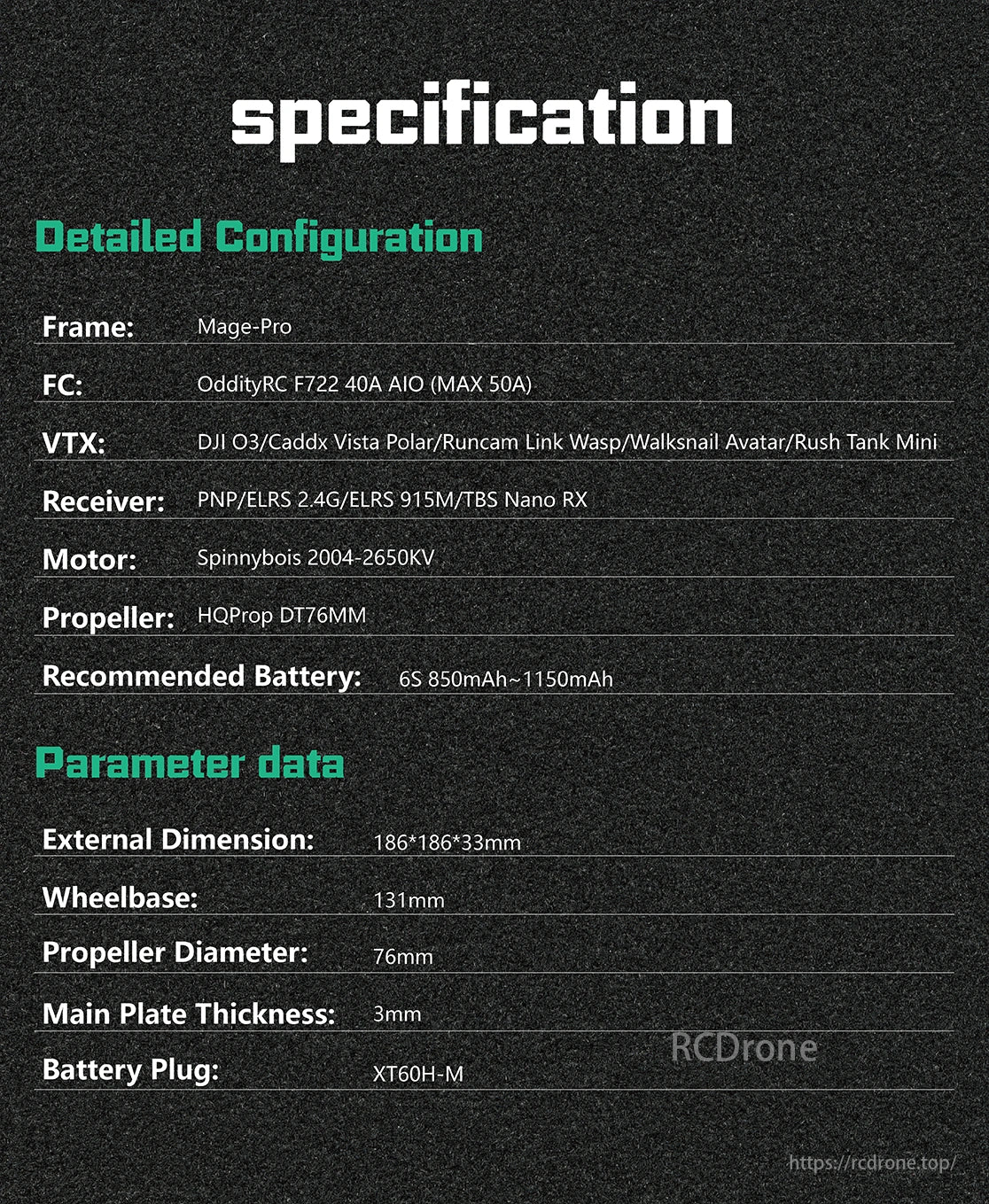

Mage-Pro Cinewhoop: OddityRC F722 40A FC, DJI O3 VTX, PNP/ELRS Receiver, Spinnybois 2004-2650KV Motor, HQProp DT76MM Propeller. 186x186x33mm, 131mm wheelbase, 76mm propeller, 3mm plate, XT60H-M plug.

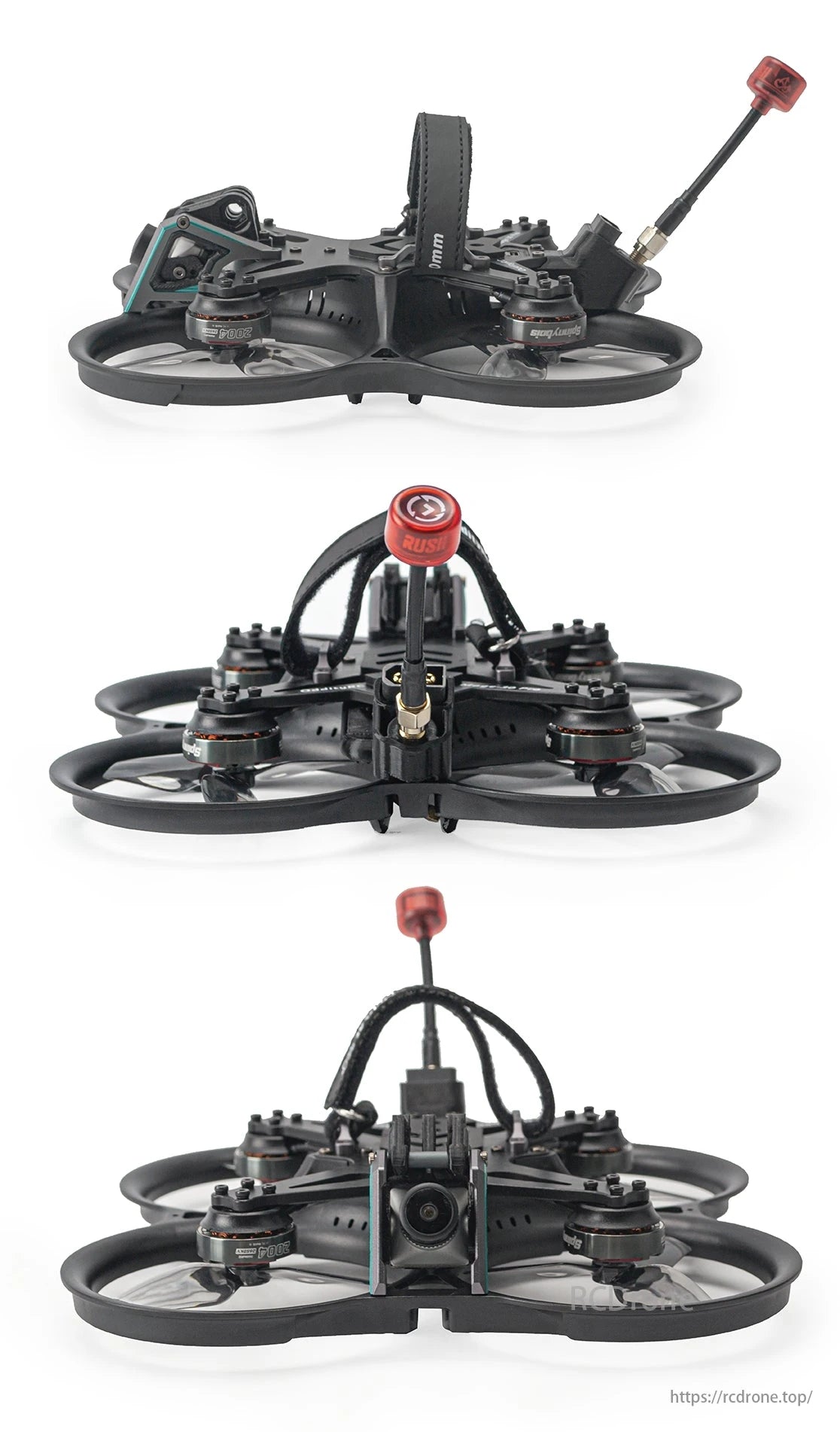

Mage Pro Cinewhoop drone with dimensions: 197mm height, 181mm width, and 131mm diagonal span.
