RadioLink R12DS 2.4GHz 12CH Long Range Receiver PWM SBUS DSSS FHSS Telemetry for RC Plane Drone Car Boat

Overview

The RadioLink R12DS is a 12-channel high-performance 2.4GHz receiver supporting both PWM and SBUS output. Utilizing DSSS and FHSS hybrid spread spectrum technology, it offers a robust anti-interference signal, ultra-low latency, and up to 4,000 meters of control distance. Compatible with AT9/AT9S/AT9S Pro/AT10/AT10II transmitters, it supports real-time telemetry and is ideal for aircraft, multirotors, fixed-wings, cars, boats, and robotic applications.

Key Features

• 12 Channels: 11 channels for PWM, and 12 channels for simultaneous SBUS and PWM signal output.

• 4KM Long Range: Up to 4000 meters in the air and 2000 meters on the ground (in open, interference-free conditions).

• DSSS & FHSS Hybrid Spread Spectrum: Ensures stable signal transmission and strong anti-interference performance with 16 channels of pseudo-random frequency hopping and QPSK modulation.

• High Precision & Low Latency: 4096 section resolution with only 0.25μs precision and maximum PWM jitter of 1.84μs.

• SBUS and PWM Simultaneous Output: Detachable dual antennas, allowing flexible setup and seamless control.

• Telemetry Supported: Compatible with PRM-01 for voltage telemetry and PRM-03 for advanced flight data telemetry.

• Wide Application: Supports helicopters, fixed-wing, gliders, multicopters, RC cars, boats, and robots.

• Detachable Antennas: Enhances installation convenience and maintenance.

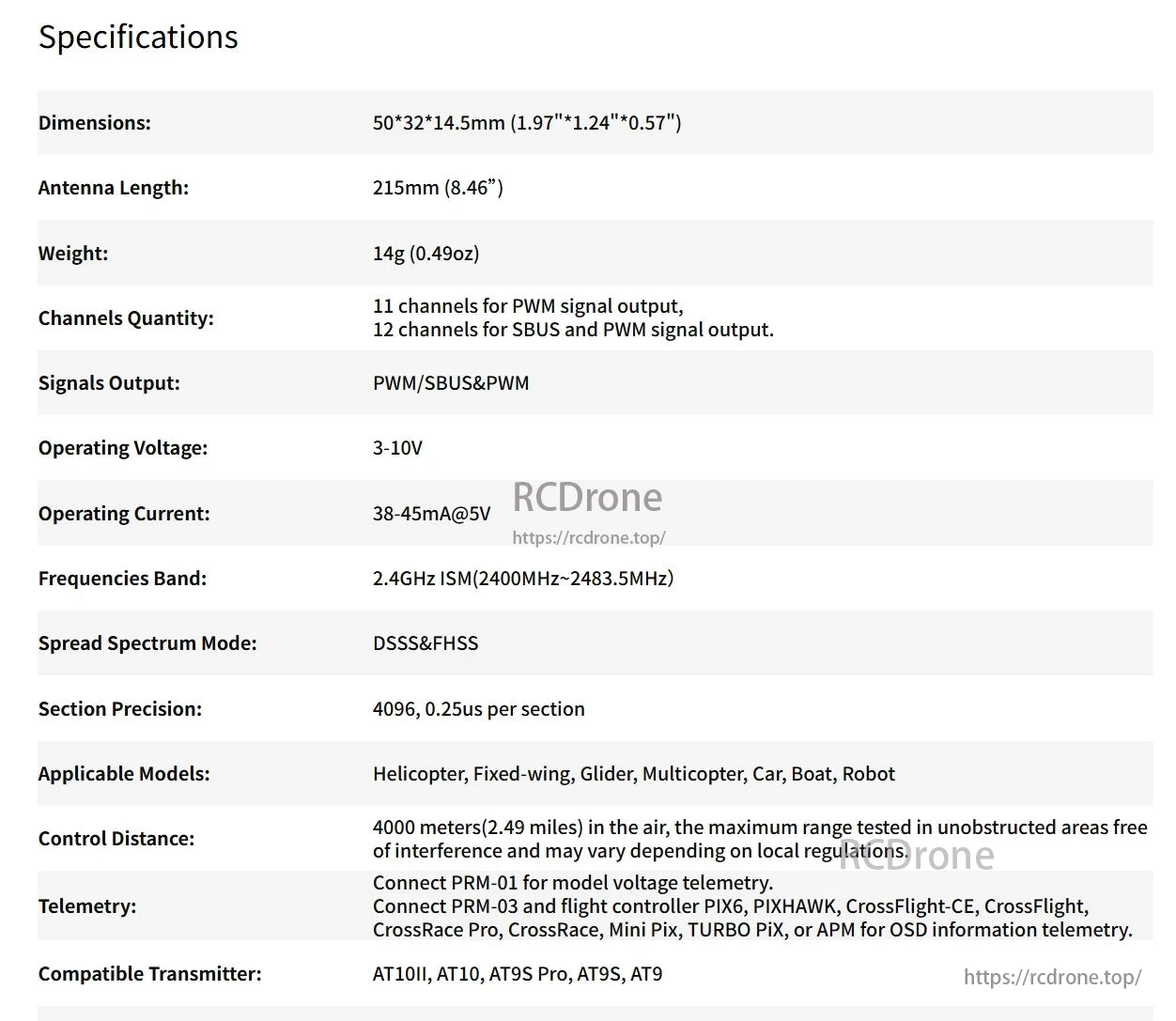

Specifications

Real-Time Telemetry Support

• Real-time telemetry enabled when paired with PRM-01 or PRM-03

• Displays voltage and flight data on compatible transmitters

• Suitable for telemetry-enabled FCs like PIXHAWK, Mini PIX, Turbo PIX, APM, CrossFlight, CrossRace, etc.

Application Compatibility

• Compatible Models: Helicopters, fixed wings, gliders, multicopters, RC cars, boats, and robots.

• Compatible Flight Controllers: PIXHAWK, MINI PIX, TURBO PIX, CrossFlight, CrossFlight-CE, CrossRace, CrossRace Pro, APM

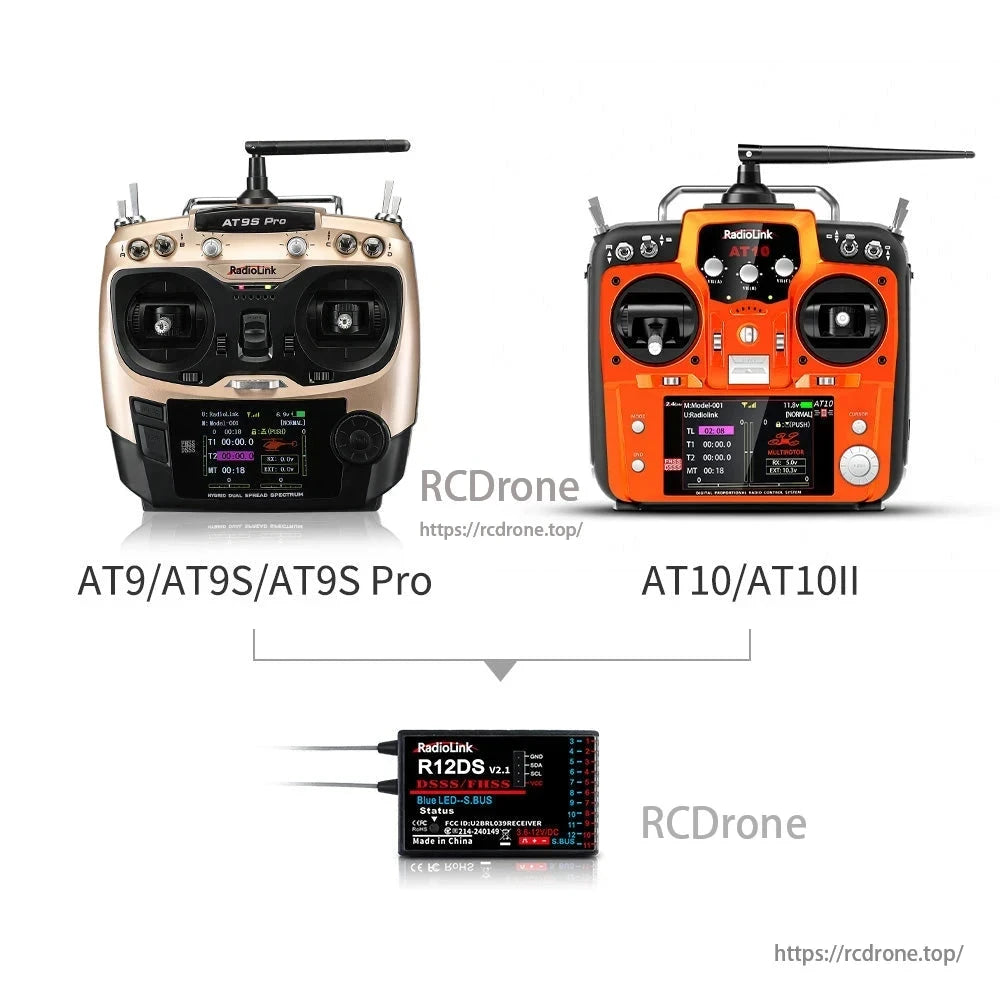

• Compatible Transmitters: RadioLink AT10II, AT10, AT9S Pro, AT9S, AT9

Details

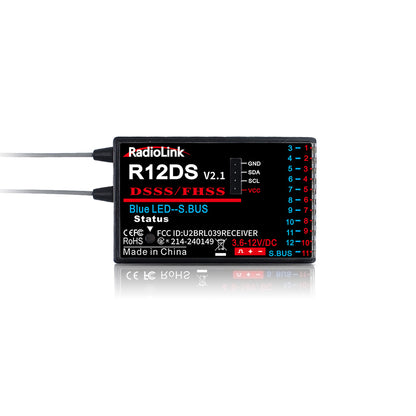

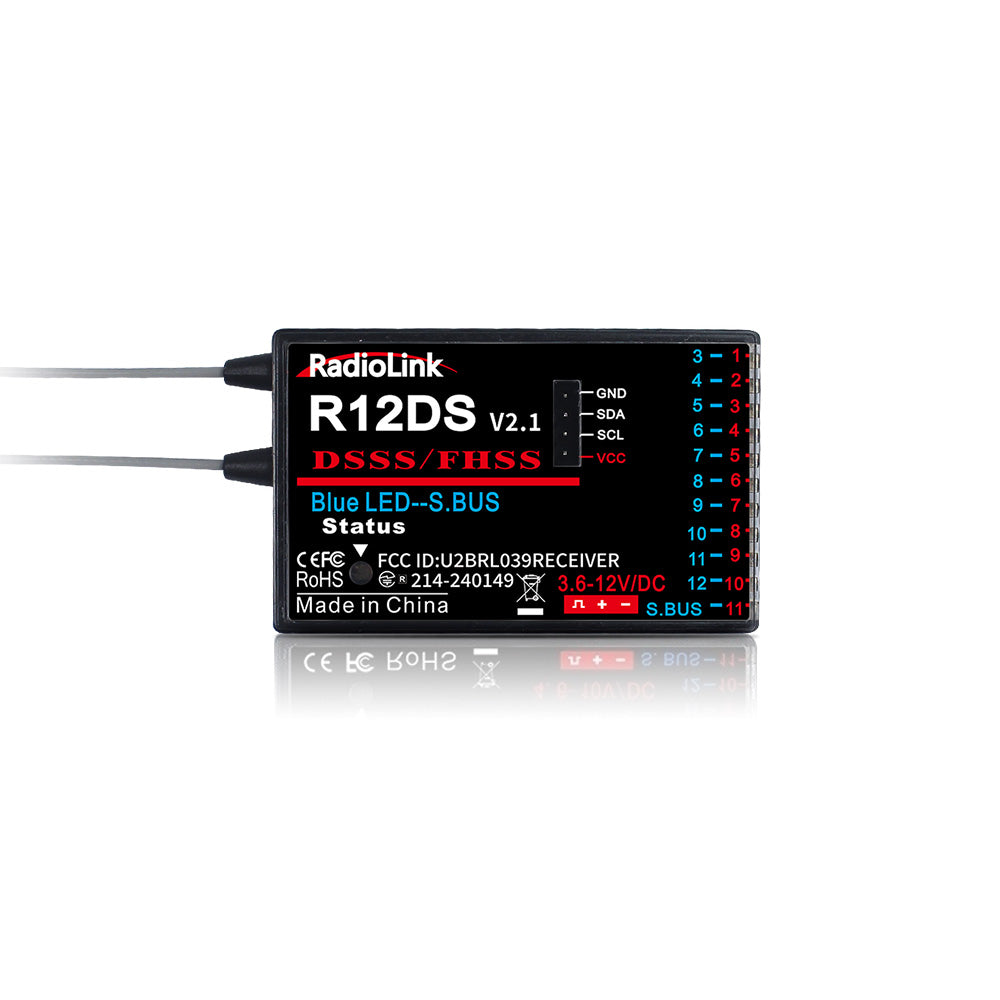

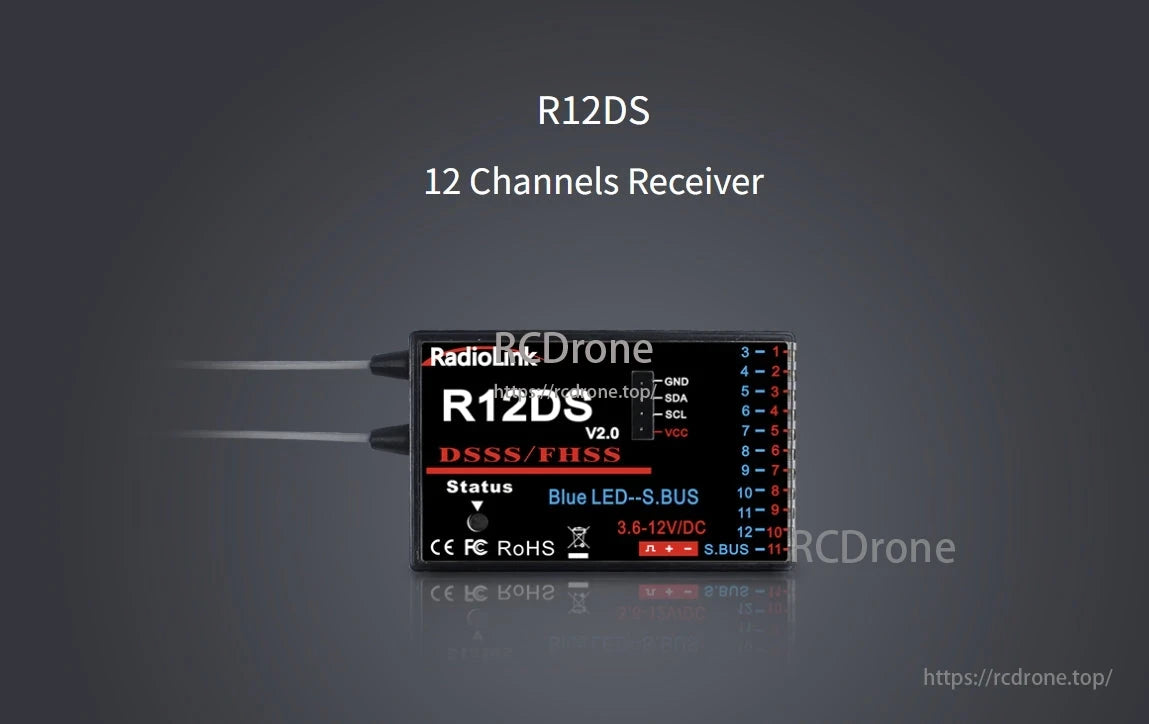

RadioLink R12DS V2.0, 12 Channels Receiver, DSSS/FHSS, Blue LED--S.BUS, 3.6-12V/DC, CE FC RoHS compliant. Compact design for long-range applications.

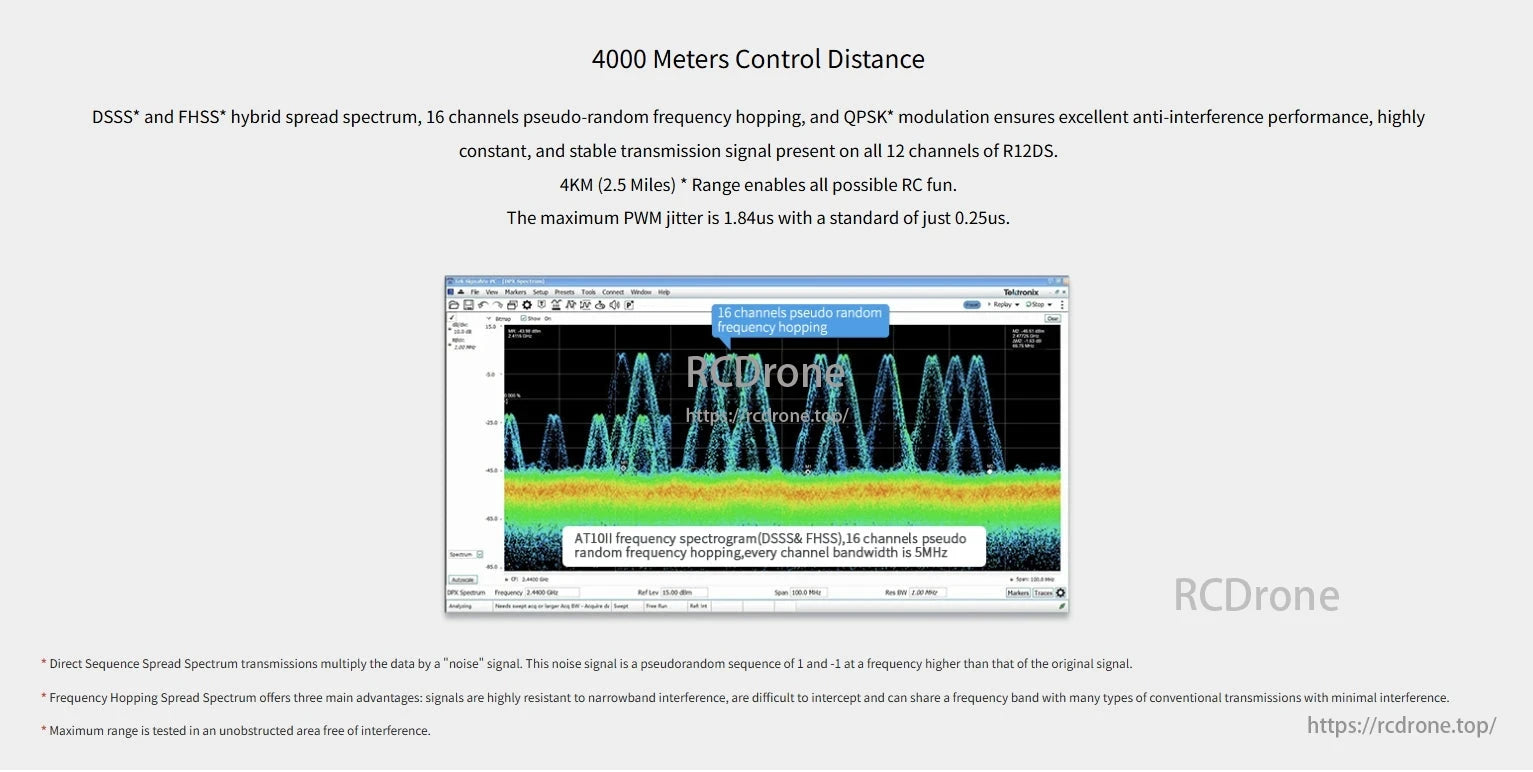

Hybrid DSSS and FHSS spread spectrum with 16 channels, QPSK modulation ensures anti-interference. PWM jitter is 1.84us.

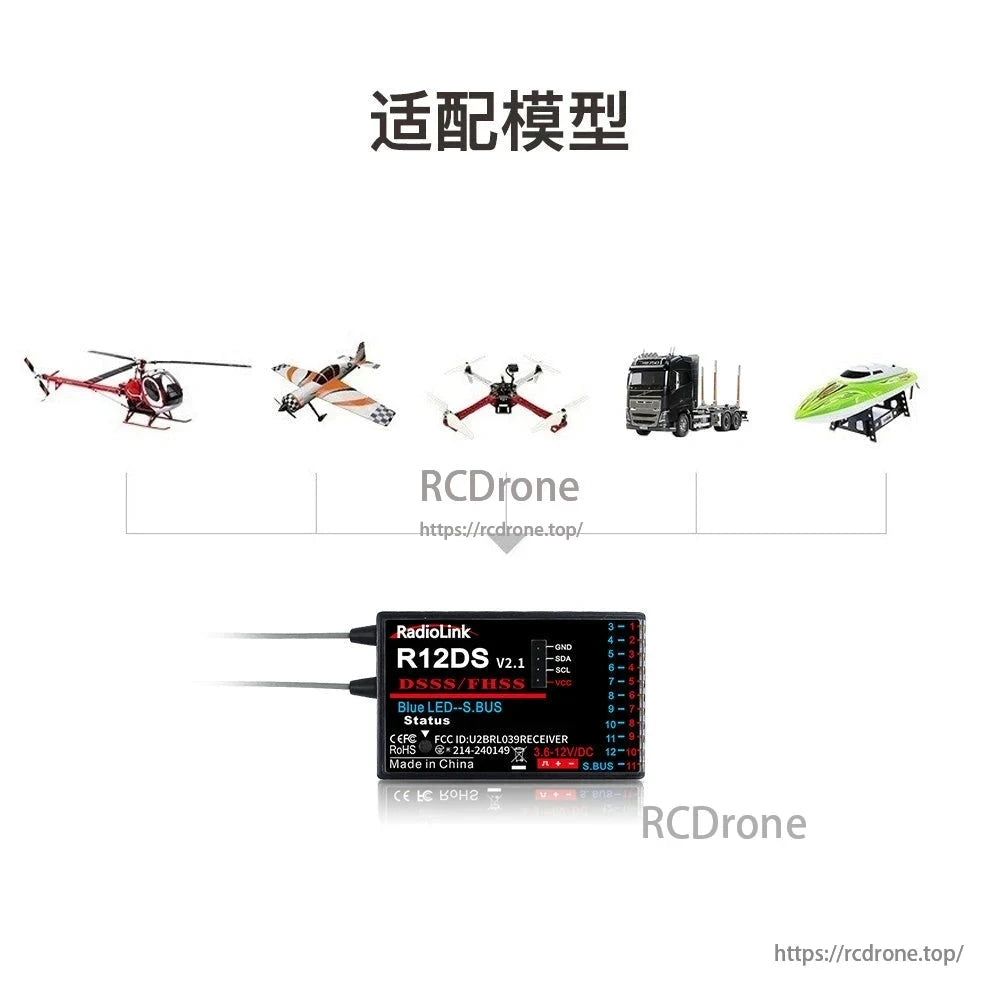

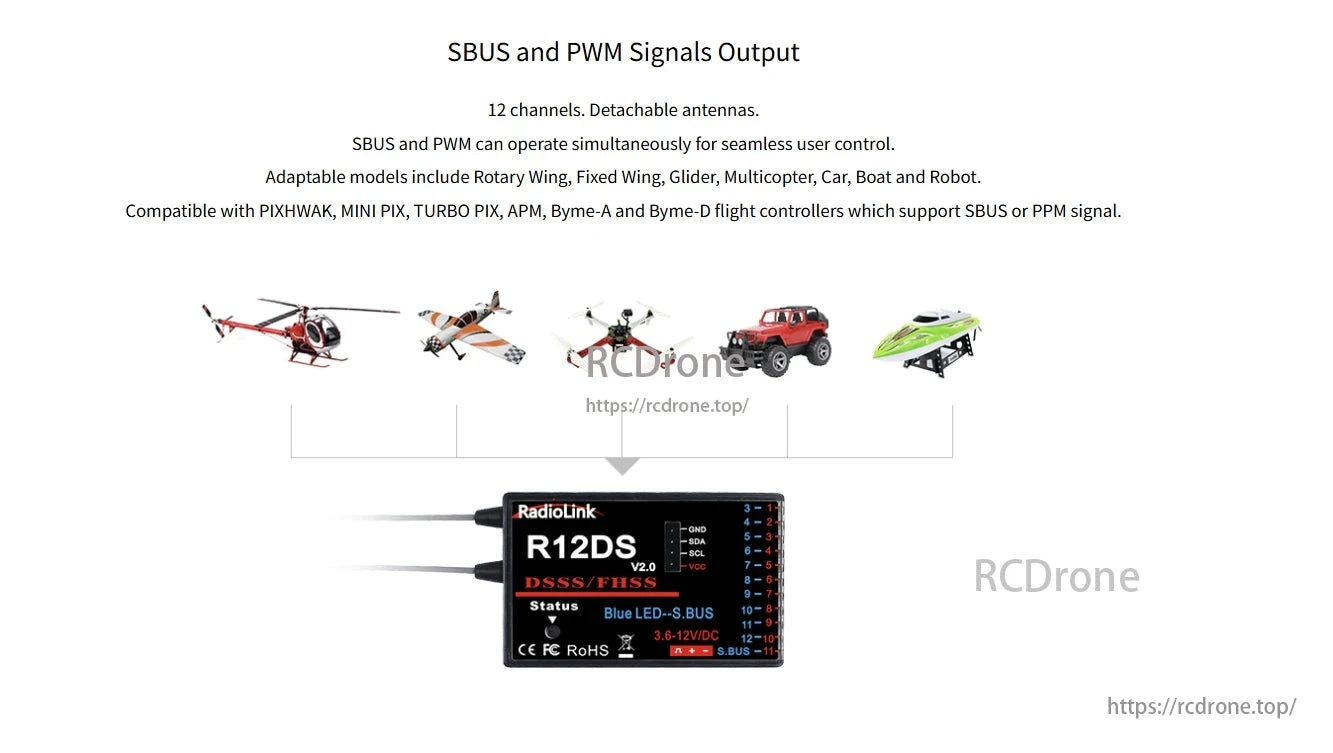

RadioLink R12DS 2.4GHz 12CH receiver supports SBUS and PWM signals, compatible with various models like rotary wing, fixed wing, multicopter, car, boat, and robot. Operates seamlessly for user control.

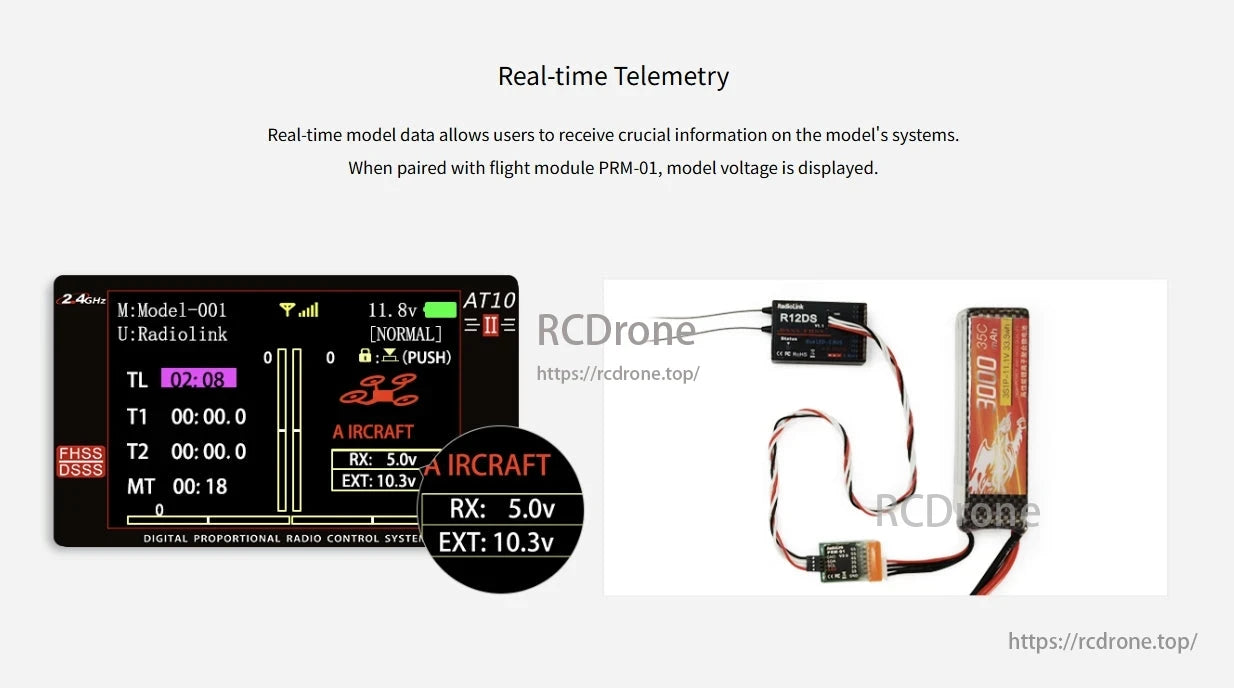

Real-time telemetry provides crucial model system information. Paired with PRM-01, it displays model voltage. Features include 2.4GHz, 12CH, long-range reception, and digital proportional radio control.

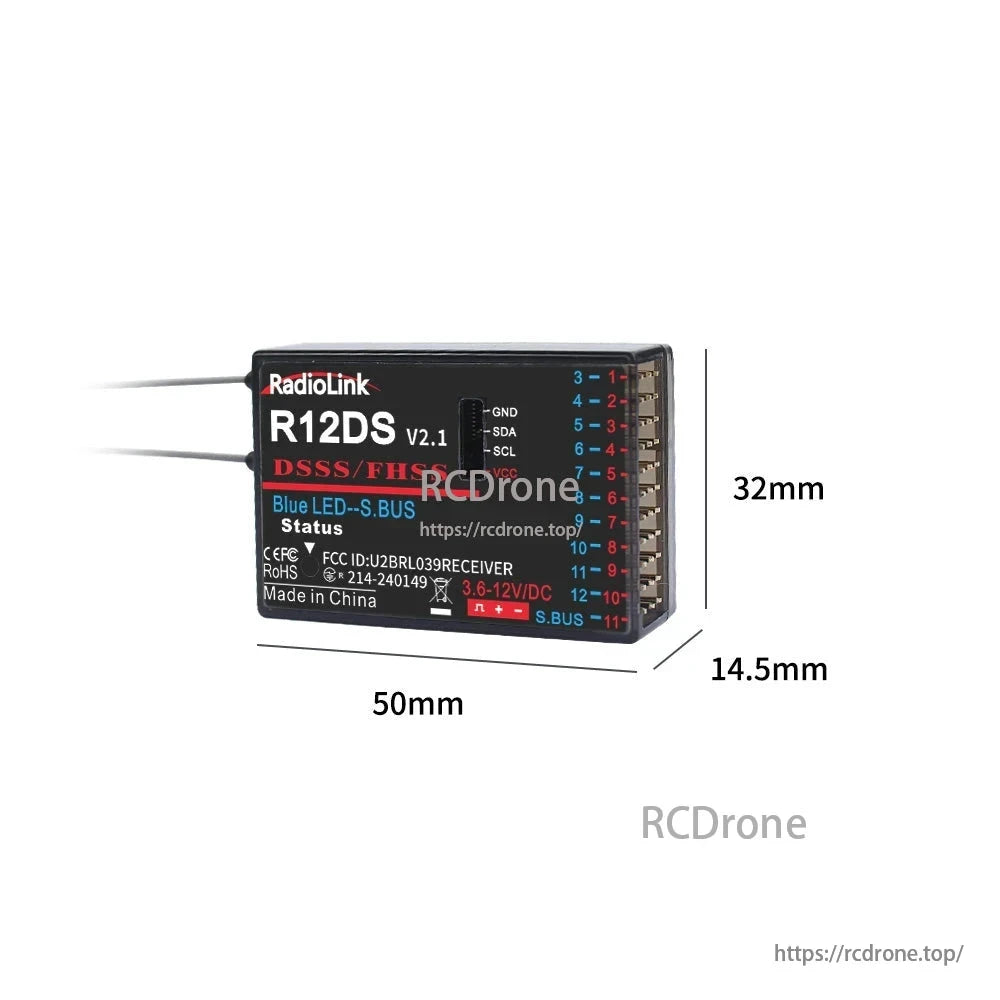

RadioLink R12DS V2.0 receiver, 50x32x14.5mm, 14g. Supports 11 PWM, 12 SBUS/PWM channels. Operates at 3.6-12V, 38-45mA@5V. Control distance: 4000m air, 2000m ground. Compatible with PRM-01 and AT series transmitters.

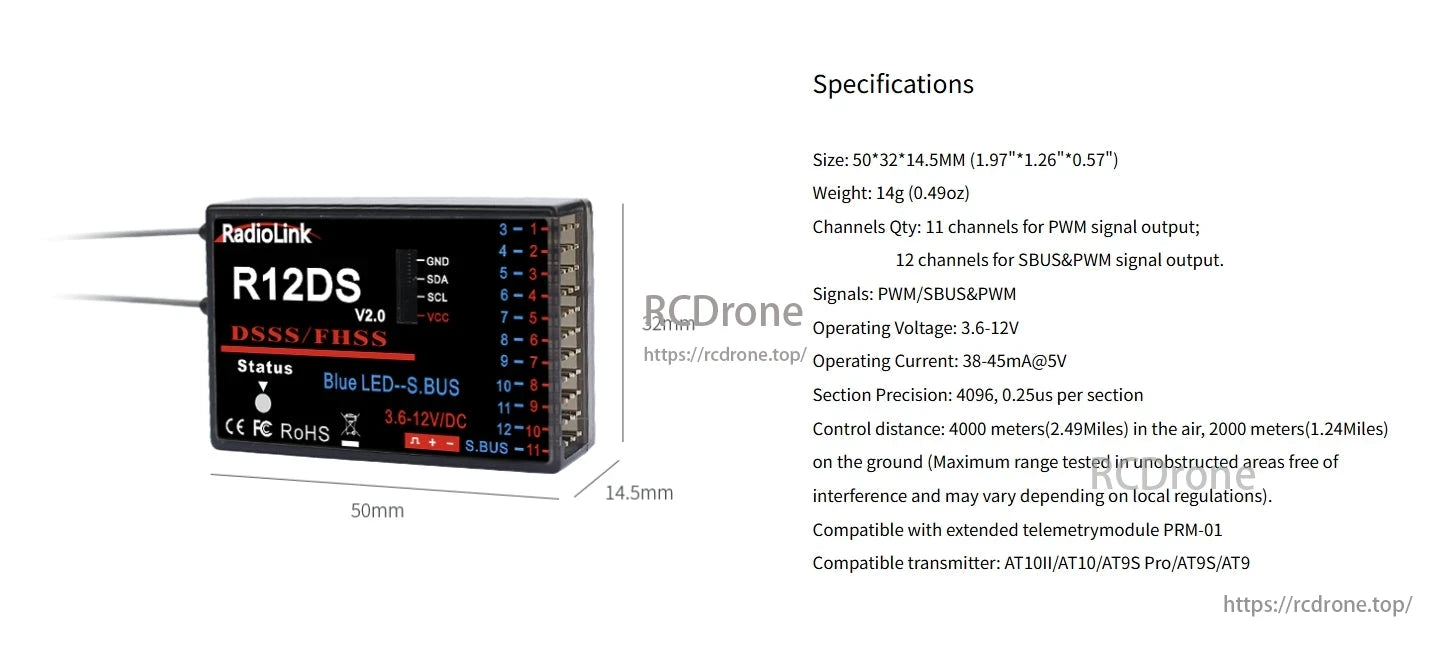

RadioLink R12DS: 50x32x14.5mm, 215mm antenna, 14g weight. 11/12 PWM/SBUS channels, 3-10V, 38-45mA@5V. 2.4GHz ISM band, DSSS&FHSS mode. 4096 precision, 4km range. For helicopters, fixed-wing, multicopters, cars, boats, robots. Connects PRM-01/03 for telemetry.
