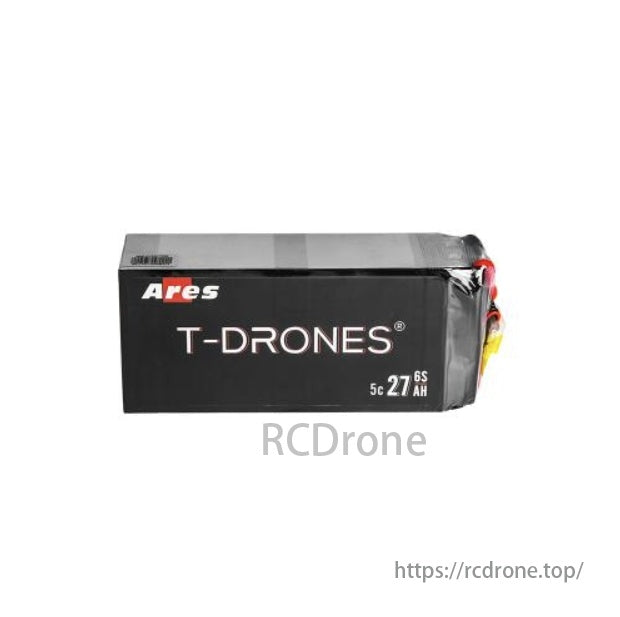

T-Drones Ares 6S 22.2V 27Ah 27000mAh Solid-State Li-ion Drone Battery
T-Drones Ares 6S 22.2V 27Ah 27000mAh Solid-State Li-ion Drone Battery
T-Drones
Couldn't load pickup availability
Overview
The T-Drones Ares 6S 27Ah 22.2V Solid-State Li-ion Battery is a high-performance energy solution engineered for professional drone applications. With an exceptional energy density of 255.1Wh/kg, high-capacity 27,000mAh, and long-lasting durability of 300+ charge cycles, this advanced battery ensures extended flight durations, stable power output, and enhanced safety. Compared to conventional lithium-ion batteries, the Ares 6S offers greater efficiency, lower discharge rates, and improved reliability, making it the ideal power source for UAV operations demanding extended endurance and superior performance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | 6S 27000mAh |
| Nominal Voltage | 22.2V |
| Operating Voltage | 25.2V - 16.8V |
| Capacity | 27,000mAh |
| Size | 213 × 91 × 65mm |
| Weight | 2,380g |
| Energy Density | 255.1Wh/kg |
| Charging Current | 54A |
| Continuous Discharge Rate | 5C (135A) |
| Max Discharge Rate | 10C (270A) |
| Charging Temperature | 0°C ~ 45°C |
| Discharge Temperature (5C) | -10°C ~ 55°C |
| Charging Cycle (5C) | 300 cycles |
Key Features and Benefits
1. High Energy Density for Extended Flight Time
With an energy density of 255.1Wh/kg, the Ares 6S battery maximizes power efficiency and enables drones to fly longer distances without increasing weight, making it ideal for professional UAV applications.
2. Long Service Life
Built to withstand intensive use, the Ares 6S battery provides 300+ full charge cycles while maintaining consistent power output, reducing maintenance costs and downtime.
3. Lightweight and Compact Design
Compared to traditional battery solutions, the Ares 6S offers a smaller, more lightweight form factor, improving drone maneuverability and reducing overall payload weight for optimized flight performance.
4. Stable and Low Discharge Rate
Each battery cell maintains a stable discharge interval of 3.0V to 4.2V, ensuring efficient energy utilization and minimizing voltage fluctuations, making it ideal for precision drone operations.
5. Advanced Safety Features
- Solid-state technology enhances thermal stability, reducing the risk of overheating or thermal runaway.
- The maximum safe charging current is 15A, ensuring safe and efficient charging without compromising longevity.
- Improved resistance to extreme operating conditions enhances reliability in demanding environments.
Applications
The T-Drones Ares 6S 27Ah 22.2V battery is designed to support extended UAV operations, making it ideal for applications requiring high endurance and reliability:
1. Delivery Drones
- The high-capacity 27Ah battery provides longer flight times, increasing efficiency in drone-based logistics and transportation.
- Enables long-range deliveries with greater energy efficiency.
2. Photogrammetry & Mapping Drones
- Essential for aerial surveying and 3D mapping with extended flight duration.
- Ensures uninterrupted power supply for high-resolution imaging and data collection.
3. Infrastructure & Real Estate Inspections
- The long-lasting battery capacity supports continuous drone operation, making it ideal for building inspections, real estate photography, and industrial monitoring.
- Reliable power source for thermal imaging and lidar-equipped UAVs.
4. Industrial & Agricultural Drones
- Supports precision agriculture drones for crop monitoring, spraying, and large-area coverage.
- Compatible with heavy-lift drones requiring high discharge rates for industrial applications.
Why Choose Ares 6S?
✔ Solid-State Safety & Stability – Prevents overheating and ensures long-lasting performance.
✔ High-Powered Efficiency – Delivers stable, high-discharge rates (10C/270A) for heavy-duty drone applications.
✔ Extended Flight Durations – Lightweight, compact, and built for maximum power storage.
✔ Optimized for Professional UAVs – Designed for mapping, surveying, delivery, and inspection drones.
Image Description
T-Drones battery features high energy density (253.1 Wh/kg), long service life (up to 300+ cycles), compact size, low discharge rate (3.0-4.2V), and high safety factor (max safe charging current 15A). Ideal for efficient, durable power solutions.
T-Drones battery parameters include 6S*16000mAh to 6S*30000mAh capacities, with a nominal voltage of 22.2V and operating voltage range of 25.2-16.8V. Sizes vary from 195*77*52mm to 210*90*68mm, weights from 1550g to 2570g, and charging currents from 32A to 60A. Charging cycles are 300 for all models.
Battery tests for T-Drones are displayed, featuring intuitive data and direct embodiment improvements. Graphs compare Voltage Li-po, Cutoff Li-po, Voltage Li-ion, and Cutoff Li-ion over time, showing voltage changes in minutes.
