T-Motor T-Drone M1200 Industrial Drone  Specifications:

Item Brand: T-motor
Item Model: M1200
Wheelbase: 1230mm
Payload: 2-5kg
Flying weight: 18.5kg (incl. Payload and battery)
Time of Endurance: 2kg payload ≥70mins
                                5kg payload ≥60mins
Range: 10km
Height: 100-1000m(typical)
             6500m asl. (Max.)
Speed: 10-35km/h (typical)
             65km/h (Max.)
Wind Resistance Level: Force 5
Power System: T-motor Power system
Battery: Smart 12s 44000mah battery (Not Included)
Flight Controller: DJI A3/A3 Pro, PIX and etc (not included)


Package Included:

M1200 frame Kit x 1 (Partially Assembled)
T-MOTOR U8XL kv100 motor / Flame 60A HV ESC / P32 * 11 Propeller  System Set x 4

T-Motor T-Drone M1200 Industrial Drone Description

2-5kg payload
60 minutes + flight time
Great for mapping, searching, monitoring and other industrial applications

T-motor released M series multi-rotor platforms for industrial applications.Those UAV multi-rotor drones are great for pipeline inspection,photography&filming, environmental monitoring,electricity inspection, military supervision, searching, rescue service, surveying and mapping and etc.


T-motor M1200 quad-copter is suitable for 2 to 5kg payload. With 2kg payload, the flight time can reach to 70 minutes. With 5kg payload, the flight time can reach to 60 minutes. The drone only include T-motor M1200 drone frame, t-motor U8XL kv100 motor, Flame 60A HV ESC and P32*11 propeller. The flight controller, radio, battery need to purchase separately.

Main Features:
--Lightweight and High Strength Design of the Flight Platform
--Powerful and Efficiency T-Motor Power System
--High energy density Lithium Battery gets long flight time
--Efficient and Reliable compact flight platform
--Completely open gimbal interface

Flight Platform Lightweight design

the endurance capability increase 30~ 37% than the same industry products with the same payload and size. The fuselage adopts high strength and integrated molding Aeronautical Aluminum,improve the whole strength and installed convenience. 12% Efflency T 20% Stability 15% L Weight

T-MOTOR Power System

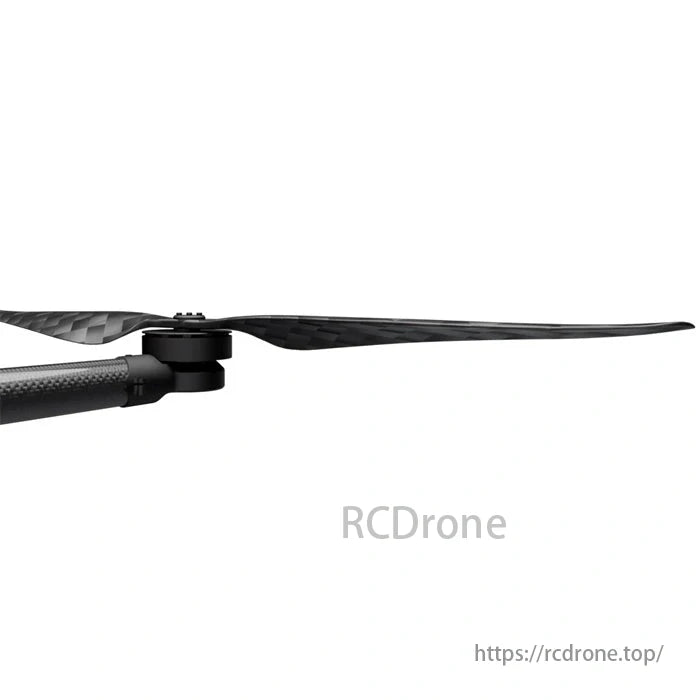

Motor For long endurance characteristics, the efficiency, reliability and weight have been optimized to make it highly efficient,stable and safe.optimized to make it highly efficient,stable and safe. ESC Besides improving the redundancy and reliability of the ESC itself, added LED lamp debugging, motor debugging automatically without tools. • Propeller Using ultra-light props, the weight is half of the same specification.

Smart Battery

15-38 minutes endurance time of most drones on the market, we deeply know users ask for longer time and higher efficient operation.So we use highenergy density Lithium battery,improve power management system, finally reach amazing 72 minutes flying. 259 wh/kg Battery Energy Density 500 Times Recharge cycle PIXer BMS Battery Algorithm Management 77% Energy Density

SAFETY COMES FIRST

Through continuous testing and numerous flight tests, as well as a number of collaborative flight projects.Proven M-Series is an efficient and reliable compact flight platform. 30 Air Flight Projects Laboratory Experiment 1000n Fully Autonomous Flight

I Airborne Systems And Equipment Comply with European DO-178 avlatlon standards 1 Airborne Circuit Design And Production Comply with military standard IPC3 standards I The Frame Connector Selects The International Brand LEMO, Positronic, HRS, MOLEX The whole frame uses the American Cherry brand aviation rivet riveting. strictly imple ments the aviation industry riveting standard 13m/s Wind resistance 50 mm/24h Rain-proof -40~60°c Temperature-proof

WIDER OPTIONS

Completely open Gimbal interface, M series Gimbal frame can mount any equipment.Making wider application areas and performing different tasks.If you have such request,M family can help you.

M series Gimbal frame can mount equipment Making wider application areas and performing different tasks M family can help you.
