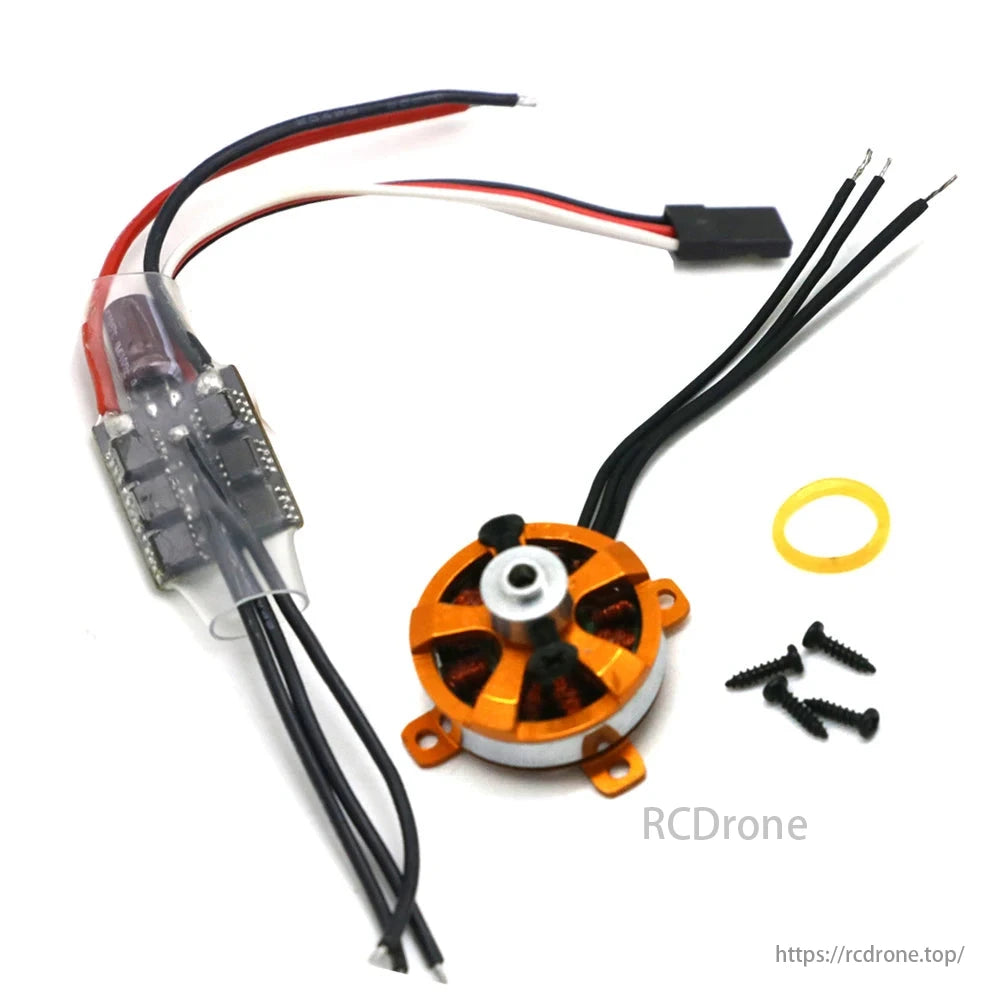

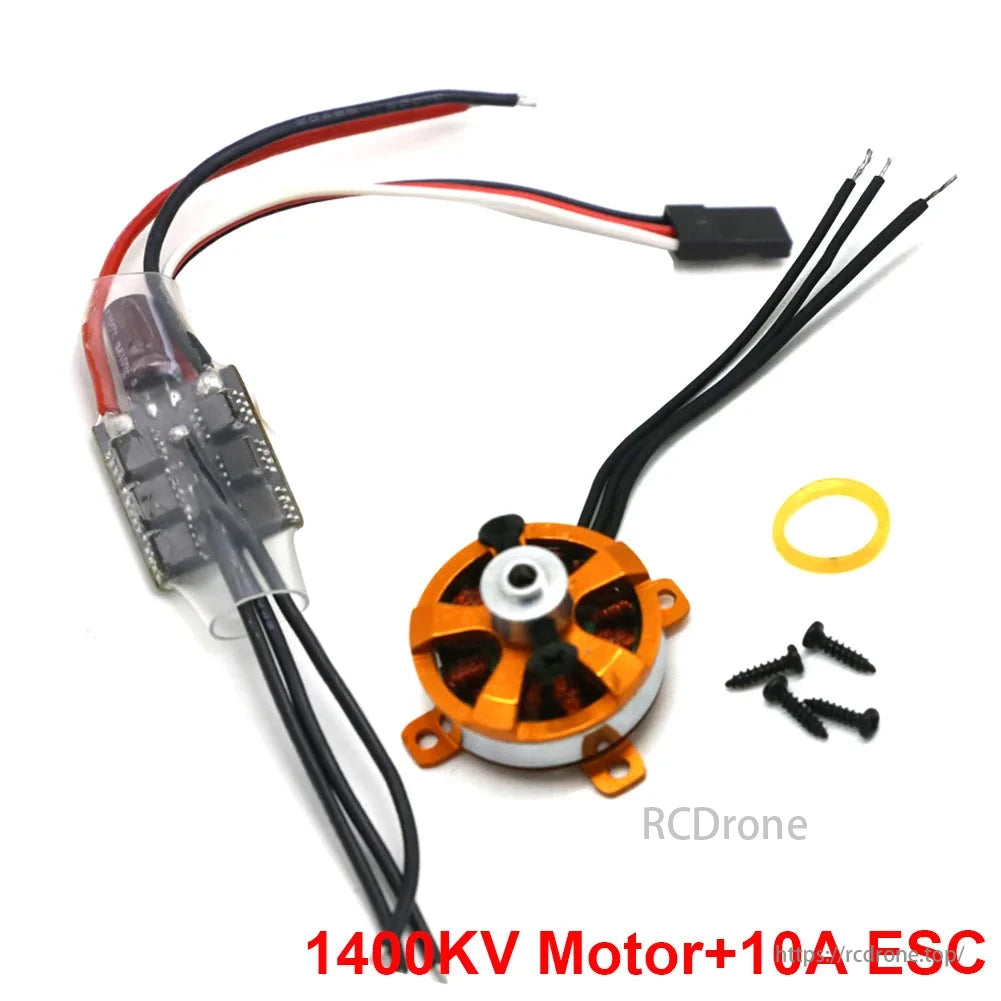

XXD A2205 1400KV / 1600KV Micro Brushless Motor with Mount + 10A ESC for RC Aircraft, F3P, KK Copter, Quadcopter (2–3S Compatible)

XXD A2205 1400KV / 1600KV Micro Brushless Motor with Mount + 10A ESC for RC Aircraft, F3P, KK Copter, Quadcopter (2–3S Compatible)

XXD

Regular price $5.52 USD
Regular price Sale price $5.52 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.
Color
View full details

Overview

The XXD A2205 Brushless Motor and 10A ESC Combo offers an excellent power system upgrade for micro RC aircraft, quadcopters, and 3D F3P flyers. Available in 1400KV and 1600KV options, this motor is designed for 2S–3S LiPo setups, providing a smooth throttle curve, reliable efficiency, and responsive torque for your fixed-wing or multi-rotor platform. Lightweight and compact, it's ideal for budget builds or beginner kits using KK flight controllers or other lightweight setups.

Key Features

  • 2205-size brushless motor with mount and paddle protector

  • Two KV options: 1400KV for control / 1600KV for speed

  • High efficiency: up to 75%, best range 2–7A

  • Instant peak current: 7.6A @ 60 seconds

  • Compatible with 2–3S LiPo or 6–10 cell NiMH/NiCd packs

  • 10A ESC with 8KHz PWM, 1A BEC for stable control

  • Suitable for RC aircraft, F3P indoor flyers, mini quads, UFO drones, and KK copters

  • Ultra-lightweight: motor 21g, ESC 8g

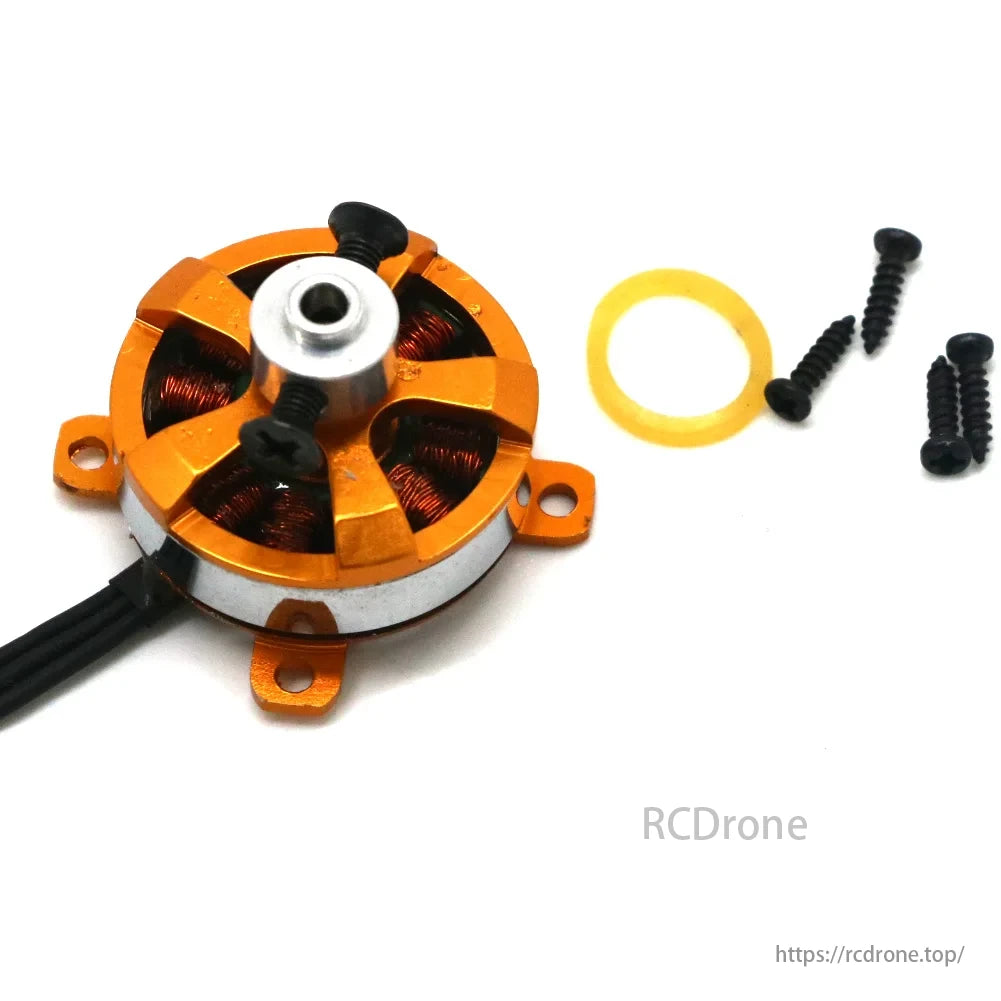

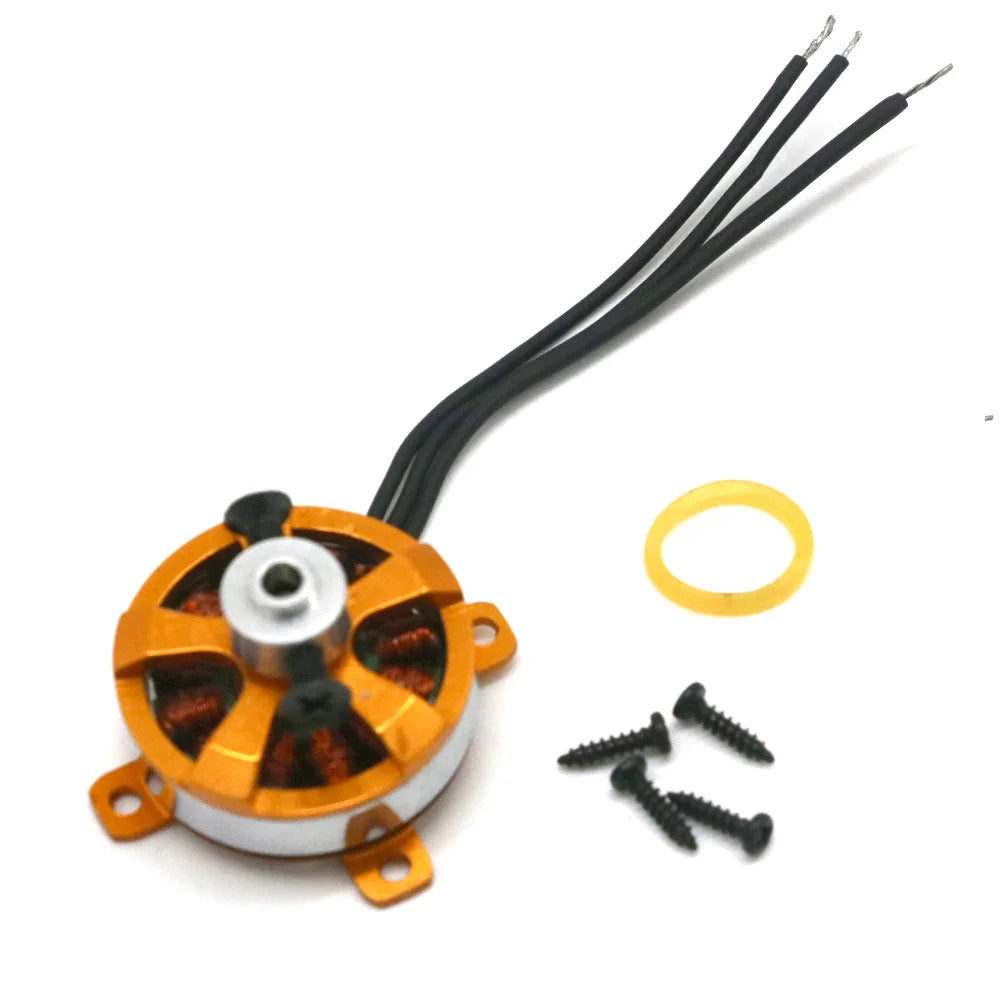

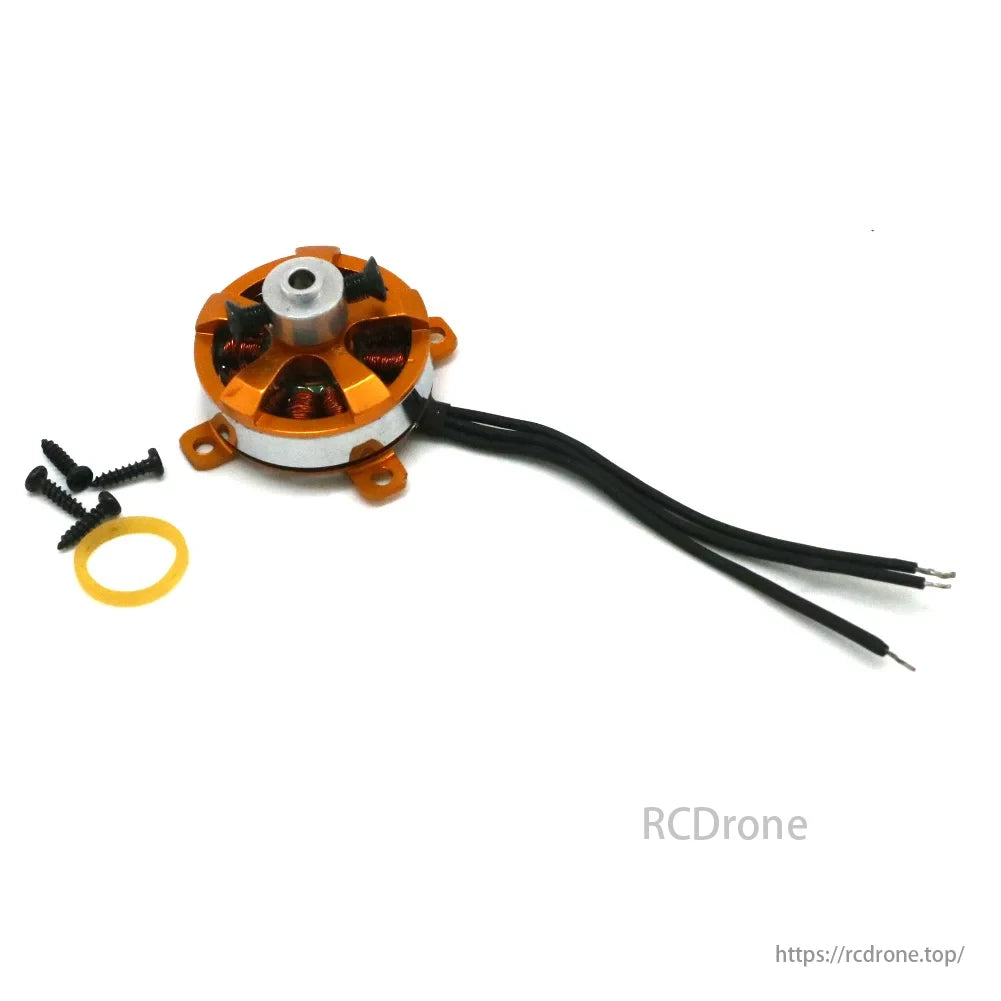

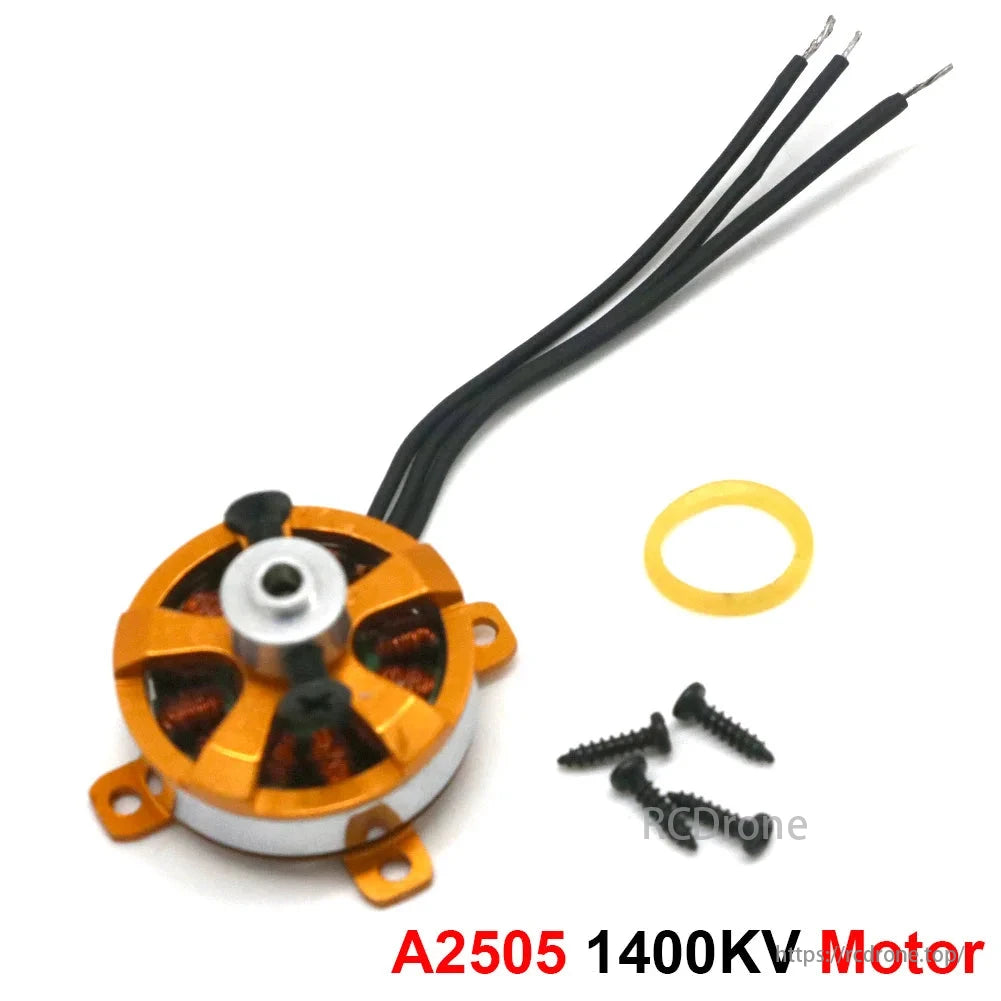

Motor Specifications

Parameter Value
Model A2205
KV Options 1400KV / 1600KV
Efficiency 75%
Optimal Current 2–7A (>73%)
No-load Current 0.4A @ 10V
Max Instant Current 7.6A / 60s
Dimensions 27.6 x 22mm (with protector)
Weight 21g
Compatible Battery 2–3S LiPo / 6–10 NiMH

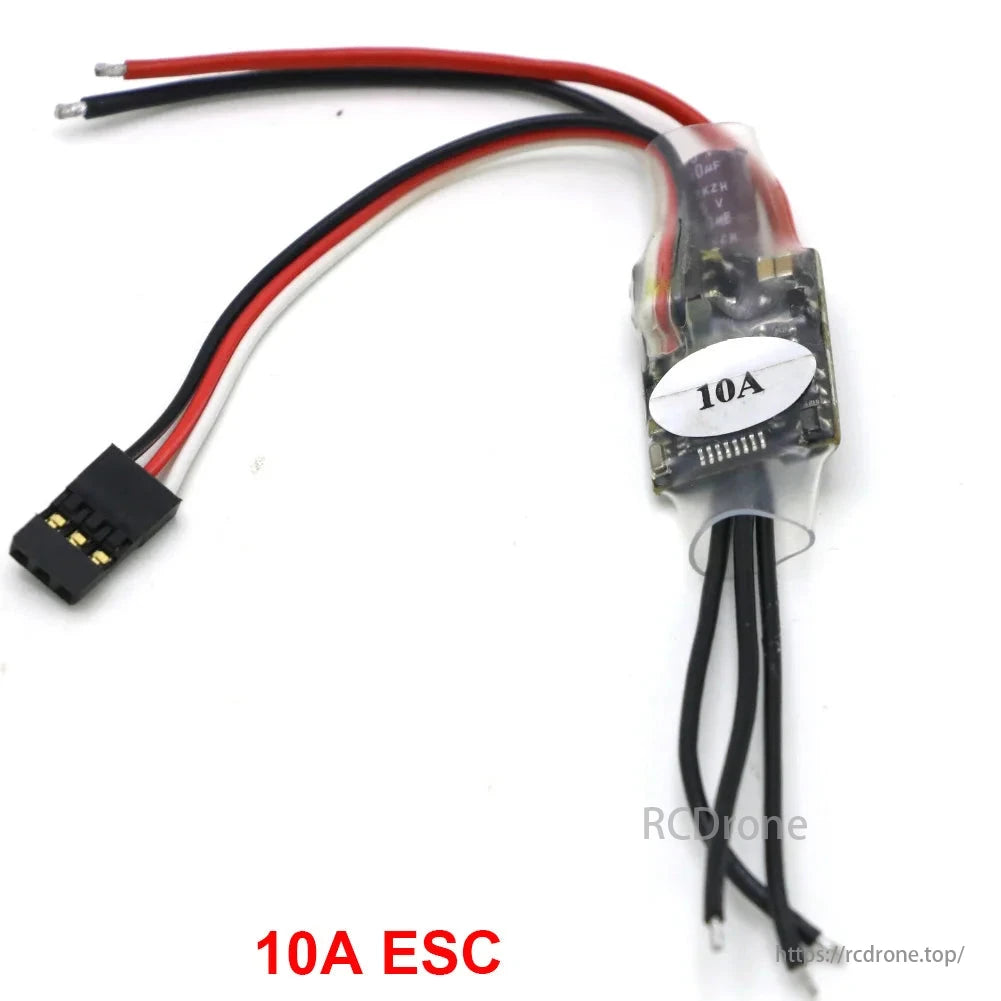

ESC Specifications

Parameter Value
Rated Current 10–15A
BEC Output 1A
PWM Frequency 8KHz
Supported Battery 2–3S LiPo
Dimensions 23.5 x 15.7 x 6.1mm
Weight 8g

Application

Perfect for lightweight 3D planes (F3P), fixed-wing trainers, mini quadcopters, KK control boards, and custom UFO-style drones. Choose 1400KV for stable flight or 1600KV for added thrust and speed on 3S.

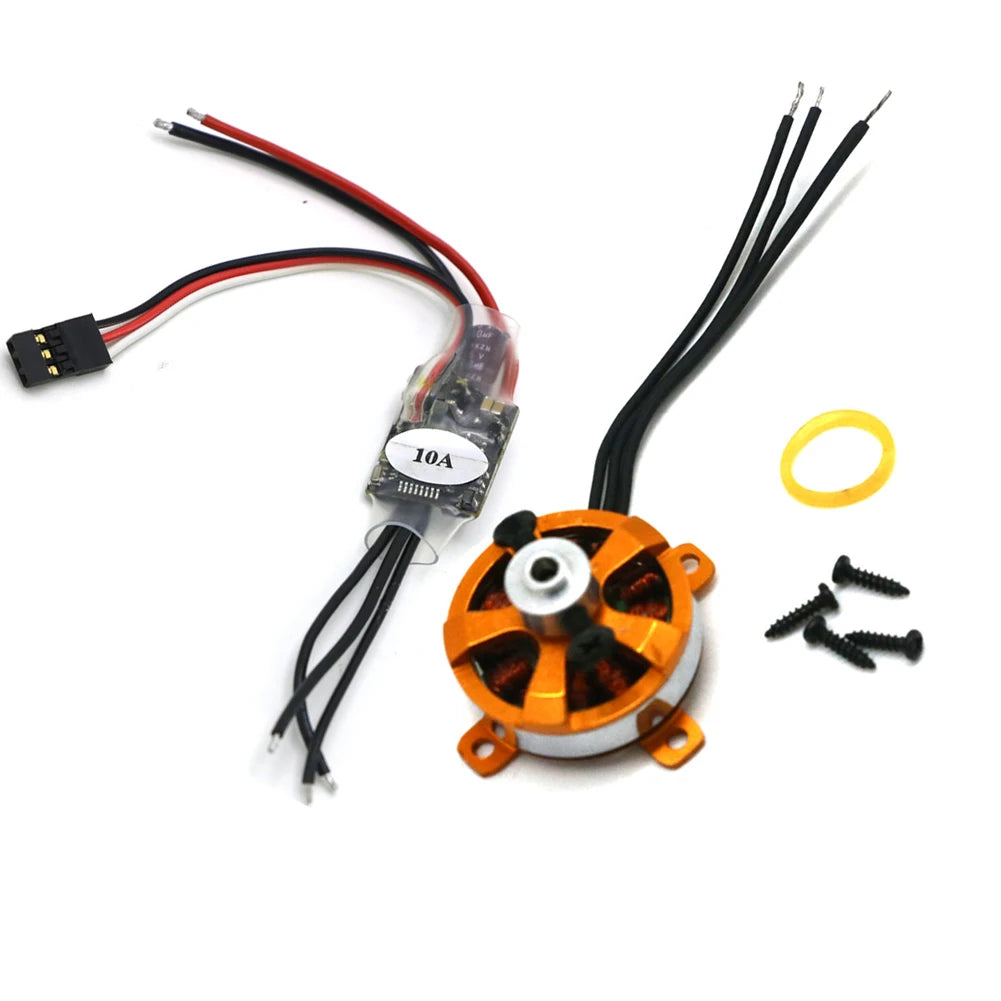

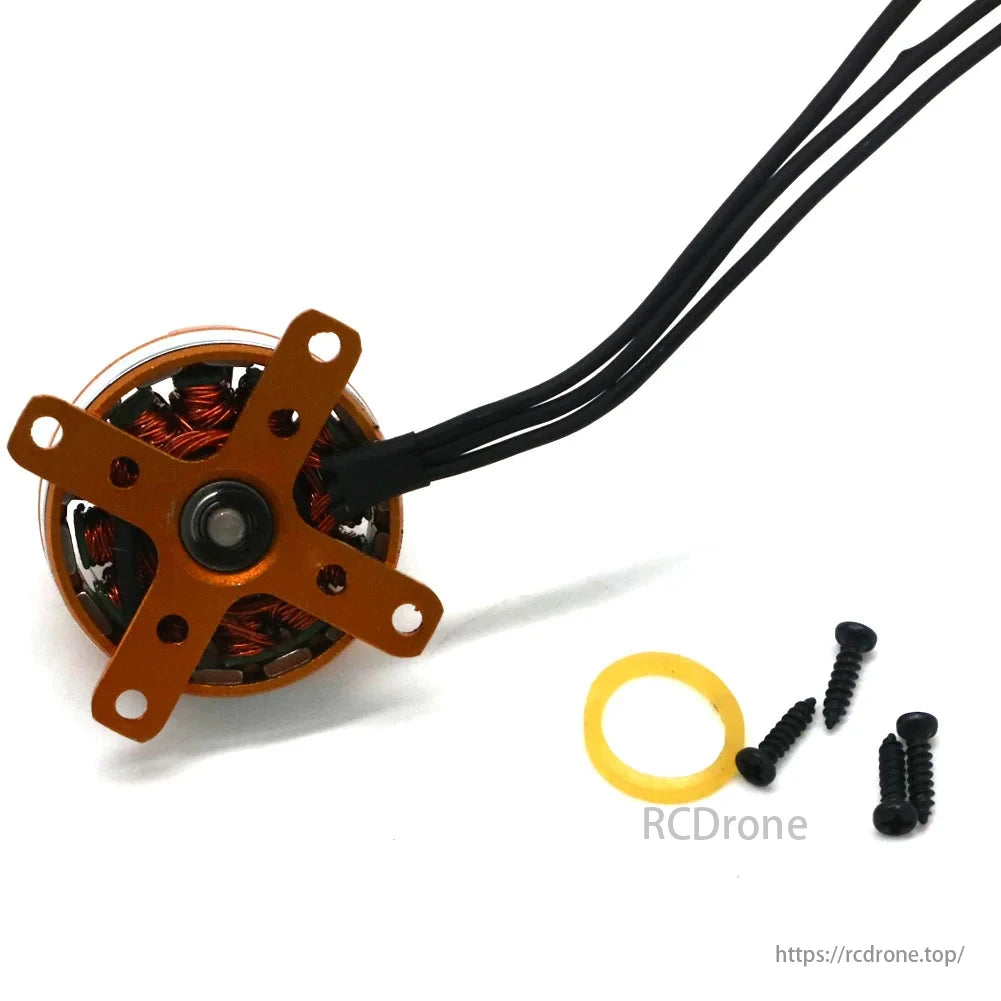

What's Included

  • 1x XXD A2205 1400KV or 1600KV Brushless Motor

  • 1x Motor Mount (pre-installed)

  • 1x 10A ESC (optional variant)

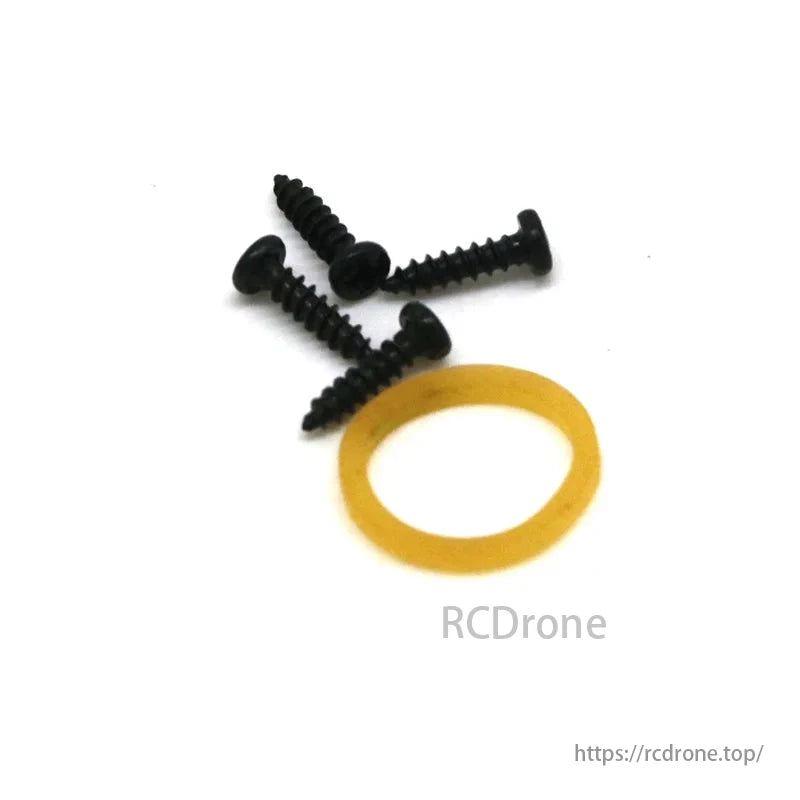

  • Screws and connectors (package-dependent)


XXD A2205 1400KV / 1600KV Micro Brushless Motor, What Included: XXD A2205 motor, motor mount, 10A ESC (optional), screws, and connectors.XXD A2205 1400KV / 1600KV Micro Brushless Motor, The XXD A2205 motor and 10A ESC combo provides a powerful upgrade for micro RC aircraft, quadcopters, and 3D F3P flyers.XXD A2205 1400KV / 1600KV Micro Brushless Motor, The XXD A2205 Brushless Motor and 10A ESC Combo offers a power system upgrade for micro RC aircraft, quadcopters, and 3D F3P flyers.XXD A2205 1400KV / 1600KV Micro Brushless Motor with Mount + 10A ESC for RC Aircraft, F3P, KK Copter, Quadcopter (2–3S Compatible)XXD A2205 1400KV / 1600KV Micro Brushless Motor, The package includes an XXD A2205 brushless motor, motor mount, ESC, and screws/connectorXXD A2205 1400KV / 1600KV Micro Brushless Motor, The XXD A2205 Brushless Motor and 10A ESC Combo upgrades power systems for micro RC aircraft, quadcopters, and 3D F3P flyers.XXD A2205 1400KV / 1600KV Micro Brushless Motor, The product is lightweight and compact, making it suitable for budget-friendly builds or beginner kits that use KK flight controllers or other lightweight systems.XXD A2205 1400KV / 1600KV Micro Brushless Motor, A lightweight and compact component suitable for budget builds or beginner kits with KK flight controllers.

XXD A2205 1400KV / 1600KV Micro Brushless Motor, High-efficiency brushless motor with two KV options for speed or control, suitable for RC aircraft, indoor flyers, and mini quads.

XXD A2205 1400KV / 1600KV Micro Brushless Motor, Key features: A2205 brushless motor with high efficiency, instant peak current, lightweight design, suitable for RC aircraft and mini quads.
