Overview

HGLRC Nblade MAX is a 5-inch FPV frame available in DC and True X (Positive X) layouts, designed for freestyle and cinematic builds with integrated RGB lighting. It supports analog and HD camera setups (O3/O4), and uses a streamlined high-strength structure with protective side plates and an independent quick-release receiver compartment.

Key Features

Streamlined high-strength frame body design
Wear-resistant injection-molded ABS/PP parts for improved shock absorption and durability
Fully covered side plate protection to help shield internal electronics from debris
Independent quick-release receiver compartment for easier setup and maintenance

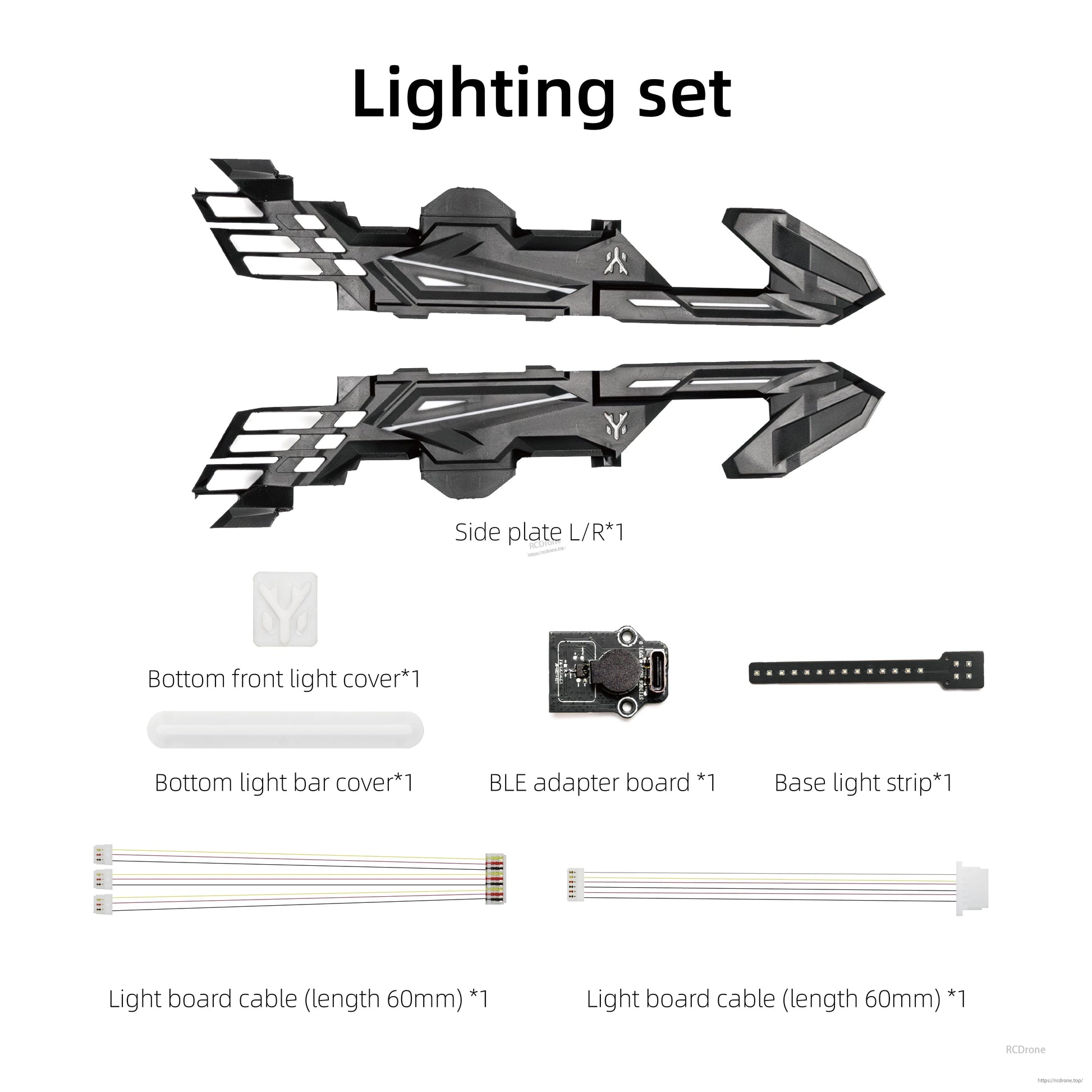

RGB LED light strips with wireless app control (BLE adapter board included in parts list)
Compatible with analog and HD camera configurations (O3/O4)

Specifications

Product name / Model	Nblade MAX
Frame type	DC / True X (Positive X), 5-inch frame
Material	Carbon fiber + aluminum
Wheelbase	DC 221.5 mm / Positive X 226.5 mm
Dimensions	DC 222 x 220 mm / Positive X 205 x 220 mm
Top plate thickness	2 mm
Mid-plate / bottom plate thickness	3 mm
Front/rear arms	6 mm
Arm thickness (also provided)	7 mm
Top/bottom plate spacing	21 mm
Stack installation height	21 mm
FC mounting	20 x 20 mm; also listed: 20 x 20 / 30.5 x 30.5 / φ3 mm
VTX mounting	20 x 20 / 25 x 25 / φ2 mm
Camera mounting	Supported camera: 19 x 19 mm / 20 x 20 mm; camera installation hole distance: 20 mm / 19 mm
Camera installation hole position	O4, O3, analog
Motor mounting	Motor mounting holes: 16 x 16 mm; also listed: 19 mm / φ3 mm / 4 holes
Snap ring groove	6 mm
Applicable propeller size	5.1 inch (MAX)
Head material	Aluminum alloy
Receiver installation size	20 x 11.7 x 5 mm
VTX antenna mounting	Round SMA x3
GPS installation size	21 x 21 mm
Capacitor installation size	φ10 mm x 45 mm
Applicable VTX	DJI O4 PRO AIR Unit / DJI O3 AIR Unit / Analog VTX
Frame weight	DC 216 g / True X (Positive X) 220 g
Total weight (listed)	DC frame 320 g / Positive X frame 324 g
Package weight (listed)	320 g
Packaging box size (listed)	250 mm x 175 mm x 63 mm

What’s Included

Nblade MAX Frame x1

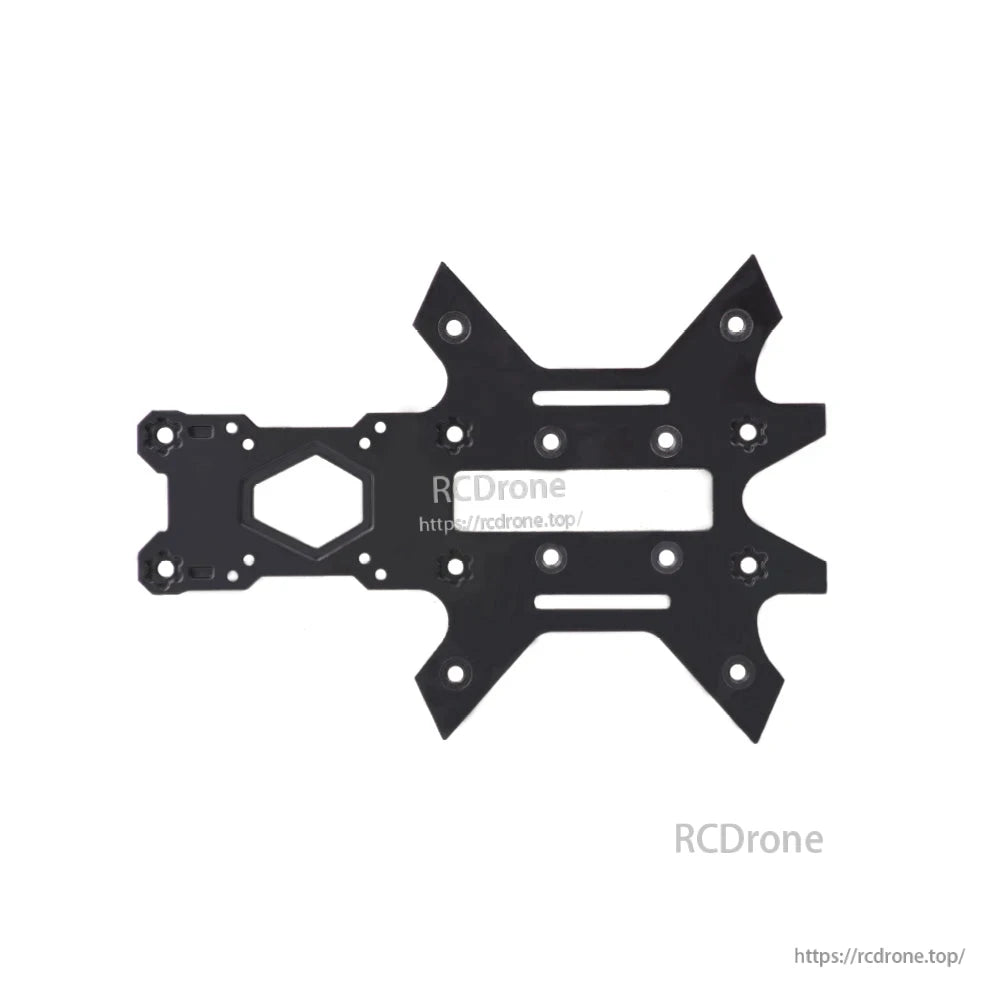

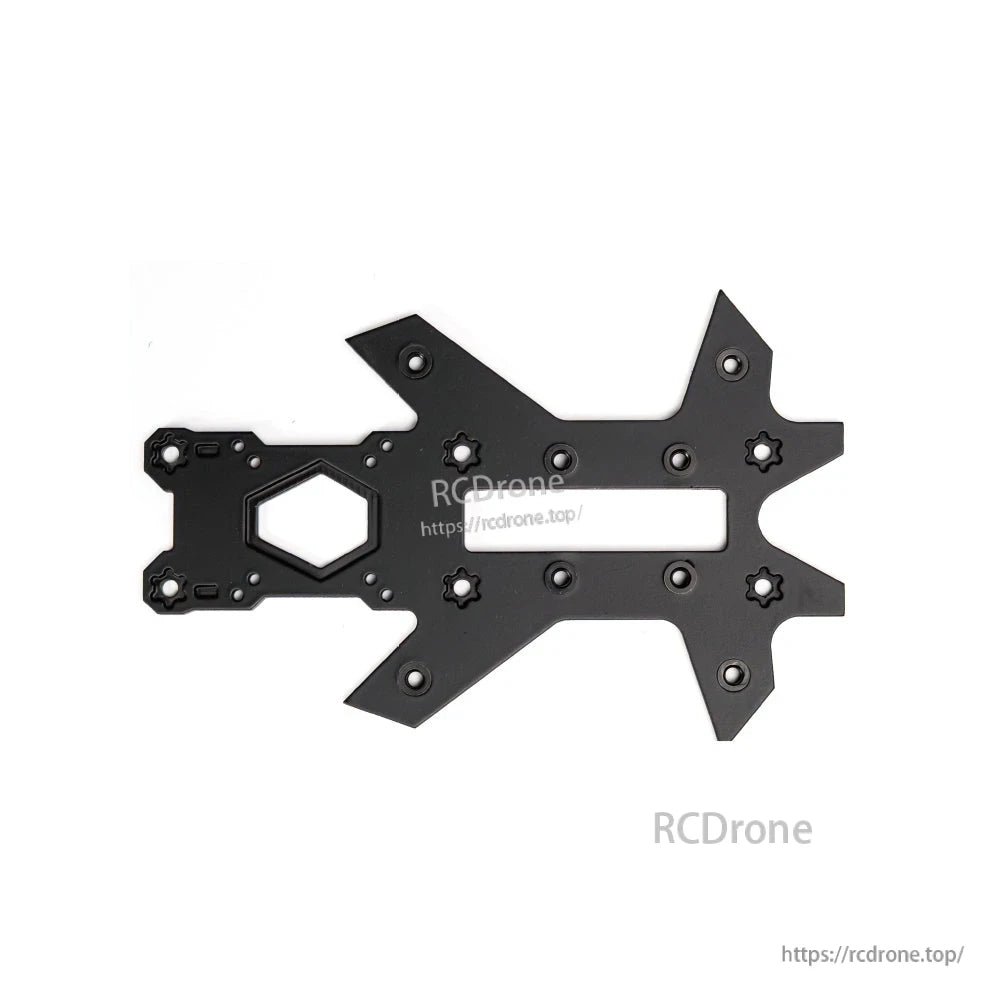

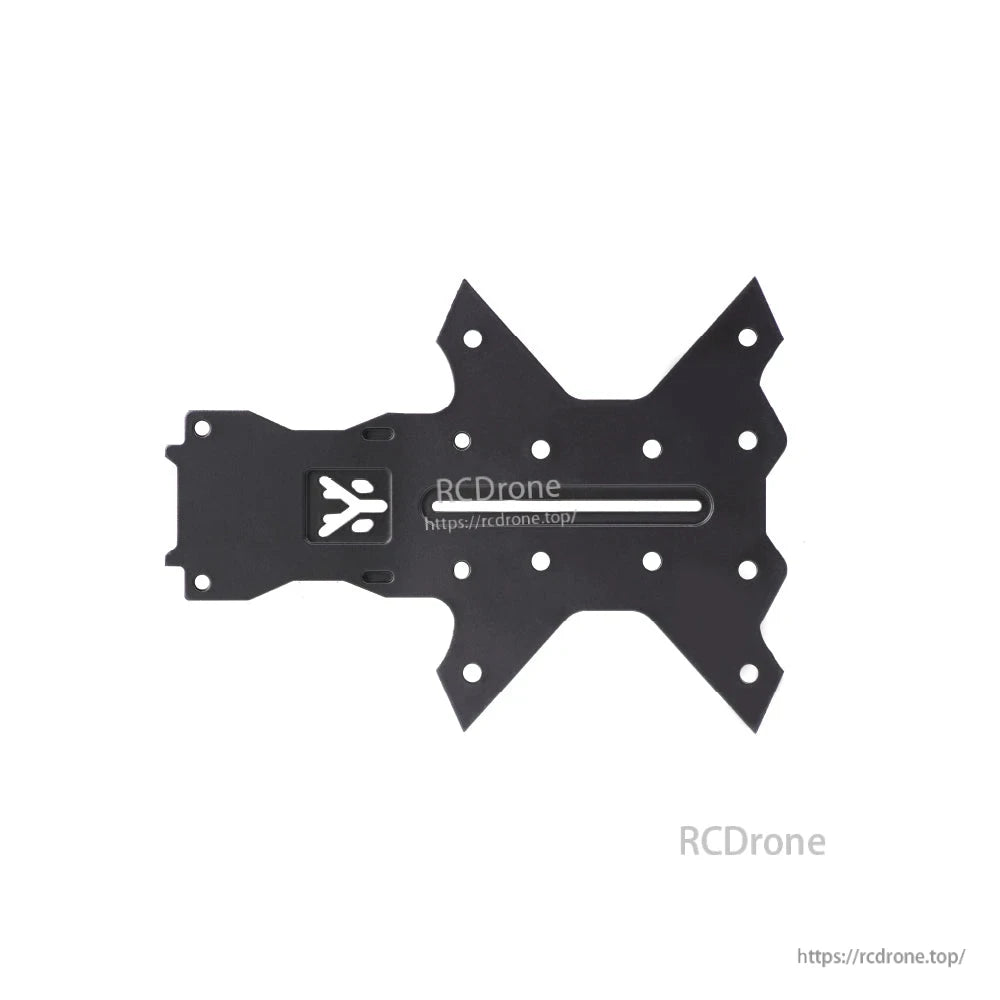

Bottom plate x1

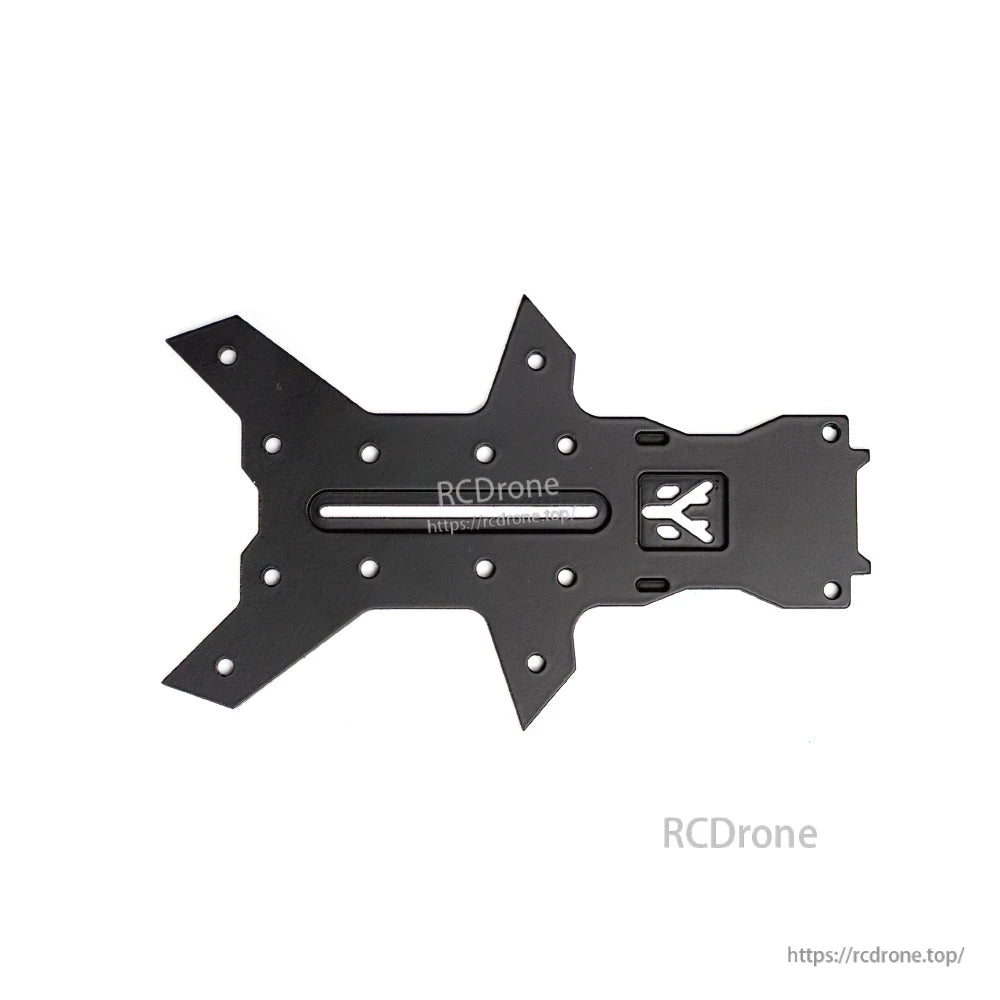

Middle plate x1

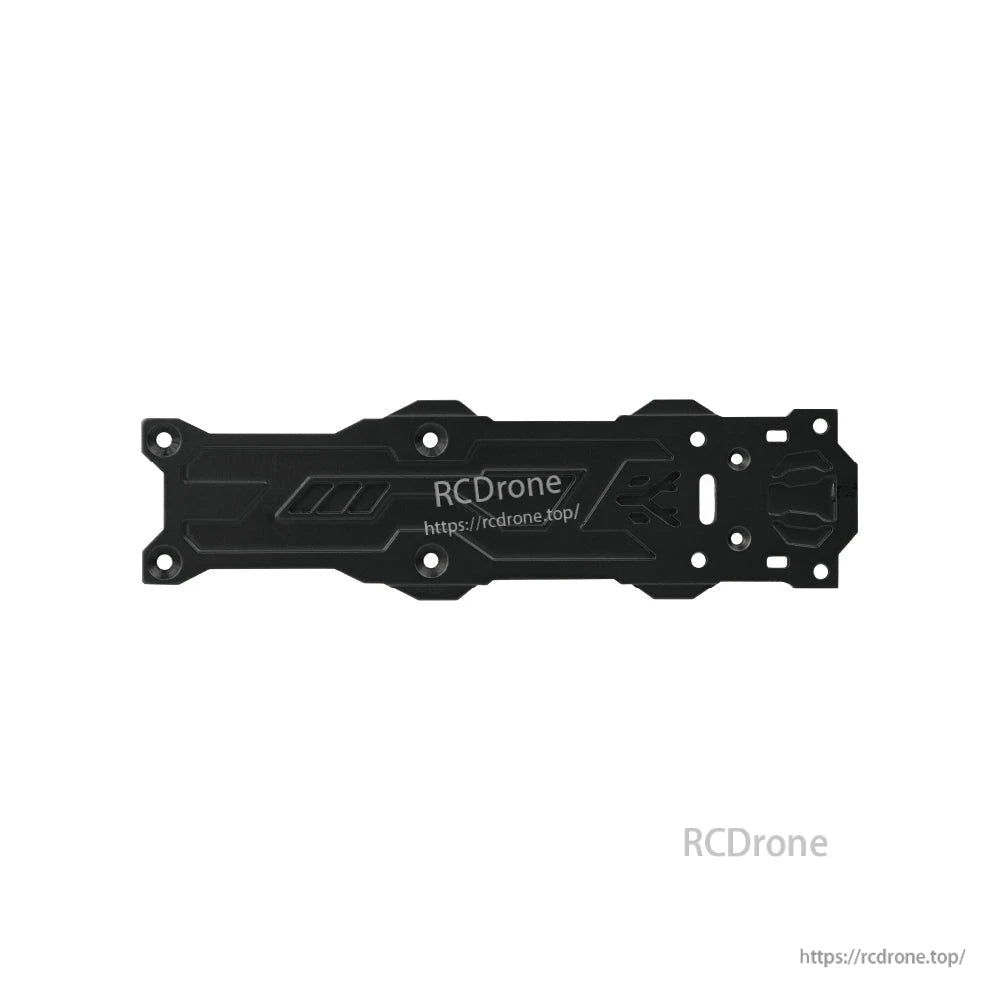

Top plate x1

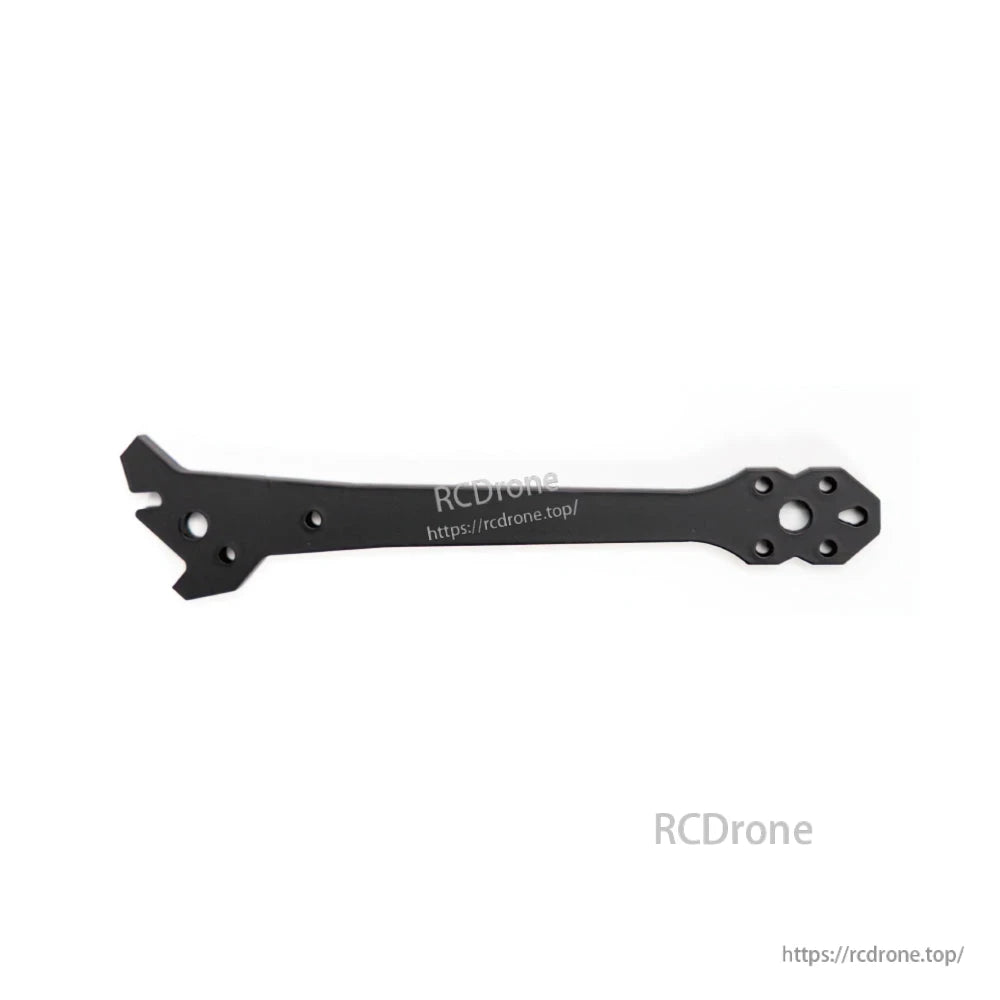

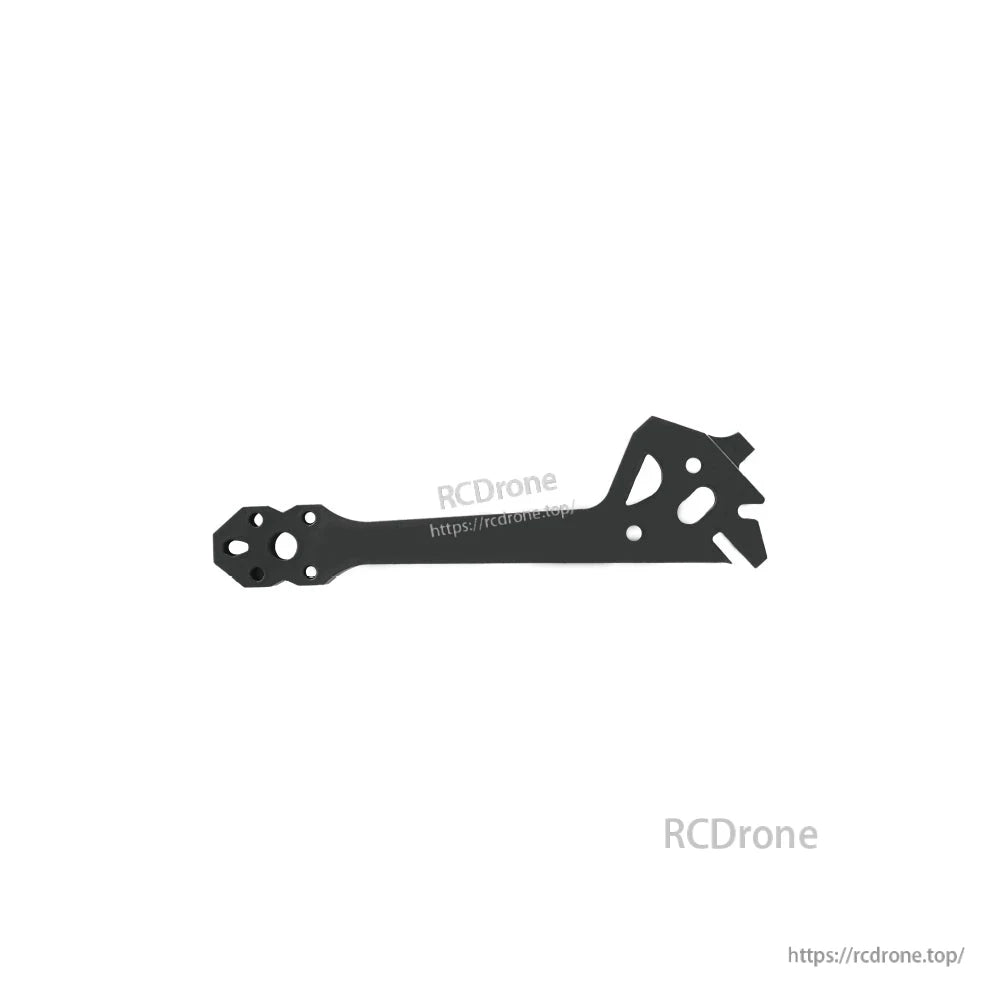

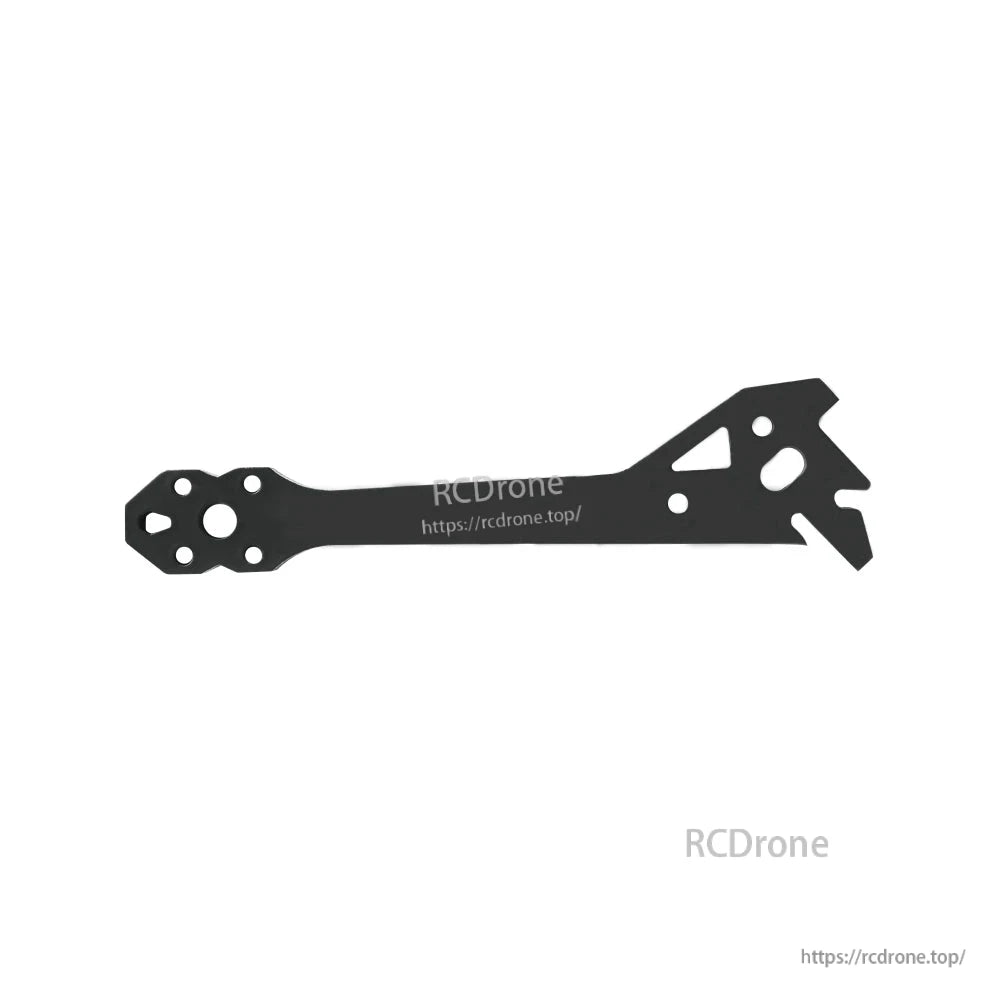

Front arm x2

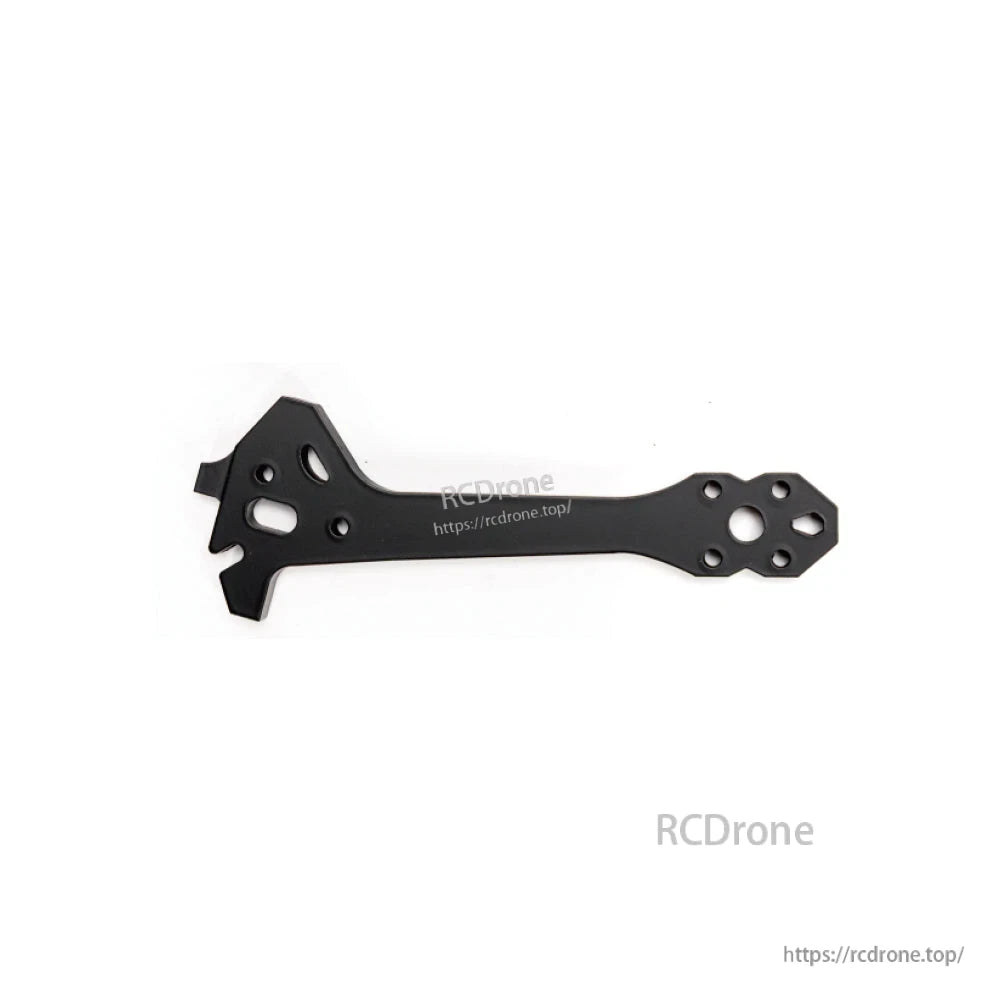

Rear arm x2

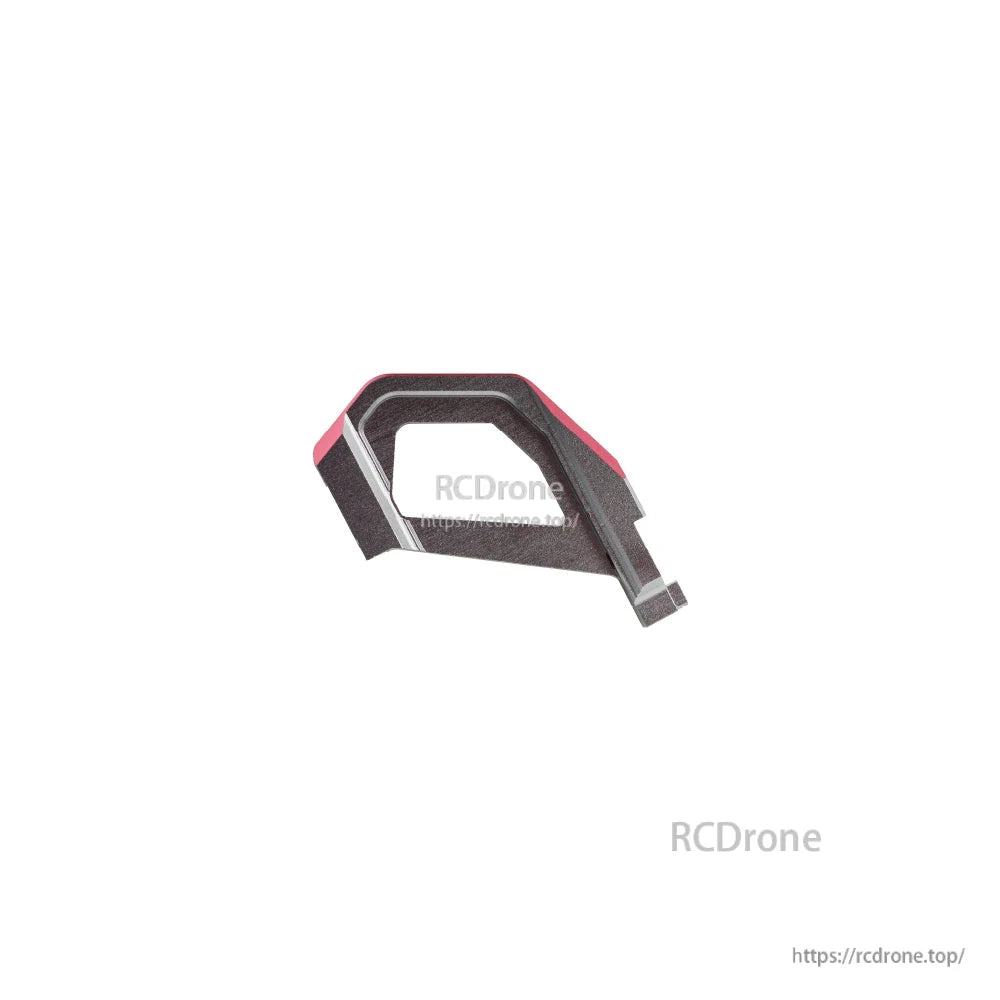

Head aluminum part L x1

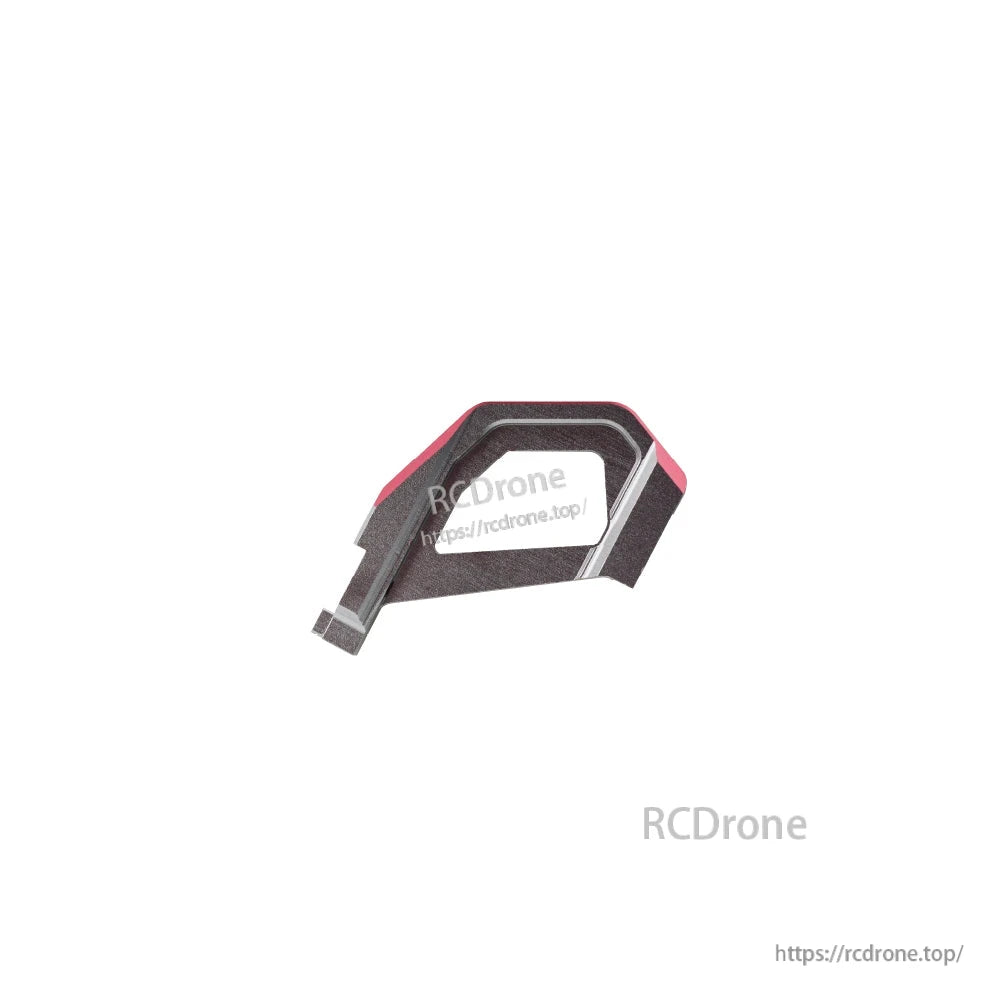

Head aluminum part R x1
GoPro reinforced carbon sheet x2
VTX heat dissipation aluminum part / VTX heat sink aluminum parts x1
Camera shock pad L x1
Camera shock pad R x1
GoPro part x1
Foot pad A x2
Foot pad B x2
Antenna tail seat L x1
Antenna tail seat R x1
GPS mount x1
Receiver compartment x1
Battery anti-slip sticker x1
Buzzer mount / buzzer bracket x1

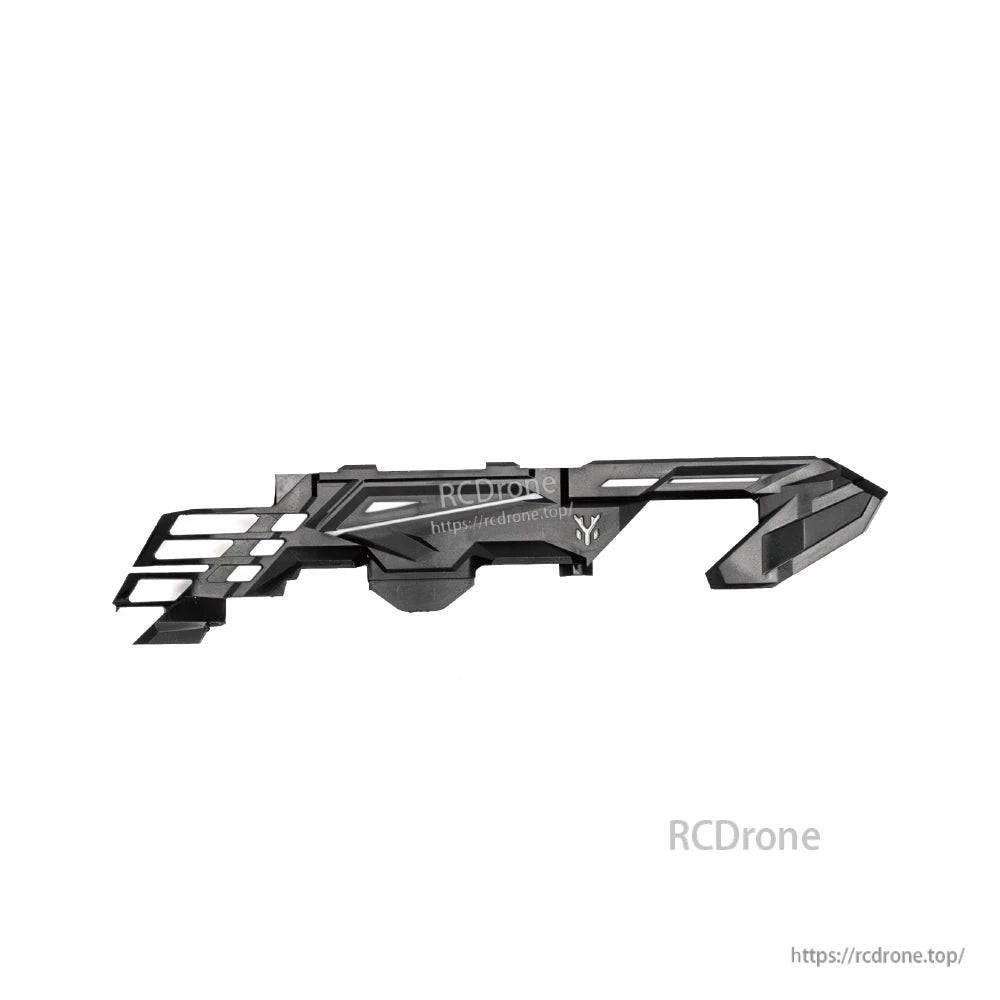

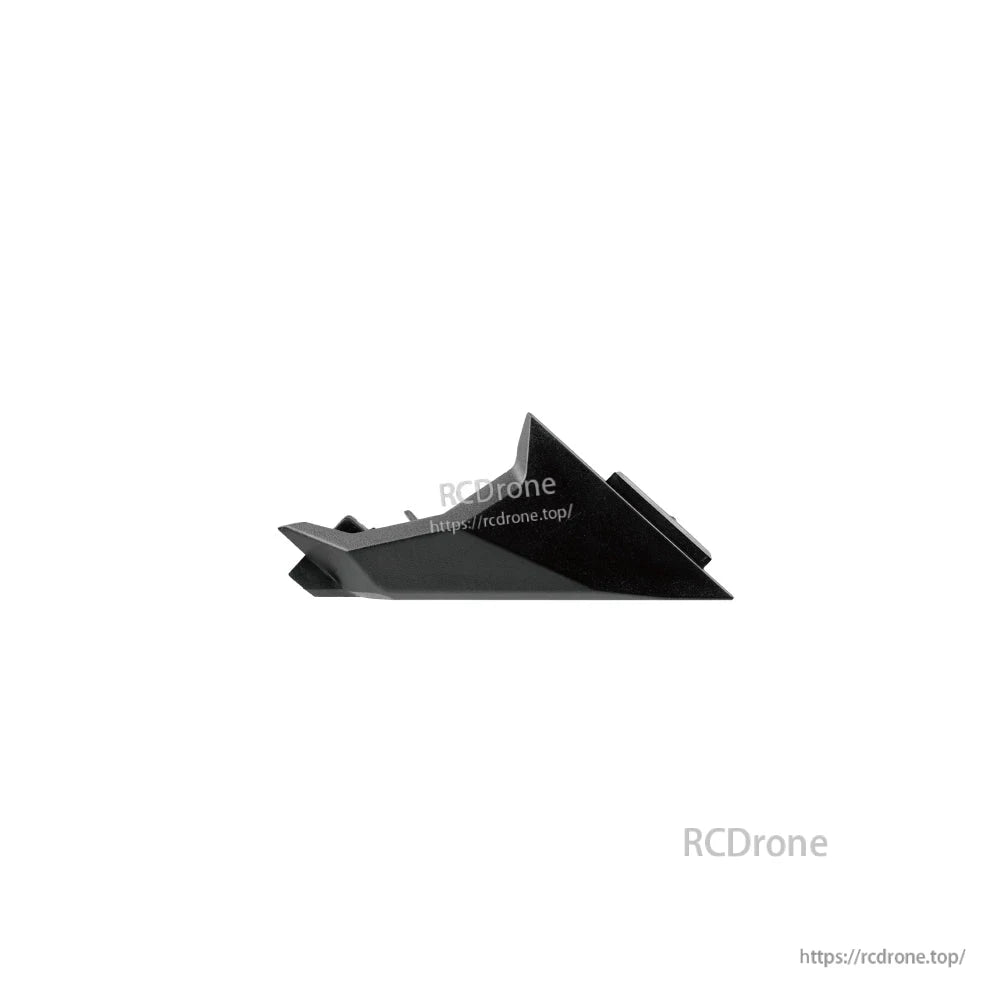

Side plate L x1

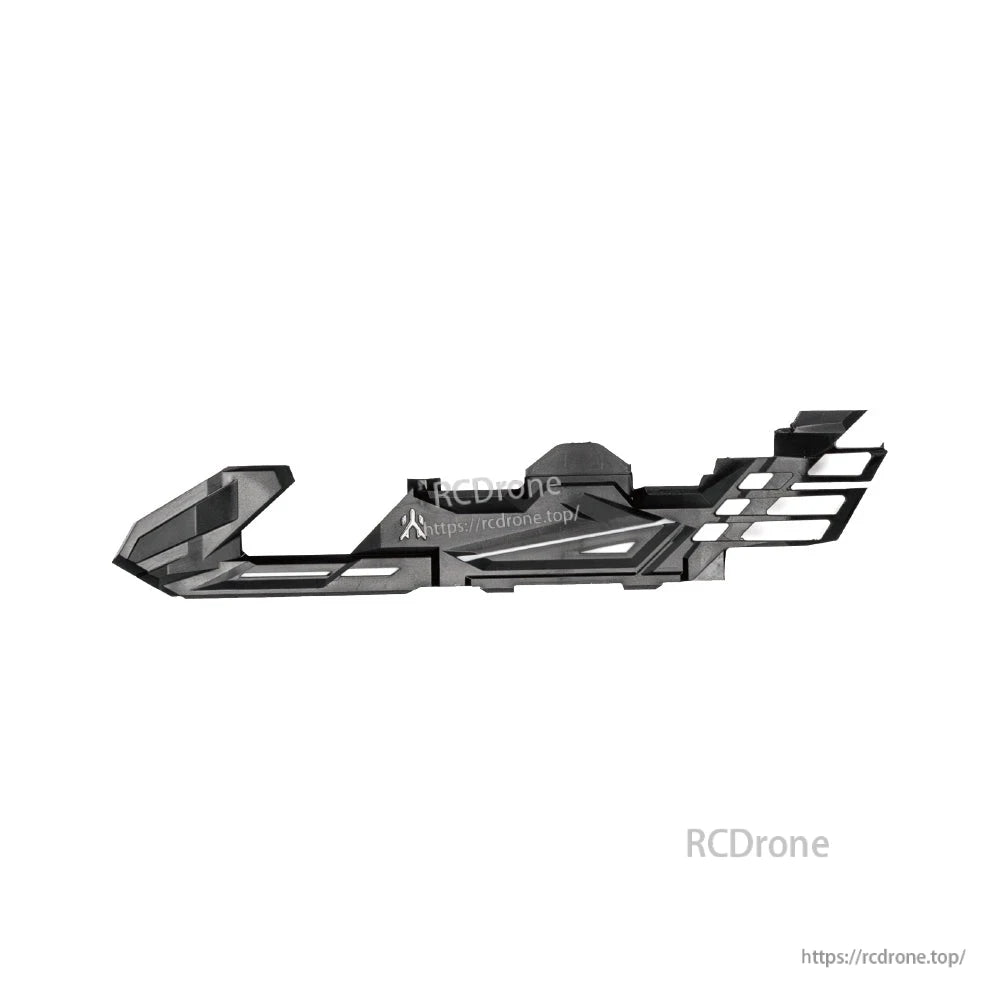

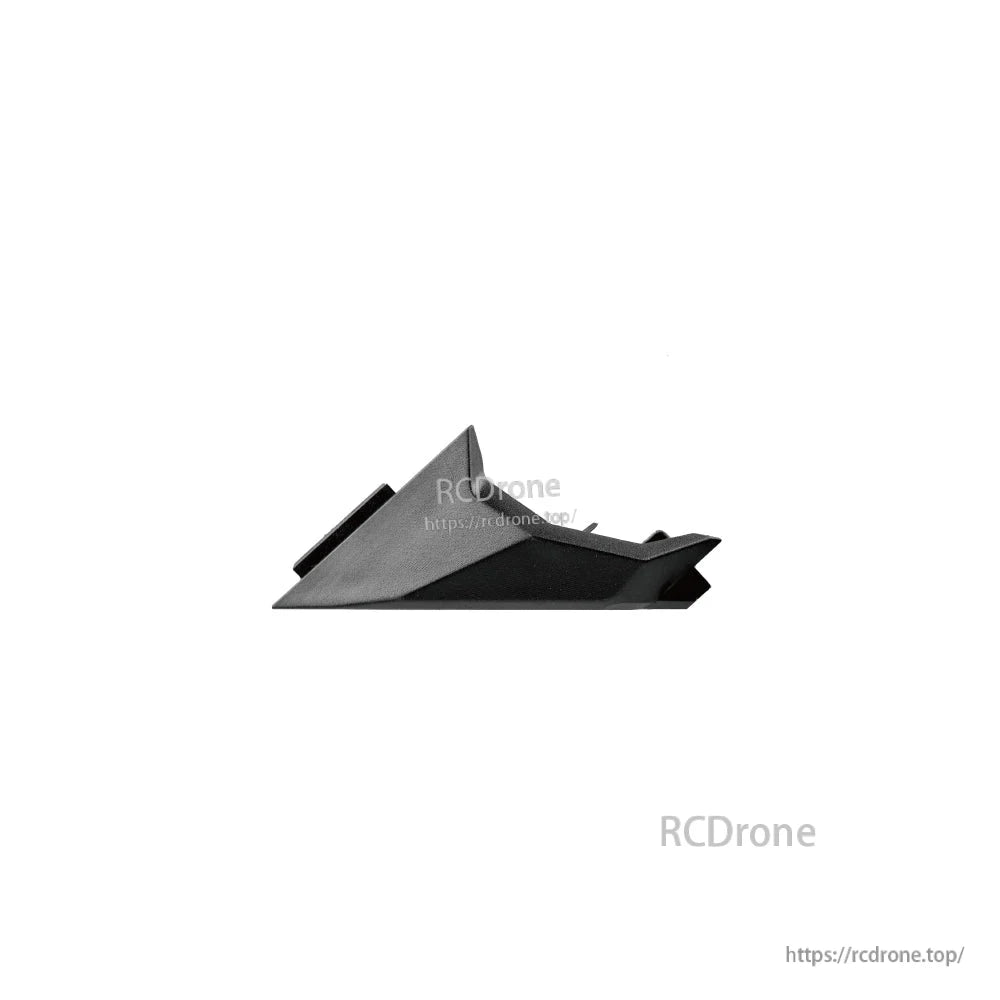

Side plate R x1

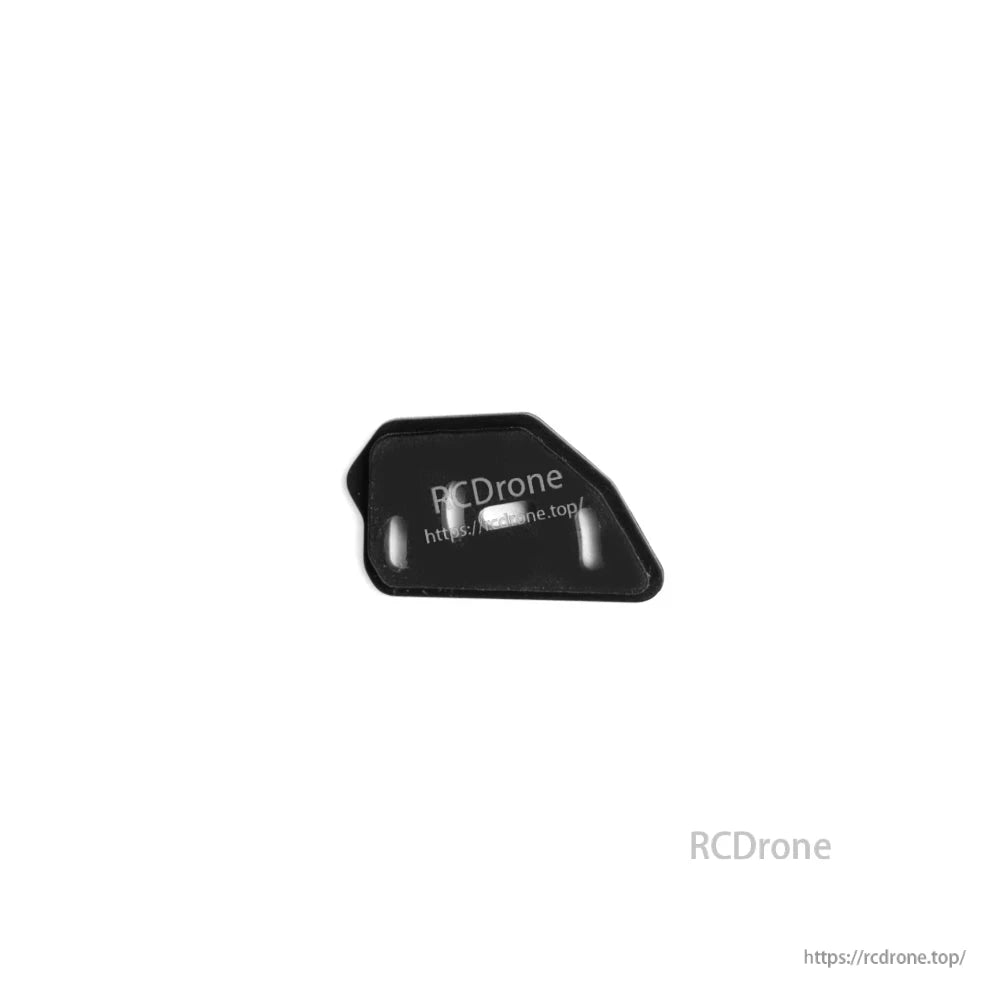

Side sub-plate L x1

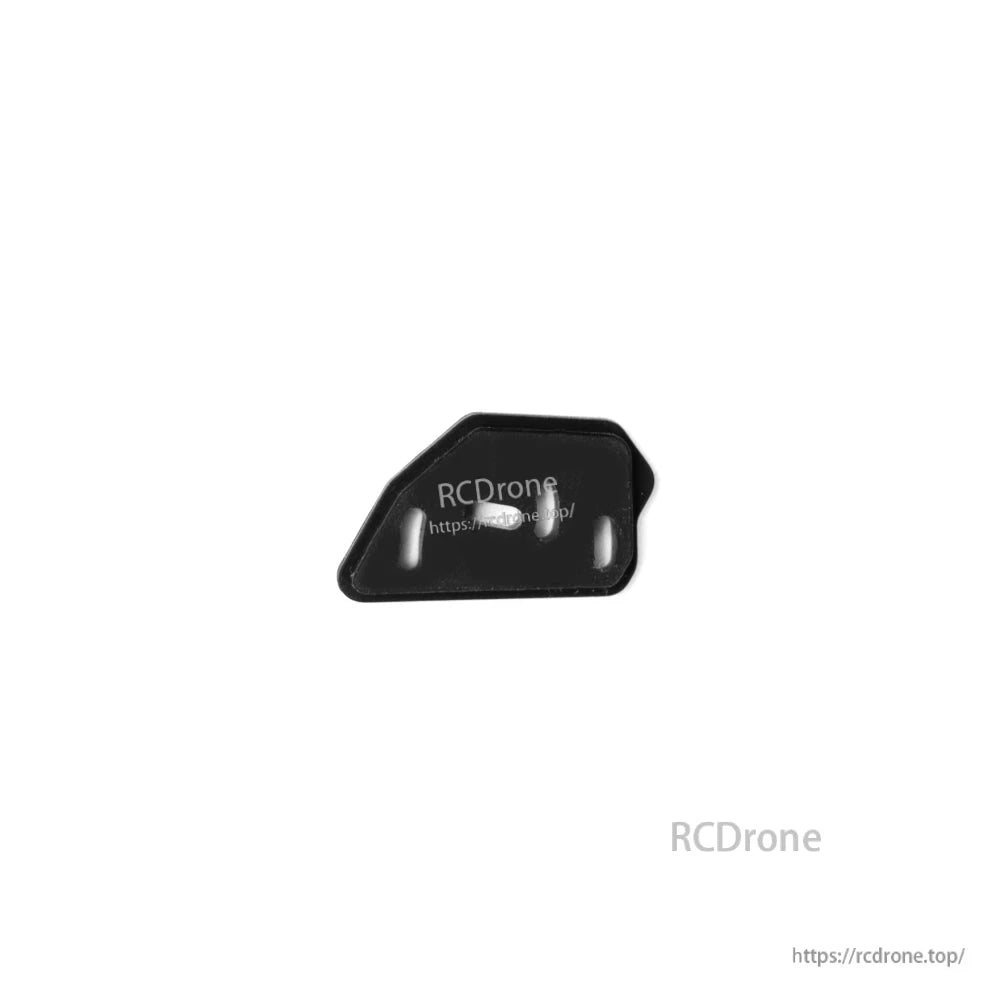

Side sub-plate R x1
Bottom light bar cover x1
Bottom front light cover x1
Head cover x1
BLE adapter small board / BLE adapter board x1
Bottom light bar / base light strip x1
0.8 mm piercing terminal wire 6P x1
0.8 mm piercing terminal wire 9P–3P*3 x1
XT60EW-M male head / XT60 plug x1
PVC cable bundle 50 mm x4
PVC transparent black wire tube (length 50 mm x width 10 mm x height 4.6 mm) x4
Silicone cable (red/black), cable length 12 cm x1
φ6 x 15 mm heat shrink tubing (red/black) x1
Light board cable (length 60 mm) x2
HGLRC battery strap x2
HGLRC battery cable tie 20 x 250 mm x2
HGLRC 2023 large sticker x1
Universal QR code instruction manual x1
Nblade MAX Frame packaging box x1

Screw / Hardware List

M3*5 half round head x2
M3*18 half round head x4
M3*12 half round head x4
M3*30 half round head x4
M3*8 half round head x6
M3*10 half round head x4
M3*6 countersunk head x4
M2*4 countersunk head x2
M2*4 round head x2
M2*9 cup head x2
M2*8 round head x2
M2*22 hexagonal aluminum column x1
M3*23 hexagonal aluminum column x6
Semi-circular head M5*20 x1
Self-locking M5 nut x1

For installation/build questions or help confirming parts, contact support@rcdrone.top or https://rcdrone.top/.

Applications

5-inch freestyle FPV builds (DC or True X / Positive X)
Cinematic FPV builds with HD (DJI O3 / DJI O4) or analog camera systems

Details

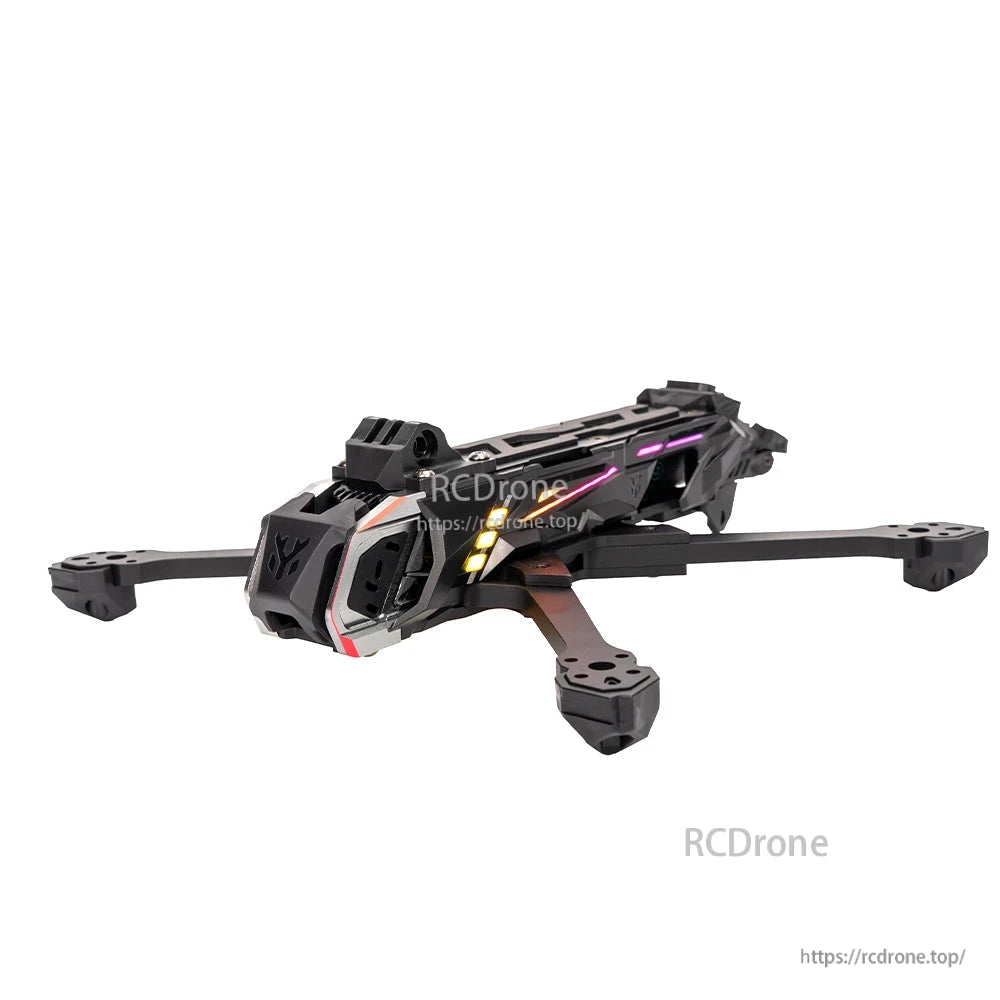

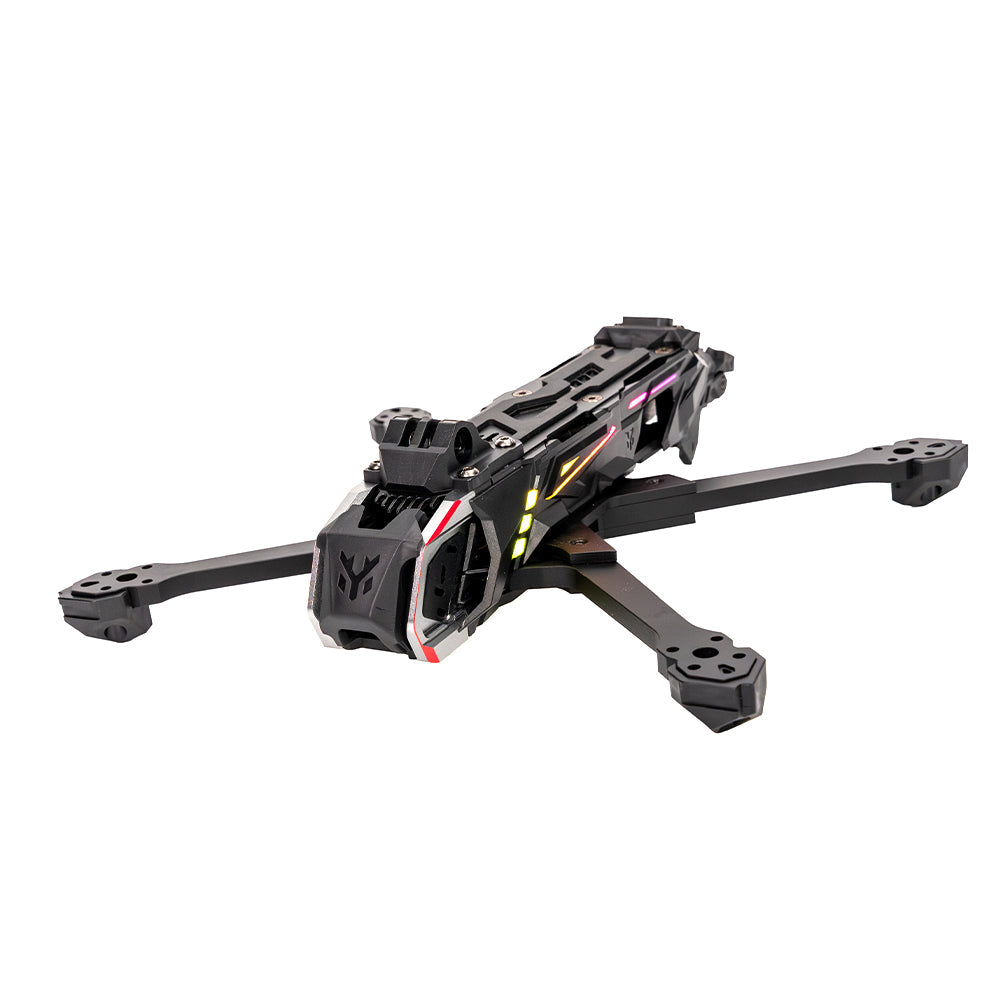

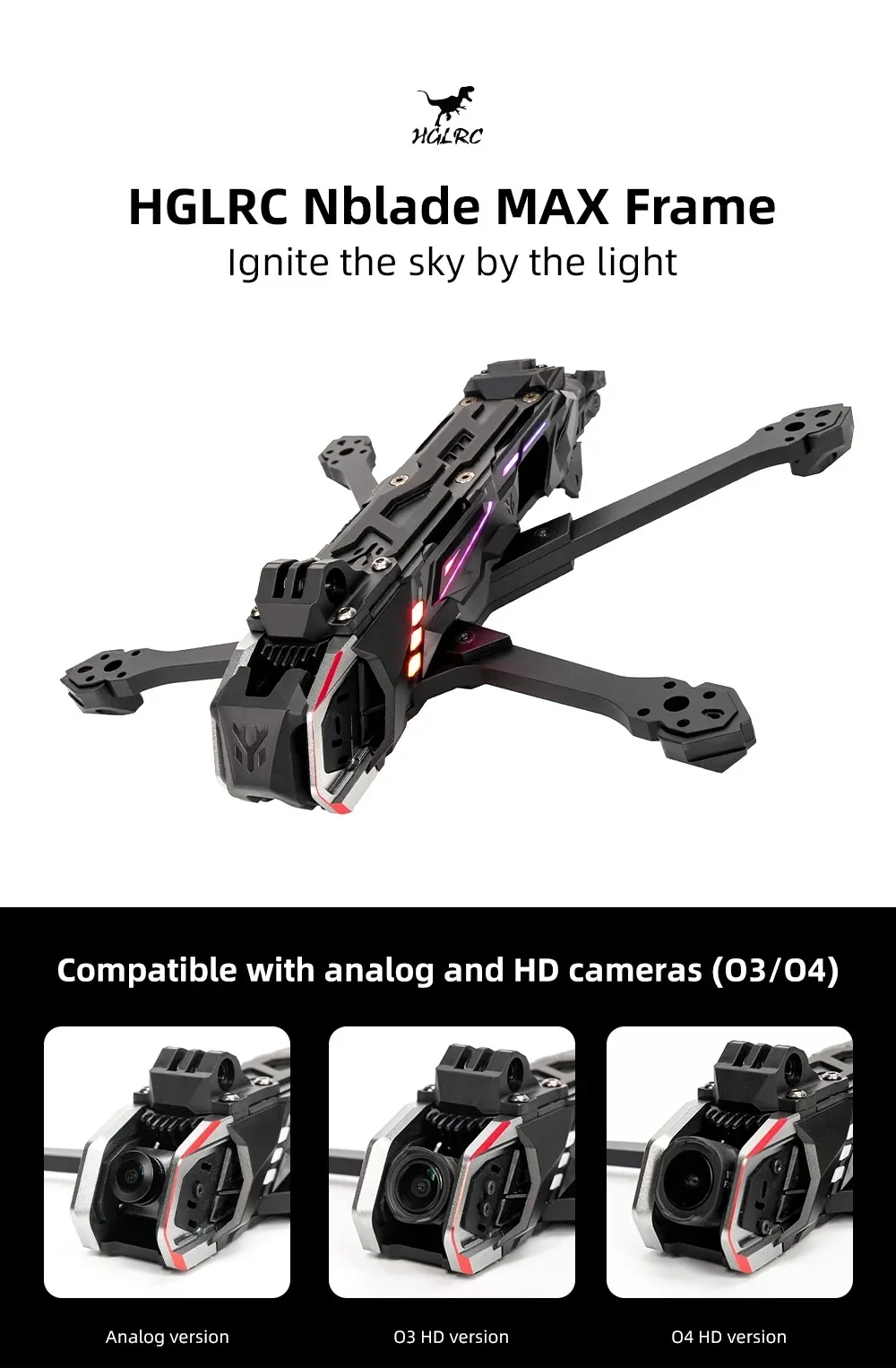

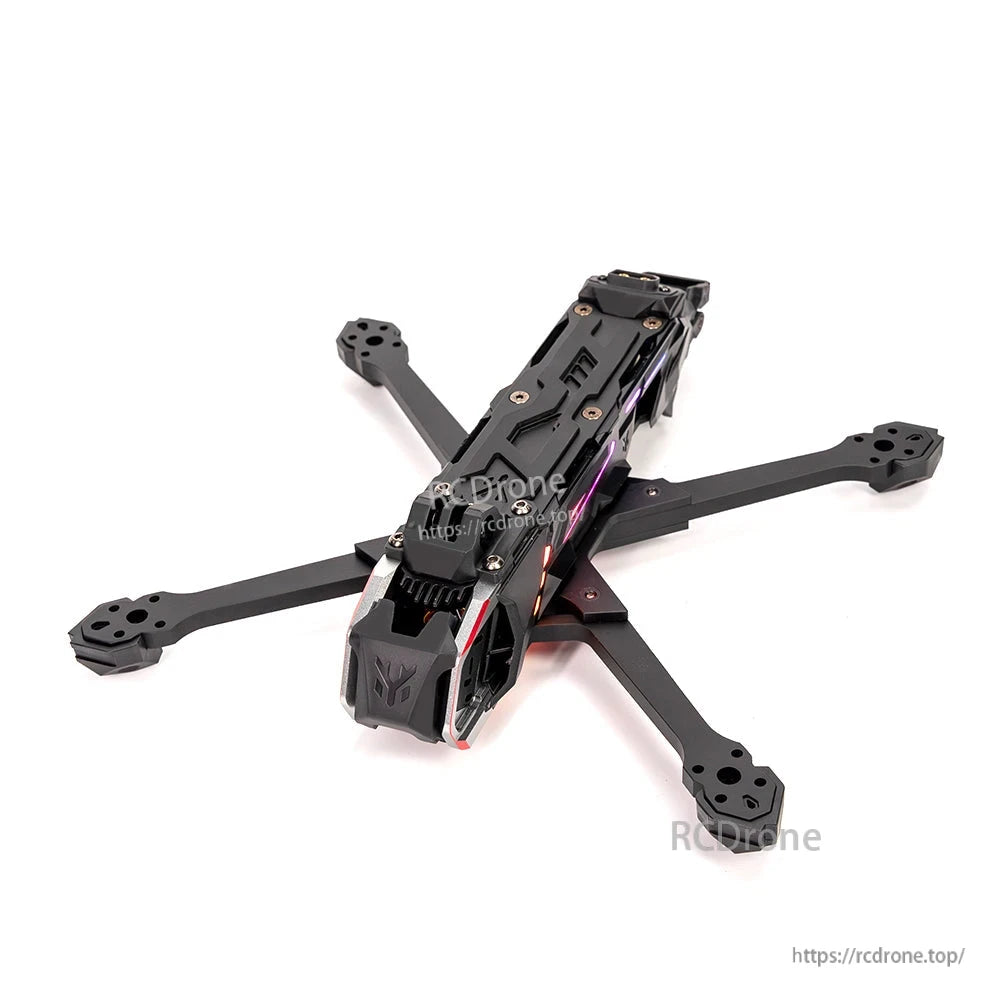

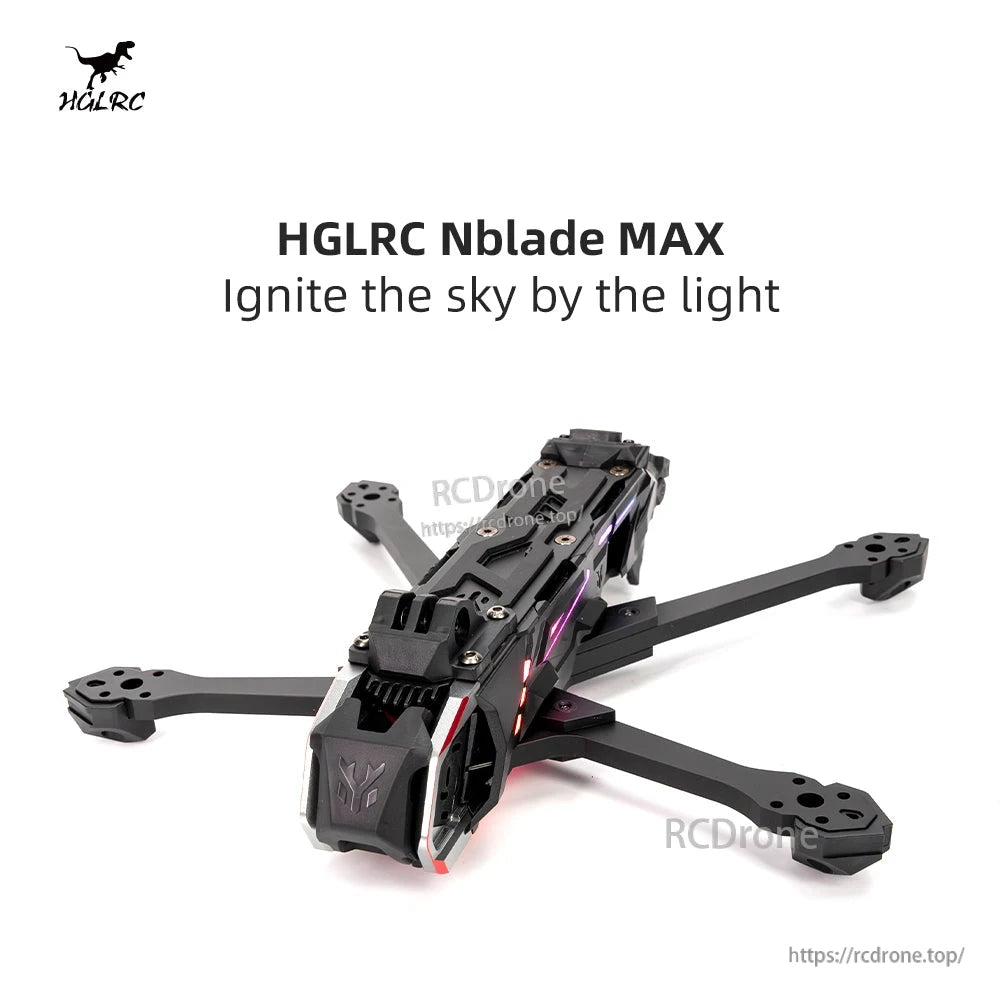

HGLRC Nblade MAX 5-Inch FPV Frame with RGB lighting, compatible with analog and DJI O3/O4 cameras

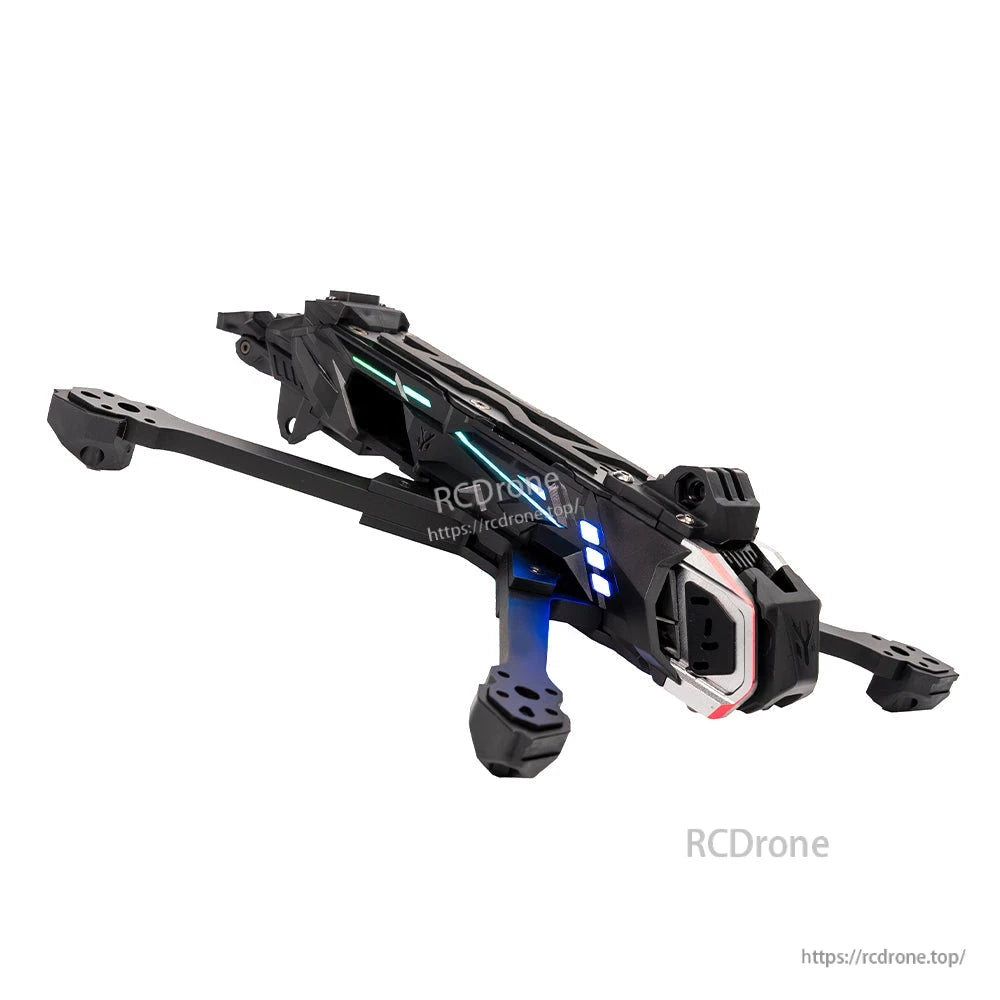

Integrated RGB light strips add visibility and style while supporting analog and HD (DJI O3/O4) camera builds.

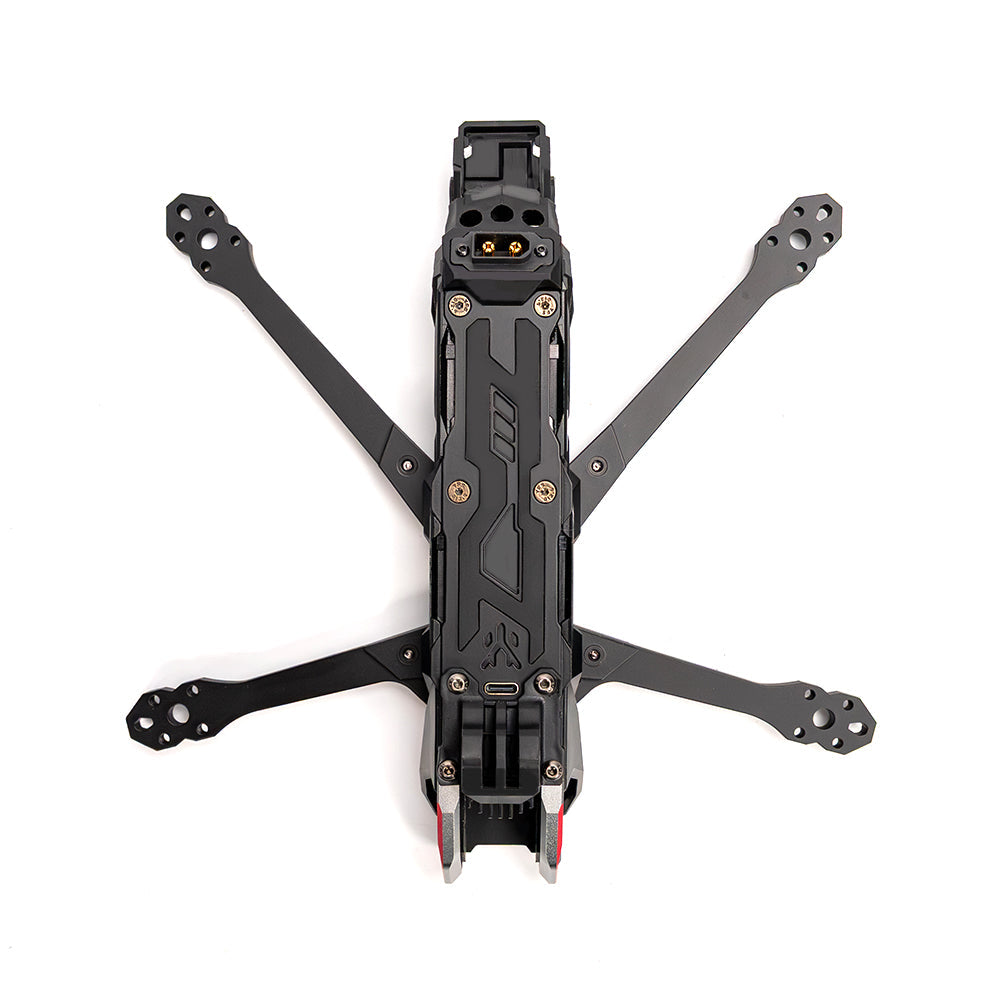

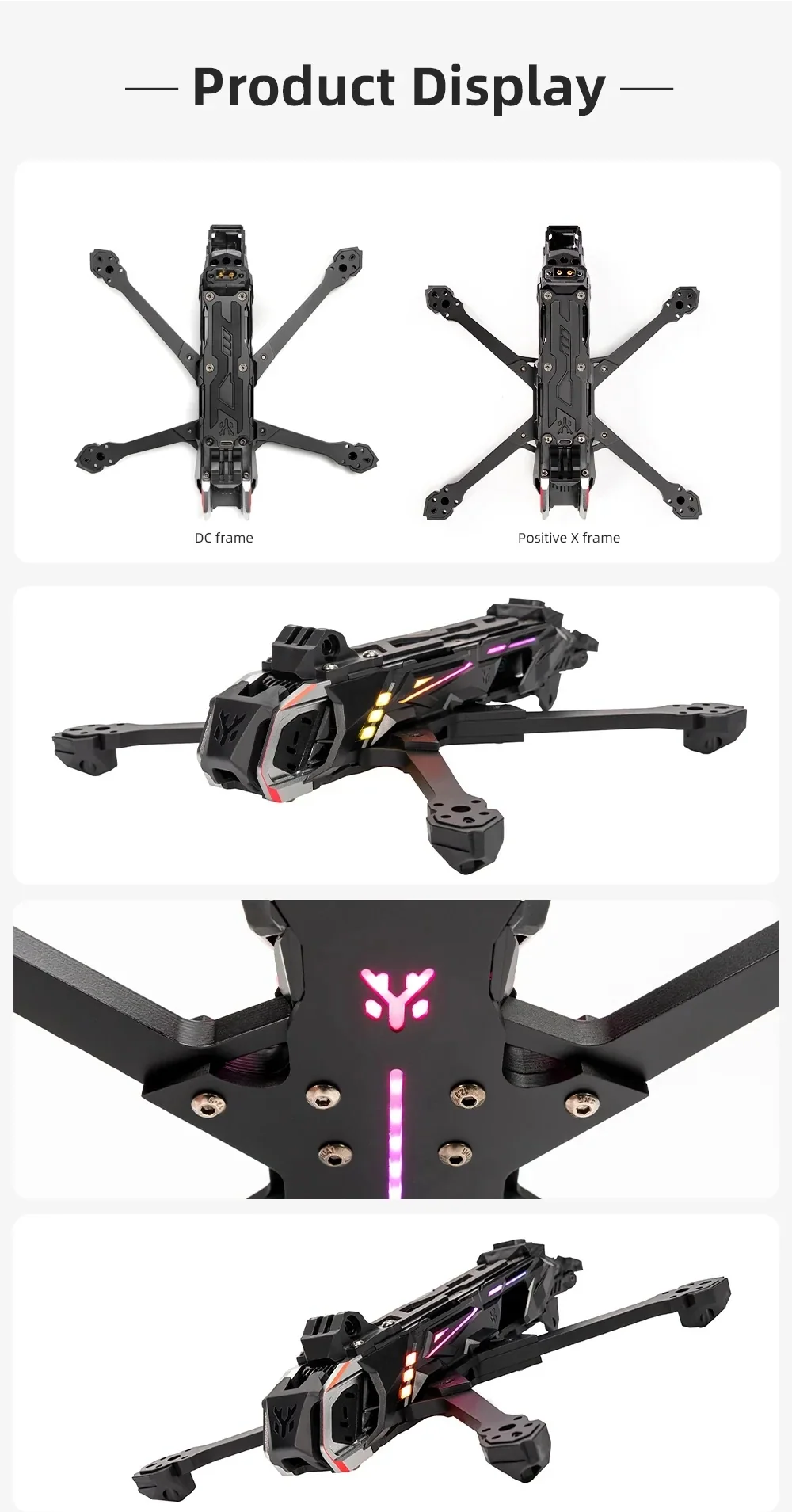

Choose DC or True X geometry to match your flying style, with a streamlined body and full side-plate protection.

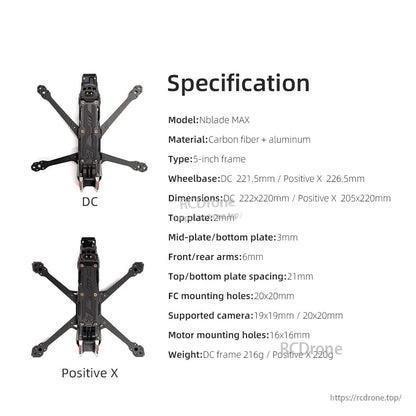

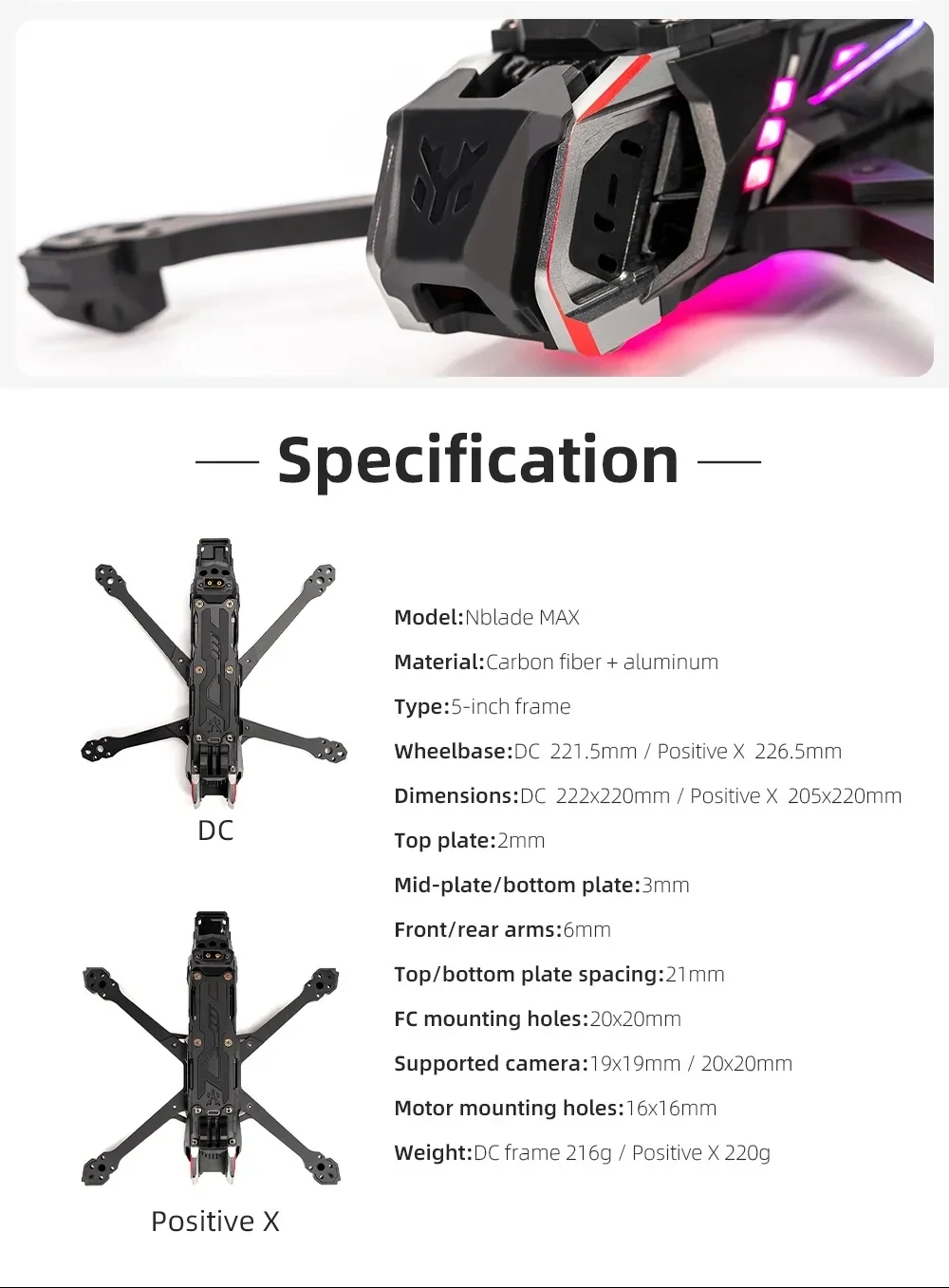

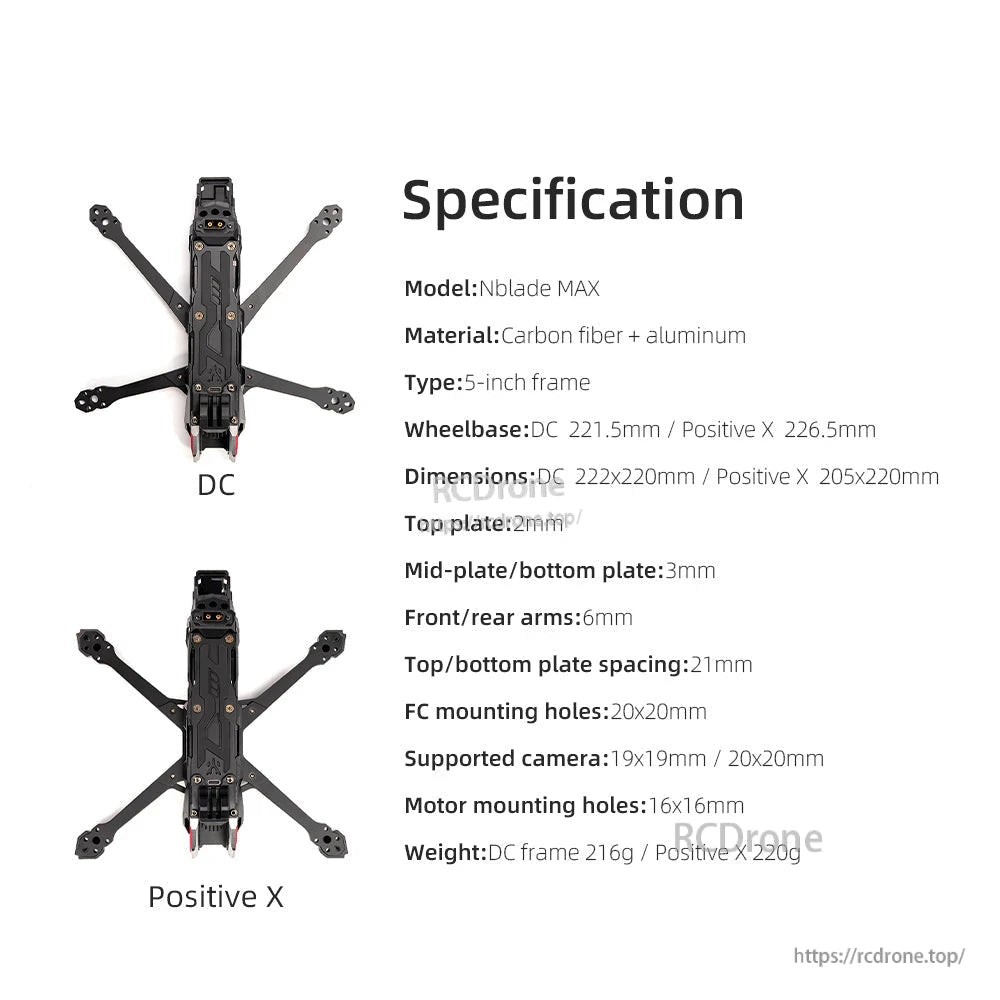

Nblade MAX specification chart with material, wheelbase, plate thickness, and mounting hole details

Key dimensions and mounting patterns are laid out for planning your stack, motors, and camera installation.

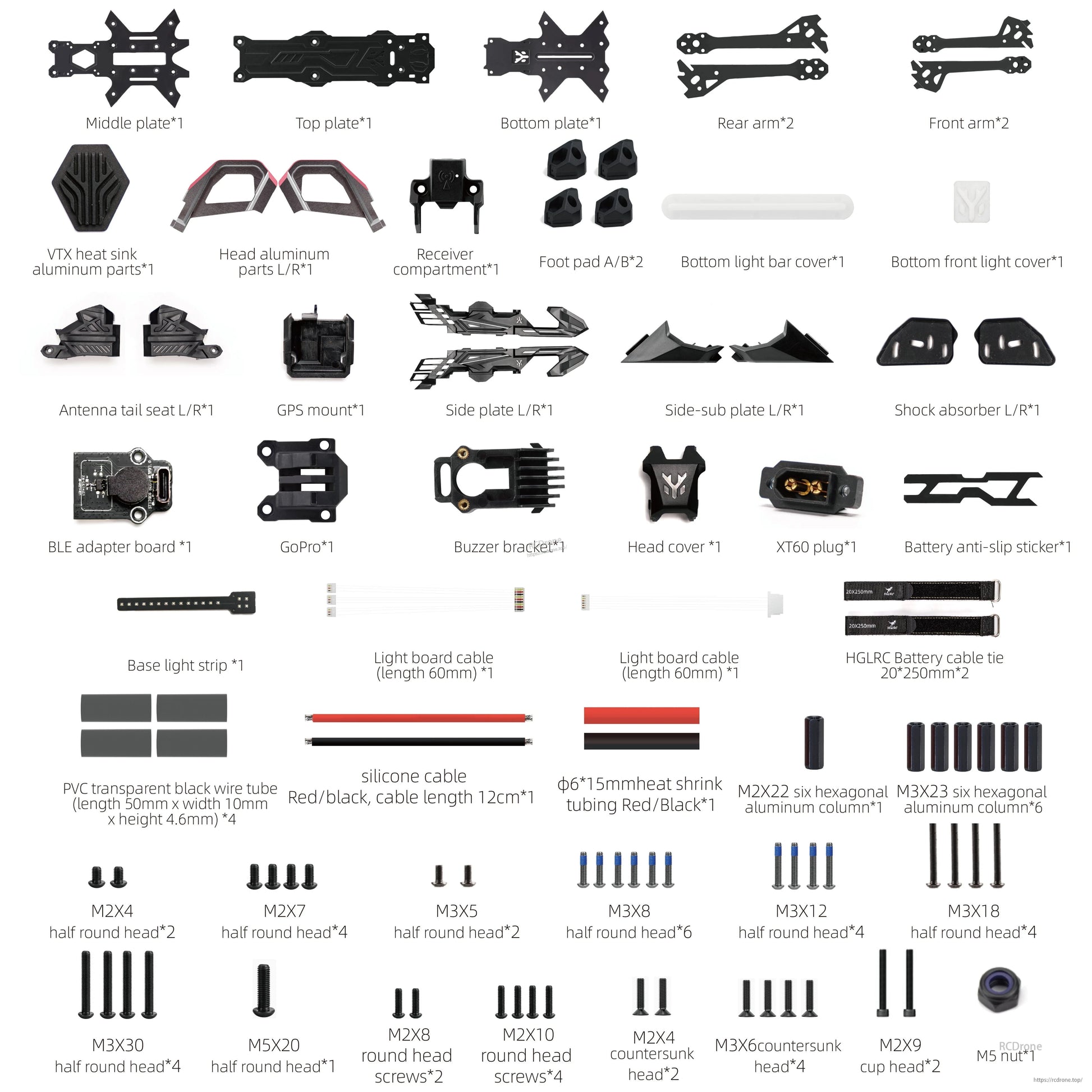

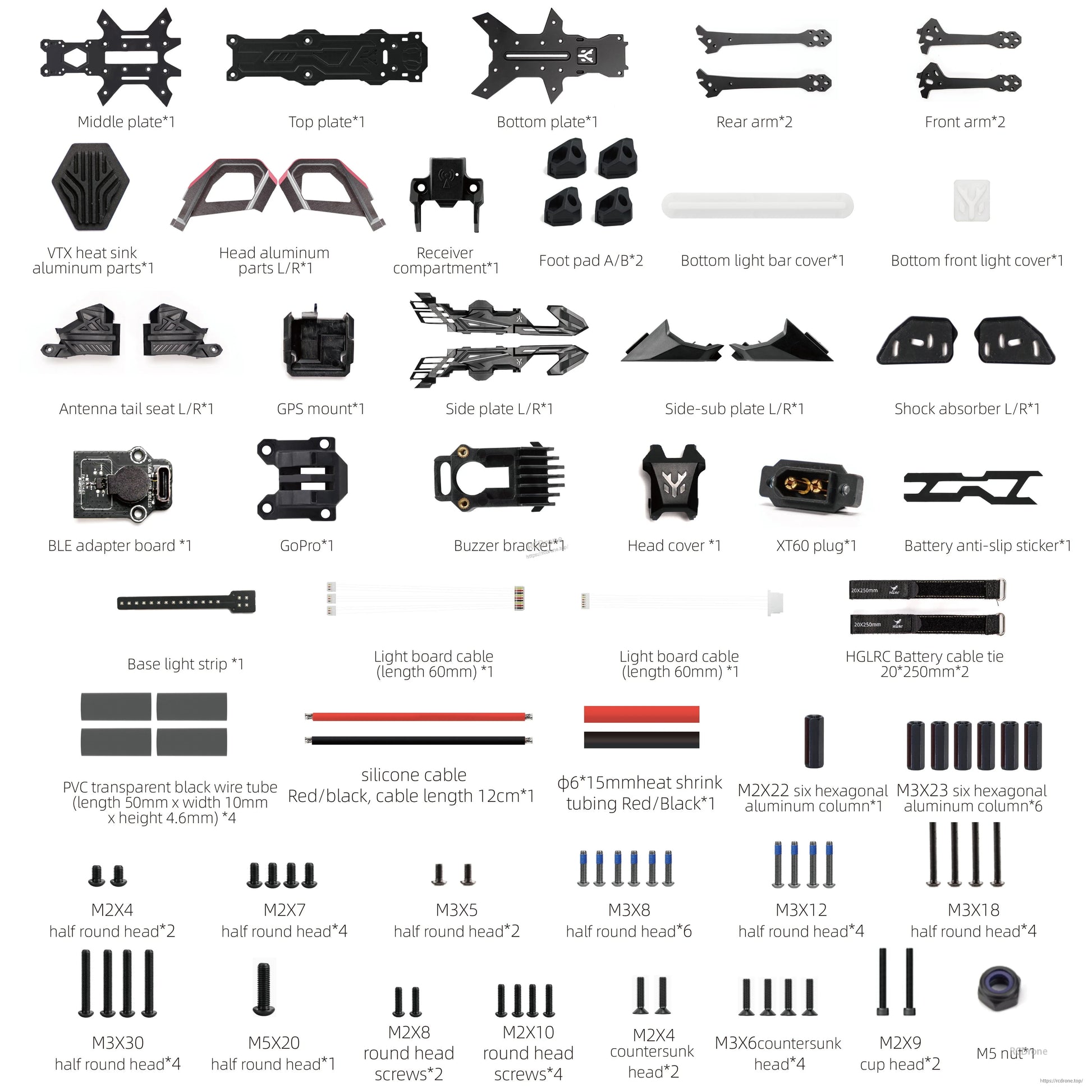

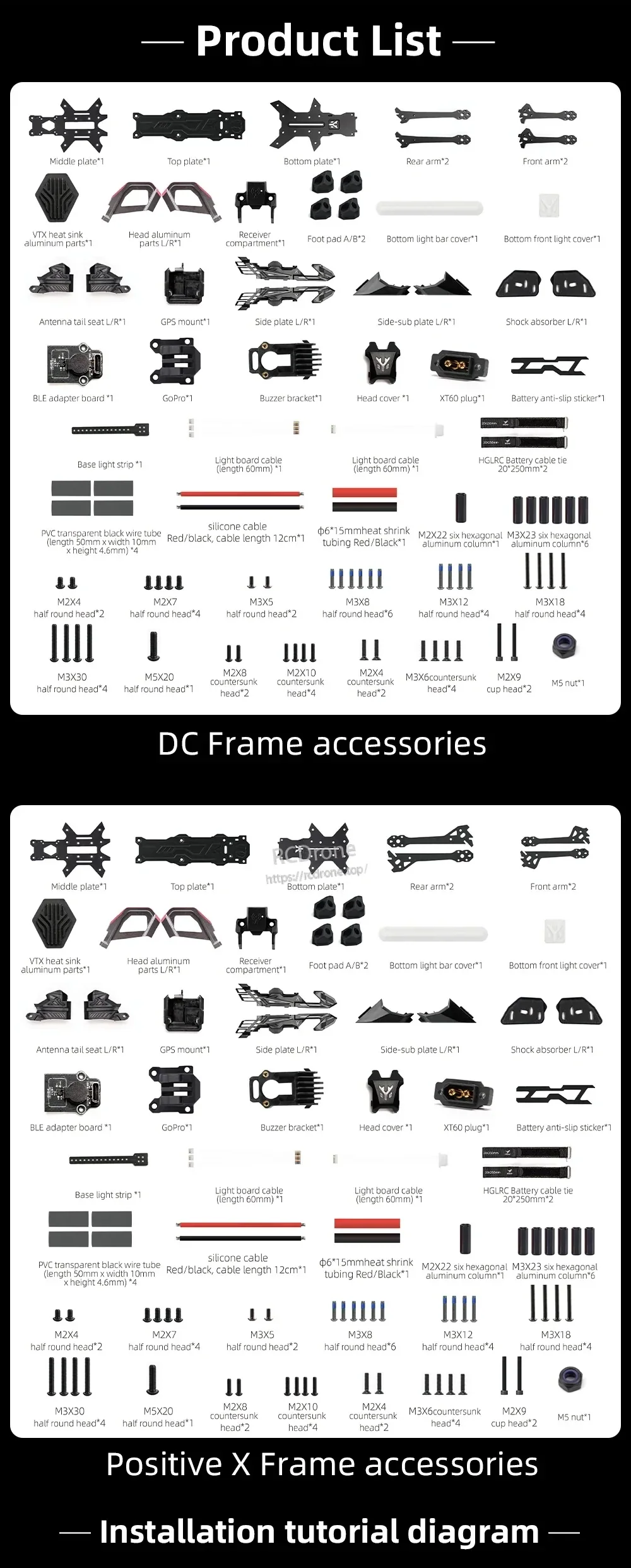

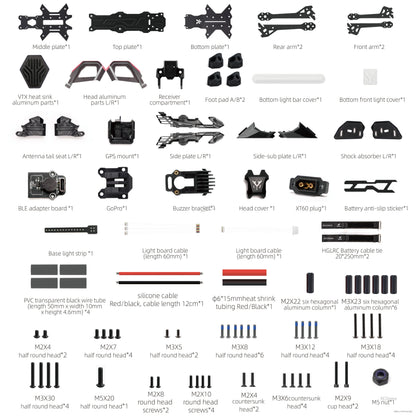

Parts list for Nblade MAX frame kit showing included plates, arms, hardware, mounts, and accessories (DC/True X)

The kit includes frame plates, arms, protective parts, mounts, and hardware for a complete build.

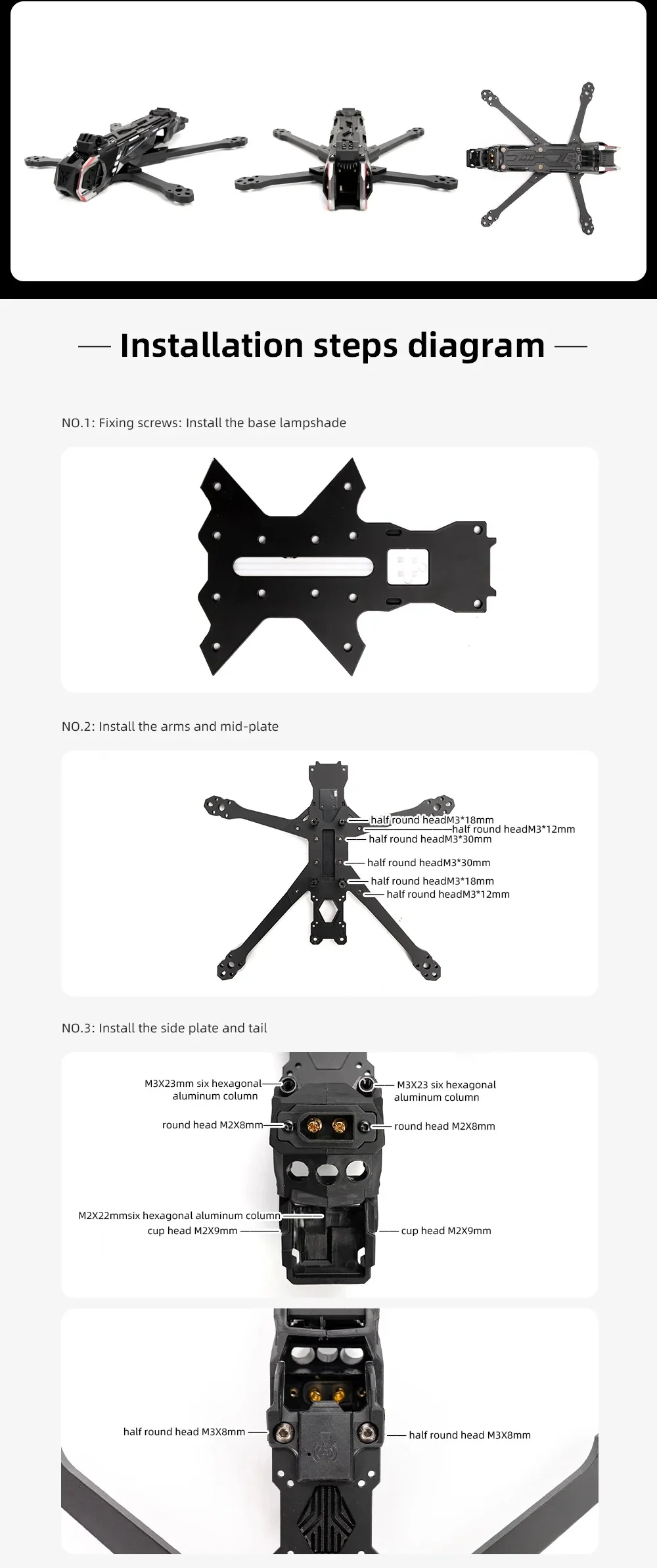

Installation steps diagram for assembling the base plate, arms, mid plate, and electronics stack on the frame

Step-by-step assembly guidance helps speed up the initial build and component placement.

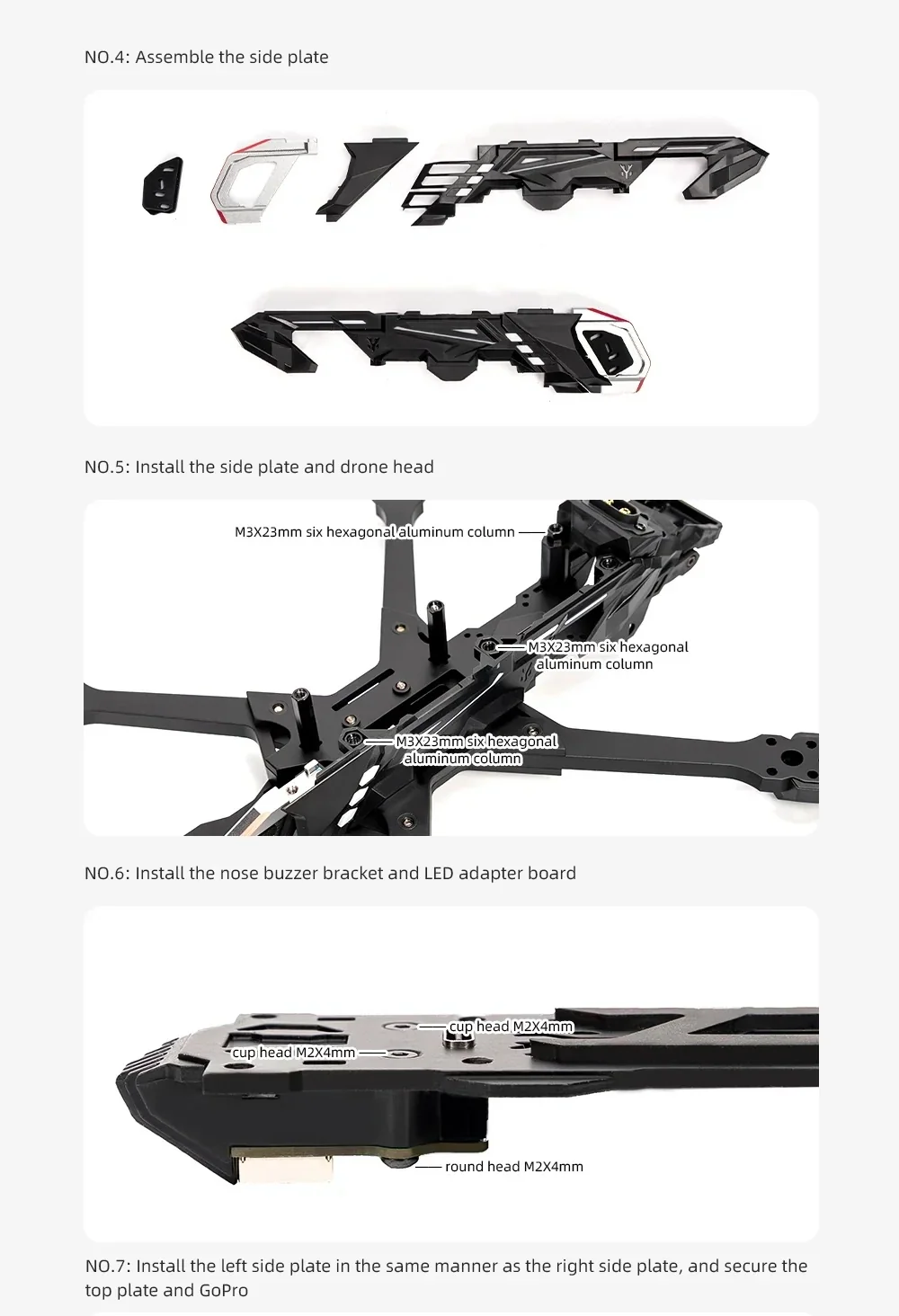

Side plate and drone head assembly steps showing aluminum columns, screw sizes, and LED adapter board placement

Side plates and the modular head go together with labeled hardware, including space for the LED adapter board.

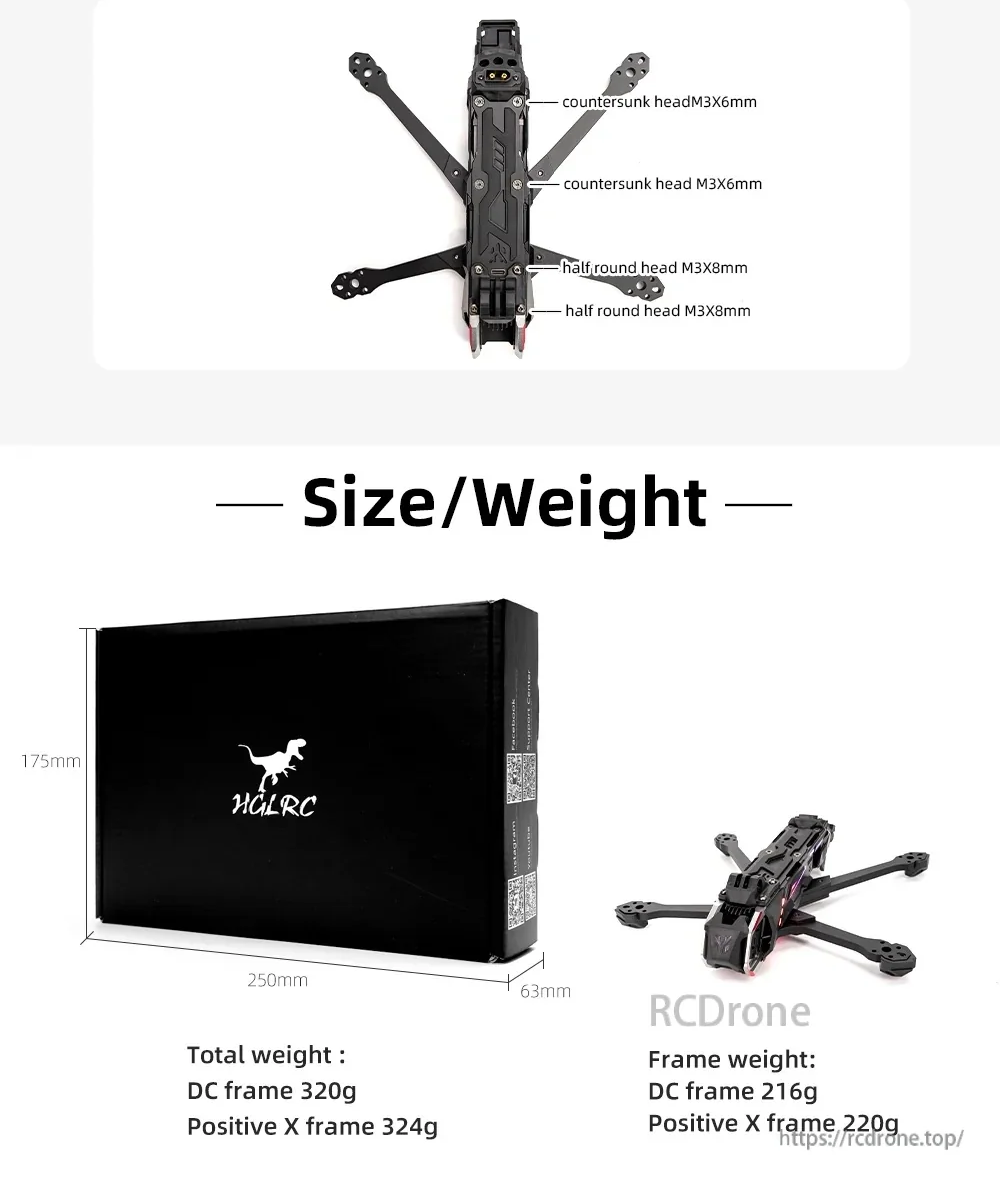

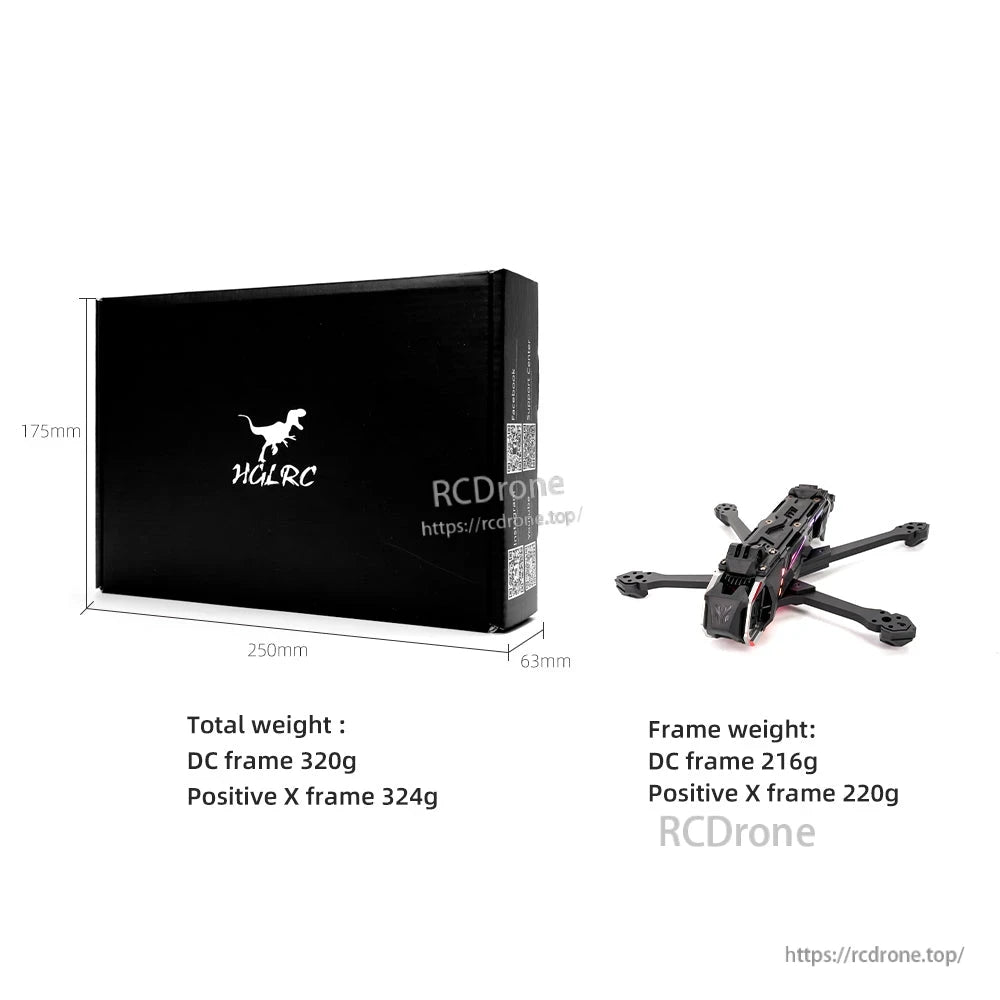

Size and weight chart for HGLRC Nblade MAX 5-inch FPV frame with packaging dimensions and frame weight (DC/True X)

Frame and package measurements make it easier to estimate final build weight and shipping size.
