Overview

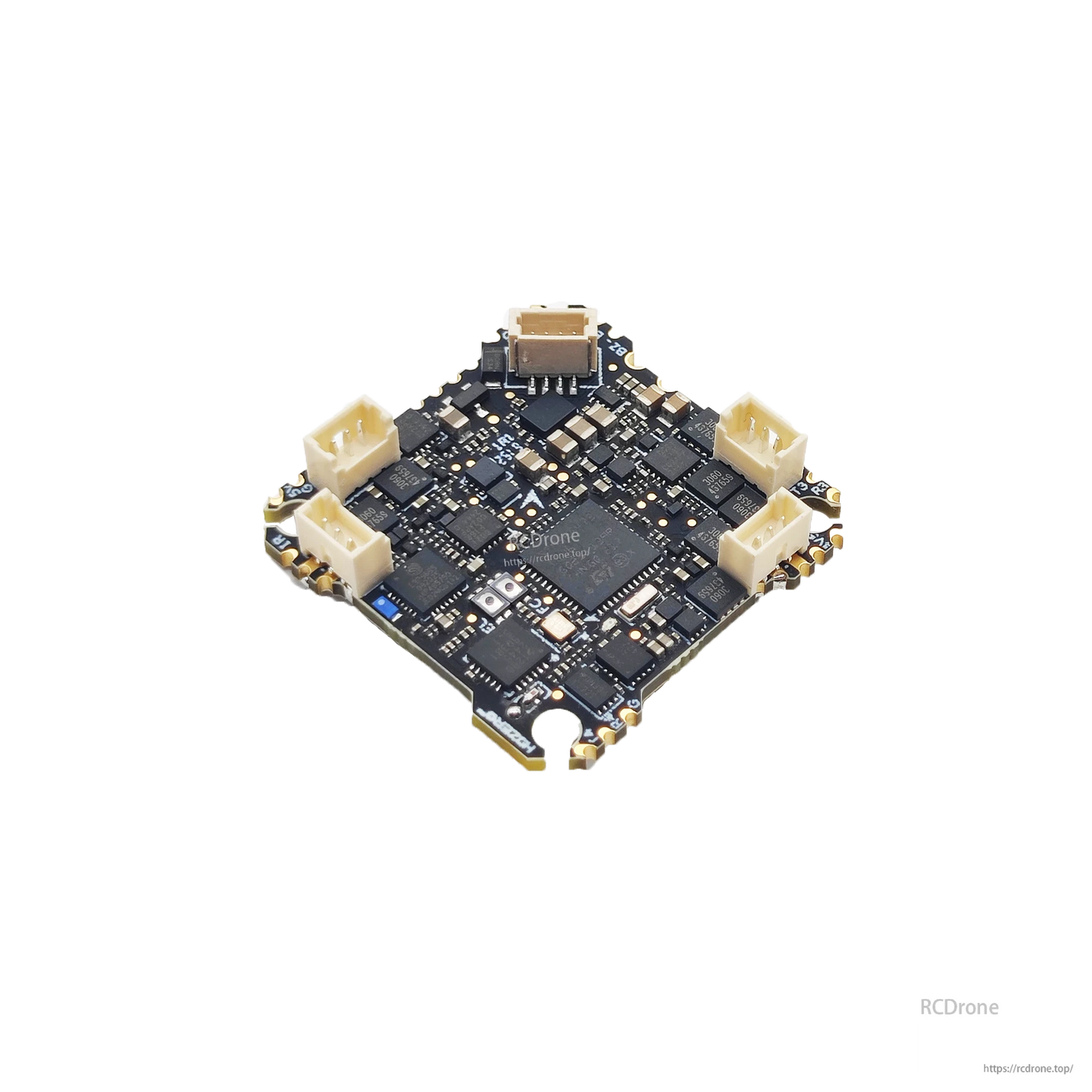

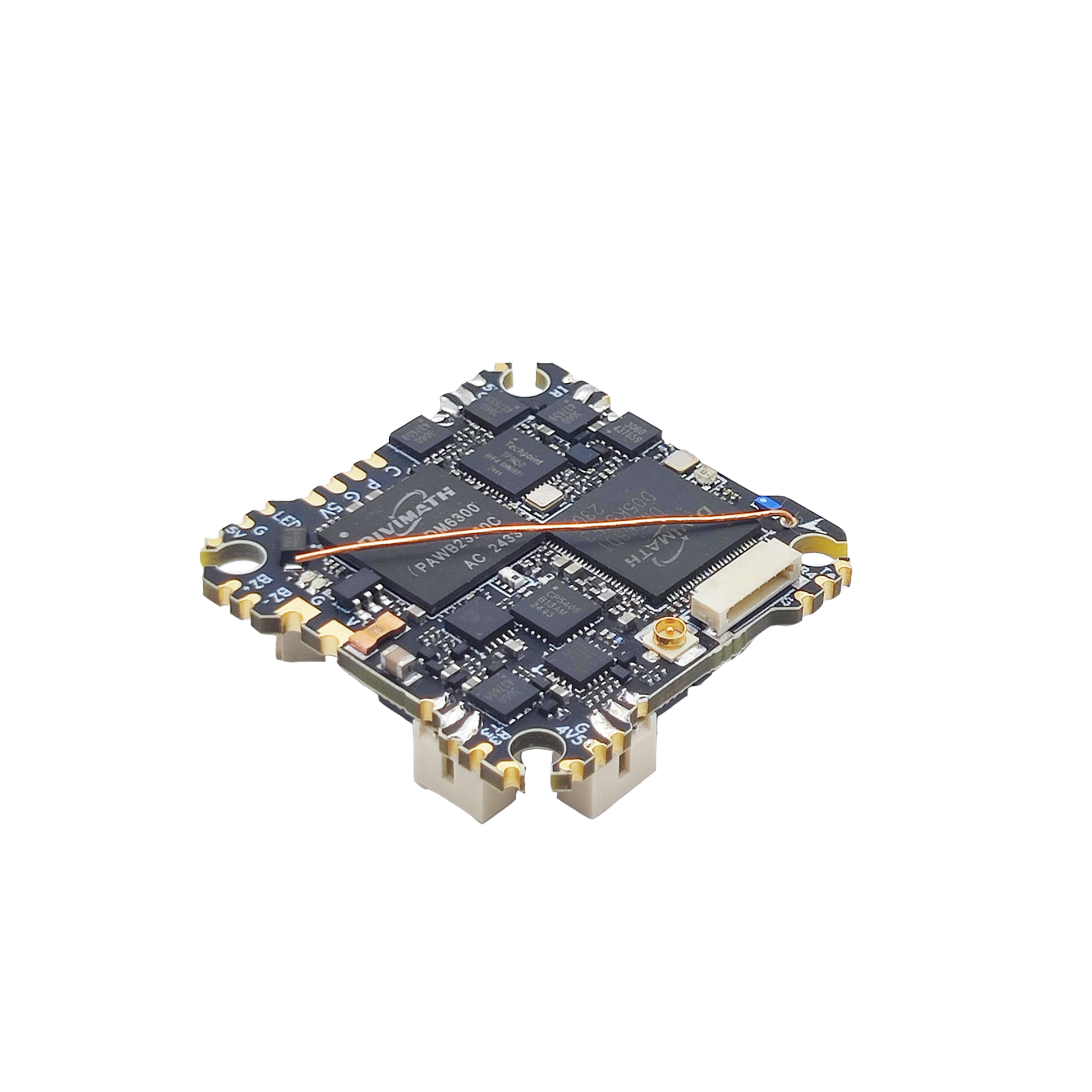

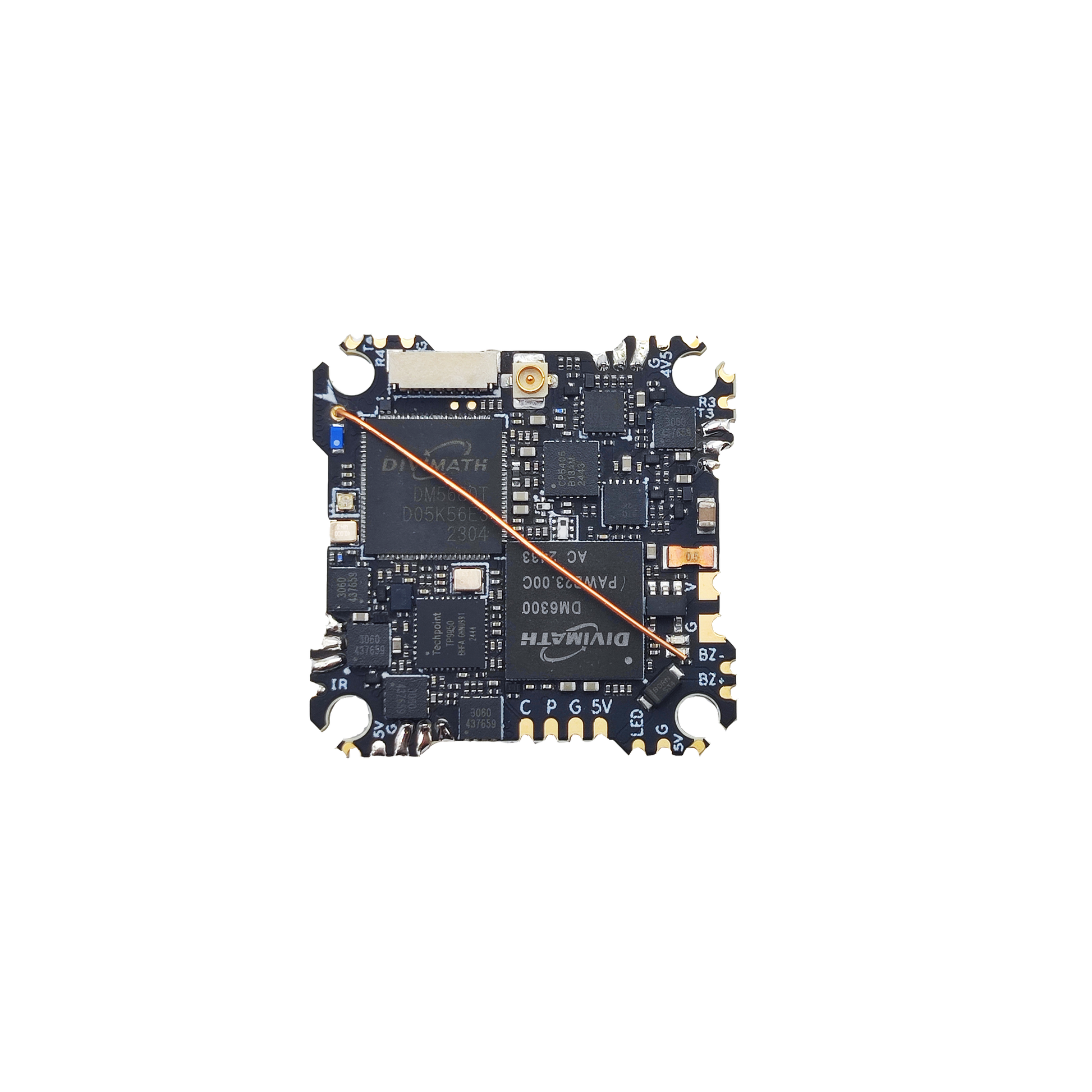

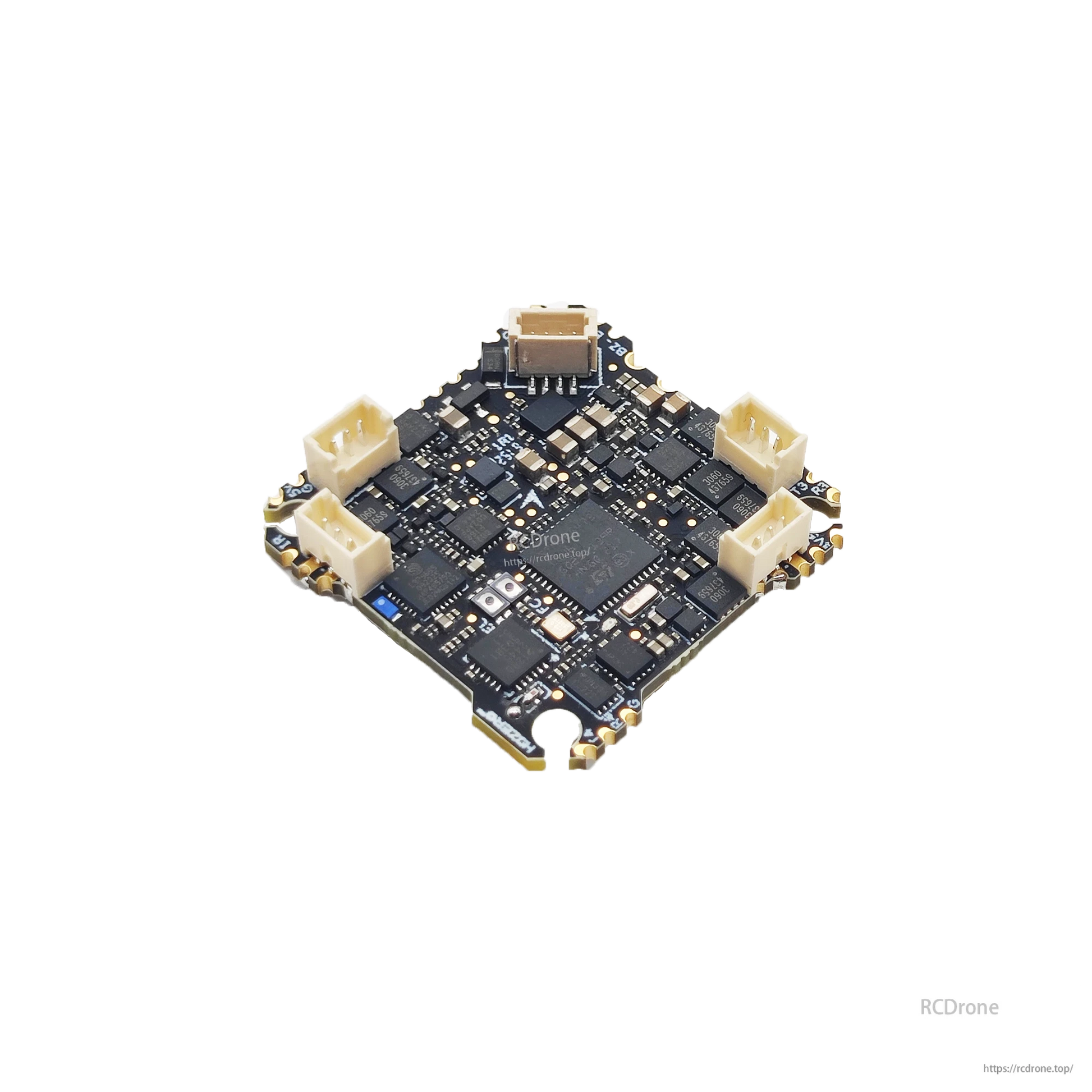

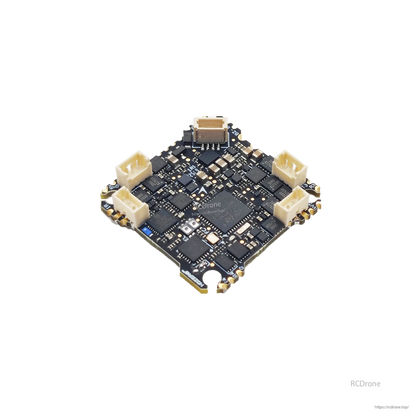

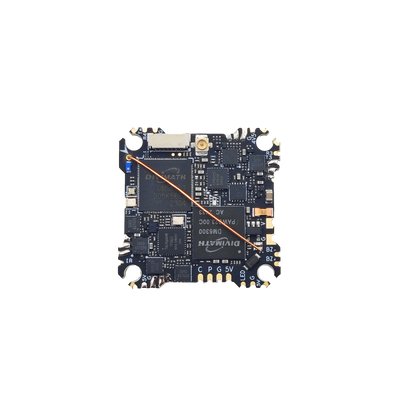

HDZero AIO15 is a digital AIO flight system for 2S–3S tiny whoops and micro freestyle builds, integrating a flight controller, HDZero digital video transmitter (VTX), 4-in-1 ESC, serial ExpressLRS receiver, and 5V BEC on a compact 31.3 x 31.3 mm board.

AIO15 inputs HD composite video via a single wire (instead of a MIPI cable) and is compatible with LUX/Eco Camera.

Key Features

Integrated HDZero 5.8GHz digital VTX
- Output power: 25mW / 200mW
- Channels: R1–R8, F2/F4, L1–L8
- U.FL connector (includes ultra-light linear antenna)
Built-in serial ExpressLRS 2.4GHz receiver
- Packet rates: 50–1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
- Pre-soldered enamel wire antenna
Flight controller
- MCU: STM32G473 @ 170MHz, 512K Flash
- Gyro: ICM42688
- Onboard voltage and current sensing
- Firmware target: HDZERO_AIO15
4-in-1 15A ESC
- MCU: EFM8BB21
- Current: 15A x4 continuous, 18A x4 peak (3s)
- Firmware: BlueJay (Z_H_30_48_v0.19.2)
- DShot600 ready
5V BEC
- 5V @ 1A output (for accessories and camera)

Specifications

Battery input	2S–3S (3.5V–13V)
Mounting	25.5 x 25.5 mm, M2
Board dimensions	31.3 x 31.3 mm
Weight	7.2 g (with motor plugs)
VTX	HDZero 5.8GHz, 25mW / 200mW; channels R1–R8, F2/F4, L1–L8; U.FL
Receiver	Serial ExpressLRS 2.4GHz; 50–1000Hz (50/100/150/250/333/500/D250/D500/F500/F1000Hz)
Flight controller	STM32G473 @ 170MHz, 512K Flash; gyro ICM42688; voltage/current sensing; target `HDZERO_AIO15`
ESC	EFM8BB21; 15A x4 continuous, 18A x4 peak (3s); BlueJay Z_H_30_48_v0.19.2; DShot600 ready
BEC	5V @ 1A
Compatibility	Fits popular whoop frames
